基于改进ED及CM-BPNN算法的保护测量回路误差状态评估方法

易亚文¹^,²(), 赵静朴², 柳灿³, 蒋焮焮², 李方玖², 李振兴³

1. 武汉大学电气与自动化学院，湖北武汉　430072
2. 中国长江电力股份有限公司，湖北武汉　430010
3. 三峡大学电气与新能源学院，湖北宜昌　443002

收稿日期:2023-08-14 出版日期:2023-11-28 发布日期:2023-11-28
作者简介:易亚文（1979—），男，通信作者，高级工程师，从事水电站运行与维护研究，E-mail： 1729686912@qq.com
基金资助:
国家自然科学基金资助项目（大规模电力外送通道重合闸所致重大风险分析与规避控制策略研究，52077120）；长江电力股份有限公司科技项目（向家坝电站基于主动测评与多参信息差异的保护及测量装置状态评估与在线诊断，Z422202011）。

Error Status Evaluation Method for Protection Measurement Circuit Based on Improved ED and CM-BPNN Algorithms

Yawen YI¹^,²(), Jingpu ZHAO², Can LIU³, Xinxin JIANG², Fangjiu LI², Zhenxing LI³

1. School of Electrical Engineering and Automation, Wuhan University, Wuhan 430072, China
2. China Yangtze Power Co., Ltd., Wuhan 430010, China
3. College of Electrical Engineering and New Energy, China Three Gorges University, Yichang 443002, China

Received:2023-08-14 Online:2023-11-28 Published:2023-11-28
Supported by:
This work is supported by National Natural Science Foundation of China (Research on Major Risk Analysis and Control Strategy by Reclosing for Large-Scale Power Transmission Channel, No.52077120) and Science & Technology Project of China Yangtze Power Co., Ltd. (Xiangjiaba Power Station is Based on Active Evaluation and Multi-reference Information Difference Protection and Measurement Device Status Assessment and Online Diagnosis, No.Z422202011).

摘要/Abstract

摘要：

通过对保护测量回路误差状态进行准确评估，能掌握保护装置运行情况并及时发现保护装置存在的隐患。提出了一种基于改进欧氏距离（euclidean distance，ED）及云模型-BP神经网络（cloud model-back propagation neural metwork，CM-BPNN）算法的变电站保护测量回路误差状态评估方法。首先，对测量数据制定不同指标数据的归一化原则；其次，引入改进欧氏距离作为误差评估的启动判据，根据对保护动作性能的影响程度将误差状态进行等级划分并引入云模型计算二级指标的误差状态隶属度；最后，确定每一种误差状态对应的定位映射结果，完成BP神经网络模型的构建，再以此模型进行保护装置电流/电压未知误差状态的评估和定位。基于PSCAD软件搭建220 kV变电站模型，对所提方法的有效性进行验证。

关键词: 保护测量回路, 改进欧氏距离, 云模型, 神经网络

Abstract:

The accurate evaluation of the error status of the protection measurement circuit can help to understand the operation status of the protection devices, and to timely and effectively find the hidden dangers of the protection devices. This paper proposes an error status evaluation method for substation protection measurement circuit based on improved ED and CM-BPNN algorithms. Firstly, the normalization principle of different index data is formulated for the measurement data. Secondly, the improved Euclidean distance is introduced as the starting criterion for error evaluation. According to the degree of influence on the performance of the protection action, the error status is graded, and the cloud model is introduced to calculate the error status membership degree of the secondary index. Finally, the positioning mapping results corresponding to each error status are determined, and the BP neural network model is constructed, which is then used to evaluate and locate the unknown error status of the current/voltage of the protection devices. Based on PSCAD software, a 220kV substation model was constructed to verify the effectiveness of the proposed method.

Key words: protection measurement circuit, improved Euclidean distance, cloud model, neural network

易亚文, 赵静朴, 柳灿, 蒋焮焮, 李方玖, 李振兴. 基于改进ED及CM-BPNN算法的保护测量回路误差状态评估方法[J]. 中国电力, 2023, 56(11): 143-150.

Yawen YI, Jingpu ZHAO, Can LIU, Xinxin JIANG, Fangjiu LI, Zhenxing LI. Error Status Evaluation Method for Protection Measurement Circuit Based on Improved ED and CM-BPNN Algorithms[J]. Electric Power, 2023, 56(11): 143-150.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202308052

https://www.electricpower.com.cn/CN/Y2023/V56/I11/143

图/表 11

表 1 状态对应分值

Table 1 The scores corresponding to status

评估状态	误差值区间	归一化数值
正常（U₁）	[0, 5%]	[0.8, 1.0]
异常（U₂）	(5%, 15%]	[0.4, 0.8)
严重异常（U₃）	(15%, 25%]	[0.0, 0.4)

表 2 云模型特征值的确定

Table 2 Determination of the eigenvalues of the cloud model

状态等级区间	特征值
状态等级区间	$ E_{\rm{z}} $	$ E_{\rm{n}} $	$ H_{\rm{e}} $
U₁[0, 0.4]	c	$ \dfrac{{E_{\rm z2} - E_{\rm z1}}}{3} $	0.01
U₂(0.4, 0.8]	(a+b)/2	$ \dfrac{{E_{\rm z2} - E_{\rm z1}}}{3} $	0.01
U₃(0.8, 1.0]	a/2	$ \dfrac{{E_{\rm z3} - E_{\rm z2}}}{3} $	0.01

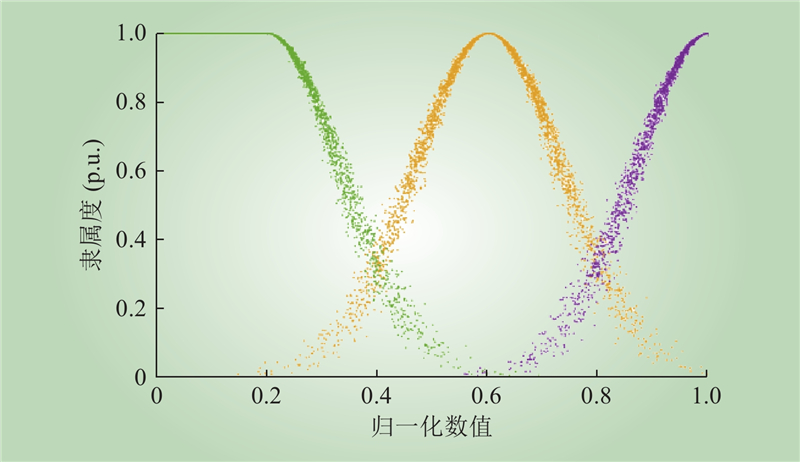

图 1 3种状态的云模型

Fig.1 Cloud models in three states

表 3 误差状态与定位数值关系

Table 3 The relationship between error status and positioning value

误差状态		定位数值Y_k
$ {l_{k3}} {\text{＞}} {l_{k2}} \; \&\; {l_{k3}} {\text{＞}} {l_{k1}} $		3
$ {l_{k2}} {\text{＞}} {l_{k3}} \; \&\; {l_{k2}} {\text{＞}} {l_{k1}} $		2
$ {l_{k1}} {\text{＞}} {l_{k3}} \; \& \; {l_{k1}} {\text{＞}} {l_{k2}} $		1

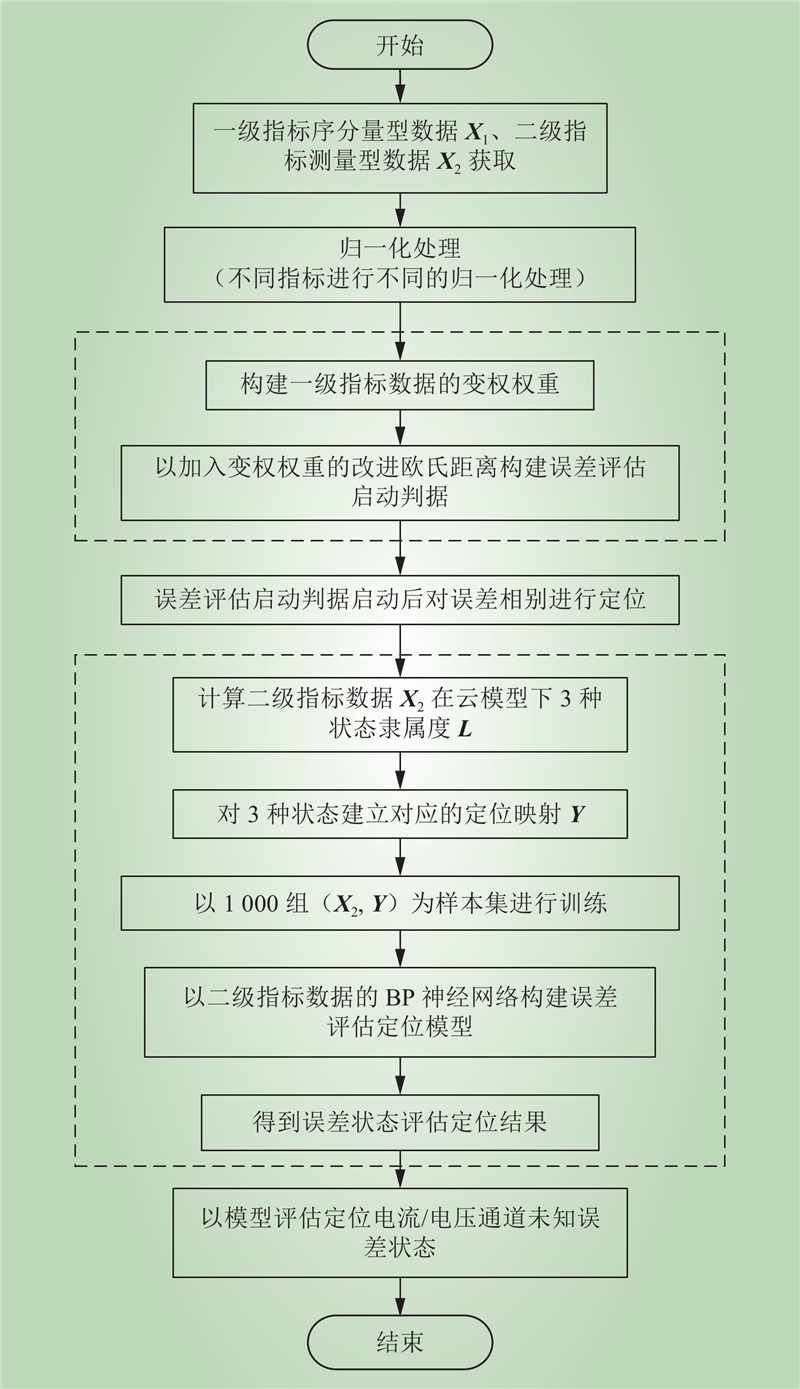

图 2 保护测量回路误差状态评估流程

Fig.2 Error status assessment process of protection measurement circuit

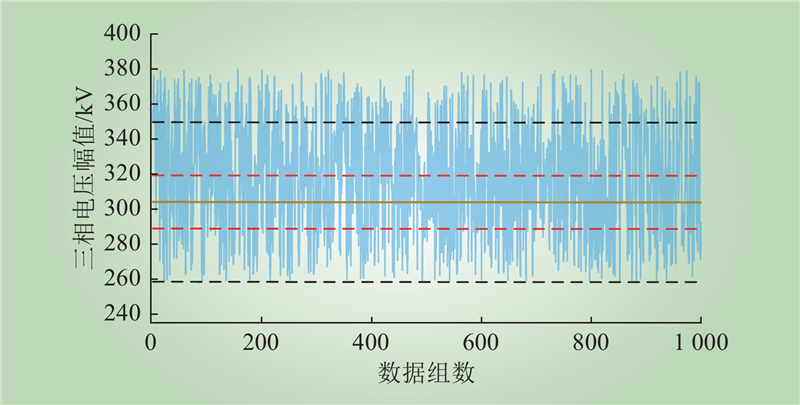

图 3 二级指标数据三相电压幅值波形

Fig.3 Three-phase voltage amplitude waveform of secondary index data

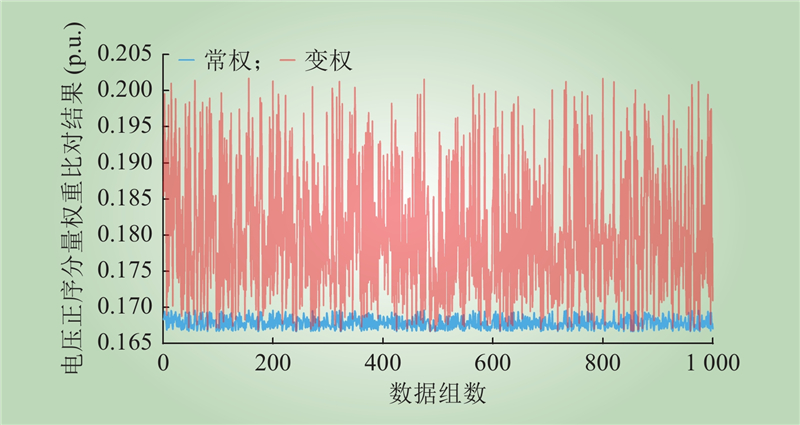

图 4 电压正序分量权重值比对结果

Fig.4 Comparison results of voltage positive sequence component weight values

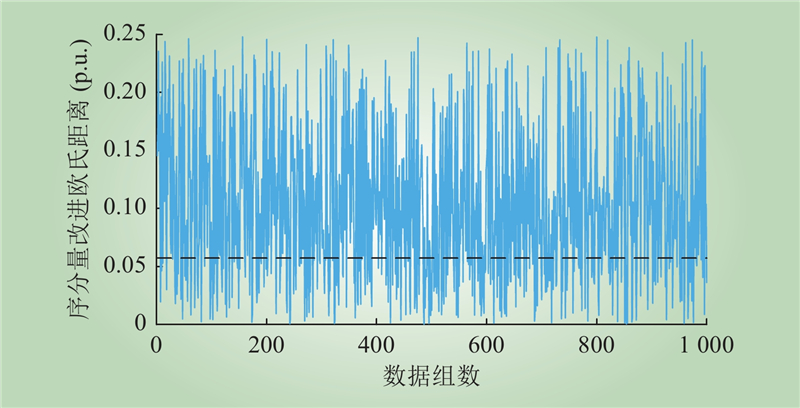

图 5 序分量改进欧氏距离启动判据

Fig.5 Sequence component improved Euclidean distance initiation criterion

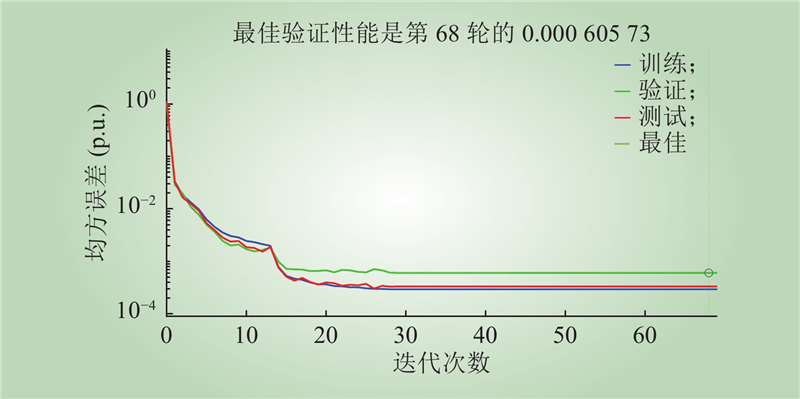

图 6 BP神经网络模型的每轮均方误差

Fig.6 Mean squared error for each round of the BP neural network model

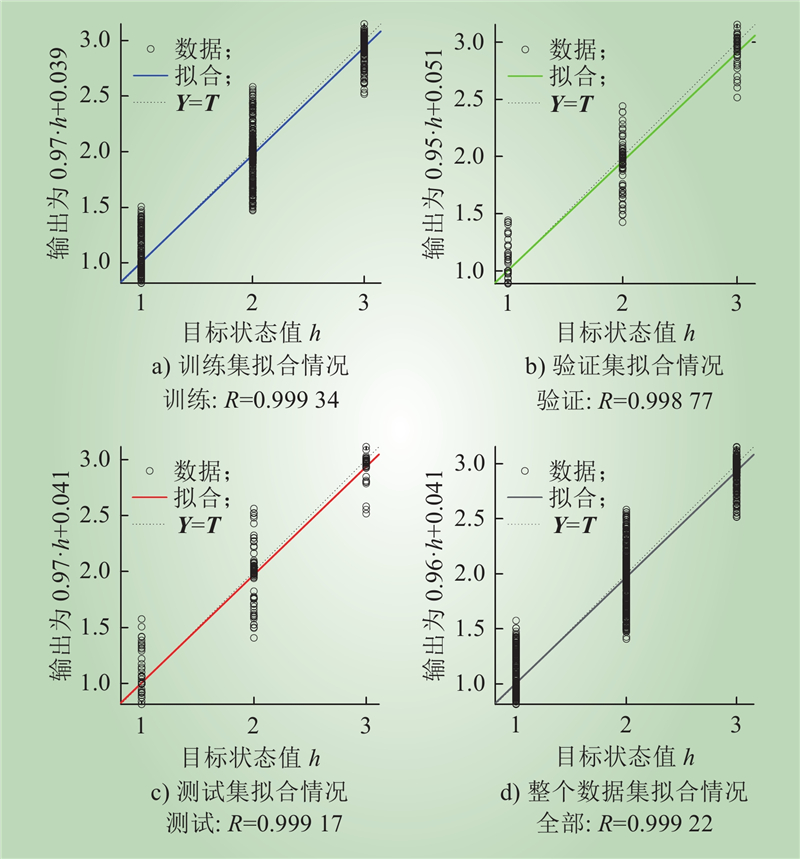

图 7 BP神经网络模型的回归系数

Fig.7 The regression coefficients for BP neural network models

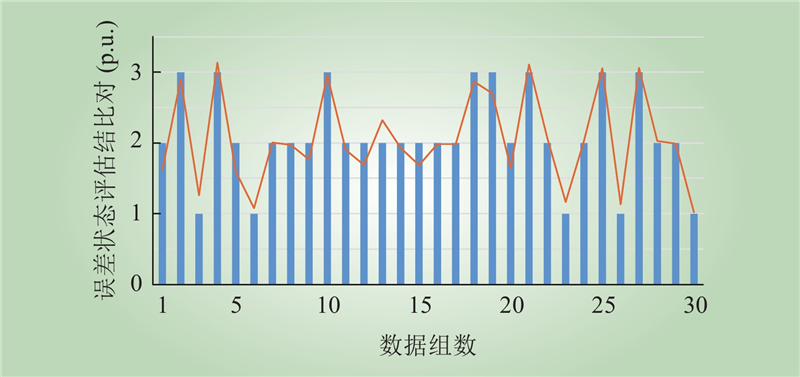

图 8 30组A相电压数据的实际状态与模型评估状态结果比对

Fig.8 Comparison of the actual status of 30 sets of A-phase voltage data and the model evaluation status results
