基于深度强化学习与改进Jensen模型的风电场功率优化

doi:10.11930/j.issn.1004-9649.202410051

中国电力 ›› 2025, Vol. 58 ›› Issue (4): 78-89.DOI: 10.11930/j.issn.1004-9649.202410051

• 风电机组暂态运行控制与试验验证关键技术 • 上一篇下一篇

基于深度强化学习与改进Jensen模型的风电场功率优化

王冠朝¹(), 霍雨翀¹(), 李群²(), 李强²()

1. 南京理工大学电气工程系，江苏南京　210094
2. 国网江苏省电力有限公司电力科学研究院，江苏南京　211103

收稿日期:2024-10-15 录用日期:2025-01-13 发布日期:2025-04-23 出版日期:2025-04-28
作者简介:
王冠朝（2001），男，硕士研究生，从事风电参与调频、新能源并网与控制研究，E-mail：wangguanchao2001@163.com
霍雨翀（1989），男，通信作者，博士，讲师，从事电力系统运行与控制技术、电力经济研究，E-mail：yuchong.huo@njust.edu.cn
李群（1967），男，博士，高级工程师（教授级），从事电力系统运行和可再生能源并网研究，E-mail：qun_li@sina.com
李强（1981），男，博士，高级工程师（教授级），从事远海风电的柔性直流输电研究，E-mail：35830342@qq.com
基金资助:
国家电网有限公司科技项目（攻关团队项目）（含多构网型变流器的中远海风电场经柔直并网主动频率支撑关键技术，5108-202218280A-2-241-XG）。

Power Optimization of Wind Farms Based on Improved Jensen Model and Deep Reinforcement Learning

WANG Guanchao¹(), HUO Yuchong¹(), LI Qun²(), LI Qiang²()

1. Department of Electrical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
2. Electric Power Research Institute of State Grid Jiangsu Electric Power Co., Ltd., Nanjing 211103, China

Received:2024-10-15 Accepted:2025-01-13 Online:2025-04-23 Published:2025-04-28
Supported by:
This work is supported Science and Technology Project of SGCC (Reseach Team Project) (Active Frequency Support for Mid and Long Distance Offshore Wind Farm with Multiple Grid-Forming Converter Connected via VSC-HVDC, No.5108-202218280A-2-241-XG).

摘要/Abstract

摘要：

风电场的功率捕获能力受多种因素的制约。为最大化风电场的功率输出，并应对尾流效应和湍流风速的影响，提出一种基于深度强化学习的风电场控制方案。该方案结合有模型与无模型的控制方法，并整合至基于Actor-Critic架构的深度确定性策略梯度强化学习网络中。在控制精度方面，采用改进的Jensen尾流模型，通过考虑时间延迟，提升了尾流效应的精确性，并有效捕捉了风电场长期功率输出。仿真结果表明，相比于传统单纯的有模型或者无模型方法，所提方法有效提升了风电场的最大功率输出，同时在保证控制精度的基础上，显著降低了训练时间和计算资源消耗，从而提升了控制策略的整体性能。

关键词: 风电场控制, 最大化风能捕获, 深度强化学习, 无模型控制, 有模型控制, 神经网络

Abstract:

The power capture capability of wind farms is constrained by various factors. To maximize the power output of wind farms and address the impacts of wake effects and turbulent wind speeds, this paper proposes a wind farm control scheme based on deep reinforcement learning. This scheme combines both model-based and model-free control methods and integrates them into a deep reinforcement learning deep deterministic policy gradient network with an Actor-Critic architecture. In terms of control accuracy, Jensen wake model consider time delay is adopted to enhance the precision of wake effects and effectively captures the long-term impact on the wind farm's power output. Simulation results show that, compared to traditional model-based or model-free methods, this scheme significantly increases the maximum power output of the wind farm while maintaining control accuracy, and significantly reduces training time and computational resource consumption, thereby improving the overall performance of the control strategy.

Key words: wind farm control, maximizing wind energy capture, deep reinforcement learning, model-free control, model-based control, neural network

王冠朝, 霍雨翀, 李群, 李强. 基于深度强化学习与改进Jensen模型的风电场功率优化[J]. 中国电力, 2025, 58(4): 78-89.

WANG Guanchao, HUO Yuchong, LI Qun, LI Qiang. Power Optimization of Wind Farms Based on Improved Jensen Model and Deep Reinforcement Learning[J]. Electric Power, 2025, 58(4): 78-89.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202410051

https://www.electricpower.com.cn/CN/Y2025/V58/I4/78

图/表 17

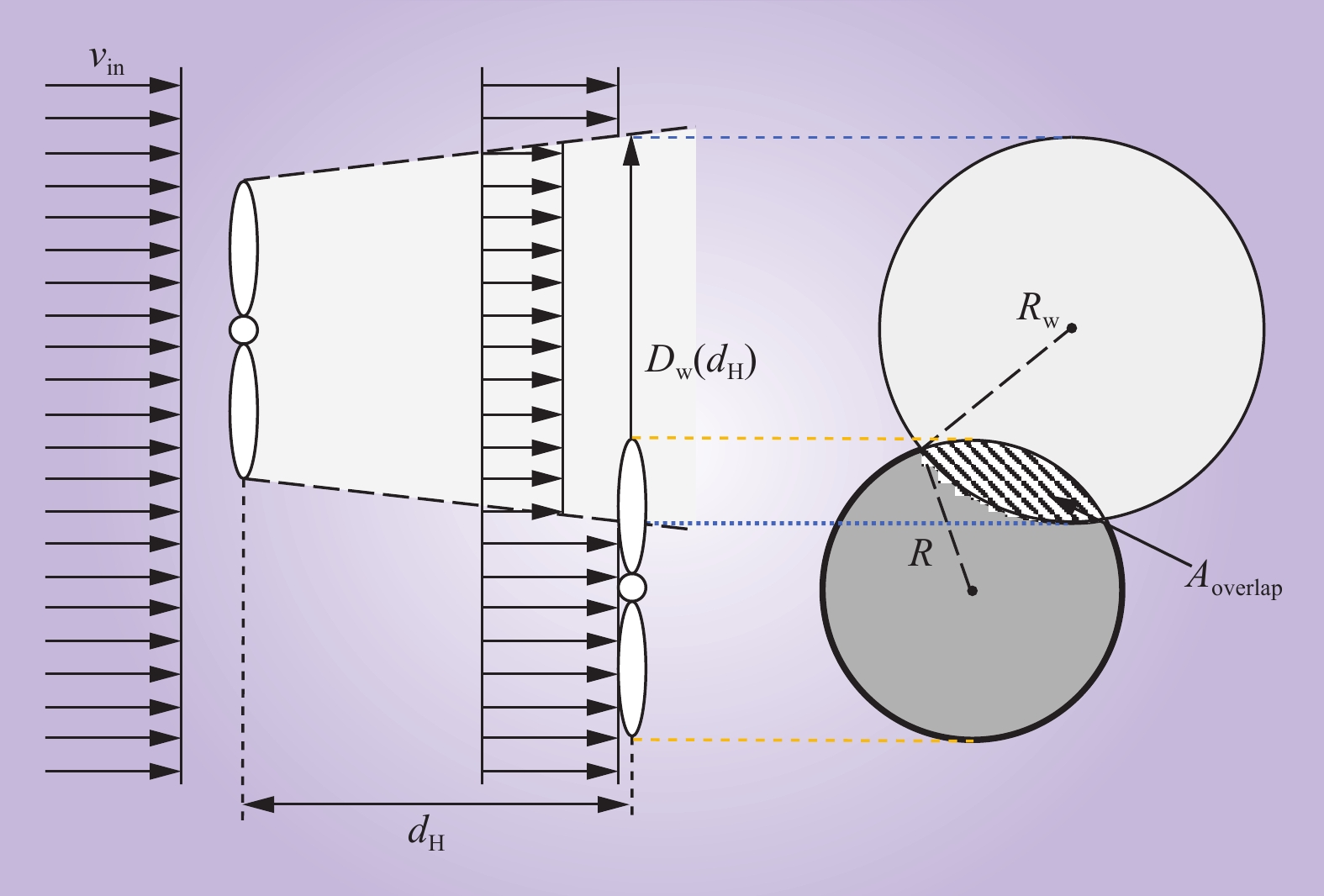

图 1 Jensen尾流模型示意

Fig.1 Illustration of the Jensen wake model

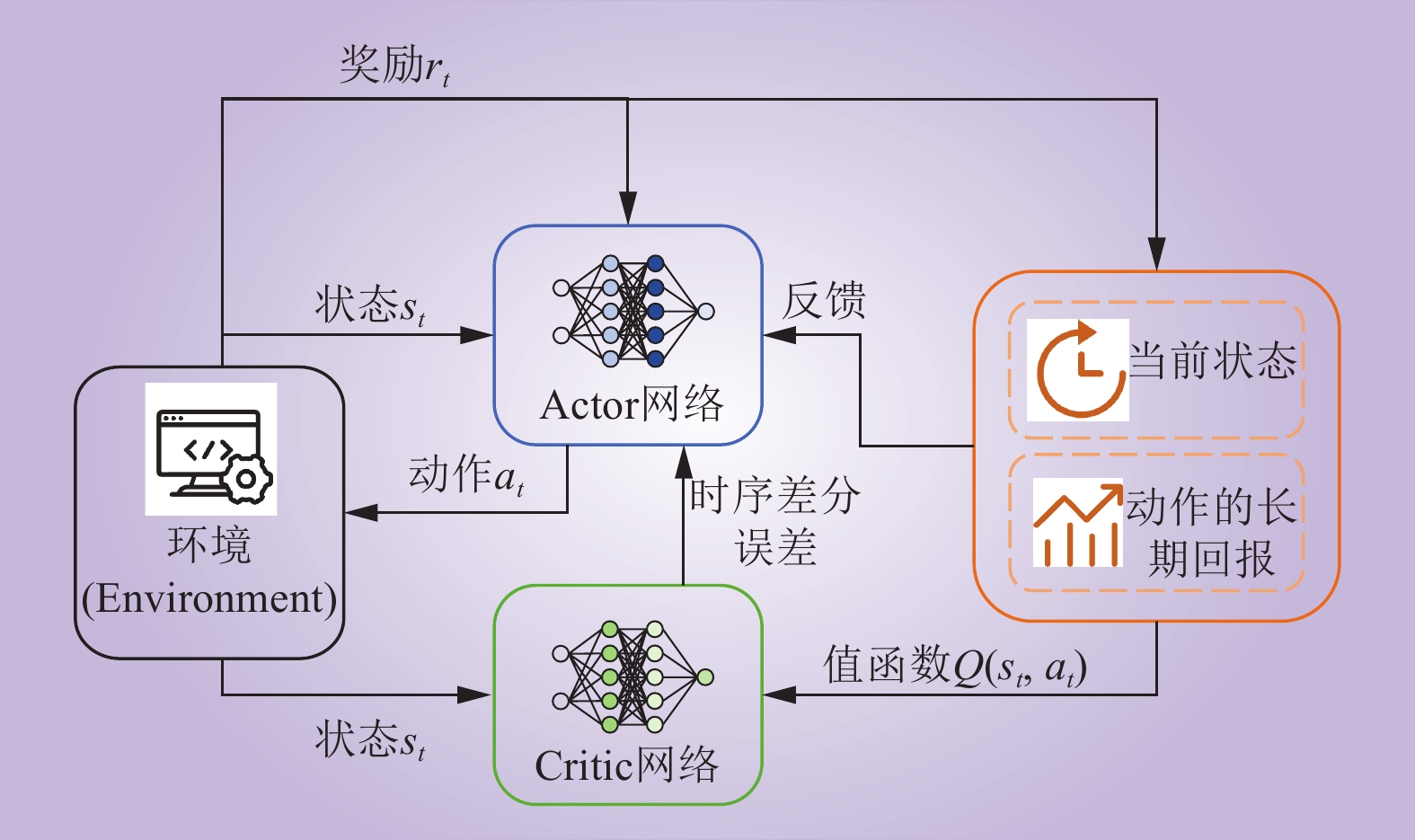

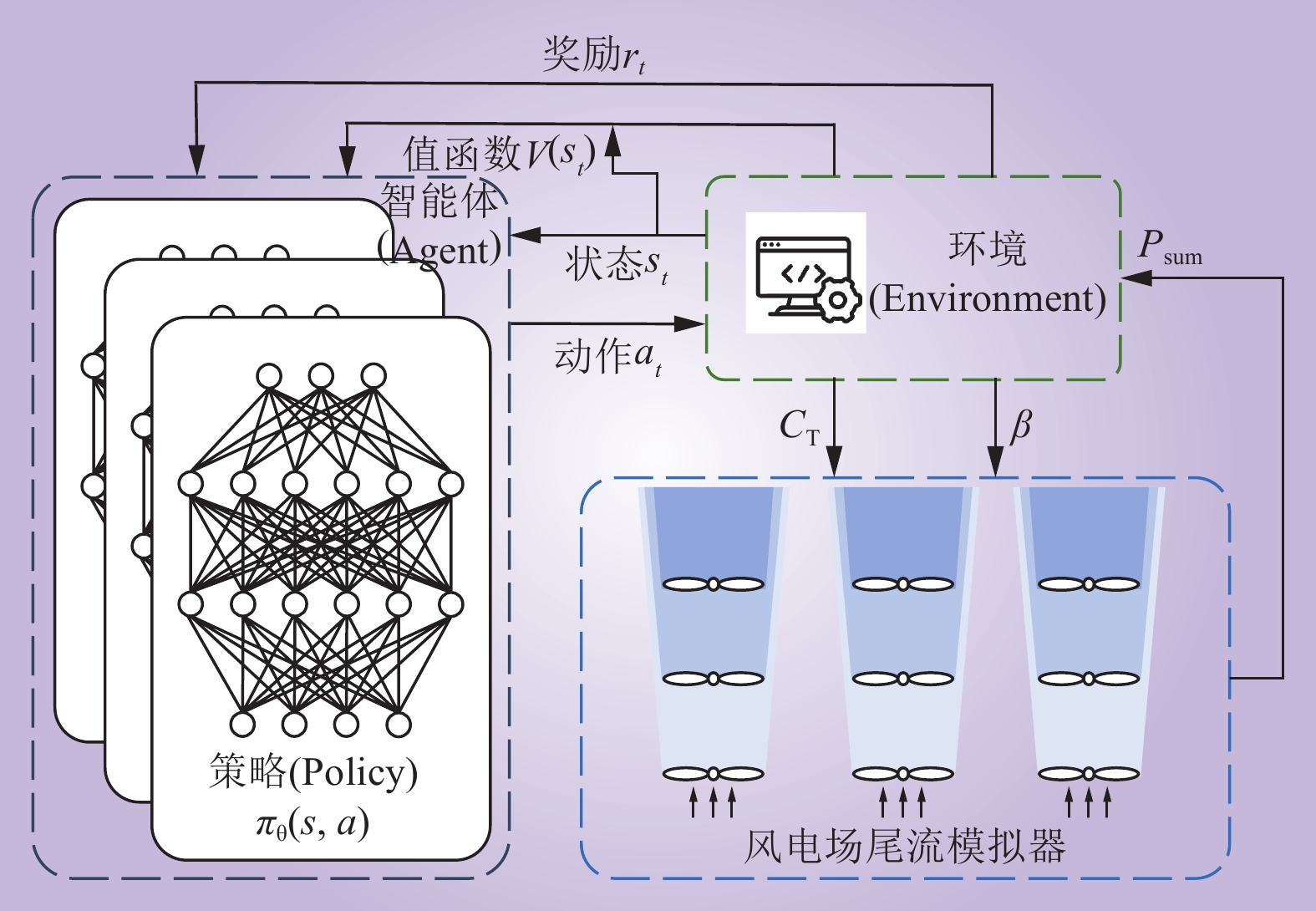

图 2 深度强化学习控制算法框架

Fig.2 Deep reinforcement learning control algorithm framework

图 3 Actor-Critic网络结构

Fig.3 Actor-Critic network structure

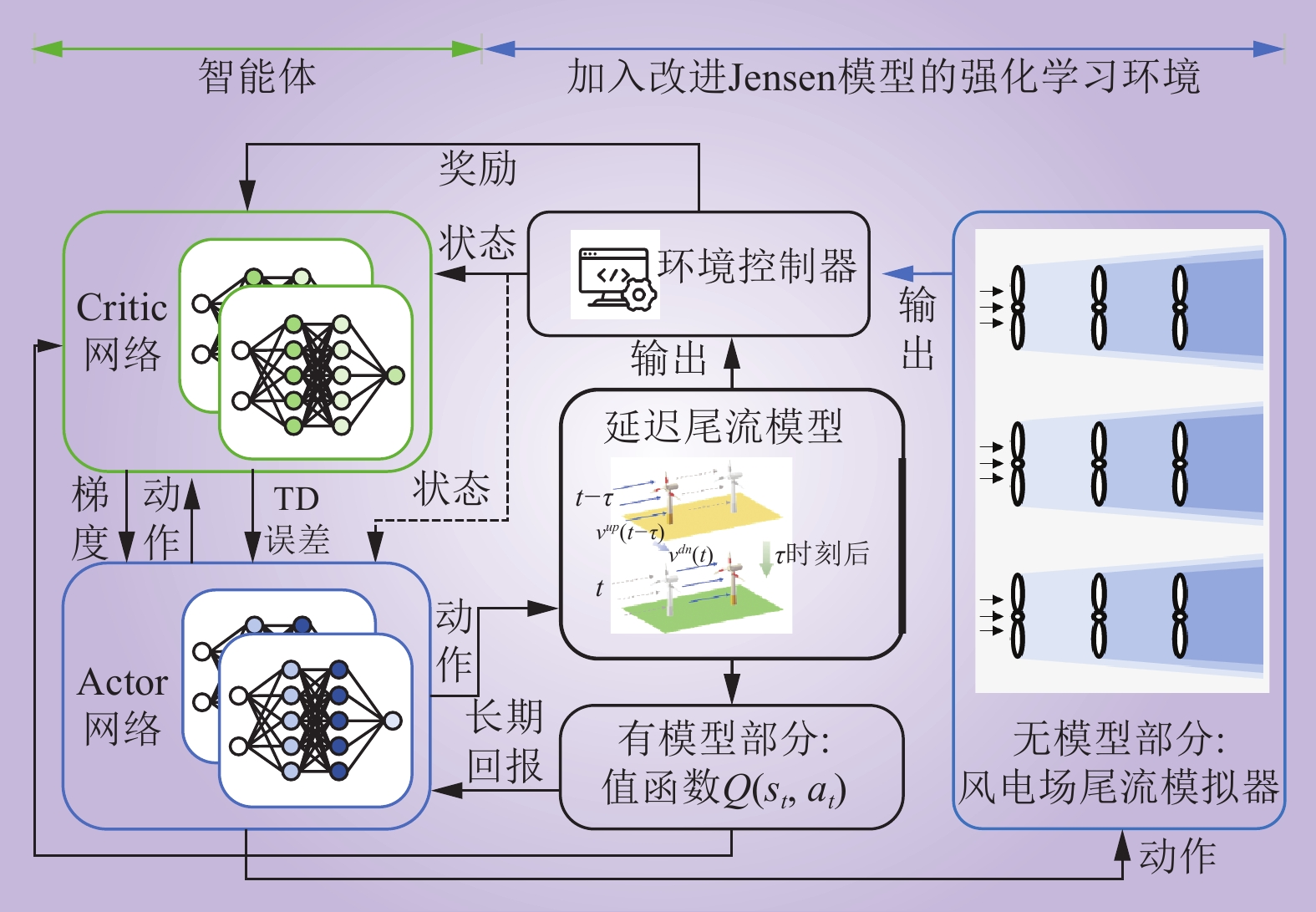

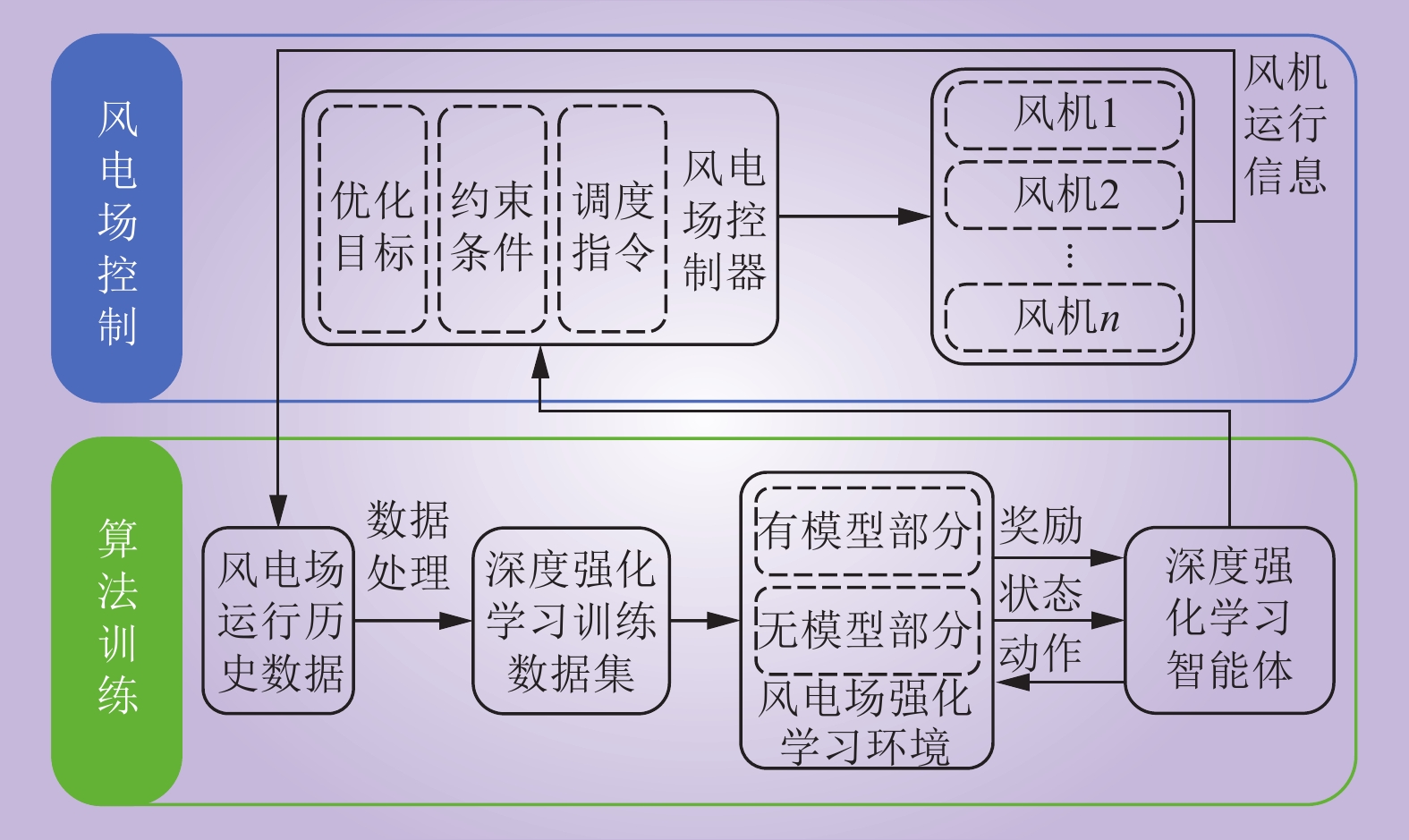

图 4 本文提出的结合有模型与无模型方法的深度强化学习框架

Fig.4 The proposed deep reinforcement learning framework combined model-based and model-free methods

图 5 风电场与深度强化学习结合框架

Fig.5 The framework for combining wind farms with deep reinforcement learning

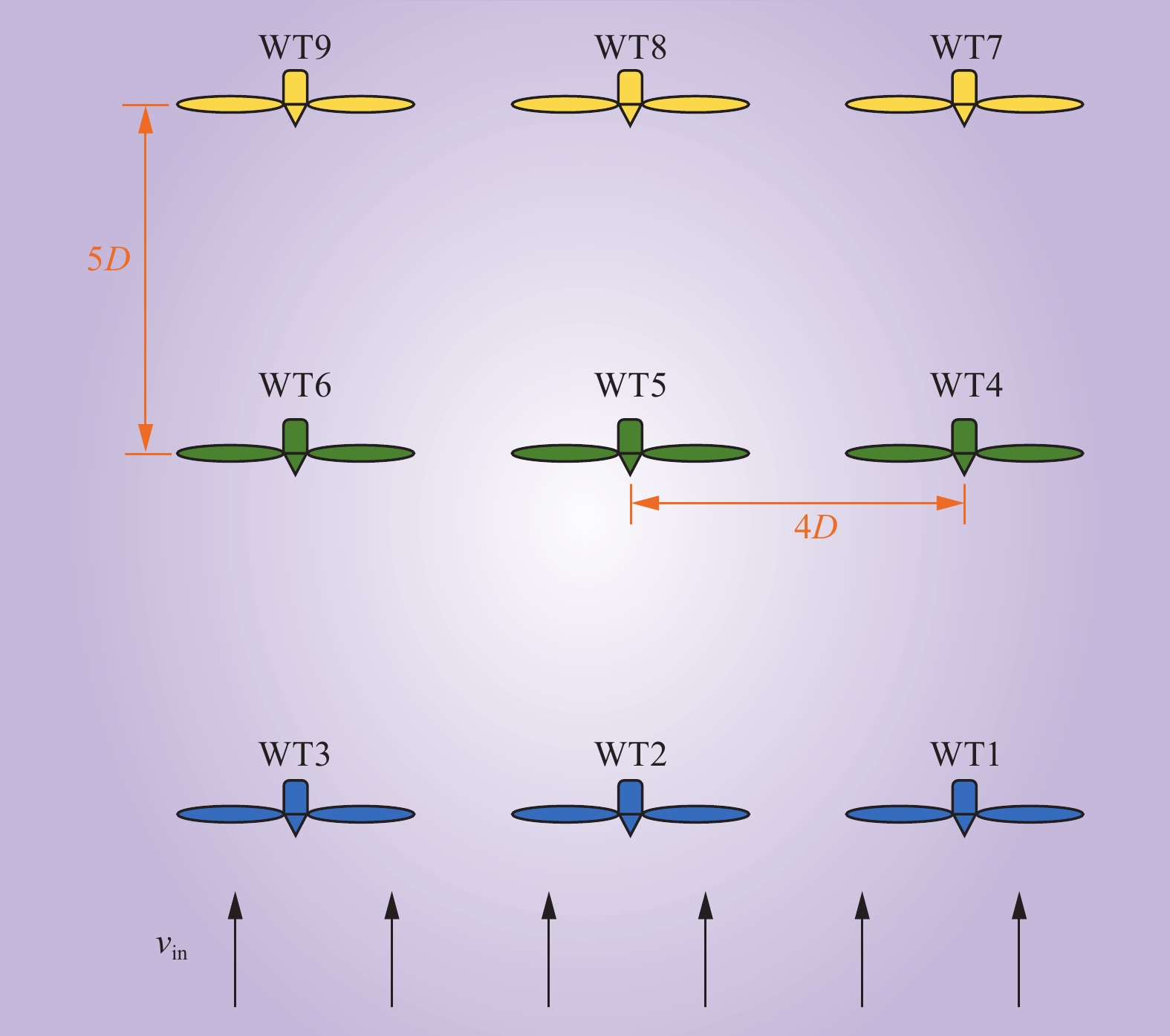

图 6 风电场拓扑

Fig.6 Wind farm topology

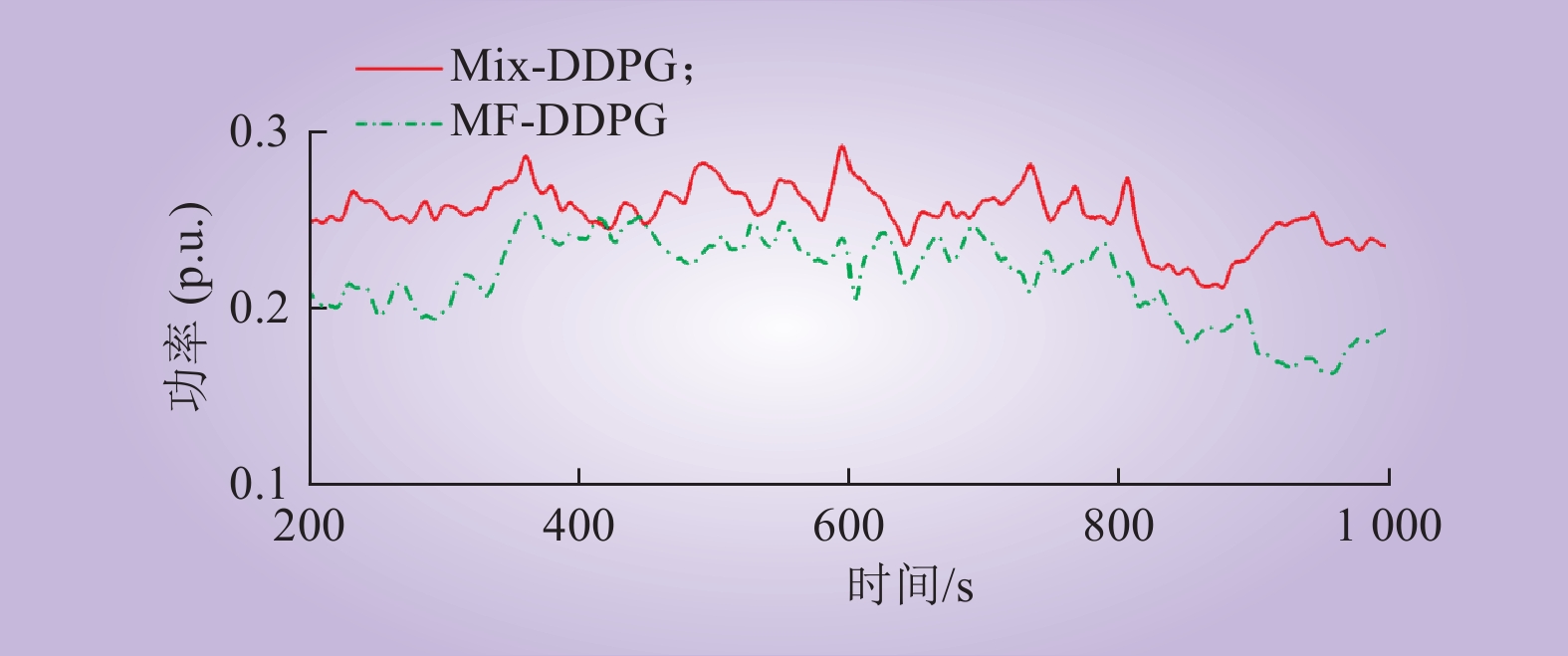

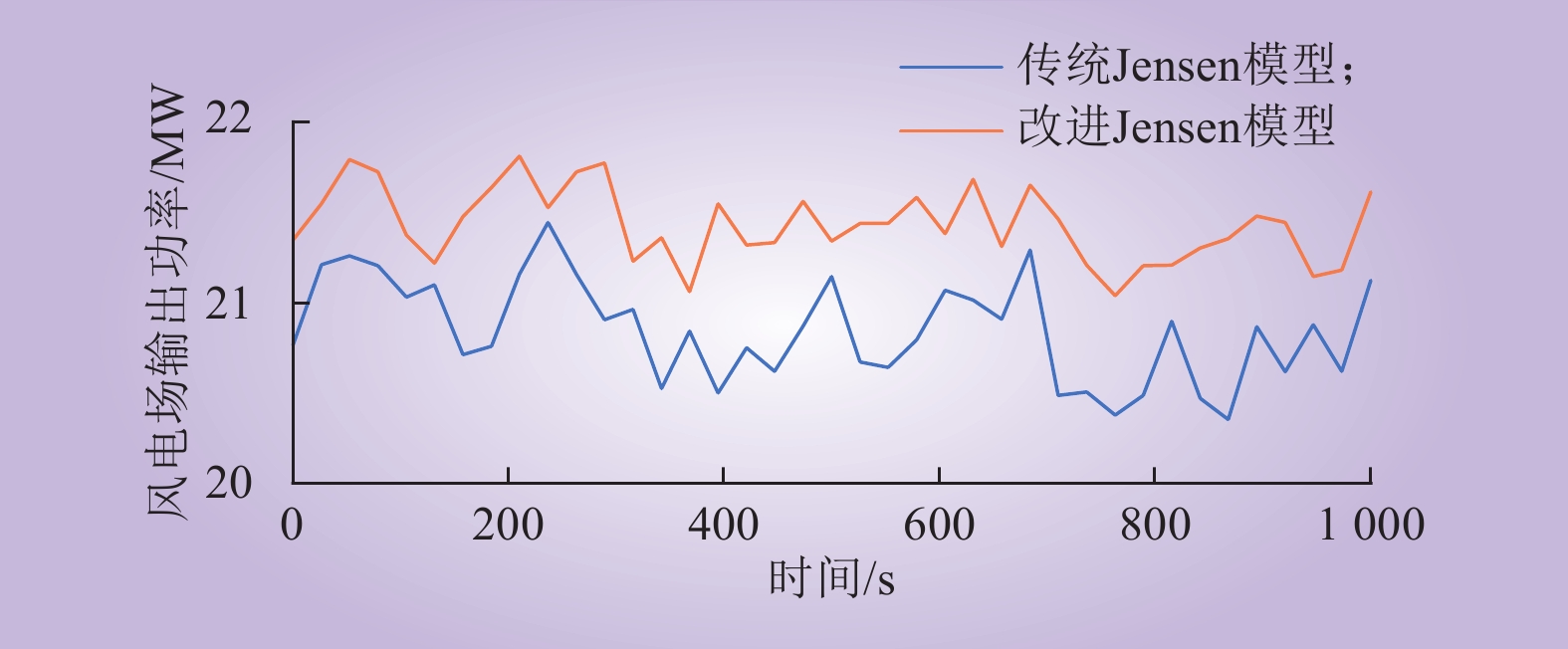

图 7 2种模型的输出功率对比

Fig.7 Comparison of output power between two models

表 1 仿真参数设置

Table 1 Simulation parameters setting

参数		数值
$D$/m, ${d_{\rm H}}$/m, $\rho $/(kg·m^–3), $A$/m³		126, 500, 1.225, 7850
$n$, $\tau $, ${\eta _{\rm actor}}$, ${\eta _{\rm critic}}$, $m$, $\gamma $		64, 0.001, 0.01, 0.01, 10⁴, 0.99
迭代轮数, 步数		1000, 10
$C_{\rm T}^{\min }$, $C_{\rm T}^{\max }$		0.1,1

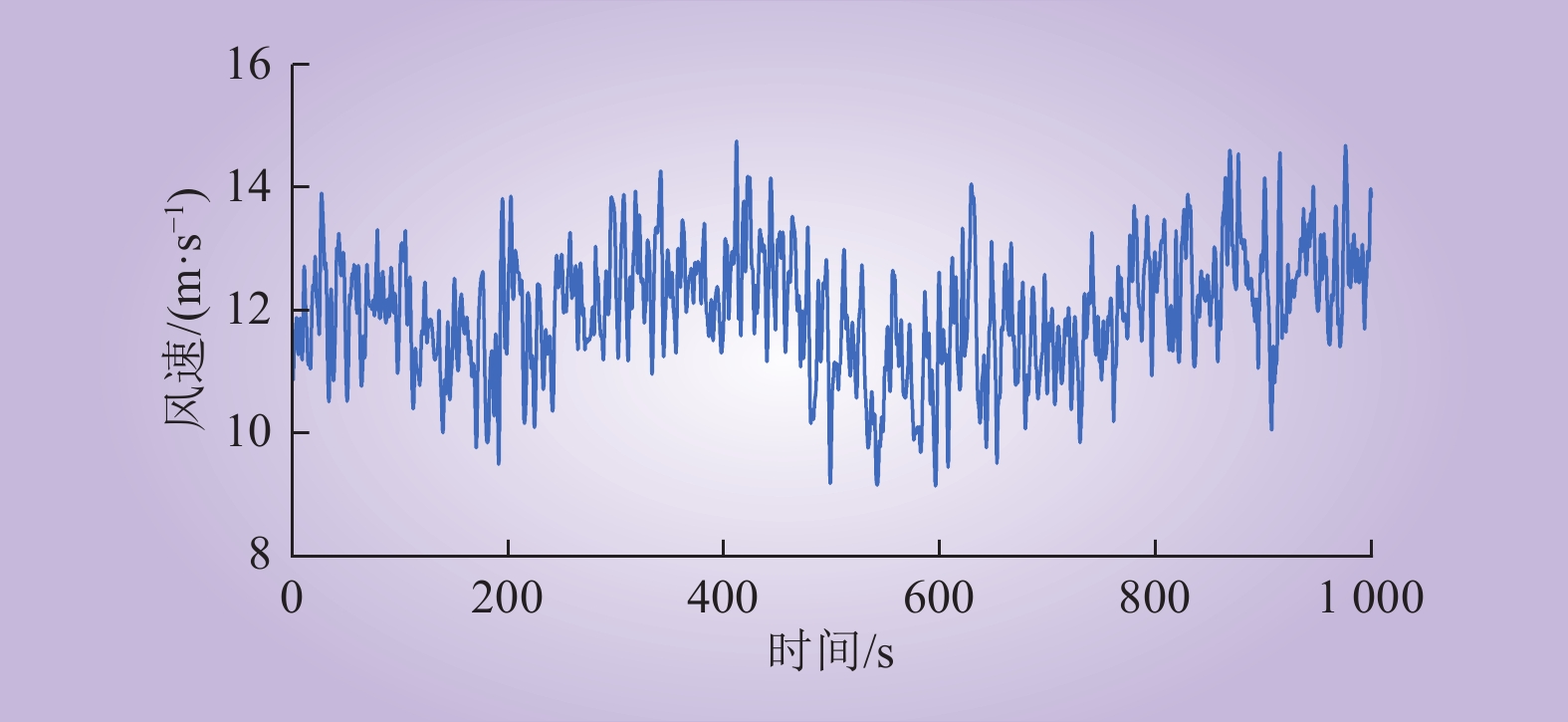

图 8 风速曲线

Fig.8 Wind velocity curve

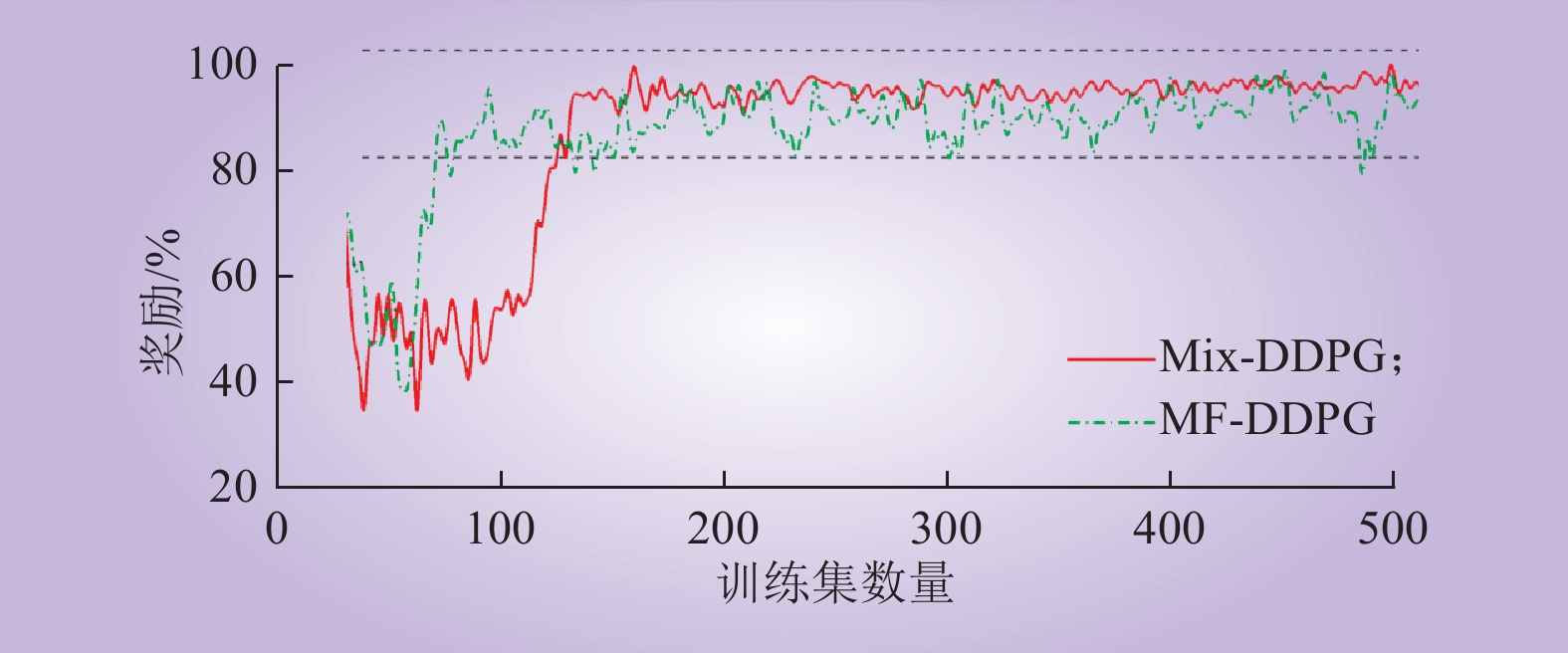

图 9 不同方法奖励对比

Fig.9 Comparison of rewards using different methods

图 10 风电场输出功率对比

Fig.10 Comparison of wind farm output power

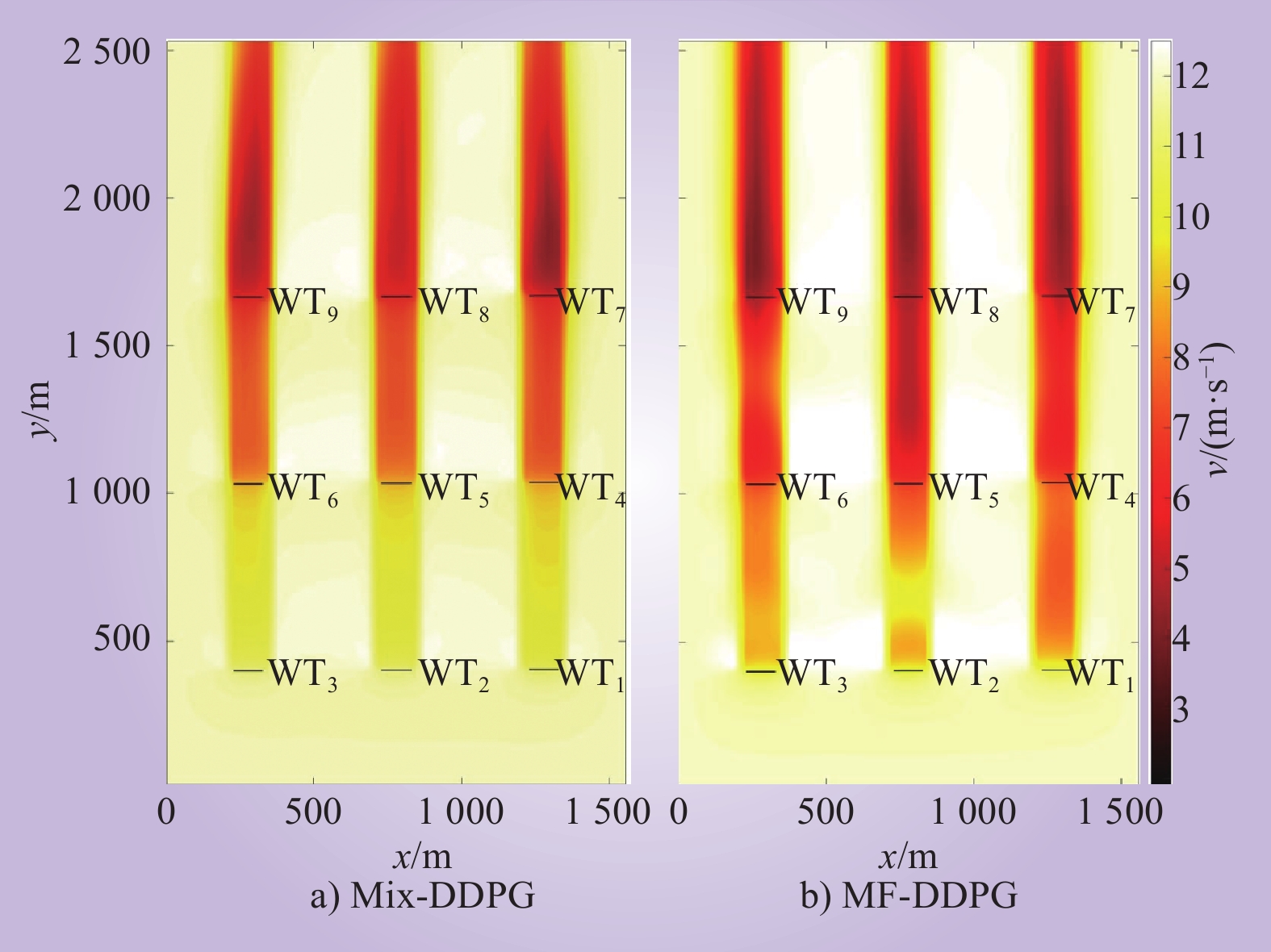

图 11 风电场尾流对比

Fig.11 Comparison of wind farm wake

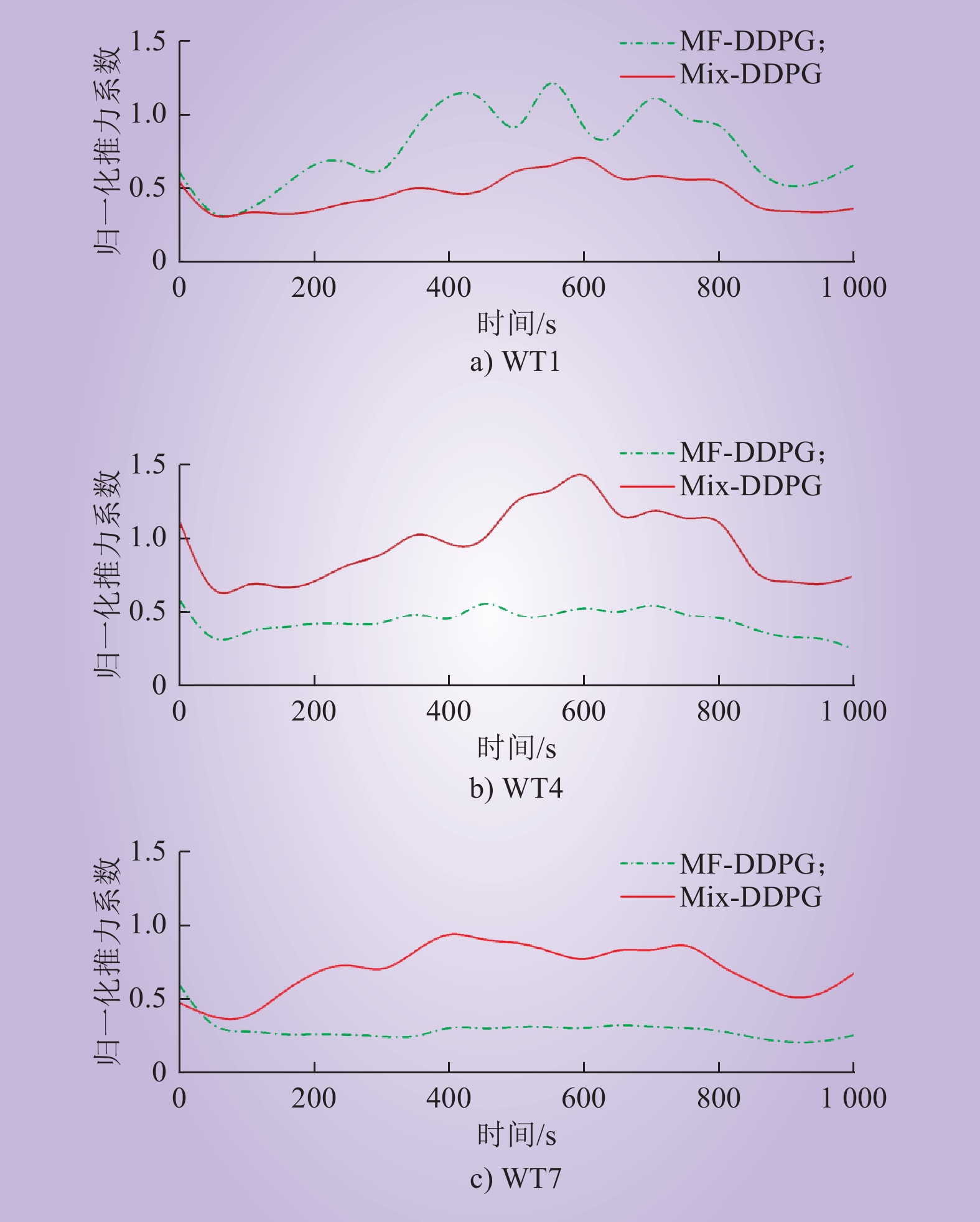

图 12 归一化推力系数变化曲线

Fig.12 Normalized thrust coefficient variation curve

图 13 风机输出功率曲线

Fig.13 The power curve of wind turbine output

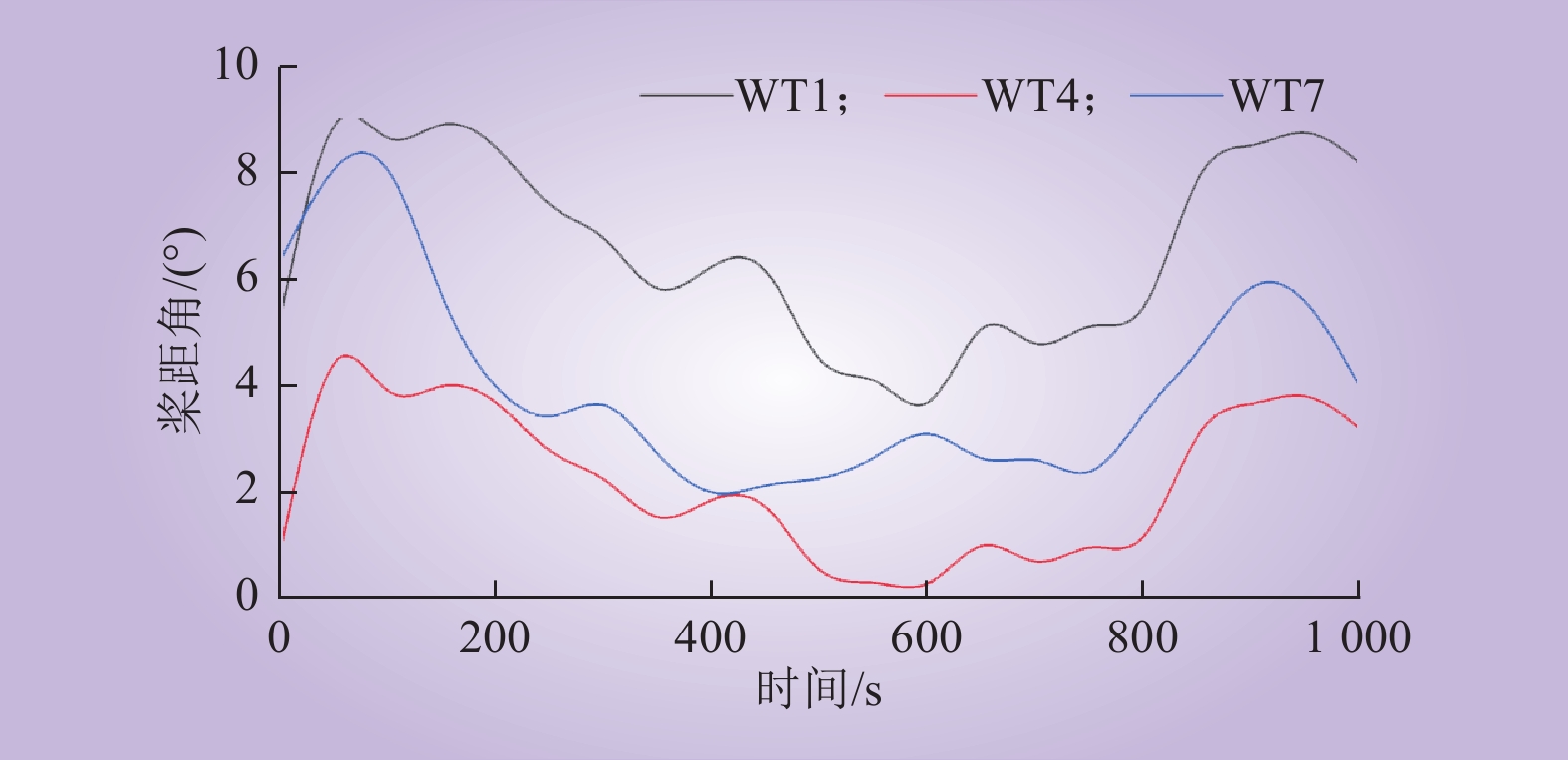

图 14 桨距角曲线

Fig.14 Pitch angle curve

图 15 转速曲线

Fig.15 Rotational speed curve

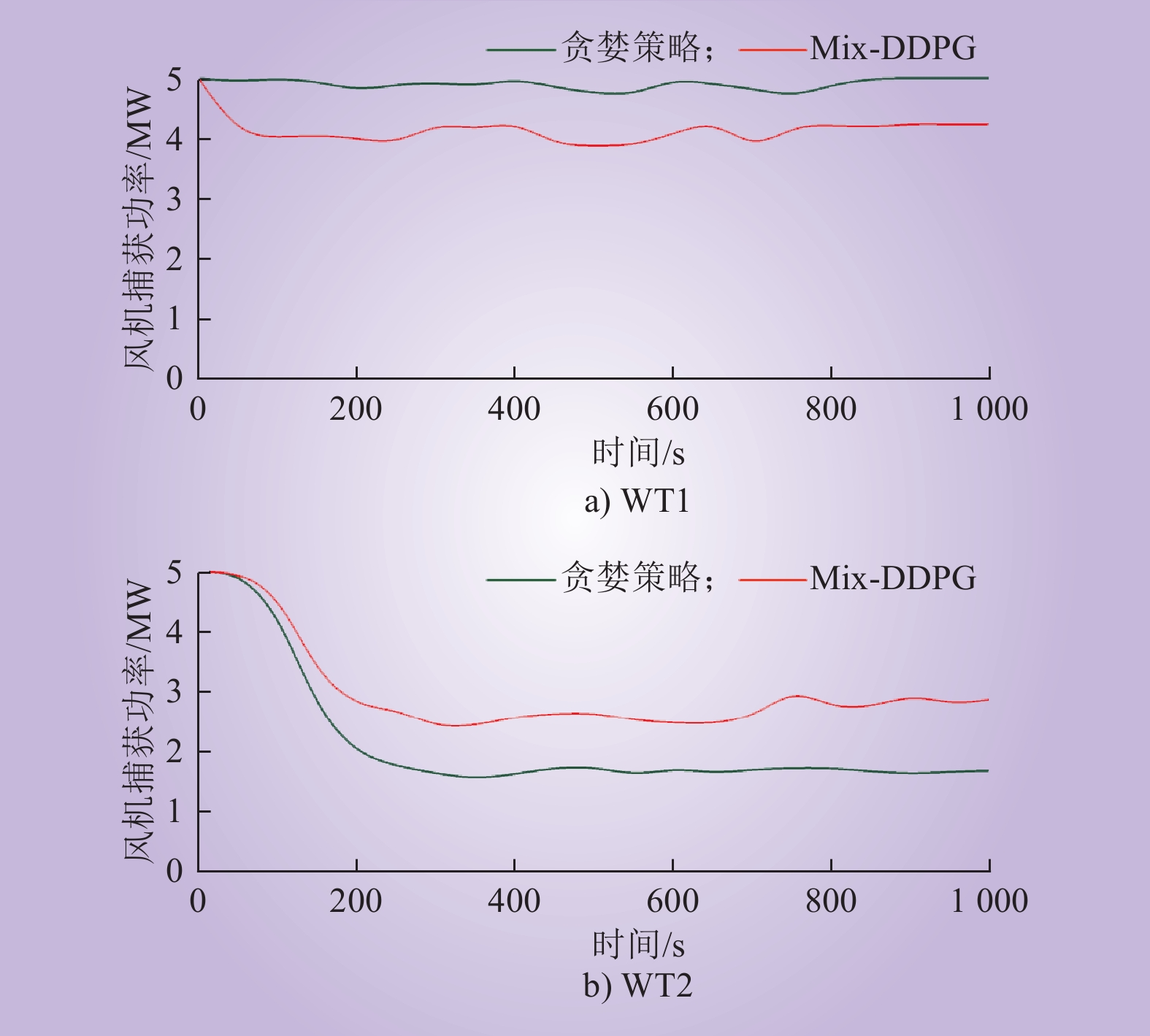

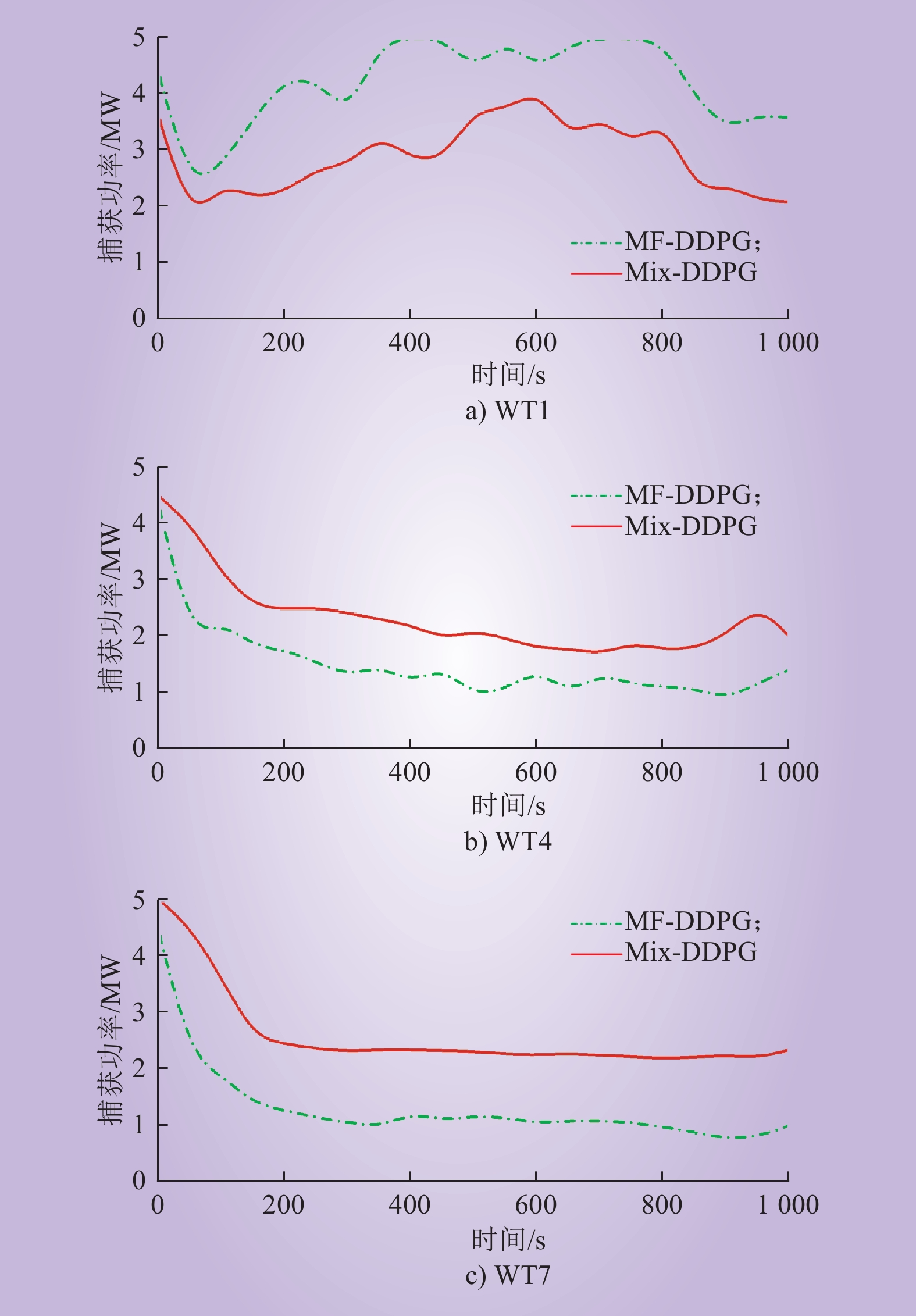

图 16 风机捕获功率对比
