基于Spearman-GCN-GRU模型的超短期多区域电力负荷预测

doi:10.11930/j.issn.1004-9649.202306094

中国电力 ›› 2024, Vol. 57 ›› Issue (6): 131-140.DOI: 10.11930/j.issn.1004-9649.202306094

基于Spearman-GCN-GRU模型的超短期多区域电力负荷预测

吴军英¹(), 路欣¹(), 刘宏¹(), 张彬², 柴守亮², 刘蕴春³(), 王佳楠⁴

1. 国网河北省电力有限公司信息通信分公司，河北石家庄　050051
2. 国网河北省电力有限公司邯郸供电分公司，河北邯郸　056035
3. 西安电子科技大学广州研究院，广东广州　510555
4. 北京中电普华信息技术有限公司，北京　102192

收稿日期:2023-06-25 接受日期:2024-01-15 出版日期:2024-06-28 发布日期:2024-06-25
作者简介:吴军英（1982—），男，通信作者，高级工程师（教授级），从事区块链、标识解析、人工智能、物联网、边缘计算等研究，E-mail：wujy@he.sgcc.com.cn
路欣（1986—），女，高级工程师，从事人工智能、物联网、系统应用等研究及数据运营管理工作，E-mail：461604215@qq.com
刘宏（1981—），女，高级工程师，从事区块链、云计算、人工智能、大数据驱动技术在电网业财一体化等领域的应用研究，E-mail：56633194@qq.com
刘蕴春（1999—），女，硕士研究生，从事基于深度学习的流量预测研究，E-mail：21181214072@stu.xidian.edu.cn
基金资助:
河北省重点研发计划资助项目（新一代电子信息技术创新专项：能源工业云网智慧物联关键技术与装备研发及应用示范，22310302D）。

Ultra-short-term Multi-region Power Load Forecasting Based on Spearman-GCN-GRU Model

Junying WU¹(), Xin LU¹(), Hong LIU¹(), Bin ZHANG², Shouliang CHAI², Yunchun LIU³(), Jianan WANG⁴

1. ICT Branch, State Grid Hebei Electric Power Co., Ltd., Shijiazhuang 050051, China
2. Handan Branch, State Grid Hebei Electric Power Co., Ltd., Handan 056035, China
3. Guangzhou Institute of Technology, Xidian University, Guangzhou 510555, China
4. Beijing China Power Puhua Information Technology Co., Ltd., Beijing 102192, China

Received:2023-06-25 Accepted:2024-01-15 Online:2024-06-28 Published:2024-06-25
Supported by:
This work is supported by Key Research & Development Program of Hebei Province (New Generation of Electronic Information Technology Innovation Project: Energy Industry Cloud Network Intelligent IoT Key Technology and Equipment Research and Development and Application Demonstration, No.22310302D).

摘要/Abstract

摘要：

为提升多区域电力负荷的预测精度，聚焦于多区域电力数据的时空相关性分析，提出了一种基于Spearman-GCN-GRU的超短期多区域电力负荷预测模型。该模型通过Spearman相关系数分析不同区域电力负荷的时空相关性，构建Spearman邻接矩阵并输入图卷积神经网络（graph convolutional network，GCN）和门控循环单元（gated recurrent unit，GRU）提取数据中的空间特征和时序特征，最后由多层感知机（multilayer perceptron，MLP）解码输出预测结果。与基于距离邻接矩阵的模型进行对比，验证了Spearman-GCN-GRU模型的可行性。在模型的预测精度上，与传统统计模型和神经网络模型相比，Spearman-GCN-GRU模型在通用的评价指标中均取得最优结果。就均方根误差（root mean square error，RMSE）而言，Spearman-GCN-GRU模型与神经网络模型GRU、GCN和深度神经网络（deep neural network，DNN）相比，RMSE指标分别下降了13.90%、11.66%和8.36%，验证了模型具有更好的预测效果。

关键词: 多区域电力负荷预测, 电力数据时空相关性分析, Spearman相关系数, 图卷积神经网络, 门控循环单元

Abstract:

To improve the prediction accuracy of multi-region power load, an ultra-short-term multi-region power load forecasting model based on Spearman-GCN-GRU is proposed with focus on the spatial-temporal correlation analysis of multi-region power data. Firstly, the Spearman correlation coefficient is used to analyze the spatial-temporal correlation of power load in different regions and construct the Spearman adjacency matrix. And then, the graph convolutional network (GCN) and gated recurrent unit (GRU) are used to respectively extract the spatial and temporal features from the data. Finally, the multilayer perceptron (MLP) is used to decode and output the prediction results. Through comparison with the distance adjacency matrix-based models, the Spearman-GCN-GRU model is proved to be feasible. In terms of prediction accuracy, the Spearman-GCN-GRU model are optimal in common evaluation indexes compared with traditional statistical models and neural network models. Specifically, in terms of the root mean square error (RMSE), the Spearman-GCN-GRU model exhibits a respective decrease of 13.90%, 11.66%, and 8.36% compared to the GRU, GCN and deep neural network (DNN) models, demonstrating its superior predictive performance.

Key words: multi-region power load prediction, spatial-temporal correlation analysis of power data, Spearman correlation coefficient, graph convolutional network, gated recurrent unit

吴军英, 路欣, 刘宏, 张彬, 柴守亮, 刘蕴春, 王佳楠. 基于Spearman-GCN-GRU模型的超短期多区域电力负荷预测[J]. 中国电力, 2024, 57(6): 131-140.

Junying WU, Xin LU, Hong LIU, Bin ZHANG, Shouliang CHAI, Yunchun LIU, Jianan WANG. Ultra-short-term Multi-region Power Load Forecasting Based on Spearman-GCN-GRU Model[J]. Electric Power, 2024, 57(6): 131-140.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202306094

https://www.electricpower.com.cn/CN/Y2024/V57/I6/131

图/表 14

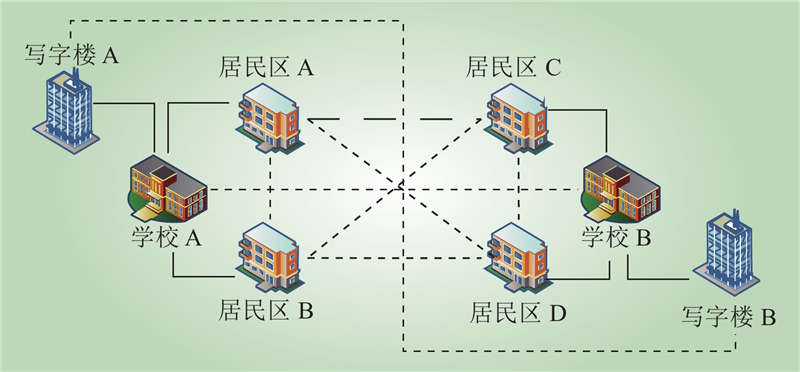

图 1 地理距离相关和时空相关

Fig.1 Geographic correlation and spatial-temporal correlation

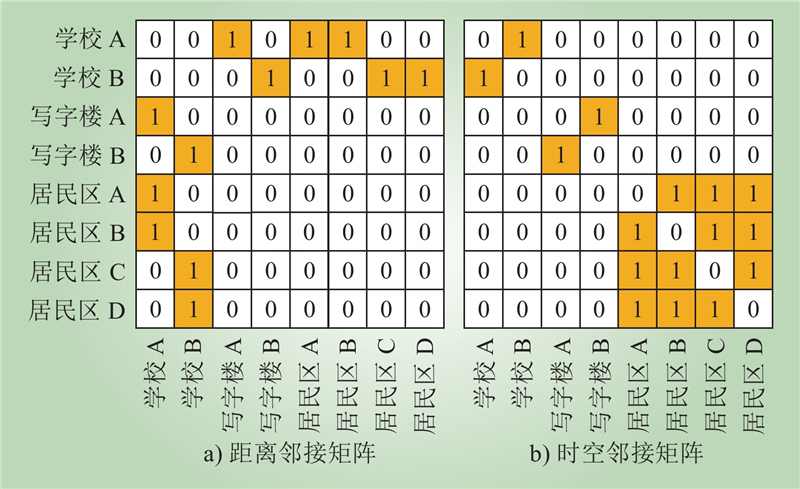

图 2 距离邻接矩阵和时空邻接矩阵

Fig.2 Geographic adjacency matrix and spatial-temporal adjacency matrix

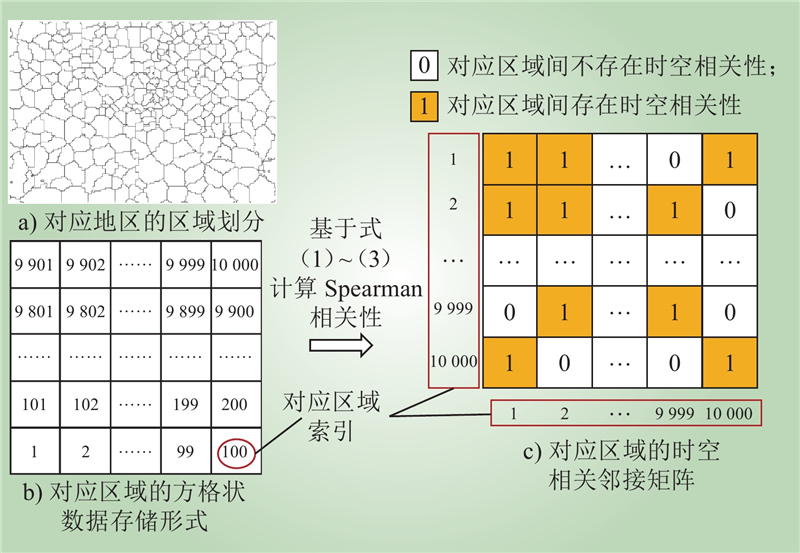

图 3 基于Spearman相关系数构建区域时空相关图

Fig.3 The regional spatial-temporal correlation graph constructed based on Spearman correlation coefficient

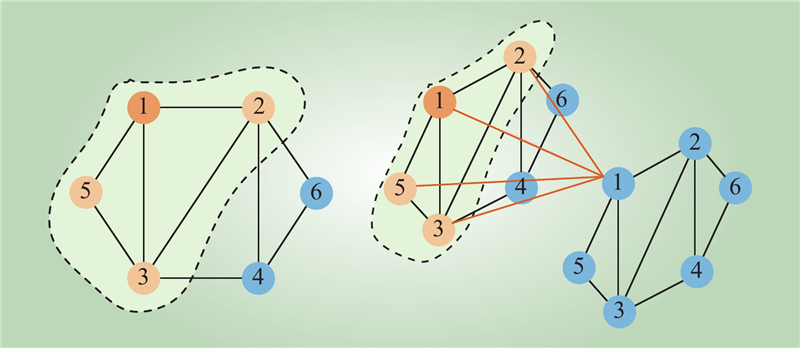

图 4 GCN卷积过程

Fig.4 GCN convolution process

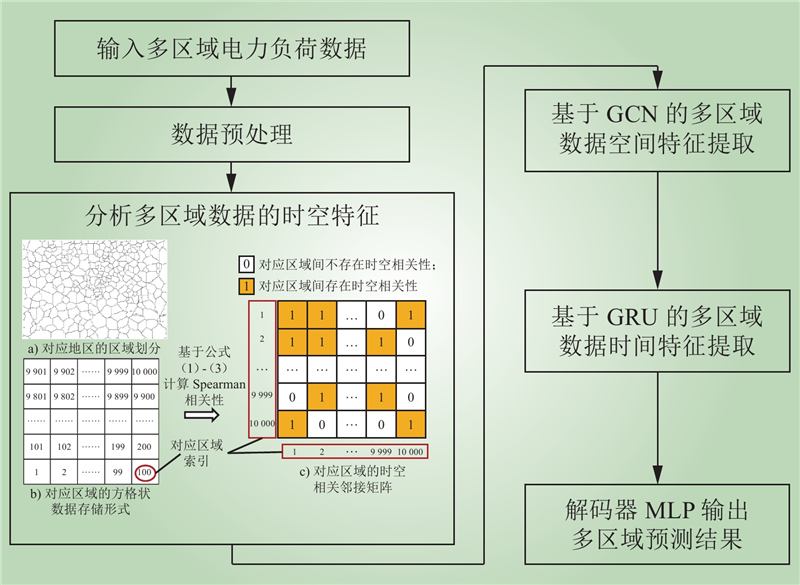

图 5 基于Spearman-GCN-GRU的超短期多区域电力负荷预测模型

Fig.5 Spearman-GCN-GRU-based ultra-short-term multi-region power load forecasting model

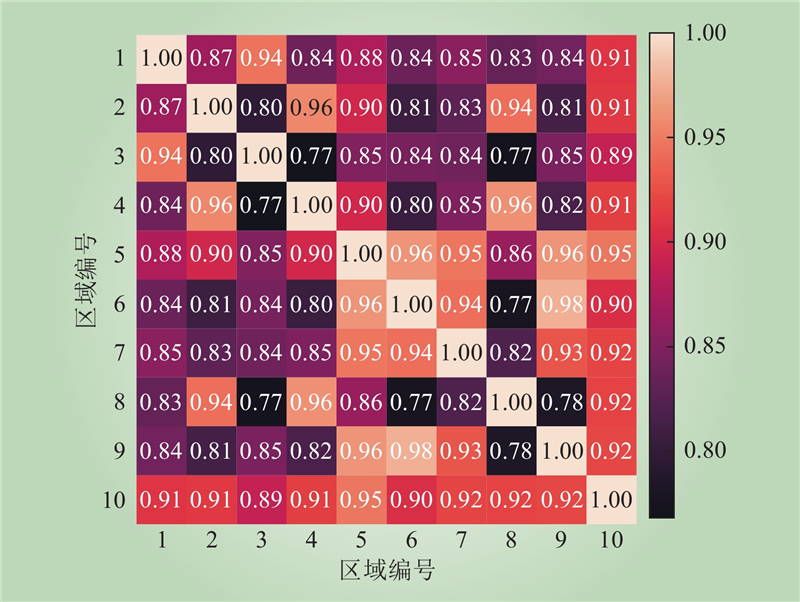

图 6 所选10个区域之间的Spearman相关系数

Fig.6 Spearman correlation coefficient among 10 regions

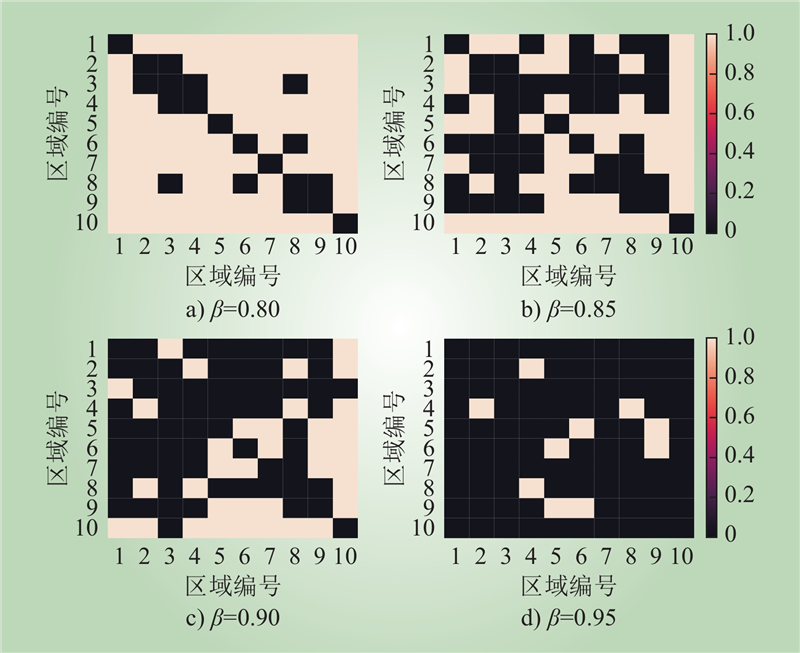

图 7 不同阈值下对应的邻接矩阵

Fig.7 Adjacency matrices with different thresholds

表 1 阈值0.80~0.90对应模型预测精度对比

Table 1 Comparison of prediction accuracy with threshold varying from 0.80 to 0.90

阈值	区域数	RMSE/W	RRMSE/%	MAE/W	MAPE/%	PA/%
0.80	10	8.7759	13.7826	5.4075	8.5570	91.4119
0.85	10	8.2328	12.7745	4.5394	7.2324	92.9375
0.90	10	7.3495	12.5806	4.6102	7.1035	93.0633

表 2 阈值0.90和0.95对应模型预测精度对比

Table 2 Comparison of prediction accuracy between threshold 0.90 and 0.95

阈值	区域数	RMSE/W	RRMSE/%	MAE/W	MAPE/%	PA/%
0.90	6	6.2266	11.7588	4.1887	7.0101	92.8098
0.95	6	6.6723	12.8625	3.8127	6.3530	93.5112

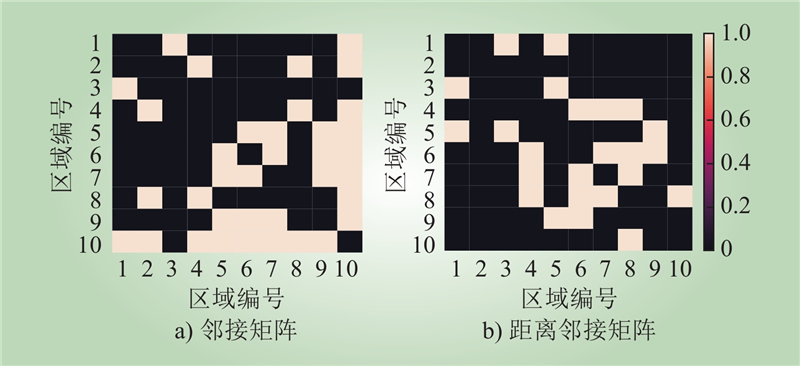

图 8 Spearman邻接矩阵和距离邻接矩阵

Fig.8 Spearman adjacency matrices and geographic adjacency matrices

表 3 不同邻接矩阵对应模型的预测精度对比

Table 3 Comparison of prediction accuracy with different adjacency matrices

方法	区域数	RMSE/W	RRMSE/%	MAE/W	MAPE/%	PA/%
Geographic-GCN-GRU	9	7.4849	12.6664	4.8888	7.9478	92.7178
Spearman-GCN-GRU	9	6.6723	11.8877	4.4881	7.0999	93.0428

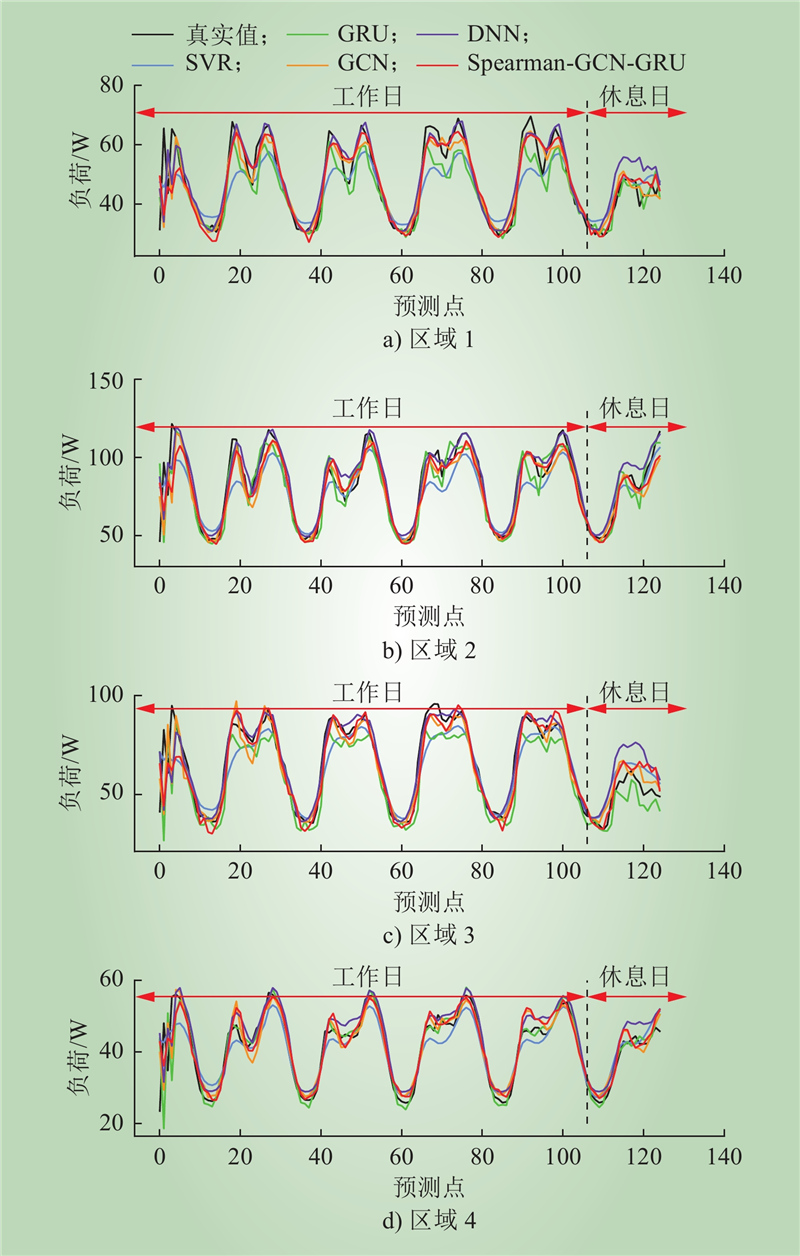

图 9 区域1~4在测试集中的预测效果

Fig.9 Prediction results of regions from 1 to 4 in test dataset

表 4 不同模型的预测结果

Table 4 Prediction results of different models

预测模型	RMSE/W	RRMSE/%	MAE/W	MAPE/%	PA/%
SVR （kernel='rbf'）	9.4144	13.6433	6.5627	9.9044	90.1812
GRU	8.5369	13.3252	4.6561	8.3685	92.5577
GCN	8.3195	12.5988	5.0038	7.7763	92.1970
DNN	8.0200	14.0683	5.1853	8.0953	91.0630
Spearman- GCN-GRU	7.3495	11.7929	4.6102	7.1035	93.0633

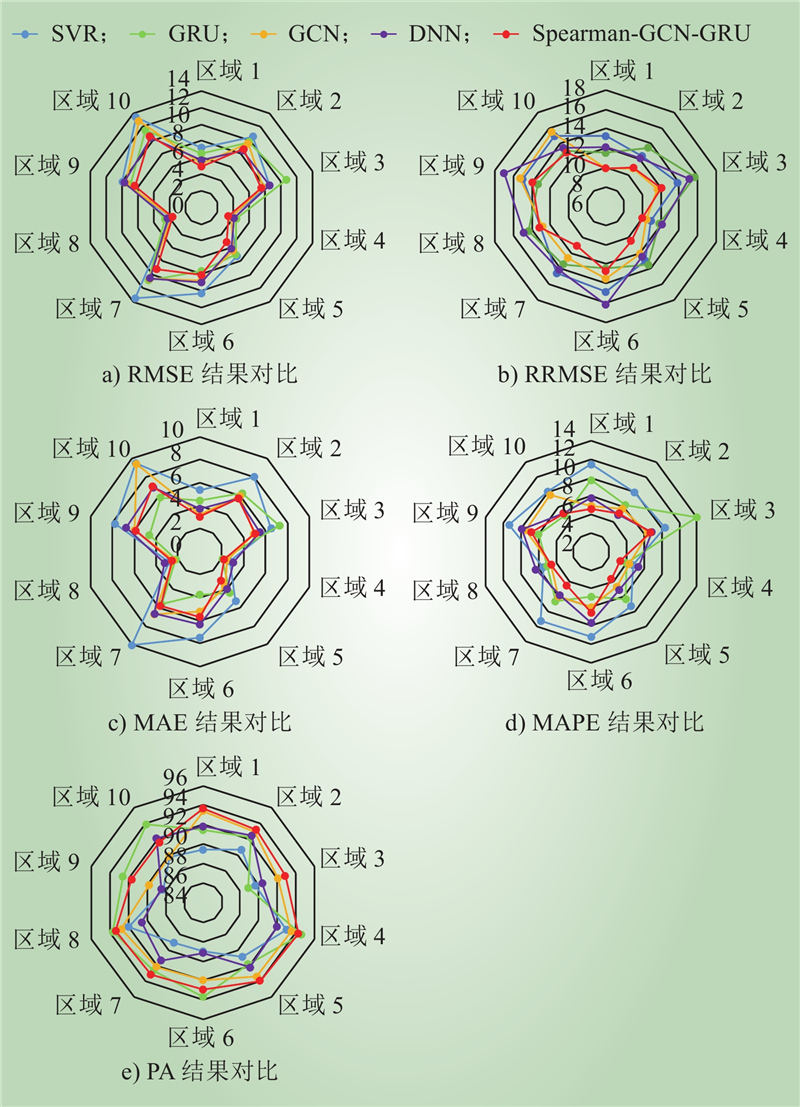

图 10 不同模型对应多区域下的预测结果

Fig.10 Prediction results of different models in multiple regions
