基于CEEMD-SE的CNN&LSTM-GRU短期风电功率预测

doi:10.11930/j.issn.1004-9649.202302098

摘要/Abstract

摘要：

为进一步提升短期风电功率的预测精度，提出了一种基于互补集合经验模态分解-样本熵（complementary ensemble empirical mode decomposition-sample entropy，CEEMD-SE）的卷积神经网络（convolutional neural network，CNN）和长短期记忆-门控循环单元（long short term memory-gated recurrent unit，LSTM-GRU）的短期风电功率预测模型。首先，利用互补集合经验模态分解将原始风电功率序列分解为若干本征模态函数（intrinsic mode function，IMF）分量和一个残差（residual，RES）分量，利用样本熵算法将相近的分量进行重构；其次，搭建卷积神经网络和长短期记忆网络的并行网络结构，提取数据的局部特征和时序特征，并将特征融合后输入门控循环单元网络中进行学习预测；最后，通过算例进行验证，结果表明采用该模型后预测精度得到了有效提升，其均方根误差降低了15.06%、平均绝对误差降低了15.22%、决定系数提高了1.91%。

关键词: 短期风电功率预测, 互补集合经验模态分解, 样本熵, 长短期记忆网络, 门控循环单元

Abstract:

In order to further improve the accuracy of short-term wind power forecast, a CNN & LSTM-GRU based short-term wind power prediction model using CEEMD-SE algorithm is proposed. First, the original wind power output series are decomposed into several intrinsic mode function components and one residual component by complementary set empirical mode decomposition, and those components of similar mode are reconstructed by sample entropy algorithm. Next, the parallel network structure of convolutional neural network and long short term memory network is set up, and the local and temporal features of the data are extracted. And then the features are fused and input into the gated cyclic unit network for learning and prediction. Finally, the feasibility of the model is verified through case studies. The results show that the forecast accuracy has been improved effectively. The root mean square error and average absolute error, of the proposed model are reduced by 15.06% and 15.22% respectively, while coefficient of determination is up by 1.91%.

Key words: short-term wind power forecasting, complementary ensemble empirical mode decomposition, sample entropy, long short term memory network, gated recurrent unite

中图分类号:

TM614

杨国华, 祁鑫, 贾睿, 刘一峰, 蒙飞, 马鑫, 邢潇文. 基于CEEMD-SE的CNN&LSTM-GRU短期风电功率预测[J]. 中国电力, 2024, 57(2): 55-61.

Guohua YANG, Xin QI, Rui JIA, Yifeng LIU, Fei MENG, Xin MA, Xiaowen XING. Short-Term Wind Power Forecast Based on CNN&LSTM-GRU Model Integrated with CEEMD-SE Algorithm[J]. Electric Power, 2024, 57(2): 55-61.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202302098

https://www.electricpower.com.cn/CN/Y2024/V57/I2/55

图/表 8

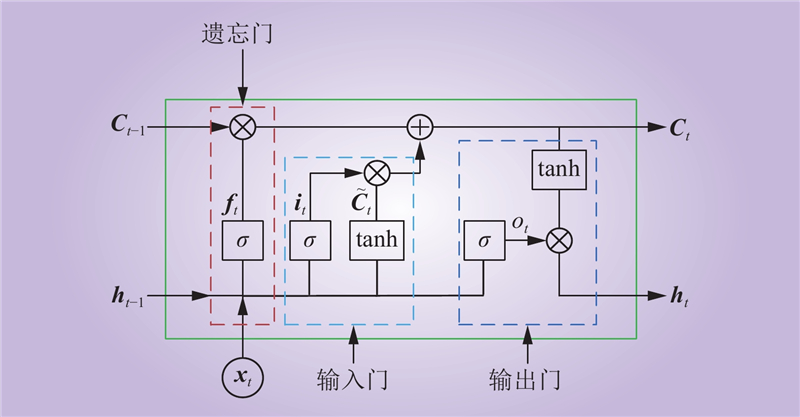

图 1 LSTM网络结构

Fig.1 LSTM network structure

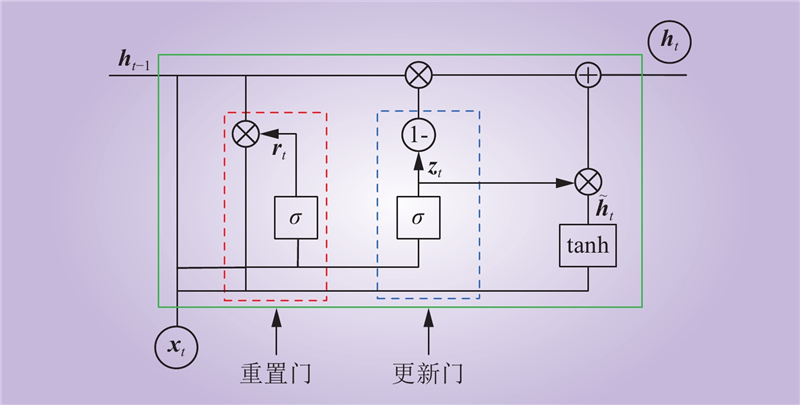

图 2 GRU网络结构

Fig.2 GRU network structure

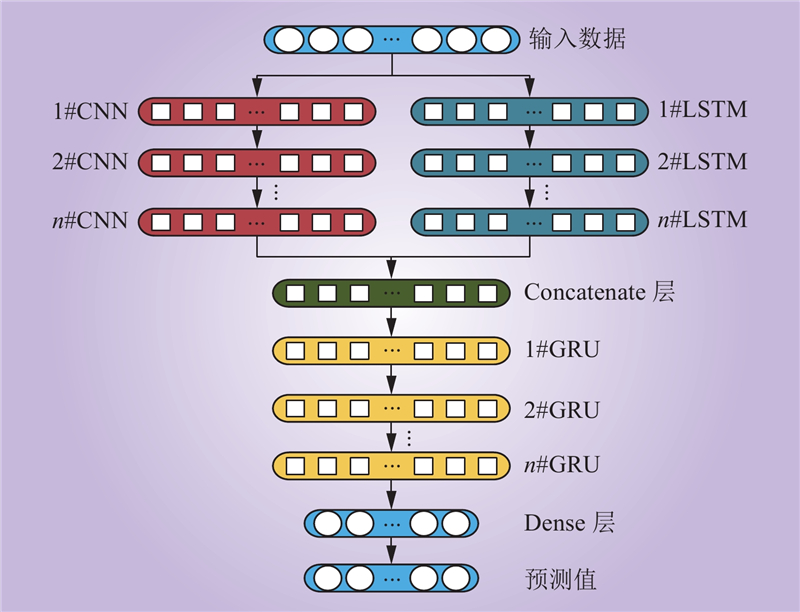

图 3 CNN&LSTM-GRU预测模型结构

Fig.3 CNN&LSTM-GRU prediction model structure

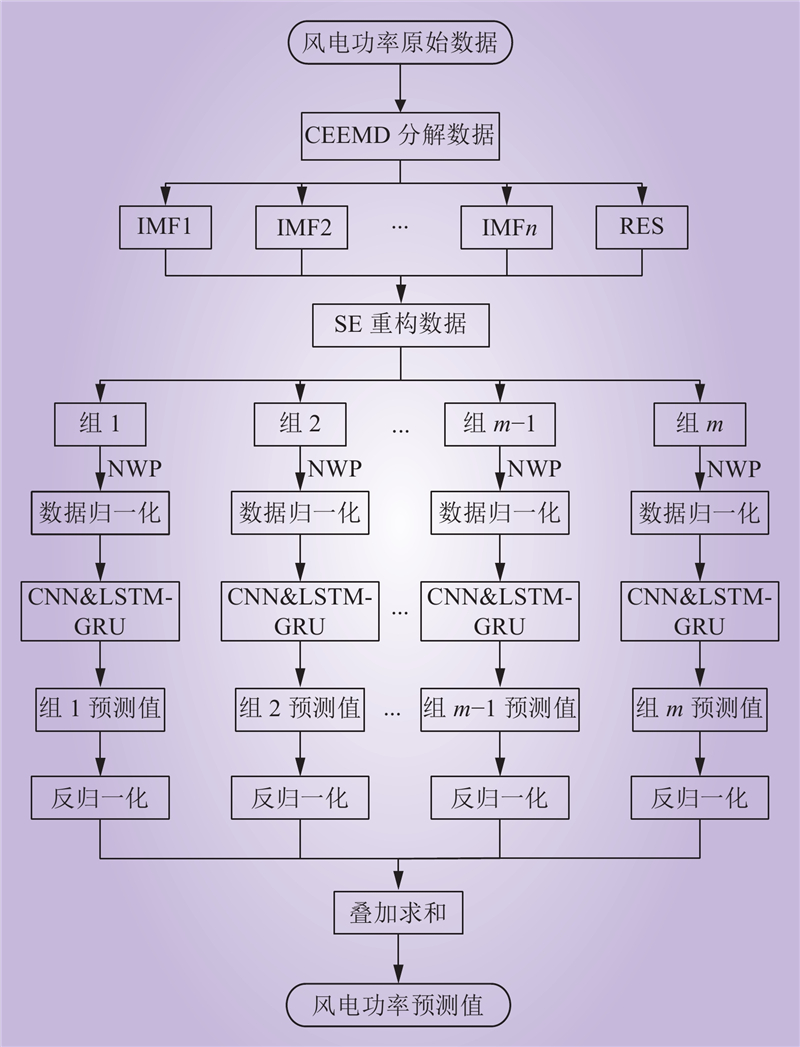

图 4 预测流程

Fig.4 Flow chart of wind power forecast

表 1 IMF1-IMF10和RES的SE值

Table 1 SE values of IMF1-IMF10 and Res

分量	SE值	分量	SE值
IMF1	1.22372	IMF7	0.35957
IMF2	1.01075	IMF8	0.12358
IMF3	0.75592	IMF9	0.02324
IMF4	0.67636	IMF10	0.00304
IMF5	0.65487	RES	0.00046
IMF6	0.60424

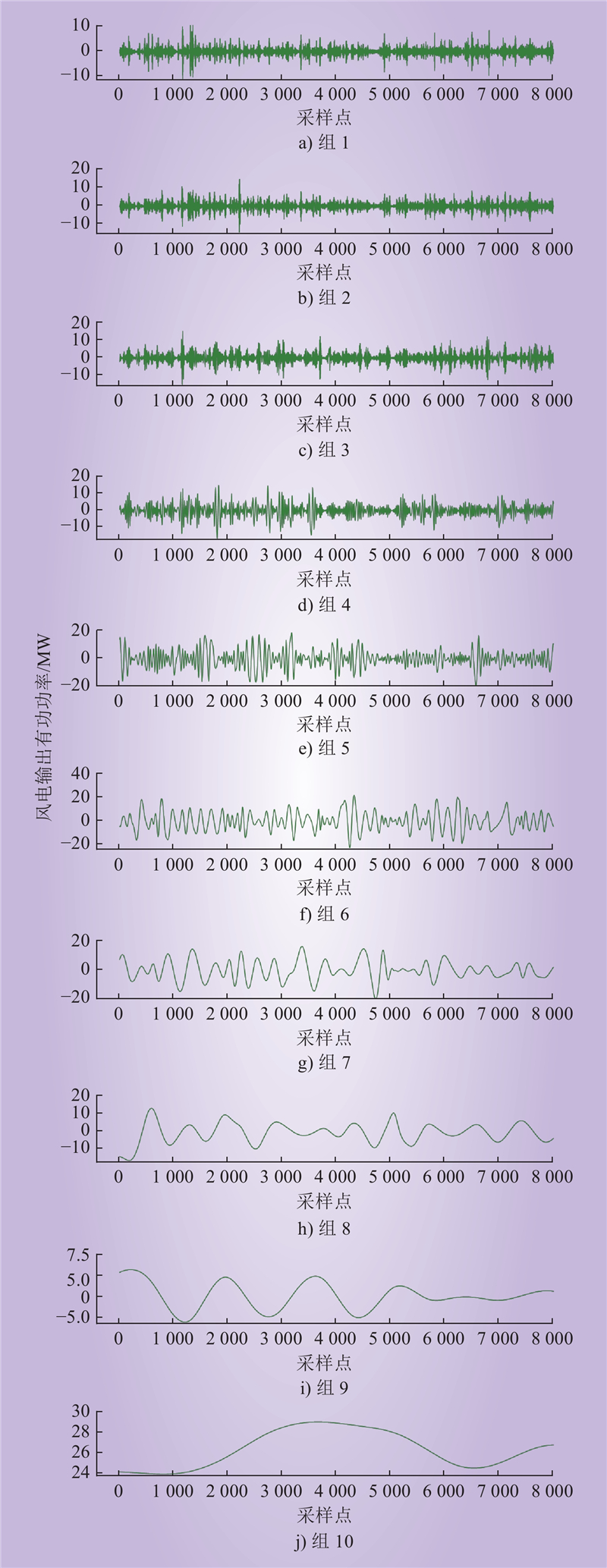

图 5 CEEMD-SE分解后的各分量

Fig.5 Individual component after CEEMD-SE decomposition

表 2 各个模型预测结果对比

Table 2 Comparison of prediction results of various models

预测模型	RMSE/MW	MAE/MW	R²
PSO-SVR	2.505	1.947	0.928
LSTM	2.322	1.767	0.938
CNN-LSTM	2.198	1.656	0.944
CNN&LSTM-GRU	1.867	1.404	0.962

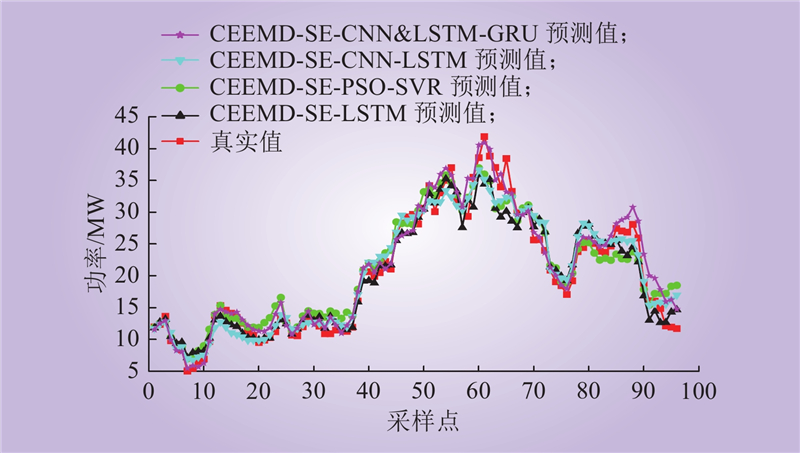

图 6 各模型预测结果曲线

Fig.6 Prediction result curve of each model

参考文献 25
