基于不完全量测数据的配电网状态估计方法

doi:10.11930/j.issn.1004-9649.202407002

摘要/Abstract

摘要：

随着分布式能源的大规模接入，传统配电网的运行特性发生显著变化，导致负荷分散、实时可观性差和数据不完整等问题，严重影响了配电网的状态监测和运行优化。对此，提出了一种基于不完全实时量测数据的贝叶斯优化卷积神经网络（convolutional neural networks，CNN）与长短期记忆网络（long short-term memory，LSTM）结合的配电网状态估计方法。该方法分为离线学习和在线状态估计2个阶段。离线学习部分，利用生成对抗网络生成所需样本，以训练CNN-LSTM模型，并采用贝叶斯优化算法调整超参数，从而提升算法的准确性。在线状态估计部分，基于不完全的配电网实时数据和训练完成的CNN-LSTM模型进行在线状态估计。最后，算例基于IEEE 33和IEEE 123网络进行仿真分析，验证了所提状态估计方法的有效性和准确性。

关键词: 配电网, 状态估计, 不完全量测, 卷积神经网络, 长短期记忆网络, 贝叶斯优化

Abstract:

With the large-scale integration of distributed energy resources, the operational characteristics of the traditional distribution networks have undergone significant changes, leading to such problems as dispersed loads, poor real-time observability, and incomplete data, which severely impact the state monitoring and operational optimization of the distribution networks. To address above problems, we propose a distribution network state estimation method based on Bayesian-optimized convolutional neural networks (CNN) and long short-term memory (LSTM) networks with incomplete real-time measurement data. The method is divided into two phases: offline learning and online state estimation. In the offline learning phase, generative adversarial networks are used to generate the required samples for training the CNN-LSTM model, and the Bayesian optimization algorithm is employed to adjust the hyperparameters, thereby enhancing the accuracy of the algorithm. In the online state estimation phase, the state estimation is performed online with incomplete real-time data of the distribution network and the trained CNN-LSTM model. Finally, simulation analysis is conducted on the IEEE 33 and IEEE 123 networks, which confirms the effectiveness and accuracy of the proposed state estimation method.

Key words: distribution network, state estimation, incomplete measurement, convolutional neural networks, long short-term memory, Bayesian optimization

李鹏, 祖文静, 刘一欣, 田春筝, 郝元钊, 李慧璇. 基于不完全量测数据的配电网状态估计方法[J]. 中国电力, 2025, 58(5): 1-10.

LI Peng, ZU Wenjing, LIU Yixin, TIAN Chunzheng, HAO Yuanzhao, LI Huixuan. State Estimation Method for Distribution Network Based on Incomplete Measurement Data[J]. Electric Power, 2025, 58(5): 1-10.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202407002

https://www.electricpower.com.cn/CN/Y2025/V58/I5/1

图/表 15

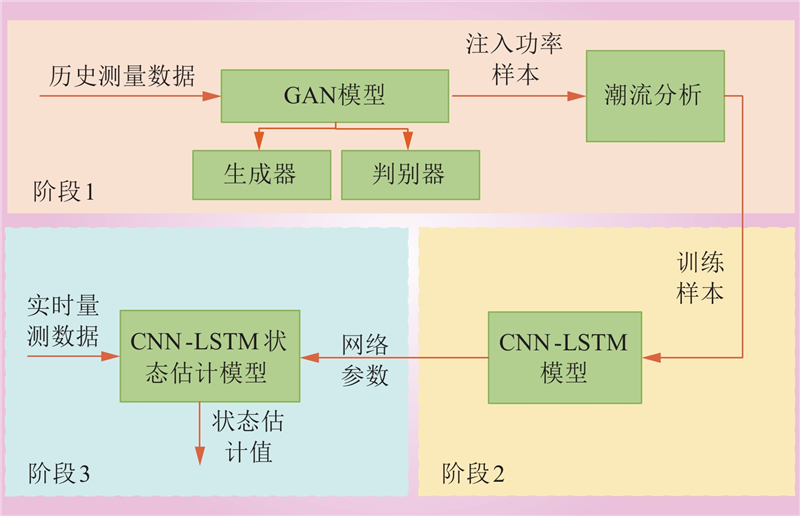

图 1 总体建模思路

Fig.1 Overall modeling approach

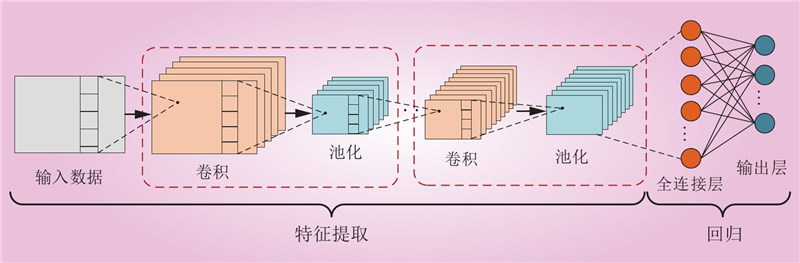

图 2 卷积神经网络结构

Fig.2 Convolutional neural networks structure

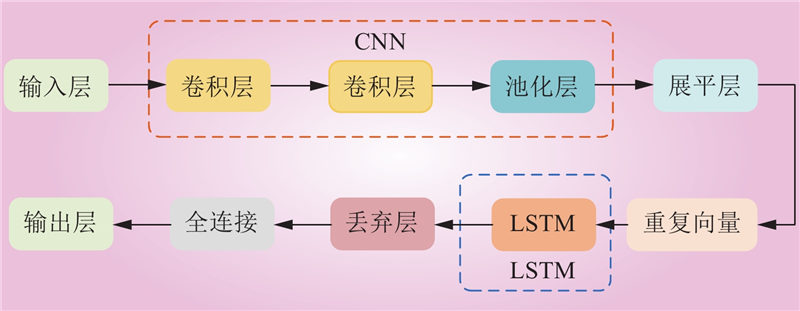

图 3 CNN-LSTM组合模型结构

Fig.3 CNN-LSTM combined model structure

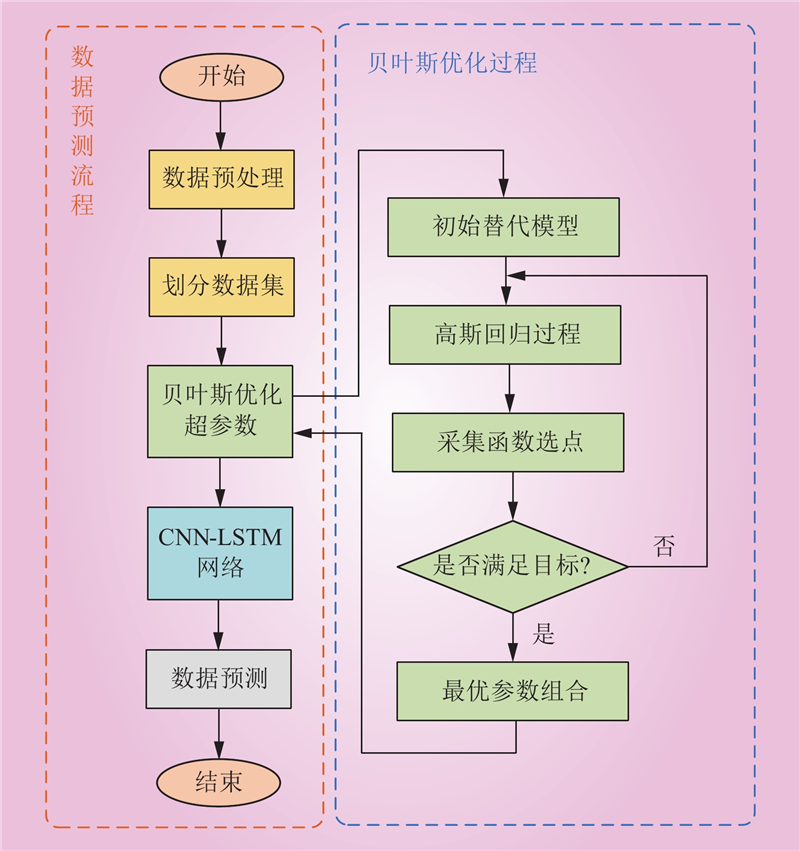

图 4 基于贝叶斯优化的CNN-LSTM模型优化流程

Fig.4 CNN-LSTM model optimization process based on Bayesian optimization

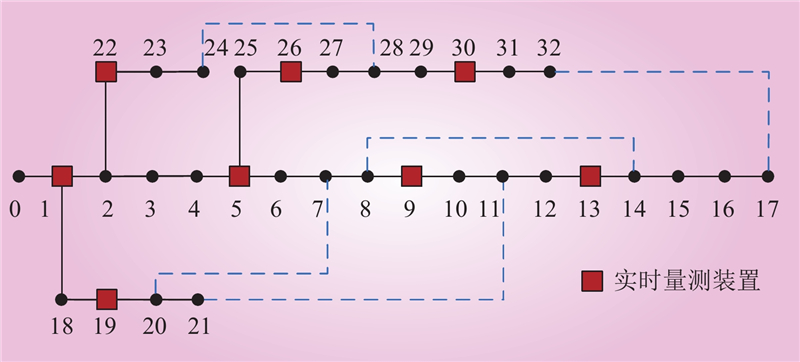

图 5 IEEE 33节点配电网测量配置

Fig.5 Measurement configuration of the IEEE 33-node distribution network

表 1 Adam参数设置

Table 1 Adam parameter settings

参数		数值
β₁		0.9
β₂		0.999
η		e^–8

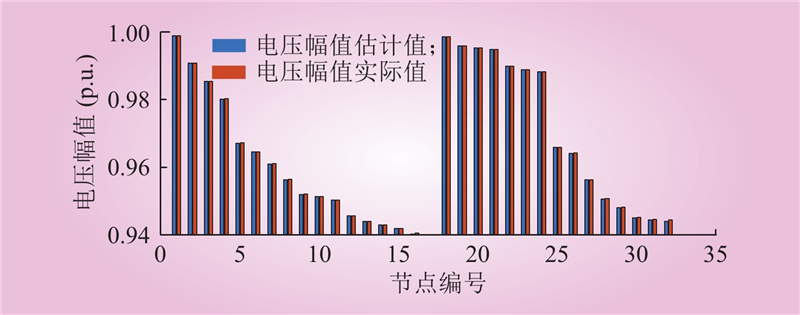

图 6 各节点电压幅值状态估计结果

Fig.6 State estimation results of the voltage magnitude at each node

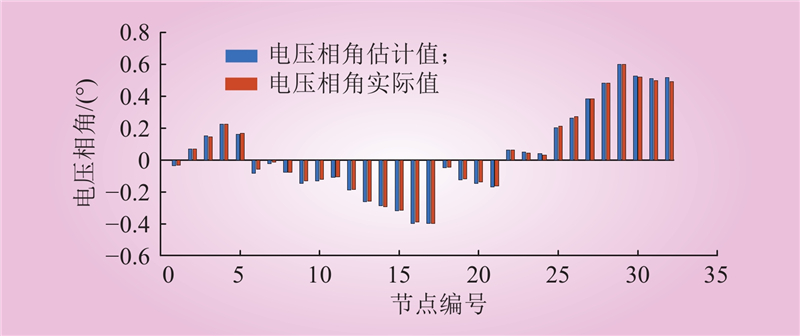

图 7 各节点电压相角状态估计结果

Fig.7 State estimation results of the voltage phase angle at each node

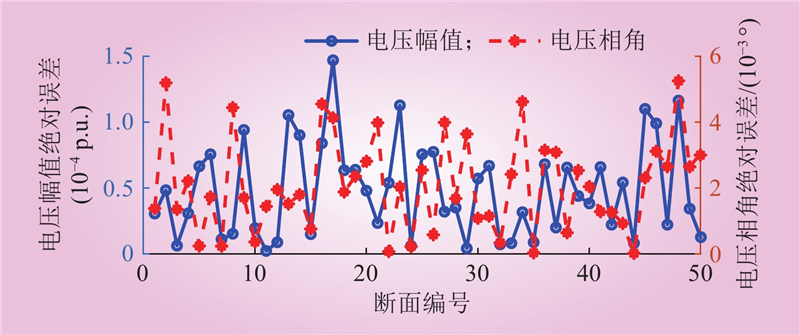

图 8 不同断面下节点2电压幅值和相角绝对误差

Fig.8 Absolute error of the voltage magnitude and phase angle at node 2 across different sections

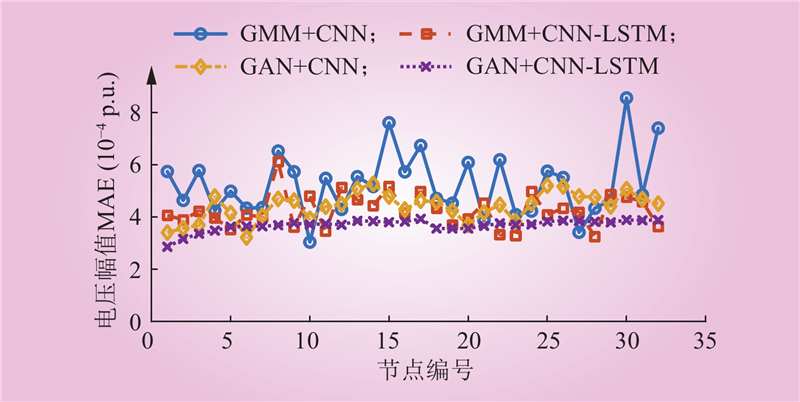

图 9 4种预测模型电压幅值MAE的比较分析

Fig.9 Comparative analysis of the MAE for voltage magnitude across four prediction models

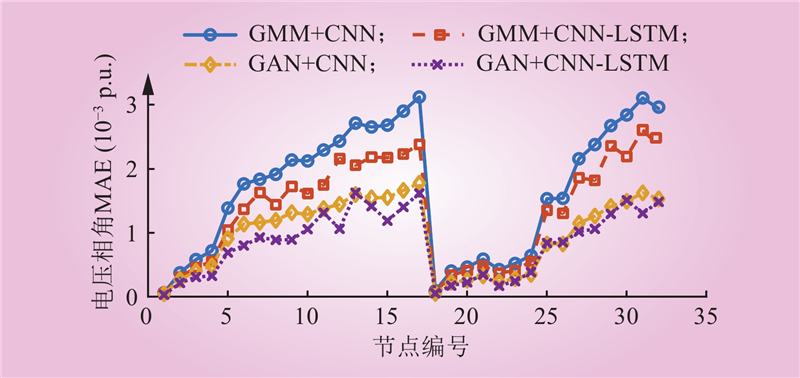

图 10 4种预测模型电压相角MAE的比较分析

Fig.10 Comparative analysis of the MAE for voltage phase angle across four prediction models

表 2 节点5电压幅值和相角MAE的比较分析

Table 2 Comparative analysis of the MAE for voltage magnitude and phase angle at node 5

算法	电压幅值MAE (10^–3 p.u.)	电压相角MAE (10^–3 p.u.)	状态估计时间/s
WLS	1.28	2.25	0.46
本文方法	0.59	1.16	0.41

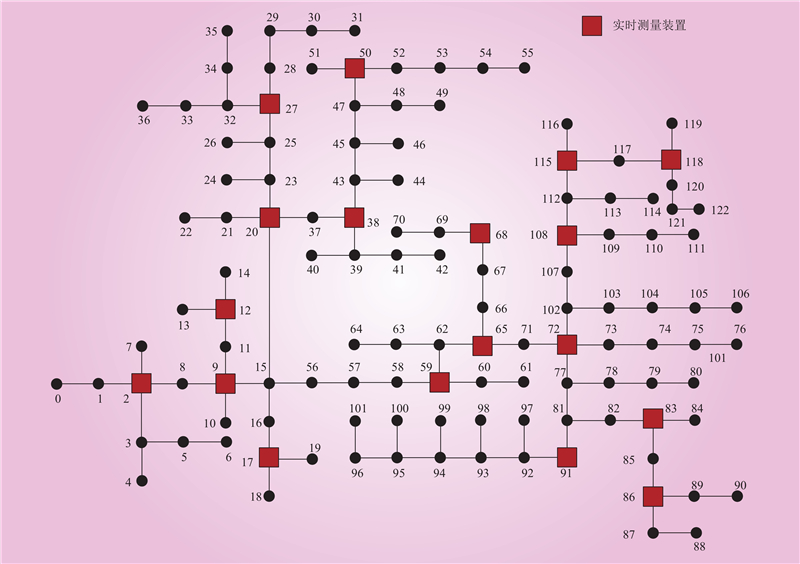

图 11 IEEE 123节点配电网测量配置

Fig.11 Measurement configuration of the IEEE 123-node distribution network

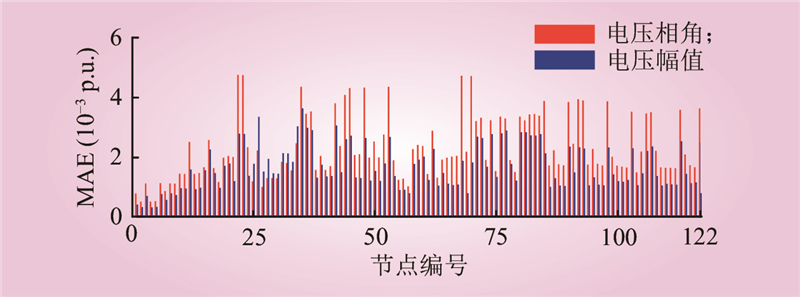

图 12 各节点电压幅值和相角的MAE

Fig.12 The MAE of the voltage magnitude and phase angle at each node

表 3 不同测量噪声下节点9电压幅值和相角的MAE

Table 3 The MAE of the voltage magnitude and phase angle at node 9 with different measurement noise

测量噪声/%	电压幅值MAE(10^–3 p.u.)	电压相角MAE(10^–3 p.u.)
1	1.05	1.35
2	1.28	1.67
3	1.42	2.26
