基于DTW K-medoids与VMD-多分支神经网络的多用户短期负荷预测

doi:10.11930/j.issn.1004-9649.202306104

中国电力 ›› 2024, Vol. 57 ›› Issue (6): 121-130.DOI: 10.11930/j.issn.1004-9649.202306104

基于DTW K-medoids与VMD-多分支神经网络的多用户短期负荷预测

王宇飞¹(), 杜桐¹(), 边伟国¹(), 张钊²(), 刘慧婷²(), 杨丽君²()

1. 国网冀北电力有限公司张家口供电公司，河北张家口　075000
2. 河北省电力电子节能与传动控制重点实验室（燕山大学电气工程学院），河北秦皇岛　066004

收稿日期:2023-06-28 接受日期:2024-01-16 出版日期:2024-06-28 发布日期:2024-06-25
作者简介:王宇飞（1991—），男，工程师，从事配电网规划与建设研究，E-mail：15133330416@139.com
杜桐（1993—），男，经济师，从事电力经济分析研究，E-mail：18332550961@163.com
边伟国（1990—），男，工程师，从事电力线损管理研究，E-mail：weiguo1382183@sohu.com
张钊（1992—），男，博士研究生，从事机器学习在电力系统中的应用研究， E-mail：1311017915@qq.com
刘慧婷（1997—），女，硕士研究生，从事电力系统负荷预测研究，E-mail：1072398868@qq.com
杨丽君（1972—），女，教授，通信作者，从事电力及综合能源系统恢复控制及优化调度研究，E-mail：195320008@qq.com
基金资助:
国网冀北张家口供电公司2022年群众性创新项目（B30107220006）；河北省自然科学基金资助项目（E2021203004）。

Short-term Load Forecasting Based on DTW K-medoids and VMD Multi-branch Neural Network for Multiple Users

Yufei WANG¹(), Tong DU¹(), Weiguo BIAN¹(), Zhao ZHANG²(), Huiting LIU²(), Lijun YANG²()

1. State Grid Jibei Electric Power Co., Ltd. Zhangjiakou Power Supply Company, Zhangjiakou 075000, China
2. Key Laboratory of Power Electronics for Energy Conservation and Drive Control of Heibei Province (School of Electrical Engineering, Yanshan University), Qinhuangdao 066004, China

Received:2023-06-28 Accepted:2024-01-16 Online:2024-06-28 Published:2024-06-25
Supported by:
This work is supported by 2022 Mass Innovation Project of State Grid Zhangjiakou Power Supply Company (No.B30107220006) and Natural Science Foundation of Hebei Province (No.E2021203004).

摘要/Abstract

摘要：

多用户电力负荷预测是指根据历史负荷数据对多个用户或区域的电力负荷进行预测，可使电网企业掌握不同用户或区域的电力需求，以便更好地开展规划和实施调度优化等。然而由于各用户呈现出复杂多样的用电行为，采用传统方法难以进行统一建模并实现快速准确预测。为此，构建了一种基于DTW K-medoids与VMD-多分支神经网络的多用户短期负荷预测模型。首先，采用DTW K-medoids法进行用户负荷数据聚类，利用动态时间弯曲（dynamic time warping，DTW）计算数据间的距离，取代K-medoids算法中传统的欧氏距离度量方式，以改善多用户负荷聚类的效果；在此基础上，为充分表征负荷历史数据的长短期时序依赖特征，建立了一种基于变分模态分解（variational mode decomposition，VMD）-多分支神经网络模型的并行预测方法，用于多用户短期负荷预测；最后，使用某地区20个用户365天的负荷数据进行聚类、训练和测试实验，结果显示该模型结果的平均绝对误差和均方根误差等指标均较对比模型有较大幅度降低，表明该方法可有效表征多类用户的用电行为，提升多用户负荷预测效率和精度。

关键词: 多用户, 负荷预测, DTW K-medoids聚类, 变分模态分解（VMD）, 多分支神经网络

Abstract:

Multi-user power load forecasting refers to the power load forecasting of multiple users or regions based on historical loads data, which can make the grid companies understand the power demands of different users or regions, so as to better carry out the planning and scheduling optimization of the power system. However, different users have complex and diverse power consumption behaviors, so it is difficult to use traditional methods to universally model different power users' loads and achieve accurate prediction. Therefore, a new multi-user short-term load prediction model based on DTW K-medoids and VMD-multi-branch neural network is established. Firstly, in order to improve the clustering performance of traditional clustering methods, the DTW K-medoids method is used to cluster users' load data, and the distance between loads data is calculated using the dynamic time warping (DTW) instead of the traditional Euclidean distance measurement method in K-medoids to improve the clustering effects of multiple users' load. Secondly, in order to fully characterize the long short-term time series-dependent characteristics of load history data, a parallel load forecasting method based on VMD-multi-branch neutral network model is established for multi-user short-term load forecasting. Finally, the 365-day load data of 20 users in a region is used for clustering, training and experiment, and the results show that the MAE and RMSE indexes of the proposed model significantly decrease compared with that of the comparative models, indicating that the proposed method can effectively characterize the power consumption behaviors of multiple users and improve the prediction efficiency and accuracy of multi-user loads.

Key words: multi-user, load forecasting, DTW K-medoids clustering, variational mode decomposition, multi-branch neural network

王宇飞, 杜桐, 边伟国, 张钊, 刘慧婷, 杨丽君. 基于DTW K-medoids与VMD-多分支神经网络的多用户短期负荷预测[J]. 中国电力, 2024, 57(6): 121-130.

Yufei WANG, Tong DU, Weiguo BIAN, Zhao ZHANG, Huiting LIU, Lijun YANG. Short-term Load Forecasting Based on DTW K-medoids and VMD Multi-branch Neural Network for Multiple Users[J]. Electric Power, 2024, 57(6): 121-130.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202306104

https://www.electricpower.com.cn/CN/Y2024/V57/I6/121

图/表 13

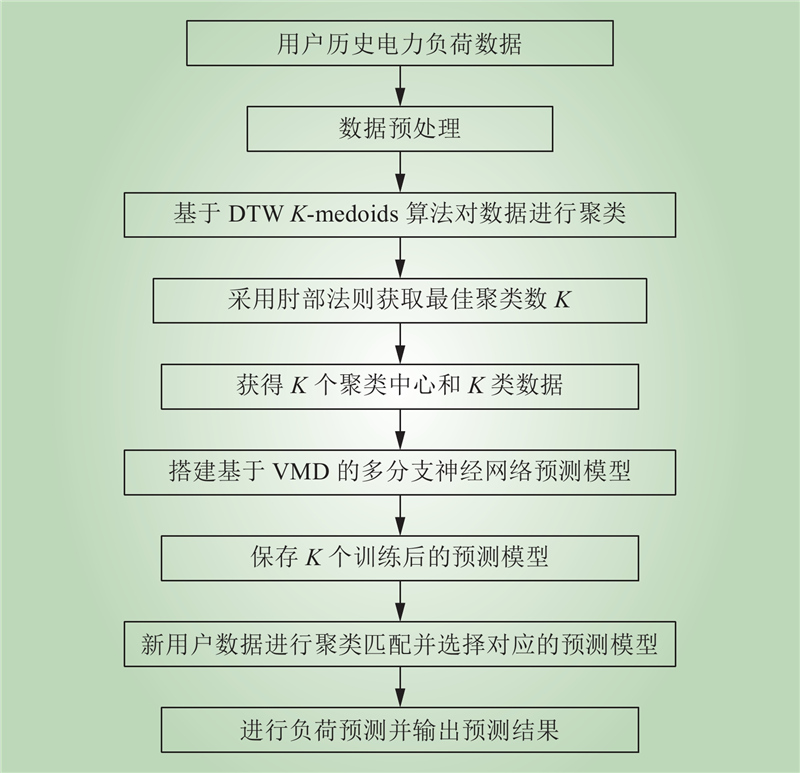

图 1 预测流程

Fig.1 Prediction flowchart

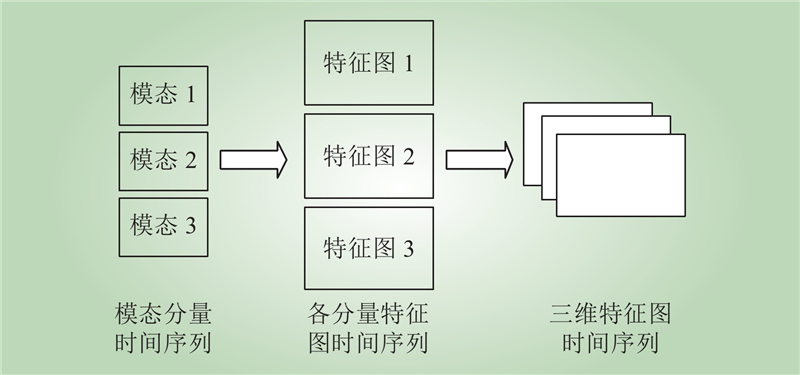

图 2 三维特征图重构模块

Fig.2 The 3 D feature map reconstruction module

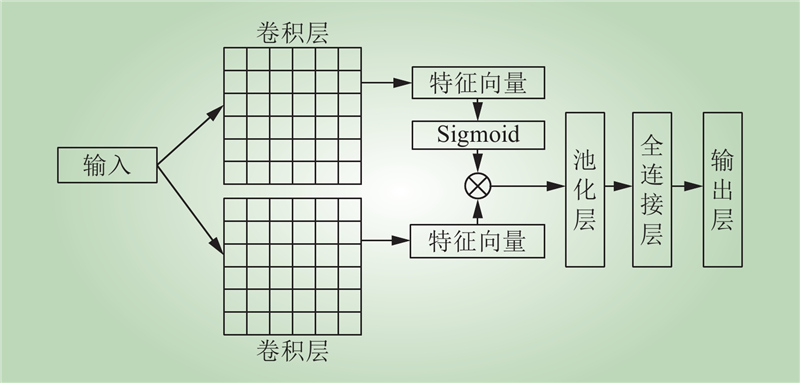

图 3 GCNN结构

Fig.3 Structure of GCNN

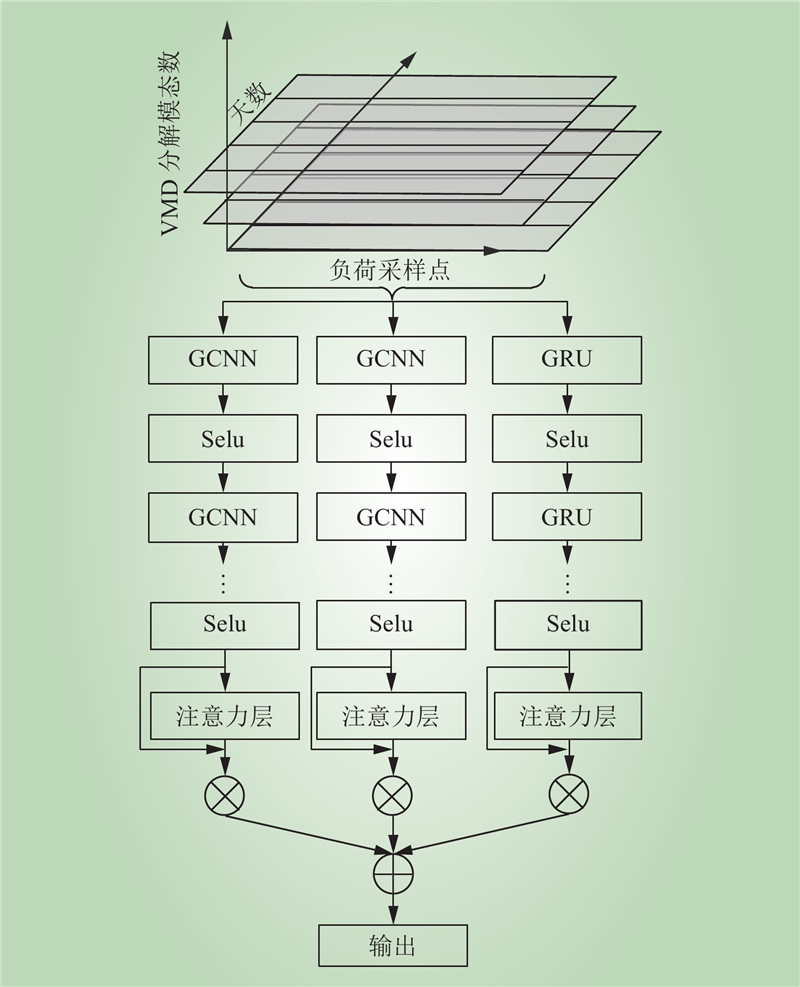

图 4 多分支神经网络

Fig.4 The multi-branch neural network

表 1 预测模型参数

Table 1 Parameters for prediction models

模型		参数
VMD		分解模态数=3，初始中心频率=1
Kemiod		聚类数4
GCNN		5层
GRU		3层

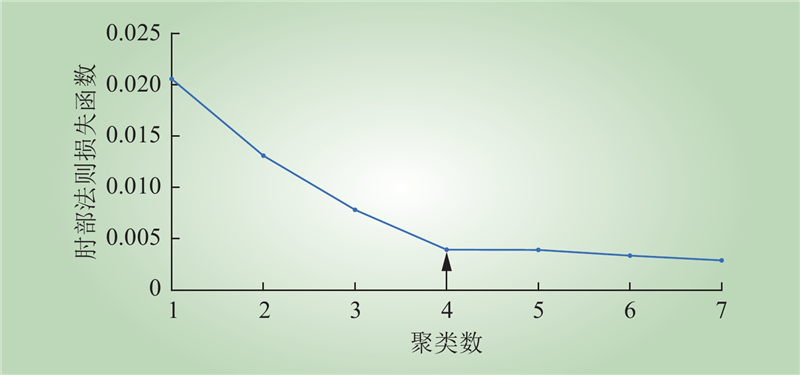

图 5 肘部法则确定聚类数

Fig.5 Number of clusters determined by elbow method

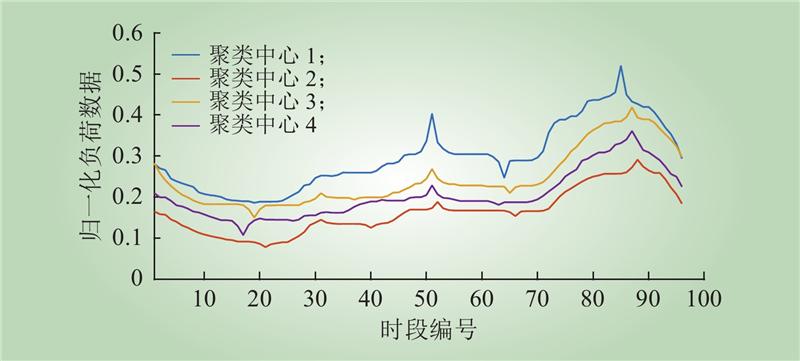

图 6 聚类中心可视化

Fig.6 Cluster center visualization

表 2 不同聚类算法对预测模型的影响

Table 2 Influence of different clustering algorithms on prediction models

模型	MAE/MW	RMSE/MW	PE/%
K-means	12.82	18.77	25.99
K-medoids	12.38	18.40	25.74
DTW K-means	12.23	18.31	25.49
DTW K-medoids	11.19	17.98	25.10

表 3 VMD分解不同模态数对预测模型的影响

Table 3 Influence of different mode number of VMD on prediction models

类别	模态数IMF	MAE/MW	RMSE/MW	PE/%
1	3	15.86	19.71	26.67
	5	17.26	21.77	27.56
	7	19.53	25.39	28.50
2	3	15.05	25.36	25.93
	5	15.96	26.59	26.37
	7	17.30	27.16	26.71
3	3	7.39	10.92	24.20
	5	8.33	12.06	24.91
	7	9.52	13.07	25.03
4	3	8.51	12.29	24.83
	5	9.74	14.04	24.93
	7	11.13	15.35	25.45

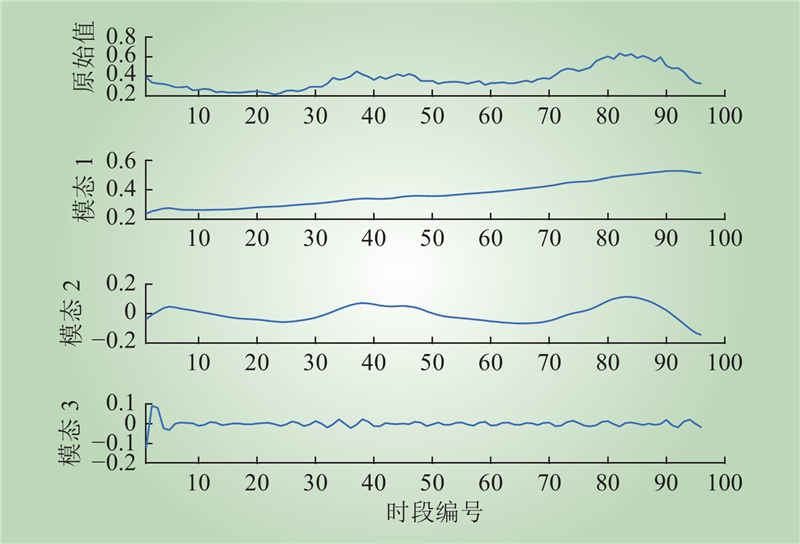

图 7 VMD分解可视化

Fig.7 VMD visualization

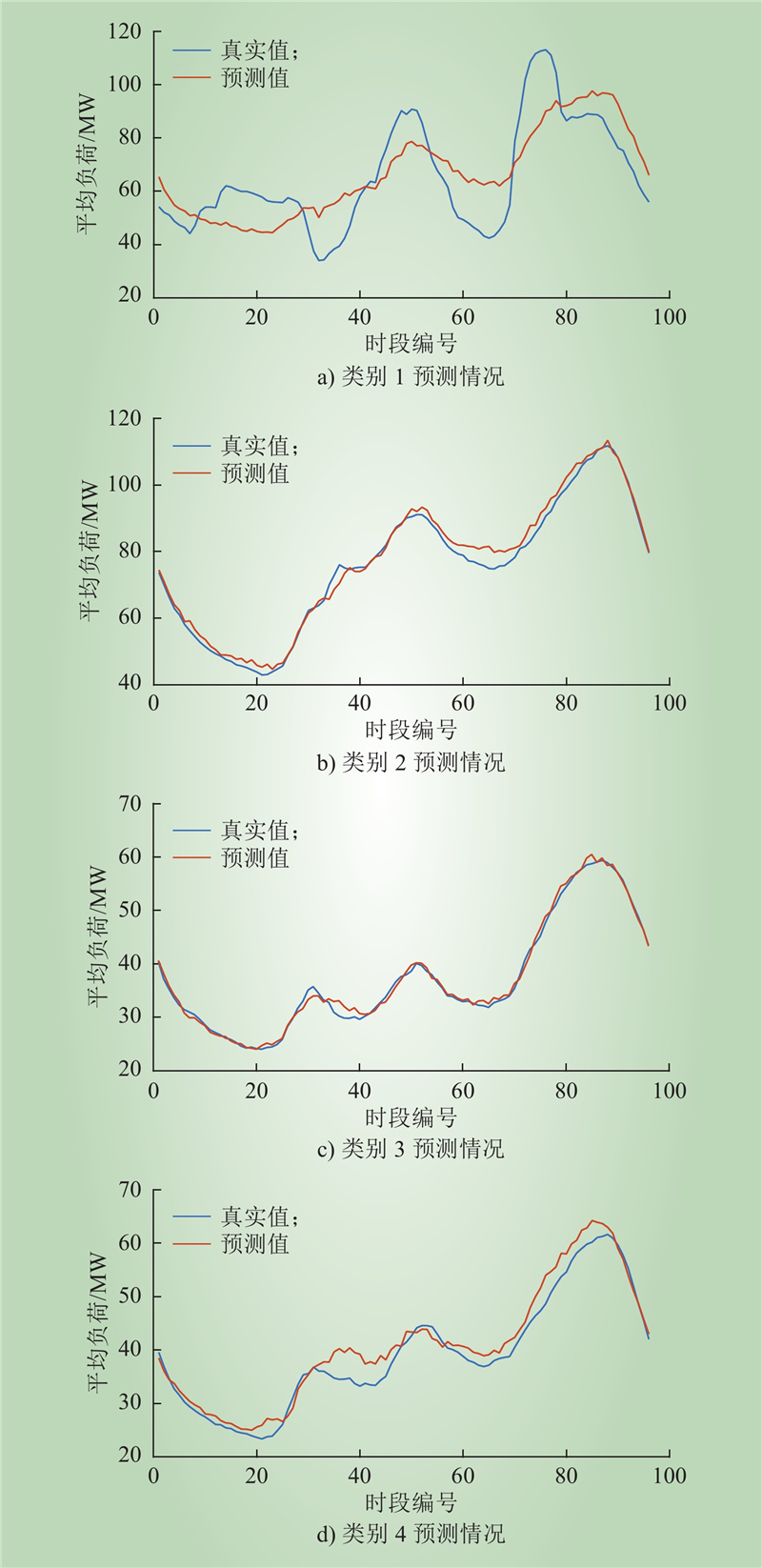

图 8 不同类别预测结果

Fig.8 Prediction results of different categories of data

表 4 不同类别数据的预测误差比较

Table 4 Comparison of prediction errors of different categories of data

负荷类别	MAE/MW	RMSE/MW	PE/%
1	15.86	19.71	28.02
2	15.05	25.36	26.61
3	7.39	10.92	24.10
4	8.51	12.29	24.42

表 5 不同的预测模型误差对比

Table 5 Error comparison of different prediction models

模型	MAE/MW	RMSE/MW	PE/%
LSTM	17.41	25.05	28.83
CNN	19.96	28.16	30.02
GCNN	16.92	22.31	26.48
LSTM-GCNN	15.17	18.42	25.41
本文	11.19	17.98	25.10
