面向虚拟电厂运营的温度敏感负荷分析与演变趋势研判

doi:10.11930/j.issn.1004-9649.202307100

中国电力 ›› 2024, Vol. 57 ›› Issue (1): 9-17.DOI: 10.11930/j.issn.1004-9649.202307100

面向虚拟电厂运营的温度敏感负荷分析与演变趋势研判

周颖¹(), 白雪峰²(), 王阳³(), 邱敏¹(), 孙冲⁴(), 武亚杰¹(), 李彬²()

1. 需求侧多能互补优化与供需互动技术北京市重点实验室（中国电力科学研究院有限公司），北京　100192
2. 华北电力大学电气与电子工程学院，北京　102206
3. 国家电网有限公司，北京　100031
4. 国网河北省电力有限公司营销服务中心，河北石家庄　050081

收稿日期:2023-07-26 接受日期:2023-11-20 出版日期:2024-01-28 发布日期:2024-01-23
作者简介:周颖（1993—），女，硕士，工程师，从事电力电量分析预测研究，E-mail：hgzhouying@163.com
白雪峰（1997—），男，硕士研究生，从事电力电量分析预测研究，E-mail：884973072@qq.com
王阳（1985—），女，博士，高级工程师，从事电力电量分析预测研究，E-mail：wang-yang@sgcc.com.cn
邱敏（1992—），男，博士，工程师，从事电力电量分析预测研究，E-mail：qiumin@epri.sgcc.com.cn
孙冲（1983—），男，高级工程师，从事电力电量分析预测研究，E-mail：sunchong@163.com.cn
武亚杰（1993—），男，从事电力电量分析预测研究，E-mail：wuyajie@epri.sgcc.com.cn
李彬（1983—），男，通信作者，博士，副教授，从事需求响应和负荷预测研究，E-mail：direfish@163.com
基金资助:
国家电网有限公司科技项目（支撑重过载台区治理的区域供用电综合预测与智能预警技术研究与应用，5108-202218280A-2-379-XG）。

Analysis and Evolution Trend of Temperature-Sensitive Loads for Virtual Power Plant Operation

Ying ZHOU¹(), Xuefeng BAI²(), Yang WANG³(), Min QIU¹(), Chong SUN⁴(), Yajie WU¹(), Bin LI²()

1. Beijing Key Laboratory of Demand Side Multi-Energy Carriers Optimization and Interaction Technique (China Electric Power Research Institute), Beijing 100192, China
2. Department of Electrical and Electronic Engineering, North China Electric Power University, Beijing 102206, China
3. State Grid Coporation of China, Beijing 100031, China
4. Marketing Service Center of State Grid Hebei Electric Power Co., Ltd., Shijiazhuang 050081, China

Received:2023-07-26 Accepted:2023-11-20 Online:2024-01-28 Published:2024-01-23
Supported by:
This work is supported by Science and Technology Project of SGCC (Regional Power Supply and Consumption Comprehensive Pre-Treatment Supporting Heavy Overload Station Area Governance, No.5108-202218280A-2-379-XG).

摘要/Abstract

摘要：

随着极端天气频发，温度敏感负荷用电逐年攀升，温度敏感负荷作为虚拟电厂优质的调控资源，亟须分析气象变化对于此类负荷的影响，由于叠加极端高温、大规模寒潮等异常天气的影响，温度敏感负荷波动剧烈，常规分析预测方法难以适应极端气象场景。针对寒潮天气下温度敏感负荷样本数据及预测精度不足的问题，提出寒潮天气小样本条件下的温度敏感负荷日最大负荷预测方法。该方法先采用时序对抗生成网络（TimeGAN）扩充寒潮期间小样本数据，再采用卷积-长短时记忆神经网络（CNN-LSTM）对寒潮期间的日最大负荷进行预测。以国内某省近两年迎峰度冬期间数据进行模型验证，结果表明所提模型优于其他模型的预测结果，在验证集上日最大负荷的预测精度为99.5%。

关键词: 温度敏感负荷预测, 寒潮, 时间序列生成对抗网络, 虚拟电厂, 卷积神经网络, 长短时记忆神经网络

Abstract:

With the frequent occurrence of extreme weather, the electricity consumption of temperature-sensitive loads is increasing year by year. As a high-quality regulation resource of virtual power plant (VPP), temperature-sensitive loads urgently need to be analyzed for the impact of meteorological changes on them. Due to the influence of abnormal weather such as extreme high temperature and large-scale cold waves, temperature-sensitive loads fluctuate violently. Conventional analysis and prediction methods are not adaptable to the extreme meteorological scenarios. Aiming at the problem of insufficient sample data and prediction accuracy of temperature-sensitive loads under cold wave weather, this paper proposes a daily maximum load prediction method for temperature-sensitive loads under the condition of small sample in cold wave weather. In this method, the TimeGAN is used to expand the small sample data during the cold wave period, and then the CNN-LSTM network is used to predict the daily maximum load during the cold wave period. Finally, the model is verified by the load data of a province in China during the winter period in the past two years. The results show that the prediction results of the proposed model are better than those of other models, with the prediction accuracy of the daily maximum load on the verification set being 99.5%.

Key words: temperature sensitive load forecasting, cold wave, time series generative adversarial network, virtual power plant, convolutional neural network, long short-term memory neural network

周颖, 白雪峰, 王阳, 邱敏, 孙冲, 武亚杰, 李彬. 面向虚拟电厂运营的温度敏感负荷分析与演变趋势研判[J]. 中国电力, 2024, 57(1): 9-17.

Ying ZHOU, Xuefeng BAI, Yang WANG, Min QIU, Chong SUN, Yajie WU, Bin LI. Analysis and Evolution Trend of Temperature-Sensitive Loads for Virtual Power Plant Operation[J]. Electric Power, 2024, 57(1): 9-17.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202307100

https://www.electricpower.com.cn/CN/Y2024/V57/I1/9

图/表 8

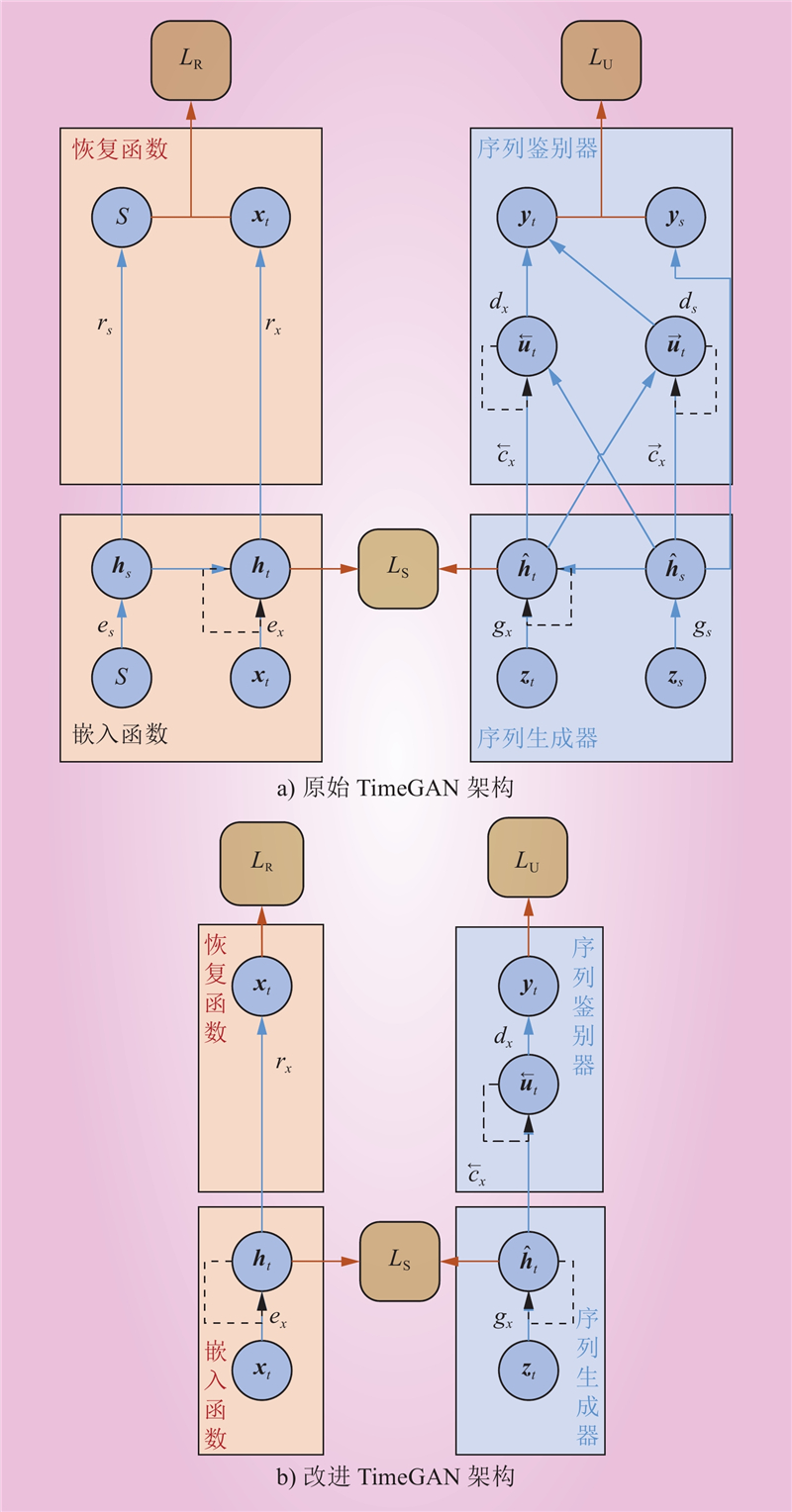

图 1 TimeGAN架构及本文改进的TimeGAN架构

Fig.1 The TimeGAN architecture and the improved TimeGAN architecture in this paper

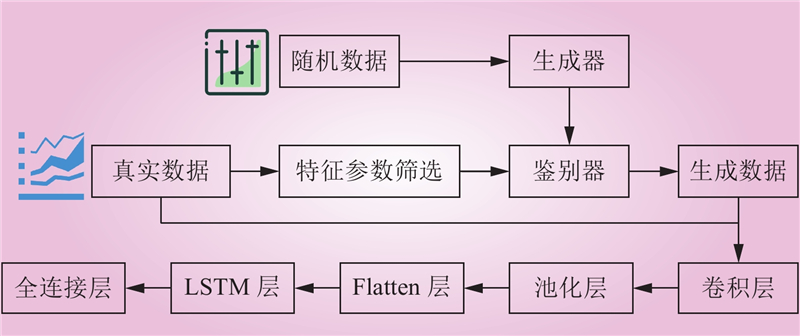

图 2 TimeGAN-CNN-LSTM模型流程示意

Fig.2 The TimeGAN-CNN-LSTM model flowchart

表 1 各气象指标与不同负荷相关系数

Table 1 The correlation coefficient between meteorological factors and different loads

项目	相关系数
项目	总负荷	温度敏感负荷	基础负荷
最高温度	–0.69	–0.74	–0.34
平均温度	–0.72	–0.77	–0.20
最低温度	–0.70	–0.74	–0.32
风速	–0.44	–0.23	0.17
湿度	0.15	0.20	–0.16
寒湿指数	0.70	0.67	0.35
体感温度	–0.75	–0.78	–0.28
人体舒适度	–0.74	–0.77	–0.34

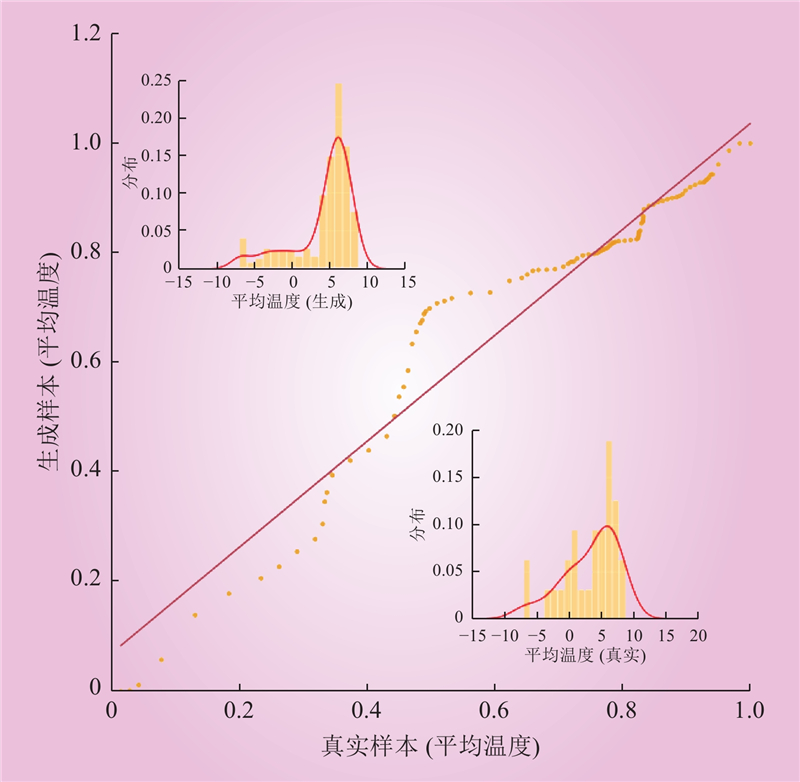

图 3 平均温度的合成样本与真实样本分布情况

Fig.3 Distribution of synthetic and real samples of average temperature

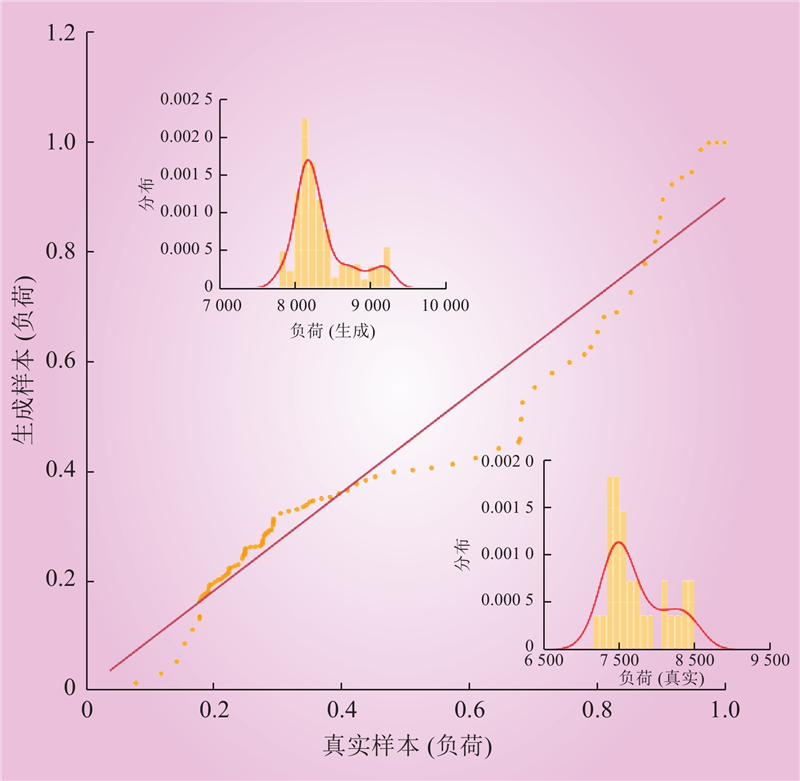

图 4 负荷的合成样本与真实样本分布情况

Fig.4 Distribution of synthetic and real samples of load

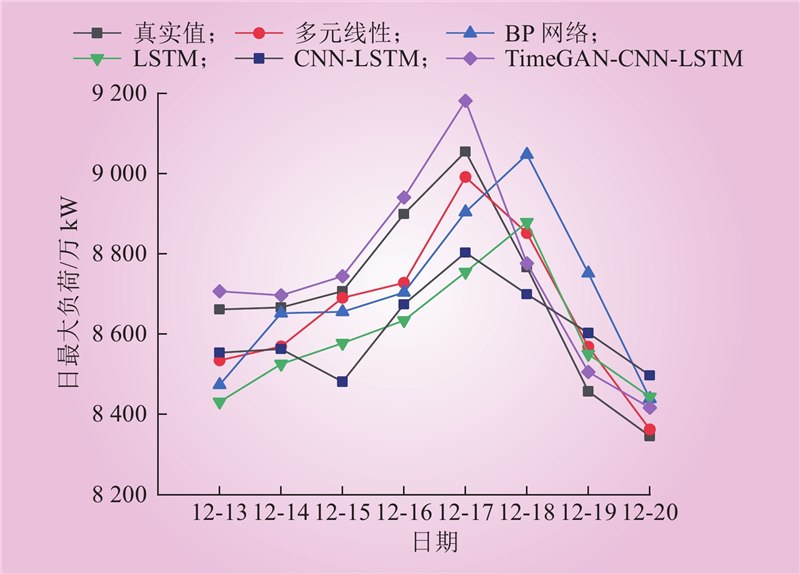

图 5 不同算法对总负荷的预测结果

Fig.5 The prediction results of each algorithm for total load direct prediction

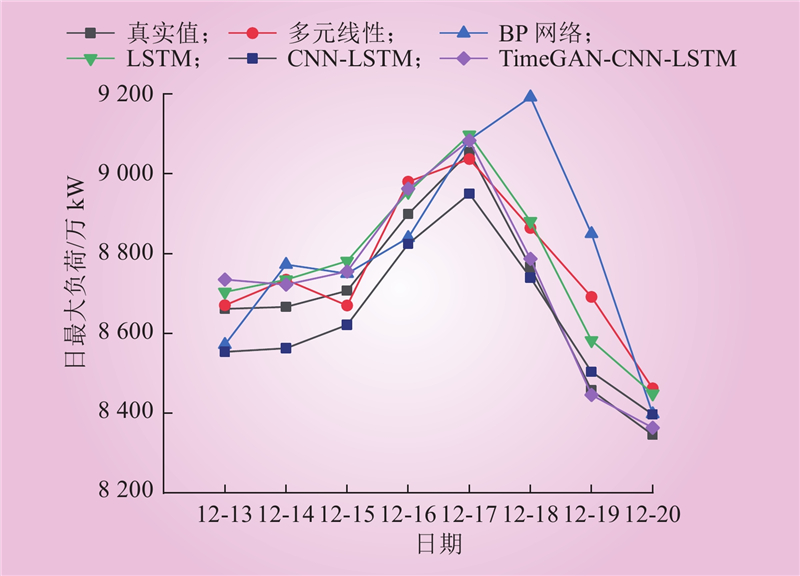

图 6 对各算法温度敏感负荷预测值+基础负荷的预测结果

Fig.6 The prediction results of each algorithm with the predicted value of temperature sensitive load + basic load

表 2 误差分析

Table 2 Error analysis

模型方法	直接预测总负荷		预测温度敏感负荷+ 基础负荷
模型方法	E_MA/(万kW)	E_MAP/%	E_MA/(万kW)	E_MAP/%
多元线性回归	86.11	0.99	82.68	0.96
BP神经网络	158.88	1.82	150.06	1.74
LSTM	171.19	1.95	78.20	0.91
CNN-LSTM	159.60	1.83	75.10	0.86
TimeGAN-CNN-LSTM	51.20	0.59	39.98	0.46

参考文献 29
