市场环境下考虑多元用户侧资源协同的虚拟电厂低碳优化调度

doi:10.11930/j.issn.1004-9649.202407102

摘要/Abstract

摘要：

为发挥多元用户侧资源协同作用，提高虚拟电厂（virtual power plant，VPP）参与电碳联合市场收益，降低风光及电价不确定性引起的风险，提出了一种市场环境下考虑多元用户侧资源协同的VPP低碳优化调度方法。首先，基于各种用户侧资源协同作用，形成了VPP参与电碳联合市场运行策略；然后，建立VPP奖惩阶梯型碳交易模型，根据碳交易量设定不同交易区间价格，实现了碳电耦合；最后，构建VPP参与电碳联合市场的低碳优化调度模型，在模型中引入条件风险价值，衡量市场收益与风险的关系，并将模型转换为混合整数线性规划问题求解。通过算例分析，证明了该方法可以发挥用户侧资源的协同作用，有效应对风光及电价的不确定性风险，实现VPP参与市场运行的经济性和低碳性。

关键词: 用户侧资源, 虚拟电厂, 不确定风险, 电碳联合市场, 优化调度

Abstract:

To leverage the synergistic effects of diverse user-side resources, enhance the revenue of Virtual Power Plants (VPPs) participating in the joint electricity-carbon market, and mitigate risks arising from the uncertainty of renewable energy sources (such as wind and solar) and electricity prices, an optimized low-carbon dispatching method for VPPs considering the coordination of diverse user-side resources in a market environment is proposed. Firstly, based on the synergistic effects of various user-side resources, a strategy for VPPs to participate in the joint electricity-carbon market operation is formulated. Secondly, a tiered carbon trading model with incentives and penalties for VPPs is established, where different transaction interval prices are set according to carbon trading volumes, thereby achieving carbon-electricity coupling. Finally, an optimized low-carbon dispatching model for VPPs participating in the joint electricity-carbon market is constructed. In this model, Conditional Value at Risk (CVaR) is introduced to measure the relationship between market returns and risks, and the model is transformed into a Mixed Integer Linear Programming (MILP) problem for solution. Through case studies, it is demonstrated that this method can effectively harness the synergistic effects of user-side resources, address the uncertainty risks associated with renewable energy sources and electricity prices, and achieve both economic efficiency and low-carbon performance for VPPs participating in market operations.

Key words: user-side resource, virtual power plant, risk of uncertainty, electricity-carbon combined market, economic dispatch

李明冰, 李强, 管西洋, 周皓阳, 卢瑞, 冯延坤. 市场环境下考虑多元用户侧资源协同的虚拟电厂低碳优化调度[J]. 中国电力, 2025, 58(2): 66-76.

Mingbing LI, Qiang LI, Xiyang GUAN, Haoyang ZHOU, Rui LU, Yankun FENG. Market Oriented Low-Carbon Optimal Scheduling of Virtual Power Plants Considering Multiple User-Side Resources Coordination[J]. Electric Power, 2025, 58(2): 66-76.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202407102

https://www.electricpower.com.cn/CN/Y2025/V58/I2/66

图/表 14

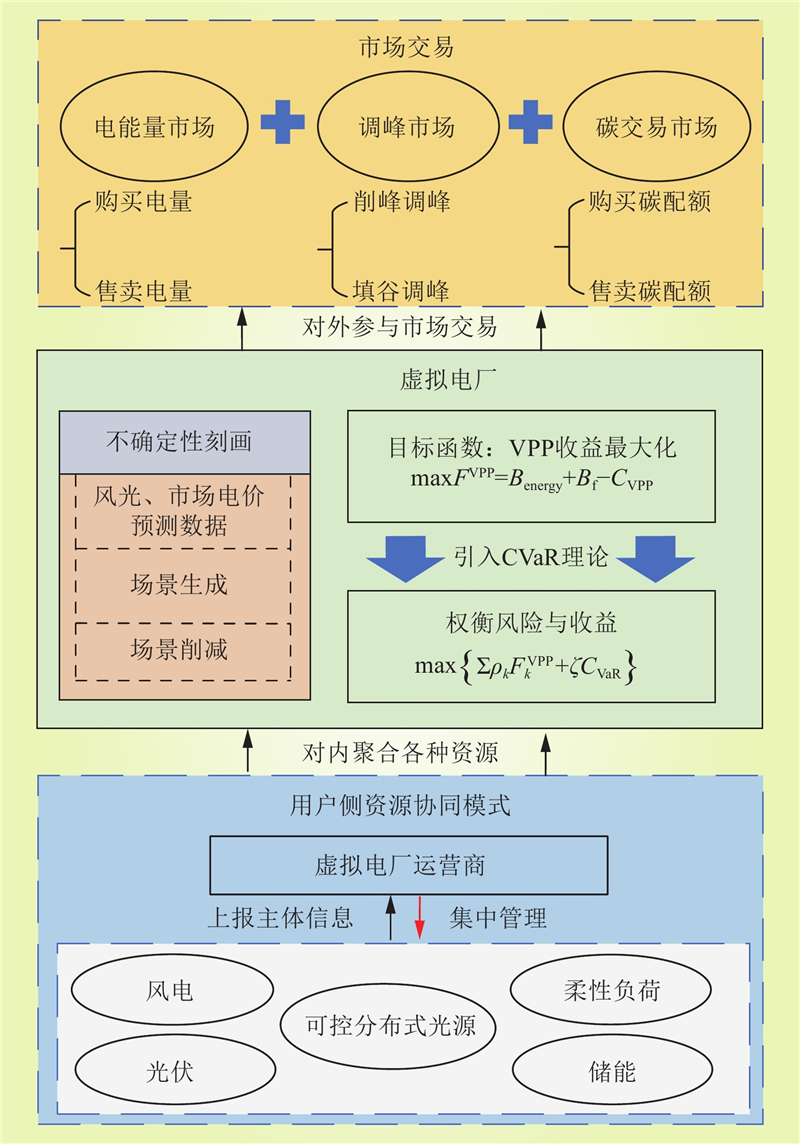

图 1 VPP参与电碳联合市场运行策略

Fig.1 VPP participates in the operation strategy of electric carbon joint market

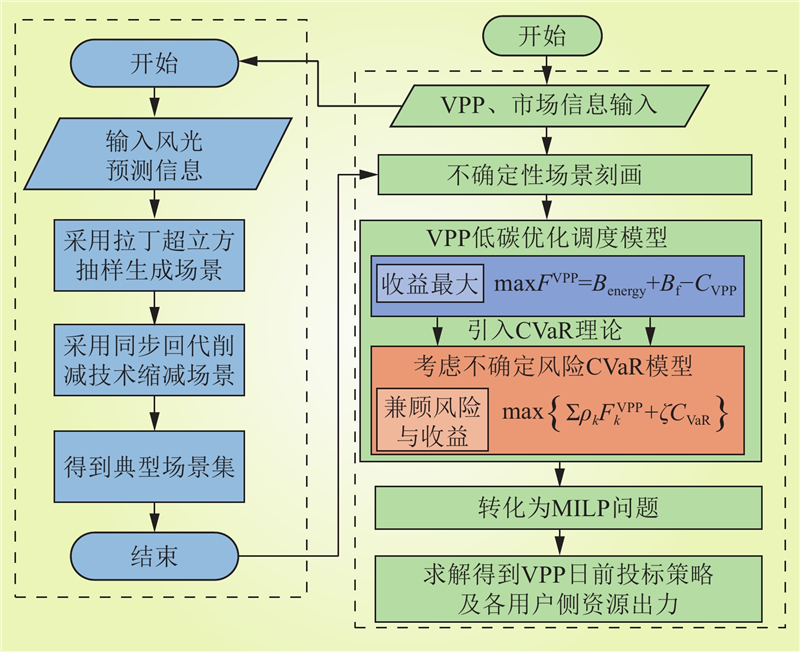

图 2 VPP参与电碳联合市场模型求解流程

Fig.2 VPP participates in solving flow of electric carbon joint market model

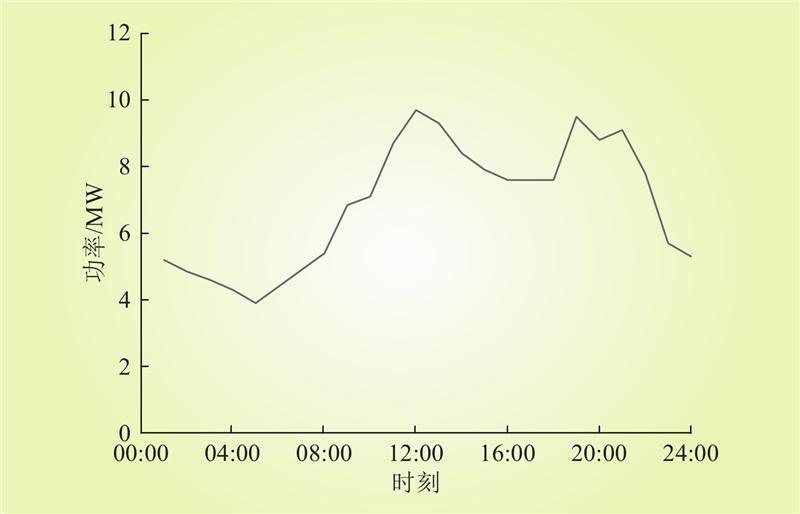

图 3 柔性负荷的初始值

Fig.3 The initial value of the flexible load

表 1 CDG和储能的相关参数

Table 1 CDG and energy storage related parameters

CDG：燃气轮机		储能
额定功率/MW	2	额定容量/(MW·h)	10
最小发电功率/MW	0.5	额定充放电功率/MW	2
成本系数a	0.008	荷电状态范围	0.1~0.9
成本系数b	0.0175	初始荷电状态	0.2
成本系数c	105	充放电效率	0.95

表 2 调峰市场时段及价格

Table 2 Peak market hours and prices

项目	时段	价格/(元·(MW·h)^–1)
填谷调峰	01:00—08:00	350
削峰调峰	09:00—12:00，18:00—21:00	500

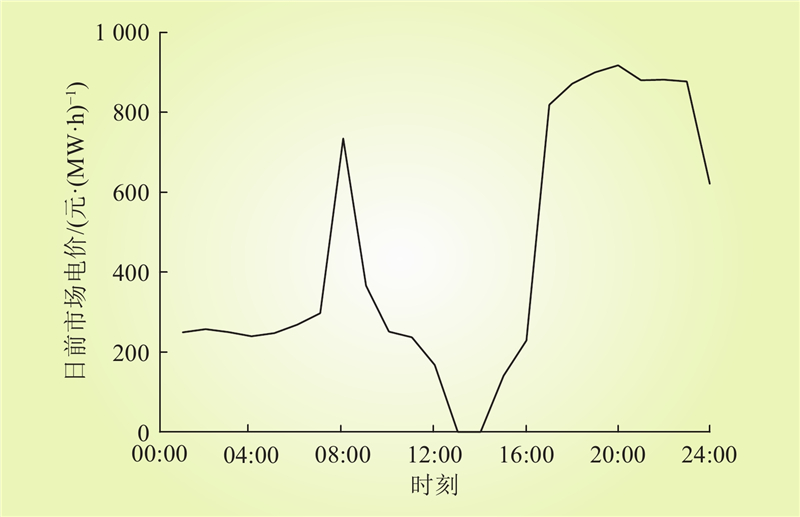

图 4 日前市场电价数据

Fig.4 Day ahead market price data

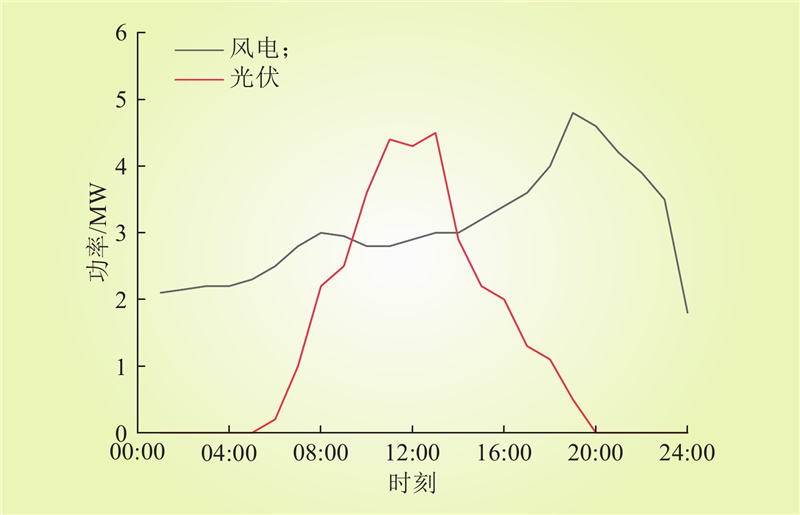

图 5 某地区风光预测数据

Fig.5 Scenic forecast data for an area

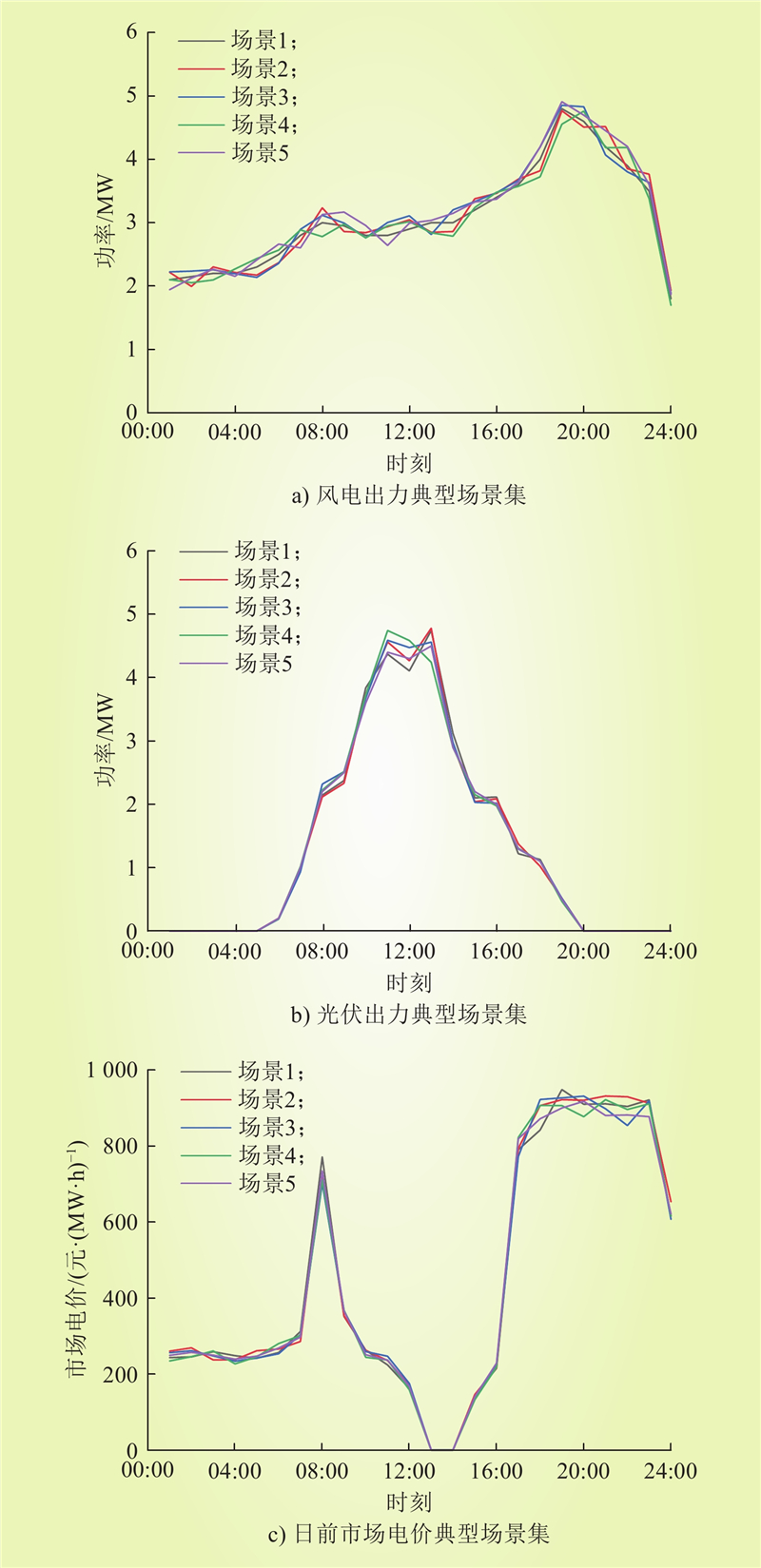

图 6 风光及日前市场电价典型场景集

Fig.6 Typical scene set of scenery and market electricity price

表 3 各场景对应概率

Table 3 Each scenario corresponds to the probability

场景		1		2		3		4		5
概率		0.2187		0.1732		0.2359		0.2129		0.1593

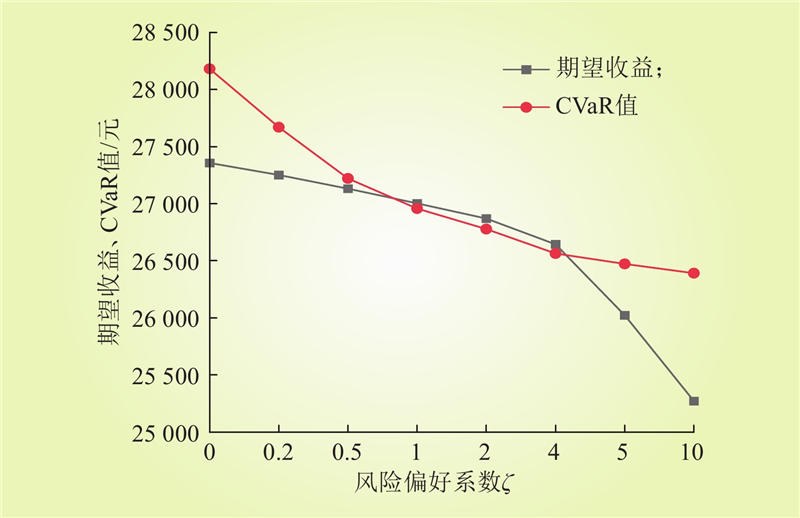

图 7 不同风险偏好系数下的收益-风险结果

Fig.7 Benefit-risk outcomes under different risk preference coefficients

表 4 各场景下收益对比

Table 4 Income comparison under each scenario

场景	VPP总收益/元	电能量市场收益/元	调峰市场收益/元	碳市场收益/元	VPP运行成本/元	碳排放量/t
1	6835.09	9856.75	0	0	3021.66	31.2
2	24555.21	7512.51	19681.63	0	2978.93	29.8
3	9294.07	9639.22	0	2486.13	2831.28	26.8
4	26870.93	7255.11	19510.82	2626.56	2521.56	24.0

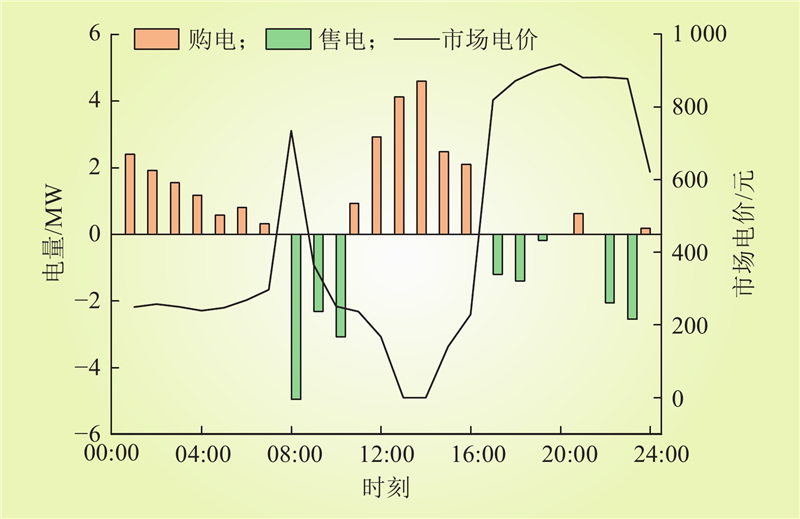

图 8 VPP电能量市场购售电量及电价

Fig.8 VPP electricity market purchase and sale of electricity and electricity price

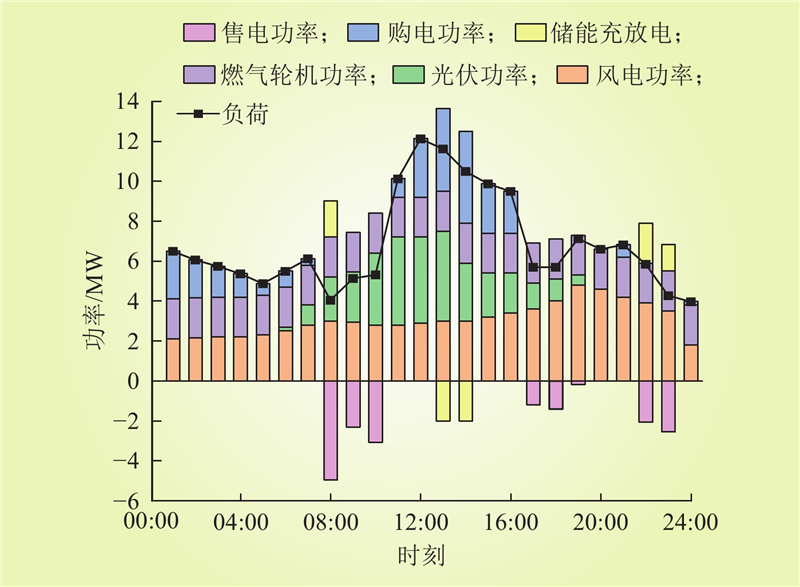

图 9 VPP中各主体功率

Fig.9 Power of each body in VPP

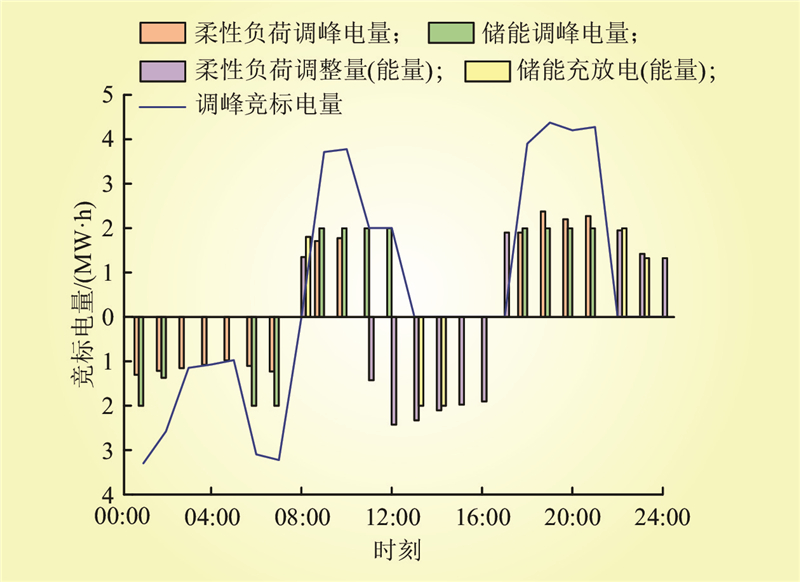

图 10 储能与柔性负荷的优化结果

Fig.10 Results of energy storage and flexible load optimization
