考虑供电设备差异化报价的虚拟电厂电能量-调峰联合市场优化策略

doi:10.11930/j.issn.1004-9649.202412113

摘要/Abstract

摘要：

作为新能源参与电力市场的有效载体，虚拟电厂先进的市场机制和管控灵活性资源的策略成为亟须解决的关键问题。基于此，提出了考虑供电设备差异化报价机制的虚拟电厂电能量-调峰联合市场优化策略，针对含新能源虚拟电厂参与市场行为开展研究。首先，基于碳交易、绿证交易以及需求响应等因素，提出一种针对虚拟电厂内不同供电设备的差异化报价机制，合理引导虚拟电厂参与市场优化；其次，引入报价加密模型，实现各设备报价信息的隐私性；最后，结合联合优化公式和CPLEX求解器迭代求解双层模型，验证所提方法及模型在不同环境下的有效性和实用性。仿真结果表明：所提差异化报价机制降低了联合最优成本，最大降低幅度为50.34%，有效协调了虚拟电厂与联合市场之间的利益关系。

关键词: 虚拟电厂, 加密模型, 差异化报价机制

Abstract:

As an effective carrier for new energy to participate in the electric energy market, the advanced market mechanism and the strategy of controlling flexible resources have become the key problems that need to be solved. Based on this, this paper proposes the joint market optimization strategy of virtual power plant energy and peak regulation considering the differentiated quotation mechanism of power supply equipment, and carries out the participation market behavior of virtual power plants including new energy. Firstly, based on carbon trading, green certificate trading and demand response, a differentiated quotation mechanism for different power supply equipment in virtual power plant is proposed to reasonably guide virtual power plant to participate in the market optimization; secondly, to realize the privacy of the quotation information of each equipment; finally, double-layer model with joint optimization formula and CPLEX solver to verify the effectiveness and practicability of the proposed method and model in different environments. The simulation results show that the proposed differentiated quotation mechanism reduces the joint operation cost, with a maximum reduction of 50.34%, and effectively coordinates the interest relationship between the virtual power plant and the joint market.

Key words: virtual power plant, encryption model, differentiated quotation mechanism

中图分类号:

TM734

沈运帷, 岑闻雨, 周波. 考虑供电设备差异化报价的虚拟电厂电能量-调峰联合市场优化策略[J]. 中国电力, 2025, 58(7): 115-127.

SHEN Yunwei, CEN Wenyu, ZHOU Bo. Optimization Strategy for Virtual Power Plant Combined Electric Energy and Peak Regulation Market Considering Differentiated Quotation of Power Supply Equipment[J]. Electric Power, 2025, 58(7): 115-127.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202412113

https://www.electricpower.com.cn/CN/Y2025/V58/I7/115

图/表 22

图 1 VPP交易双层架构

Fig.1 Dual-layer frame work of VPP transaction

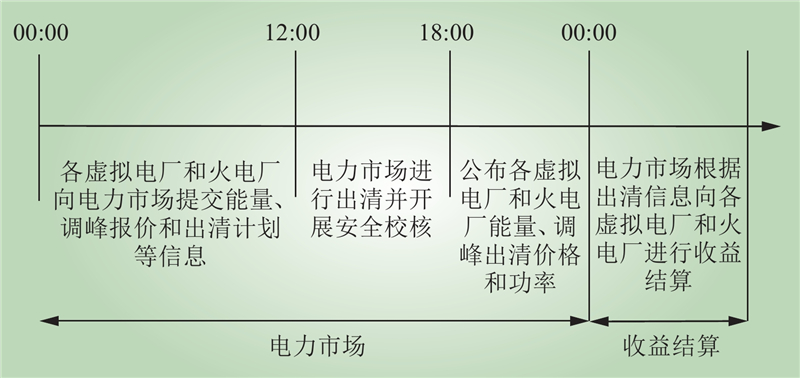

图 2 VPP参与电能量-调峰市场报价流程

Fig.2 The quotation process for VPP participating in electric energy-peak regulating joint market

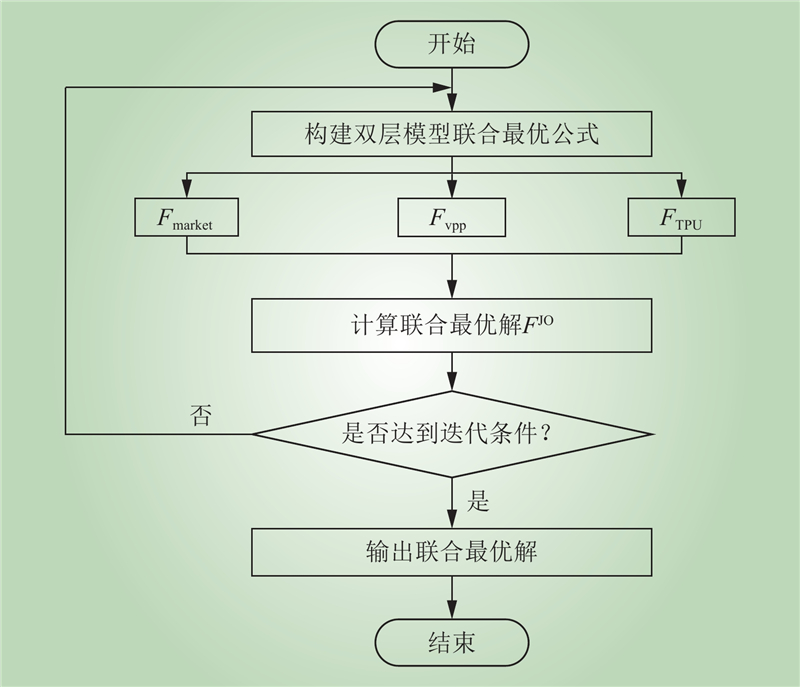

图 3 联合最优解求解流程

Fig.3 The Joint optimal solution process

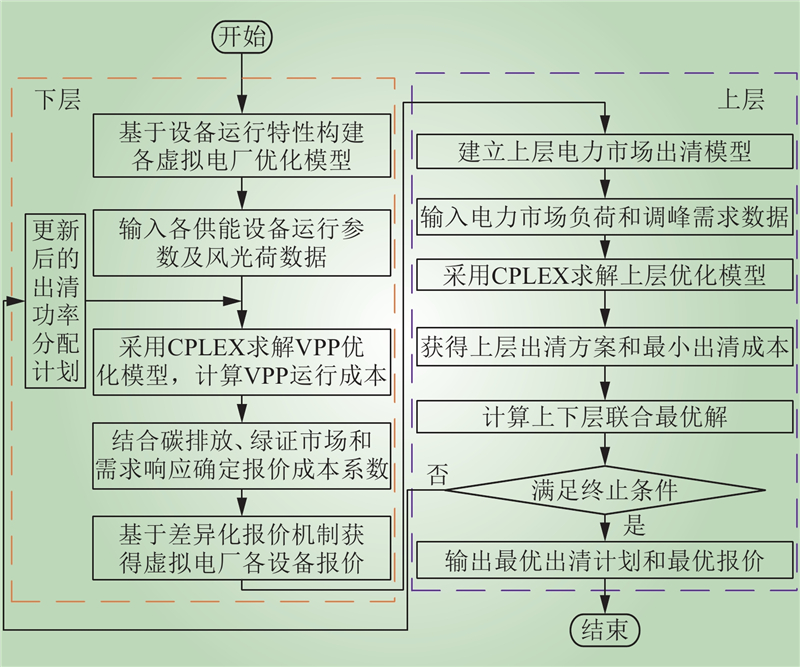

图 4 双层模型求解流程

Fig.4 Flowchart of double-layer model

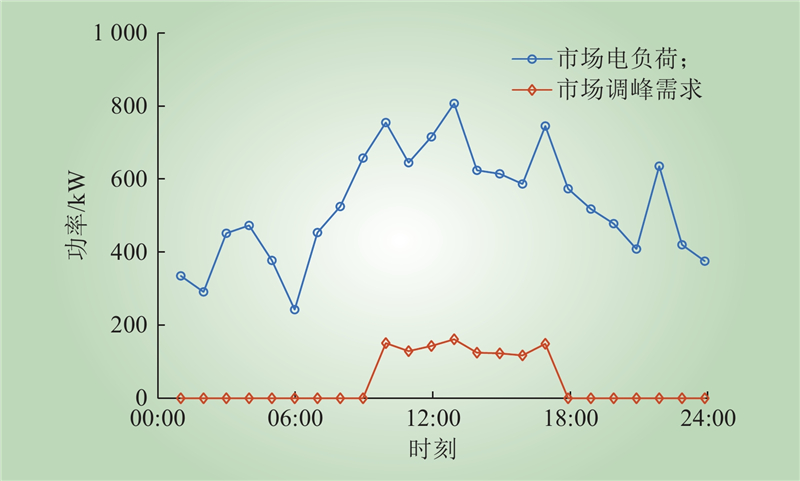

图 5 电力市场需求和调峰需求

Fig.5 Electricity market and peak shaving demand

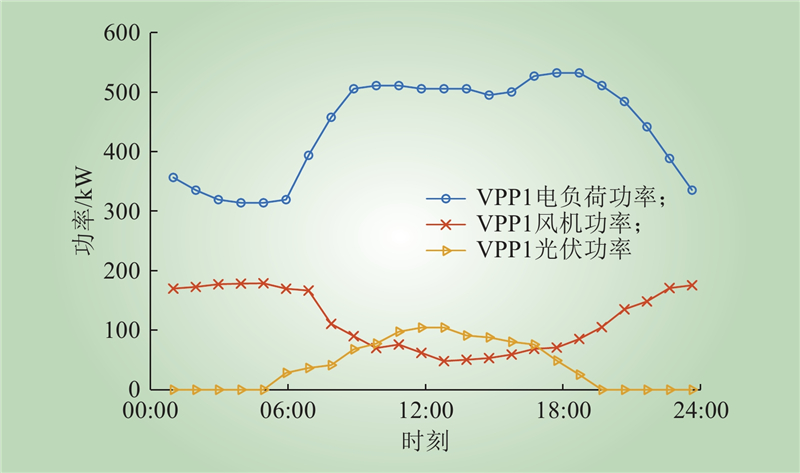

图 6 VPP1基础数据

Fig.6 Basic data of VPP1

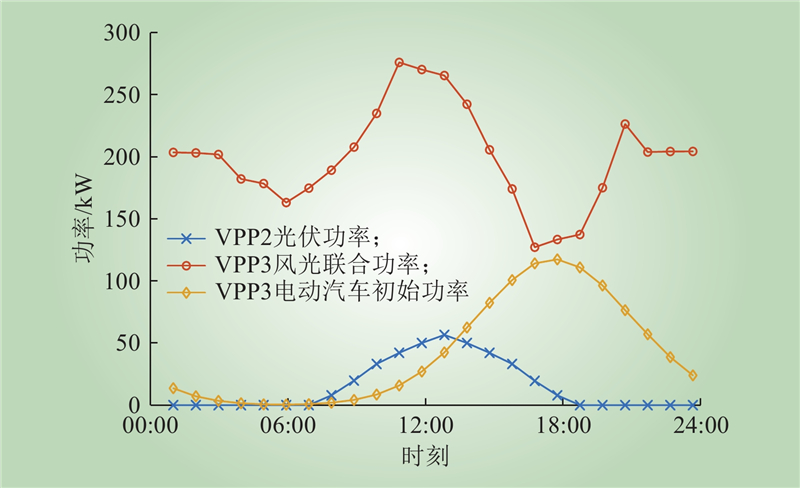

图 7 VPP2和VPP3基础数据

Fig.7 Basic data of VPP2 and VPP3

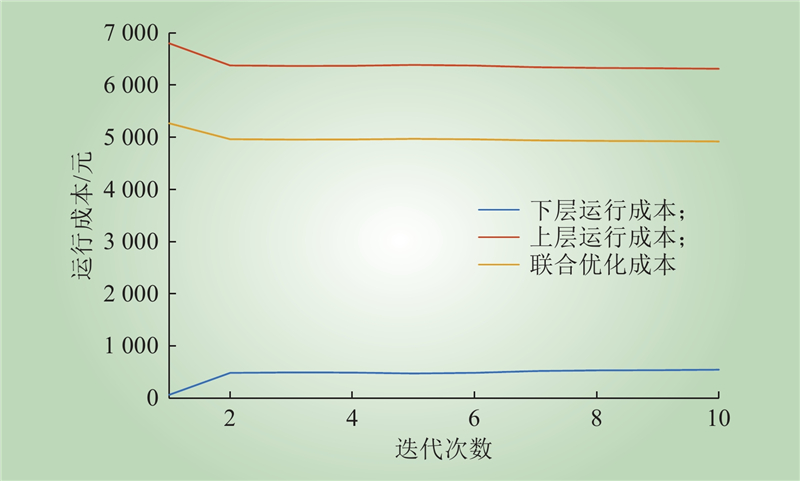

图 8 双层模型迭代结果

Fig.8 Iteration results of double-layer model

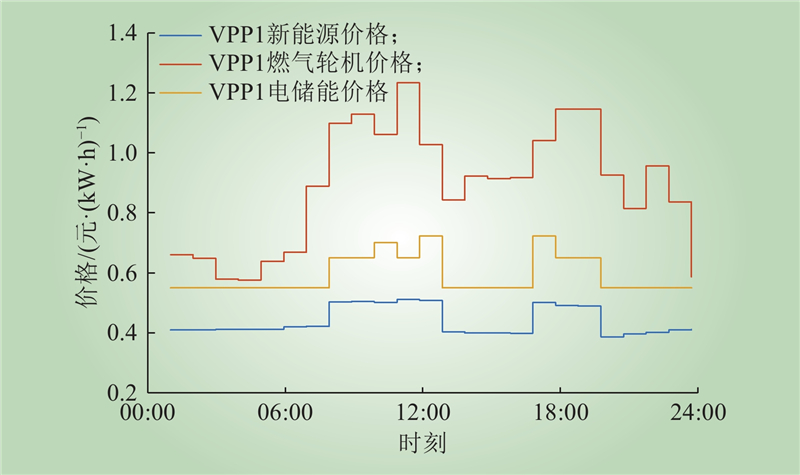

图 9 VPP1各供电设备最优报价

Fig.9 Optimal quotation for each equipment in VPP1

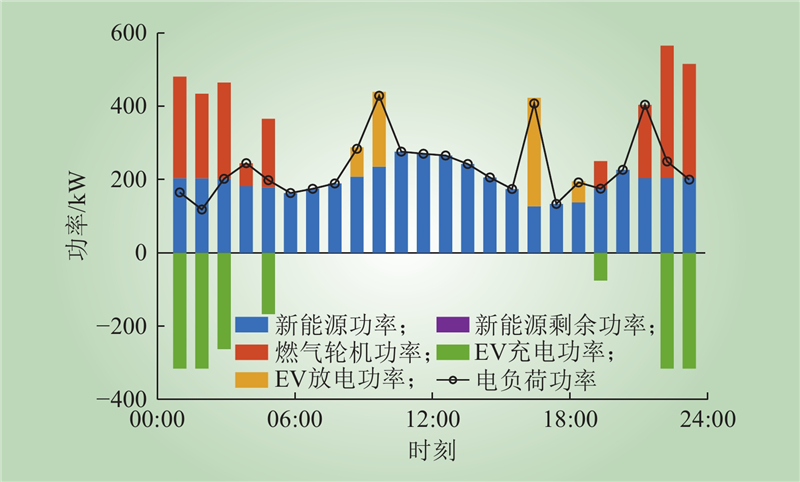

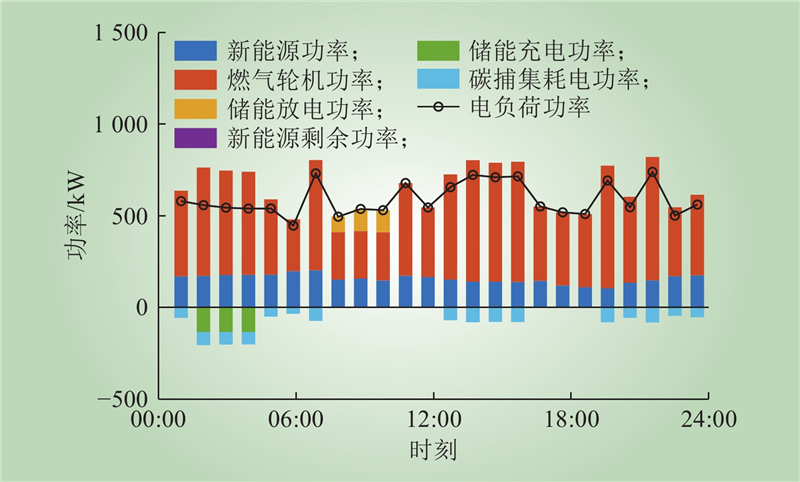

图 10 VPP1最优运行计划

Fig.10 The optimal operation plan for VPP1

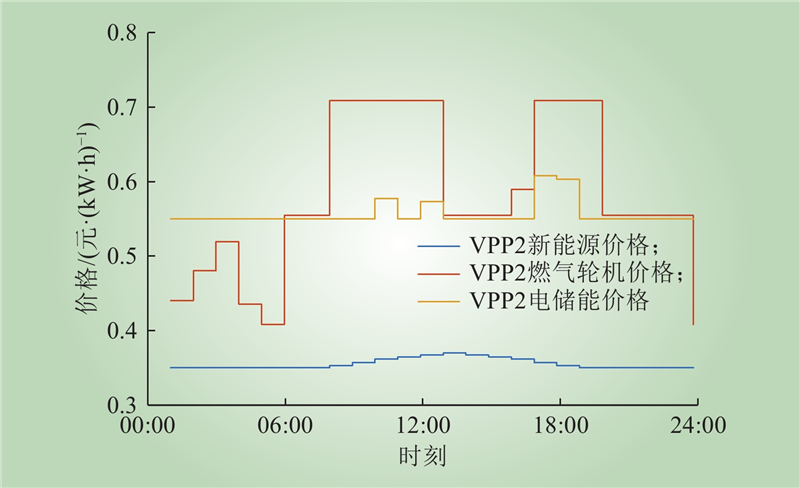

图 11 VPP2各供电设备最优报价

Fig.11 Optimal quotation for each equipment in VPP2

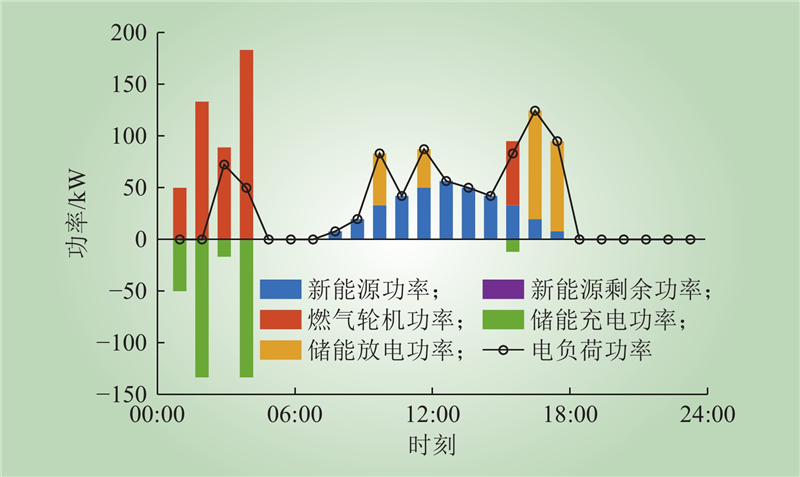

图 12 VPP2供电设备最优运行计划

Fig.12 Optimal operation plan for VPP2

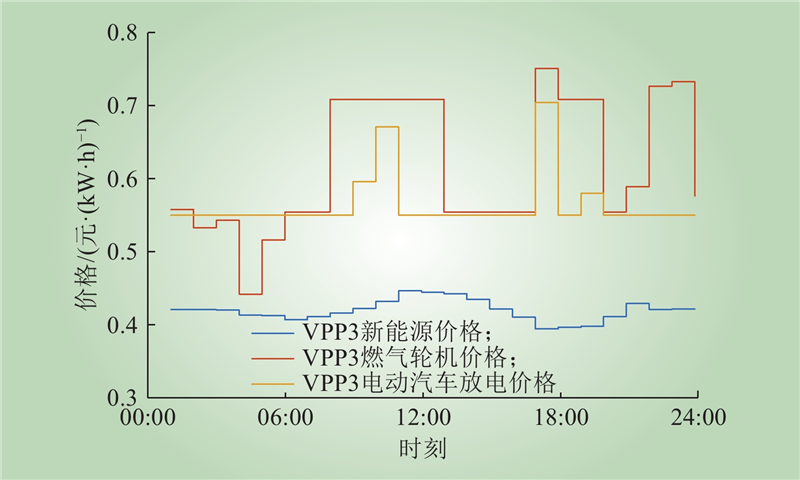

图 13 VPP3各供电设备最优报价

Fig.13 The optimal quotation for each equipment in VPP3

图 14 VPP3供电设备最优运行计划

Fig.14 The optimal operation plan for VPP3

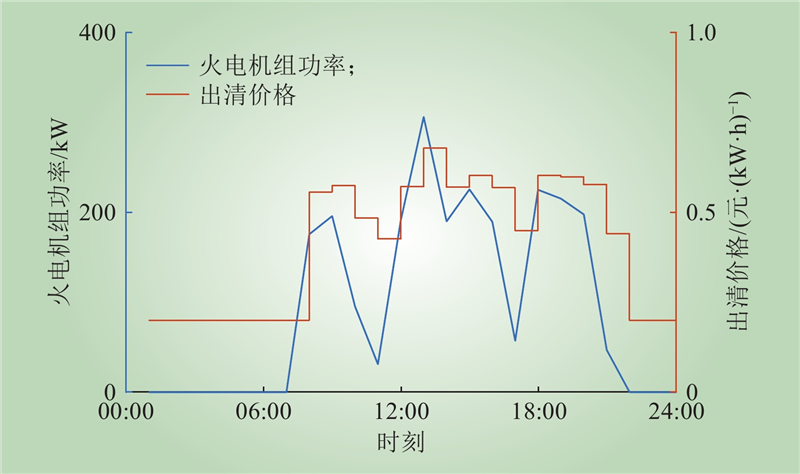

图 15 火电机组最优运行计划

Fig.15 The optimal operation plan for thermal power unit

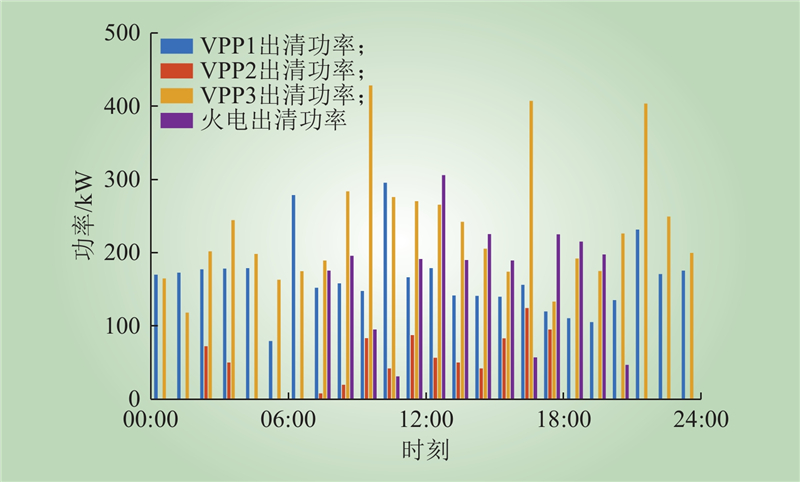

图 16 最优出清计划

Fig.16 The optimal clearing plan

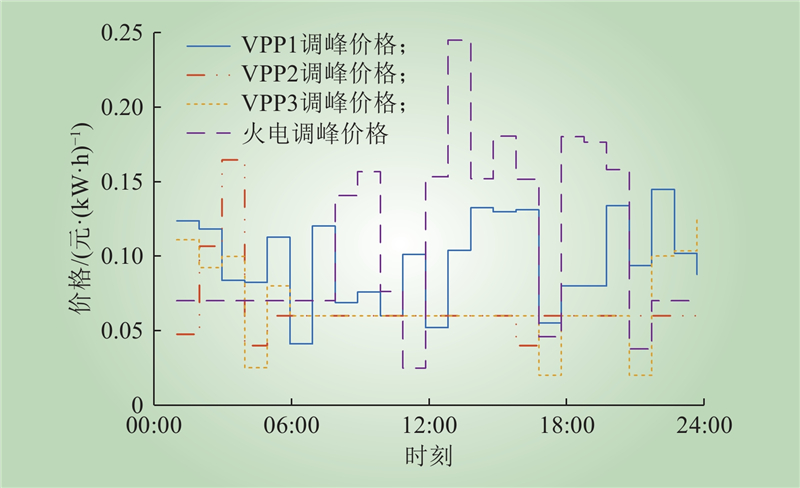

图 17 最优调峰报价

Fig.17 The optimal peak shaving quotation

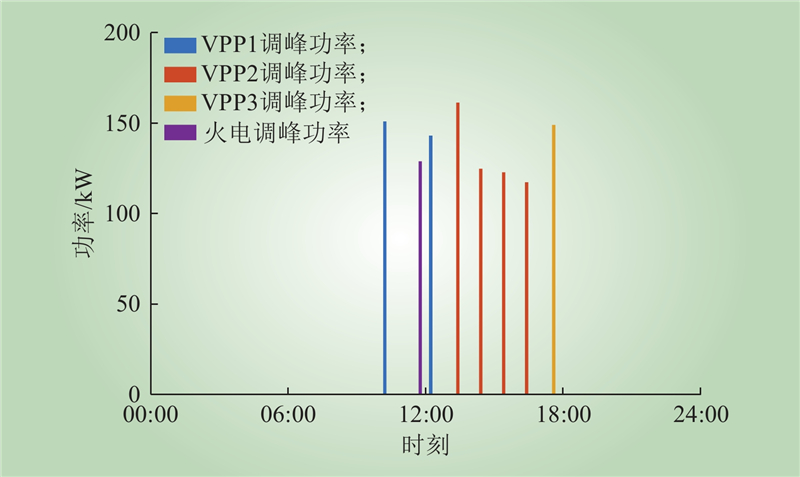

图 18 调峰功率最优分配计划

Fig.18 The optimal peak shaving power allocation plan

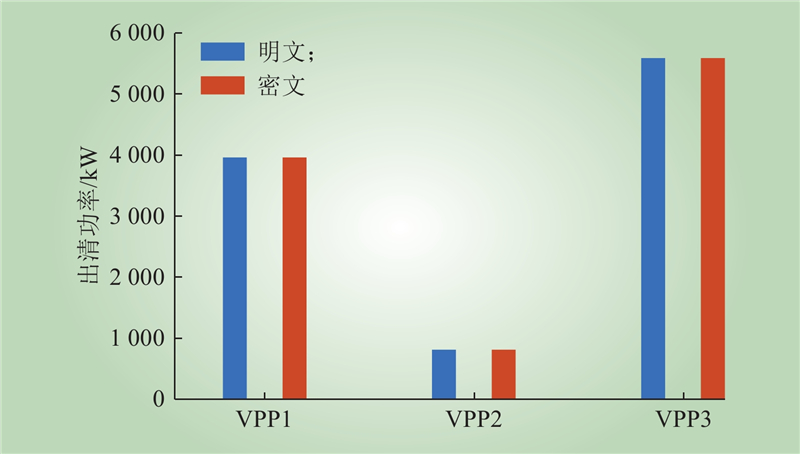

图 19 VPP出清功率的正确性

Fig.19 The correctness of the VPP clearing power

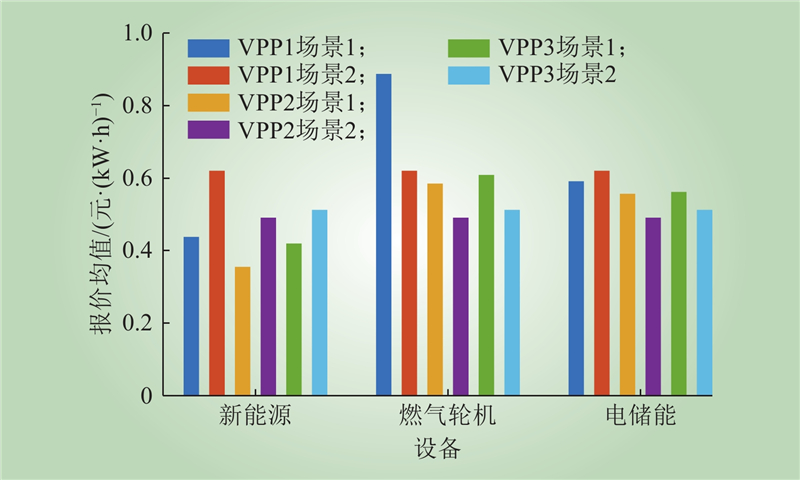

图 20 不同场景下各设备报价均值

Fig.20 Average quotation value of each equipment in different scenarios

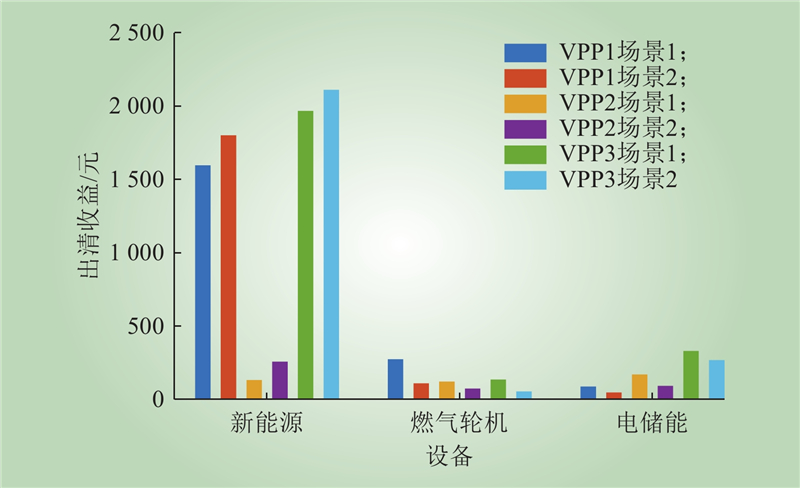

图 21 不同场景下各设备出清收益

Fig.21 Clear revenue of each equipment under different scenarios

表 1 双层模型的可行性分析

Table 1 Feasibility analysis of the bi-level model

VPP数量/台	参与报价设备数量	最优报价生成时间/s	模型求解时间/s	报价成功率/%
3	11	0.1201	1.67	100.00
9	33	0.1274	2.81	100.00
27	99	0.1349	6.03	98.99
81	297	0.2087	10.35	97.95
243	891	0.2763	20.96	97.47
