基于多智能体安全深度强化学习的电压控制

doi:10.11930/j.issn.1004-9649.202404047

中国电力 ›› 2025, Vol. 58 ›› Issue (2): 111-117.DOI: 10.11930/j.issn.1004-9649.202404047

• 基于数据驱动的电力系统安全稳定分析与控制 • 上一篇下一篇

基于多智能体安全深度强化学习的电压控制

曾仪¹(), 周毅²(), 陆继翔¹^,³(), 周良才²(), 唐宁恺¹, 李红¹

1. 国网电力科学研究院有限公司（南瑞集团有限公司），江苏南京　211106
2. 国家电网有限公司华东分部，上海　200120
3. 电网运行风险防御技术与装备全国重点实验室，江苏南京　211106

收稿日期:2024-04-10 出版日期:2025-02-28 发布日期:2025-02-25
作者简介:曾仪（1999—），女，硕士研究生，从事人工智能及电力系统自动化研究，E-mail：eezengyi@foxmail.com
周毅（1982—），男，高级工程师，从事电网调度、电力系统自动化研究，E-mail：joryie@163.com
陆继翔（1973—），男，通信作者，高级工程师（教授级），硕士生导师，从事人工智能及电力系统自动化研究，E-mail：lujixiang@sgepri.sgcc.com.cn
周良才（1984—），男，高级工程师，从事电网调度、电力系统自动化研究，E-mail：liangcaizhou@163.com
基金资助:
国家电网有限公司科技项目（5108-20233058A-1-1-ZN）。

Voltage Control Based on Multi-Agent Safe Deep Reinforcement Learning

Yi ZENG¹(), Yi ZHOU²(), Jixiang LU¹^,³(), Liangcai ZHOU²(), Ningkai TANG¹, Hong LI¹

1. State Grid Electric Power Research Institute (NARI Group Corporation), Nanjing 211106, China
2. East China Branch of State Grid Corporation of China, Shanghai 200120, China
3. State Key Laboratory of Technology and Equipment for Defense against Power System Operational Risks, Nanjing 211106, China

Received:2024-04-10 Online:2025-02-28 Published:2025-02-25
Supported by:
This work is supported by Science and Technology Project of SGCC (No.5108-20233058A-1-1-ZN).

摘要/Abstract

摘要：

针对分布式光伏在配电网中的高比例接入带来的电压越限和波动问题，提出了一种基于多智能体安全深度强化学习的电压控制方法。将含光伏的电压控制建模为分布式部分可观马尔可夫决策过程。在深度策略网络中引入安全层进行智能体设计，同时在智能体奖励函数定义时，使用基于传统优化模型电压约束的电压屏障函数。在IEEE 33节点算例上的测试结果表明：所提方法在光伏高渗透率场景下可生成符合安全约束的电压控制策略，可用于在线辅助调度员进行实时决策。

关键词: 无功电压控制, 安全深度强化学习, 多智能体

Abstract:

To address issues of voltage limit violations and fluctuations caused by the high penetration of distributed photovoltaic (PV) systems in the distribution network, a voltage control method based on multi-agent safe deep reinforcement learning is proposed. The voltage control with PV is modeled as a decentralized partially observable Markov decision process. A safety layer is introduced in the deep policy network for agent design, while the voltage barrier function based on traditional optimization model voltage constraints is used in defining the agent reward function. Testing results on the IEEE 33-bus system demonstrate that the proposed method can generate voltage control strategies that meet safety constraints under high photovoltaic penetration scenarios, and it can be used to assist dispatchers in making real-time decisions online.

Key words: volt-var control, safe deep reinforcement learning, multi-agent

中图分类号:

TM73

曾仪, 周毅, 陆继翔, 周良才, 唐宁恺, 李红. 基于多智能体安全深度强化学习的电压控制[J]. 中国电力, 2025, 58(2): 111-117.

Yi ZENG, Yi ZHOU, Jixiang LU, Liangcai ZHOU, Ningkai TANG, Hong LI. Voltage Control Based on Multi-Agent Safe Deep Reinforcement Learning[J]. Electric Power, 2025, 58(2): 111-117.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202404047

https://www.electricpower.com.cn/CN/Y2025/V58/I2/111

图/表 8

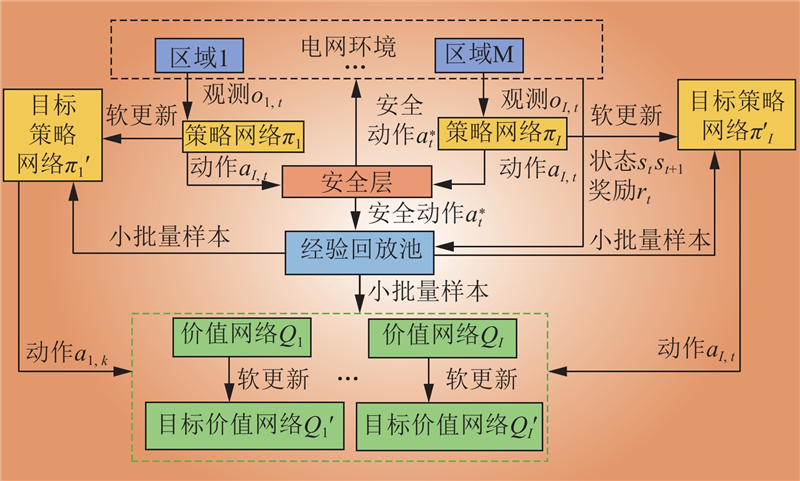

图 1 Safe-MADDPG算法结构

Fig.1 The structure of Safe-MADDPG algorithm

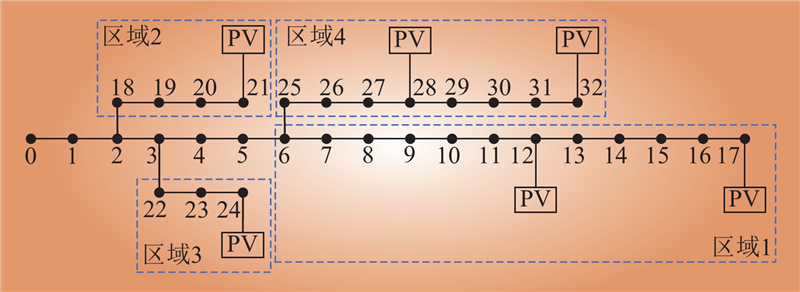

图 2 改进的IEEE 33节点系统

Fig.2 Modified IEEE 33-node system

表 1 超参数取值

Table 1 Hyperparameter values

超参数		神经网络隐藏层个数		经验回放池容量		批大小		折扣因子		值网络、策略网络学习率		目标网络软更新因子
取值		64		5 000		32		0.99		0.000 1		0.1

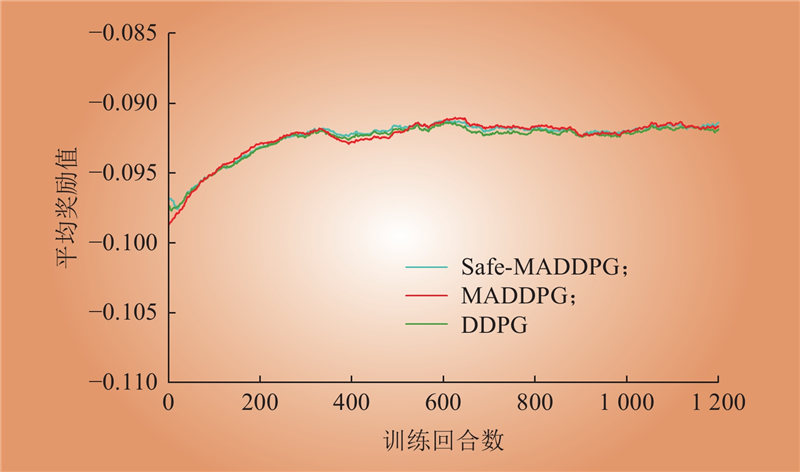

图 3 训练阶段智能体平均奖励曲线

Fig.3 Average reward curve of the agent during the training phase

表 2 测试集结果

Table 2 Results of test set

控制方法	电压偏差(p.u.)	网络损耗/MW	无功输出/(MV·A)
本文方法	0.014 2	0.069 4	0.103 1
MADDPG	0.014 5	0.066 7	0.122 6
DDPG	0.014 8	0.067 0	0.121 6

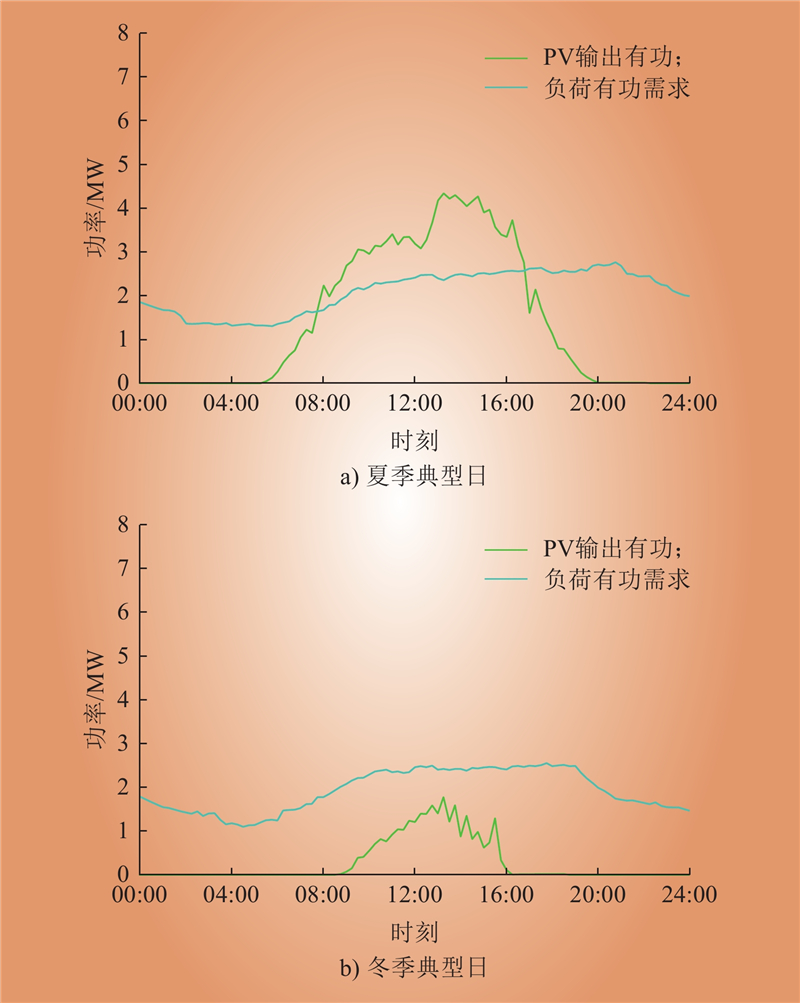

图 4 典型日光伏出力及负荷曲线

Fig.4 Photovoltaic output and load curve on a typical day

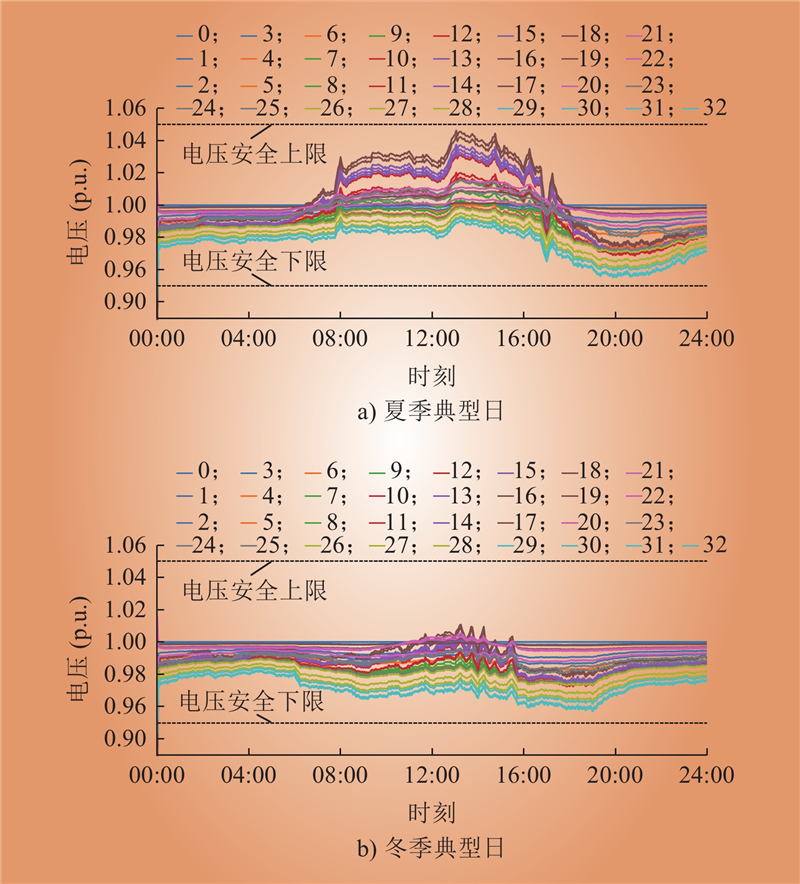

图 5 典型日各节点电压变化情况

Fig.5 Voltage variation at each node on a typical day

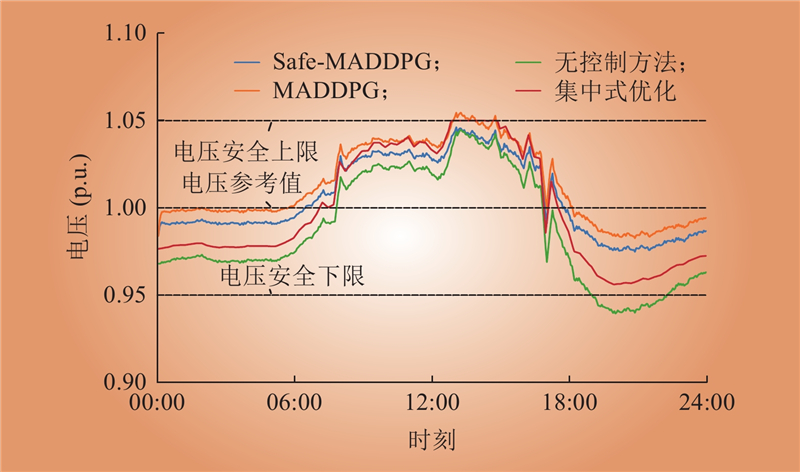

图 6 夏季典型日代表性节点电压曲线

Fig.6 Voltage curves of typical bus on a typical summer day
