基于不确定参数的变电站碳储量预估方法

doi:10.11930/j.issn.1004-9649.202311078

摘要/Abstract

摘要：

设备资产运维精益管理系统（power production management system，PMS）SF₆气体量数据不全且误差较大，无法为电网企业核算碳储量以及实现待建变电站碳规划提供基础数据。针对上述情况，研究了计及母线和断路器的变电站碳储量核算方法，并结合宁夏电网现场实测数据，通过MIC法筛选神经网络输入参数，构建了6输入参数的GA-BP、PSO-BP、HPO-BP神经网络模型，结果表明HPO-BP神经网络模型的评估指标及预估结果相对误差（6.28%）均优于其余2种神经网络模型，可以准确核算断路器SF₆气体量。针对参数不确定情况，根据PCCs法分析不同参数之间的线性关系，构建了3输入参数的HPO-BP神经网络模型，预估结果相对误差为9.72%。通过遍历输出方式，在参数不确定情况下输出多组断路器SF₆气体量预估数据，利用求和累积方法获取变电站总SF₆气体量，并量化为变电站碳储量，从而为电网企业实现“双碳”目标提供数据支撑。

关键词: SF₆气体量, 碳储量, 神经网络模型, PSO, 不确定参数

Abstract:

The SF₆ gas volume data from the PMS system is incomplete and contains significant errors, rendering it inadequate for power grid enterprises to calculate carbon reserves and formulate carbon planning for future substations. To address this problem, this paper studies the carbon storage accounting method for substations, taking into account buses and circuit breakers. The input parameters of the neural network are selected using the MIC method based on the field measured data in Ningxia grid, and three neural network models (GA-BP, PSO-BP, and HPO-BP) with six input parameters are developed. The verification results indicate that the HPO-BP neural network model outperforms the other two models in evaluation index and prediction results with a relative error of 6.28%, and it can accurately calculate the SF₆ gas volume of circuit breakers. Additionally, considering the parameter uncertainties, the linear relationship between different parameters is analyzed using the PCCs method, and a three-input-parameter HPO-BP neural network model is constructed, yielding a relative error of 7.69% for the prediction results. Concurrently, the ergodic output mode is examined to generate estimated SF₆ gas volume data for multiple groups of circuit breakers under uncertain parameter conditions. The total SF₆ gas volume of the substation is determined using the cumulative sum method, consequently quantifying the total carbon storage of the substation, thereby offering data support for power grid enterprises to accomplish the objective of "double carbon".

Key words: SF₆ gas volume, carbon storage, neural network model, PSO, uncertain parameters

陈巳阳, 韩利, 方济中, 丁五行, 成诚, 李文, 张源, 钱勇. 基于不确定参数的变电站碳储量预估方法[J]. 中国电力, 2024, 57(4): 200-210.

Siyang CHEN, Li HAN, Jizhong FANG, Wuhang DING, Cheng CHENG, Wen LI, Yuan ZHANG, Yong QIAN. Prediction Method for Carbon Storage in Substation Based on Uncertain Parameters[J]. Electric Power, 2024, 57(4): 200-210.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202311078

https://www.electricpower.com.cn/CN/Y2024/V57/I4/200

图/表 12

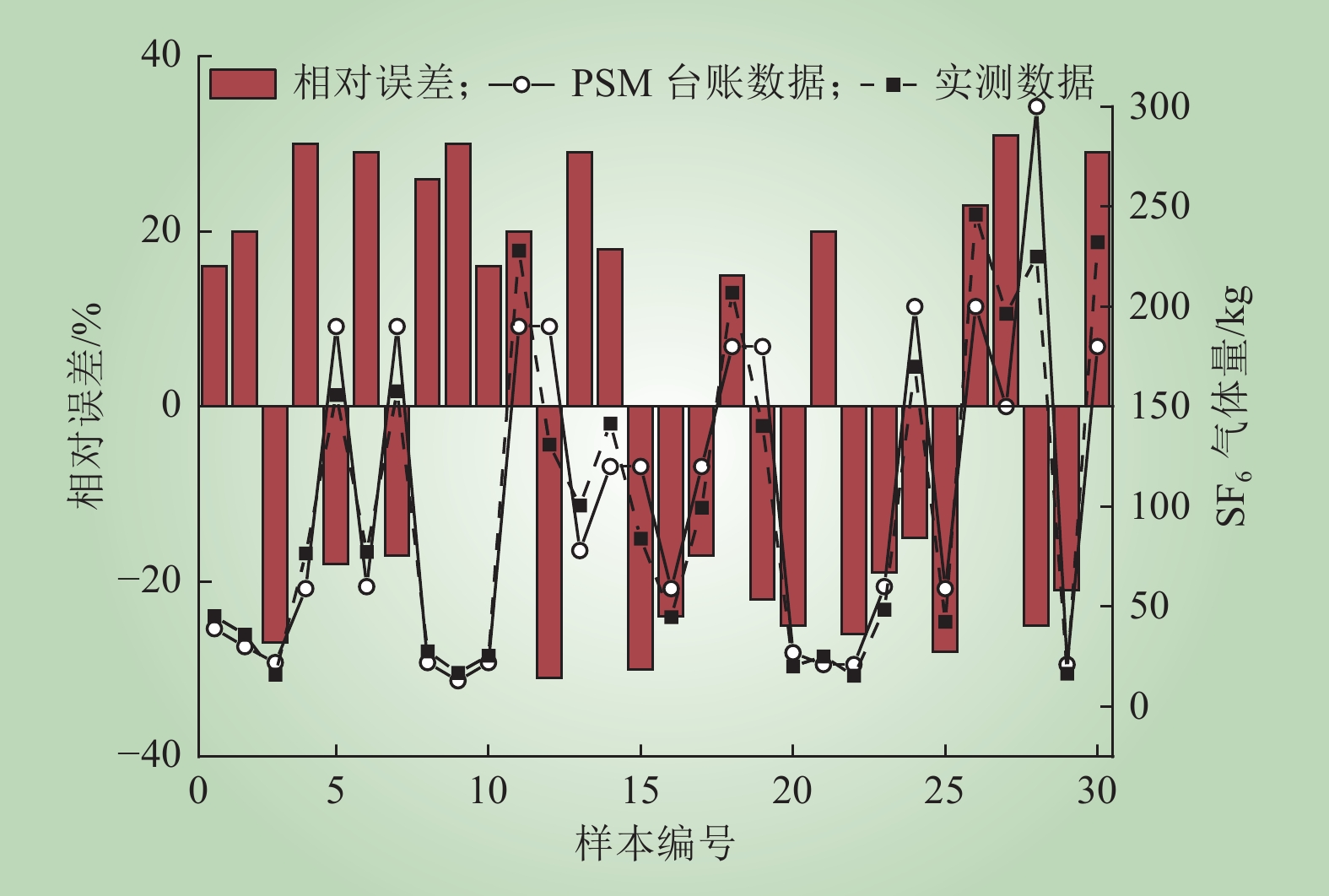

图 1 实测数据与PMS系统设备台账信息差值

Fig.1 Difference between measured data and PMS system equipment ledger information

表 1 不同参数MIC值

Table 1 MIC values of different parameters

参数		最大信息数
设备名称		0.95
设备型号		0.91
电压等级		0.79
额定电压		0.77
额定电流		0.76
SF₆气体额定压力		0.64
操作机构型式		0.57
结构型式		0.53
生产厂家		0.41
SF₆气体闭锁压力		0.27
SF₆气体报警压力		0.21
出厂日期		0.14

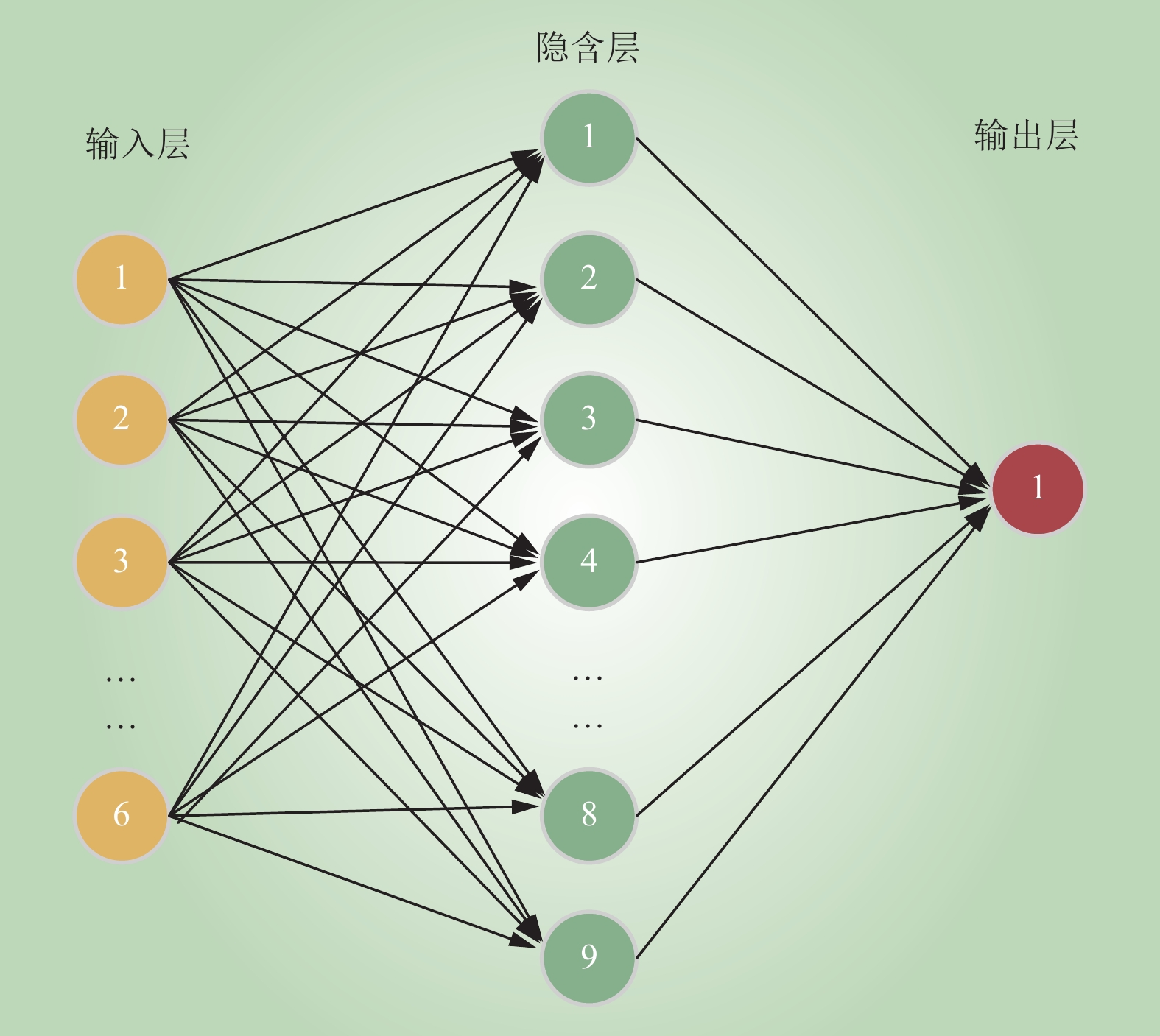

图 2 BP神经网络拓扑结构

Fig.2 BP neural network topology

表 2 不同隐藏层的误差值

Table 2 Error values of different hidden layers

H值		3		4		6		7		8		9		10		11		12
平均相对误差		30.2		29.1		27.2		25.7		24.1		23.6		26.5		27.2		31.1

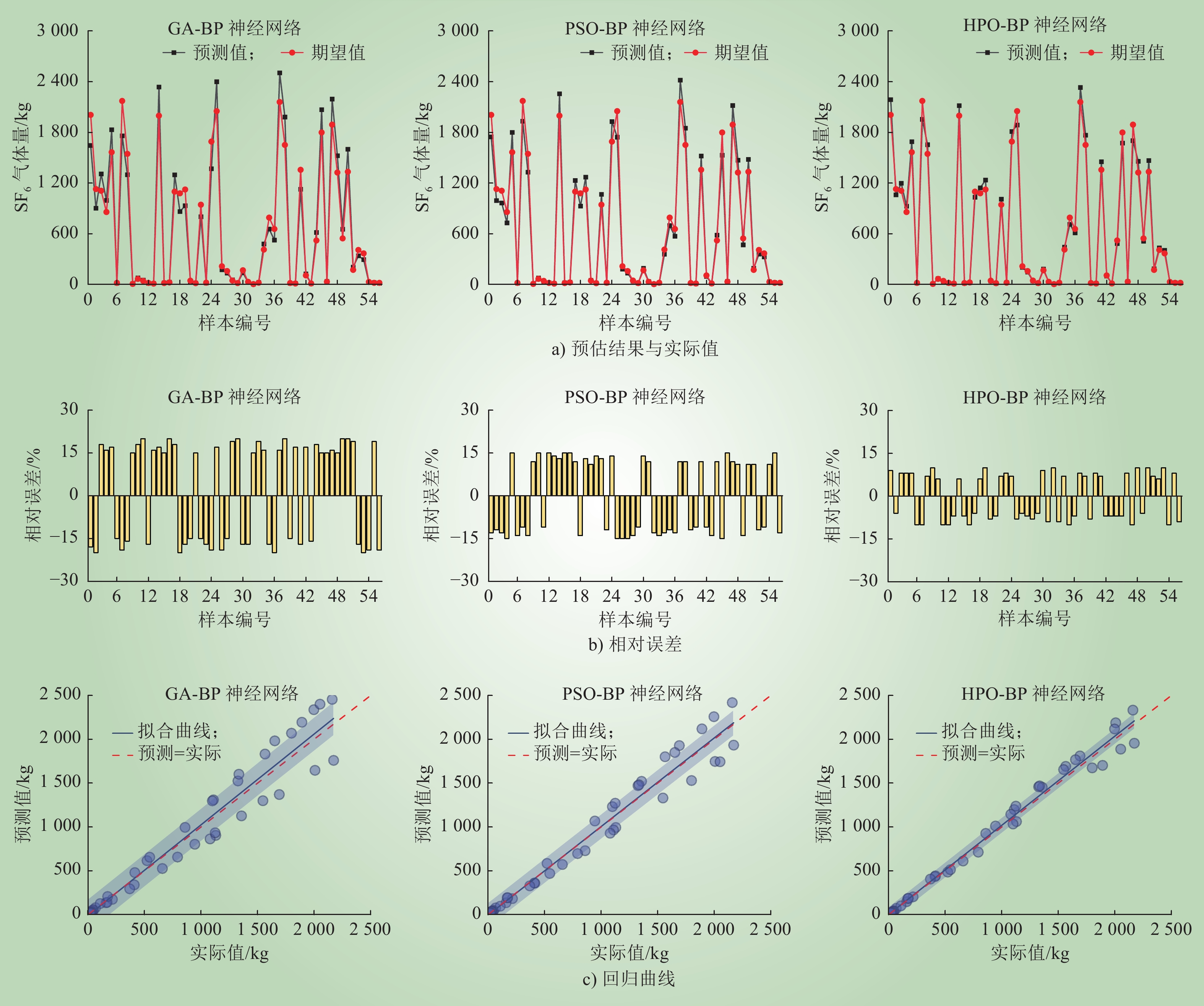

图 3 GA-BP、PSO-BP、HPO-BP神经网络训练样本测试集结果对比

Fig.3 Comparison of test set results of GA-BP, PSO-BP and HPO-BP neural network training samples

表 3 BP、GA-BP、PSO-BP和HPO-BP神经网络评价指标结果

Table 3 Evaluation index results of BP, GA-BP, PSO-BP and HPO-BP neural networks

模型类型	δ_RMSE/kg	${K}_{{\text{R}}^{2}} $	δ_MAPE
GA-BP	171.460	0.954	0.163
PSO-BP	187.801	0.979	0.112
HPO-BP	80.091	0.991	0.061

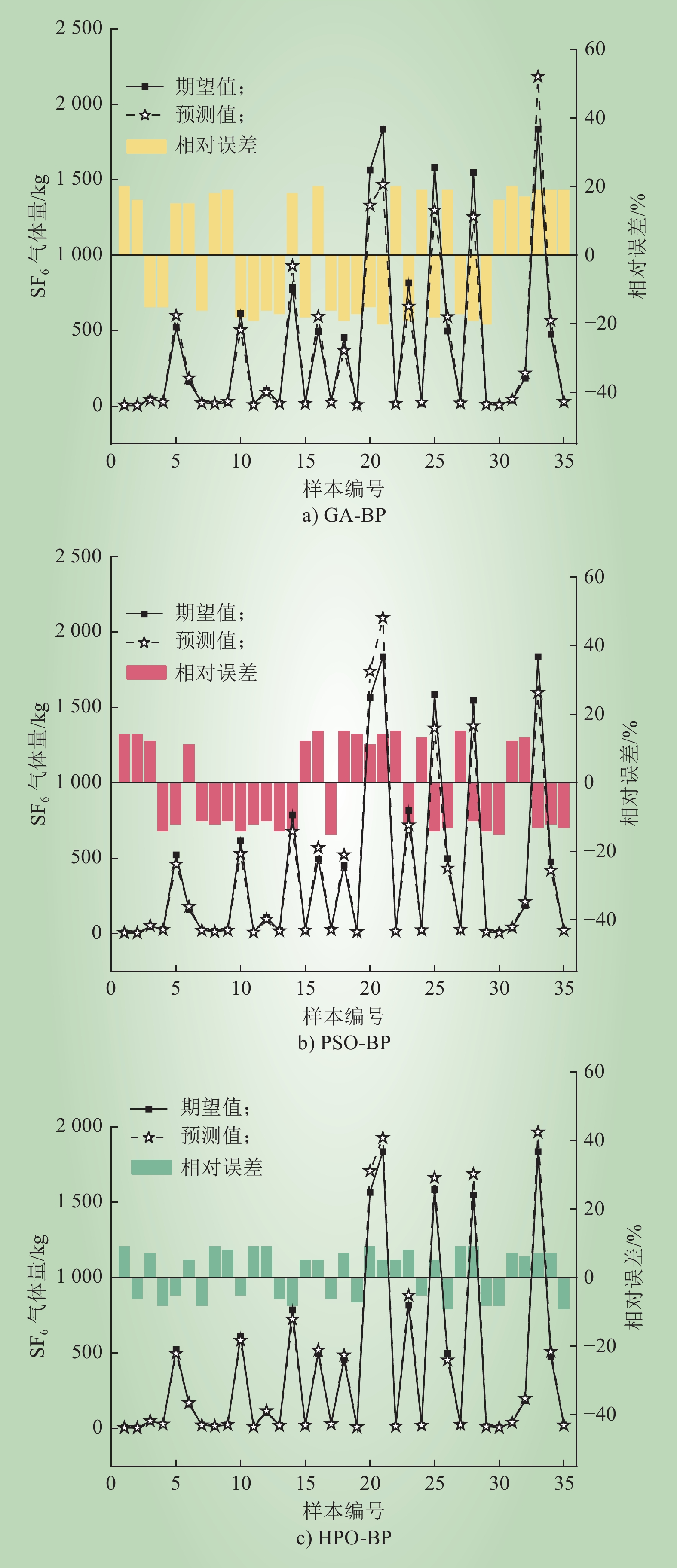

图 4 GA-BP、PSO-BP、HPO-BP神经网络模型对同类型SF6气体预测结果对比

Fig.4 Comparison of prediction results of the same type of SF6 gas by GA-BP, PSO-BP and HPO-BP neural network models.

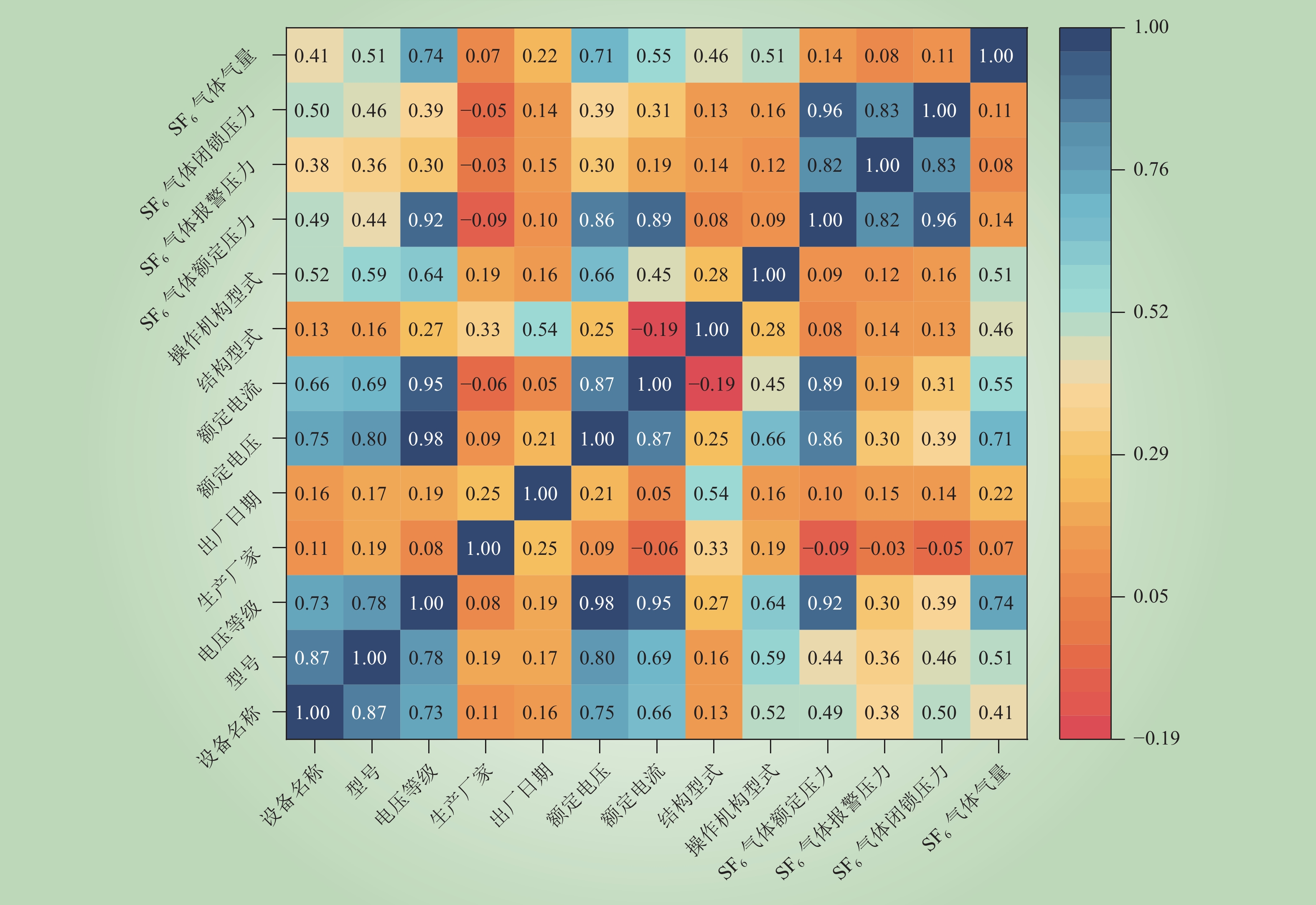

图 5 参数线性分析热值

Fig.5 Parametric linear analysis of calorific value

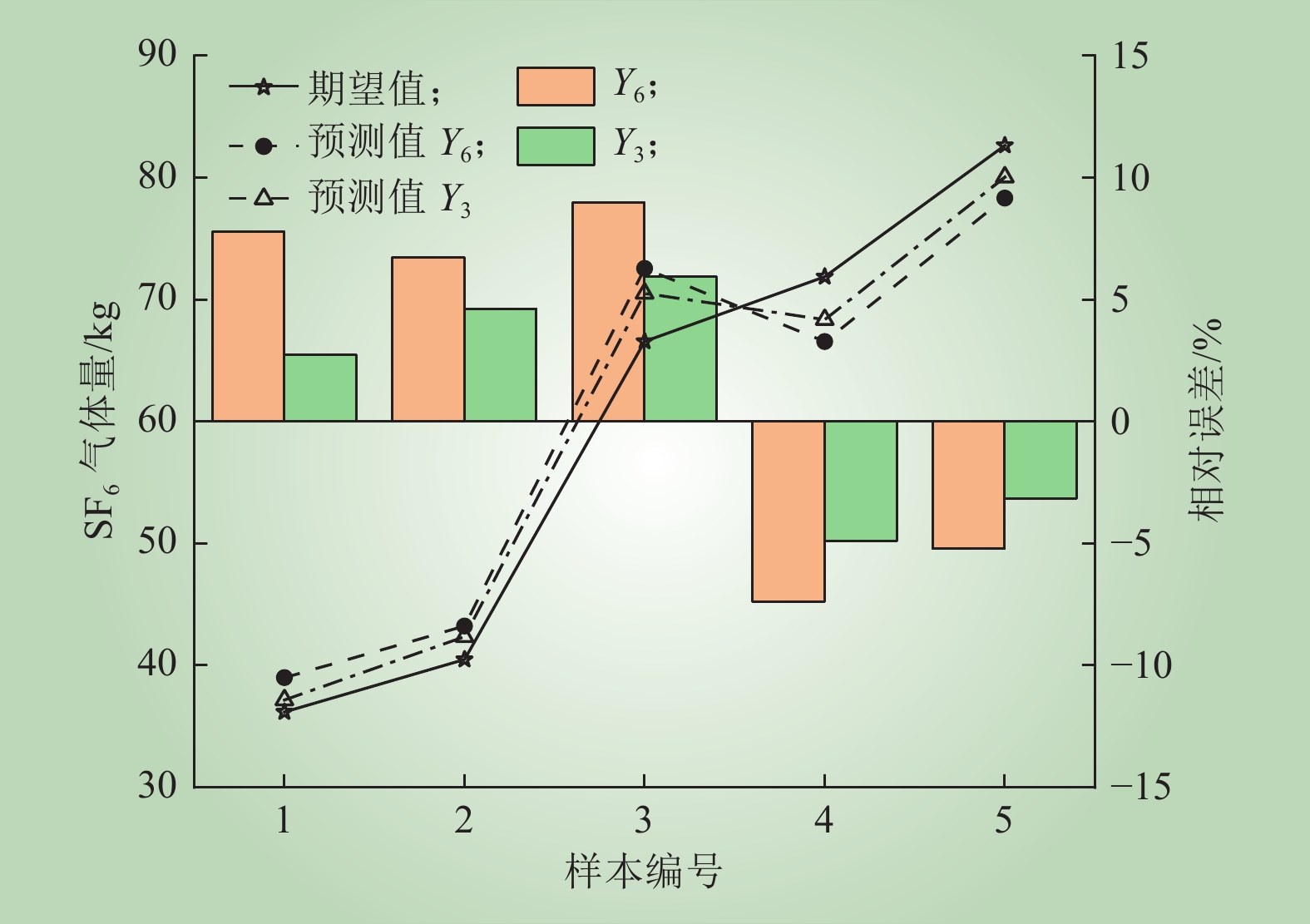

图 6 不同输入参数PHO-BP神经网络测试集预估结果对比

Fig.6 Comparison of the estimated results of PHO-BP neural network test sets with different input parameters

表 4 参数遍历取值范围

Table 4 The parameter value range

序号	操作机构型式	结构型式
1	弹簧	GIS
2	电磁	PASS
3	液簧	瓷柱式
4	液压	罐式
5	/	其它

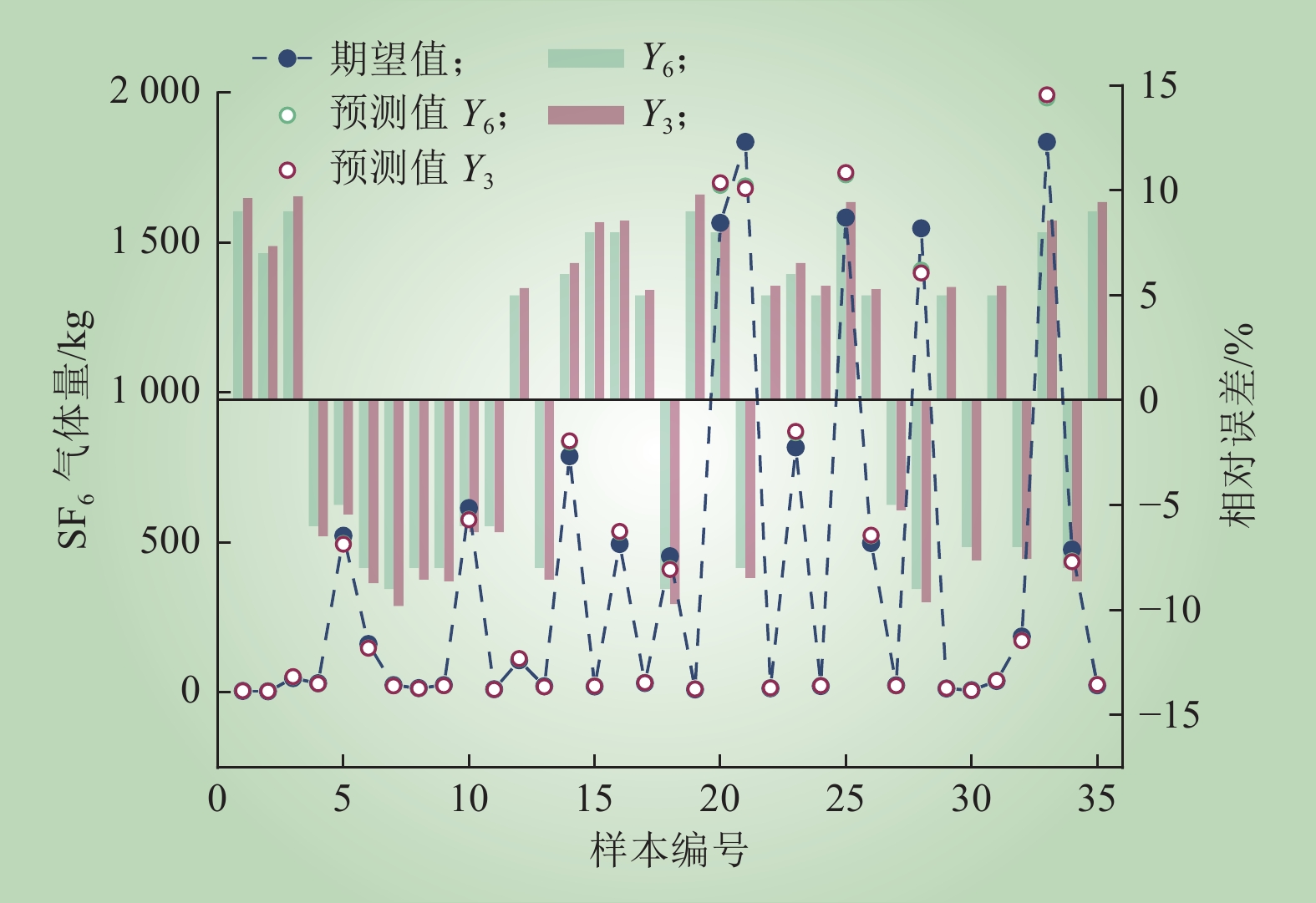

图 7 2种模型预估结果与现场实测数据对比

Fig.7 The prediction results of the two models are compared with the field measurement data

表 5 变电站碳储量预估结果对比

Table 5 Comparison of estimated carbon storage results of substations

${Z_{\rm C}}$/t		${Z_{{Y_3}}}$/t		${Z_{{Y_6}}}$/t		${\delta _{{Y_3}}}$/%		${\delta _{{Y_6}}}$/%
12015.725		12949.02		12920.01		7.78		7.53
