基于风光互补混合储能系统的微电网优化及电能质量提升

doi:10.11930/j.issn.1004-9649.202408026

中国电力 ›› 2025, Vol. 58 ›› Issue (7): 162-167.DOI: 10.11930/j.issn.1004-9649.202408026

基于风光互补混合储能系统的微电网优化及电能质量提升

王勇¹(), 王辉¹(), 胡雅涵¹(), 赵鹏², 李雪男³()

1. 国网陕西省电力有限公司经济技术研究院，陕西西安　710065
2. 输配电装备及系统安全与新技术国家重点实验室（重庆大学），重庆　400044
3. 清华四川能源互联网研究院，四川成都　610218

收稿日期:2024-08-08 发布日期:2025-07-30 出版日期:2025-07-28
作者简介:
王勇（1977），男，通信作者，硕士，高级工程师，从事电网规划与建设研究，E-mail：819353502@qq.com
王辉（1990），男，硕士，高级工程师，从事电网规划技术、分布式电源并网、配电网智能化等研究，E-mail：wanghui_1013@163.com
胡雅涵（1998），女，硕士，从事配电网规划研究，E-mail：645560378@qq.com
基金资助:
国家自然科学基金资助项目（52077017）；国网陕西省电力有限公司科技项目（5226JY240002）。

Microgrid Optimization and Power Quality Improvement Based on Wind-Solar Hybrid Energy Storage System

WANG Yong¹(), WANG Hui¹(), HU Yahan¹(), Zhao Peng², LI Xuenan³()

1. Economic and Technological Research Institute of State Grid Shaanxi Electric Power Company Limited, Xi'an 710065, China
2. State Key Laboratory of Power Transmission Equipment & System Security and New Technology (Chongqing University), Chongqing 400044, China
3. Sichuan Energy Internet Research Institute, Tsinghua University, Chengdu 610218, China

Received:2024-08-08 Online:2025-07-30 Published:2025-07-28
Supported by:
This work is supported by National Natural Science Foundation of China (No.52077017), Science and Technology Project of State Grid Shaanxi Electric Power Company Limited (No.5226JY240002).

摘要/Abstract

摘要：

随着可再生能源快速发展，能源存储系统在保持电网功率平衡方面日趋重要。建立了新能源混合储能系统的容量优化微网模型，实现风光互补微电网中储能容量的最优配置，从而提升供电质量。基于能量映射关系，采用交替方向乘子法迭代求解，确定了最佳分解模态数，并根据超电容和电池的特性选择了高频和低频分界点，计算了相应功率。案例研究表明：所提方法不仅能够提高电池的使用寿命，还可以降低年综合成本。

关键词: 混合储能系统, 微网优化, 电能质量, 变分模态分解

Abstract:

With the rapid development of renewable energy, the energy storage system is increasingly important to maintain the power balance of the power grid. A microgrid model for capacity of new energy hybrid energy storage system is established to realize the optimal configuration of storage capacity in the wind-solar complementary microgrid, thereby improving the power supply quality. on the energy mapping relationship, the alternating direction method of multipliers is used to iteratively solve the optimal number of decomposition modes, and the high and low frequency boundary points are selected to the characteristics of supercapacitors and batteries, and the corresponding power is calculated. Case studies show that the proposed method can not only improve the service life of batteries, but reduce the annual comprehensive cost.

Key words: hybrid energy storage system, microgrid optimisation, power quality, variational mode decomposition

王勇, 王辉, 胡雅涵, 赵鹏, 李雪男. 基于风光互补混合储能系统的微电网优化及电能质量提升[J]. 中国电力, 2025, 58(7): 162-167.

WANG Yong, WANG Hui, HU Yahan, Zhao Peng, LI Xuenan. Microgrid Optimization and Power Quality Improvement Based on Wind-Solar Hybrid Energy Storage System[J]. Electric Power, 2025, 58(7): 162-167.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202408026

https://www.electricpower.com.cn/CN/Y2025/V58/I7/162

图/表 6

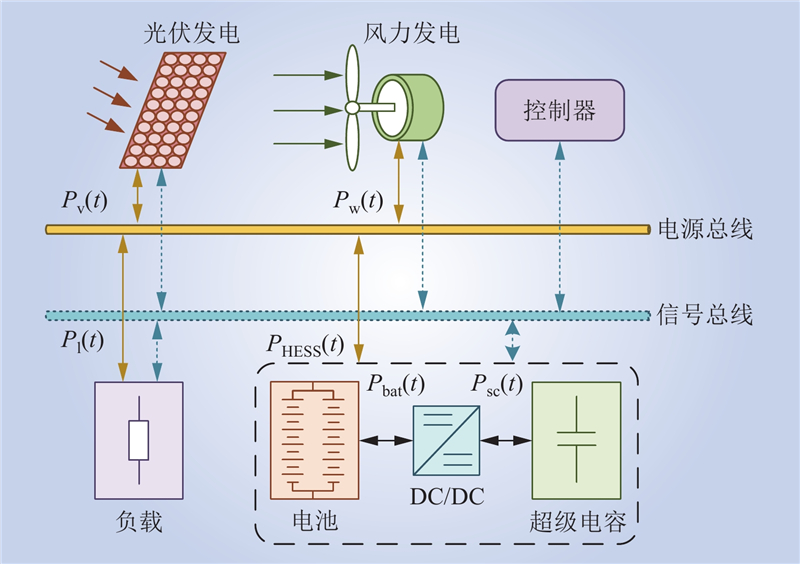

图 1 微电网结构示意

Fig.1 Schematic diagram of microgrid structure

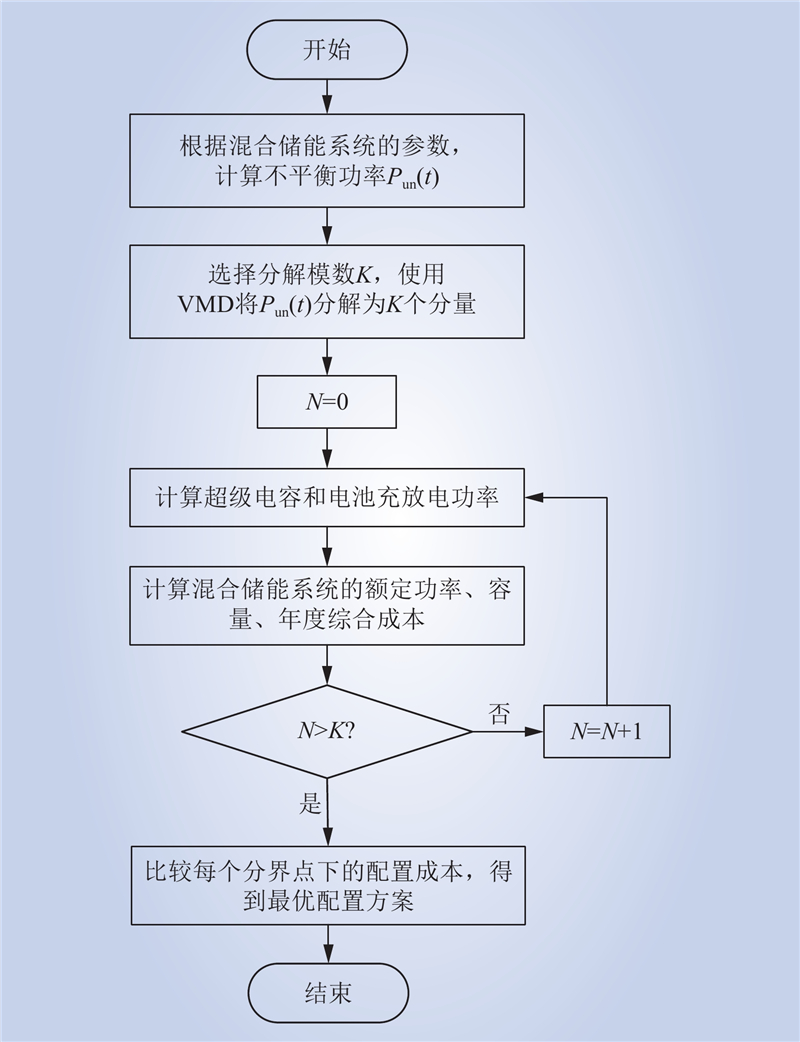

图 2 混合能源系统最优配置流程

Fig.2 Optimal configuration process of hybrid energy system

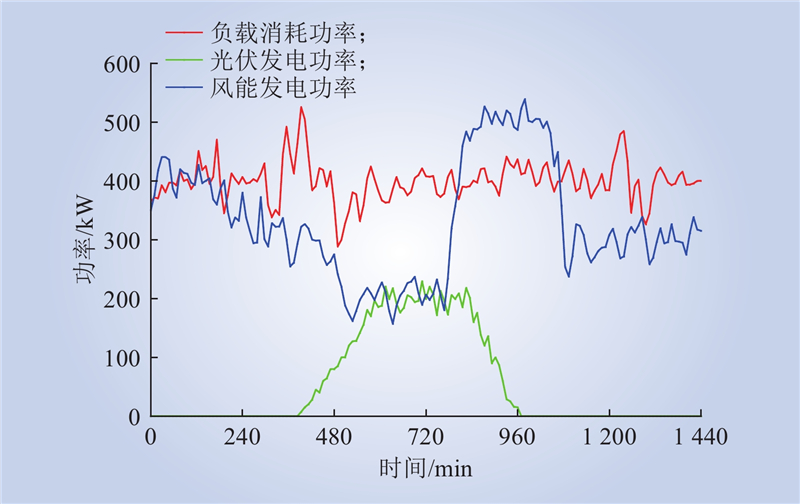

图 3 发电和负载功率变化曲线

Fig.3 Generation and load power change curve

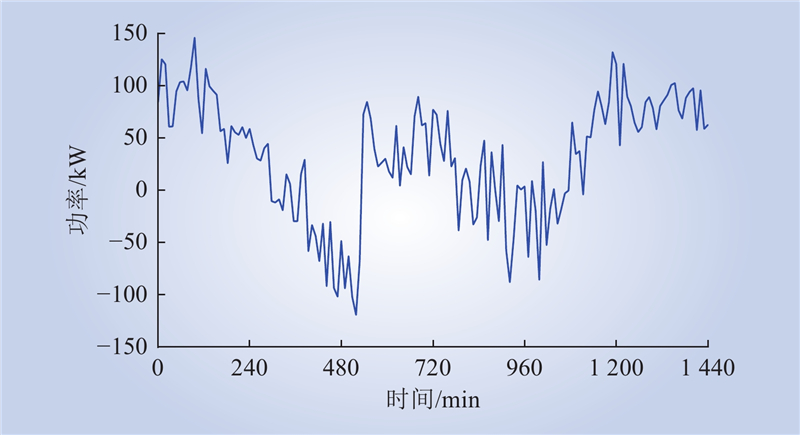

图 4 一天内不平衡功率变化曲线

Fig.4 Imbalance power change curve in one day

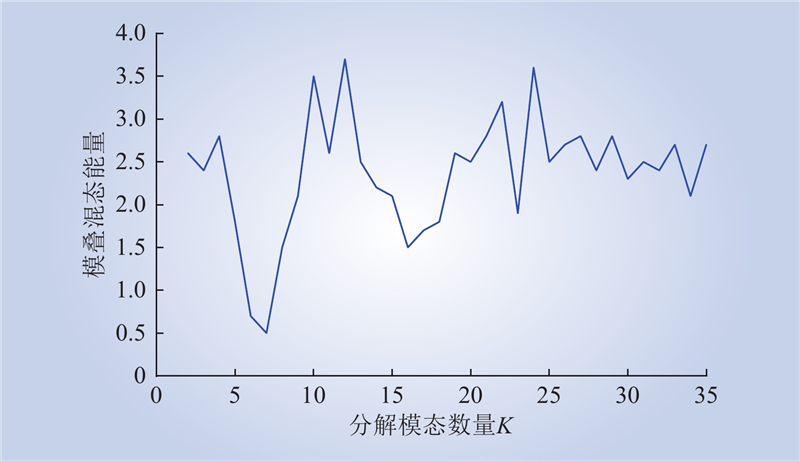

图 5 模态混叠总能量随分解模态数量变化曲线

Fig.5 The total energy of mode aliasing varies with the number of decomposed modes

表 1 系统最优配置结果

Table 1 Results of optimal system configuration

子组件	功率/kW	容量/（kW·h）
电池	74	160
超级电容	31	40
