基于DBSCAN聚类和区间回归的多谐波责任划分

doi:10.11930/j.issn.1004-9649.202303072

中国电力 ›› 2024, Vol. 57 ›› Issue (2): 138-148.DOI: 10.11930/j.issn.1004-9649.202303072

基于DBSCAN聚类和区间回归的多谐波责任划分

陈仕龙(), 吴涛, 郭成(), 张梓睿, 孙竟豪

1. 昆明理工大学电力工程学院，云南昆明　650500

收稿日期:2023-03-15 接受日期:2023-12-19 出版日期:2024-02-28 发布日期:2024-02-28
作者简介:陈仕龙（1973—），男，博士，教授，从事电力系统新型继电保护、电能质量分析等研究，E-mail：chenshilong3@126.com
郭成（1978—），男，通信作者，博士，教授，从事为电能质量分析与控制、电力系统性稳定分析等研究，E-mail：gc325@126.com
基金资助:
国家自然科学基金资助项目（特高压多端混合直流输电线路行波边界保护研究，52067009）；云南省联合基金重点项目（高比例新能源与异步系统的机网协调特性及控制策略研究，202201BE070001-15）。

Division of Multi-harmonic Responsibilities Based on DBSCAN Clustering and Interval Regression

Shilong CHEN(), Tao WU, Cheng GUO(), Zirui ZHANG, Jinghao SUN

1. Faculty of Electric Power Engineering, Kunming University of Science and Technology, Kunming 650500, China

Received:2023-03-15 Accepted:2023-12-19 Online:2024-02-28 Published:2024-02-28
Supported by:
This work is supported by National Natural Science Foundation of China (Research on Travelling Wave Boundary Protection for Multi-terminal Hybrid UHVDC Transmission Line, No.52067009) and Key Project of Yunnan Provincial Joint Foundation (Research on Machine Network Coordination Characteristics and Control Strategies of High Ratio New Energy and Asynchronous Systems, No. 202201BE070001-15).

摘要/Abstract

摘要：

在背景谐波阻抗变化和背景谐波电压波动的情况下，传统谐波责任划分方法难以适用于现有的统计型谐波监测数据，提出一种背景谐波变化下基于监测数据的多谐波责任划分方法。首先，构建谐波监测数据区间样本集，并建立背景谐波变化下的多谐波源区间谐波责任划分数学模型；其次，利用基于密度的聚类算法（DBSCAN）将采集到的统计型谐波数据集以簇为评价周期进行场景划分，并采用滑窗动态相关性分析方法筛选出满足线性关系阈值要求的数据；最后，利用基于参数化回归算法（PM）的区间线性进行方程参数计算并获取最佳样本划分方案，在构造的区间谐波责任划分基础上计算中长期时间范畴的谐波责任。利用实际电网中的谐波监测数据对所提方法进行验证，验证了该方法能利用现有的统计型谐波监测数据在背景谐波变化的情况下对每个谐波源进行合理时间尺度的谐波责任划分，可为实际电力系统运行过程中的多谐波责任划分提供一种新的思路。

关键词: 电能质量, 监测数据, DBSCAN聚类, 区间回归, 谐波责任划分

Abstract:

The traditional harmonic responsibility division methods are not applicable to the existing statistical harmonic monitoring data in the context of background harmonic impedance changes and background harmonic voltage fluctuations. Therefore, this paper proposes a multi-harmonic responsibility division method based on monitoring data under background harmonic changes. Firstly, a harmonic monitoring data interval sample set is constructed, and a mathematical model of multi-harmonic source interval harmonic responsibility division under background harmonic changes is established. Secondly, the collected statistical harmonic data set is clustered as the evaluation period by DBSCAN, and the data satisfying the linear relationship threshold requirement is screened by sliding window dynamic correlation analysis. Finally, the equation parameter and the optimal sample division scheme are obtained with the PM algorithm-based interval linear regression method, and the harmonic responsibility in the medium and long term time scope is calculated on the basis of the constructed interval harmonic responsibility division. The harmonic monitoring data of an actual power grid is used to verify the proposed method, and it is proved that the proposed method can use the existing statistical harmonic monitoring data to allocate the harmonic responsibility of each harmonic source in a reasonable time scale under background harmonic changes, which can provide new ideas for the division of responsibility for multiple harmonics during the operation of the actual power system.

Key words: power quality, monitoring data, DBSCAN clustering, interval regression, harmonic responsibility division

陈仕龙, 吴涛, 郭成, 张梓睿, 孙竟豪. 基于DBSCAN聚类和区间回归的多谐波责任划分[J]. 中国电力, 2024, 57(2): 138-148.

Shilong CHEN, Tao WU, Cheng GUO, Zirui ZHANG, Jinghao SUN. Division of Multi-harmonic Responsibilities Based on DBSCAN Clustering and Interval Regression[J]. Electric Power, 2024, 57(2): 138-148.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202303072

https://www.electricpower.com.cn/CN/Y2024/V57/I2/138

图/表 12

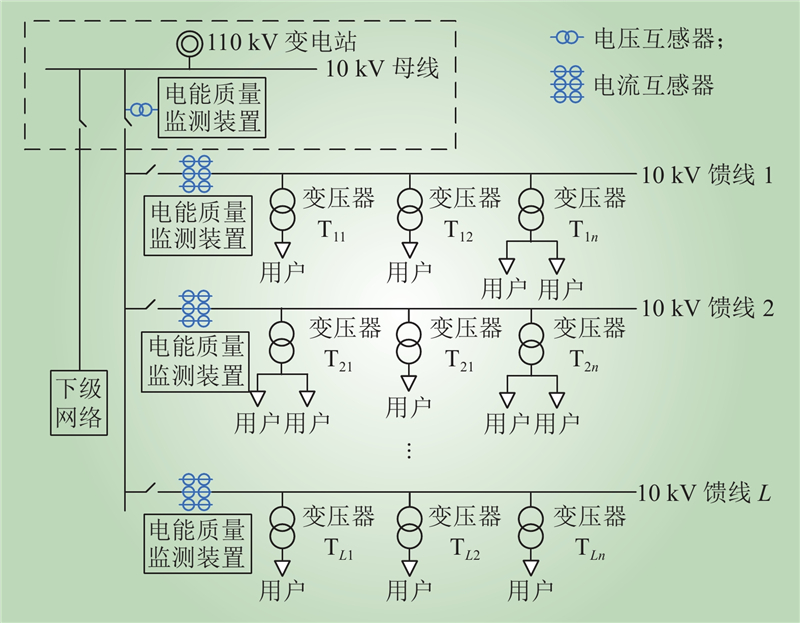

图 1 电能质量监测系统与数据采集示意

Fig.1 Schematic diagram of power quality monitoring system and data acquisition

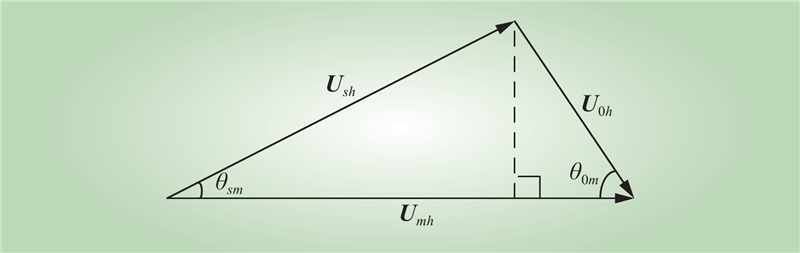

图 2 谐波电压向量关系

Fig.2 Harmonic voltage vector relationship

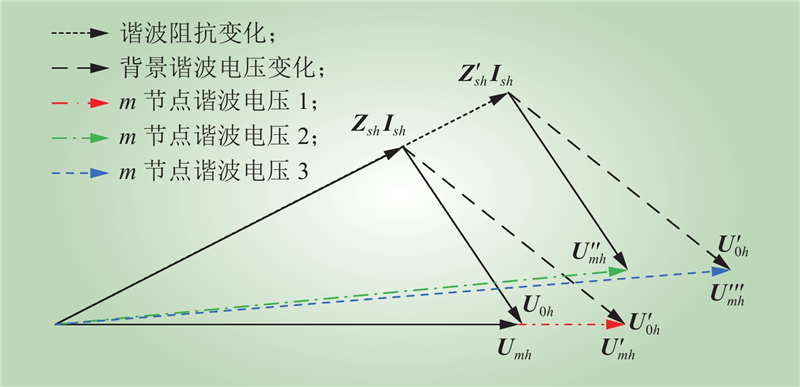

图 3 谐波阻抗变化与谐波电压波动示意

Fig.3 Schematic diagram of harmonic impedance variation and harmonic voltage fluctuation

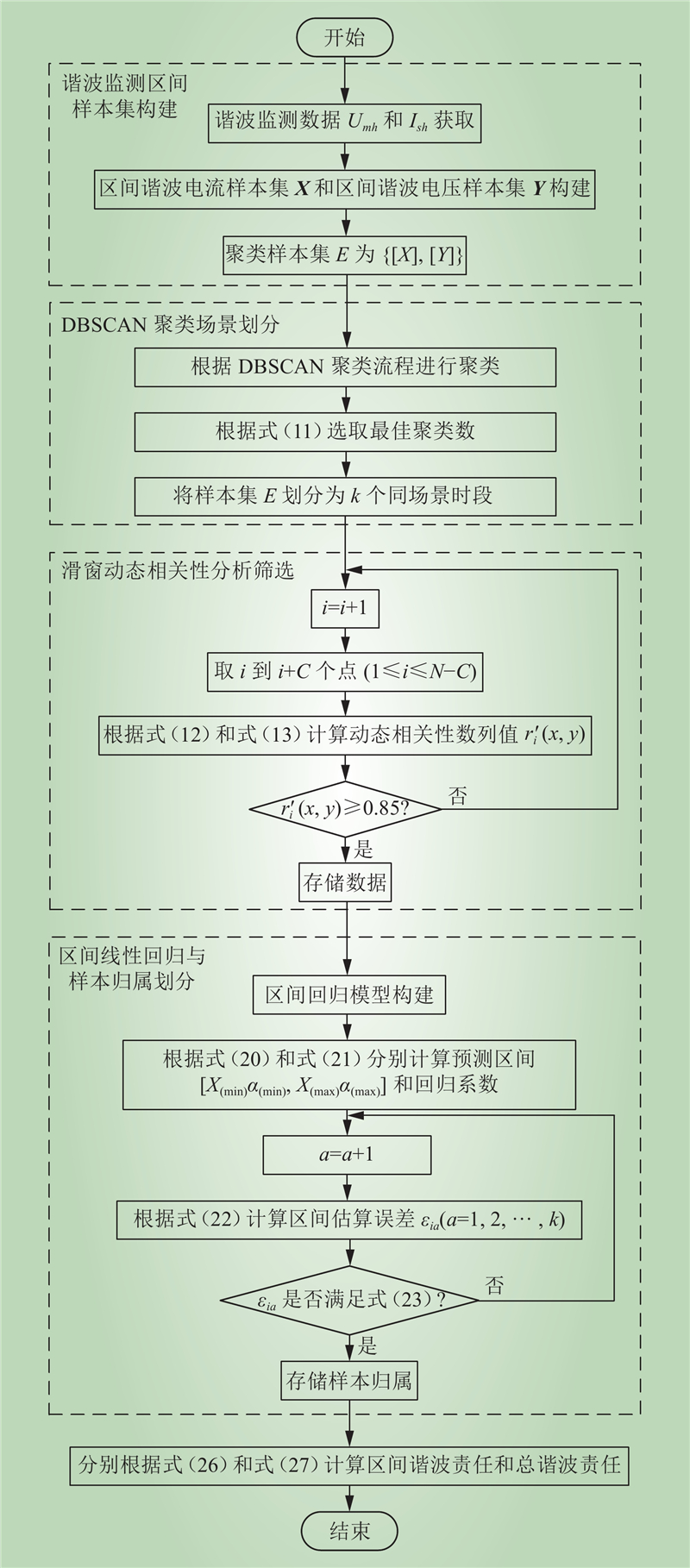

图 4 谐波责任划分方法流程

Fig.4 Harmonic responsibility division method flow chart

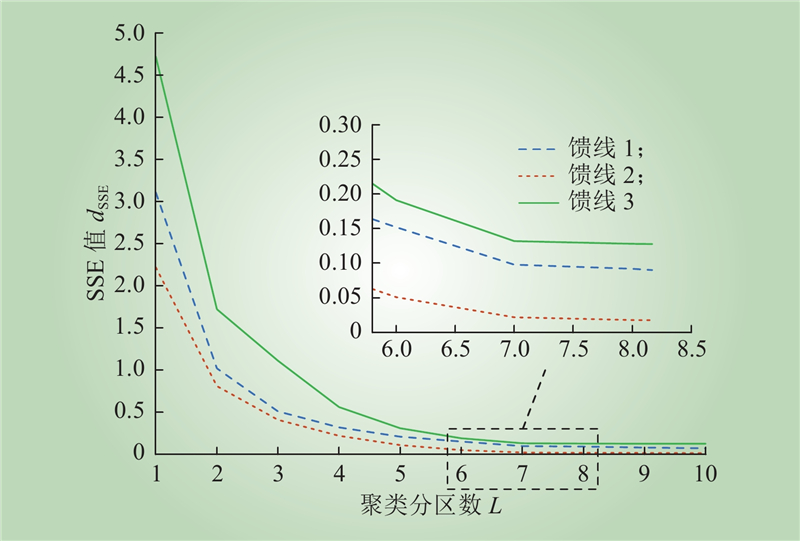

图 5 dSSE与L关系

Fig.5 Relationship between dSSE and L

表 1 9次谐波各场景区间参数[α1]计算结果

Table 1 Calculation results of the parameter [α1] for the interval of each scenario of the 9th harmonic

场景	馈线1	馈线2	馈线3
1	[11.40, 12.64]	[–3.58, –2.65]	[0.27, 0.31]
2	[12.36, 13.81]	[–3.72, –2.78]	[0.33, 0.36]
3	[10.56, 12.19]	[–2.19, –0.82]	[0.23, 0.29]
4	[11.95, 13.25]	[–2.74, –1.84]	[0.31, 0.35]
5	[12.28, 13.58]	[–2.85, –1.50]	[0.21, 0.24]
6	[11.48, 12.62]	[–3.33, –2.37]	[0.29, 0.33]
7	[12.21, 13.97]	[–2.23, –1.61]	[0.25, 0.28]

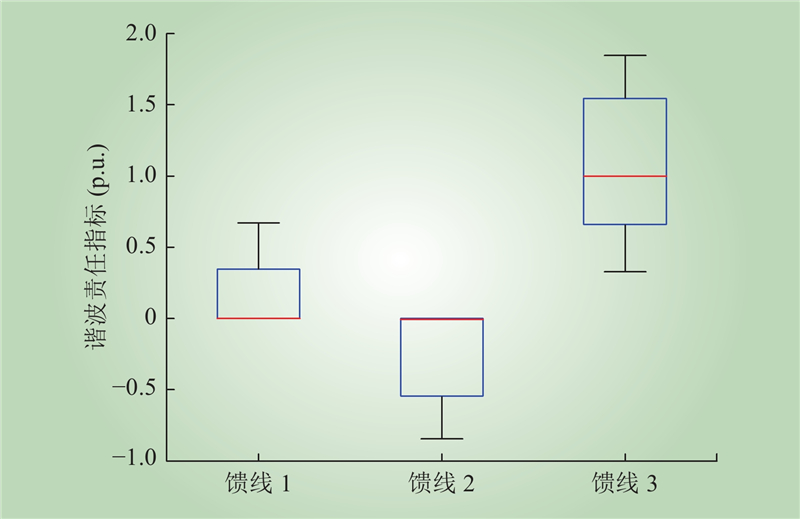

图 6 动态9次谐波责任箱线图

Fig.6 Dynamic 9th harmonic responsibility box line diagram

表 2 各场景下9次谐波责任标幺值的划分

Table 2 Division of responsibility p.u. for the 9th harmonic in each scenario

场景	馈线1	馈线2	馈线3
1	0.1754	–0.2362	1.0608
2	0.1634	–0.2587	1.0953
3	0.1373	–0.0762	0.9389
4	0.1767	–0.2131	1.0364
5	0.1543	–0.1922	1.0379
6	0.1497	–0.2635	1.1138
7	0.1238	–0.2473	1.1235

表 3 9次谐波责任标幺值的划分统计分析

Table 3 Statistical analysis of the division of responsibility p.u. for the 9th harmonic

谐波源馈线	动态谐波责任指标		全时段总谐波责任值指标
谐波源馈线	最大责任值	最小责任值	全时段总谐波责任值指标
1	0.176 7	0.123 8	0.154 4
2	–0.263 5	–0.076 2	–0.212 5
3	1.123 5	0.938 9	1.058 1

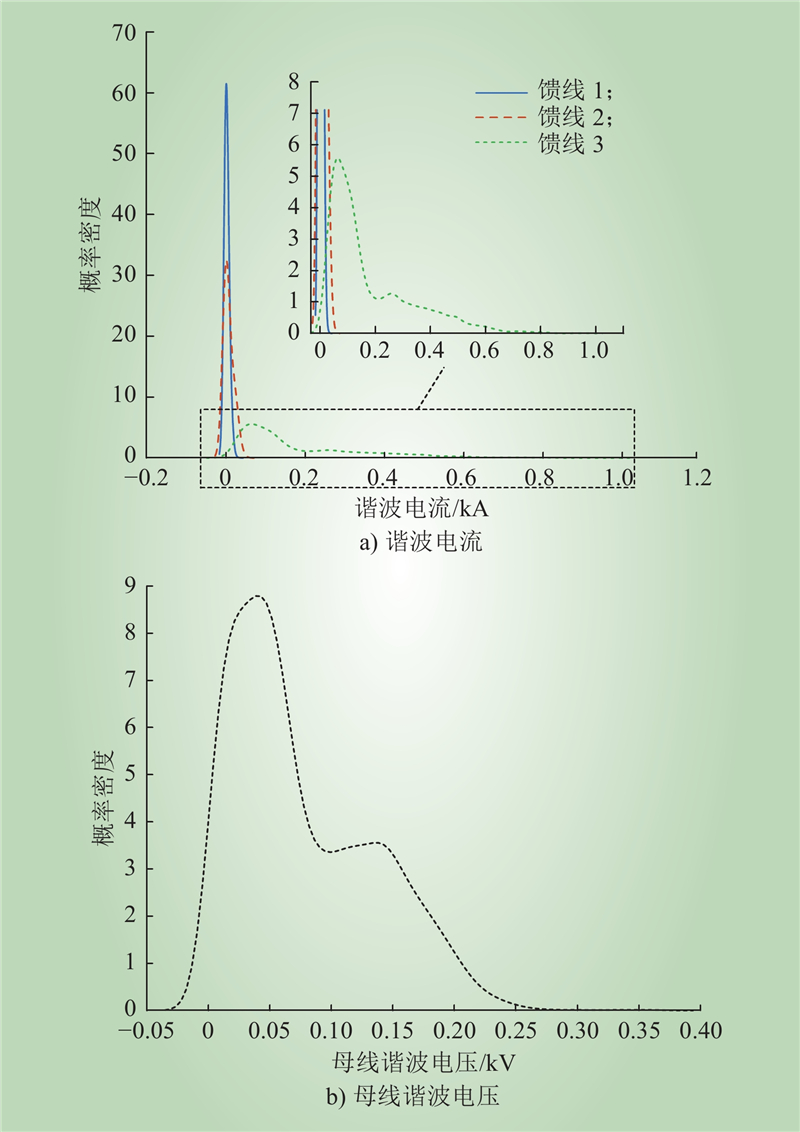

图 7 馈线9次谐波电流和母线9次谐波电压概率密度曲线

Fig.7 Feeder 9th harmonic current and busbar 9th harmonic voltage probability density curve

表 4 各场景下的7次谐波责任标幺值的划分

Table 4 Division of the responsibility p.u. for the 7th harmonic in each scenario

场景	馈线1	馈线2	馈线3
1	0.9059	–0.2583	0.3524
2	0.8868	–0.2994	0.4126
3	0.8291	–0.0881	0.2590
4	0.9659	–0.2532	0.2873
5	0.9481	–0.2631	0.3150
6	0.9300	–0.3386	0.4086
7	0.7395	–0.3826	0.6431

表 5 7次谐波责任标幺值的划分统计分析

Table 5 Statistical analysis of the division of responsibility p.u. for the 7th harmonic

谐波源馈线	动态谐波责任指标		全时段总谐波责任值指标
谐波源馈线	最大责任值	最小责任值	全时段总谐波责任值指标
1	0.965 9	0.739 5	0.886 5
2	–0.382 6	–0.088 1	–0.269 0
3	0.643 1	0.259 0	0.382 6

参考文献 28

1	刘可, 王轩, 王杨, 等. 静止无功发生器谐波模型及其对谐振影响分析[J]. 中国电力, 2022, 51 (9): 174- 182.
	LIU Ke, WANG Xuan, WANG Yang, et al. Harmonic model of static var generator and analysis of its resonance influence[J]. Electric Power, 2022, 51 (9): 174- 182.
2	DING T, CHEN H K, WU B, et al. Harmonic characteristics analysis of PWM-based electric vehicle chargers considering control strategy[C]//2018 18th International Conference on Harmonics and Quality of Power (ICHQP). Ljubljana, Slovenia. IEEE, 2018: 1–5.
3	丁同, 陈红坤, 吴斌, 等. 多谐波源定位及谐波责任量化区分方法综述[J]. 电力自动化设备, 2020, 40 (1): 19- 30. DOI
	DING Tong, CHEN Hongkun, WU Bin, et al. Overview on location and harmonic responsibility quantitative determination methods of multiple harmonic sources[J]. Electric Power Automation Equipment, 2020, 40 (1): 19- 30. DOI
4	XU W, LIU Y L. A method for determining customer and utility harmonic contributions at the point of common coupling[J]. IEEE Transactions on Power Delivery, 2000, 15 (2): 804- 811. DOI
5	商立群, 许海洋, 臧鹏, 等. 基于DFT和群组谐波能量回收理论的谐波与间谐波检测算法[J]. 电力系统保护与控制, 2022, 0 (15): 91- 98. DOI
	YONG Jing, CHEN Liang, CHEN Shuangyan. A harmonic and interharmonic detection algorithm based on DFT and group harmonic energy recovery theory[J]. Power System Protection and Control, 2022, 0 (15): 91- 98. DOI
6	李清, 张东辉, 陈名, 等. 多直流馈入输电系统中高压柔性直流高频风险评估计算方法[J]. 南方电网技术, 2023, (4): 1- 9. DOI
	LI Qing, ZHANG Donghui, CHEN Ming, et al. Calculation method for high frequency risk assessment of VSC-HVDC in multi-infeed DC transmission system[J]. Southern Power System Technology, 2023, (4): 1- 9. DOI
7	陈思源, 景巍巍, 史明明, 等. 新能源接入背景下的谐波源建模方法综述[J]. 电力系统保护与控制, 2022, 50 (7): 162- 175. DOI
	CHEN Siyuan, JING Weiwei, SHI Mingming, et al. Review of harmonic source modeling methods with the background of renewable energy access[J]. Power System Protection and Control, 2022, 50 (7): 162- 175. DOI
8	马思棋, 王忠. 基于贝叶斯优化弹性网络回归的谐波状态估计方法[J]. 中国电力, 2022, 55 (8): 104- 112.
	MA Siqi, WANG Zhong. Harmonic state estimation method based on Bayesian optimized elastic network regression[J]. Electric Power, 2022, 55 (8): 104- 112.
9	XU W, BAHRY R, MAZIN H E, et al. A method to determine the harmonic contributions of multiple loads[C]//2009 IEEE Power & Energy Society General Meeting. Calgary, AB, Canada. IEEE, 2009: 1–6.
10	孙媛媛, 李佳奇, 尹志明. 基于实测数据的集中式多谐波源责任评估[J]. 中国电机工程学报, 2014, 34 (13): 2164- 2171. DOI
	SUN Yuanyuan, LI Jiaqi, YIN Zhiming. Quantifying harmonic impacts for concentrated multiple harmonic sources using actual data[J]. Proceedings of the CSEE, 2014, 34 (13): 2164- 2171. DOI
11	赵冬梅, 谢家康, 王闯, 等. 基于Bagging集成学习的电力系统暂态稳定在线评估[J]. 电力系统保护与控制, 2022, 50 (8): 1- 10. DOI
	ZHAO Dongmei, XIE Jiakang, WANG Chuang, et al. On-line transient stability assessment of a power system based on Bagging ensemble learning[J]. Proceedings of the CSEE, 2022, 50 (8): 1- 10. DOI
12	王行亚, 肖先勇, 吴俊, 等. 基于线性度校验的二元线性回归系统谐波阻抗估计方法[J]. 中国电机工程学报, 2020, 40 (9): 2826- 2835. DOI
	WANG Hangya, XIAO Xianyong, WU Jun, et al. Utility harmonic impedance estimation based on binary linear regression with linearity calibration[J]. Proceedings of the CSEE, 2020, 40 (9): 2826- 2835. DOI
13	惠锦, 杨洪耕, 叶茂清. 多谐波源条件下的谐波污染责任划分研究[J]. 中国电机工程学报, 2011, 31 (13): 48- 54. DOI
	HUI Jin, YANG Honggeng, YE Maoqing. Research on the responsibility partition of harmonic pollution of multiple harmonic sources[J]. Proceedings of the CSEE, 2011, 31 (13): 48- 54. DOI
14	刘子腾, 徐永海, 陶顺. 基于SHIBSS方法和数据优选的系统侧谐波阻抗估算方法[J]. 电力自动化设备, 2021, 41 (2): 193- 199. DOI
	LIU Ziteng, XU Yonghai, TAO Shun. Estimation method of harmonic impedance on system side based on SHIBSS method and data optimization[J]. Electric Power Automation Equipment, 2021, 41 (2): 193- 199. DOI
15	CUI Y, XU W. Assessment of potential harmonic problems for systems with distributed or random harmonic sources[C]//2007 IEEE Power Engineering Society General Meeting. Tampa, FL, USA. IEEE, 2007: 1–6.
16	吕洋. 电网谐波阻抗测量[D]. 杭州: 浙江大学, 2010.
	LV Yang. Measurement of power system harmonic impedance[D]. Hangzhou: Zhejiang University, 2010.
17	王辉, 刘炜, 李群湛, 等. 基于复数域偏最小二乘法与等值法的多谐波源责任划分[J]. 电力系统自动化, 2017, 41 (4): 78- 85, 119.
	WANG Hui, LIU Wei, LI Qunzhan, et al. Responsibility distinction for multiple harmonic sources based on partial least square in complex field and equivalent method[J]. Automation of Electric Power Systems, 2017, 41 (4): 78- 85, 119.
18	MAZIN H E, XU W, HUANG B. Determining the harmonic impacts of multiple harmonic-producing loads[J]. IEEE Transactions on Power Delivery, 2011, 26 (2): 1187- 1195. DOI
19	孟思雨, 肖先勇, 张逸, 等. 基于有效数据段选取的多谐波源责任划分方法[J]. 电网技术, 2017, 41 (6): 2006- 2011. DOI
	MENG Siyu, XIAO Xianyong, ZHANG Yi, et al. A valid data selection method in estimating harmonic impact of individual loads[J]. Power System Technology, 2017, 41 (6): 2006- 2011. DOI
20	王瑜, 臧天磊, 符玲, 等. 考虑背景谐波电压变化的多谐波源谐波责任划分[J]. 电力系统自动化, 2015, 39 (18): 55- 61. DOI
	WANG Yu, ZANG Tianlei, FU Ling, et al. Harmonic contribution partition of multiple harmonic sources considering background harmonic voltage fluctuation[J]. Automation of Electric Power Systems, 2015, 39 (18): 55- 61. DOI
21	刘苏婕, 肖先勇, 刘亚梅, 等. 基于IGG权重函数复数域多元线性回归算法的谐波责任分摊方法[J]. 电力自动化设备, 2017, 37 (3): 160- 166. DOI
	LIU Sujie, XIAO Xianyong, LIU Yamei, et al. Harmonic responsibility allocation method based on complex field multiple linear regression algorithm with IGG weight function[J]. Electric Power Automation Equipment, 2017, 37 (3): 160- 166. DOI
22	马智远, 许中, 黄裕春, 等. 背景谐波阻抗变化情况下的谐波责任划分[J]. 电测与仪表, 2016, 53 (23): 78- 83, 89. DOI
	MA Zhiyuan, XU Zhong, HUANG Yuchun, et al. Harmonic contributions determination on condition of changing background harmonic impedance[J]. Electrical Measurement & Instrumentation, 2016, 53 (23): 78- 83, 89. DOI
23	国家电网公司. 电能质量评估技术导则: Q/GDW 651—2011[S]. 2008.
	State Grid Corporation of China. Technical guide for power quality assessment: Q/GDW 651—2011[S]. 2008.
24	韩兴磊. 住宅非侵入式负荷监测算法研究[D]. 广州: 华南理工大学, 2018.
	HAN Xinglei. Research on non-intrusive load monitoring algorithms in residential building[D]. Guangzhou: South China University of Technology, 2018.
25	张斌, 庄池杰, 胡军, 等. 结合降维技术的电力负荷曲线集成聚类算法[J]. 中国电机工程学报, 2015, 35 (15): 3741- 3749. DOI
	ZHANG Bin, ZHUANG Chijie, HU Jun, et al. Ensemble clustering algorithm combined with dimension reduction techniques for power load profiles[J]. Proceedings of the CSEE, 2015, 35 (15): 3741- 3749. DOI
26	张逸, 王攸然, 刘航, 等. 基于监测数据相关性分析的用户谐波责任划分方法[J]. 电力系统自动化, 2020, 44 (2): 189- 197.
	ZHANG Yi, WANG Youran, LIU Hang, et al. Determination method of user harmonic responsibility based on correlation analysis of monitoring data[J]. Automation of Electric Power Systems, 2020, 44 (2): 189- 197.
27	刘子腾. 考虑背景谐波电压波动的配电网谐波责任评估[D]. 北京: 华北电力大学, 2021.
	LIU Ziteng. Harmonic contribution determination of distribution network considering background harmonic voltage fluctuation[D]. Beijing: North China Electric Power University, 2021.
28	SOUZA L C, SOUZA R M C R, AMARAL G J A, et al. A parametrized approach for linear regression of interval data[J]. Knowledge-Based Systems, 2017, 131, 149- 159. DOI
