变权-混合决策评估的复合功能并网逆变器多目标协同优化控制方法

doi:10.11930/j.issn.1004-9649.202310052

摘要/Abstract

摘要：

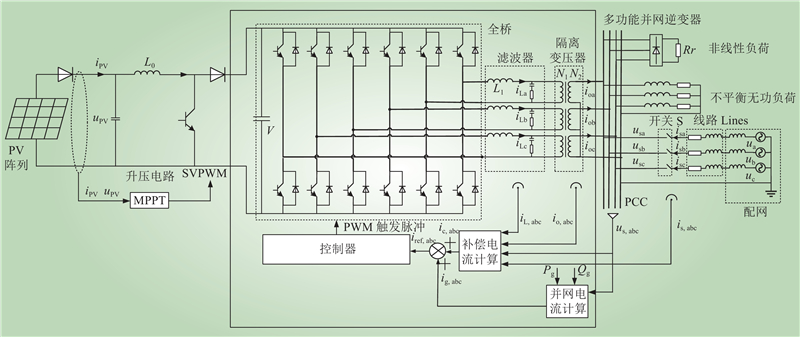

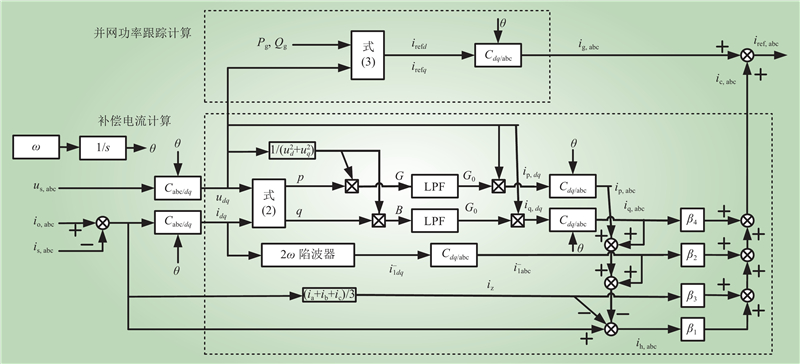

复合功能并网逆变器（multi-functional grid-connected inverter，MFGCI）在完成功率输出的同时，具备解决配电网中多种电能质量问题的能力，但该能力往往受其可用于电能质量治理的补偿容量的限制。以MFGCI的控制结构为基础，给出了无锁相环补偿指令电流及并网跟踪电流指令，提出了基于变权-混合决策评估的多目标协同优化方法，以更好适用于因新能源不确定性及非线性负荷接入导致的电能质量指标波动问题。构建了以电能质量补偿效果最佳和所需补偿容量最小的多目标函数，采用基于多目标人工蜂鸟算法（multi-objective artificial hummingbird algorithm，MOAHA）更新机制的优化算法，求解补偿各电能质量问题的最优容量分配系数，并通过多种场景下仿真，验证了所提方法的正确性和有效性。

关键词: 电能质量, 复合功能并网逆变器, 协同优化, 变权-混合决策, 多目标人工蜂鸟算法

Abstract:

Multi-functional grid connected inverter (MFGCI) has the ability to solve various power quality problems in the distribution network while fulfilling the power output task simultaneously, but this ability is often limited by its compensation capacity that can be used for power quality management. Based on the control structure of MFGCI, this paper provides the current compensation order and grid connection tracking current order without phase-locked loop(PLL). A multi-objective collaborative optimization method based on variable weight mixed decision evaluation is proposed to better adapt to the fluctuations in power quality indicators caused by nonlinear load integration and uncertainty of new energy. A multi-objective function is constructed to achieve the best power quality compensation effect and the minimum required compensation capacity. Based on update mechanism from the multi-objective artificial hummingbird algorithm (MOAHA), an optimization algorithm is employed to solve the optimal capacity allocation coefficient for compensating various power quality problems. The correctness and effectiveness of the proposed method are verified through simulations in various scenarios.

Key words: power quality, multi-function grid connected inverter, collaborative optimization, variable weight hybrid decision, multi-objective artificial hummingbird algorithm

杨帆, 卫水平, 任意, 陈秭龙, 乐健. 变权-混合决策评估的复合功能并网逆变器多目标协同优化控制方法[J]. 中国电力, 2024, 57(3): 113-125.

Fan YANG, Shuiping WEI, Yi REN, Zilong CHEN, Jian LE. Multi-objective Collaborative Optimization Control Method of Composite Function Grid Connected Inverters Considering Variable Weight Hybrid Decision Evaluation[J]. Electric Power, 2024, 57(3): 113-125.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202310052

https://www.electricpower.com.cn/CN/Y2024/V57/I3/113

图/表 17

参考文献 25

1	江悦, 曹旌, 梁刚, 等. 光伏并网逆变器谐波特性分析与谐波电流抑制[J]. 电力系统及其自动化学报, 2022, 34 (9): 64- 72.
	JIANG Yue, CAO Jing, LIANG Gang, et al. Analysis of harmonic characteristics and suppression of harmonic current for photovoltaic grid-connected inverter[J]. Proceedings of the CSU-EPSA, 2022, 34 (9): 64- 72.
2	黄海宏, 郑小朋, 王海欣. 三相四线制有源电力滤波器均压环优化设计[J]. 电力自动化设备, 2020, 40 (7): 103- 107.
	HUANG Haihong, ZHENG Xiaopeng, WANG Haixin. Optimal design of voltage-balance loop for three-phase four-wire APF[J]. Electric Power Automation Equipment, 2020, 40 (7): 103- 107.
3	ZHAI H, ZHUO F, ZHU C Z, et al. An optimal compensation method of shunt active power filters for system-wide voltage quality improvement[J]. IEEE Transactions on Industrial Electronics, 2020, 67 (2): 1270- 1281. DOI
4	薛飞, 李旭涛, 李宏强, 等. 基于双侧电压反馈控制策略的并网光伏系统电压稳定性研究[J]. 中国电力, 2022, 55 (9): 183- 191, 203.
	XUE Fei, LI Xutao, LI Hongqiang, et al. Research on voltage stability of grid-connected photovoltaic system based on double-side voltage feedback control[J]. Electric Power, 2022, 55 (9): 183- 191, 203.
5	张茜, 毛义鹏, 余乐, 等. 适用于无直流侧电压传感器单相级联H桥型光伏逆变器的直接功率模型预测控制方法[J]. 中国电力, 2022, 55 (2): 172- 180.
	ZHANG Qian, MAO Yipeng, YU Le, et al. Direct power model predictive control method for DC-side sensor-less single-phase cascaded H-bridges photovoltaic inverters[J]. Electric Power, 2022, 55 (2): 172- 180.
6	孙广宇, 李永丽, 靳伟, 等. 基于三相多功能逆变器的微电网电能质量综合治理策略[J]. 电网技术, 2019, 43 (4): 1211- 1221.
	SUN Guangyu, LI Yongli, JIN Wei, et al. A comprehensive power quality control strategy for microgrid based on three-phase multi-function inverters[J]. Power System Technology, 2019, 43 (4): 1211- 1221.
7	靳伟, 李永丽, 卜立之, 等. 基于CPT理论和重复控制的多功能并网逆变器研究[J]. 电工技术学报, 2018, 33 (18): 4345- 4356.
	JIN Wei, LI Yongli, BU Lizhi, et al. Research on multi-functional grid-connected inverters based on conservative power theory and repetitive control[J]. Transactions of China Electrotechnical Society, 2018, 33 (18): 4345- 4356.
8	黄龑, 郝迎鹏, 汪慧娴, 等. 基于二阶统一模型的分布式发电并网同步控制研究[J]. 中国电力, 2023, 56 (12): 41- 50.
	HUANG Yan, HAO Yingpeng, WANG Huixian, et al. Research on synchronization control of distributed generation based on second-order unified model[J]. Electric Power, 2023, 56 (12): 41- 50.
9	ALGADDAFI A, ALTUWAYJIRI S A, AHMED O A, et al. An optimal current controller design for a grid connected inverter to improve power quality and test commercial PV inverters[J]. The Scientific World Journal, 2017, 2017, 1393476.
10	周子轩, 王果, 王久珲. 不同电流检测方法对并网逆变器用于电能质量治理的比较分析[J]. 电力电容器与无功补偿, 2020, 41 (1): 169- 175.
	ZHOU Zixuan, WANG Guo, WANG Jiuhui. Comparative analysis of different current detection methods for power quality control of grid-connected inverters[J]. Power Capacitor & Reactive Power Compensation, 2020, 41 (1): 169- 175.
11	蔡维正, 郭昆丽, 刘璐雨, 等. 基于一阶LADRC控制的直驱风机次同步振荡抑制策略[J]. 中国电力, 2022, 55 (4): 175- 184.
	CAI Weizheng, GUO Kunli, LIU Luyu, et al. Subsynchronous oscillation mitigation strategy based on first-order LADRC for direct-drive wind turbines[J]. Electric Power, 2022, 55 (4): 175- 184.
12	程冲, 曾正, 汤胜清, 等. 复合功能并网逆变器的线性最优控制[J]. 电力自动化设备, 2016, 36 (1): 135- 142, 148.
	CHENG Chong, ZENG Zheng, TANG Shengqing, et al. Linear optimal control of multi-functional grid-connected inverter[J]. Electric Power Automation Equipment, 2016, 36 (1): 135- 142, 148.
13	石磊, 周宏涛, 赵元莘, 等. 光伏多功能并网逆变器迭代SMC+LADRC电流内环控制策略研究[J]. 智慧电力, 2023, 51 (4): 107- 114. DOI
	SHI Lei, ZHOU Hongtao, ZHAO Yuanshen, et al. Iterative SMC+LADRC current inner loop control strategy of photovoltaic multi-function grid connected inverter[J]. Smart Power, 2023, 51 (4): 107- 114. DOI
14	汤胜清, 曾正, 程冲, 等. 微电网中多功能并网逆变器的无线协调控制[J]. 电力系统自动化, 2015, 39 (9): 200- 207. DOI
	TANG Shengqing, ZENG Zheng, CHENG Chong, et al. Wireless coordination control of multi-functional grid-tied inverters in microgrid[J]. Automation of Electric Power Systems, 2015, 39 (9): 200- 207. DOI
15	宋振浩, 吕志鹏, 刘志涵, 等. 多功能并网逆变器电能质量优化控制策略[J]. 中国科技论文, 2022, 17 (3): 339- 347. DOI
	SONG Zhenhao, LV Zhipeng, LIU Zhihan, et al. Power quality optimization control strategy of multi-function grid-connected inverter[J]. China Sciencepaper, 2022, 17 (3): 339- 347. DOI
16	ZENG Z, YANG H, TANG S Q, et al. Objective-oriented power quality compensation of multifunctional grid-tied inverters and its application in microgrids[J]. IEEE Transactions on Power Electronics, 2015, 30 (3): 1255- 1265. DOI
17	刘人志, 陈卓, 唐文博, 等. 弱电网下计及锁相环影响的LCL型并网逆变器控制策略[J]. 电力系统保护与控制, 2022, 50 (5): 178- 187.
	LIU Renzhi, CHEN Zhuo, TANG Wenbo, et al. Control strategy of an LCL type grid-connected inverter with the influence of a phase-locked loop under a weak power grid[J]. Power System Protection and Control, 2022, 50 (5): 178- 187.
18	王威, 陈红敏, 金宇航, 等. 基于滑窗DFT算法的并网逆变器多目标协调控制方法[J]. 电力系统保护与控制, 2022, 50 (9): 145- 151.
	WANG Wei, CHEN Hongmin, JIN Yuhang, et al. Multi-objective coordinated control method of grid-connected inverter based on a sliding window DFT algorithm[J]. Power System Protection and Control, 2022, 50 (9): 145- 151.
19	常继凯, 舒勤, 李鸿鑫, 等. 计及电缆分布电容的并网逆变器谐振特性与抑制[J]. 电力科学与技术学报, 2023, 38 (3): 114- 123.
	CHANG Jikai, SHU Qin, LI Hongxin, et al. Resonance characteristics and suppression of grid-connected inverter system considering cable distributed capacitance[J]. Journal of Electric Power Science and Technology, 2023, 38 (3): 114- 123.
20	王毅, 高爱杰, 胡楠, 等. 多并网逆变器并联运行的谐振抑制策略[J]. 南方电网技术, 2022, 16 (5): 87- 96.
	WANG Yi, GAO Aijie, HU Nan, et al. Resonance suppression strategy for multi-parallel grid-connected inverters[J]. Southern Power System Technology, 2022, 16 (5): 87- 96.
21	苑忠奇, 金国彬. 基于系统导纳的并网逆变器谐振机理分析[J]. 东北电力大学学报, 2022, 42 (4): 79- 87.
	YUAN Zhongqi, JIN Guobin. Resonance mechanism analysis of grid-connected inverter based on system admittance[J]. Journal of Northeast Electric Power University, 2022, 42 (4): 79- 87.
22	李小叶, 李永丽, 张玮亚, 等. 基于多功能并网逆变器的电能质量控制策略[J]. 电网技术, 2015, 39 (2): 556- 562.
	LI Xiaoye, LI Yongli, ZHANG Weiya, et al. A power quality control strategy based on multi-functional grid-connected inverter[J]. Power System Technology, 2015, 39 (2): 556- 562.
23	刘子腾, 徐永海, 雷达, 等. 基于多层次模糊综合评判的谐波综合责任评估指标[J]. 电测与仪表, 2021, 58 (3): 1- 8.
	LIU Ziteng, XU Yonghai, LEI Da, et al. Harmonic comprehensive responsibility index based on multiple fuzzy comprehensive evaluation[J]. Electrical Measurement & Instrumentation, 2021, 58 (3): 1- 8.
24	吕志鹏, 吴鸣, 宋振浩, 等. 电能质量CRITIC-TOPSIS综合评价方法[J]. 电机与控制学报, 2020, 24 (1): 137- 144.
	LÜ Zhipeng, WU Ming, SONG Zhenhao, et al. Comprehensive evaluation of power quality on CRITIC-TOPSIS method[J]. Electric Machines and Control, 2020, 24 (1): 137- 144.
25	XIAO L L, LI F, NIU C, et al. Evaluation of water inrush hazard in coal seam roof based on the AHP-CRITIC composite weighted method[J]. Energies, 2022, 16 (1): 114. DOI

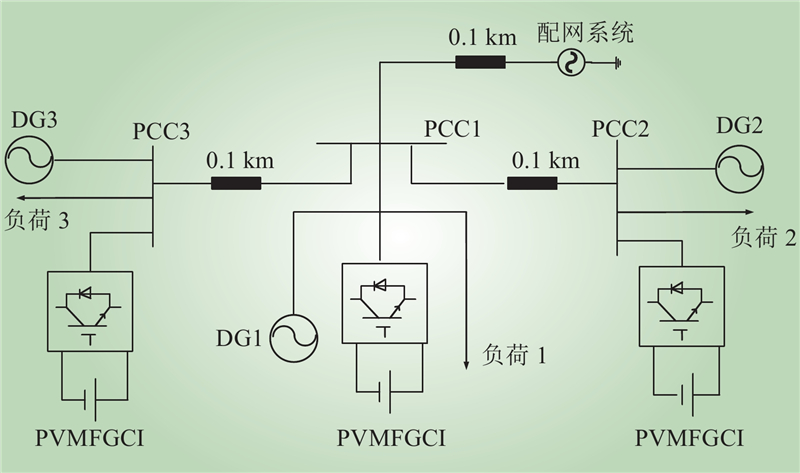

仿真模块	变量	参数值
PVMFGCI	开关频率/Hz	10 000
	直流母线电压U_dc/V	700
	滤波电感L/mH	2
	滤波电容C/μF	10
	阻尼电阻R/Ω	4
	并网功率跟踪指令值P_g, Q_g(kW, kV·A)	(18, 0)/(20, 0)/(16, 0)
线路	线路的单位电阻/ (Ω·km^–1)	0.642
线路	线路的单位电抗/ (Ω·km^–1)	0.083
配网电源	电压U_s/V	380
PCC1~3 非线性负荷	R/Ω, L/H	15, 0.005
		20, 0.010
		25, 0.015
PCC1~3 三相不平衡负荷	R/Ω, L/H	2.9, 0.17/4, 0.079/1.6, 0.04
		3.3, 0.14/4, 0.072/2.6, 0.035
		3.1, 0.12/4, 0.065/2.4, 0.046
PCC1~3 三相平衡负荷	R/Ω	(35, 35, 35)/(30, 30, 30)/ (25, 25, 25)
DG1/DG2/DG3	指令值P/kW, Q/(kV·A)	(36, 0)/(32, 0)/(36, 0)

仿真模块	变量	参数值
PVMFGCI	开关频率/Hz	10 000
	直流母线电压U_dc/V	700
	滤波电感L/mH	2
	滤波电容C/μF	10
	阻尼电阻R/Ω	4
	并网功率跟踪指令值P_g, Q_g(kW, kV·A)	(18, 0)/(20, 0)/(16, 0)
线路	线路的单位电阻/ (Ω·km^–1)	0.642
线路	线路的单位电抗/ (Ω·km^–1)	0.083
配网电源	电压U_s/V	380
PCC1~3 非线性负荷	R/Ω, L/H	15, 0.005
		20, 0.010
		25, 0.015
PCC1~3 三相不平衡负荷	R/Ω, L/H	2.9, 0.17/4, 0.079/1.6, 0.04
		3.3, 0.14/4, 0.072/2.6, 0.035
		3.1, 0.12/4, 0.065/2.4, 0.046
PCC1~3 三相平衡负荷	R/Ω	(35, 35, 35)/(30, 30, 30)/ (25, 25, 25)
DG1/DG2/DG3	指令值P/kW, Q/(kV·A)	(36, 0)/(32, 0)/(36, 0)

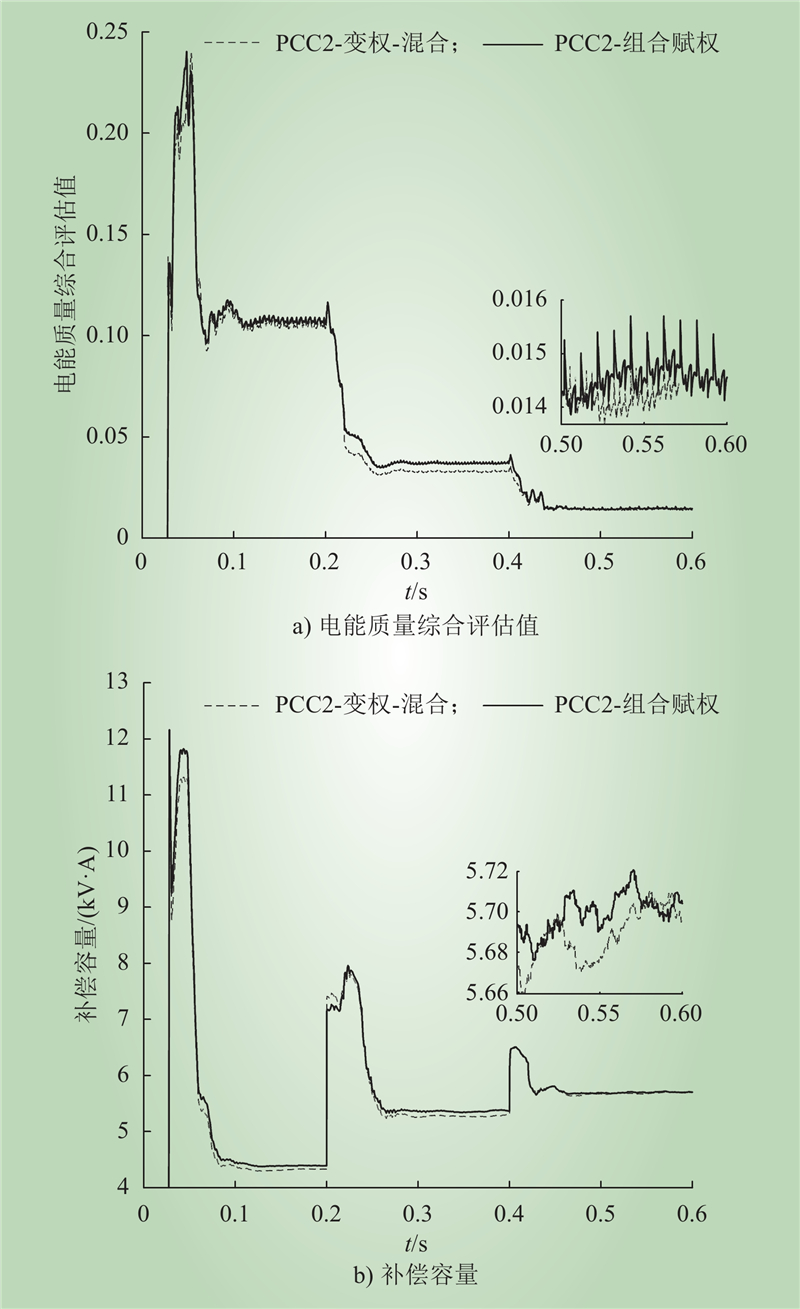

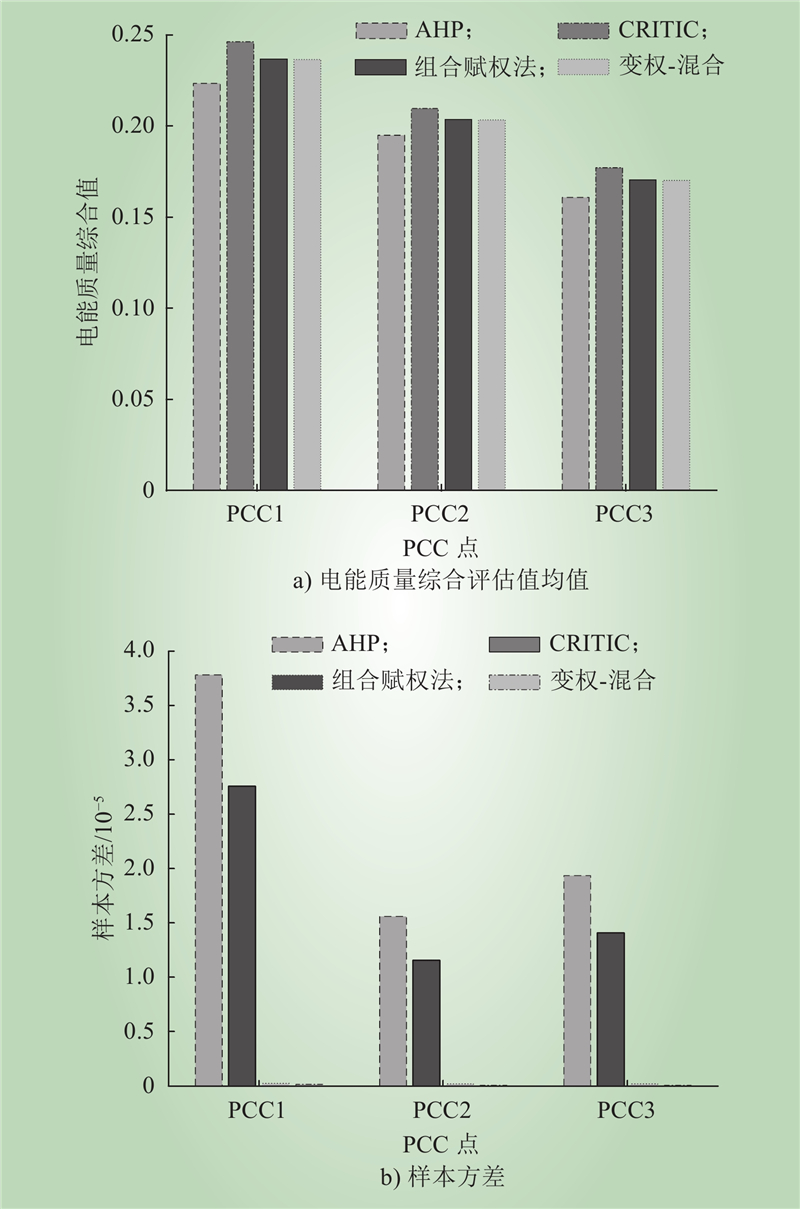

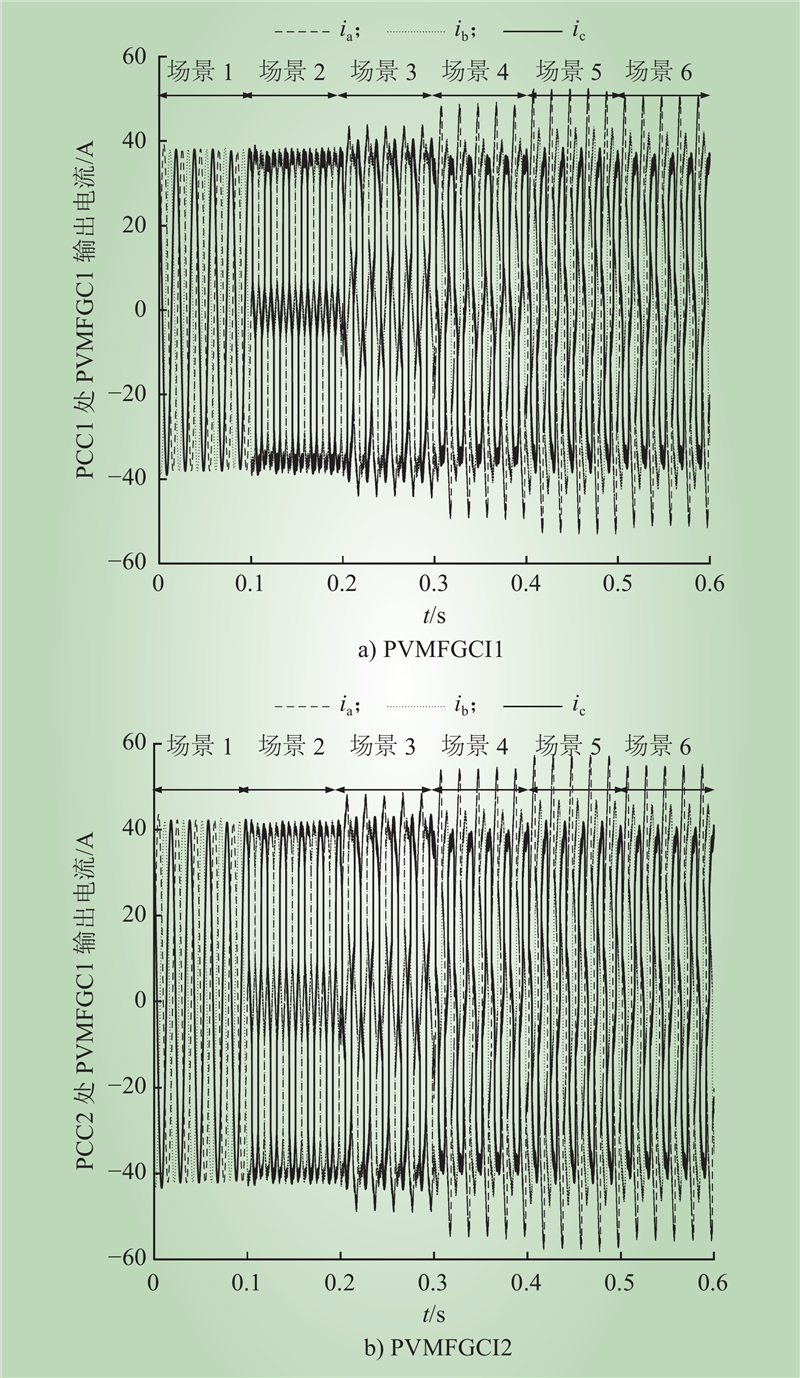

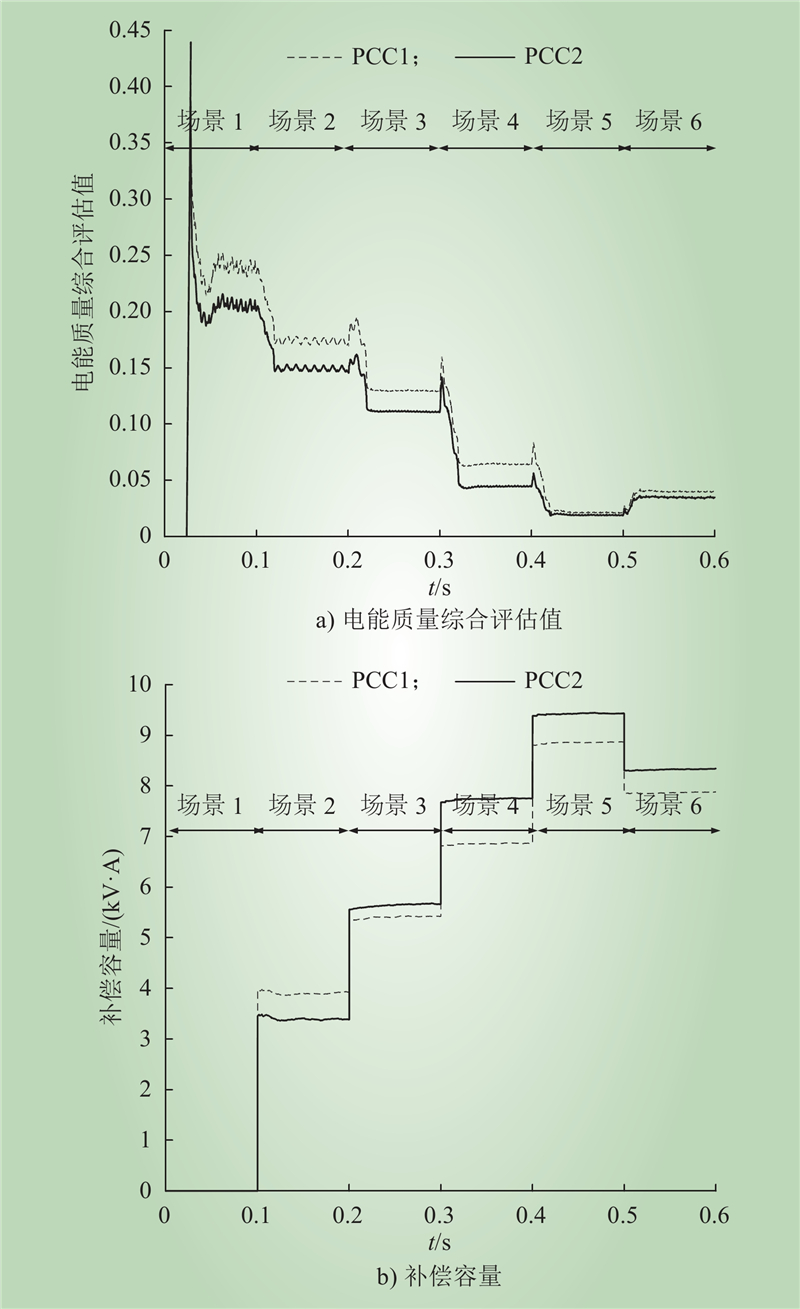

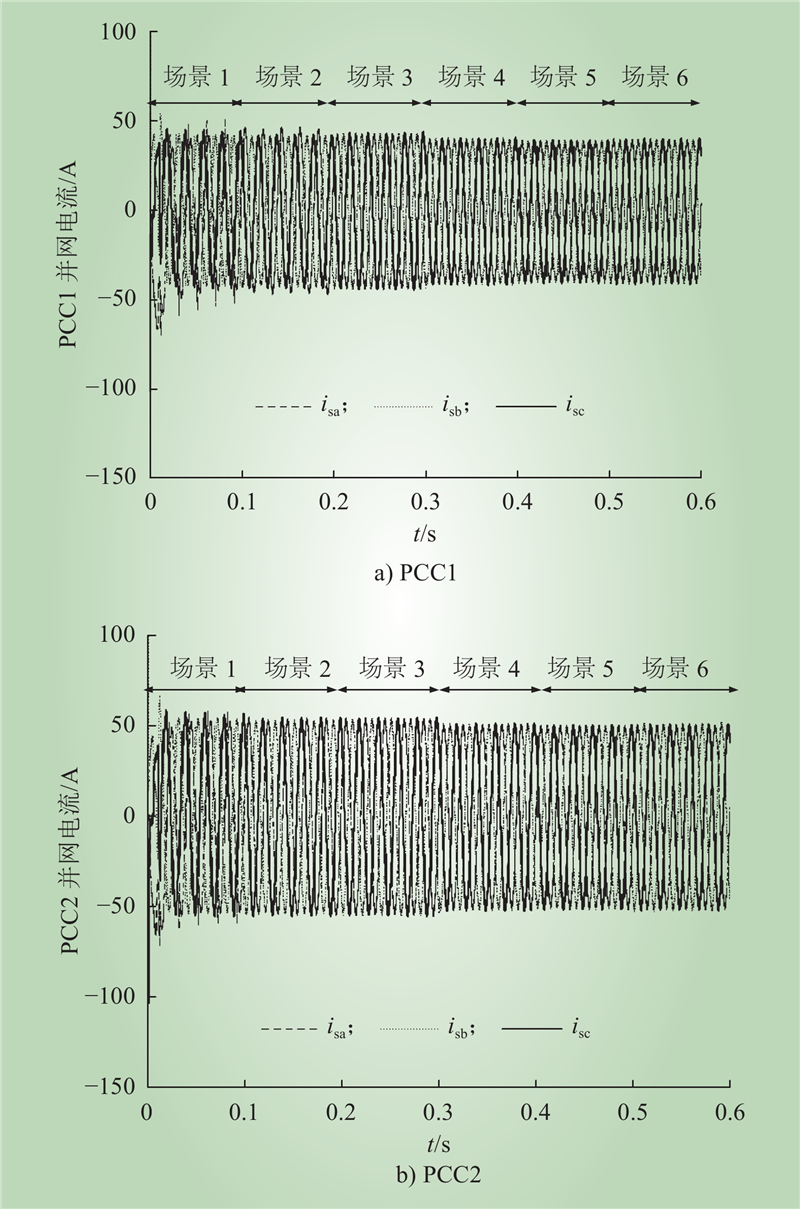

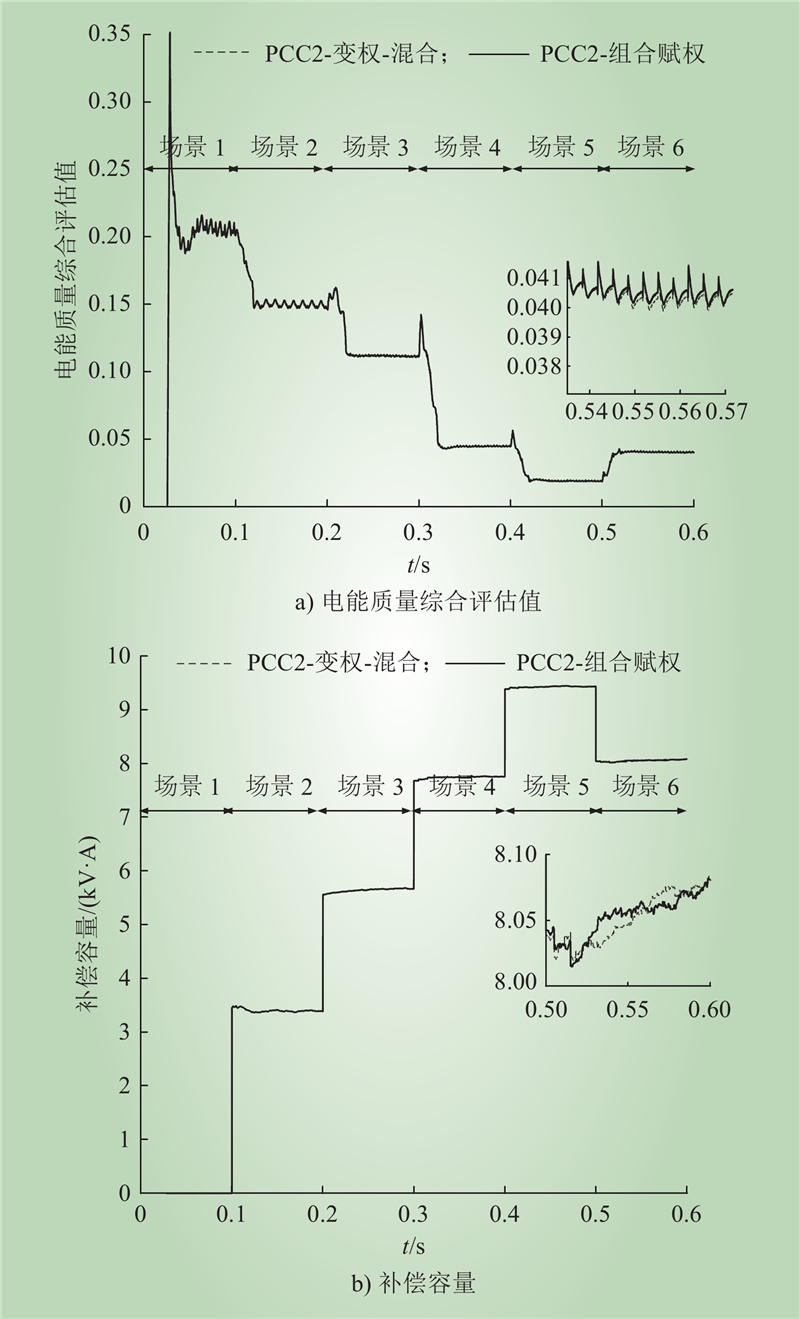

场景		设置
1		0~0.1 s， PVMFGCI 1~3均不投入
2		0.1~0.2 s，PVMFGCI 1~3分别补偿100%、80%和70%的谐波分量
3		0.2~0.3 s，PVMFGCI 1~3均同时补偿全部谐波和不平衡分量
4		0.3~0.4 s，PVMFGCI 1同时补偿全部谐波、不平衡分量以及60%的无功分量，PVMFGCI 2同时补偿全部谐波、不平衡分量以及70%的无功分量，PVMFGCI 3同时补偿全部谐波、不平衡分量以及80%的无功分量。
5		0.4~0.5 s，PVMFGCI 1~3均完全补偿
6		0.5~0.6 s，采用基于MOAHA的多目标优化补偿，多目标函数及决策变量按照3.1节原则设定，分别为各补偿点的电能质量综合指标最小、补偿容量最小及谐波畸变率、负序不平衡度、零序不平衡度、无功系数的补偿系数，MOAHA优化算法中种群设置为100，迭代次数为1 000，整体优化过程按照3.2中流程来实施

场景		设置
1		0~0.1 s， PVMFGCI 1~3均不投入
2		0.1~0.2 s，PVMFGCI 1~3分别补偿100%、80%和70%的谐波分量
3		0.2~0.3 s，PVMFGCI 1~3均同时补偿全部谐波和不平衡分量
4		0.3~0.4 s，PVMFGCI 1同时补偿全部谐波、不平衡分量以及60%的无功分量，PVMFGCI 2同时补偿全部谐波、不平衡分量以及70%的无功分量，PVMFGCI 3同时补偿全部谐波、不平衡分量以及80%的无功分量。
5		0.4~0.5 s，PVMFGCI 1~3均完全补偿
6		0.5~0.6 s，采用基于MOAHA的多目标优化补偿，多目标函数及决策变量按照3.1节原则设定，分别为各补偿点的电能质量综合指标最小、补偿容量最小及谐波畸变率、负序不平衡度、零序不平衡度、无功系数的补偿系数，MOAHA优化算法中种群设置为100，迭代次数为1 000，整体优化过程按照3.2中流程来实施

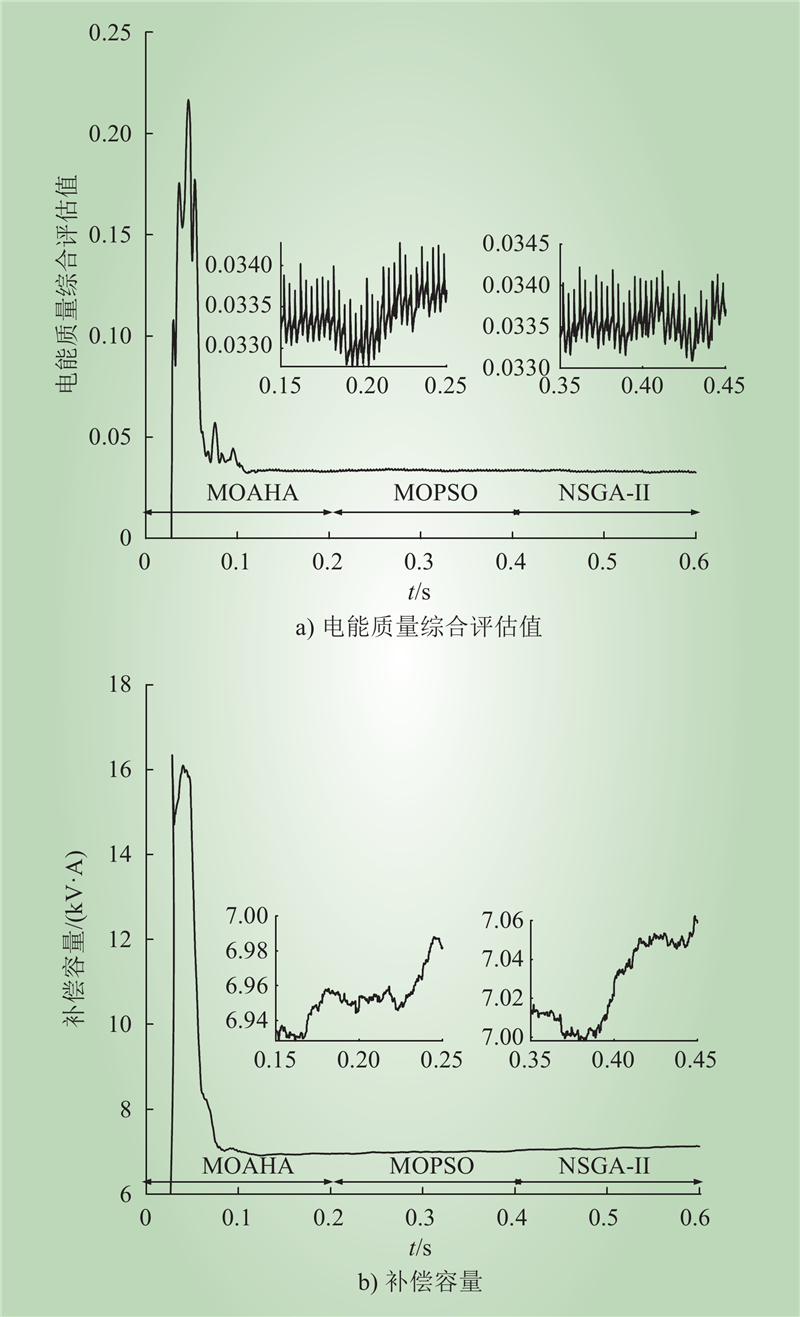

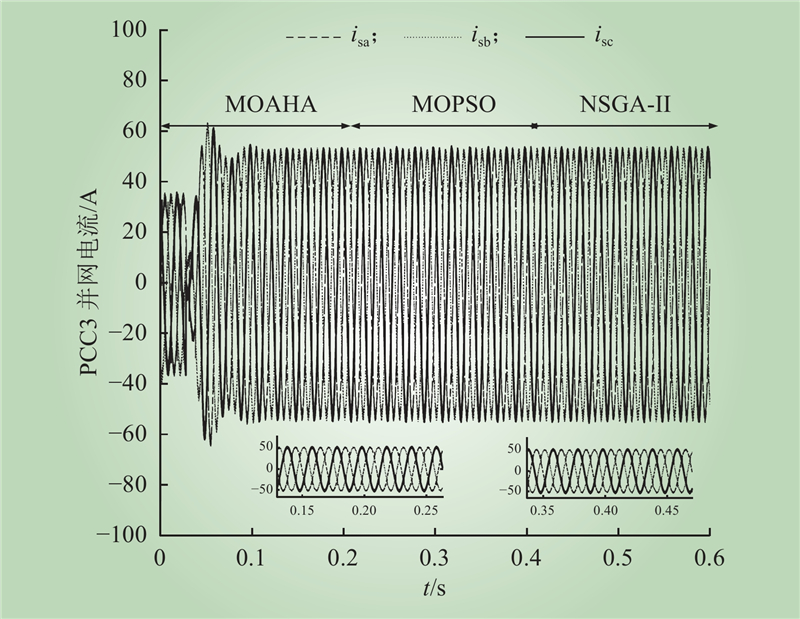

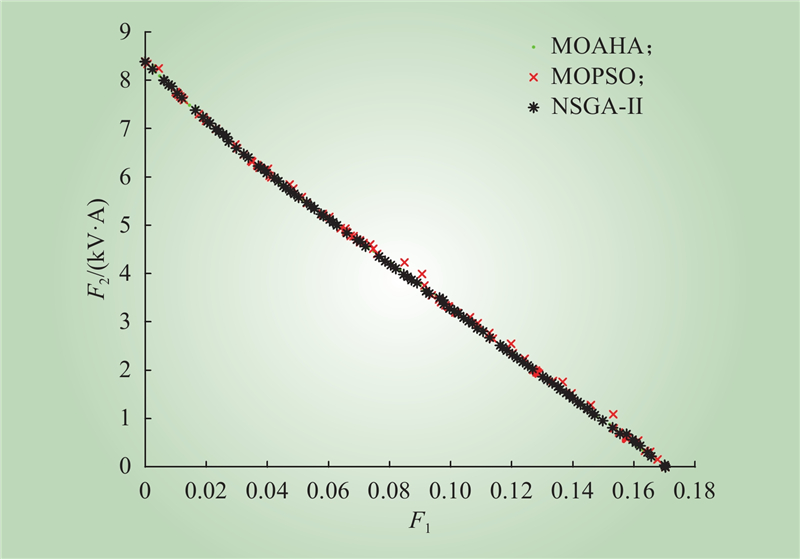

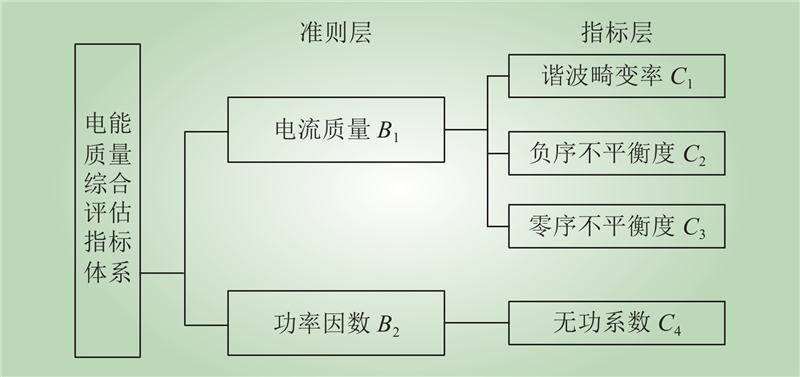

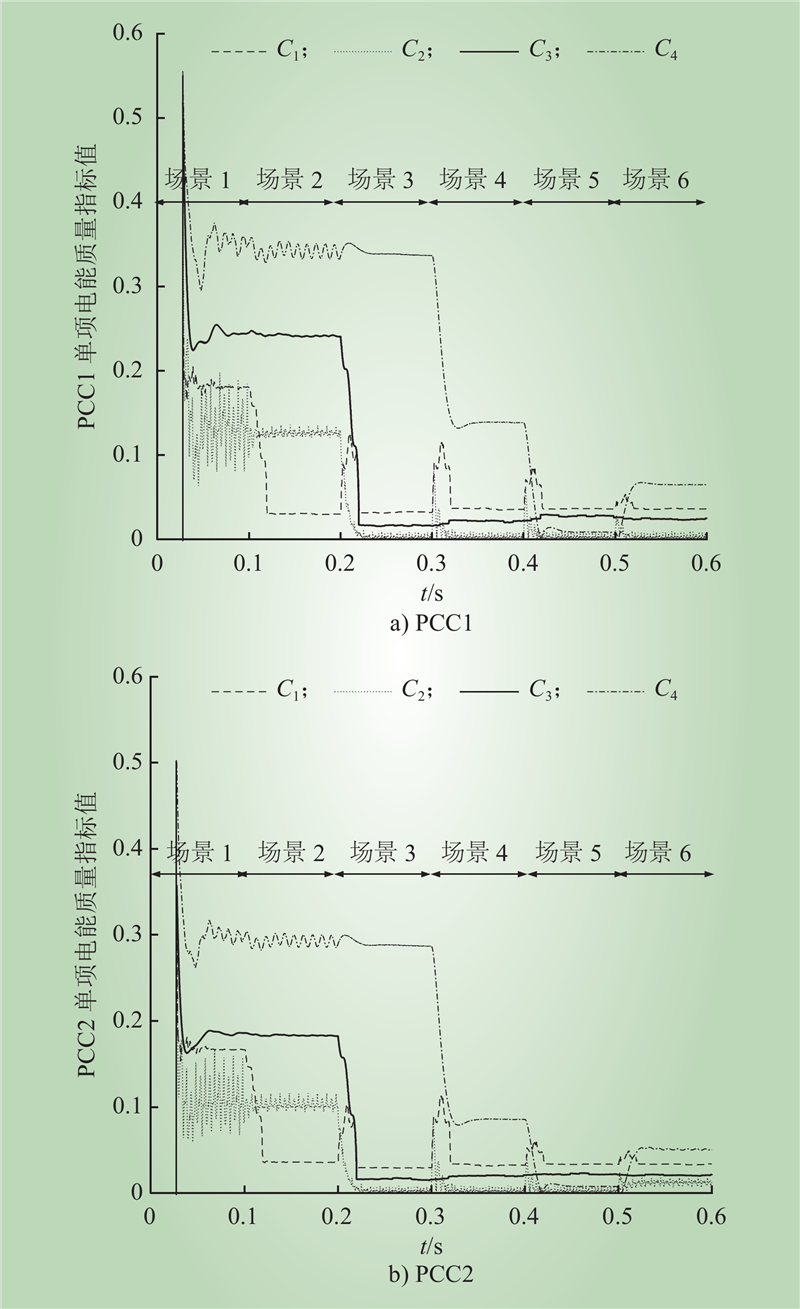

PCC	C₁	C₂	C₃	C₄
1	0.1 815	0.1 267	0.2 443	0.3 458
2	0.1 664	0.1 083	0.1 859	0.2 939
3	0.1 298	0.0 713	0.1 308	0.2 738
