区域综合能源系统多类型储能协同优化与运行策略

doi:10.11930/j.issn.1004-9649.202311024

中国电力 ›› 2024, Vol. 57 ›› Issue (9): 205-216.DOI: 10.11930/j.issn.1004-9649.202311024

区域综合能源系统多类型储能协同优化与运行策略

高明非¹(), 韩中合¹^,²(), 赵斌³, 李鹏¹^,², 吴迪¹^,²

1. 华北电力大学动力工程系，河北保定　071003
2. 河北省低碳高效发电技术重点实验室（华北电力大学），河北保定　071003
3. 长沙理工大学能源与动力工程学院，湖南长沙　410114

收稿日期:2023-11-06 出版日期:2024-09-28 发布日期:2024-09-23
作者简介:高明非（1992—），男，博士研究生，从事综合能源系统与多元储能优化配置研究，E-mail：mfgao2011@163.com
韩中合（1964—），男，通信作者，博士，教授，从事综合能源系统优化设计研究，E-mail：han_zhonghe@163.com
基金资助:
国家自然科学基金资助项目（52206247）；河北省自然科学基金资助项目（E2022502017）；湖南省教育厅科学研究重点项目（22A0217）；北京市自然科学基金资助项目（3224069）。

Coordinated Optimization and Operational Strategy for Multi-type Energy Storage in Regional Integrated Energy Systems

Mingfei GAO¹(), Zhonghe HAN¹^,²(), Bin ZHAO³, Peng LI¹^,², Di WU¹^,²

1. Department of Power Engineering, North China Electric Power University, Baoding 071003, China
2. Hebei Key Laboratory of Low Carbon and High Efficiency Power Generation Technology (North China Electric Power University), Baoding 071003, China
3. College of Energy and Power Engineering, Changsha University of Science and Technology, Changsha 410114, China

Received:2023-11-06 Online:2024-09-28 Published:2024-09-23
Supported by:
This work is supported by the National Natural Science Foundation of China (No.52206247); Natural Science Foundation of Hebei Province (No.E2022502017); Scientific Research Foundation of the Education Department of Hunan Province (No.22A0217) and Beijing Natural Science Foundation (No.3224069).

摘要/Abstract

摘要：

针对区域综合能源系统中多元异质能源的运行优化问题，提出了一种针对多能源协同供应的多储能系统协同运行优化方法。首先，结合综合能源系统的架构特征和系统的运行需求，建立了基于多目标优化的多储能系统协同运行优化模型。然后，综合考虑经济、环境和能效3个目标，采用改进的多目标粒子群优化算法结合逼近理想解排序法优化系统运行参数。最后，以国内某区域综合能源系统为例进行了案例分析，并探究了不同储能策略对系统的运行性能和协同优化效果的影响。研究发现，实施多储能系统协同优化策略，可以显著提升系统的经济性、环保性和能源效率。所提策略为区域综合能源系统中的多储能系统协同优化和多能源协同供应提供了可行的解决方案。

关键词: 综合能源系统, 多能互补, 多类型储能, 多目标, 协同优化

Abstract:

To address the operational optimization issues of multiple heterogeneous energy in regional integrated energy systems, a coordinated operational optimization method for multi-energy storage systems aimed at multi-energy synergistic supply is proposed. Firstly, a coordinated operational optimization model based on multi-objective optimization was established for multi-energy storage systems by combining the architectural features of integrated energy systems with their operational requirements. And then, by taking into account three objectives of economy, environment, and energy efficiency, the model was used to optimize the operational parameters of systems by utilizing the improved multi-objective particle swarm optimization (MOPSO) algorithm in conjunction with the TOPSIS method. Finally, a case study was conducted using an actual regional integrated energy system in China, to explore the impact of different energy storage strategies on the system's operational performance and coordinated optimization effects. The research found that implementation of the coordinated optimization strategy for multi-energy storage systems can significantly enhance the system's performance in terms of economy, environmental protection, and energy efficiency. This study offers a viable solution for coordinated optimization of the multi-energy storage systems and synergistic supply of the multiple energies within regional integrated energy systems.

Key words: integrated energy system, multi-energy complementarity, multi-type energy storage, multi-objective, coordinated optimization

高明非, 韩中合, 赵斌, 李鹏, 吴迪. 区域综合能源系统多类型储能协同优化与运行策略[J]. 中国电力, 2024, 57(9): 205-216.

Mingfei GAO, Zhonghe HAN, Bin ZHAO, Peng LI, Di WU. Coordinated Optimization and Operational Strategy for Multi-type Energy Storage in Regional Integrated Energy Systems[J]. Electric Power, 2024, 57(9): 205-216.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202311024

https://www.electricpower.com.cn/CN/Y2024/V57/I9/205

图/表 10

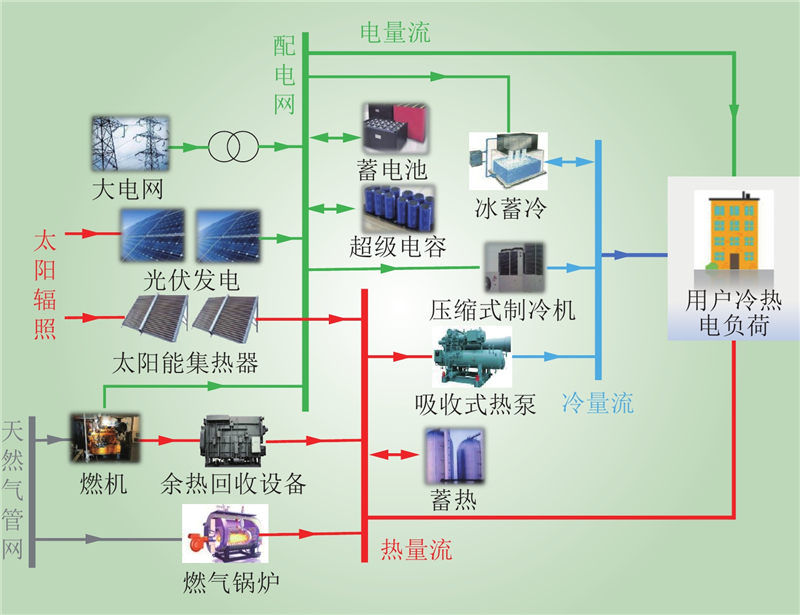

图 1 区域综合能源系统典型架构

Fig.1 Typical architecture of a regional integrated energy system

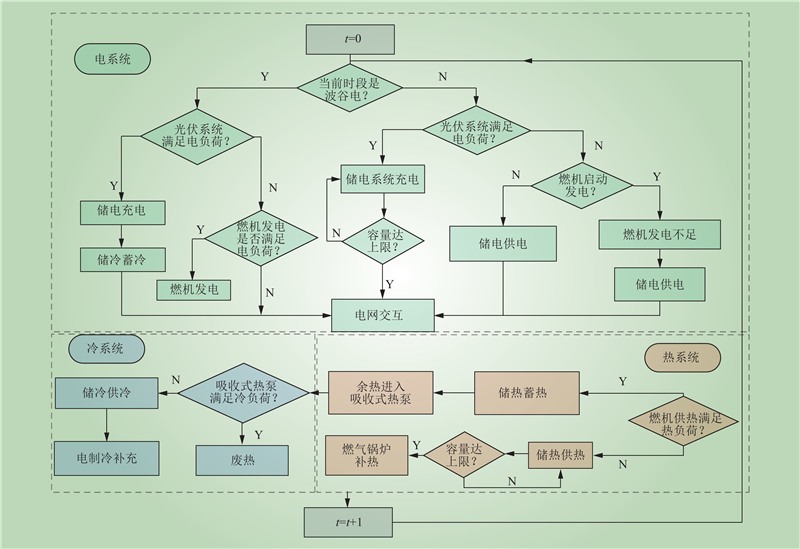

图 2 综合能源系统运行策略

Fig.2 Integrated energy system operational strategy

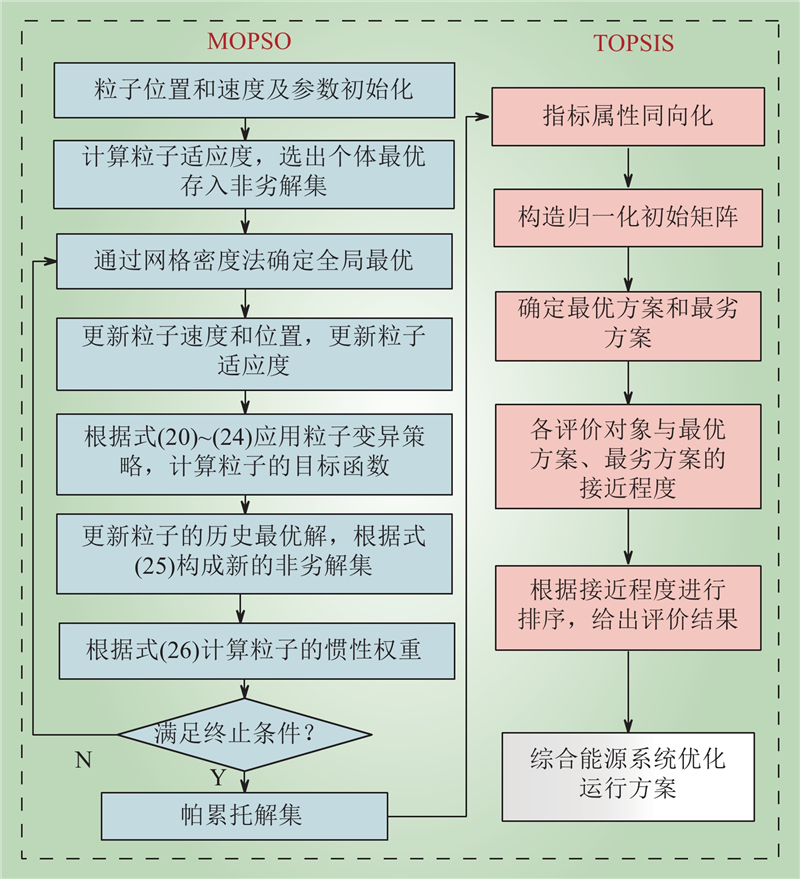

图 3 模型求解算法流程

Fig.3 Model solving algorithm process

表 1 主要设备参数

Table 1 Main equipment parameters

设备名称	参数类型	取值	初始成本/元
CCHP机组	功率/kW	＜500	6800
光伏板	安装数量/个	＜2000	1960
集热器	安装数量/个	＜1000	3000
储电	容量/(kW·h)	＜3000	1100
储热	容量/(kW·h)	＜8000	300
储冷	容量/(kW·h)	＜8000	300

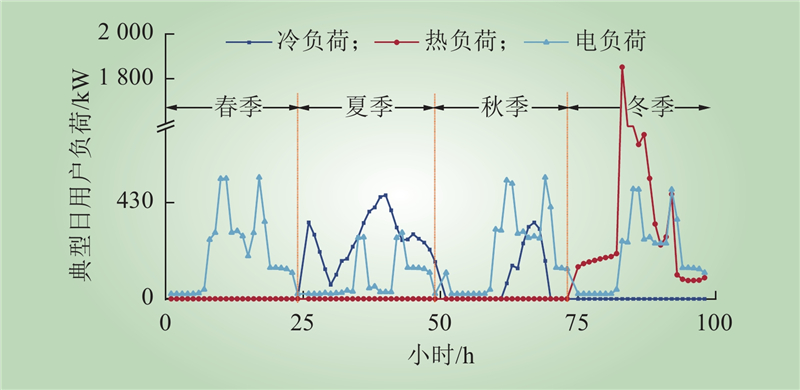

图 4 典型日冷、热、电用户负荷

Fig.4 Cooling, heating and power load of typical days

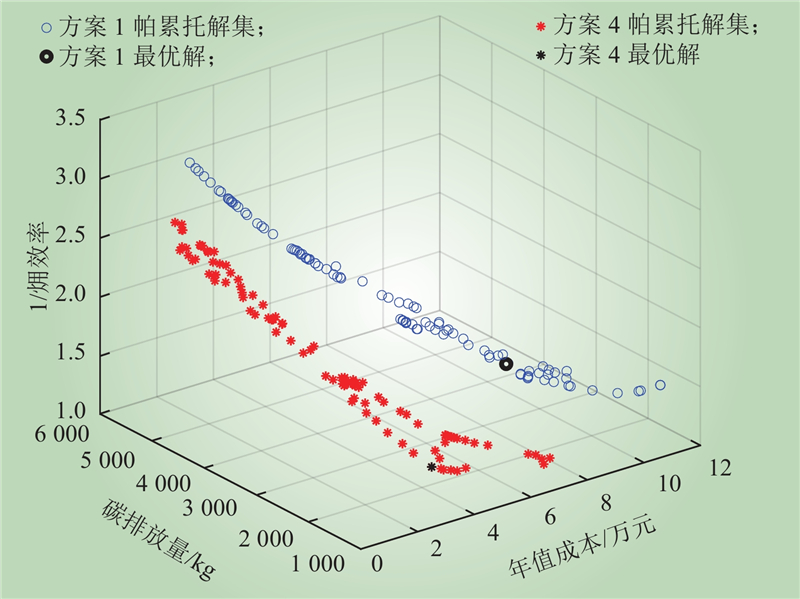

图 5 帕累托解集和最优解

Fig.5 Pareto solution set and optimal solution

表 2 协同优化结果对比

Table 2 Comparison of coordinated optimization results

优化案例	功率/kW						储能容量/(kW·h)			年值成本/ (万元·年)	碳排量/kg	㶲效率
优化案例	光伏	太阳能集热器	燃气轮机	燃气锅炉	吸收式制冷机	电制冷空调	电	热	冷	年值成本/ (万元·年)	碳排量/kg	㶲效率
方案1	596.53	1069.03	403.69	1683.33	748.32	341.66	0	0	0	4.71	2411.72	0.62
方案2	537.93	847.75	222.81	1749.90	593.43	300.25	1503.61	0	0	4.97	2293.44	0.81
方案3	628.02	1300.16	255.61	1434.74	910.11	290.56	0	3106.75	61.98	4.54	2391.17	0.61
方案4	515.78	725.64	246.72	1438.85	507.95	312.78	1323.15	2795.25	156.68	4.73	2379.44	0.76

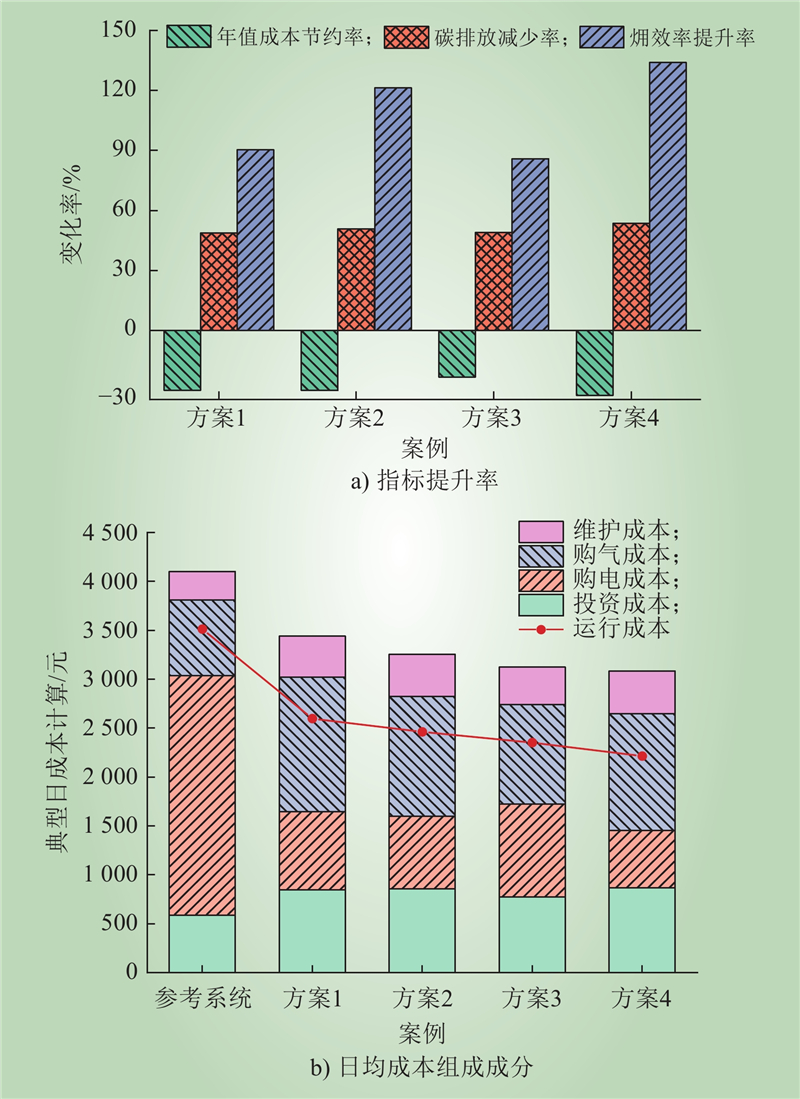

图 6 性能优化指标对比

Fig.6 Comparison of performance optimization parameters

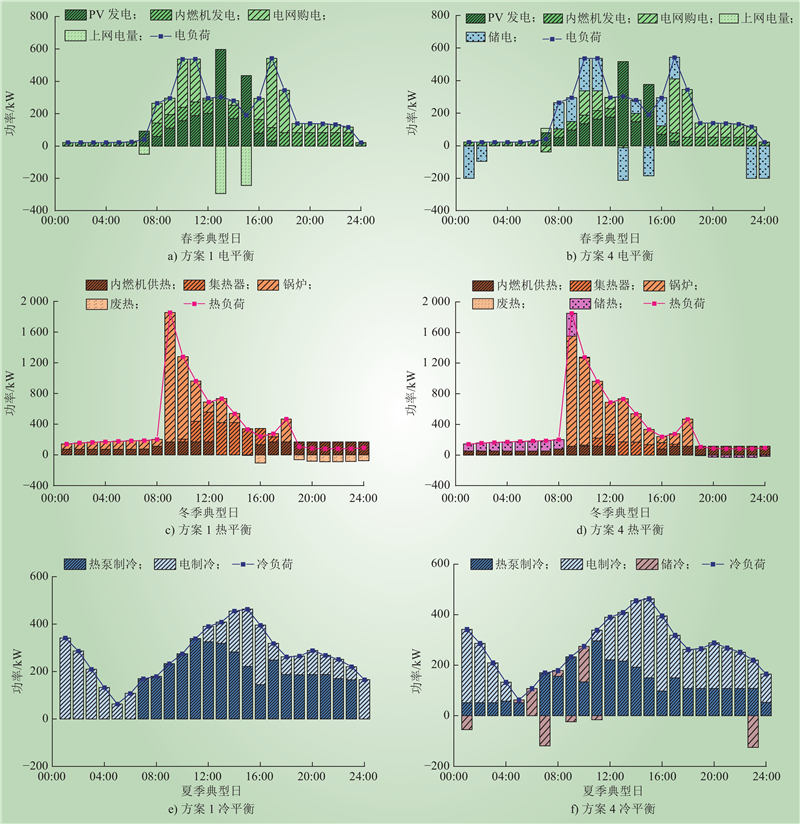

图 7 优化运行结果对比

Fig.7 Comparison of optimal operation results

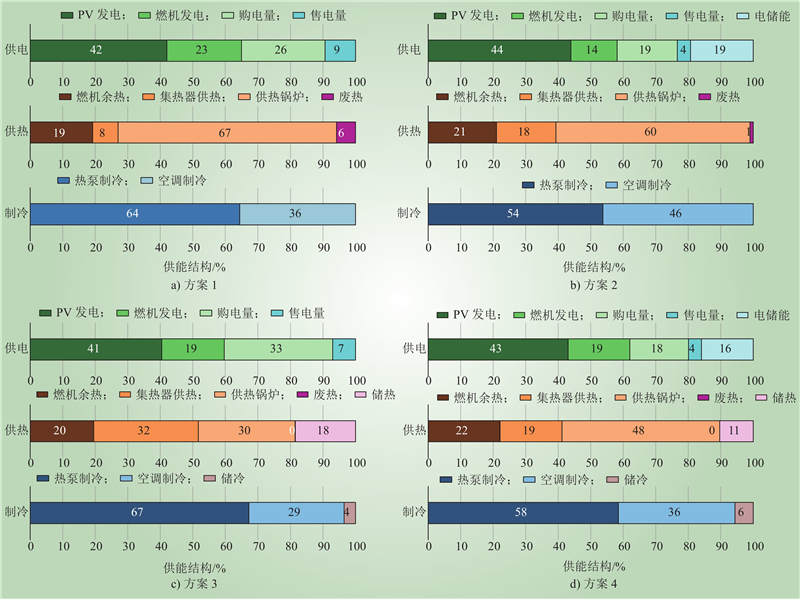

图 8 协同运行供能结构分析

Fig.8 Analysis of synergistic energy supply structure
