多能互补发电系统电/热储能容量双层优化配置方法

doi:10.11930/j.issn.1004-9649.202403093

中国电力 ›› 2025, Vol. 58 ›› Issue (3): 55-64.DOI: 10.11930/j.issn.1004-9649.202403093

• 高比例新能源接入电网的协调控制与优化运行 • 上一篇下一篇

多能互补发电系统电/热储能容量双层优化配置方法

李湃¹(), 卢慧¹(), 李驰¹(), 杜洪博²

1. 可再生能源并网全国重点实验室（中国电力科学研究院有限公司），北京　100192
2. 国科优化（北京）科技有限公司，北京　100089

收稿日期:2024-03-22 出版日期:2025-03-28 发布日期:2025-03-26
作者简介:
李湃（1988），男，通信作者，博士，高级工程师（教授级），从事新能源调度运行技术研究，E-mail：lipai@epri.sgcc.com.cn
卢慧（1993），女，博士，工程师，从事新能源调度运行技术研究，E-mail：luhui@epri.sgcc.com.cn
李驰（1990），男，高级工程师，从事新能源调度运行技术研究，E-mail：lichi@epri.sgcc.com.cn
基金资助:
中国电力科学研究院有限公司研究开发项目（融合深度学习与最优化决策算法的灵活资源优化规划方法研究，NY83-21-006）。

Bi-level Capacity Optimization for Battery/Thermal Energy Storage System in Multi-energy Complementary Power Generation System

Pai LI¹(), Hui LU¹(), Chi LI¹(), Hongbo DU²

1. State Key Laboratory of Renewable Energy Grid-Integration (China Electric Power Research Institute), Beijing 100192, China
2. Guo Ke Optimization Technology Ltd., Beijing 100089, China

Received:2024-03-22 Online:2025-03-28 Published:2025-03-26
Supported by:
This work is supported by Research and Development Project of China Electric Power Research Institute (Research on Flexible Resource Optimization Planning Method Integrating Deep Learning and Optimization Decision Algorithm, No.NY83-21-006).

摘要/Abstract

摘要：

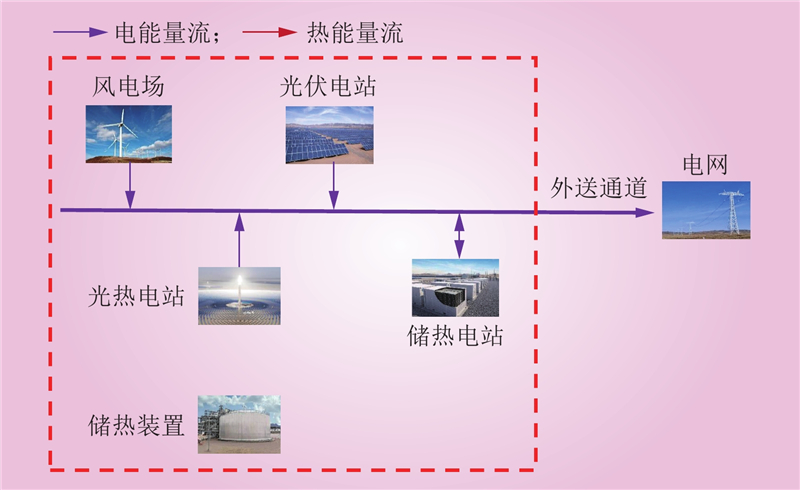

多能互补发电系统能够充分发挥风光热储等资源的互补优势，提高能源利用效率，对构建低碳新型电力系统具有重要意义。协调配置多能互补发电系统中电/热储能容量有助于降低系统投资成本，提升新能源利用率和供电支撑能力。针对含风电/光伏/光热/储能的多能互补发电系统开展研究，建立了多能互补发电系统电/热储能容量双层协调优化模型。上层模型以系统年净收益最大为优化目标，优化电/热储能的容量；下层优化模型以系统供电缺额最小为目标，考虑系统可靠供电能力、风电/光伏/光热/储能运行、新能源利用率等约束，优化系统的发电运行状态。为求解双层协调优化模型，提出了模型非线性约束的线性化方法，以及基于值函数和分支定界相结合的启发式算法，能够实现模型的高效快速求解。基于典型的多能互补发电系统算例开展仿真测试，结果验证了所提双层优化配置模型及算法的有效性。

关键词: 多能互补发电系统, 电/热储能, 容量配置, 双层模型, 启发式算法

Abstract:

Multi-energy complementary power generation system can fully utilize the complementary advantages of wind-PV-thermal-battery sources and improve energy efficiency. It is of great significance for the construction of low-carbon new power system. Capacity coordinated optimization of battery/thermal energy storage in multi-energy complementary power generation system can reduce the investment costs of power system, and improve the utilization rate of renewable energy and continuous power supply. In this paper, multi-energy complementary power generation system with wind-PV-thermal-battery sources is studied, and a bi-level capacity coordinated optimization model of this system is established. The upper-level model optimizes the capacity of battery/thermal energy storage with the maximum annual net income of this system. The lower-level model optimizes the power shortage in this system, and optimize the generation operation status of this system by considering the constraints such as continuous power supply, wind-PV-thermal-battery sources operation, utilization rate of renewable energy, etc. To solve this bi-level model, a linearization method for nonlinear constraints model is proposed, and a heuristic algorithm based on the combination of value function and branch-bound is designed to obtain the efficient solution. Based on a typical example of multi-energy complementary power generation system, the experimental results verify the effectiveness of the proposed bi-level model and algorithm.

Key words: multi-energy complementary power generation system, battery/thermal energy storage, capacity optimization, bi-level, heuristic algorithm

李湃, 卢慧, 李驰, 杜洪博. 多能互补发电系统电/热储能容量双层优化配置方法[J]. 中国电力, 2025, 58(3): 55-64.

Pai LI, Hui LU, Chi LI, Hongbo DU. Bi-level Capacity Optimization for Battery/Thermal Energy Storage System in Multi-energy Complementary Power Generation System[J]. Electric Power, 2025, 58(3): 55-64.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202403093

https://www.electricpower.com.cn/CN/Y2025/V58/I3/55

图/表 11

参考文献 30

1	国家能源局. 关于报送“十四五”电力源网荷储一体化和多能互补工作方案的通知[R]. 北京: 国家能源局, 2023.
2	文云峰, 杨伟峰, 汪荣华, 等. 构建100%可再生能源电力系统述评与展望[J]. 中国电机工程学报, 2020, 40 (6): 1843- 1856.
	WEN Yunfeng, YANG Weifeng, WANG Ronghua. Review and prospect of toward 100% renewable energy power systems[J]. Proceedings of the CSEE, 2020, 40 (6): 1843- 1856.
3	HAN Z X, FANG D B, YANG P W, et al. Cooperative mechanisms for multi-energy complementarity in the electricity spot market[J]. Energy economics, 2023, 127: 107108.
4	潘尔生, 李晖, 肖晋宇, 等. 考虑大范围多种类能源互补的中国西部清洁能源开发外送研究[J]. 中国电力, 2018, 51 (9): 158- 164.
	PAN Ersheng, LI Hui, XIAO Jinyu, et al. Research on the development and transmission of clean energy in western china considering wide range coordination of multi-energy[J]. Electric Power, 2018, 51 (9): 158- 164.
5	熊文, 刘育权, 苏万煌, 等. 考虑多能互补的区域综合能源系统多种储能优化配置[J]. 电力自动化设备, 2019, 39 (1): 118- 126.
	XIONG Wen, LIU Yuquan, SU Wanhuang, et al. Optimal configuration of multi-energy storage in regional integrated energy system considering multi-energy complementation[J]. Electric Power Automation Equipment, 2019, 39 (1): 118- 126.
6	付文龙, 卓庆澳, 吴月超等. 多能互补提供频率支撑的储能容量分布鲁棒规划方法[J]. 电网技术, 2024, 48 (1): 282- 297.
	FU Wenlong, ZHUO Qingao, WU Yuechao, et al. Distributed robust planning for energy storage capacity with multi-energy complementarity providing frequency support[J]. Power system technology, 2024, 48 (1): 282- 297.
7	ZHU Z, ZHANG D, MISCHKE P, et al. Electricity generation costs of concentrated solar power technologies in China based on operational plants[J]. Energy, 2015, 89, 65- 74.
8	刘永前, 梁超, 阎洁, 等. 风-光电站中储能系统混合最优配置及其经济性研究[J]. 中国电力, 2020, 53 (12): 143- 150.
	LIU Yongqian, LIANG Chao, YAN Jie, et al. Optimal configuration and economic study of hybrid energy storage system in wind and solar power plants[J]. Electric Power, 2020, 53 (12): 143- 150.
9	杜尔顺, 张宁, 康重庆, 等. 太阳能光热发电并网运行及优化规划研究综述与展望[J]. 中国电机工程学报, 2016, 36 (21): 5765- 5775.
	DU Ershun, ZHANG Ning, KANG Chongqing, et al. Reviews and prospects of the operation and planning optimization for grid integrated concentrating solar power[J]. Proceedings of the CSEE, 2016, 36 (21): 5765- 5775.
10	屈小云, 吴鸣, 李奇等. 多能互补综合能源系统综合评价研究进展综述[J]. 中国电力, 2021, 54 (11): 153- 163.
	QU Xiaoyun, WU Ming, LI Qi, et al. Review on comprehensive evaluation of multi-energy complementary integrated energy systems[J]. Electric power, 2021, 54 (11): 153- 163.
11	QI Y C, HU W, DONG Y, et al. Optimal configuration of concentrating solar power in multi energy power systems with an improved variational autoencoder[J]. Applied Energy, 2020, 274, 115124.
12	王永利, 向皓, 郭璐, 等. 面向多能互补的分布式光伏与电氢混合储能规划优化研究[J]. 电网技术, 2024, 48 (2): 564- 576.
	WANG Yongli, XIANG Hao, GUO Lu, et al. Research on planning optimization of distributed photovoltaic and electro-hydrogen hybrid energy storage for multi-energy complementarity[J]. Power System Technology, 2024, 48 (2): 564- 576.
13	STARKE A R, CARDENIL J M, Escobar R, et al. Multi-objective optimization of hybrid CSP+PV system using genetic algorithm[J]. Energy, 2018, 147, 490- 503. DOI
14	ZHANG X J, ELIA CAMPANA P, BI X J, et al. Capacity configuration of a hydro-wind-solar-storage bundling system with transmission constraints of the receiving-end power grid and its techno-economic evaluation[J]. Energy Conversion and Management, 2022, 270: 116177.
15	ZHANG H Y, LIAO K, YANG J W, et al. Frequency-constrained expansion planning for wind and photovoltaic power in wind-photovoltaic-hydro-thermal multi-power system[J]. Applied Energy, 2024, 356: 122401.
16	HUANG W J, ZHANG N, YANG J W, et al. Optimal configuration planning of multi-energy systems considering distributed renewable energy[J]. IEEE Transactions on Smart Grid, 2019, 10 (2): 1452- 1464.
17	寇凌峰, 季宇, 吴鸣等. 多能互补系统全寿命周期优化配置方法[J]. 中国电力, 2020, 53 (12): 75- 82.
	KOU Lingfeng, JI Yu, WU Ming, et al. Optimal configuration of multi-energy complementary system considering full life cycle[J]. Electric Power, 2020, 53 (12): 75- 82.
18	刘树桦, 王建学, 李清涛. 多能互补复合电站的优化配置及其在系统电源规划中的应用[J]. 电网技术, 2021, 45 (8): 3006- 3015.
	LIU Shuhua, WANG Jianxue, LI Qingtao, et al. Optimal configuration of multi-energy complementary composite power plant and its application in generation expansion planning[J]. Power System Technology, 2021, 45 (8): 3006- 3015.
19	崔杨, 于世鹏, 王学斌, 等. 考虑系统调峰需求与光热电站收益平衡的储热容量优化配置[J]. 中国电机工程学报, 2023, 43 (22): 8745- 8754.
	CUI Yang, YU Shipeng, WANG Xuebin, et al. Optimal configuration of heat storage capacity considering the balance between system peak shaving demand and concentrating solar power plant revenue[J]. Proceedings of the CSEE, 2023, 43 (22): 8745- 8754.
20	邵志芳, 张东强. 基于合约负荷曲线的多能互补电力系统容量优化配置[J]. 电网技术, 2021, 45 (5): 1757- 1767.
	SHAO Zhifang, ZHANG Dongqiang. Capacity configuration optimization of multi-energy complementary power system based on contract load curve[J]. Power System Technology, 2021, 45 (5): 1757- 1767.
21	史昭娣, 王伟胜, 黄越辉, 等. 多能互补发电系统储电和储热容量分层优化规划方法[J]. 电网技术, 2020, 44 (9): 3263- 3271.
	SHI Zhaodi, WANG Weisheng, HUANG Yuehui, et al. Hierarchical optimization planning for electrical energy storage and heat storage capacity planning in multi-energy complementary generation system[J]. Power System Technology, 2020, 44 (9): 3263- 3271.
22	安源, 郑申印, 苏瑞, 等. 风光水储多能互补发电系统双层优化研究[J]. 太阳能学报, 2023, 44 (12): 510- 517.
	AN Yuan, ZHENG Shenyin, SU Rui. Research on two-layer optimization of wind-solar-water-storage multi-energy complementary power generation system[J]. Acta Energiae Solaris Sinica, 2023, 44 (12): 510- 517.
23	LI Z Y, SHAHIDEHPOUR M. Privacy-preserving collaborative operation of networked microgrids with the local utility grid based on enhanced benders decomposition[J]. IEEE Transactions on Smart Grid, 2020, 11 (3): 2638- 2651. DOI
24	ZHU Z A, WANG L L, WANG X, et al. Complementary operations of multi-renewable energy systems with pumped storage[J]. CSEE Journal of Power and Energy Systems, 2023, 9 (5): 1866- 1880.
25	ZHANG H X, LU Z X, HU W, et al. Coordinated optimal operation of hydro–wind–solar integrated systems[J]. Applied Energy, 2019, 242, 883- 896.
26	孙志媛, 彭博雅, 孙艳. 考虑多能互补的电力电量平衡优化调度策略[J]. 中国电力, 2024, 57 (1): 115- 122.
	SUN Zhiyuan, PENG Boya, SUN Yan. Optimal dispatch strategy of power and electricity balance based on multi-energy complementation[J]. Electric Power, 2024, 57 (1): 115- 122.
27	叶林, 屈晓旭, 么艳香, 等. 风光水多能互补发电系统日内时间尺度运行特性分析[J]. 电力系统自动化, 2018, 42 (4): 158- 164. DOI
	YE Lin, QU Xiaoxu, YAO Yanxiang, et al. Analysis on intraday operation characteristics of hybrid wind-solar-hydro power generation system[J]. Automation of Electric Power System, 2018, 42 (4): 158- 164. DOI
28	KLEINERT T, LABBÉ M, LJUBIĆ I, et al. A survey on mixed-integer programming techniques in bilevel optimization[J]. EURO Journal on Computational Optimization, 2021, 9, 100007. DOI
29	AUGUSTO A A, DO COUTTO FILHO M B, DE SOUZA J C S, et al. Branch-and-bound guided search for critical elements in state estimation[J]. IEEE Transactions on Power Systems, 2019, 34 (3): 2292- 2301. DOI
30	HE C, LV Y F, MARTINI H, et al. A branch-and-bound approach for estimating covering functionals of convex bodies[J]. Journal of Optimization Theory and Applications, 2023, 196 (3): 1036- 1055. DOI

参数名称		数值
风电场单位装机投资成本/(万元∙MW^–1)		600
光伏电站单位装机投资成本/(万元∙MW^–1)		450
储能电站单位装机投资成本/(万元∙MW^–1)		50
储能电站单位容量投资成本/(万元∙(MW∙h)^–1)		200
光热电站单位装机投资成本/(万元∙MW^–1)		3000
储热装置单位容量投资成本/(万元∙(MW∙h)^–1)		30
风电和光伏最大弃电率/%		5
储能电站充电效率		0.94
储能电站放电效率		0.94
光热电站的热-电转换效率		2.4
光热电站的储热效率		0.98
光热电站的放热效率		0.98

参数名称		数值
风电场单位装机投资成本/(万元∙MW^–1)		600
光伏电站单位装机投资成本/(万元∙MW^–1)		450
储能电站单位装机投资成本/(万元∙MW^–1)		50
储能电站单位容量投资成本/(万元∙(MW∙h)^–1)		200
光热电站单位装机投资成本/(万元∙MW^–1)		3000
储热装置单位容量投资成本/(万元∙(MW∙h)^–1)		30
风电和光伏最大弃电率/%		5
储能电站充电效率		0.94
储能电站放电效率		0.94
光热电站的热-电转换效率		2.4
光热电站的储热效率		0.98
光热电站的放热效率		0.98

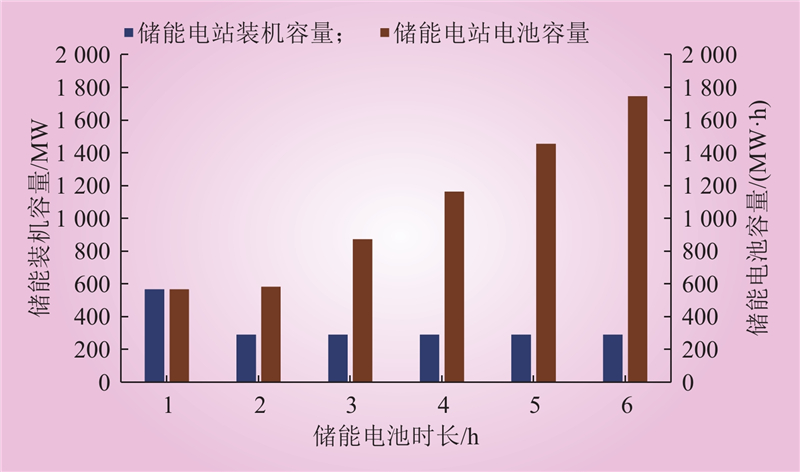

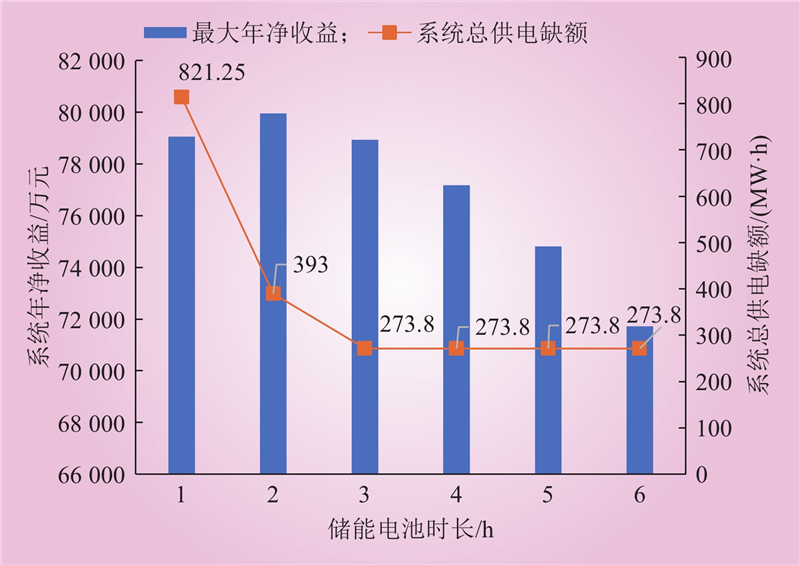

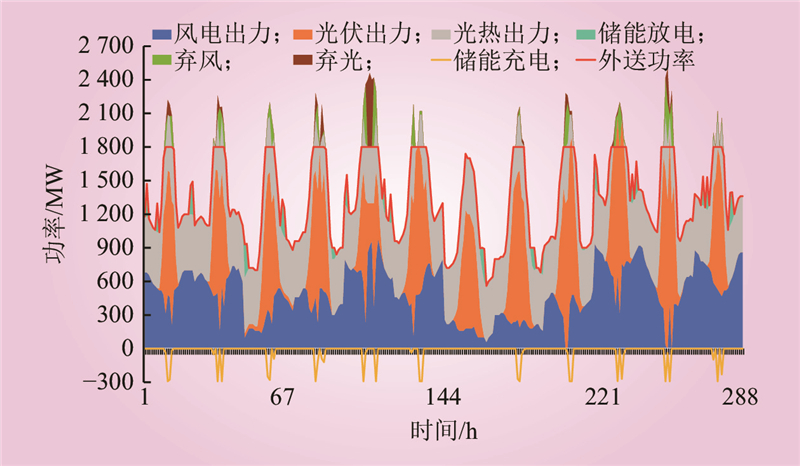

参数		优化结果
系统年净收益/万元		79963
储能装机容量/MW		291
储能电池容量/(MW∙h)		582
储能电池时长/h		2
光热储热容量/(MW∙h)		6820
储热时长/h		5.7
系统供电缺额/(MW∙h)		393.0
风电利用率/%		95.7
光伏利用率/%		96.6

参数		优化结果
系统年净收益/万元		79963
储能装机容量/MW		291
储能电池容量/(MW∙h)		582
储能电池时长/h		2
光热储热容量/(MW∙h)		6820
储热时长/h		5.7
系统供电缺额/(MW∙h)		393.0
风电利用率/%		95.7
光伏利用率/%		96.6

方法	系统年净收益/万元	系统供电缺额/(MW∙h)	计算耗时/s
所提方法	79963	393.0	8.1
HPR问题最优解	79964	1916.3	0.1

多能互补发电系统电/热储能容量双层优化配置方法

Bi-level Capacity Optimization for Battery/Thermal Energy Storage System in Multi-energy Complementary Power Generation System

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 30

相关文章 15

编辑推荐

Metrics

参数	优化风光装机	固定风光装机
系统年净收益/万元	99009	79963
风电装机容量/MW	3421	2000
光伏装机容量/MW	579	2000
储能装机容量/MW	332	291
储能电池容量/(MW∙h)	664	582
光热储热容量/(MW∙h)	6312	6820
储热时长/h	5.3	5.7
系统供电缺额/(MW∙h)	1095	393
风电利用率/%	99.5	95.7
光伏利用率/%	95.5	96.6
新能源利用率/%	99.0	96.1

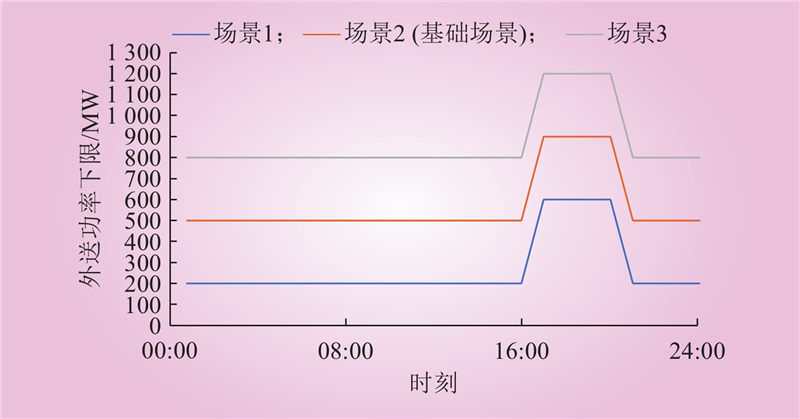

参数	场景1	场景2（基础场景）	场景3
系统年净收益/万元	81849	79963	64174
储能装机容量/MW	98	291	1181
储能电池容量/(MW∙h)	196	582	2362
光热储热容量/(MW∙h)	6820	6820	6820
储热时长/h	5.7	5.7	5.7
供电缺额量/(MW∙h)	0	393	2433
供电缺额时长/h	0	61	243

参数	0.001	0.005	0.01 （基础场景）	0.02	0.05
系统年净收益/万元	79884	79919	79963	80051	80314
储能装机容量/MW	299.1	295.5	291	282	255
储能电池容量/(MW∙h)	598.2	591	582	564	510
储能电池时长/h	2	2	2	2	2
光热储热容量/(MW∙h)	6820	6820	6820	6820	6820
光热储热时长/h	5.7	5.7	5.7	5.7	5.7
系统供电缺额/(MW∙h)	27.4	136.9	393.0	907.6	2451.6
