基于安全稳定运行驱动的“光储直柔”系统容量配置

doi:10.11930/j.issn.1004-9649.202405013

中国电力 ›› 2024, Vol. 57 ›› Issue (11): 102-107.DOI: 10.11930/j.issn.1004-9649.202405013

基于安全稳定运行驱动的“光储直柔”系统容量配置

袁慧宏¹(), 翁时乐¹, 陈梁金², 朱奕弢³, 张黎军², 齐蓓⁴()

1. 国网浙江省电力有限公司湖州供电公司，浙江湖州　313000
2. 国网浙江省电力有限公司，浙江杭州　310000
3. 湖州电力设计院有限公司，浙江湖州　313000
4. 国网电力科学研究院武汉能效测评有限公司，湖北武汉　430000

收稿日期:2024-05-07 出版日期:2024-11-28 发布日期:2024-11-27
作者简介:袁慧宏（1975—），男，通信作者，硕士，高级工程师，从事输变电工程项目管理、技术研究和科技创新工作，E-mail：yuanhuihong@sina.com
齐蓓（1988—），女，硕士，高级工程师，从事电力需求侧管理研究，E-mail：15071230910@163.com
基金资助:
国网浙江省电力有限公司湖州供电公司集体企业科技项目（CY840800JS20230018）。

Capacity Configuration for "PEDF" System Driven by Safe and Stable Operation

Huihong YUAN¹(), Shile WENG¹, Liangjin CHEN², Yitao ZHU³, Lijun ZHANG², Bei QI⁴()

1. State Gird Huzhou Electric Power Supply Company, State Gird ZheJiang Electric Power Co., Ltd., Huzhou 313000, China
2. State Gird Zhejiang Electric Power Co., Ltd., Hangzhou 313000, China
3. Huzhou Electric Power Design Institute Co., Ltd., Huzhou 313000, China
4. State Grid Electric Power Research Institute Wuhan Energy Efficiency Measurement Co., Ltd., Wuhan 430000, China

Received:2024-05-07 Online:2024-11-28 Published:2024-11-27
Supported by:
This work is supported by State Gird Huzhou Electric Power Supply Company Collective Enterprise Technology Project (No.CY840800JS20230018).

摘要/Abstract

摘要：

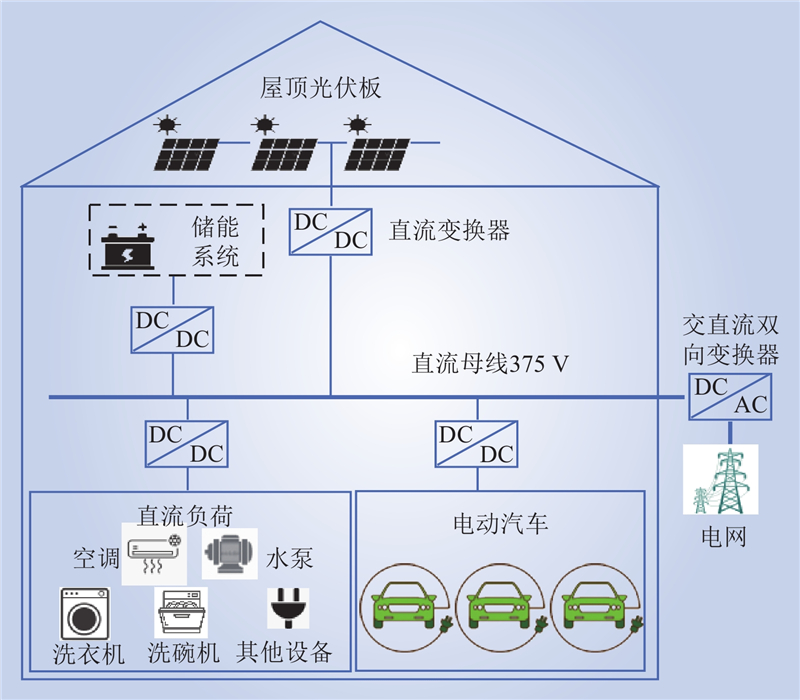

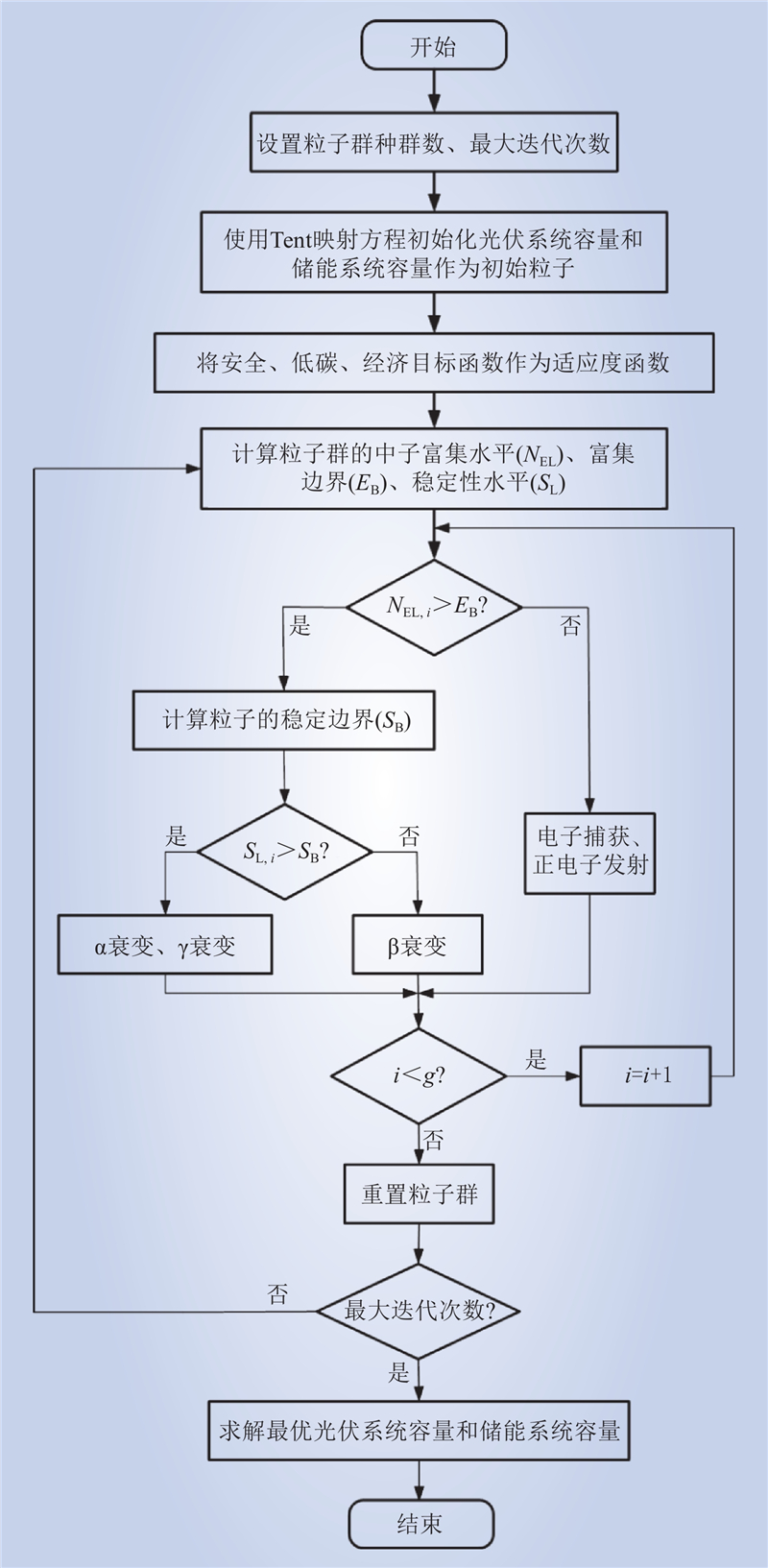

“光储直柔”是新型电力系统实现建筑零碳电力的重要支撑。在系统设计初期，为规避关键设备初期投资成本过高，从综合考虑系统经济、低碳和安全的运行调控视角，提出一种基于改进能量谷优化算法的适用于民用建筑“光储直柔”系统关键设备容量配置设计的方法。仿真结果表明：所提方法配置结果更优、收敛速度更快，可为民用建筑系统设备容量选择提供参考。

关键词: 建筑光储直柔系统, 容量配置, 改进能量谷算法

Abstract:

PEDF (photovoltaic, energy storage, direct current, and flexibility) is an important support for the new power system to achieve zero carbon electricity in buildings. To mitigate the high initial investment costs of crucial equipment in the early stage of system design, and to enhance power supply reliability, an improved energy valley optimization (EVO) algorithm for designing the capacity allocation of crucial equipment in PEDF systems for civil buildings is proposed, from the comprehensive perspectives of system economics, low carbon operation, and safety control. Simulation results are compared with those obtained from the Grey Wolf and traditional EVO algorithms. The results demonstrate that the improved EVO algorithm yields superior configuration results and faster convergence when applied to optimizing equipment capacity allocation in PEDF systems. These findings validate the effectiveness and feasibility of the proposed method, offering valuable insights for selecting crucial equipment capacities in PEDF systems for civil buildings.

Key words: building photovoltaic, energy storage, direct current and flexibility system, capacity allocation

袁慧宏, 翁时乐, 陈梁金, 朱奕弢, 张黎军, 齐蓓. 基于安全稳定运行驱动的“光储直柔”系统容量配置[J]. 中国电力, 2024, 57(11): 102-107.

Huihong YUAN, Shile WENG, Liangjin CHEN, Yitao ZHU, Lijun ZHANG, Bei QI. Capacity Configuration for "PEDF" System Driven by Safe and Stable Operation[J]. Electric Power, 2024, 57(11): 102-107.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202405013

https://www.electricpower.com.cn/CN/Y2024/V57/I11/102

图/表 7

参考文献 23

1	翟苏巍, 李银银, 杜凡, 等. 考虑海量分布式能源接入的配电网分布式无功控制策略[J]. 中国电力, 2024, 57 (8): 138- 144.
	ZHAI Suwei, LI Yinyin, DU Fan, et al. Distributed reactive power control strategy of distribution network considering massive distributed energy access[J]. Electric Power, 2024, 57 (8): 138- 144.
2	王海军, 居蓉蓉, 董颖华. 基于时空关联特征与B-LSTM模型的分布式光伏功率区间预测[J]. 中国电力, 2024, 57 (7): 74- 80.
	WANG Haijun, JU Rongrong, DONG Yinghua. Distributed photovoltaic power interval prediction based on spatio-temporal correlation feature and B-LSTM model[J]. Electric Power, 2024, 57 (7): 74- 80.
3	刘江, 高淑萍, 孙向东, 等. 弱电网下光伏并网逆变器谐振抑制方法综述[J]. 南方电网技术, 2024, 18 (3): 65- 71.
	LIU Jiang, GAO Shuping, SUN Xiangdong, et al. Overview of resonance suppression methods for PV grid-connected inverters in weak grid[J]. Southern Power System Technology, 2024, 18 (3): 65- 71.
4	李泽成, 孙燕盈. 新型电力系统下考虑分布式光伏并网的配电网可靠性评估[J]. 山东电力技术, 2023, 50 (5): 1- 5, 47.
	LI Zecheng, SUN Yanying. Reliability evaluation of distribution network considering flexible grid connection of distributed photovoltaic power generations[J]. Shandong Electric Power, 2023, 50 (5): 1- 5, 47.
5	江亿. 光储直柔: 助力实现零碳电力的新型建筑配电系统[J]. 暖通空调, 2021, 51 (10): 1- 12.
	JIANG Yi. PSDF(photovoltaic, storage, DC, flexible)—a new type of building power distribution system for zero carbon power system[J]. Heating Ventilating & Air Conditioning, 2021, 51 (10): 1- 12.
6	孙冬梅, 康靖, 郝斌, 等. “光储直柔” 建筑案例特征分析及系统设计相关问题探讨[J]. 暖通空调, 2024, 54 (3): 118- 129, 34.
	SUN Dongmei, KANG Jing, HAO Bin, et al. Analysis on characteristics of PEDF (photovoltaic, energy storage, direct current and flexibility) building cases and discussion on related problems of system design[J]. Heating Ventilating & Air Conditioning, 2024, 54 (3): 118- 129, 34.
7	张雷, 肖伟栋, 蒋纯冰, 等. 光伏办公建筑的关键设备容量配置方法[J]. 中国电力, 2024, 57 (3): 152- 159, 169.
	ZHANG Lei, XIAO Weidong, JIANG Chunbing, et al. Capacity allocation method of key equipment in PV system applied in office buildings[J]. Electric Power, 2024, 57 (3): 152- 159, 169.
8	王超, 胡浩, 郑炼, 等. 基于智慧蓄电池的光伏储能系统及其控制策略[J]. 可再生能源, 2022, 40 (4): 506- 512. DOI
	WANG Chao, HU Hao, ZHENG Lian, et al. Photovoltaic energy storage system based on smart battery and its control strategy[J]. Renewable Energy Resources, 2022, 40 (4): 506- 512. DOI
9	NUVVULA R S S, DEVARAJ E, MADURAI ELAVARASAN R, et al. Multi-objective mutation-enabled adaptive local attractor quantum behaved particle swarm optimisation based optimal sizing of hybrid renewable energy system for smart cities in India[J]. Sustainable Energy Technologies and Assessments, 2022, 49, 101689. DOI
10	卢毓东, 陈益. “双碳” 目标下绿色人工智能技术研究综述[J]. 浙江电力, 2023, 42 (10): 45- 56.
	LU Yudong, CHEN Yi. A review of green AI research under carbon peaking and neutrality goals[J]. Zhejiang Electric Power, 2023, 42 (10): 45- 56.
11	宗龙, 赵亚典. 基于光伏建筑一体化的综合能源管控系统设计[J]. 内蒙古电力技术, 2023, 41 (6): 68- 74.
	ZONG Long, ZHAO Yadian. Design of comprehensive energy management and control system based on building integrated photovoltaics[J]. Inner Mongolia Electric Power, 2023, 41 (6): 68- 74.
12	LYU C H, ZHANG Y C, BAI Y L, et al. Inner-outer layer co-optimization of sizing and energy management for renewable energy microgrid with storage[J]. Applied Energy, 2024, 363, 123066. DOI
13	赵才, 张志飞, 陈丹风, 等. 基于改进蜂群算法的微电网优化调度[J]. 电气自动化, 2022, 44 (5): 46- 49.
	ZHAO Cai, ZHANG Zhifei, CHEN Danfeng, et al. Optimal scheduling of microgrid based on improved bee colony algorithm[J]. Electrical Automation, 2022, 44 (5): 46- 49.
14	赵宇明, 郭佩乾, 袁志昌, 等. 建筑直流配用电系统运行控制策略与示范应用[J]. 南方电网技术, 2023, 17 (1): 63- 72.
	ZHAO Yuming, GUO Peiqian, YUAN Zhichang, et al. Operation control strategy and demonstration application of DC building distribution and utilization system[J]. Southern Power System Technology, 2023, 17 (1): 63- 72.
15	王扬, 路菲, 李骥, 等. 基于综合优化目标的低碳园区能源系统规划配置[J]. 中国电力, 2024, 57 (4): 14- 24.
	WANG Yang, LU Fei, LI Ji, et al. Multi-energy system planning and configuration study for low-carbon parks based on comprehensive optimization objectives[J]. Electric Power, 2024, 57 (4): 14- 24.
16	陈东海, 马旭, 王波, 等. 基于多阶段注意力机制的建筑空调负荷预测方法[J]. 浙江电力, 2023, 42 (10): 57- 64.
	CHEN Donghai, MA Xu, WANG Bo, et al. A load forecasting method for building air conditioning based on multi-stage attention mechanism[J]. Zhejiang Electric Power, 2023, 42 (10): 57- 64.
17	孙婉玉, 蒋天茁, 付强, 等. 谷电储能供暖系统优化设计方法[J]. 电力科技与环保, 2024, 40 (3): 286- 295.
	SUN Wanyu, JIANG Tianzhuo, FU Qiang, et al. Optimization design method of valley power energy storage heating system[J]. Electric Power Technology and Environmental Protection, 2024, 40 (3): 286- 295.
18	潘雨情, 祁兵, 李彬. 新能源园区零碳评价指标体系研究[J]. 内蒙古电力技术, 2023, 41 (5): 12- 18.
	PAN Yuqing, QI Bing, LI Bin. Research on zero carbon evaluation index system for new energy parks[J]. Inner Mongolia Electric Power, 2023, 41 (5): 12- 18.
19	吴俊, 庞波, 方鑫, 等. 建筑整合式太阳能微型聚光器集热性能测试与分析[J]. 东北电力大学学报, 2022, 42 (2): 26- 32.
	WU Jun, PANG Bo, FANG Xin, et al. Experimental performance of a building-integrated linear FresnelMicro-concentrator[J]. Journal of Northeast Electric Power University, 2022, 42 (2): 26- 32.
20	蒋棹骏, 向月, 谈竹奎, 等. 计及需求响应的高比例清洁能源园区储能容量优化配置[J]. 中国电力, 2023, 56 (12): 147- 155, 163.
	JIANG Zhaojun, XIANG Yue, TAN Zhukui, et al. Optimal allocation of energy storage capacity in high proportion clean energy parks considering demand response[J]. Electric Power, 2023, 56 (12): 147- 155, 163.
21	潘忠志, 孔宁, 王燕涛. 改进新能源消纳的配电网资源优化配置研究[J]. 东北电力大学学报, 2023, 43 (6): 71- 78.
	PAN Zhongzhi, KONG Ning, WANG Yantao. Joint optimal allocation method of energy-load-storage in power SupplyArea to improve new energy consumption capacity[J]. Journal of Northeast Electric Power University, 2023, 43 (6): 71- 78.
22	赵斌, 梁告, 姜孟浩, 等. 光储系统并网功率波动平抑及储能优化配置[J]. 发电技术, 2024, 45 (3): 423- 433. DOI
	ZHAO Bin, LIANG Gao, JIANG Menghao, et al. Grid-connected power fluctuation suppression and energy storage optimization configuration of photovoltaic-energy storage system[J]. Power Generation Technology, 2024, 45 (3): 423- 433. DOI
23	杨锡勇, 张仰飞, 林纲, 等. 考虑需求响应的源-荷-储多时间尺度协同优化调度策略[J]. 发电技术, 2023, 44 (2): 253- 260.
	YANG Xiyong, ZHANG Yangfei, LIN Gang, et al. Multi-time scale collaborative optimal scheduling strategy for source-load-storage considering demand response[J]. Power Generation Technology, 2023, 44 (2): 253- 260.

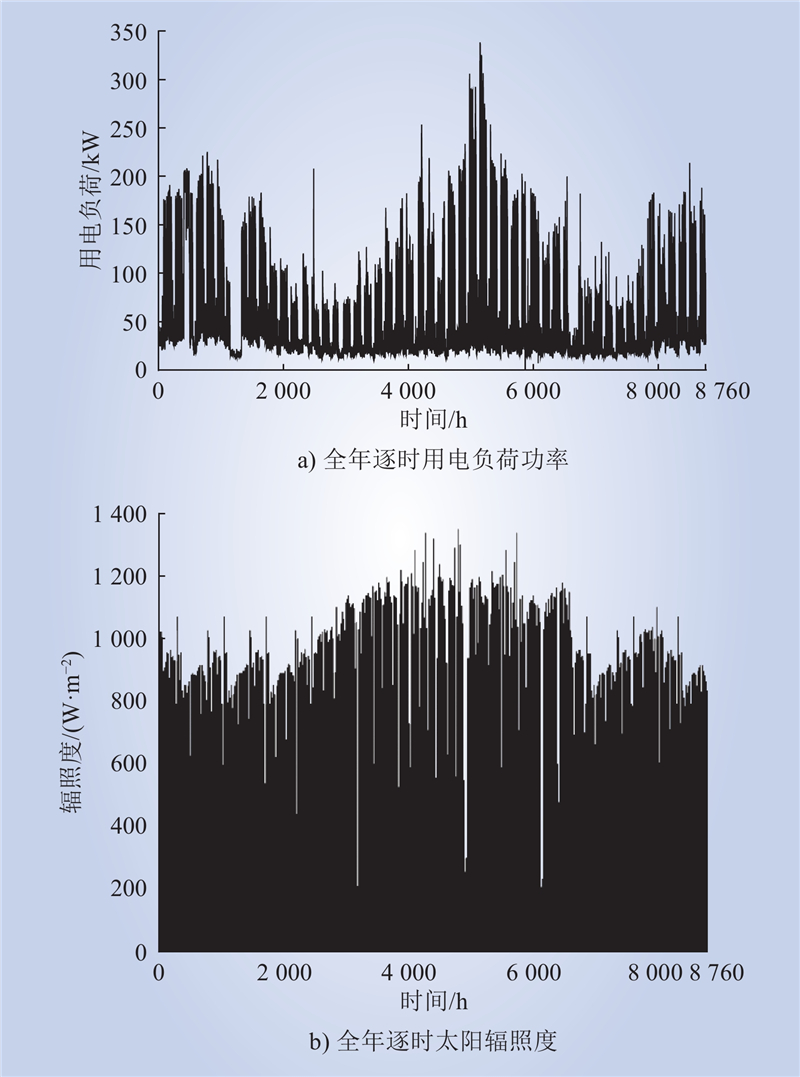

参数		数值
光伏组件占地面积/m²		2.60
光伏组件发电效率/%		20
储能组件充电效率/%		97
光伏组件额定功率/kW		0.54
储能组件额定功率/kW		5
光伏组件建设成本/(元·m^–2)		1 000
光伏组件运维成本/(元·m^–2)		90
光伏组件回收收益/(元·kW^–1)		150
储能组件建设成本/(元·(kW·h)^–1)		1 800
储能组件运维成本/(元·(kW·h)^–1)		36

参数		数值
光伏组件占地面积/m²		2.60
光伏组件发电效率/%		20
储能组件充电效率/%		97
光伏组件额定功率/kW		0.54
储能组件额定功率/kW		5
光伏组件建设成本/(元·m^–2)		1 000
光伏组件运维成本/(元·m^–2)		90
光伏组件回收收益/(元·kW^–1)		150
储能组件建设成本/(元·(kW·h)^–1)		1 800
储能组件运维成本/(元·(kW·h)^–1)		36

时段	时刻	购电价格/(元·(kW·h)^–1)
低谷时段	22:00—次日07:00	0.29
平峰时段	07:00—20:00	0.58
高峰时段	20:00—22:00	1.04

时段	时刻	购电价格/(元·(kW·h)^–1)
低谷时段	22:00—次日07:00	0.29
平峰时段	07:00—20:00	0.58
高峰时段	20:00—22:00	1.04

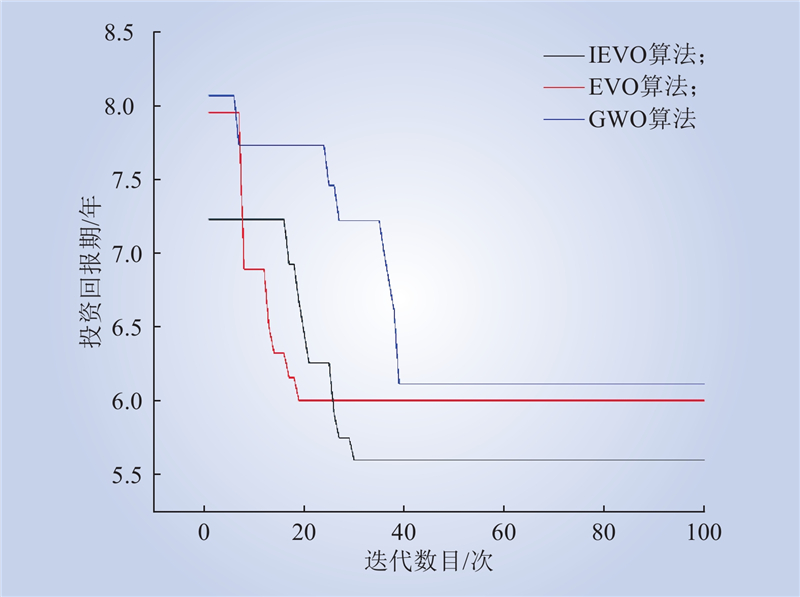

算法	光伏容量/kW	储能容量/kW	光伏、储能系统等建设及运维成本/元	减少碳排放量收益/ 元	最大交互功率/kW
GWO（安全）	244	45	488 975	924 562	17.8
GWO（经济）	324	49	643 463	1 103 578	19.4
GWO（低碳）	350	62	629 707	857 246	20.5
EVO（安全）	250	50	496 858	937 675	16.5
EVO（经济）	315	50	563 463	1 08 3 578	20.3
EVO（低碳）	320	60	593 233	905 760	18.5
IEVO（安全）	245	30	472 566	978 156	13.8
IEVO（经济）	290	30	491 684	1 096 955	17.4
IEVO（低碳）	310	50	564 752	916 672	19.2
