面向风电场的主动支撑电网型分散式储能控制策略与优化配置

doi:10.11930/j.issn.1004-9649.202305132

摘要/Abstract

摘要：

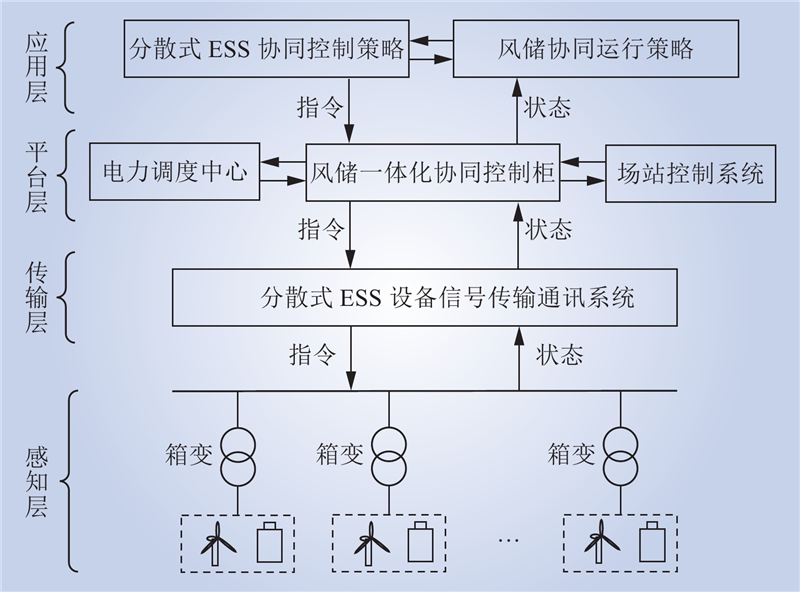

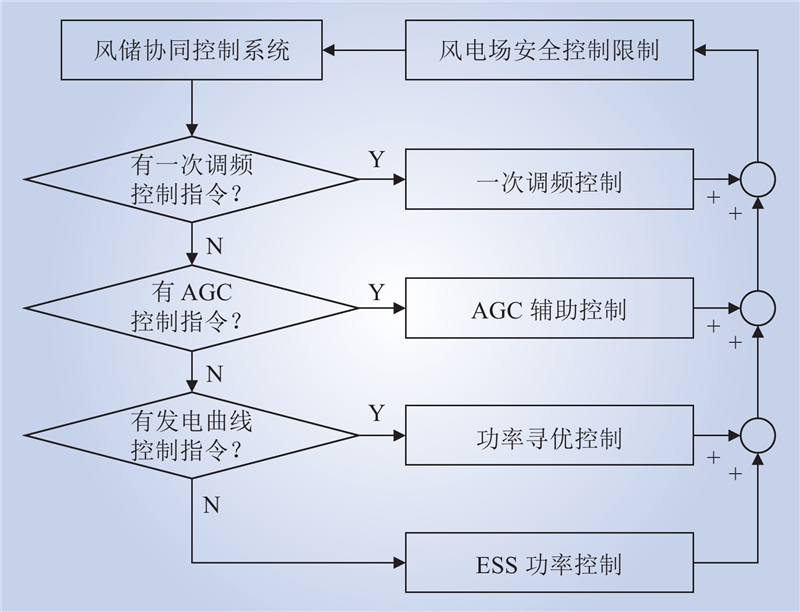

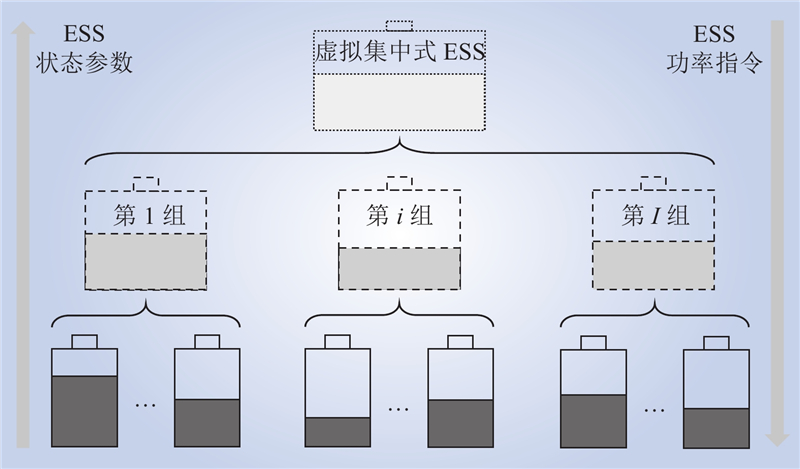

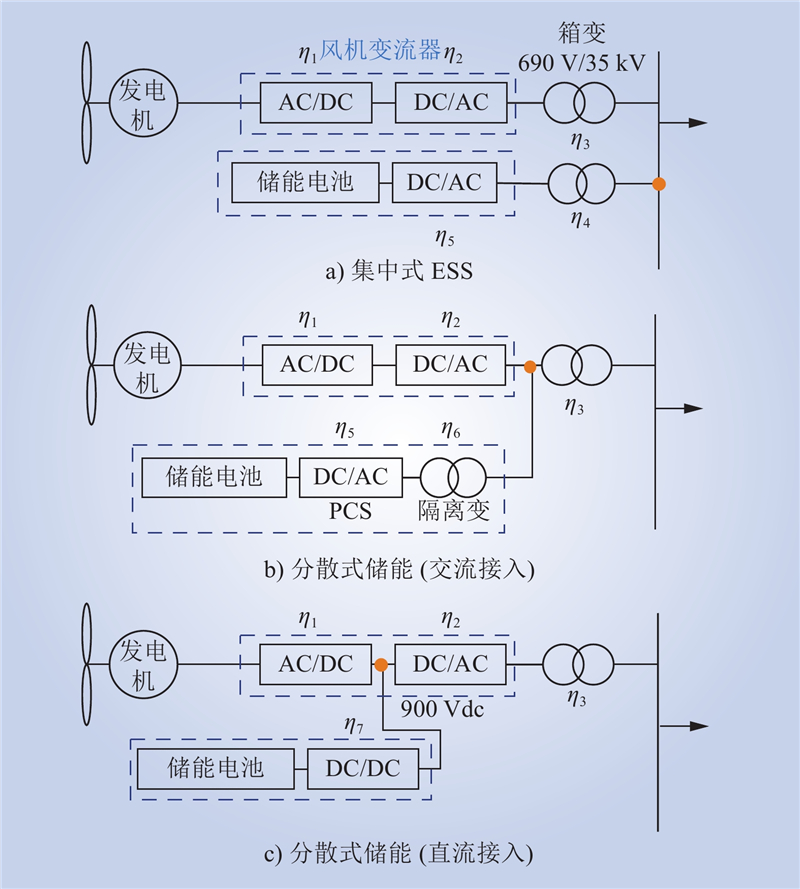

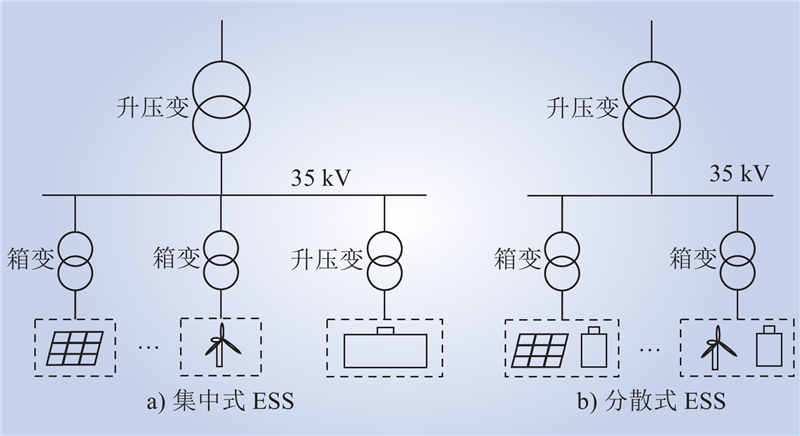

面向新能源场站的分散式储能具有容量小、分散广、部署灵活、方便扩容等特点，降低了电池聚集所导致的事故危害隐患、规避了征地费用与配套建设成本高的问题，既可以针对节点进行精细化管理，又可以集群化控制，帮助新能源场站改善涉网性能、减少考核成本、提升发电效能。首先，基于“分散布置，集中控制”原则提出一种分散式储能集群化控制策略，将分散式储能虚拟成为集中式储能的形式，并根据储能荷电状态与健康状态对功率指令进行合理分配。其次，根据并网要求，设计了基于调频优先制定的风储协同控制策略。进一步参考江苏省考核细则，提出了主动支撑电网型的分散式储能配置优化模型。算例结果表明，配置一定规模储能可以减少考核成本、改善涉网性能。

关键词: 风储联合, 分散式储能, 涉网性能, 两个细则, 容量配置

Abstract:

A decentralized energy storage system for renewable energy stations has the characteristics of small capacity, wide dispersion, flexible deployment, and convenient expansion, which reduces the hidden dangers of accidents caused by battery aggregation and avoids the problem of high land acquisition and supporting construction costs. It can not only ensure refined management for nodes but also achieve cluster control, helping renewable energy stations improve grid-related operation performance, reduce assessment costs, and improve power generation efficiency. First of all, based on the principle of "decentralized layout and centralized control", a decentralized energy storage cluster control strategy is proposed, which virtualizes the decentralized energy storage into a centralized energy storage form and reasonably distributes power instructions according to the state of charge and state of health of energy storage. Secondly, according to the grid interconnection requirements, a coordinated control strategy for wind-storage systems based on frequency modulation priority is designed. By referring to the detailed rules of Jiangsu Province, a decentralized energy storage configuration optimization model is proposed to actively support the grid. The calculation example shows that the allocation of a certain scale of the energy storage system can reduce the assessment cost and improve the grid-related operation performance.

Key words: wind-storage system, decentralized energy storage system, grid-related operation performance, two detailed rules, capacity configuration

李成, 张婕, 石轲, 薛明华, 冯波. 面向风电场的主动支撑电网型分散式储能控制策略与优化配置[J]. 中国电力, 2023, 56(12): 238-247.

Cheng LI, Jie ZHANG, Ke SHI, Minghua XUE, Bo FENG. Control Strategy and Optimal Configuration of Active-Support-Grid Type Decentralized Energy Storage System for Wind Farms[J]. Electric Power, 2023, 56(12): 238-247.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202305132

https://www.electricpower.com.cn/CN/Y2023/V56/I12/238

图/表 11

参考文献 26

1	葛畅, 阎洁, 刘永前, 等. 海上风电场运行控制维护关键技术综述[J]. 中国电机工程学报, 2022, 42 (12): 4278- 4292. DOI
	GE Chang, YAN Jie, LIU Yongqian, et al. Review of key technologies for operation control and maintenance of offshore wind farm[J]. Proceedings of the CSEE, 2022, 42 (12): 4278- 4292. DOI
2	SUN W Q, ZHANG J, ZENG P L, et al. Energy storage configuration and day-ahead pricing strategy for electricity retailers considering demand response profit[J]. International Journal of Electrical Power & Energy Systems, 2022, 136, 107633.
3	孙伟卿, 裴亮, 向威, 等. 电力系统中储能的系统价值评估方法[J]. 电力系统自动化, 2019, 43 (8): 47- 55. DOI
	SUN Weiqing, PEI Liang, XIANG Wei, et al. Evaluation method of system value for energy storage in power system[J]. Automation of Electric Power Systems, 2019, 43 (8): 47- 55. DOI
4	孙伟卿, 刘唯, 裴亮, 等. 高比例可再生能源背景下考虑储能系统价值的储-输多阶段联合规划[J]. 高电压技术, 2021, 47 (3): 983- 993.
	SUN Weiqing, LIU Wei, PEI Liang, et al. Multistage energy storage-transmission network joint planning considering the system value of energy storage under the background of high penetration renewable energy[J]. High Voltage Engineering, 2021, 47 (3): 983- 993.
5	姜海洋, 杜尔顺, 朱桂萍, 等. 面向高比例可再生能源电力系统的季节性储能综述与展望[J]. 电力系统自动化, 2020, 44 (19): 194- 207. DOI
	JIANG Haiyang, DU Ershun, ZHU Guiping, et al. Review and prospect of seasonal energy storage for power system with high proportion of renewable energy[J]. Automation of Electric Power Systems, 2020, 44 (19): 194- 207. DOI
6	孙伟卿, 宋赫, 秦艳辉, 等. 考虑灵活性供需不确定性的储能优化配置[J]. 电网技术, 2020, 44 (12): 4486- 4497. DOI
	SUN Weiqing, SONG He, QIN Yanhui, et al. Energy storage system optimal allocation considering flexibility supply and demand uncertainty[J]. Power System Technology, 2020, 44 (12): 4486- 4497. DOI
7	李相俊, 马会萌, 姜倩. 新能源侧储能配置技术研究综述[J]. 中国电力, 2022, 55 (1): 13- 25.
	LI Xiangjun, MA Huimeng, JIANG Qian. Review of energy storage configuration technology on renewable energy side[J]. Electric Power, 2022, 55 (1): 13- 25.
8	孙偲, 陈来军, 邱欣杰, 等. 基于合作博弈的发电侧共享储能规划模型[J]. 全球能源互联网, 2019, 2 (4): 360- 366.
	SUN Cai, CHEN Laijun, QIU Xinjie, et al. A generation-side shared energy storage planning model based on cooperative game[J]. Journal of Global Energy Interconnection, 2019, 2 (4): 360- 366.
9	孙玉树, 唐西胜, 孙晓哲, 等. 风电波动平抑的储能容量配置方法研究[J]. 中国电机工程学报, 2017, 37 (S1): 88- 97. DOI
	SUN Yushu, TANG Xisheng, SUN Xiaozhe, et al. Research on energy storage capacity allocation method for smoothing wind power fluctuations[J]. Proceedings of the CSEE, 2017, 37 (S1): 88- 97. DOI
10	徐国栋, 程浩忠, 马紫峰, 等. 用于平滑风电出力的储能系统运行与配置综述[J]. 电网技术, 2017, 41 (11): 3470- 3479. DOI
	XU Guodong, CHENG Haozhong, MA Zifeng, et al. An overview of operation and configuration of energy storage systems for smoothing wind power outputs[J]. Power System Technology, 2017, 41 (11): 3470- 3479. DOI
11	甘伟, 郭剑波, 艾小猛, 等. 应用于风电场出力平滑的多尺度多指标储能配置[J]. 电力系统自动化, 2019, 43 (9): 92- 98. DOI
	GAN Wei, GUO Jianbo, AI Xiaomeng, et al. Multi-scale multi-index sizing of energy storage applied to fluctuation mitigation of wind farm[J]. Automation of Electric Power Systems, 2019, 43 (9): 92- 98. DOI
12	徐衍会, 徐宜佳. 平抑风电波动的混合储能容量配置及控制策略[J]. 中国电力, 2022, 55 (6): 186- 193.
	XU Yanhui, XU Yijia. Capacity configuration and control strategy of hybrid energy storage to smooth wind power fluctuations[J]. Electric Power, 2022, 55 (6): 186- 193.
13	孙伟卿, 罗静, 张婕. 高比例风电接入的电力系统储能容量配置及影响因素分析[J]. 电力系统保护与控制, 2021, 49 (15): 9- 18.
	SUN Weiqing, LUO Jing, ZHANG Jie. Energy storage capacity allocation and influence factor analysis of a power system with a high proportion of wind power[J]. Power System Protection and Control, 2021, 49 (15): 9- 18.
14	MOGHADDAM I N, CHOWDHURY B H, MOHAJERYAMI S. Predictive operation and optimal sizing of battery energy storage with high wind energy penetration[J]. IEEE Transactions on Industrial Electronics, 2018, 65 (8): 6686- 6695. DOI
15	禹海峰, 黄婧杰, 蒋诗谣, 等. 计及储能使用年寿命的风电场整体性储能配置[J]. 电力科学与技术学报, 2022, 37 (4): 152- 160.
	YU Haifeng, HUANG Jingjie, JIANG Shiyao, et al. The overall energy storage configuration of wind farms considering the service life of electric energy storage[J]. Journal of Electric Power Science and Technology, 2022, 37 (4): 152- 160.
16	蔡福霖, 胡泽春, 曹敏健, 等. 提升新能源消纳能力的集中式与分布式电池储能协同规划[J]. 电力系统自动化, 2022, 46 (20): 23- 32. DOI
	CAI Fulin, HU Zechun, CAO Minjian, et al. Coordinated planning of centralized and distributed battery energy storage for improving renewable energy accommodation capability[J]. Automation of Electric Power Systems, 2022, 46 (20): 23- 32. DOI
17	杨立滨, 曹阳, 魏韡, 等. 计及风电不确定性和弃风率约束的风电场储能容量配置方法[J]. 电力系统自动化, 2020, 44 (16): 45- 52. DOI
	YANG Libin, CAO Yang, WEI Wei, et al. Configuration method of energy storage for wind farms considering wind power uncertainty and wind curtailment constraint[J]. Automation of Electric Power Systems, 2020, 44 (16): 45- 52. DOI
18	吴玮坪, 胡泽春, 宋永华. 结合随机规划和序贯蒙特卡洛模拟的风电场储能优化配置方法[J]. 电网技术, 2018, 42 (4): 1055- 1062. DOI
	WU Weiping, HU Zechun, SONG Yonghua. Optimal sizing of energy storage system for wind farms combining stochastic programming and sequential Monte Carlo simulation[J]. Power System Technology, 2018, 42 (4): 1055- 1062. DOI
19	YI T, YE H D, LI Q X, et al. Energy storage capacity optimization of wind-energy storage hybrid power plant based on dynamic control strategy[J]. Journal of Energy Storage, 2022, 55, 105372. DOI
20	杨帆, 王维庆, 王海云, 等. 计及储能放电折损的风储一次调频配置优化方法研究[J]. 太阳能学报, 2022, 43 (10): 416- 423. DOI
	YANG Fan, WANG Weiqing, WANG Haiyun, et al. Research on optimization method of primary frequency regulation configuration of wind-storage system considering discharge loss of energy storage[J]. Acta Energiae Solaris Sinica, 2022, 43 (10): 416- 423. DOI
21	国家能源局江苏监管办公室. 关于印发《江苏电力并网运行管理实施细则》《江苏电力辅助服务管理实施细则》的通知(苏监能市场〔2022〕53号)[Z
22	国家能源局. 新型电力系统发展蓝皮书[EB/OL]. (2023-06-02)[2023-06-10]. http://www.nea.gov.cn/2023-06/02/c_1310724249.htm.
23	国家市场监督管理总局, 国家标准化管理委员会. 电化学储能系统接入电网技术规定: GB/T 36547—2018[S]. 北京: 中国标准出版社, 2018.
24	李首顶, 李艳, 田杰, 等. 锂离子电池电力储能系统消防安全现状分析[J]. 储能科学与技术, 2020, 9 (5): 1505- 1516.
	LI Shouding, LI Yan, TIAN Jie, et al. Current status and emerging trends in the safety of Li-ion battery energy storage for power grid applications[J]. Energy Storage Science and Technology, 2020, 9 (5): 1505- 1516.
25	李建林, 王上行, 袁晓冬, 等. 江苏电网侧电池储能电站建设运行的启示[J]. 电力系统自动化, 2018, 42 (21): 1- 9, 103. DOI
	LI Jianlin, WANG Shangxing, YUAN Xiaodong, et al. Enlightenment from construction and operation of battery energy storage station on grid side in Jiangsu power grid[J]. Automation of Electric Power Systems, 2018, 42 (21): 1- 9, 103. DOI
26	沙骏, 徐雨森, 刘冲冲, 等. 基于变分模态分解和分位数卷积-循环神经网络的短期风功率预测[J]. 中国电力, 2022, 55 (12): 61- 68.
	SHA Jun, XU Yusen, LIU Chongchong, et al. Short-Term wind power prediction based on variational modal decomposition and quantile convolution-recurrent neural network[J]. Electric Power, 2022, 55 (12): 61- 68.

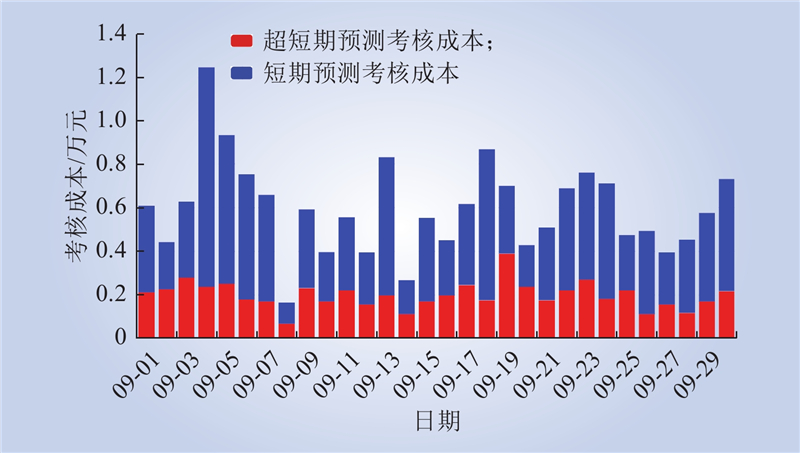

项目	类别	要求	考核
功率预测	中短期	次日96点合格率不小于90%；第10日96点合格率不小于70%	超过月度总点数2%的每个不合格点按额定容量考核1元/MW
功率预测	超短期	第15 min点合格率不小于97%；第4 h点合格率不小于87%	每个不合格点按额定容量考核0.4元/MW
AGC	调节范围	20%~100%额定容量范围内连续可调	下限达不到20%，每超1%，考核15元/(MW·月)
	调节速度	10%额定容量/min	每降低0.1%额定容量/min，考核5元/(MW·月)
	调节精度	min{1.5%额定容量，0.05 MW}以内	每超0.1%额定容量，考核5元/(MW·月)
一次调频	投运率	达到98%	每低1%，考核0.1元/(MW·天)
一次调频	响应指数	风电场0.7	每低0.01，考核0.4元/(MW·天)

项目	类别	要求	考核
功率预测	中短期	次日96点合格率不小于90%；第10日96点合格率不小于70%	超过月度总点数2%的每个不合格点按额定容量考核1元/MW
功率预测	超短期	第15 min点合格率不小于97%；第4 h点合格率不小于87%	每个不合格点按额定容量考核0.4元/MW
AGC	调节范围	20%~100%额定容量范围内连续可调	下限达不到20%，每超1%，考核15元/(MW·月)
	调节速度	10%额定容量/min	每降低0.1%额定容量/min，考核5元/(MW·月)
	调节精度	min{1.5%额定容量，0.05 MW}以内	每超0.1%额定容量，考核5元/(MW·月)
一次调频	投运率	达到98%	每低1%，考核0.1元/(MW·天)
一次调频	响应指数	风电场0.7	每低0.01，考核0.4元/(MW·天)

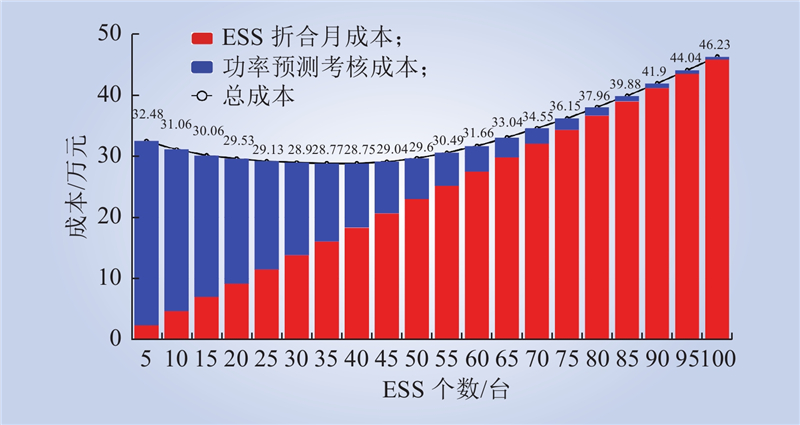

参数	数值	参数	数值
充放电效率/%	90	ESS寿命/年	15
荷电状态上限	0.8	设备价格/万元·套^–1	47
荷电状态下限	0.2	贴现率/%	8

参数	数值	参数	数值
充放电效率/%	90	ESS寿命/年	15
荷电状态上限	0.8	设备价格/万元·套^–1	47
荷电状态下限	0.2	贴现率/%	8

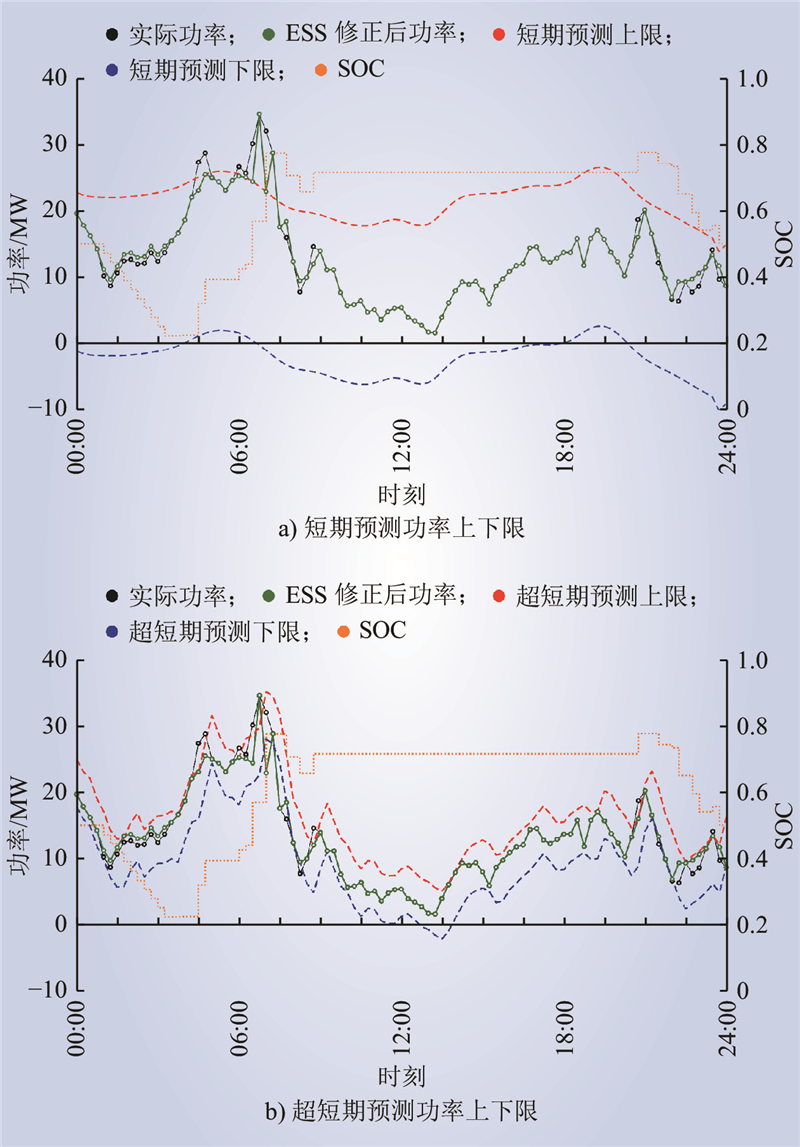

ESS 编号	SOC	分配系数		ESS 编号	SOC	分配系数
ESS 编号	SOC	充电	放电	ESS 编号	SOC	充电	放电
#1	0.57	0.02	0.03	#21	0.63	0.02	0.03
#2	0.49	0.03	0.02	#22	0.44	0.03	0.02
#3	0.67	0.01	0.04	#23	0.50	0.03	0.02
#4	0.72	0.01	0.04	#24	0.41	0.04	0.02
#5	0.78	0	0.04	#25	0.49	0.03	0.02
#6	0.49	0.03	0.02	#26	0.39	0.04	0.01
#7	0.74	0.01	0.04	#27	0.76	0	0.04
#8	0.68	0.01	0.04	#28	0.54	0.02	0.03
#9	0.69	0.01	0.04	#29	0.33	0.04	0.01
#10	0.72	0.01	0.04	#30	0.37	0.04	0.01
#11	0.74	0.01	0.04	#31	0.48	0.03	0.02
#12	0.64	0.01	0.03	#32	0.23	0.05	0
#13	0.55	0.02	0.03	#33	0.39	0.04	0.01
#14	0.49	0.03	0.02	#34	0.44	0.03	0.02
#15	0.27	0.05	0.01	#35	0.53	0.02	0.03
#16	0.72	0.01	0.04	#36	0.29	0.05	0.01
#17	0.38	0.04	0.01	#37	0.48	0.03	0.02
#18	0.49	0.03	0.02	#38	0.73	0.01	0.04
#19	0.23	0.05	0	#39	0.56	0.02	0.03
#20	0.47	0.03	0.02	#40	0.41	0.04	0.02
