基于VMD分解下的皮尔逊相关性分析及T-tFD的混合储能容量配置

doi:10.11930/j.issn.1004-9649.202403025

摘要/Abstract

摘要：

在清洁能源发展迅速的大环境下，风电出力的随机性和波动性会对电力系统的稳定造成影响，因此对风电波动平抑是当前清洁能源发展的一个基础性问题。提出一种基于改进后的北方苍鹰算法（sine-cosine northern goshawk optimization，SCNGO）优化变分模态分解（VMD）参数平抑风电波动的混合储能容量配置策略，对风电功率进行参数优化的VMD过后利用皮尔逊相关性分析判断强弱相关分界点，经过2次分配后得到并网功率与混合储能功率；对混合储能功率进行基于t检验分频算法的功率分配，得到蓄电池/超级电容的容量配置。基于此策略，以储能元件年综合成本作为模型，结合算例进行经济性评估并对并网功率进行波动量分析及改进北方苍鹰算法的优越性分析。结果表明：基于SCNGO-VMD的储能容量配置策略能有效平抑风电波动，平抑后的并网功率1 min、10 min的最大波动量仅为国家要求的18.2%、45.52%，相应的储能配置成本为传统配置策略中的最低值。其配置的混合储能容量更具经济性，验证了改进的北方苍鹰算法在迭代速度与精度上均优于传统的智能优化算法。

关键词: 混合储能, 容量配置, 变分模态分解, 北方苍鹰算法, 皮尔逊相关性分析, t检验

Abstract:

In the context of rapid development of clean energy, the stochasticity and volatility of wind power output have significant impacts on the stability of power system, so wind power fluctuation smoothing is a basic problem for the current clean energy development. A hybrid energy storage capacity allocation strategy based on SCNGO-VMD is proposed to smooth wind power fluctuations. After variational mode decomposition (VMD) of the wind power parameter optimization, the Pearson correlation analysis is used to judge the boundary points of strong and weak correlation, and the grid-connected power and hybrid energy storage power are obtained after two allocations; The hybrid energy storage power is allocated based on T-test frequency division (T-tFD) algorithm, and the capacity configuration of battery/ultra-capacitor is obtained. Based on this strategy, the annual comprehensive cost of energy storage components is used as the model to evaluate the economics through case study. And the fluctuation of grid-connected power and the superiority of the SCNGO are analyzed. The results show that the energy storage capacity allocation strategy based on SCNGO-VMD can effectively smooth wind power fluctuations. The maximum fluctuation of the smoothed grid-connected power for 1 minute and 10 minutes is only 18.2% and 45.52% of the national requirements, and the corresponding energy storage configuration cost is the lowest among traditional configuration strategies. The configured hybrid energy storage capacity is more economical. Meanwhile, it is verified that the SCNGO is superior to the traditional intelligent optimization algorithm in iteration speed and accuracy.

Key words: hybrid energy storage, capacity allocation, variational mode decomposition, northern goshawk optimization, Pearson correlation analysis, t-test

刘抒睿, 李培强, 陈家煜, 郭雅诗. 基于VMD分解下的皮尔逊相关性分析及T-tFD的混合储能容量配置[J]. 中国电力, 2024, 57(7): 82-97.

Shurui LIU, Peiqiang LI, Jiayu CHEN, Yashi GUO. Allocation of Hybrid Energy Storage Capacity Based on Pearson Correlation Analysis and T-tFD Algorithm under VMD Decomposition[J]. Electric Power, 2024, 57(7): 82-97.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202403025

https://www.electricpower.com.cn/CN/Y2024/V57/I7/82

图/表 25

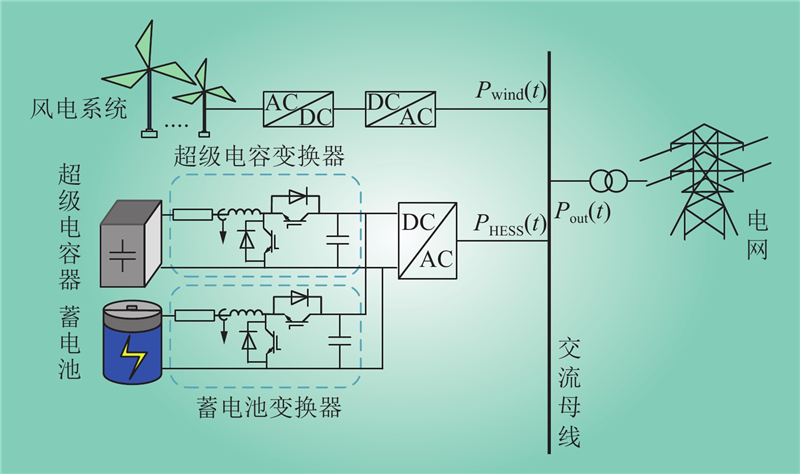

图 1 风储联合系统拓扑

Fig.1 Topology of wind power-storage joint system

表 1 国家标准风电波动要求

Table 1 Wind power fluctuation requirements by national standard

装机容量/MW	1 min最大波动量/MW	10 min最大波动量/MW
＜30	3	10
30~50	装机容量/10	装机容量/3
＞50	15	50

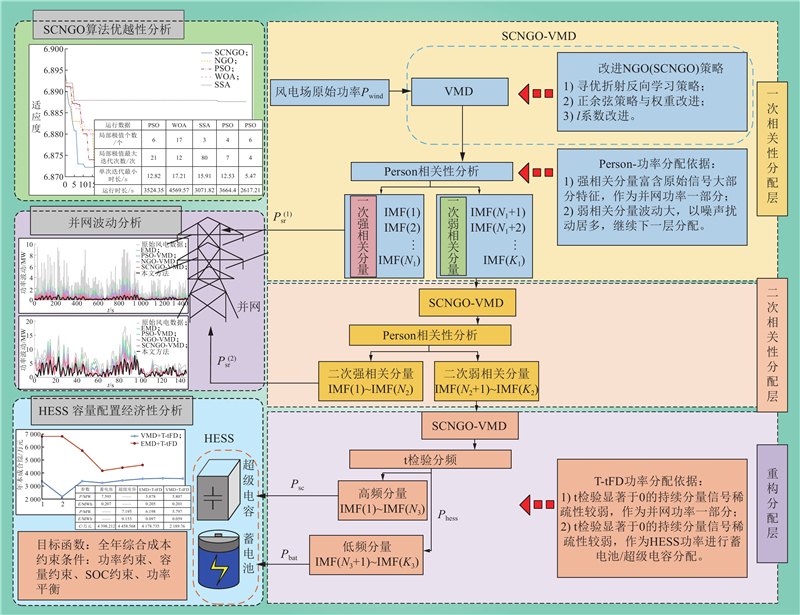

图 2 本文功率分配方法

Fig.2 Power allocation method used in this article

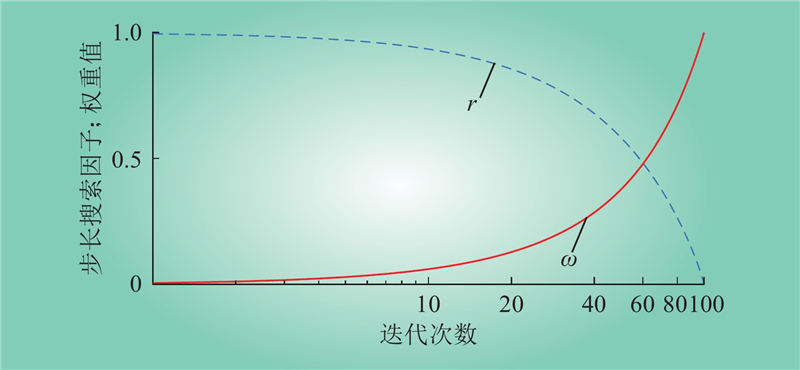

图 3 步长搜索因子与权重值曲线

Fig.3 Step search factor and weight value curve

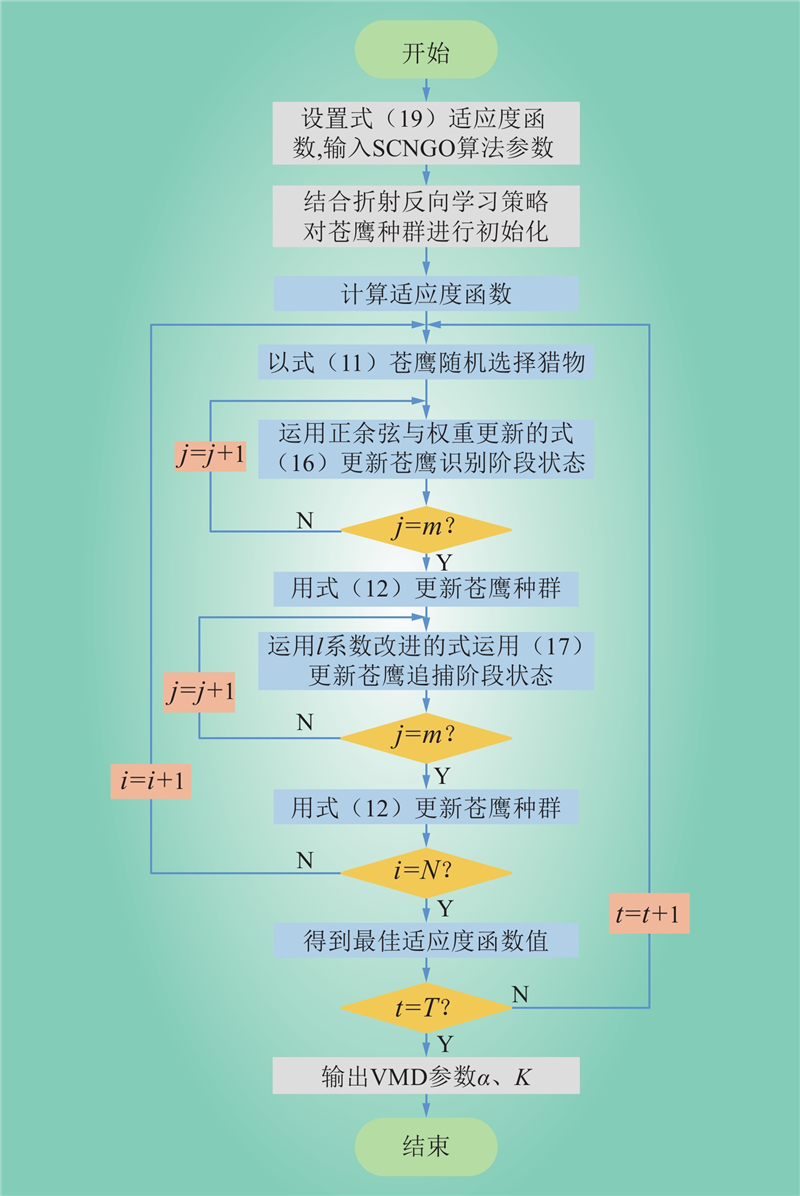

图 4 SCNGO-VMD算法流程

Fig.4 SCNGO-VMD algorithm flowchart

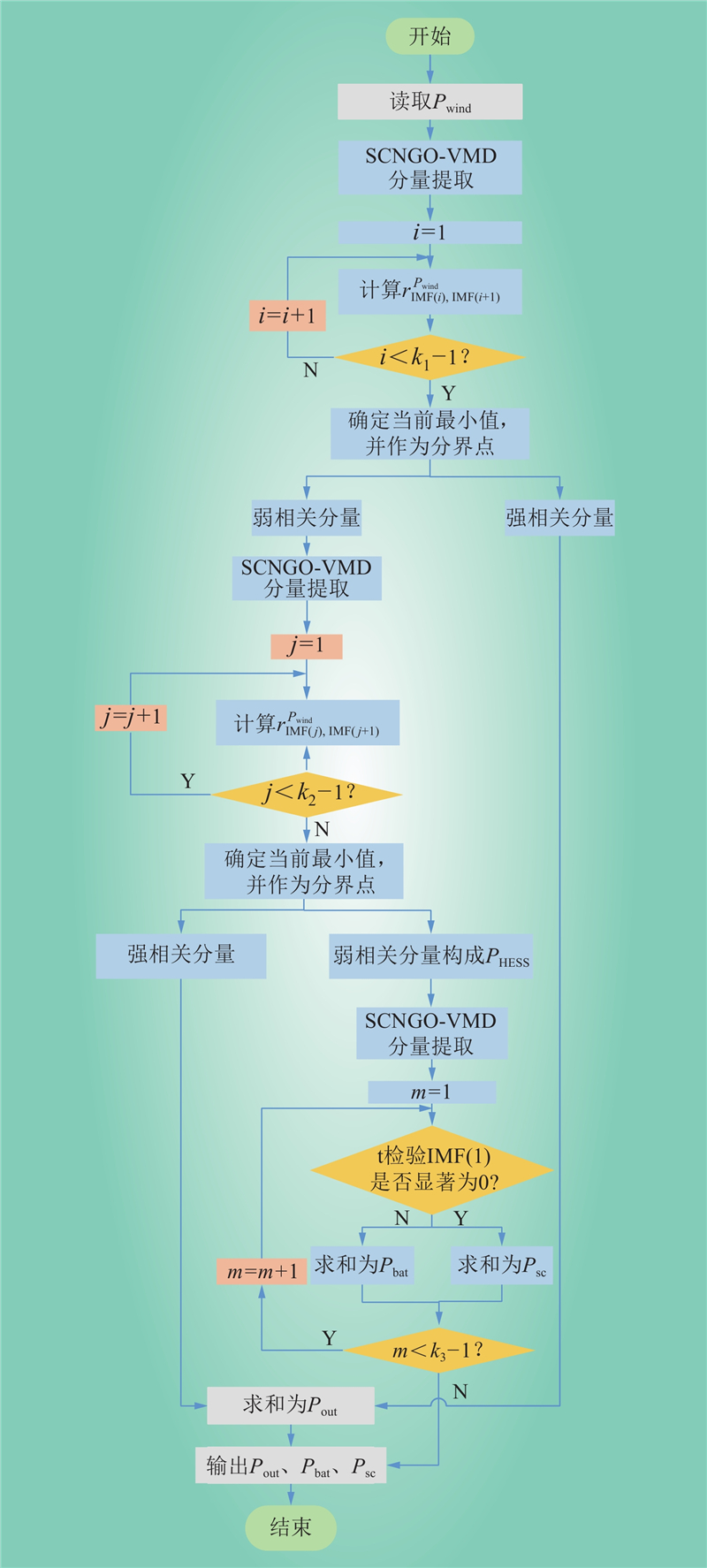

图 5 功率分配算法流程

Fig.5 Power allocation algorithm flowchart

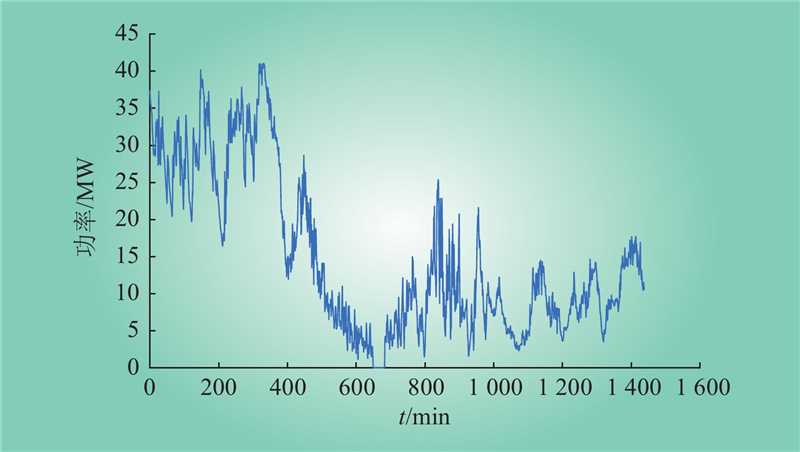

图 6 风电出力

Fig.6 Wind power output

表 2 1 min与10 min波动量分析

Table 2 Analysis of 1 min and 10 min fluctuations

数据	10 min最大波动/MW	1 min最大波动/MW
国家标准并网要求	17.1	5.00
本文P_wind	18.1	9.46

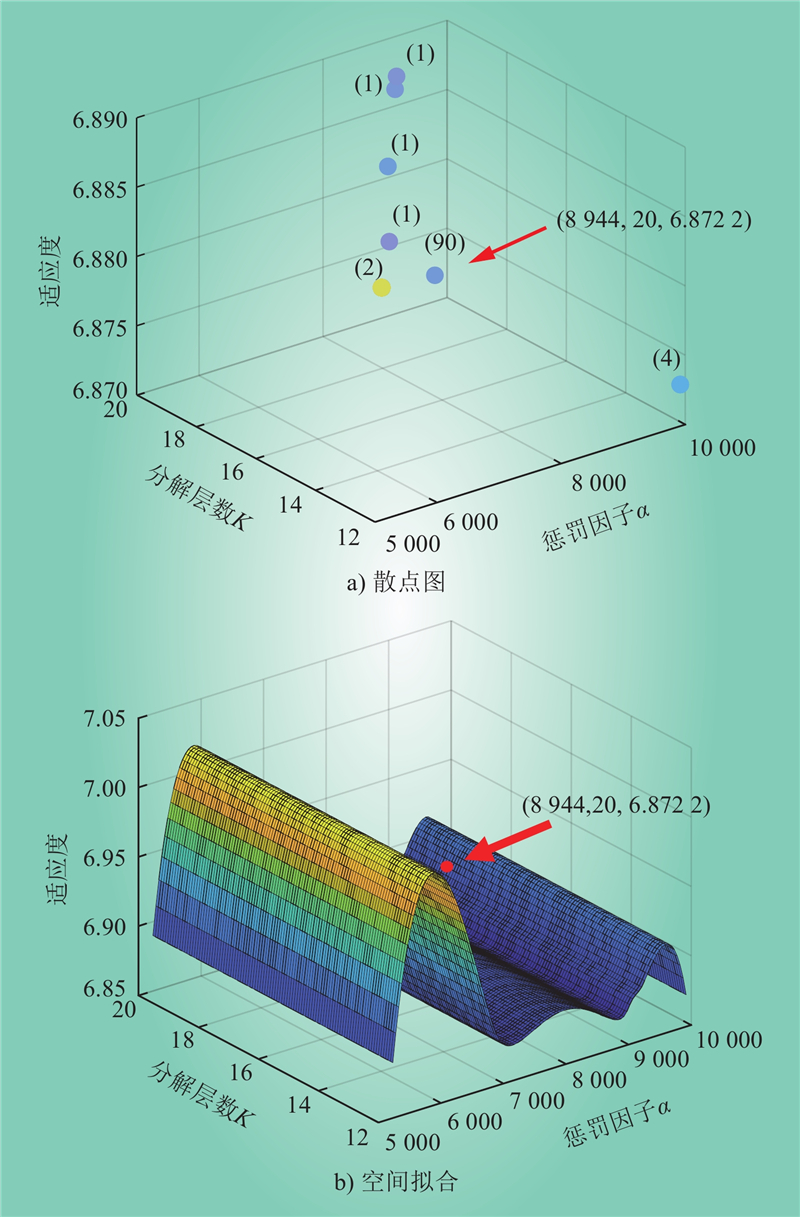

图 7 最优值在散点图以及空间拟合的分布

Fig.7 The distribution of optimal values in spatial fitting and scatter plots

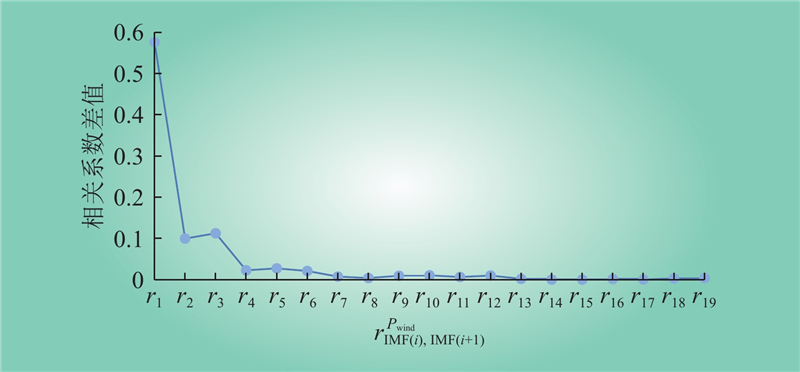

图 8 第1次相关性分析结果

Fig.8 Results of the first correlation analysis

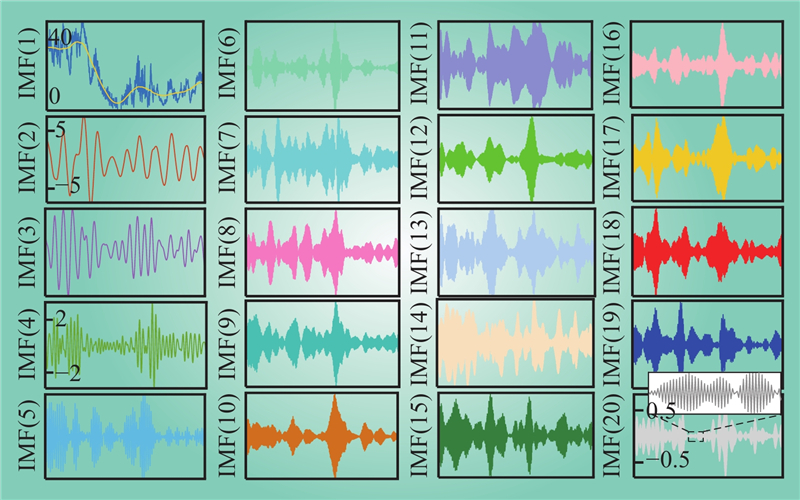

图 9 风电出力与部分IMF分量对比

Fig.9 Comparison between wind power output and some IMF components

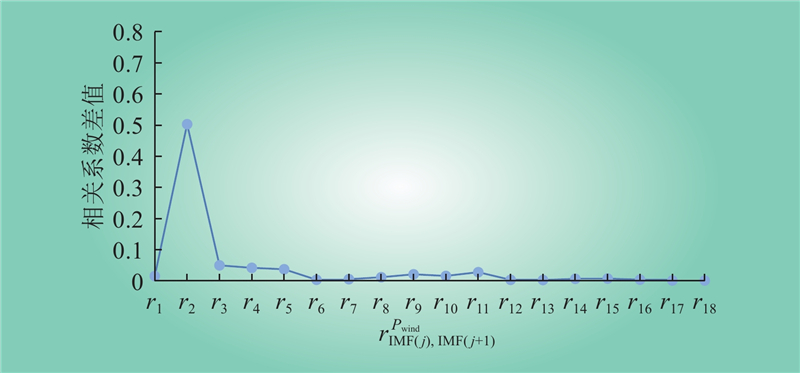

图 10 第2次相关性分析结果

Fig.10 Results of the second correlation analysis

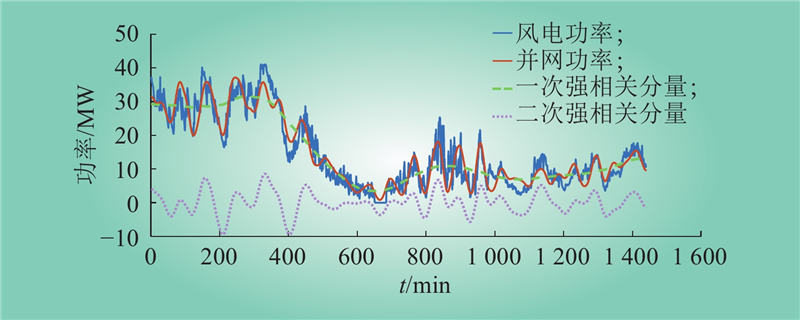

图 11 强相关分量曲线特征

Fig.11 Characteristics of strongly correlated component curves

表 3 t检验结果

Table 3 T-test results

IMF分量		1		2		3		4		5		6		7		8		9
t检验结果		1		1		0		0		0		0		0		0		0

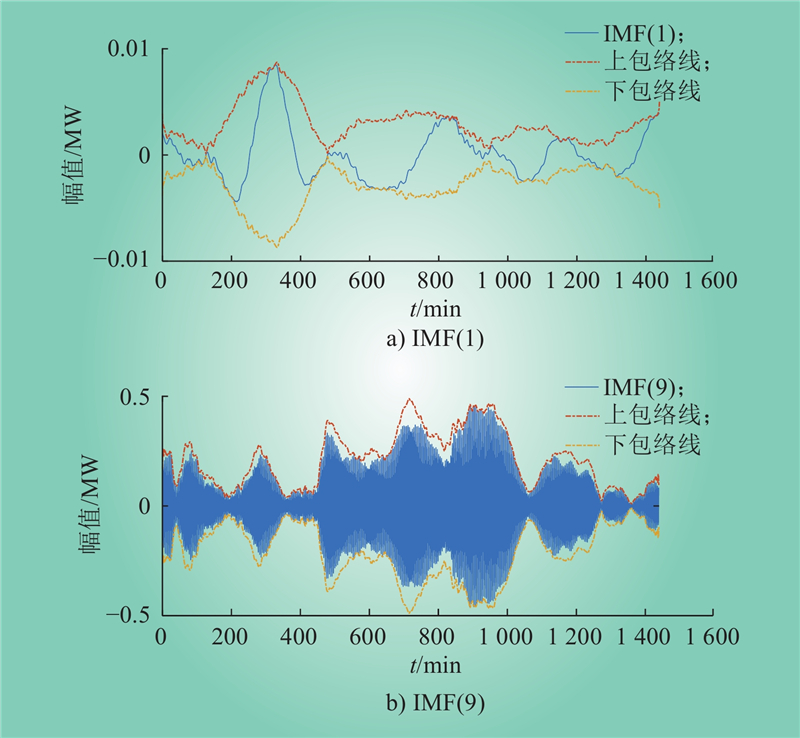

图 12 IMF(1)与IMF(9)的包络线

Fig.12 IMF(1) and IMF(9) envelope lines

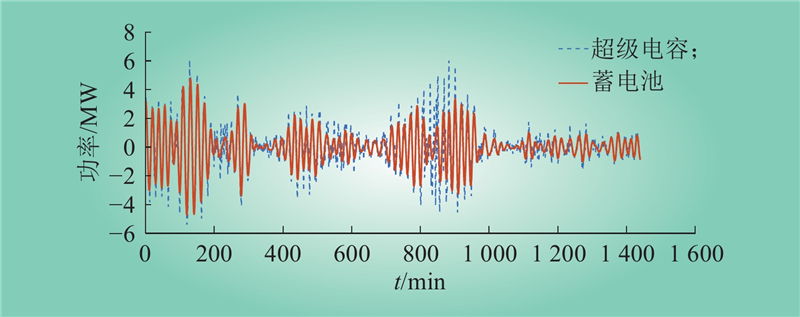

图 13 蓄电池/超级电容器功率分配

Fig.13 Battery/supercapacitor power distribution

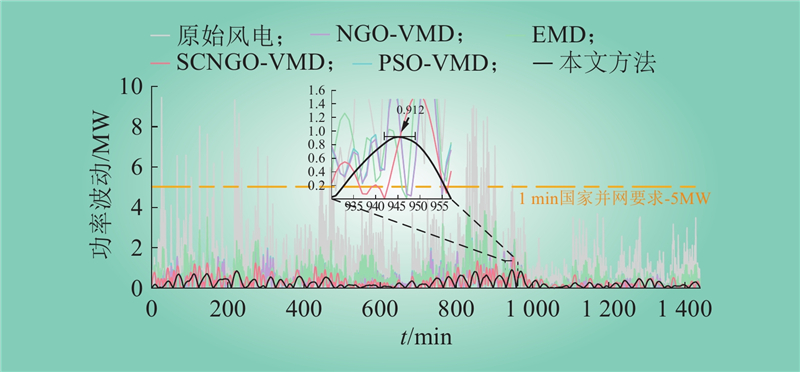

图 14 1 min波动量对比

Fig.14 Comparison of 1-minute volatility

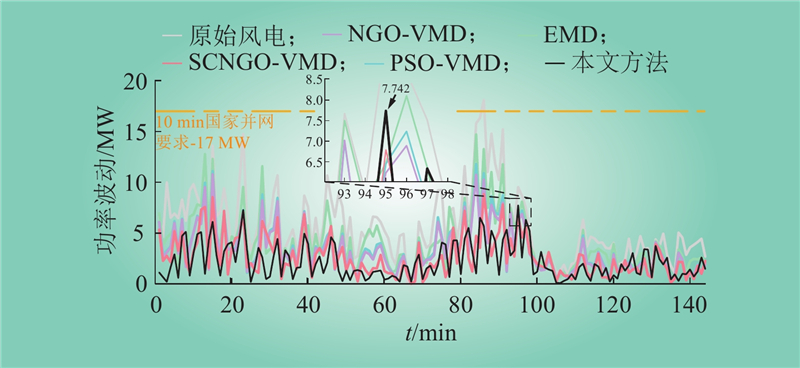

图 15 10 min波动量对比

Fig.15 Comparison of 10-minute volatility

表 4 储能相关参数

Table 4 Energy storage related parameters

储能类型	参数	数值
蓄电池（BAT）	单位功率成本/(元·kW^–1)	3400
	单位容量成本/(元·(kW·h)^–1)	2200
	年运行成本/(元·(kW·h)^–1)	370
	年维护成本/(元·(kW·h)^–1)	90
	年报废置换成本/(元·(kW·h)^–1)	120
	充放电效率/%	85
	SOC上下限	(0.8, 0.2)
	蓄电池寿命/年	10
超级电容器（SC）	单位功率成本/(元·kW^–1)	1100
	单位容量成本/(元·(kW·h)^–1)	12000
	年运行成本/(元·(kW·h)^–1)	200
	年维护成本/(元·(kW·h)^–1)	0
	年报废置换成本/(元·(kW·h)^–1)	30
	充放电效率/%	95
	SOC上下限	(0.9, 0.1)
	超级电容寿命/年	20
其他	风电工程寿命/年	20
其他	贴现率/%	0.06

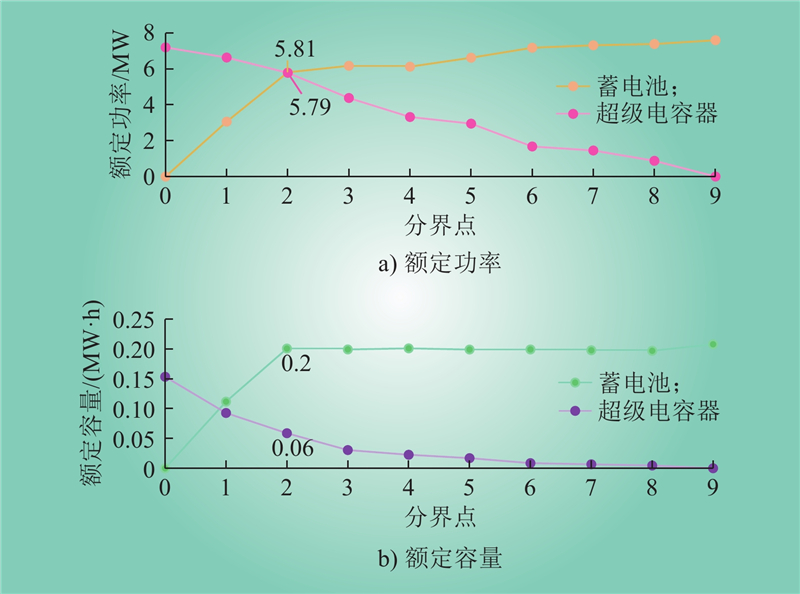

图 16 不同分界点功率/容量曲线

Fig.16 Power/capacity curves at different boundary points

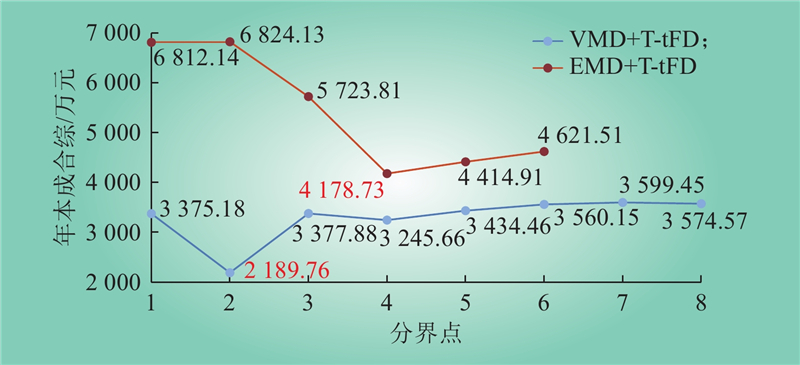

图 17 EMD、VMD不同分界点成本曲线

Fig.17 Cost curves at different boundary points of EMD and VMD

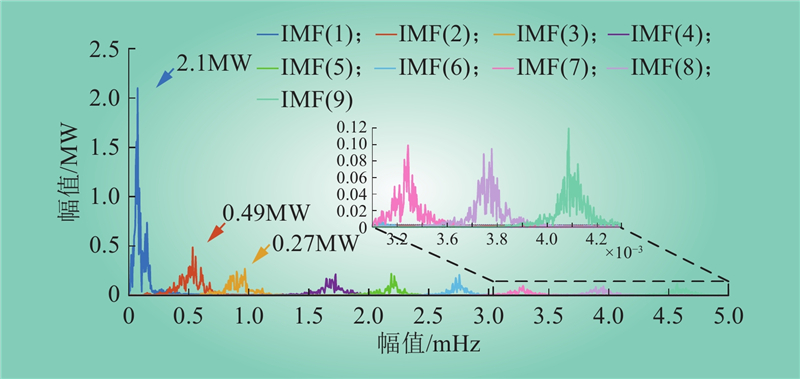

图 18 VMD分解各IMF频谱

Fig.18 Spectra of each IMF after VMD decomposition

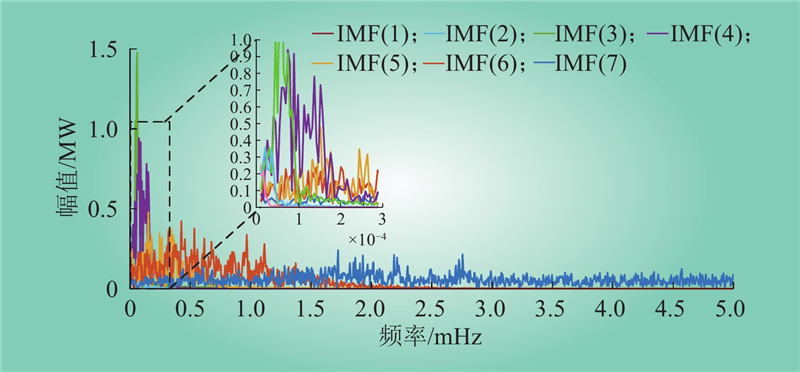

图 19 EMD分解各IMF频谱

Fig.19 Spectra of each IMF after EMD decomposition

表 5 各分配策略结果分析

Table 5 Results of different allocation strategies

策略	P_bN/MW	E_bN/(MW·h)	P_sN/MW	E_sN/(MW·h)	C_HESS/万元
蓄电池	7.595	0.207	—	—	4398.212
超级电容	—	—	7.195	0.153	4458.735
EMD+ T-tFD	5.878	0.205	6.198	0.097	4178.735
VMD+ T-tFD	5.807	0.201	5.797	0.059	2198.760

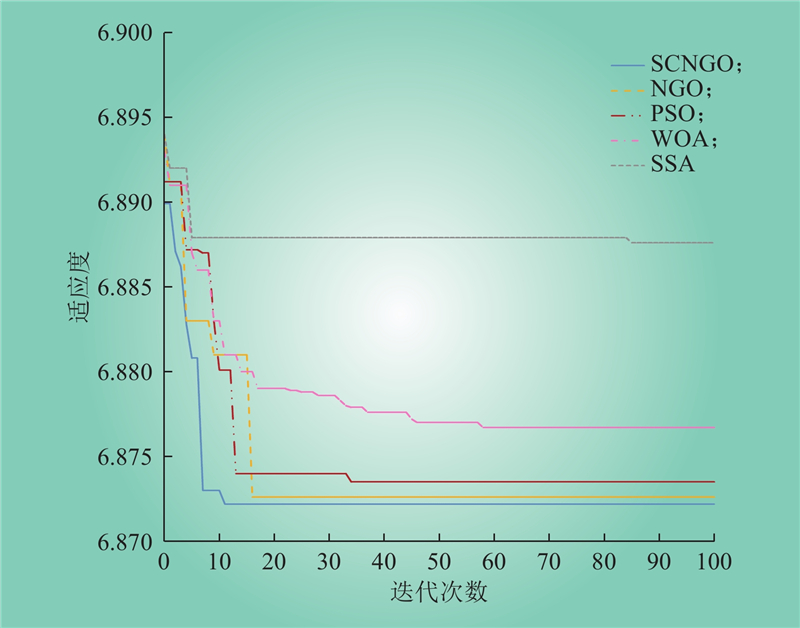

图 20 迭代次数对比

Fig.20 Comparison of iteration times
