考虑多能互补的电力电量平衡优化调度策略

doi:10.11930/j.issn.1004-9649.202304064

摘要/Abstract

摘要：

充分发挥不同发电能源和储能设备之间的协同互补潜力，可以缓解高比例可再生能源电力系统中可再生能源出力的波动性给系统电力电量平衡带来的巨大压力。为此，提出了一种考虑多能互补的电力电量平衡优化调度策略。该方法可实现不同时间尺度下的多能互补，提高系统整体运行性能。首先，考虑新能源出力季节性和短期波动特征，兼顾中长期电量平衡和短时电力平衡，建立系统多时间尺度双层优化调度模型；其次，通过对混合储能系统充放电策略的优化，实现多种储能的互补协调，提高系统运行经济性；最后，利用修改的IEEE-RTS 1979标准算例系统验证所提方法的有效性，验证了不同时间尺度的能源互补和不同储能设备的协调配合，在保证系统平衡的同时，提升系统的经济效益。

关键词: 电力电量平衡, 混合储能系统, 多时间尺度, 多能互补, 优化调度

Abstract:

In the modern power system with high penetration of renewable power generation, giving full play to the potential of coordinative and complementary operations between different power generation sources and different energy storage equipments, can alleviate the huge stress on the system's power and electricity balance caused by the volatility of new energy output. This paper proposes an optimal scheduling strategy for power and electricity balance considering multi-energy complementation, such that multi-energy dispatch is coordinated under different time scales and hence the overall operating performance of the system can be improved. First, according to the seasonal and short-term fluctuation characteristics of new energy output, by taking into account the medium and long-term electricity balance as well as short-term power balance, the multi-time scale double-layer optimal scheduling system model is established. Then, through the optimization of the charging and discharging strategy of the hybrid energy storage system, the operation of multiple energy storages is coordinated efficiently and the economic benefit of system operation can be boosted. Finally, case studies are performed to verify the effectiveness of the proposed method on the modified IEEE-RTS 1979 system model. The results indicate that the energy complementation of different time scales and the coordination of different energy storage equipment can be applied to improve the economic benefits of the system while maintaining system power balance.

Key words: power balance, hybrid energy storage system, multiple time scales, multi-energy complementation, optimal dispatch

孙志媛, 彭博雅, 孙艳. 考虑多能互补的电力电量平衡优化调度策略[J]. 中国电力, 2024, 57(1): 115-122.

Zhiyuan SUN, Boya PENG, Yan SUN. Optimal Dispatch Strategy of Power and Electricity Balance Based on Multi-Energy Complementation[J]. Electric Power, 2024, 57(1): 115-122.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202304064

https://www.electricpower.com.cn/CN/Y2024/V57/I1/115

图/表 6

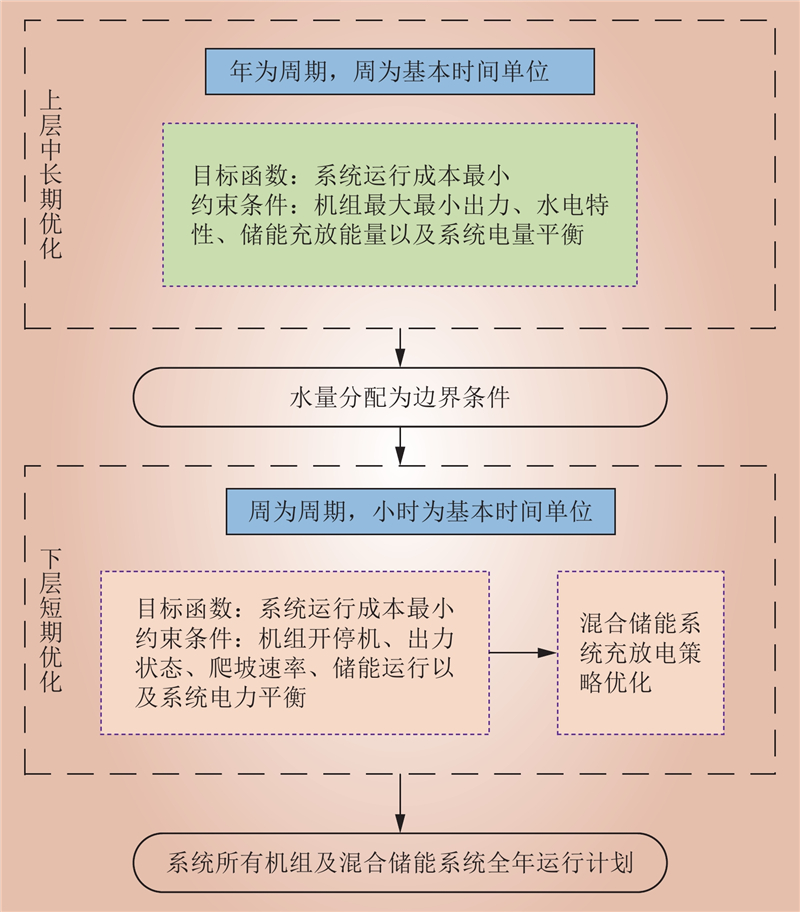

图 1 多能互补下电力系统多时间尺度优化调度框架

Fig.1 Multi-time scale optimization scheduling framework of power system under multi-energy complementation

表 1 2种方案结果对比

Table 1 Result comparison of the two schemes

方案	年度总成本/ 亿元	失负荷量/ (GW·h)	火电电量/ (GW·h)	弃水量/ (GW·h)
1	110.83	1082.80	15835.0	0
2	93.36	933.67	15227.0	0

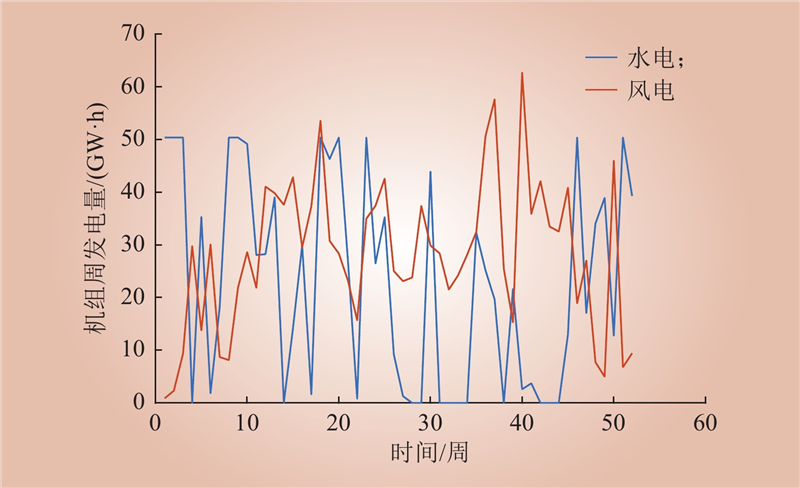

图 2 水电及风电各周发电量

Fig.2 Hydropower and wind power generation per week

表 2 水电季度分配占比情况

Table 2 Seasonal water and electricity distribution proportion

参数		春季	夏季	秋季	冬季
水电占比/%	方案1	35.0	35.0	10	20
水电占比/%	方案2	37.6	28.4	12	21
转移量/个百分点		+2.6	–6.6	+2	+1

表 3 风电季度发电量

Table 3 Seasonal wind power generation

参数	春季	夏季	秋季	冬季
风电/(GW·h)	256.3	439.0	398.0	368.5
占比/%	17.5	30.1	27.2	25.2

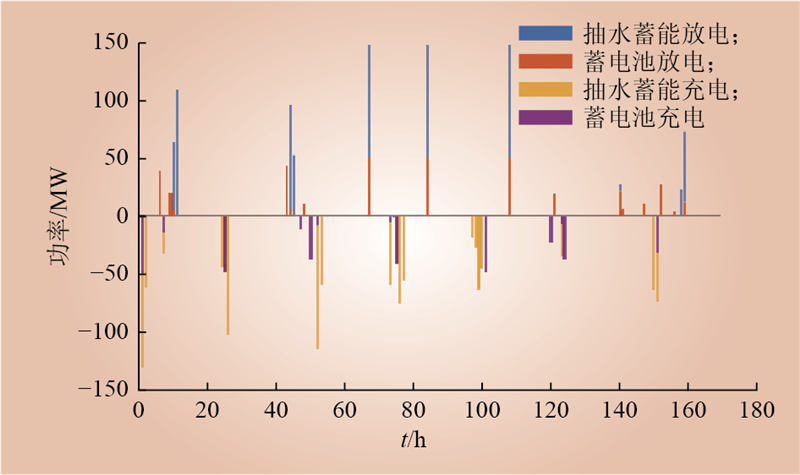

图 3 第41周混合储能系统充放电功率分配结果

Fig.3 The charge and discharge power distribution of hybrid energy storage system at Week 41

参考文献 25

1	肖晋宇, 侯金鸣, 杜尔顺, 等. 支撑电力系统清洁转型的储能需求量化模型与案例分析[J]. 电力系统自动化, 2021, 45 (18): 9- 17.
	XIAO Jinyu, HOU Jinming, DU Ershun, et al. Quantitative model and case study of energy storage demand supporting clean transition of electric power system[J]. Automation of Electric Power Systems, 2021, 45 (18): 9- 17.
2	李争, 张蕊, 孙鹤旭, 等. 可再生能源多能互补制-储-运氢关键技术综述[J]. 电工技术学报, 2021, 36 (3): 446- 462.
	LI Zheng, ZHANG Rui, SUN Hexu, et al. Review on key technologies of hydrogen generation, storage and transportation based on multi-energy complementary renewable energy[J]. Transactions of China Electrotechnical Society, 2021, 36 (3): 446- 462.
3	杨经纬, 张宁, 王毅, 等. 面向可再生能源消纳的多能源系统: 述评与展望[J]. 电力系统自动化, 2018, 42 (4): 11- 24.
	YANG Jingwei, ZHANG Ning, WANG Yi, et al. Multi-energy system towards renewable energy accommodation: review and prospect[J]. Automation of Electric Power Systems, 2018, 42 (4): 11- 24.
4	李蕊睿, 李奇, 蒲雨辰, 等. 计及功率交互约束的含电-氢混合储能的多微电网系统容量优化配置[J]. 电力系统保护与控制, 2022, 50 (14): 53- 64.
	LI Ruirui, LI Qi, PU Yuchen, et al. Optimal configuration of an electric-hydrogen hybrid energy storage multi-microgrid system considering power interaction constraints[J]. Power System Protection and Control, 2022, 50 (14): 53- 64.
5	孙玉树, 杨敏, 师长立, 等. 储能的应用现状和发展趋势分析[J]. 高电压技术, 2020, 46 (1): 80- 89.
	SUN Yushu, YANG Min, SHI Changli, et al. Analysis of application status and development trend of energy storage[J]. High Voltage Engineering, 2020, 46 (1): 80- 89.
6	林弋莎, 孙荣富, 鲁宗相, 等. 考虑中长期电量不确定性的可再生能源系统嵌套运行优化[J]. 电网技术, 2020, 44 (9): 3272- 3280.
	LIN Yisha, SUN Rongfu, LU Zongxiang, et al. Nested operation optimization of renewable energy system considering medium and long-term power uncertainty[J]. Power System Technology, 2020, 44 (9): 3272- 3280.
7	韩晓言, 丁理杰, 陈刚, 等. 梯级水光蓄互补联合发电关键技术与研究展望[J]. 电工技术学报, 2020, 35 (13): 2711- 2722.
	HAN Xiaoyan, DING Lijie, CHEN Gang, et al. Key technologies and research prospects for cascaded hydro-photovoltaic-pumped storage hybrid power generation system[J]. Transactions of China Electrotechnical Society, 2020, 35 (13): 2711- 2722.
8	元一平, 王建学, 张耀, 等. 考虑多周期协调的新能源电力系统全景运行模拟方法与评估指标体系[J]. 电网技术, 2020, 44 (3): 799- 806.
	YUAN Yiping, WANG Jianxue, ZHANG Yao, et al. Panoramic operation simulation method and evaluation index system of new energy power system considering multi-period coordination[J]. Power System Technology, 2020, 44 (3): 799- 806.
9	刘纯, 黄越辉, 张楠, 等. 基于智能电网调度控制系统基础平台的新能源优化调度[J]. 电力系统自动化, 2015, 39 (1): 159- 163.
	LIU Chun, HUANG Yuehui, ZHANG Nan, et al. Renewable energy dispatching based on smart grid dispatching and control system platform[J]. Automation of Electric Power Systems, 2015, 39 (1): 159- 163.
10	李明节, 陈国平, 董存, 等. 新能源电力系统电力电量平衡问题研究[J]. 电网技术, 2019, 43 (11): 3979- 3986.
	LI Mingjie, CHEN Guoping, DONG Cun, et al. Research on power balance of high proportion renewable energy system[J]. Power System Technology, 2019, 43 (11): 3979- 3986.
11	钟小娟. 基于混合储能独立光伏发电系统的仿真与优化研究[D]. 昆明: 云南师范大学, 2021.
	ZHONG Xiaojuan. Simulation and optimization of independent photovoltaic power generation system based on hybrid energy storage[D]. Kunming: Yunnan Normal University, 2021.
12	武昭原, 周明, 姚尚润, 等. 基于合作博弈论的风储联合参与现货市场优化运行策略[J]. 电网技术, 2019, 43 (8): 2815- 2824.
	WU Zhaoyuan, ZHOU Ming, YAO Shangrun, et al. Optimal operation strategy of wind-storage joint participation in spot market based on cooperative game theory[J]. Power System Technology, 2019, 43 (8): 2815- 2824.
13	MUKHERJEE P, RAO V V. Superconducting magnetic energy storage for stabilizing grid integrated with wind power generation systems[J]. Journal of Modern Power Systems and Clean Energy, 2019, 7 (2): 400- 411. DOI
14	LI R, WANG W, CHEN Z, et al. Optimal planning of energy storage system in active distribution system based on fuzzy multi-objective bi-level optimization[J]. Journal of Modern Power Systems and Clean Energy, 2018, 6 (2): 342- 355. DOI
15	苏向敬, 陈思利, 米阳, 等. 分布式电池储能在含高比例可再生能源不平衡配电网中的序次优化配置[J]. 电网技术, 2019, 43 (10): 3698- 3706.
	SU Xiangjing, CHEN Sili, MI Yang, et al. Sequential optimal allocation of distributed battery energy storage in unbalanced distribution network with high proportion of renewable energy[J]. Power System Technology, 2019, 43 (10): 3698- 3706.
16	李林川, 王锡凡, 王秀丽. 基于等效电量函数法的互联电力系统随机生产模拟[J]. 中国电机工程学报, 1996, 16 (3): 180- 184.
	LI Linchuan, WANG Xifan, WANG Xiuli. Probabilistic modeling for interconnected power systems based on the equivalent energy function approach[J]. Chinese Society for Electrical Engineering, 1996, 16 (3): 180- 184.
17	邵成成, 冯陈佳, 王雅楠, 等. 含大规模清洁能源电力系统的多时间尺度生产模拟[J]. 中国电机工程学报, 2020, 40 (19): 6103- 6112.
	SHAO Chengcheng, FENG Chenjia, WANG Yanan, et al. Multi-time scale production simulation of power system with large-scale clean energy[J]. Proceedings of the CSEE, 2020, 40 (19): 6103- 6112.
18	邵成成, 王雅楠, 冯陈佳, 等. 考虑多能源电力特性的电力系统中长期生产模拟[J]. 中国电机工程学报, 2020, 40 (13): 4072- 4080.
	SHAO Chengcheng, WANG Yanan, FENG Chenjia, et al. Long-term production simulation of power system considering multi-energy power characteristics[J]. Proceedings of the CSEE, 2020, 40 (13): 4072- 4080.
19	刘辉, 江千军, 桂前进, 等. 考虑供需综合因素的电网检修计划最优决策模型[J]. 中国电力, 2021, 54 (6): 159- 167.
	LIU Hui, JIANG Qianjun, GUI Qianjin, et al. Optimal decision-making model for power grid maintenance scheduling considering comprehensive supply-demand factors[J]. Electric Power, 2021, 54 (6): 159- 167.
20	周校聿, 刘娆, 鲍福增, 等. 百兆瓦级储能参与电网双重辅助服务调度的联合优化模型[J]. 电力系统自动化, 2021, 45 (19): 60- 69.
	ZHOU Xiaoyu, LIU Rao, BAO Fuzeng, et al. Joint optimization model for hundred-megawatt-level energy storage participating in dual ancillary services dispatch of power grid[J]. Automation of Electric Power Systems, 2021, 45 (19): 60- 69.
21	曹胡辉, 裘智峰, 向劲勇, 等. 考虑中长期交易与短期调度衔接的风电消纳模型[J]. 电网技术, 2020, 44 (11): 4200- 4209.
	CAO Huhui, QIU Zhifeng, XIANG Jinyong, et al. Wind power consumption model considering the connection between medium and long-term transaction and short-term dispatching[J]. Power System Technology, 2020, 44 (11): 4200- 4209.
22	伍俊, 鲁宗相, 乔颖, 等. 考虑储能动态充放电效率特性的风储电站运行优化[J]. 电力系统自动化, 2018, 42 (11): 41- 47. DOI
	WU Jun, LU Zongxiang, QIAO Ying, et al. Optimal operation of wind farm with hybrid storage devices considering efficiency characteristics of dynamic charging and discharging[J]. Automation of Electric Power Systems, 2018, 42 (11): 41- 47. DOI
23	WANG S J, SHAHIDEHPOUR S M, KIRSCHEN D S, et al. Short-term generation scheduling with transmission and environmental constraints using an augmented Lagrangian relaxation[J]. IEEE Transactions on Power Systems, 1995, 10 (3): 1294- 1301. DOI
24	高嵩, 李军, 宋辉, 等. 提升火电机组一次调频性能的火电-储能一体化系统研究[J]. 电力系统保护与控制, 2023, 51 (21): 116- 125.
	GAO Song, LI Jun, SONG Hui, et al. An integrated thermal power-energy storage system for improving primary frequency regulation performance of thermal power units[J]. Power System Protection and Control, 2023, 51 (21): 116- 125.
25	SUBCOMMITTEE P M. IEEE reliability test system[J]. IEEE Transactions on Power Apparatus and Systems, 1979, PAS-98 (6): 2047- 2054. DOI
