基于VMD和Duffing振子算法的配电网差动保护

doi:10.11930/j.issn.1004-9649.202307005

摘要/Abstract

摘要：

配电网经消弧线圈接地，发生单相接地故障时，存在着故障特征弱、不明显的特点，很难准确找到故障线路，近年来随着通信等相关技术的发展，差动保护成本不断降低，使得配网差动保护的实现成为可能。提出变分模态分解（variational mode decomposition，VMD）和Duffing振子系统相结合的选线方法，VMD获取暂态零序电流的高频分量，将线路两侧高频零序电流相位差加入Duffing系统中，通过分析线路两侧高频分量相位差和Duffing系统状态的联系，构造了基于动态时间弯曲（dynamic time warping，DTW）描述系统状态变化的区内区外故障判据，实现故障准确定位，最后通过数值仿真证明该选线方法在不同过渡电阻、有分布式电源等情况下能够快速、准确定位线路上发生单相接地故障的区段，验证了该方法的有效性。所提故障区段定位算法可以有效提取故障特征，提高了保护的可靠性和选线的准确率。

关键词: 差动保护, 小电流系统, 变分模态分解, Duffing振子, 动态时间弯曲

Abstract:

The distribution network is grounded through arc suppression coil. When a single-phase grounding fault occurs, the faulting characteristics are often weak and unobvious, which makes it difficult to accurately locate the fault line. In recent years, with the development of communication and other related technologies, the cost of differential protection has decreased continuously, which makes it possible to realize the differential protection of distribution network. Therefore, a line selection method based on variational mode decomposition (VMD) and Duffing oscillator system is proposed. Firstly, the high-frequency component of transient zero-sequence current is obtained with VMD, and the phase difference of high-frequency zero-sequence current on both sides of the line is added to the Duffing system. And then, by analyzing the relationship between the phase difference of high-frequency components on both sides of the line and the state of the Duffing system, a fault criterion based on dynamic time warping (DTW) is constructed to realize the accurate location of the fault. Finally, numerical simulation proves that the proposed line selection method can quickly and accurately locate the single-phase ground fault sections for the lines that have different transition resistances and distributed power sources. The proposed fault section localization algorithm can effectively extract fault characteristics, thereby improving the reliability of protection and the accuracy of line selection.

Key words: differential protection, small current system, variational mode decomposition, Duffing oscillator, dynamic time warping

张健宝, 王磊, 江伟建. 基于VMD和Duffing振子算法的配电网差动保护[J]. 中国电力, 2024, 57(11): 26-35.

Jianbao ZHANG, Lei WANG, Weijian JIANG. Differential Protection of Distribution Network Based on VMD and Duffing Oscillator[J]. Electric Power, 2024, 57(11): 26-35.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202307005

https://www.electricpower.com.cn/CN/Y2024/V57/I11/26

图/表 15

图 1 系统相轨迹

Fig.1 System phase trajectory

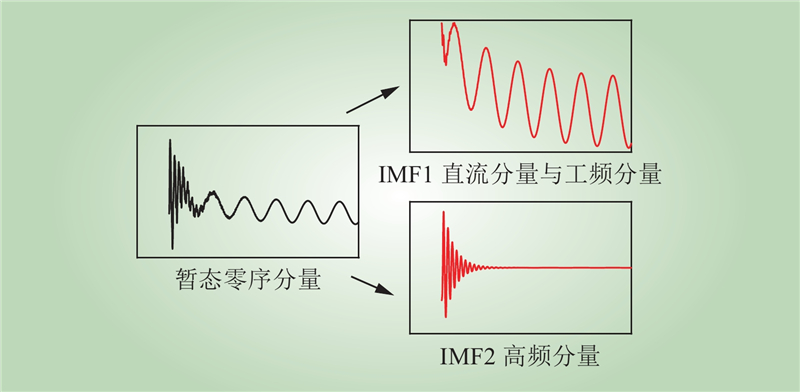

图 2 分解层数示意

Fig.2 Schematic diagram of decomposition level

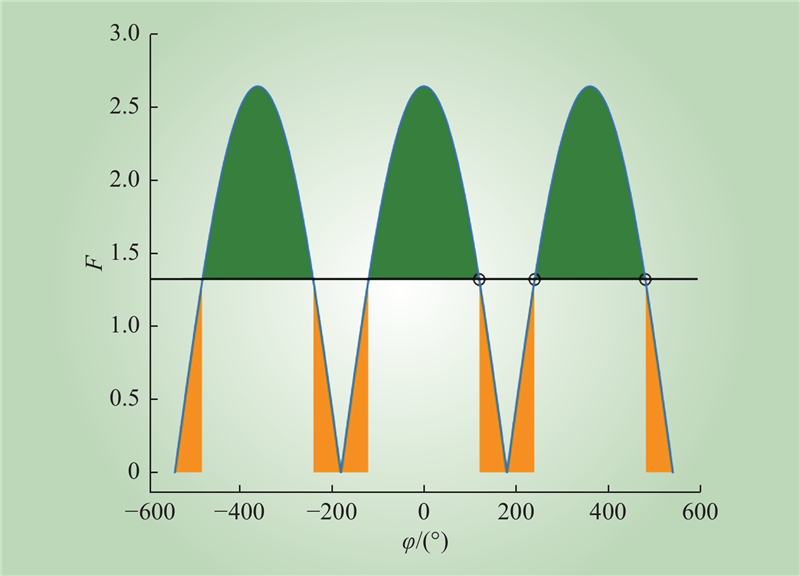

图 3 幅值F随相位φ变化

Fig.3 Change of amplitude F with phase angle φ

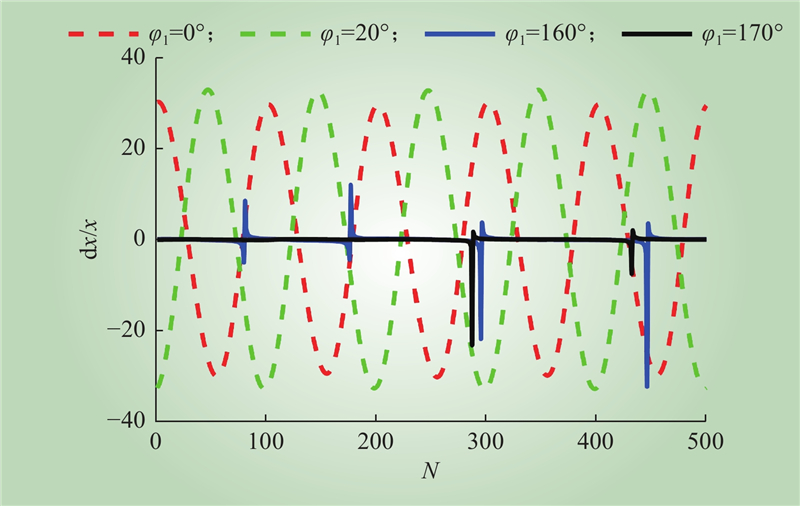

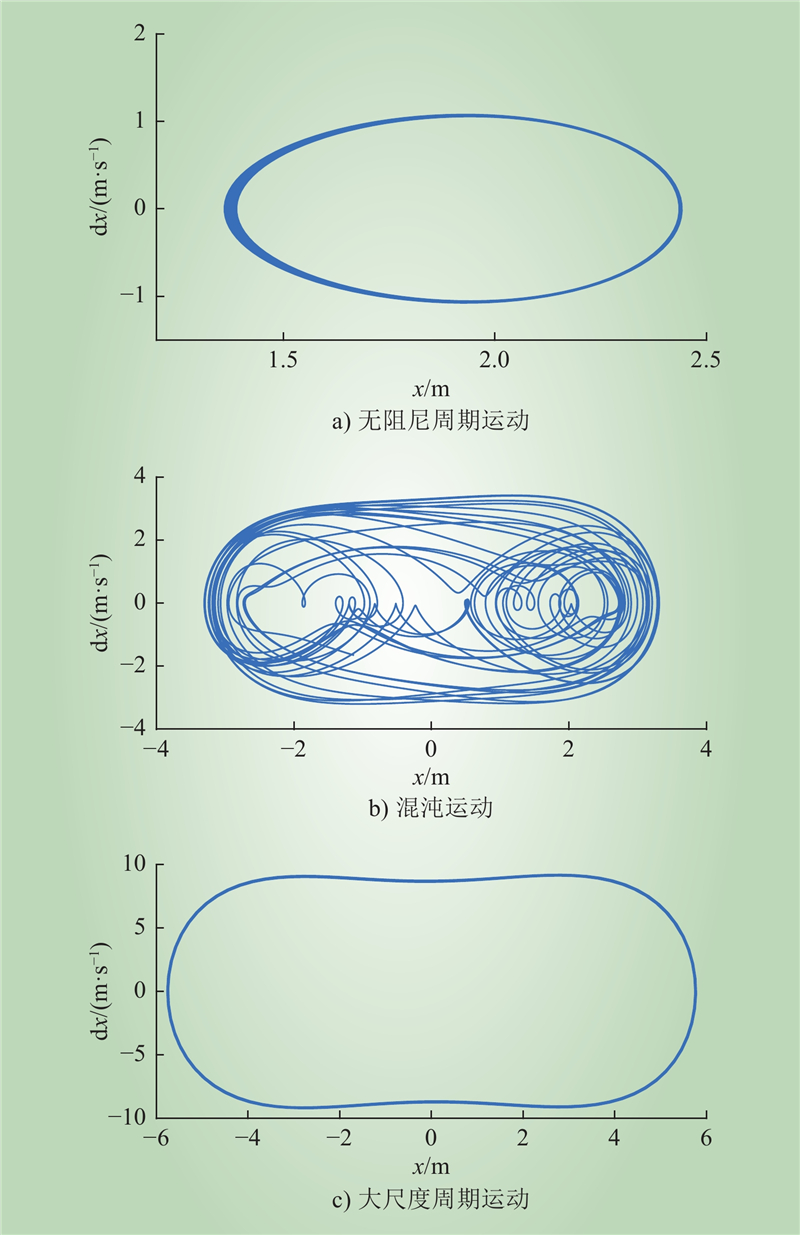

图 4 不同φ1相轨迹对应的dx/x时间序列

Fig.4 The dx/x time series corresponding to different φ1 phase trajectories

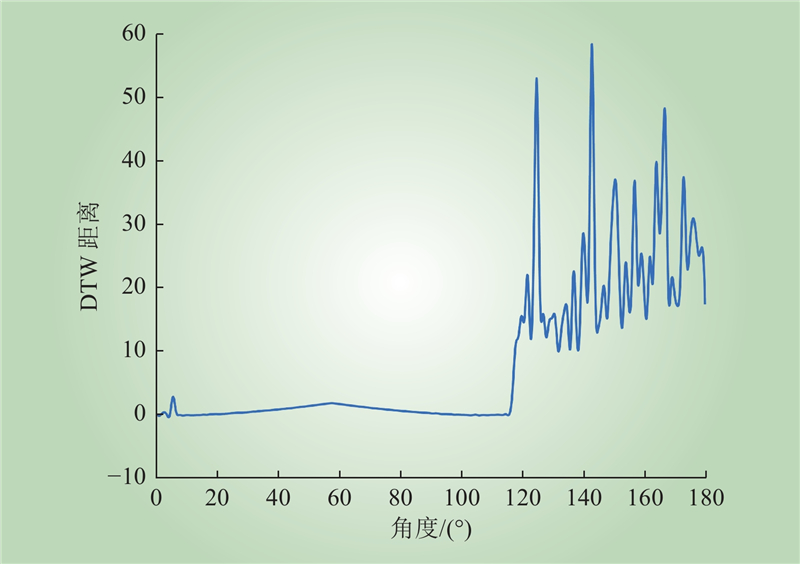

图 5 不同φ1时DTW距离

Fig.5 Variation of DTW distance with φ1

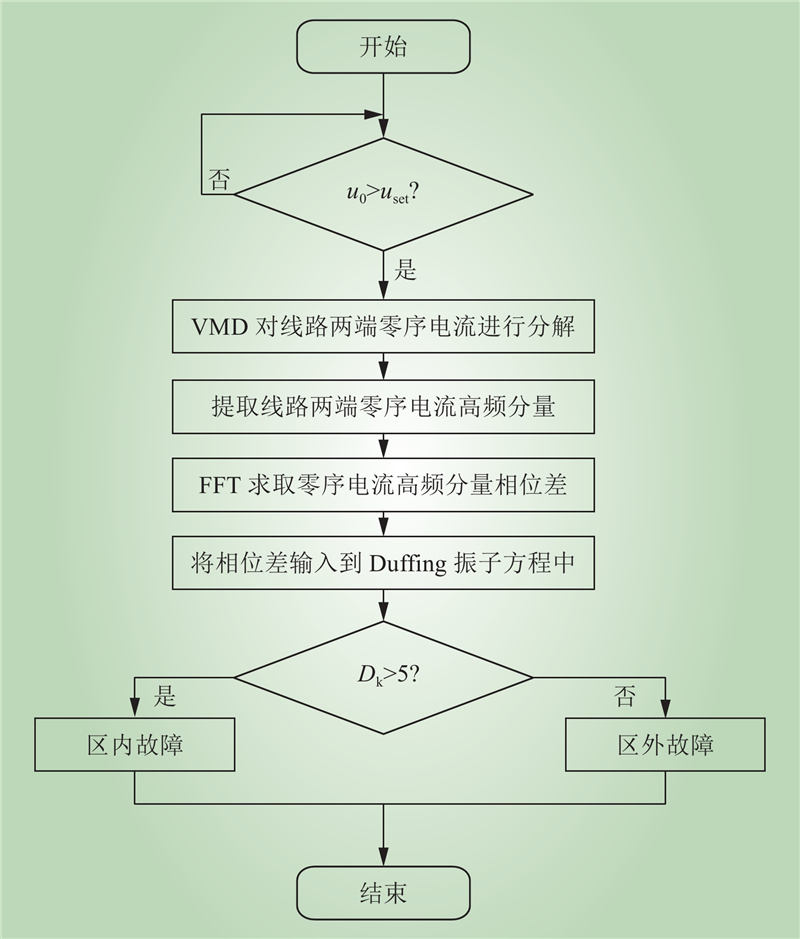

图 6 故障选线流程

Fig.6 Fault line selection process

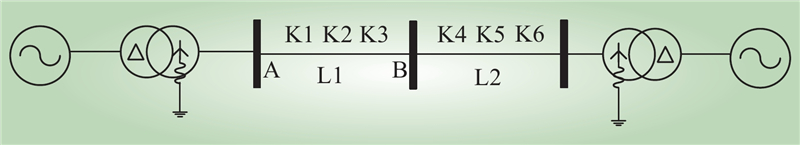

图 7 小电流接地系统双端电源主接线

Fig.7 The main wiring diagram of double-ended power supply in small current grounding system

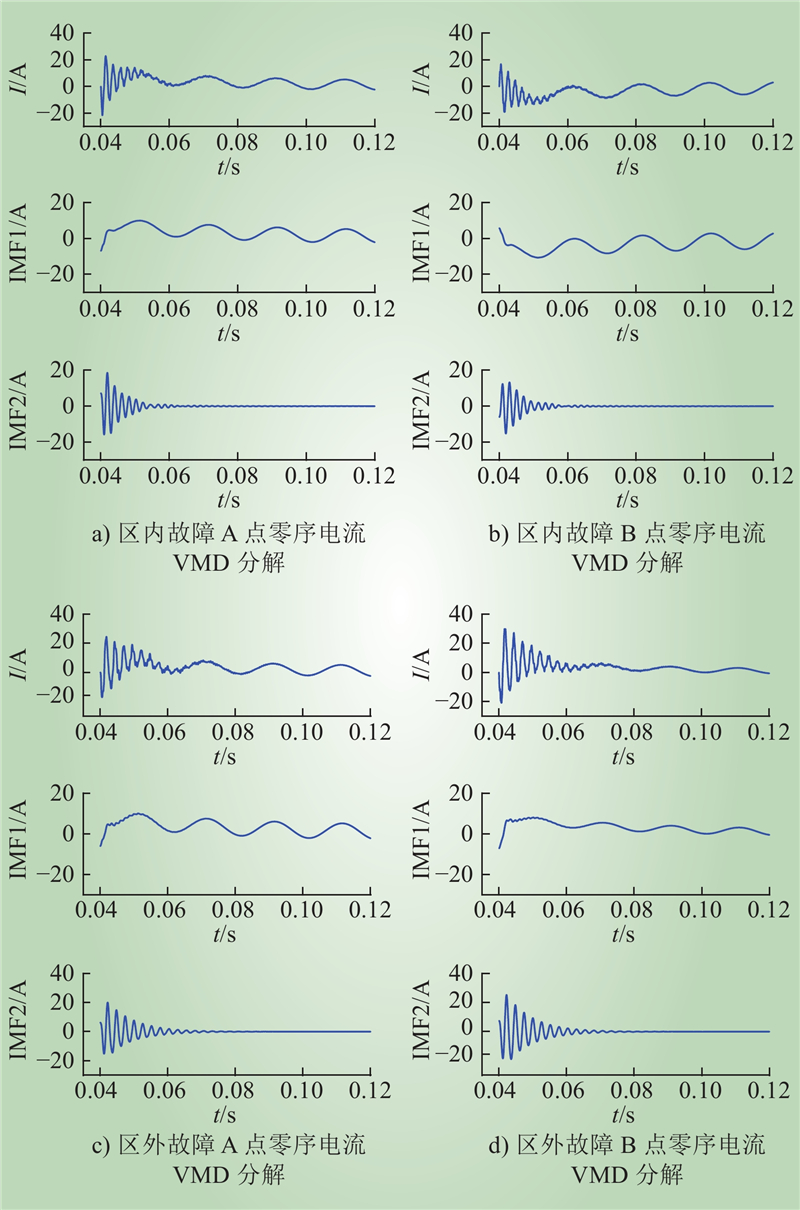

图 8 线路L1区内、外单相接地短路两侧零序电流VMD分解

Fig.8 VMD decomposition of zero-sequence current on both sides of single-phase grounding short circuit inside and outside line L1

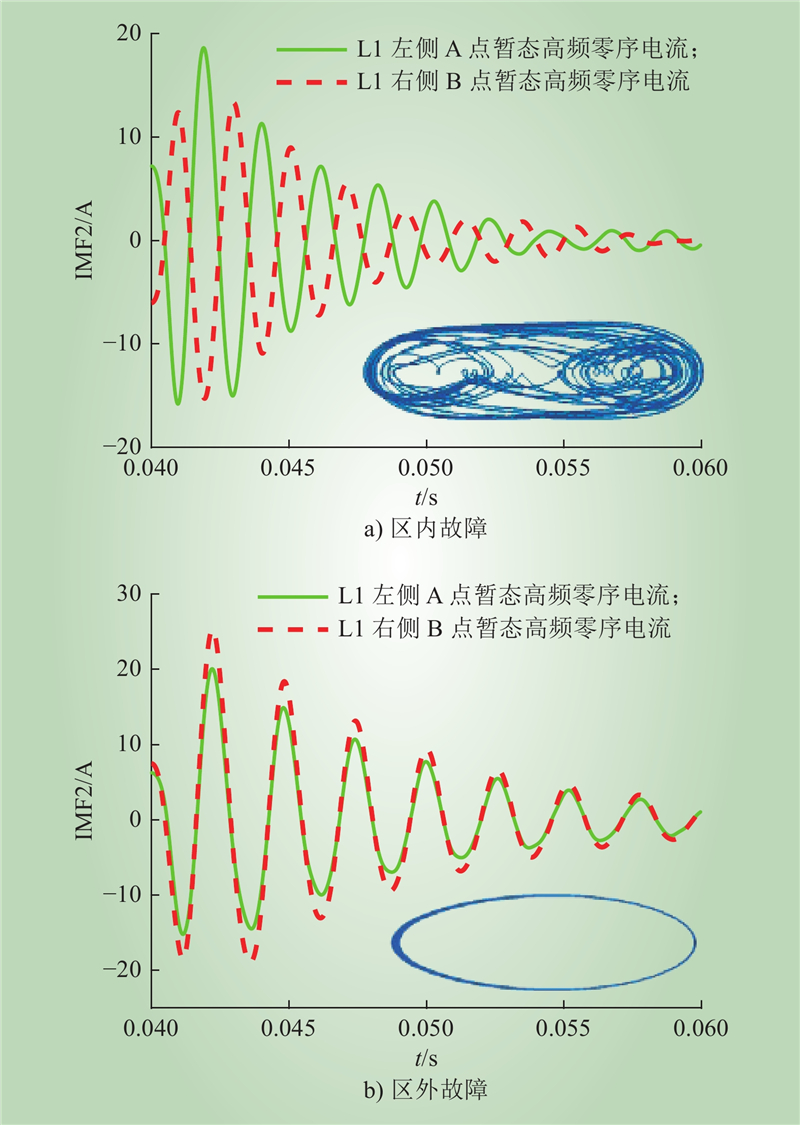

图 9 线路L1区内、外发生单相接地短路两侧暂态零序电流高频分量

Fig.9 High-frequency components of transient zero-sequence current on both sides of single-phase grounding short circuit inside and outside of line L1

表 1 发生A相经不同过渡电阻接地时的DTW距离

Table 1 The DTW distance of A phase grounding through different transition resistances

故障类型	故障位置	过渡电阻/Ω	D_k	故障区段
区内故障	K2	70	26.66	L1
		200	37.59	L1
		1000	29.48	L1
区外故障	K5	50	0.15	L2
		400	0.13	L2
		2000	0.13	L2

表 2 不同故障位置下的DTW距离

Table 2 The DTW distance at different fault locations

故障类型	故障位置	D_k	故障区段
区内故障	K1	28.84	L1
	K2	25.20	L1
	K3	26.53	L1
区外故障	K4	0.15	L2
	K5	0.13	L2
	K6	0.52	L2

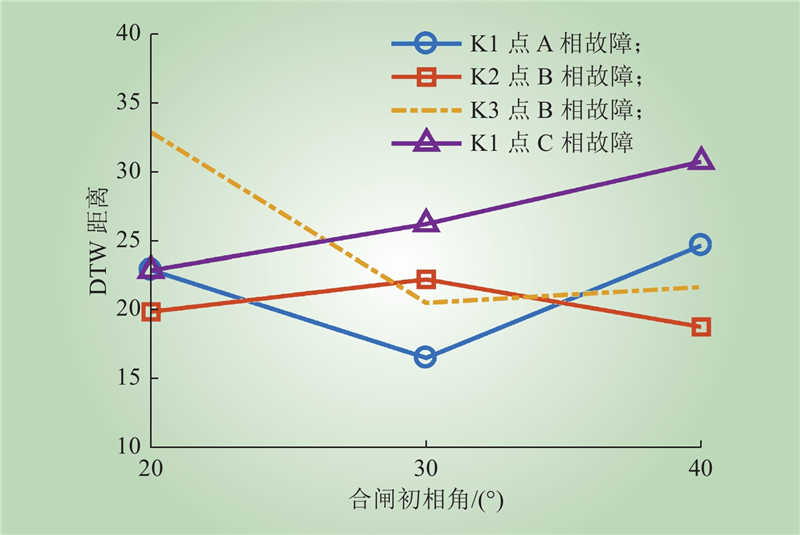

图 10 不同合闸初相角和故障类型下的DTW距离

Fig.10 The DTW distance under different closing initial phase angles and fault types

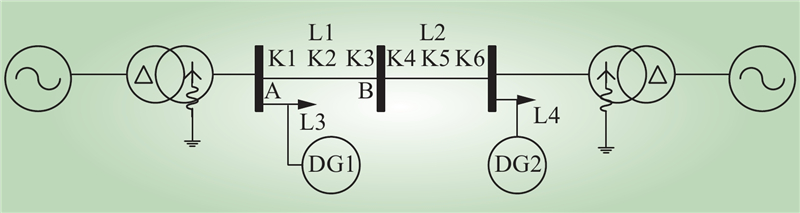

图 11 考虑在DG接入的情况下的主接线

Fig.11 The main wiring with DG access

表 3 考虑DG接入的DTW距离

Table 3 The DTW distance with DG access

故障类型	故障位置	过渡电阻/Ω	D_k	故障区段
区内故障	K1	10	22.54	L1
		300	17.89	L1
		1300	24.01	L1
区外故障	K4	90	0.69	L2
		150	0.13	L2
		2100	0.13	L2

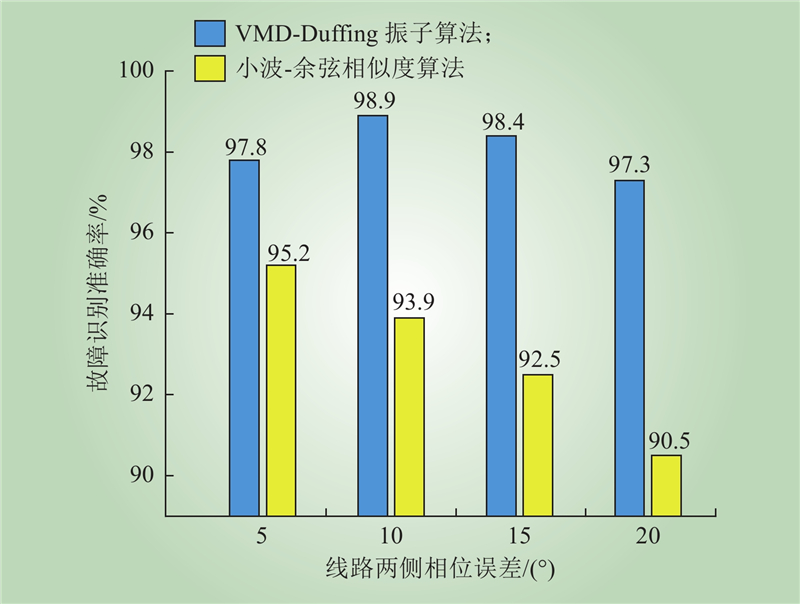

图 12 不同算法的故障识别准确率

Fig.12 The fault recognition accuracy of different algorithms
