基于VMD-SAST的电能质量扰动分类识别方法

doi:10.11930/j.issn.1004-9649.202311091

摘要/Abstract

摘要：

新能源大规模并网以及电力电子设备广泛应用引起的复杂电能质量扰动（power quality disturbances，PQDs）会威胁电力系统的安全稳定运行。针对复杂PQDs难以精准检测识别的问题，提出了一种基于变分模态分解（variational mode decomposition，VMD）与同步压缩自适应S变换（synchrosqueezing adaptive S-transform，SAST）的PQDs检测识别方法。首先，使用VMD将PQDs信号分解为多个模态分量，每个分量只保留局部扰动特征，降低PQDs信号的复杂度；其次，提取一种SAST时频分析方法，改善时频分辨率，集中频谱中的能量分布，提高对PQDs信号的检测精度；最后，基于VMD-SAST提取扰动特征，利用3种不同算法实现对PQDs信号的分类识别。通过仿真分析表明：所提出的方法具有较高的PQDs分类识别精度、较高的适用性和较强的抗噪声能力。

关键词: 电能质量扰动, 变分模态分解, 特征提取, 机器学习

Abstract:

Complex power quality disturbances (PQDs) caused by large-scale grid-connection of renewable energy and wide application of power electronic equipment will threaten the safe and stable operation of power system. Aiming at the difficulty of accurate detection and recognition of complex PQDs, a PQDs detection and recognition method based on variational mode decomposition (VMD) and synchrosqueezing adaptive S-transform (SAST) is proposed. Firstly, the VMD is used to PQDs signals into multiple modal components, with each component only preserving local disturbance features so as to reduce the complexity of PQDs signals. Secondly, a SAST time-frequency analysis method is proposed to improve the time-frequency resolution, concentrate the energy distribution in the spectrum and improve the detection accuracy of PQDs signals. Finally, the disturbance features are extracted based on VMD-SAST, and the PQDs signals are classified and recognized by 3 algorithms respectively. The simulation results show that the proposed method has high PQDs classification and recognition accuracy, high applicability and strong anti-noise ability.

Key words: power quality disturbances, variational mode decomposition, feature extraction, machine learning

张博智, 张茹, 焦东翔, 王龙宇, 周一凡, 周丽霞. 基于VMD-SAST的电能质量扰动分类识别方法[J]. 中国电力, 2024, 57(2): 34-40.

Bozhi ZHANG, Ru ZHANG, Dongxiang JIAO, Longyu WANG, Yifan ZHOU, Lixia ZHOU. Power Quality Disturbance Identification Method Based on VMD-SAST[J]. Electric Power, 2024, 57(2): 34-40.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202311091

https://www.electricpower.com.cn/CN/Y2024/V57/I2/34

图/表 7

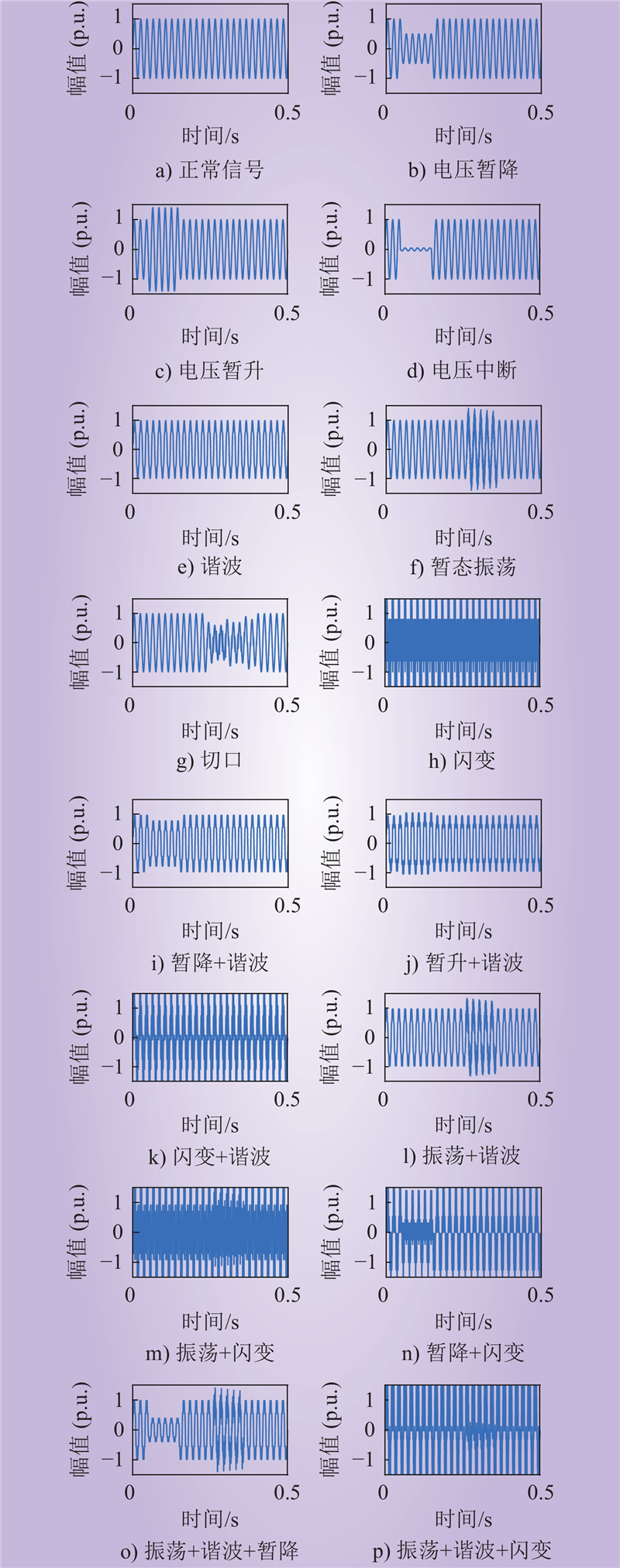

图 1 16种类型PQDs信号

Fig.1 16 types of PQDs signals

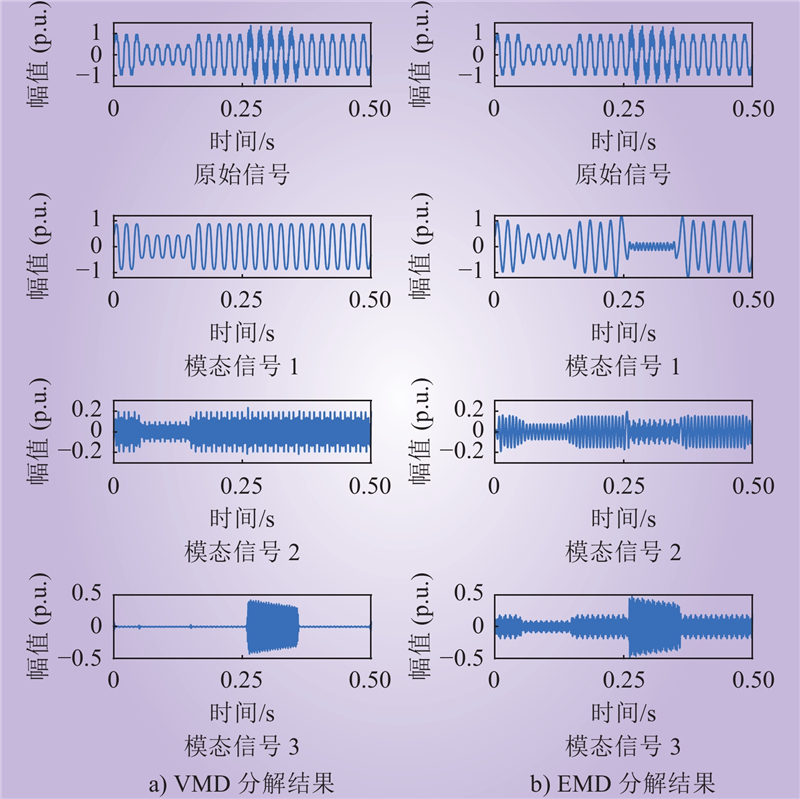

图 2 VMD和EMD对o类PQD信号的分解结果

Fig.2 VMD and EMD decomposition results of o-type PQD signal

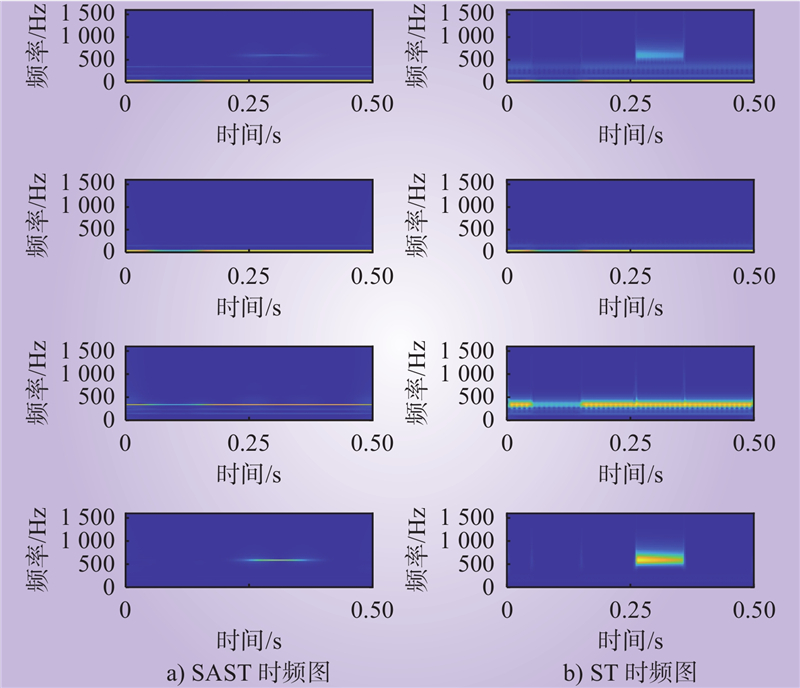

图 3 SAST和ST对o类PQD信号的分析结果

Fig.3 SAST and ST analysis results of o-type PQD signal

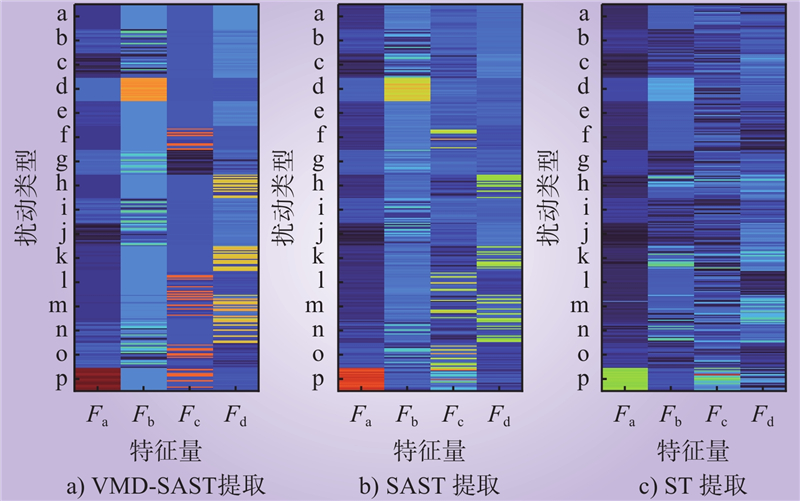

图 4 3种方法提取的特征量分布

Fig.4 Distribution of features extracted by 3 methods

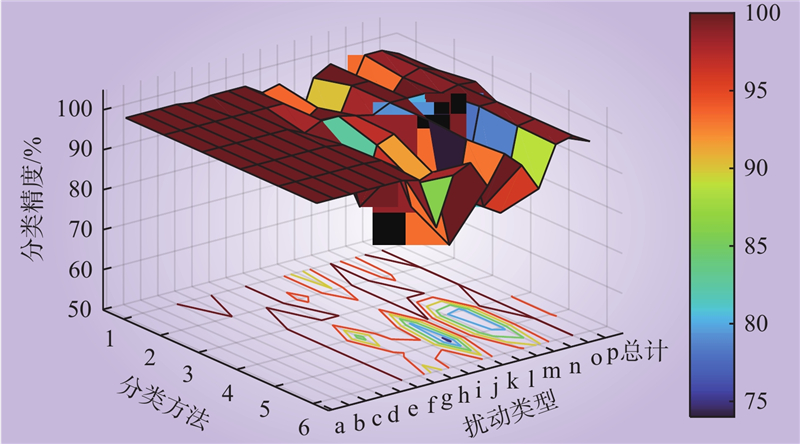

图 5 16种PQDs类型的分类精度

Fig.5 Classification accuracy of 16 types of PQDs

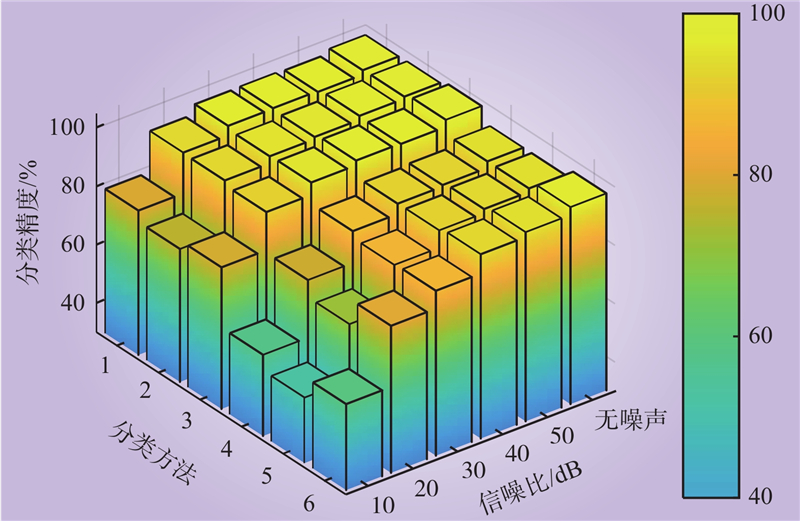

图 6 不同噪声下的分类精度

Fig.6 Classification accuracy with different noise

表 1 30 dB噪声下的4种PQDs类型分类精度

Table 1 Classification accuracy of 4 types of PQDs with 30 dB noise

扰动类型	分类精度/%
扰动类型	方法1	方法4
h	95.37	56.43
k	95.30	65.80
m	97.37	83.60
l	97.40	78.67
