基于高斯混合聚类和改进条件变分自编码的多风电场功率日场景生成方法

doi:10.11930/j.issn.1004-9649.202311050

摘要/Abstract

摘要：

大量出力不确定的风电场并入电网会带来运行隐患和不可控风险，基于变分自编码器的场景生成模型方法能生成确定性场景集合以描述风电出力的不确定性。针对多风电场出力复杂的时空相关性以及在传统变分自编码器模型训练过程中可能存在的“KL坍缩”等问题，提出一种基于高斯混合聚类和改进条件变分自编码器的多风电场时空功率日场景生成方法。通过引入二维卷积技术提取时空相关性进行降维，并采用最大化最小夹角独立正则化技术，强化隐特征的独立性；采用超球面分布替代高斯分布，避免模型出现“KL坍缩”，提高模型场景生成训练的稳定性和准确性；另外，进一步考虑多风电场功率日场景的多样性和灵活性，引入高斯混合聚类技术，使模型可根据特定的条件标签生成具有差异化特征的确定性场景集。实际算例的结果表明，相较于常见方法，所提方法累积概率分布误差下降了17%~71%，时空相关性平均误差分别下降了85%~97%和55%~91%，且能精准生成不同风况类别占比的多风电场功率日场景集，提高了场景生成的多样性和灵活性。

关键词: 风电场景生成, 高斯混合模型, 特征提取, 条件变分自编码器, 超球面分布, 正则化技术

Abstract:

The integration of a large number of wind farms with uncertain output into the power grid will bring potential hazards in operation and uncontrollable risks. The uncertainty of wind power output is described by uncertain scenario sets generated from the variational autoencoder-based scenario generation method. Aimed at the complex spatiotemporal correlation of multi-wind farm output and the possible "KL collapse" during the traditional variational autoencoder model training, this paper proposes a daily scenario generation method of spatiotemporal power based on the Gaussian mixture model and improved conditional variational autoencoding. The two-dimensional convolution technique is introduced to extract the spatiotemporal correlation for dimension reduction, and the maximizing min-angle regularization technique is used to strengthen the independence of latent features. Hyperspherical distribution, instead of Gaussian distribution, is used to avoid "KL collapse" and improve the stability and accuracy of scene generation training. In addition, considering the diversity and flexibility of daily power scenarios of multi-wind farm, Gaussian mixture clustering technology is introduced to generate uncertain scenario sets with differentiated and changing characteristics, enabling the generation of certain scenario sets with varied characteristics according to specific condition labels. The results of real examples show that compared with conventional methods, the proposed method reduces the accumulated error distribution of probability by 17% to 71%, and the average error of temporal and spatial correlation by 85% to 97% and 55% to 91%, respectively. Besides, the proposed method can accurately generate daily power scenario sets of multi-wind farm in different wind conditions, improving scene generation's diversity and flexibility.

Key words: wind power scenario generation, Gaussian mixture model, feature extraction, conditional variational autoencoder, hyperspherical distribution, regularization technique

李丹, 梁云嫣, 缪书唯, 方泽仁, 胡越, 贺帅. 基于高斯混合聚类和改进条件变分自编码的多风电场功率日场景生成方法[J]. 中国电力, 2024, 57(12): 17-29.

Dan LI, Yunyan LIANG, Shuwei MIAO, Zeren FANG, Yue HU, Shuai HE. Daily Power Scenario Generation Method for Multiple Wind Farms Based on Gaussian Mixture Clustering and Improved Conditional Variational Autoencoder[J]. Electric Power, 2024, 57(12): 17-29.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202311050

https://www.electricpower.com.cn/CN/Y2024/V57/I12/17

图/表 16

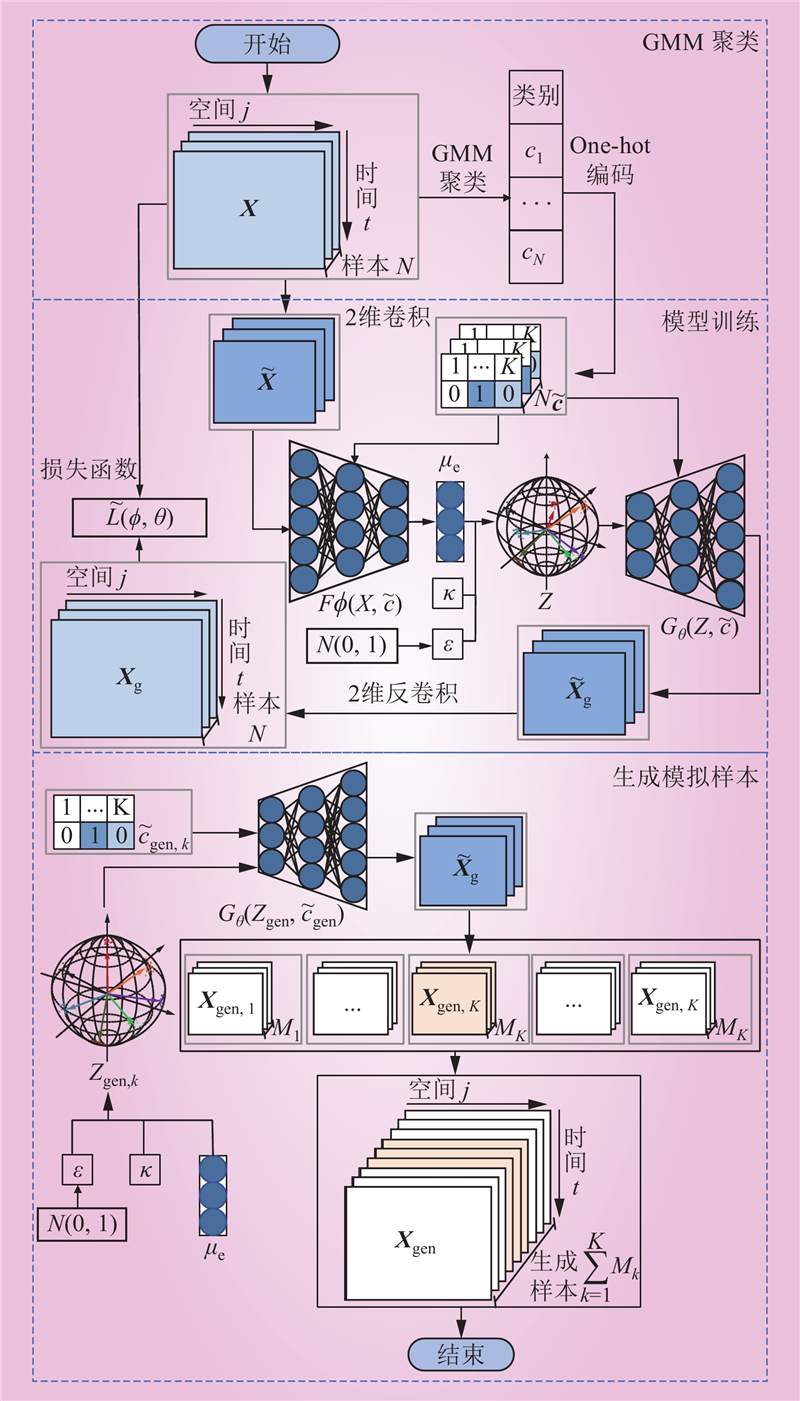

图 1 多风电场时空功率日场景生成总流程

Fig.1 Daily power scenario generation in spatiotemporal multi-wind farms

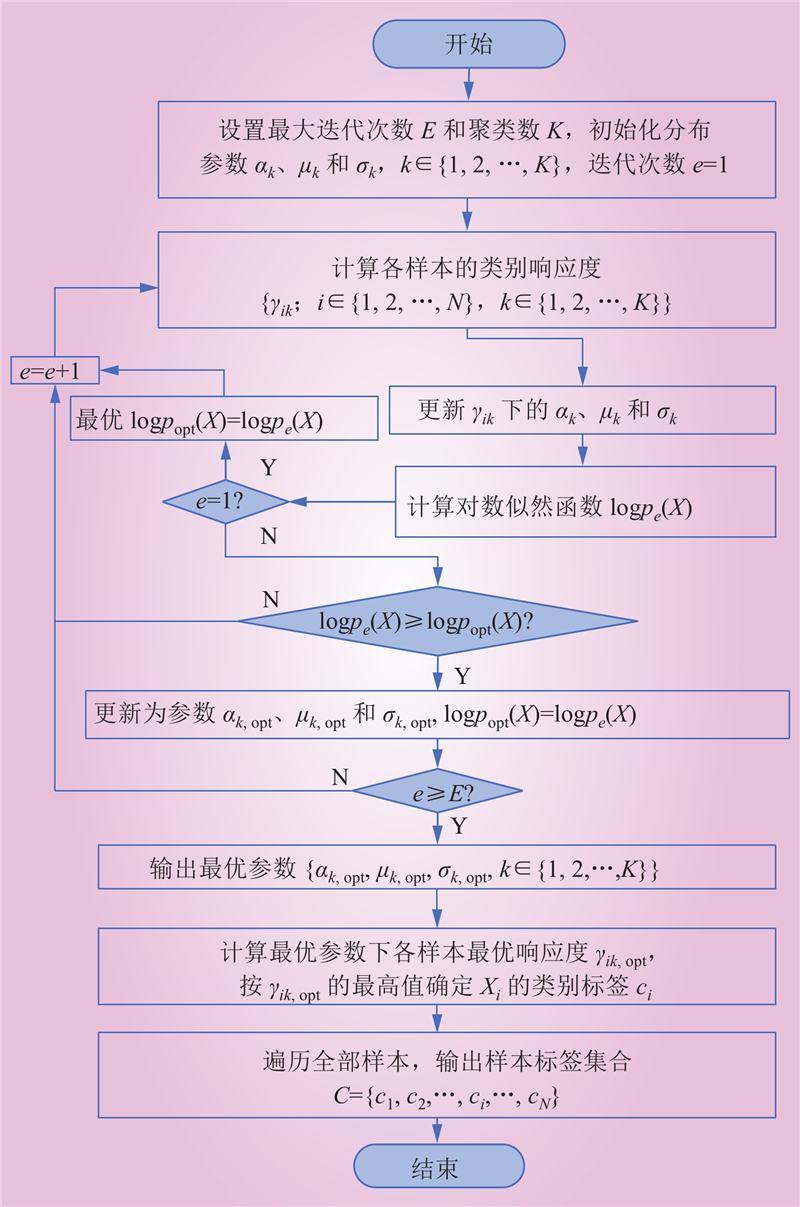

图 2 GMM流程

Fig.2 Flow of GMM

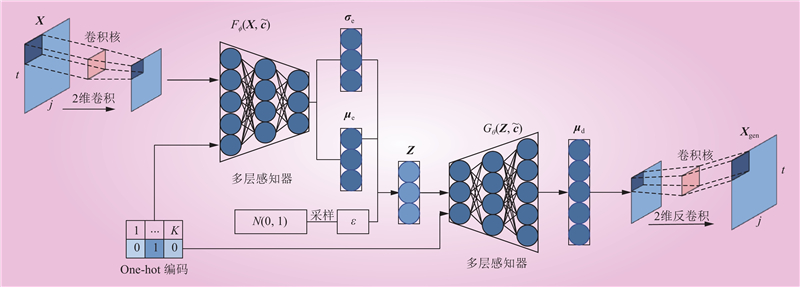

图 3 二维卷积的CVAE场景生成模型框架

Fig.3 Two-dimensional convolved CVAE scenario generation

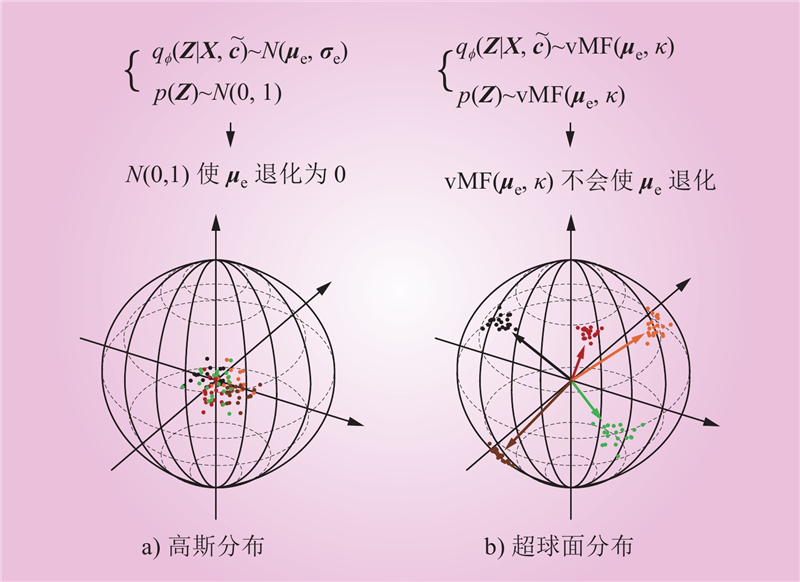

图 4 高斯分布与超球面分布隐特征向量采样对比

Fig.4 Comparison of latent feature vectors sampling between Gaussian and hyperspherical distributions

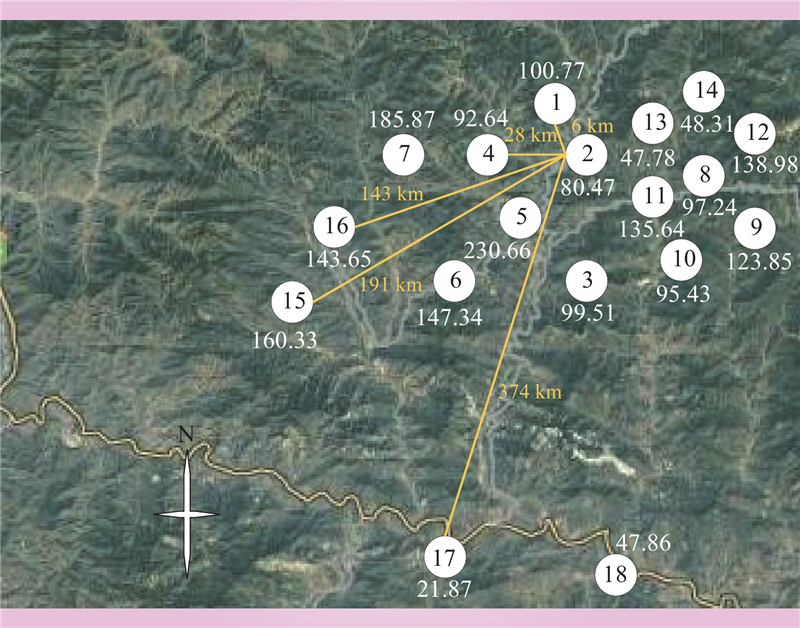

图 5 多风电场地理位置

Fig.5 Distribution of multiple wind farms

表 1 各方法的超参数设置

Table 1 Hyperparameter settings of methods

模型	参数设置明细
VAE	N=433； d_m=24×18； d_z=100； E=10³	p(Z)~N(0,1)；
GAN
CVAE		K=3；p(Z)~N(0,1)
CGAN		K=3
vMF-CVAE		K=3；p(Z)~vMF(κ)；κ=10⁵
1D-GMM-ICVAE		K=3；p(Z)~vMF(κ)； κ=10⁵；λ=100
2D-GMM-ICVAE		K=3；p(Z)~vMF(κ)； κ=10⁵； H=150(3×2)；λ=100

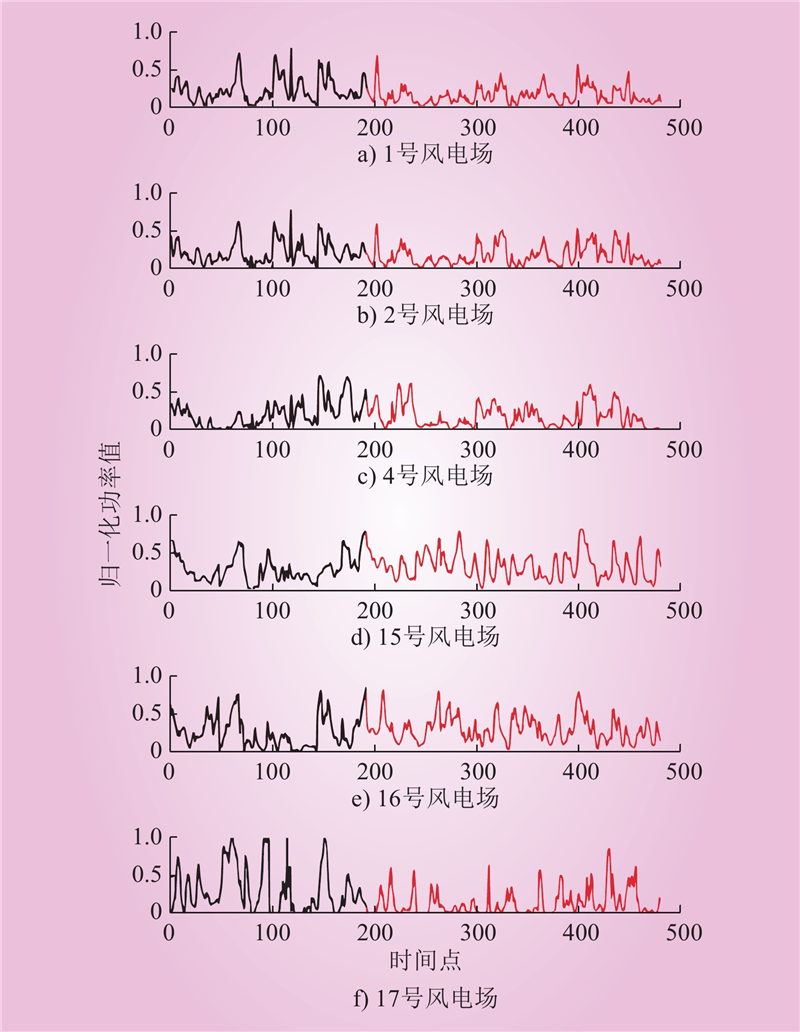

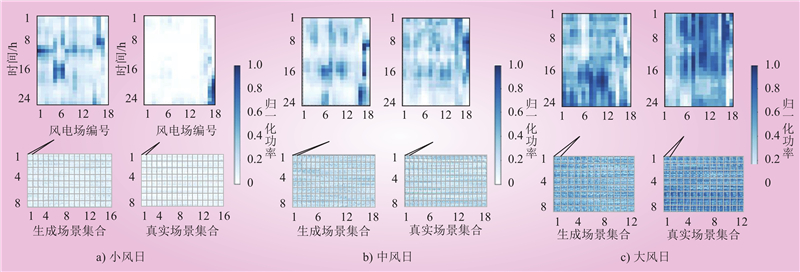

图 6 真实功率场景与生成功率场景

Fig.6 Real power scenarios and generated power scenarios

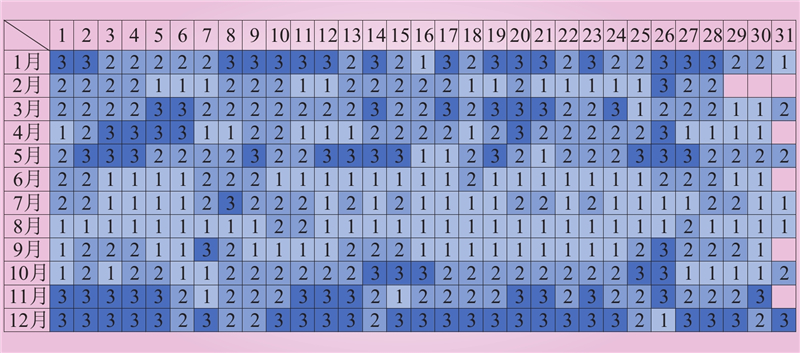

图 7 2014年风电时空功率日场景的聚类结果

Fig.7 Clustering results of daily spatiotemporal scenarios of wind power in 2014

图 8 不同类别条件下原始场景和生成场景对比

Fig.8 Comparison of original and generated scenarios in different label conditions

表 2 不同聚类方式下生成场景的评价指标对比

Table 2 Evaluation indexes of generated scenarios in different clustering ways

聚类方式	E_MAAP		隐特征平均相关系数		时/空相关系数的 E_RMS		E_RMS-CDF
聚类方式	数值/ %	Ip/ 百分比	数值	Ip/%	数值	Ip/%	数值/ MW	Ip/ %
GMM 聚类	6.10	0	0.17	0	0.02/0.09	0/0	0.13	0
月份	13.69	7.59	0.37	53.38	0.13/0.23	86.40/60.79	0.25	46.80
四季	11.92	5.82	0.35	50.62	0.11/0.19	84.64/52.91	0.23	40.89
多/少风季	11.09	4.99	0.28	39.15	0.07/0.34	80.23/75.82	0.15	11.92
不分类	14.97	8.87	0.43	59.95	0.24/0.98	93.03/90.87	0.30	55.81

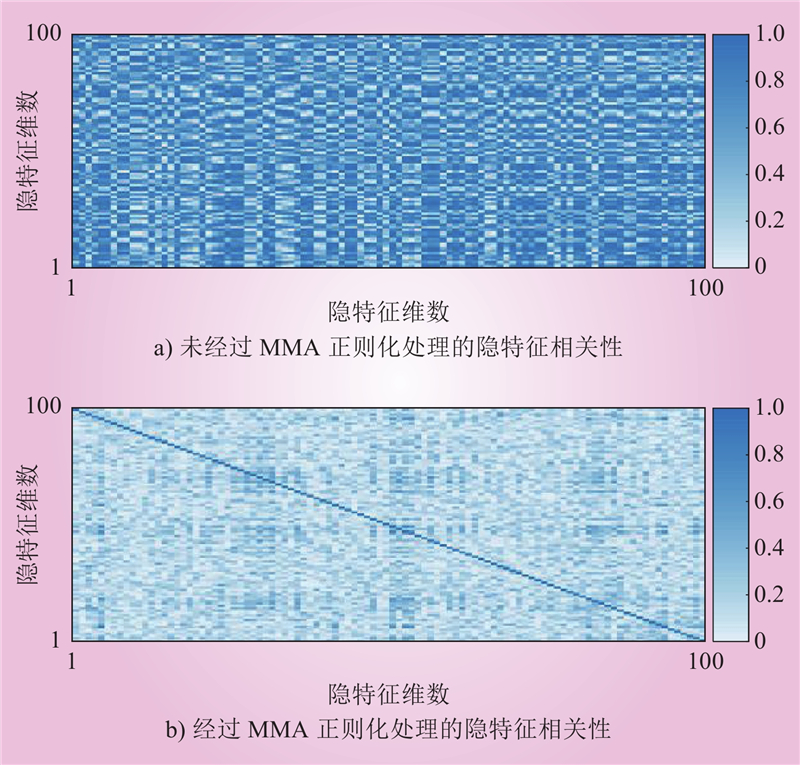

图 9 MMA对隐特征的影响对比

Fig.9 Comparison of MMA's influence on latent features

表 3 不同方法下生成场景的评价指标对比

Table 3 Evaluation index comparisons of the scenes generated by different methods

模型	E_MAAP					隐特征平均相关系数					时空相关系数的E_RMS					E_RMS-CDF
	全部		小风日	中风日	大风日	全部		小风日	中风日	大风日	全部		小风日	中风日	大风日	全部		小风日	中风日	大风日
	值/ %	Ip/ 百分比	小风日	中风日	大风日	值	Ip/ %	小风日	中风日	大风日	值	Ip/ %	小风日	中风日	大风日	值/ MW	Ip/ %	小风日	中风日	大风日
2D-GMM- ICVAE	6.10	0	6.07	5.85	6.42	0.17	0	0.15	0.15	0.21	0.02/0.09	0	0.02/0.09	0.01/0.07	0.03/0.12	0.13	0	0.13	0.12	0.15
1D-GMM- ICVAE	6.90	0.80	6.87	6.53	7.12	0.23	25	0.22	0.19	0.24	0.11/0.20	85/55	0.11/0.19	0.10/0.17	0.14/0.22	0.16	17	0.15	0.14	0.20
vMF-CVAE	7.39	1.29	7.33	6.79	8.06	0.33	48	0.31	0.28	0.36	0.13/0.31	87/71	0.13/0.25	0.13/0.22	0.14/0.33	0.20	32	0.15	0.19	0.26
CVAE	12.82	6.72	12.63	11.49	13.67	0.51	66	0.50	0.48	0.54	0.22/0.43	92/79	0.22/0.42	0.21/0.39	0.23/0.43	0.28	52	0.24	0.24	0.34
CGAN											0.32/0.92	95/90				0.33	59	\	\	\
GAN											0.50/0.93	97/90				0.46	71	\	\	\
VAE	15.02	8.92				0.54	68				0.32/0.98	95/91				0.39	65	\	\	\

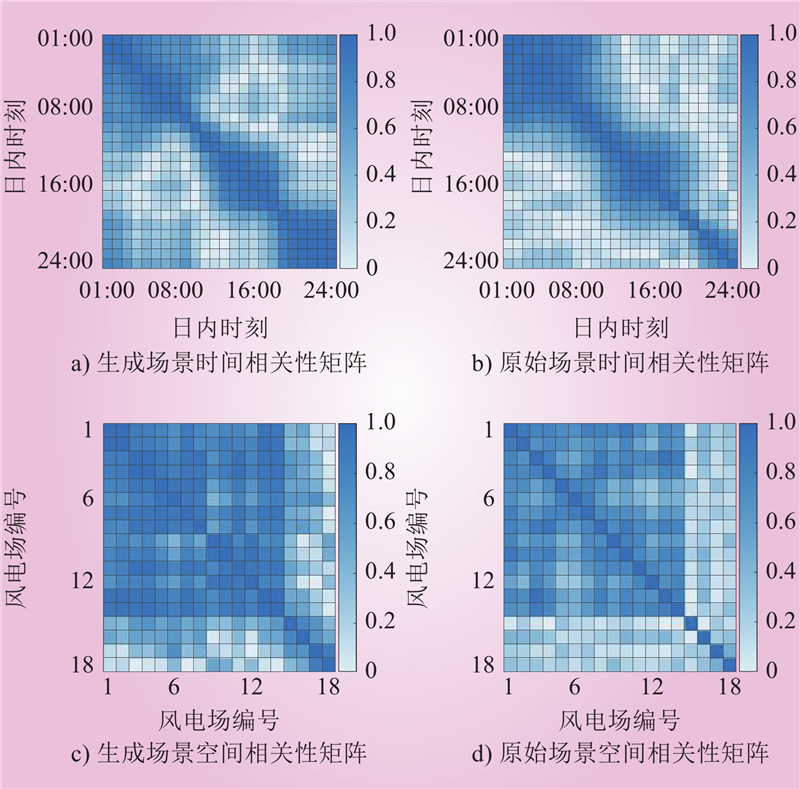

图 10 时空相关性系数矩阵对比热图

Fig.10 Heatmap comparison of spatiotemporal correlation coefficient matrixes

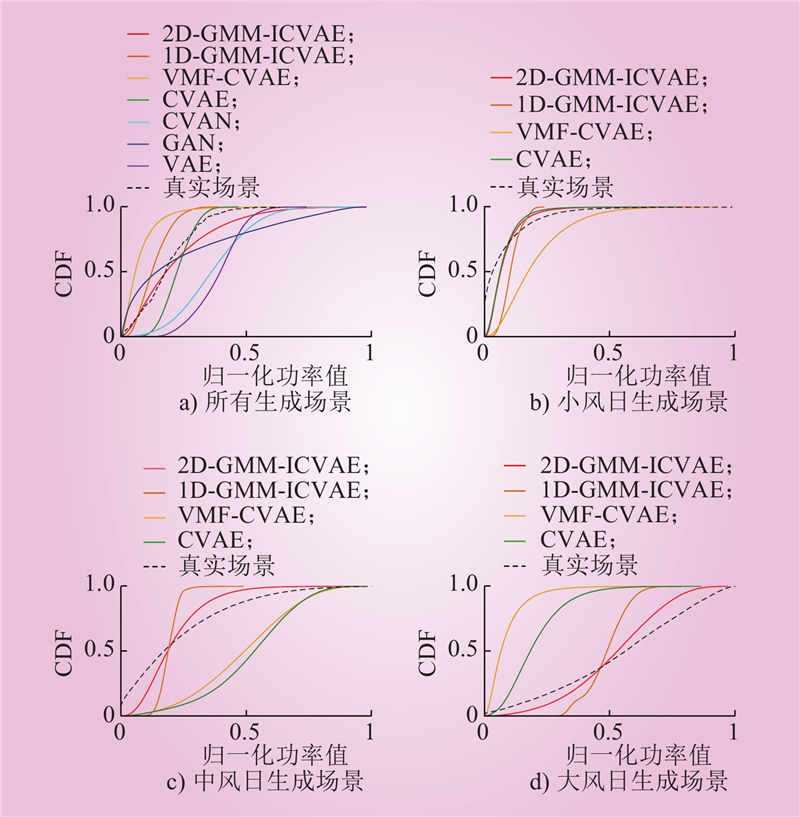

图 11 CDF曲线对比

Fig.11 CDF curve comparisons

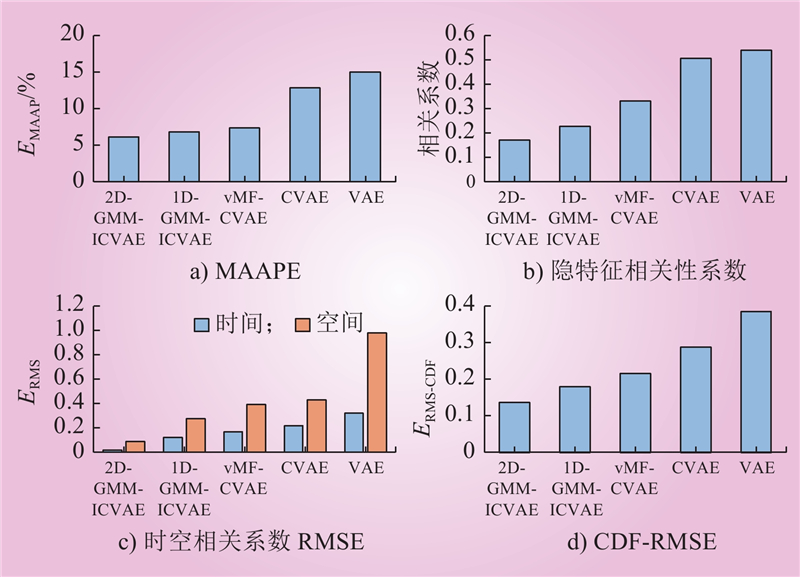

图 12 消融模型的误差指标对比

Fig.12 Error index comparisons of ablation models

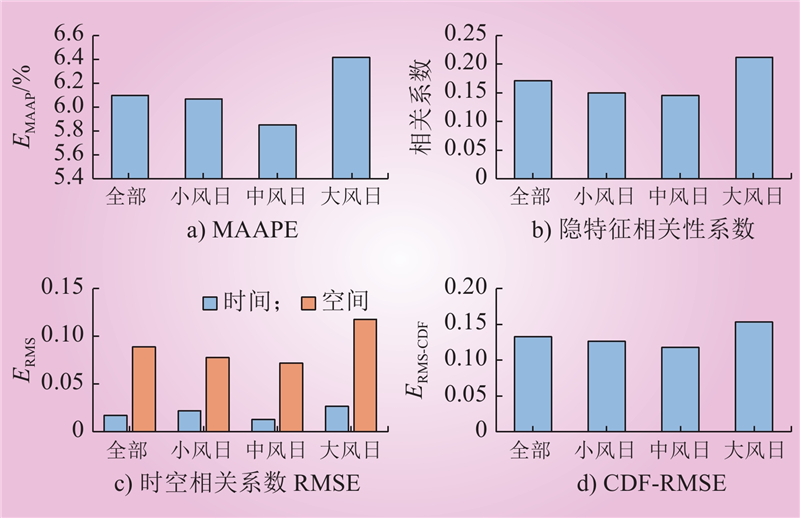

图 13 本文模型不同风况误差指标对比
