基于参数优化的VMD-SVD和LSTM的输电杆塔倾斜状态识别

doi:10.11930/j.issn.1004-9649.202302065

摘要/Abstract

摘要：

针对输电杆塔结构状态信息提取难度大、精度低等问题，提出了一种基于北方苍鹰算法优化的变分模态分解（northern goshawk optimized variational mode decomposition，NGO-VMD）与长短期记忆（long short-term memory，LSTM）神经网络的输电杆塔倾斜状态识别方案。通过北方苍鹰优化算法解决了变分模态分解参数难确定的问题，并且证明其分解的各阶本征模态分量（intrinsic mode function，IMF）可以有效提取出杆塔结构的模态信息。为了使信息特征更为明显，对IMF分量进行奇异值分解（singular value decomposition，SVD），发现各阶分量的奇异值在杆塔不同状态下有较为明显的区别。最后引入LSTM神经网络进行特征分类，形成故障诊断模型。依托某110 kV猫头塔对模型进行试验验证，结果表明：所提方法对杆塔倾斜状态的识别准确率为96.68%，与其他方法相比，具有效率更高、稳定性更强、更加精准的优势。

关键词: 杆塔倾斜, 状态识别, 北方苍鹰算法优化, 自适应变分模态分解, 奇异值分解, 长短期记忆神经网络

Abstract:

To address the problems of high difficulty and poor accuracy in extracting the structural state information of transmission towers, a transmission tower tilt state recognition solution is proposed based on the northern goshawk optimized variational mode decomposition (NGO-VMD) and long short-term memory (LSTM) neural network. The problem to determine the VMD parameters is solved by NGO, and it is demonstrated that the decomposed intrinsic mode function (IMF) components of each order can effectively extract the modal information of the tower structure. In order to make the information features more obvious, the singular value decomposition (SVD) of IMF components is performed, and it is found that the singular values of each order component have more obvious differences in different states of the tower. Finally, the LSTM neural network is introduced for feature classification to form a fault diagnosis model. A 110 kV cathead-type tower is used to verify the proposed model, and the results show that the proposed method can achieve an accuracy of 96.68% in identification of tower tilting state. Compared with other methods, this solution has the advantages of higher efficiency, stronger stability and better accuracy.

Key words: tower tilt, state recognition, northern goshawk optimized, adaptive variational mode decomposition, singular value decomposition, long short-term memory neural network

赵隆, 温冠儒, 刘志成, 袁鹏, 董新胜. 基于参数优化的VMD-SVD和LSTM的输电杆塔倾斜状态识别[J]. 中国电力, 2023, 56(12): 217-226, 237.

Long ZHAO, Guanru WEN, Zhicheng LIU, Peng YUAN, Xinsheng DONG. Transmission Tower Tilt State Recognition Based on Parameter Optimization of VMD-SVD and LSTM[J]. Electric Power, 2023, 56(12): 217-226, 237.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202302065

https://www.electricpower.com.cn/CN/Y2023/V56/I12/217

图/表 17

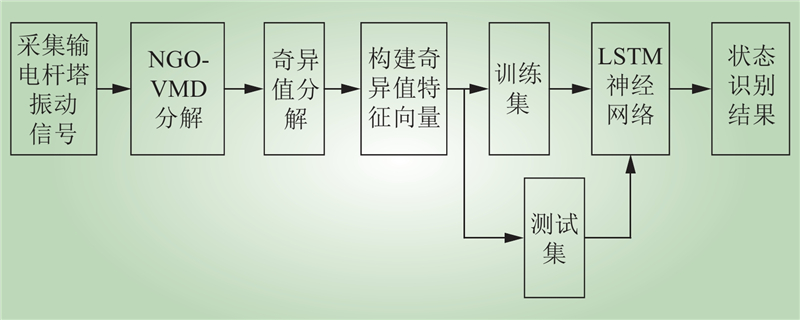

图 1 杆塔倾斜状态识别流程

Fig.1 Tower tilt state recognition process

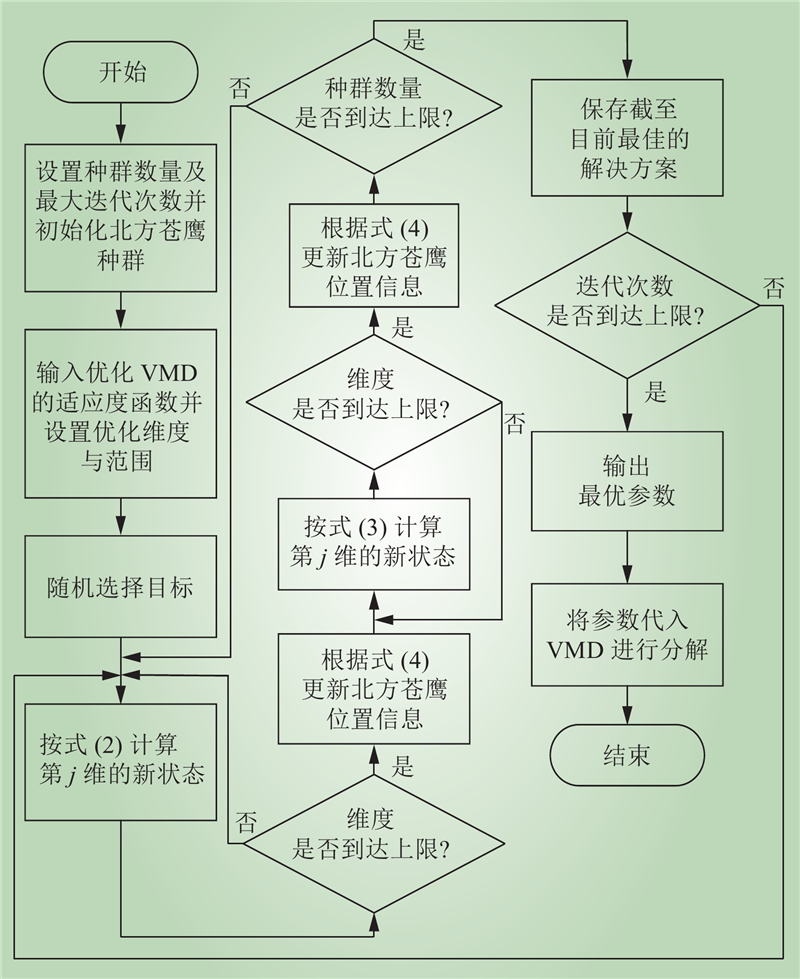

图 2 NGO-VMD流程

Fig.2 NGO-VMD Process

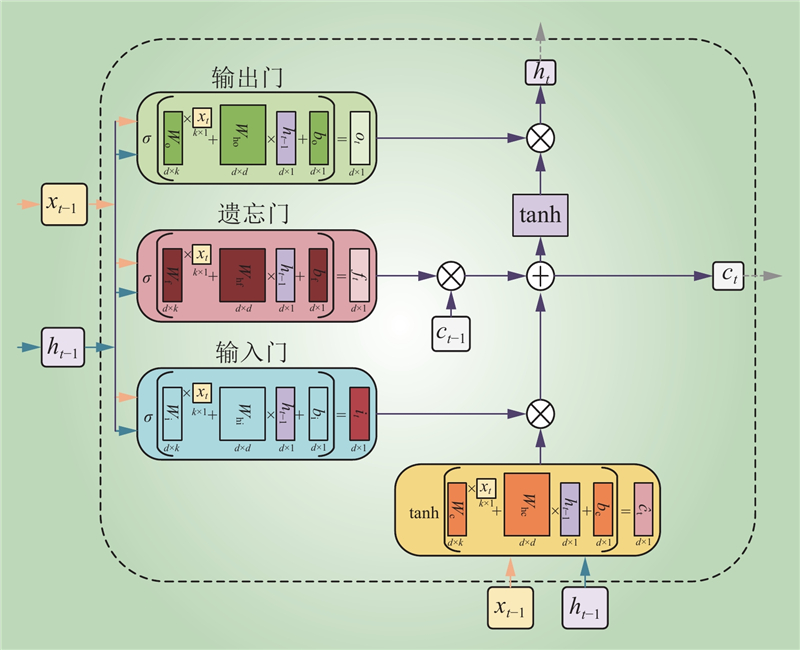

图 3 LSTM单元结构

Fig.3 LSTM cell structure

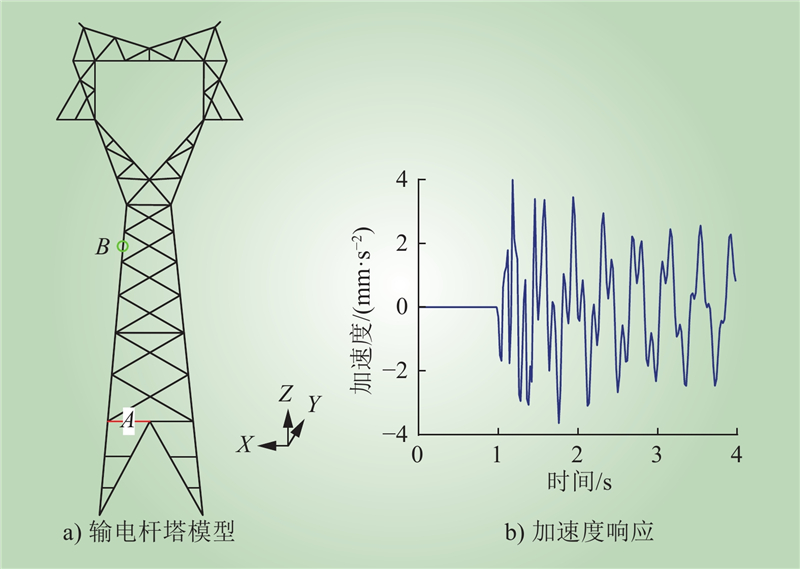

图 4 有限元模拟

Fig.4 Finite element simulation

表 1 杆塔固有频率

Table 1 Tower inherent frequency

模态数		固有频率/Hz
1		2.5770
2		3.2770
3		9.2728
4		14.8530
5		17.2590

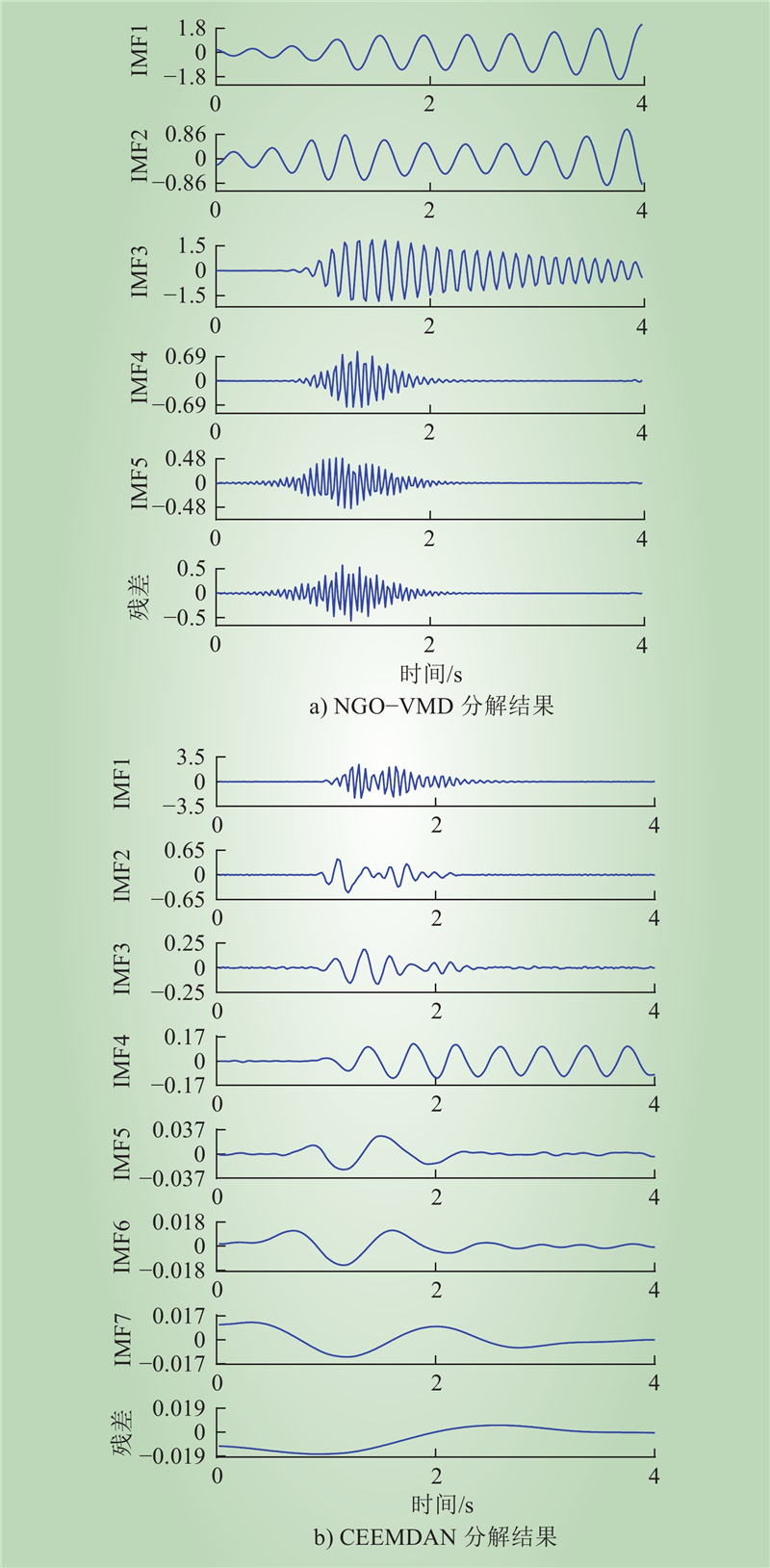

图 5 NGO-VMD与CEEMDAN的分解结果

Fig.5 Decomposition results of NGO-VMD and CEEMDAN

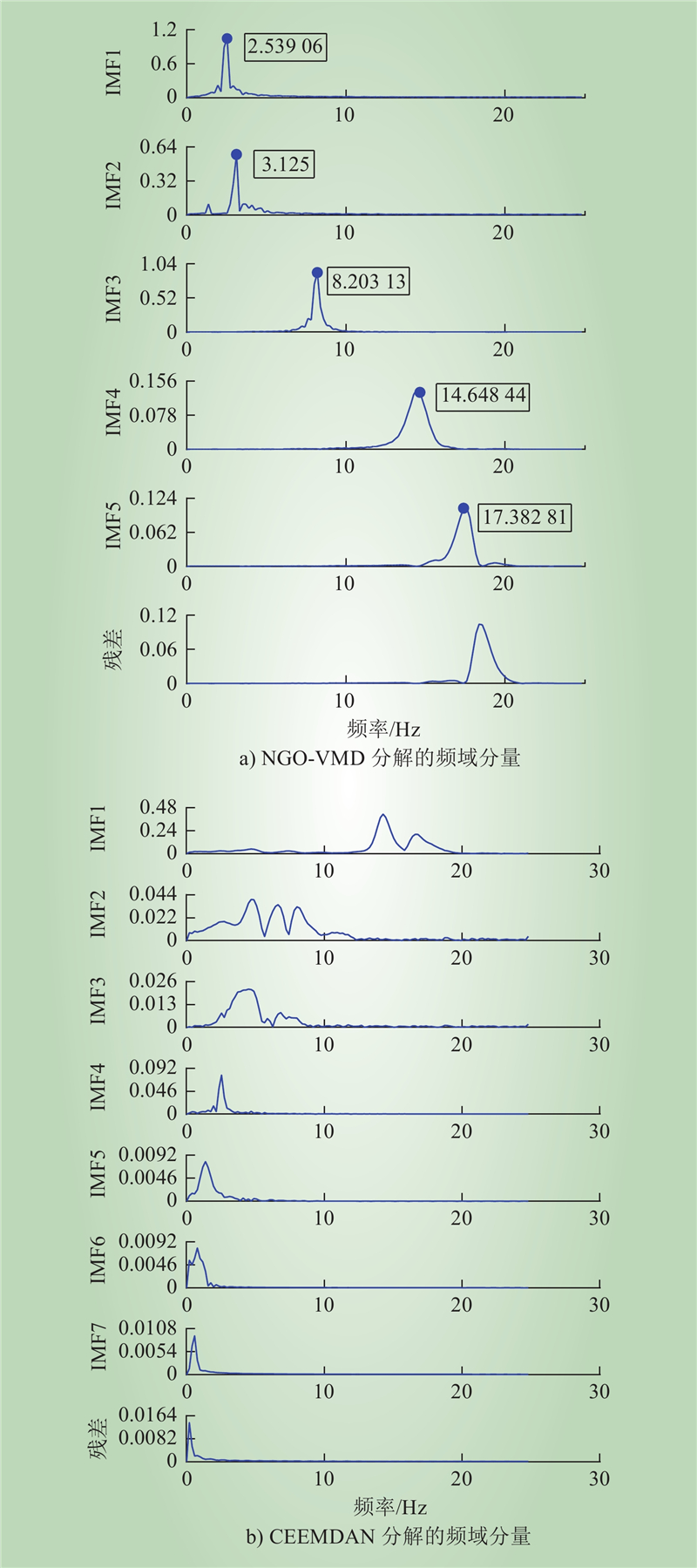

图 6 NGO-VMD与CEEMDAN分解的IMF频域分量

Fig.6 IMF frequency domain components of NGO-VMD and CEEMDAN decomposition

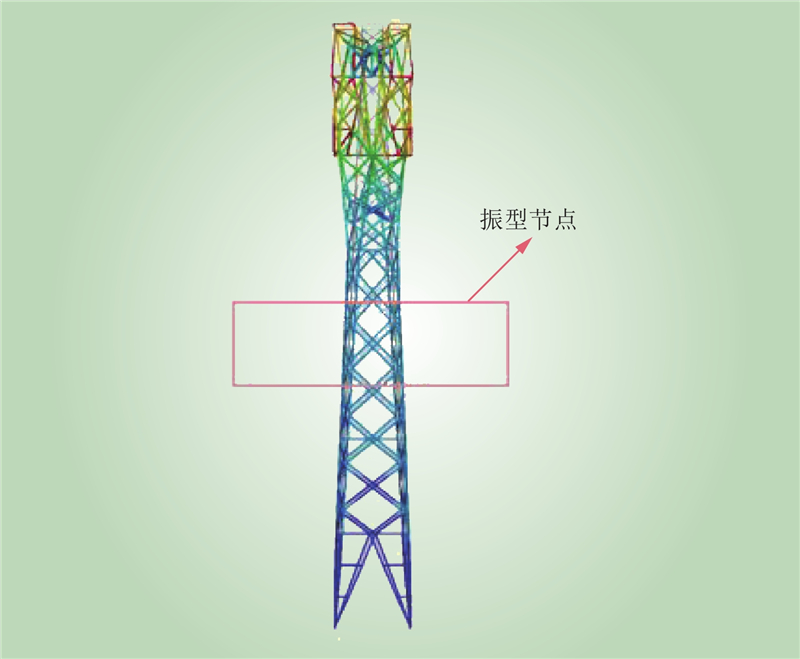

图 7 输电杆塔第3阶振型

Fig.7 The third-order vibration mode of transmission tower

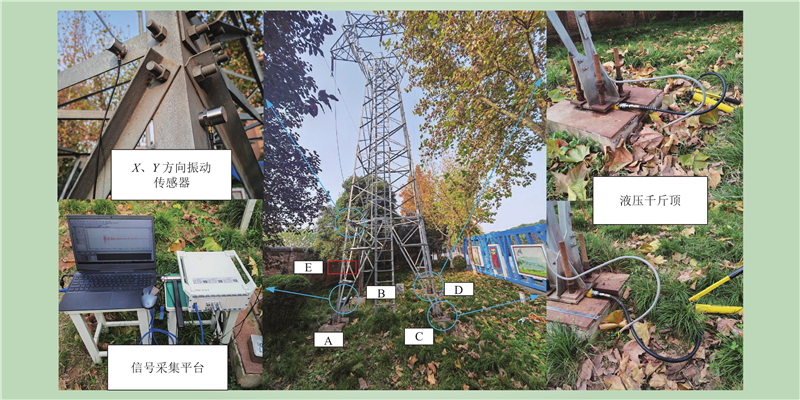

图 8 响应测试现场

Fig.8 Response test site

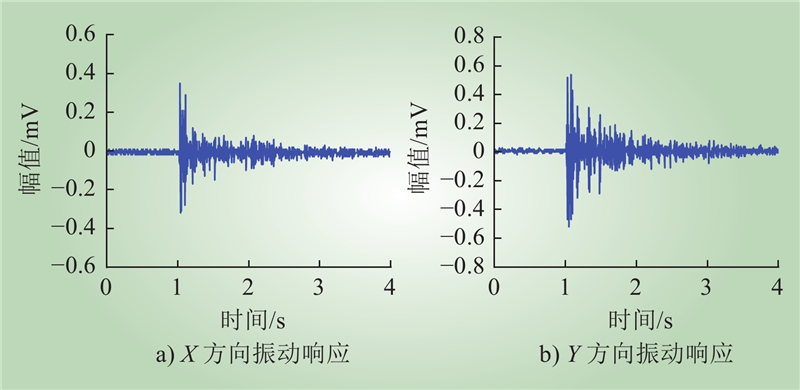

图 9 猫头塔振动信号

Fig.9 Cathead tower vibration signals

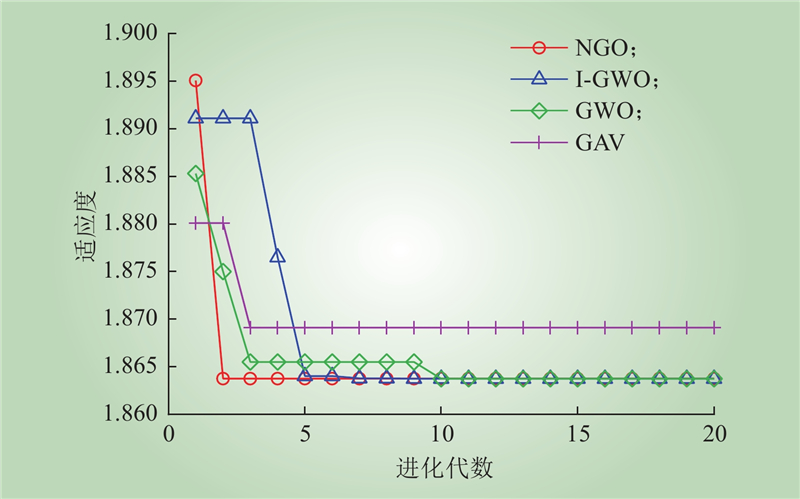

图 10 各优化算法适应度曲线

Fig.10 Adaptation curve of each optimization algorithm

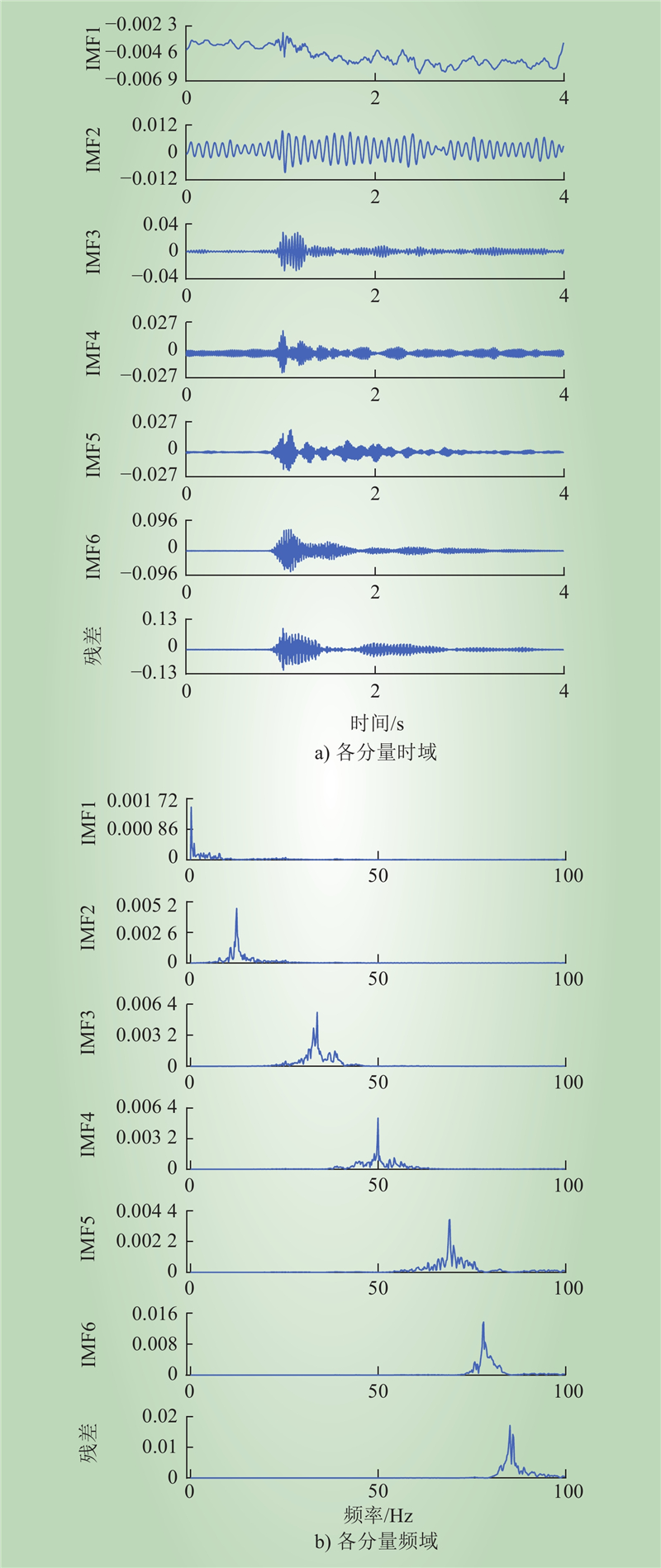

图 11 振动信号的NGO-VMD分解

Fig.11 NGO-VMD decomposition of vibration signals

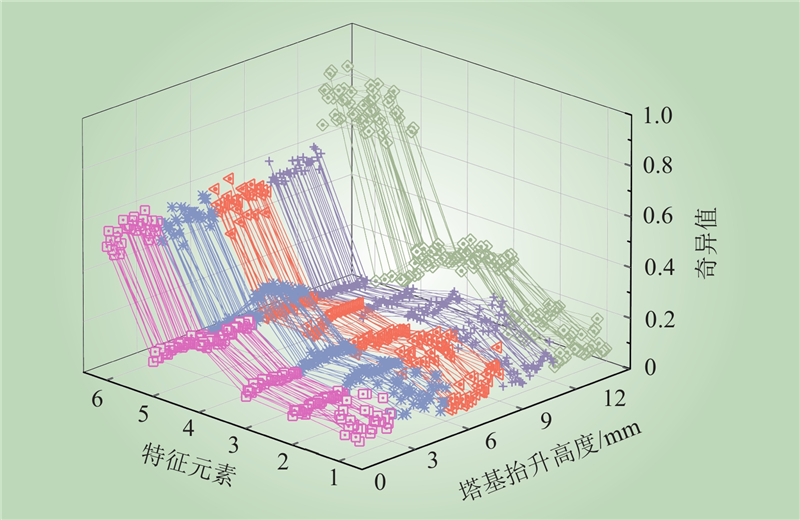

图 12 不同倾斜状态下的奇异值分布

Fig.12 Distribution of singular values in different tilt states

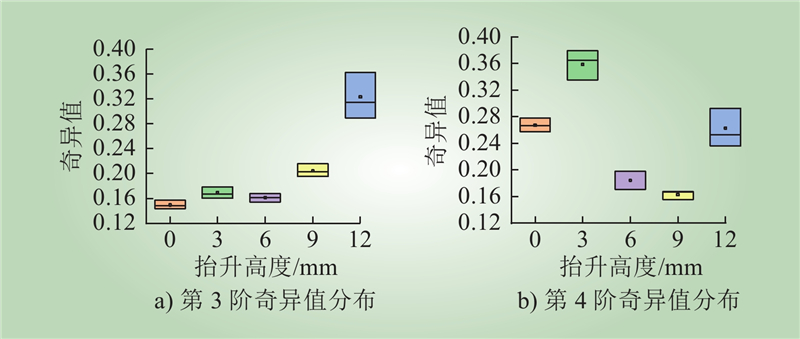

图 13 第3、4阶奇异值箱图

Fig.13 The 3rd and 4th order singular value box plots

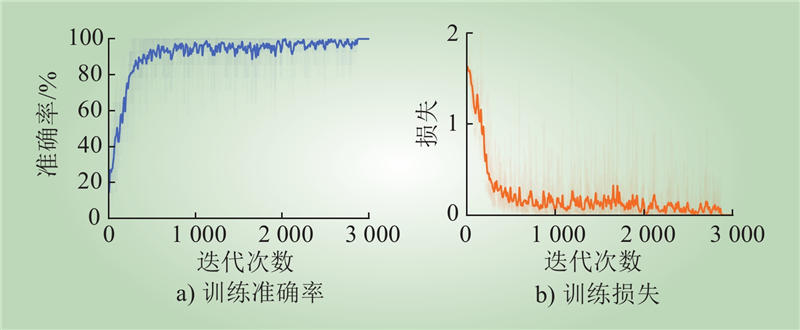

图 14 LSTM训练进度

Fig.14 LSTM training progress

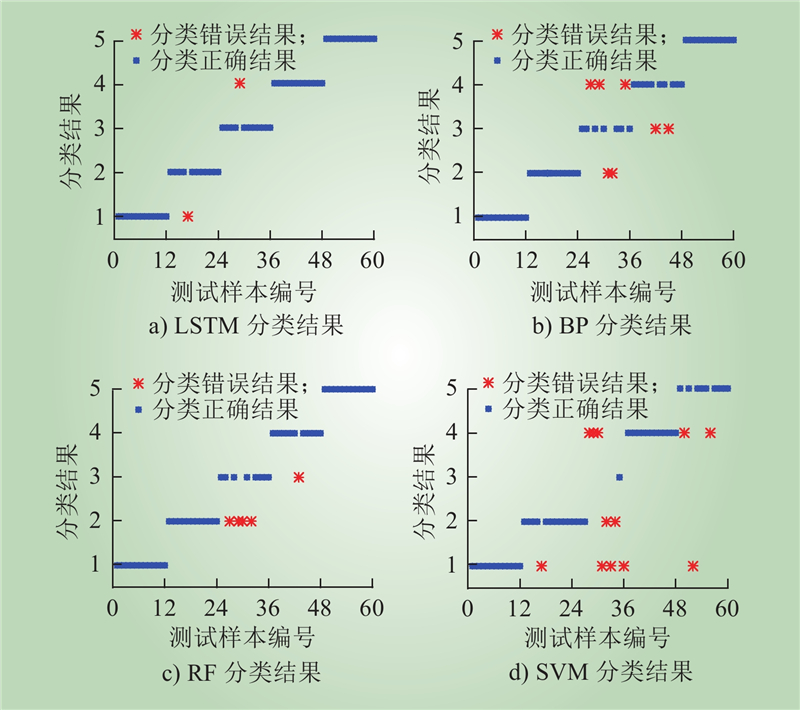

图 15 不同分类方法的测试集分类结果

Fig.15 Classification results of test sets with different classification methods

表 2 不同分类方法的准确率

Table 2 Accuracy of different classification methods

分类方法	训练集准确率/%	测试集准确率/%
LSTM	98.89	96.67
BP	95.56	88.34
RF	94.45	91.67
SVM	84.45	76.67
