基于元启发式算法的新能源电力系统振荡稳定性最差工况搜索方法

doi:10.11930/j.issn.1004-9649.202404131

中国电力 ›› 2025, Vol. 58 ›› Issue (3): 65-72.DOI: 10.11930/j.issn.1004-9649.202404131

• 高比例新能源接入电网的协调控制与优化运行 • 上一篇下一篇

基于元启发式算法的新能源电力系统振荡稳定性最差工况搜索方法

汪林光¹(), 李旭涛²(), 任勇²(), 谢小荣¹()

1. 新型电力系统运行与控制全国重点实验室（清华大学），北京　100084
2. 国网宁夏电力有限公司电力科学研究院，宁夏银川　750002

收稿日期:2024-04-28 出版日期:2025-03-28 发布日期:2025-03-26
作者简介:
汪林光（1999），男，通信作者，博士研究生，从事电力系统稳定分析技术研究，E-mail：wlg20@mails.tsinghua.edu.cn
李旭涛（1988），男，硕士，工程师，从事新能源、多直流系统仿真与分析技术研究，E-mail：lee_abner@126.com
任勇（1989），男，博士，工程师，从事电力系统分析研究，E-mail：visayw@126.com
谢小荣（1975），男，博士，教授，博士生导师，从事电力系统次同步振荡分析与抑制技术研究，E-mail：xiexr@tsinghua.edu.cn
基金资助:
国网宁夏电力有限公司科技项目（高占比新能源电力系统宽频振荡风险评估技术研究及应用，5229DK230001）。

A Searching Method for the Worst Operating Condition of Oscillatory Stability in New Energy Systems Based on Metaheuristic Algorithm

Linguang WANG¹(), Xutao LI²(), Yong REN²(), Xiaorong XIE¹()

1. State Key Laboratory of Power System Operation and Control (Tsinghua University), Beijing 100084, China
2. Electric Power Research Institute, State Grid Ningxia Electric Power Co., Ltd., Yinchuan 750002, China

Received:2024-04-28 Online:2025-03-28 Published:2025-03-26
Supported by:
This work is supported by Science and Technology Project of State Grid Ningxia Electric Power Co., Ltd. (Research and Application of Wide-Band Oscillation Risk Assessment Technology for Power System with High Penetration of Renewables, No.5229DK230001).

摘要/Abstract

摘要：

随着新能源的广泛接入，由电力电子设备与电网间相互作用引发的振荡问题日益凸显。在电力系统运行规划过程中，需要对恶劣工况下系统振荡风险展开评估。因而如何找到最恶劣工况，成为亟待解决的关键问题。提出了一种基于元启发式算法的新能源电力系统振荡稳定性最差工况搜索方法。根据所研究的系统选择工况变量，采用对数导数法构建振荡稳定性分析函数，选择元启发式算法并辨识系统振荡最差工况，最后，根据系统振荡最差工况分析系统振荡风险。将该方法应用于某实际大规模风电接入系统，计算得到该系统的振荡最差工况并评估了系统振荡风险。

关键词: 新能源并网, 振荡风险评估, 最差工况搜索, 元启发式算法

Abstract:

With the massive integration of new energy, the oscillation problem caused by the interaction between power electronics devices and the grid is becoming prominent. In the planning and operation stage of power system, it is necessary to assess the risk of system oscillation and analyze this risk under severe operating conditions. Therefore, how to search the worst operating conditions has become a key problem to solve. In this paper, an oscillatory worst condition search method is proposed based on metaheuristic algorithm. In this method, the operating condition variables are first selected in according with the system. Then, an oscillation stability analysis function is constructed based on logarithmic derivative method. After that, metaheuristic algorithm is selected to identify the worst operating condition of oscillatory stability. Finally, the risk of system oscillation is analyzed according to the worst operating condition. This method is applied to an actual large-scale wind power integration system, resulting in the worst operating condition is calculated and the risk of system oscillation is evaluated.

Key words: new energy integration, oscillation risk assessment, worst operating condition search, metaheuristic algorithm

汪林光, 李旭涛, 任勇, 谢小荣. 基于元启发式算法的新能源电力系统振荡稳定性最差工况搜索方法[J]. 中国电力, 2025, 58(3): 65-72.

Linguang WANG, Xutao LI, Yong REN, Xiaorong XIE. A Searching Method for the Worst Operating Condition of Oscillatory Stability in New Energy Systems Based on Metaheuristic Algorithm[J]. Electric Power, 2025, 58(3): 65-72.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202404131

https://www.electricpower.com.cn/CN/Y2025/V58/I3/65

图/表 8

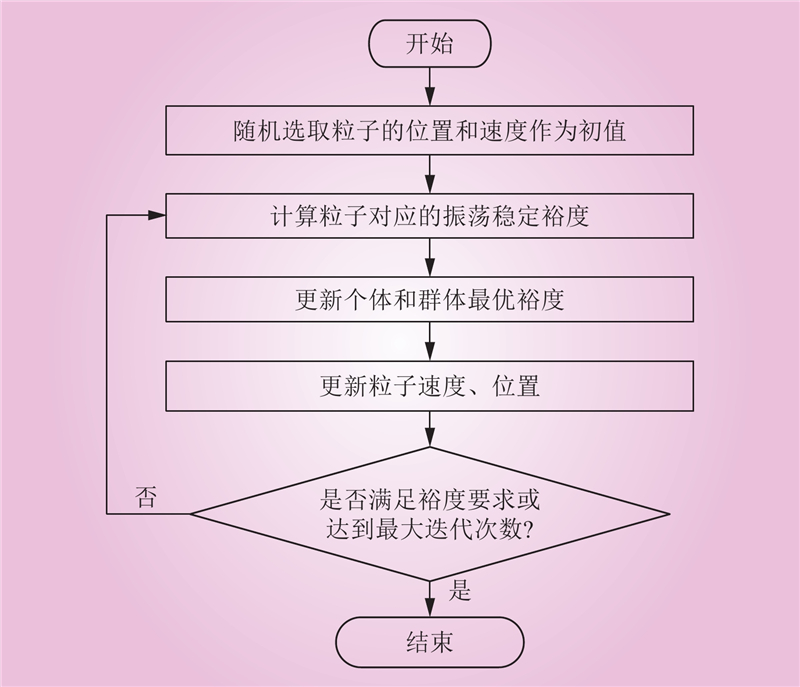

图 1 基于粒子群算法的振荡稳定性最差工况搜索

Fig.1 The search process for worst operating condition in oscillation stability based on PSO

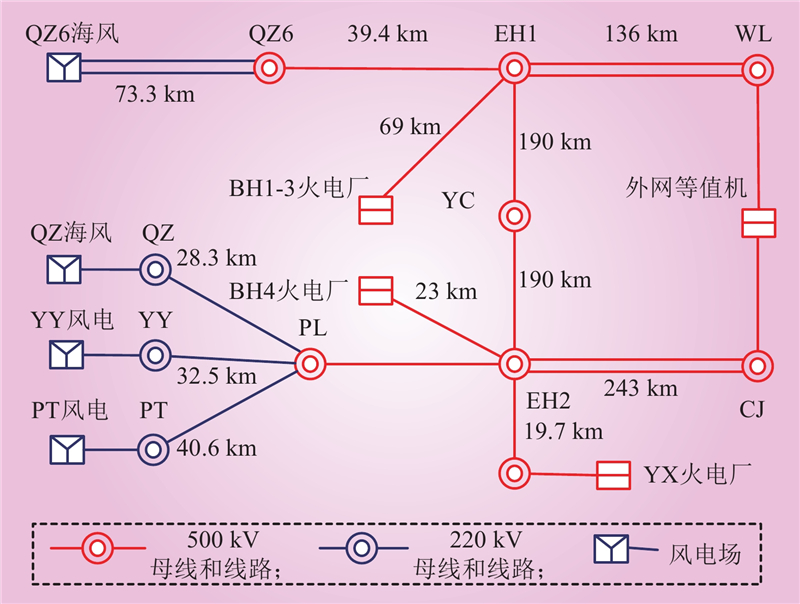

图 2 大规模风电接入系统

Fig.2 Large-scale wind integration system

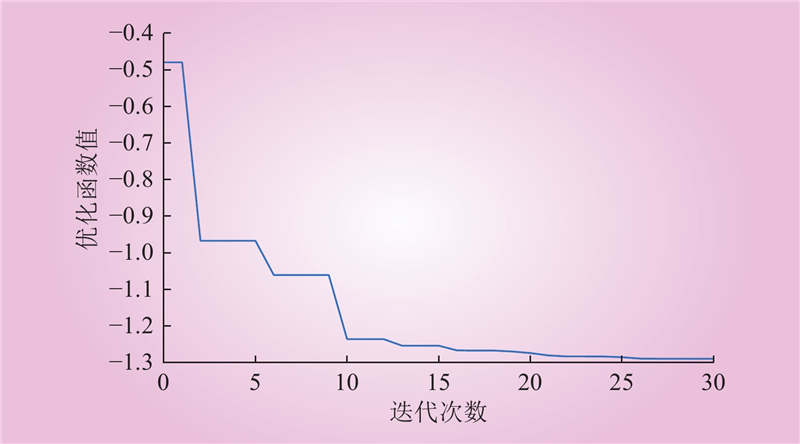

图 3 粒子群算法迭代过程

Fig.3 Iteration process in PSO

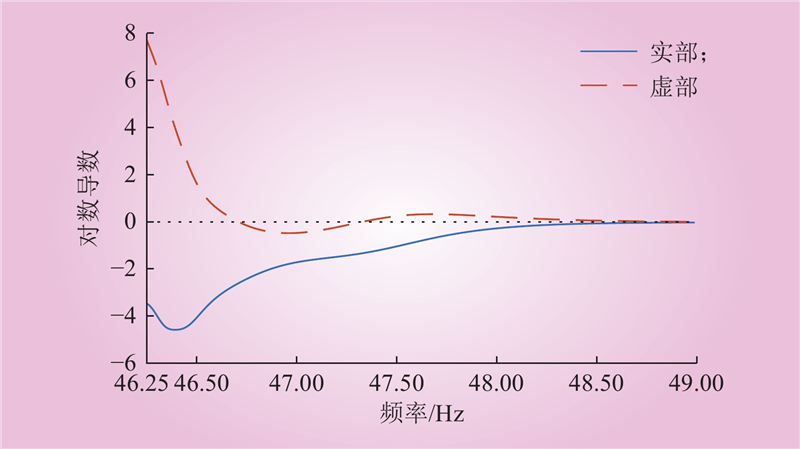

图 4 有功功率为0.100 p.u.时的对数导数曲线

Fig.4 Logarithmic derivative curve when P is 0.100 p.u.

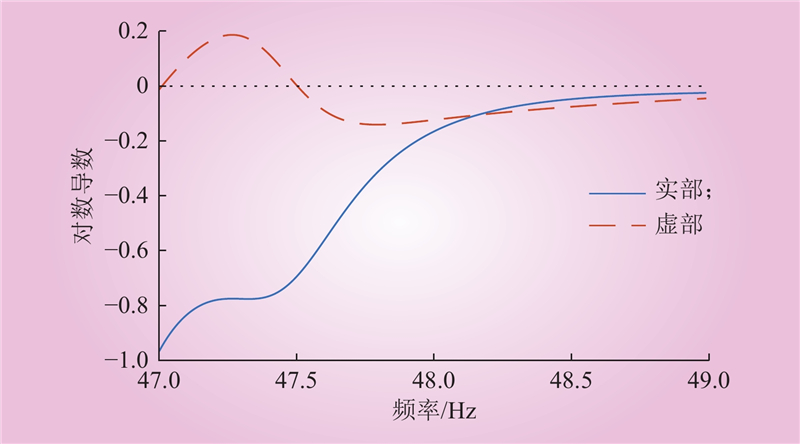

图 5 有功功率为0.434 p.u.时的对数导数曲线

Fig.5 Logarithmic derivative curve when P is 0.434 p.u.

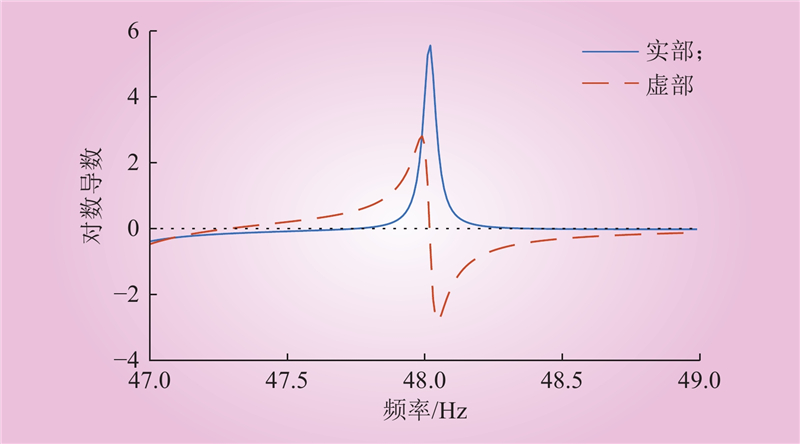

图 6 有功功率为1.000 p.u.时的对数导数曲线

Fig.6 Logarithmic derivative curve when P is 1.000 p.u.

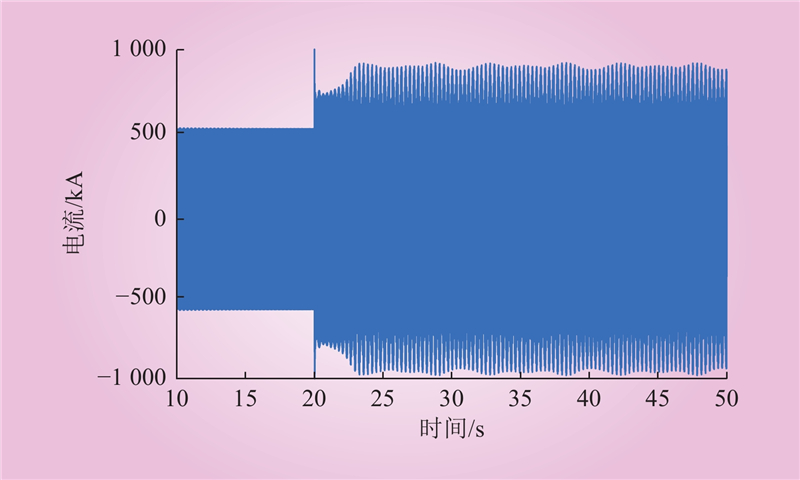

图 7 风电场输出电流波形

Fig.7 Output current waveform of the wind farm

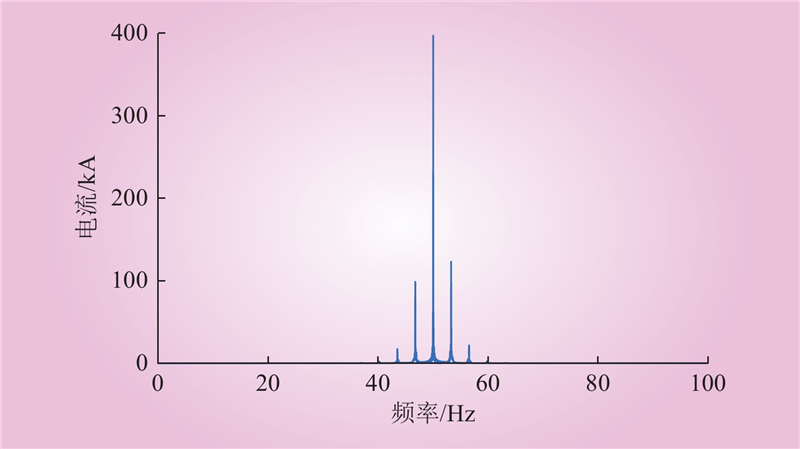

图 8 次/超同步频段风电场输出电流频谱

Fig.8 Wind farm output current sub-/ super- synchronous band spectrum

参考文献 21

1	马宁宁, 谢小荣, 贺静波, 等. 高比例新能源和电力电子设备电力系统的宽频振荡研究综述[J]. 中国电机工程学报, 2020, 40 (15): 4720- 4732.
	MA Ningning, XIE Xiaorong, HE Jingbo, et al. Review of wide-band oscillation in renewable and power electronics highly integrated power systems[J]. Proceedings of the CSEE, 2020, 40 (15): 4720- 4732.
2	聂永辉, 张瑞东, 周勤勇, 等. 海上风电场经柔直送出系统的虚拟导纳中频振荡抑制策略[J]. 电力系统保护与控制, 2024, 52 (9): 36- 45.
	NIE Yonghui, ZHANG Ruidong, ZHOU Qinyong, et al. Virtual admittance control strategy for medium-frequency oscillation in an offshore wind farm when connected to a VSC-HVDC[J]. Power System Protection and Control, 2024, 52 (9): 36- 45.
3	王渝红, 程杨帆, 廖建权, 等. 基于改进电容电流反馈的含非线性负载光伏并网系统振荡抑制策略[J]. 电力系统保护与控制, 2023, 51 (16): 10- 22.
	WANG Yuhong, CHENG Yangfan, LIAO Jianquan, et al. scillation suppression strategy of a PV grid-connected system with nonlinear loads based on improved capacitor current feedback[J]. Power System Protection and Control, 2023, 51 (16): 10- 22.
4	李长宇, 刘博昊, 肖仕武, 等. 基于功率外环附加阻尼控制的柔性直流抑制送端火电机组次同步振荡研究[J]. 电力科学与技术学报, 2024, 39 (2): 20- 27, 73.
	LI Changyu, LIU Bohao, XIAO Shiwu, et al. Research on subsynchronous oscillation suppression strategy of flexible HVDC with thermal power units based on external loop damping control[J]. Journal of Electric Power Science and Technology, 2024, 39 (2): 20- 27, 73.
5	邵冰冰, 赵峥, 肖琪, 等. 多直驱风机经柔直并网系统相近次同步振荡模式参与因子的弱鲁棒性分析[J]. 电工技术学报, 2023, 38 (3): 754- 769.
	SHAO Bingbing, ZHAO Zheng, XIAO Qi, et al. Weak robustness analysis of close subsynchronous oscillation modes' participation factors in multiple direct-drive wind turbines with the VSC-HVDC system[J]. Transactions of China Electrotechnical Society, 2023, 38 (3): 754- 769.
6	杨舒婷, 陈新, 黄通, 等. 考虑MMC环流控制的海上风电经柔直送出系统阻抗塑造方法[J]. 中国电力, 2023, 56 (4): 38- 45.
	YANG Shuting, CHEN Xin, HUANG Tong, et al. Impedance modeling method of offshore wind farm integration through MMC-HVDC with MMC circulation control[J]. Electric Power, 2023, 56 (4): 38- 45.
7	赵越, 严干贵, 王振洋, 等. 风火打捆经LCC-HVDC送出系统的次同步扭振分析[J]. 中国电力, 2023, 56 (6): 18- 30.
	ZHAO Yue, YAN Gangui, WANG Zhenyan, et al. Analysis of sub-synchronous torsional vibration of wind-thermal bundling transmission system via LCC-HVDC[J]. Electric Power, 2023, 56 (6): 18- 30.
8	国家市场监督管理总局, 国家标准化管理委员会. 电力系统安全稳定计算规范: GB/T 40581—2021[S]. 北京: 中国标准出版社.
9	谢小荣, 刘华坤, 贺静波, 等. 直驱风机风电场与交流电网相互作用引发次同步振荡的机理与特性分析[J]. 中国电机工程学报, 2016, 36 (9): 2366- 2372.
	XIE Xiaorong, LIU Huakun, HE Jingbo, et al. Mechanism and characteristics of subsynchronous oscillation caused by the interaction between full-converter wind turbines and AC systems[J]. Proceedings of the CSEE, 2016, 36 (9): 2366- 2372.
10	王旭斌, 杜文娟, 王海风. 直驱风电并网系统中锁相环引起次同步振荡的开环模式谐振机理分析[J]. 中国电机工程学报, 2018, 38 (7): 1935- 1950, 2209.
	WANG Xubin, DU Wenjuan, WANG Haifeng. Mechanism analysis of open-loop modal resonance on subsynchronous oscillations caused by PLL in power systems with integrated PMSGs[J]. Proceedings of the CSEE, 2018, 38 (7): 1935- 1950, 2209.
11	周佩朋, 李光范, 宋瑞华, 等. 直驱风机与静止无功发生器的次同步振荡特性及交互作用分析[J]. 中国电机工程学报, 2018, 38 (15): 4369- 4378, 4637.
	ZHOU Peipeng, LI Guangfan, SONG Ruihua, et al. Subsynchronous oscillation characteristics and interactions of direct drive permanent magnet synchronous generator and static var generator[J]. Proceedings of the CSEE, 2018, 38 (15): 4369- 4378, 4637.
12	马宁宁, 杜维柱, 刘朋印, 等. 基于控制硬件在环测试的风电次/超同步振荡风险评估[J]. 中国电机工程学报, 2022, 42 (15): 5497- 5506.
	MA Ningning, DU Weizhu, LIU Pengyin, et al. Risk assessment of sub-/ sup-synchronous oscillation for wind turbine based on controller-hardware-in-loop test[J]. Proceedings of the CSEE, 2022, 42 (15): 5497- 5506.
13	宗皓翔, 张琛, 蔡旭. 电力电子主导的交直流混联电网振荡分析与评估[J]. 中国电机工程学报, 2023, 43 (10): 3844- 3856.
	ZONG Haoxiang, ZHANG Chen, CAI Xu. Oscillation analysis and evaluation of the power electronics-dominated hybrid AC/DC grid[J]. Proceedings of the CSEE, 2023, 43 (10): 3844- 3856.
14	TAO S, LIU Y B, YAN Y N, et al. SSO risk evaluation for a grid-connected PMSG-based wind farm based on sequential Monte Carlo simulation[J]. CSEE Journal of Power and Energy Systems, 2021, 9 (4): 1348- 1358.
15	季一宁, 王海风. 包含串补的并网直驱风电场振荡稳定性及可行域分析[J]. 电工技术学报, 2024, 39 (3): 686- 698.
	JI Yining, WANG Haifeng. Analysis of oscillation stability and feasible region of parameters in grid-connected direct-drive wind farm with series compensation[J]. Transactions of China Electrotechnical Society, 2024, 39 (3): 686- 698.
16	汪林光, 谢小荣, 许涛, 等. 基于聚合阻抗行列式对数导数计算的振荡稳定性分析方法[J]. 中国电机工程学报, 2023, 43 (11): 4254- 4261.
	WANG Linguang, XIE Xiaorong, XU Tao, et al. Oscillatory stability analysis method based on the logarithmic derivative calculation of aggregated impedance determinant[J]. Proceedings of the CSEE, 2023, 43 (11): 4254- 4261.
17	LIU W, XIE X R, ZHANG X, et al. Frequency-coupling admittance modeling of converter-based wind turbine generators and the control-hardware-in-the-loop validation[J]. IEEE Transactions on Energy Conversion, 2020, 35 (1): 425- 433. DOI
18	LIU W, XIE X R, SHAIR J, et al. A nearly decoupled admittance model for grid-tied VSCs under variable operating conditions[J]. IEEE Transactions on Power Electronics, 2020, 35 (9): 9380- 9389. DOI
19	江璞玉, 刘均, 周奇, 等. 大规模黑箱优化问题元启发式求解方法研究进展[J]. 中国舰船研究, 2021, 16 (4): 1- 18.
	JIANG Puyu, LIU Jun, ZHOU Qi, et al. Advances in meta-heuristic methods for large-scale black-box optimization problems[J]. Chinese Journal of Ship Research, 2021, 16 (4): 1- 18.
20	SHI Y, EBERHART R. A modified particle swarm optimizer[C]//1998 IEEE International Conference on Evolutionary Computation Proceedings. IEEE World Congress on Computational Intelligence (Cat. No. 98TH8360). Anchorage, AK, USA. IEEE.
21	任勇, 李旭涛, 谢小荣, 等. 基于元启发式算法的振荡风险工况辨识方法、介质及系统: CN117713056A[P]. 2024-03-15.
