基于富氧燃烧技术的综合能源两阶段鲁棒低碳经济优化

doi:10.11930/j.issn.1004-9649.202504038

中国电力 ›› 2025, Vol. 58 ›› Issue (7): 24-37.DOI: 10.11930/j.issn.1004-9649.202504038

• 规模化综合能源系统规划与运行技术 • 上一篇下一篇

基于富氧燃烧技术的综合能源两阶段鲁棒低碳经济优化

赵均祥¹(), 文中¹(), 王秋杰¹^,²(), 张业伟³

1. 三峡大学电气与新能源学院，湖北宜昌　443002
2. 新能源微电网湖北省协同创新中心（三峡大学），湖北宜昌　443002
3. 国网宿州市城郊供电公司，安徽宿州 234000

收稿日期:2025-04-17 发布日期:2025-07-30 出版日期:2025-07-28
作者简介:
赵均祥（1998），男，通信作者，硕士研究生，从事综合能源系统优化运行研究，E-mail：zjxctgu@163.com
文中（1968），男，硕士，副教授，从事综合能源系统、电力系统运行与控制技术研究，E-mail：812322399@qq.com
王秋杰（1988），男，讲师，博士，从事综合能源系统运行与规划、弹性配电网等研究，E-mail：wangqiujie@ctgu.edu.cn
基金资助:
湖北省自然科学基金创新发展联合项目（2024AFD362）。

Two-Stage Robust Low-Carbon Economic Optimization for Integrated Energy System Based on Oxy-Fuel Combustion Technology

ZHAO Junxiang¹(), WEN Zhong¹(), WANG Qiujie¹^,²(), ZHANG Yewei³

1. College of Electrical and New Energy, China Three Gorges University, Yichang 443002, China
2. Hubei Provincial Collaborative Innovation Center for New Energy Microgrid (China Three Gorges University), Yichang 443002, China
3. State Grid Suzhou Suburban Power Supply Compangy, Suzhou 234000, China

Received:2025-04-17 Online:2025-07-30 Published:2025-07-28
Supported by:
This work is supported by Hubei Provincial Natural Science Foundation Innovation and Development Joint Fund Project (No.2024AFD362).

摘要/Abstract

摘要：

在“双碳”目标持续推进与综合能源系统运行不确定性不断增强的双重背景下，实现低碳与鲁棒调度已成为关键挑战。面向风电和负荷波动下的低碳调度问题，构建融合富氧燃烧碳捕集（oxy-fuel combustion carbon capture，OXYCC）、燃气掺氢与奖惩阶梯式碳交易机制的低碳协同优化模型，并引入两阶段鲁棒优化方法以增强系统在不确定条件下的调度可行性与稳定性。采用列与约束生成算法（column-and-constraint generation，C&CG）提升模型求解效率。仿真结果表明，所提模型可使碳排放量降低29.99%，系统成本减少16.11%；在多源波动与扰动情形下仍保持良好运行性能，验证了该策略在低碳性与鲁棒性双重目标下的有效性与工程适用性。

关键词: 综合能源系统, 富氧燃烧, 掺氢, 奖惩阶梯式碳交易, 两阶段鲁棒优化

Abstract:

Against the dual backdrop of steadily advancing the "dual carbon" goals and increasing operational uncertainties in integrated energy systems (IES), achieving low-carbon and robust scheduling has become a critical challenge. To address the low-carbon scheduling problem under wind power and load fluctuations, this paper developed a coordinated optimization model that integrates Oxy-fuel combustion carbon capture (OXYCC), hydrogen blending and reward-penalty tiered carbon trading mechanism, and a two-stage robust optimization approach was introduced to enhance the system’s scheduling feasibility and operational stability under uncertainties. The column-and-constraint generation (C&CG) algorithm was employed to improve the model’s computational efficiency. Simulation results show that the proposed model achieves a 29.99% reduction in carbon emissions and a 16.11% decrease in system operational costs, and also maintains strong performance under multi-source fluctuations and disturbances, which verifies its effectiveness and practical applicability in addressing dual objectives of low-carbon operation and robust scheduling.

Key words: integrated energy systems, oxy-fuel combustion, hydrogen blending, reward-penalty tiered carbon trading, two-stage robust optimization

赵均祥, 文中, 王秋杰, 张业伟. 基于富氧燃烧技术的综合能源两阶段鲁棒低碳经济优化[J]. 中国电力, 2025, 58(7): 24-37.

ZHAO Junxiang, WEN Zhong, WANG Qiujie, ZHANG Yewei. Two-Stage Robust Low-Carbon Economic Optimization for Integrated Energy System Based on Oxy-Fuel Combustion Technology[J]. Electric Power, 2025, 58(7): 24-37.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202504038

https://www.electricpower.com.cn/CN/Y2025/V58/I7/24

图/表 22

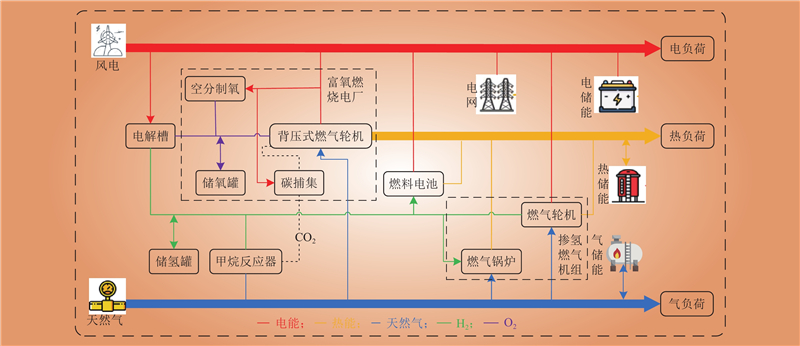

图 1 IES系统框架

Fig.1 Structure of IES

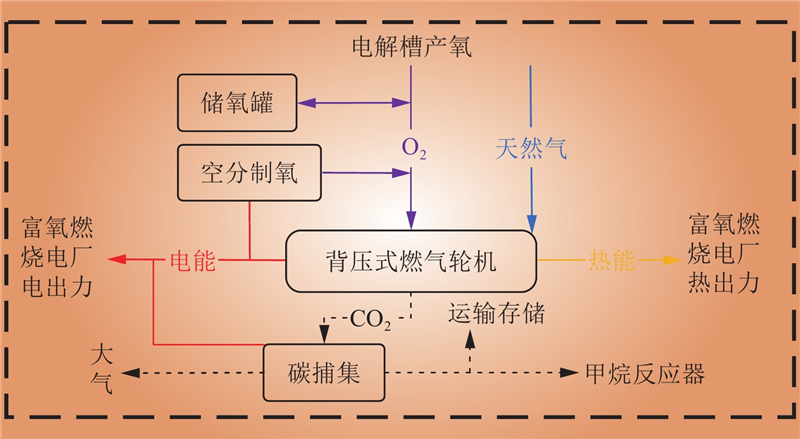

图 2 OECP能流图

Fig.2 Energy flow diagram of OECP

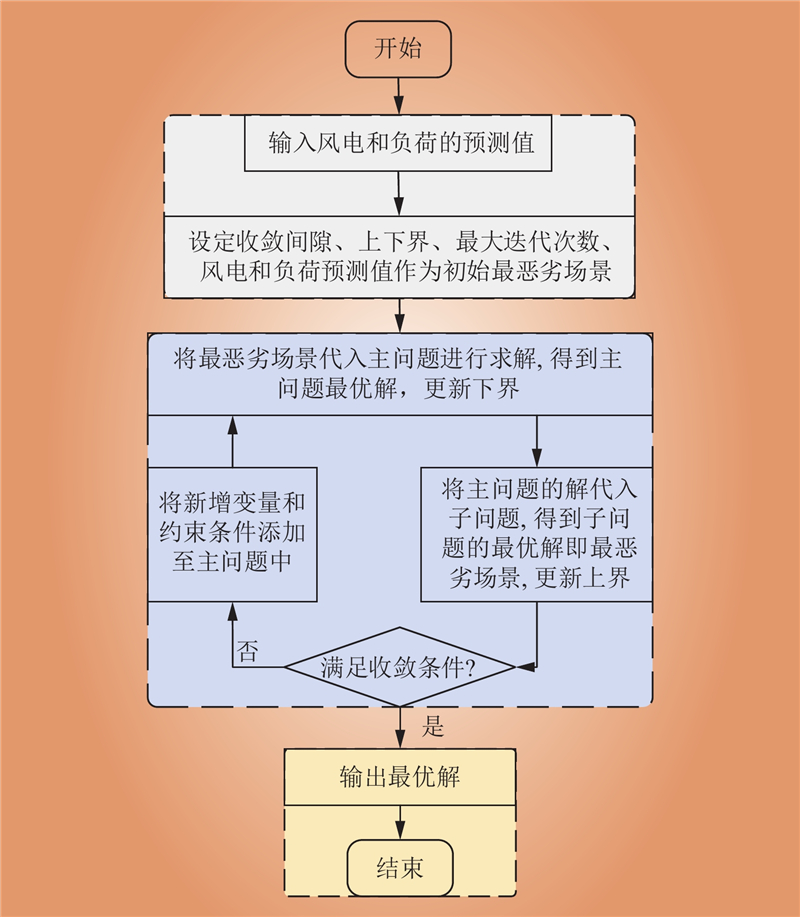

图 3 求解流程

Fig.3 Solution process

表 1 分时电价

Table 1 Time-of-use tariffs

时段	电价/(元·(kW·h)^–1)	时段类型
00:00—07:00	0.38	谷
22:00—24:00	0.38	谷
07:00—11:00	0.68	平
14:00—18:00	0.68	平
11:00—14:00	1.20	峰
18:00—22:00	1.20	峰

表 2 OECP设备参数

Table 2 OECP device parameters

参数		数值
GU电效率		0.65
GU热电比		1
GU单位耗氧量/(m³·(kW·h)^–1)		0.6
碳捕集水平		0.98
碳捕集单位运行能耗/((kW·h)·kg^–1)		0.0893
ASU耗氧系数/(m³·(kW·h)^–1)		0.303
GU功率上限/kW		600
ASU功率上限/kW		100

表 3 系统设备参数

Table 3 System device parameters

参数		数值
电转氢效率		0.87
氧氢比		0.5
EL功率上限/kW		1000
氢气热值/(J·kg^–1)		3.56
天然气热值/(J·kg^–1)		10
MR转换效率		0.6
MR单位耗碳量/(kg·(kW·h)^–1)		1.997
MR功率上限/kW		600
HFC电效率		0.6
HFC热效率		0.35
HFC功率上限/kW		500
GT电效率		0.35
GT热电比		0.6/0.35
GT功率上限/kW		600
GB热效率		0.88
GB功率上限/kW		500
储能充、放电效率		0.95、0.95
储能容量/(kW·h)		1000

表 4 设备运维参数

Table 4 Equipment operation and maintenance parameters

参数		数值
EL运维系数/(元·kW^–1)		0.022
MR运维系数/(元·kW^–1)		0.170
HFC运维系数/(元·kW^–1)		0.100
GU运维系数/(元·kW^–1)		0.025
GT运维系数/(元·kW^–1)		0.045
GB运维系数/(元·kW^–1)		0.003
ASU运维系数/(元·kW^–1)		0.020
CCS运维系数/(元·kW^–1)		0.014
EES/TES运维系数/(元·kW^–1)		0.018
GS/HS/OS运维系数/(元·kW^–1)		0.020

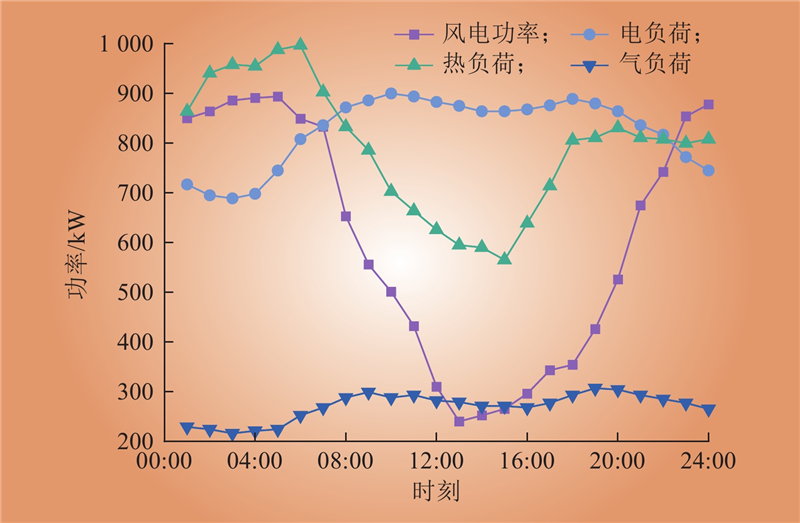

图 4 负荷及风电预测功率

Fig.4 Forecasted load and wind power

表 5 多场景设置

Table 5 multi-scenario settings

场景	富氧	可变掺氢	奖惩阶梯式碳交易
1	×	×	×
2	√	×	×
3	√	√	×
4	√	×	√
5	√	√	√

表 6 不同场景优化调度结果对比

Table 6 Comparison of optimized scheduling results for different scenarios

场景	总成本/ 元	购电成本/元	运维成本/元	碳交易额/元	实际碳排放量/kg	未捕获碳量/kg
1	15677.45	1681.17	1827	–946.51	12569.40	1459.95
2	14810.71	1197.51	1735	–2679.76	10411.21	891.13
3	14370.60	1173.04	1790	–2947.95	9673.52	424.05
4	13653.33	3704.24	1796	–6582.19	9775.39	956.09
5	13154.56	3534.38	1709	–6846.29	8794.69	452.57

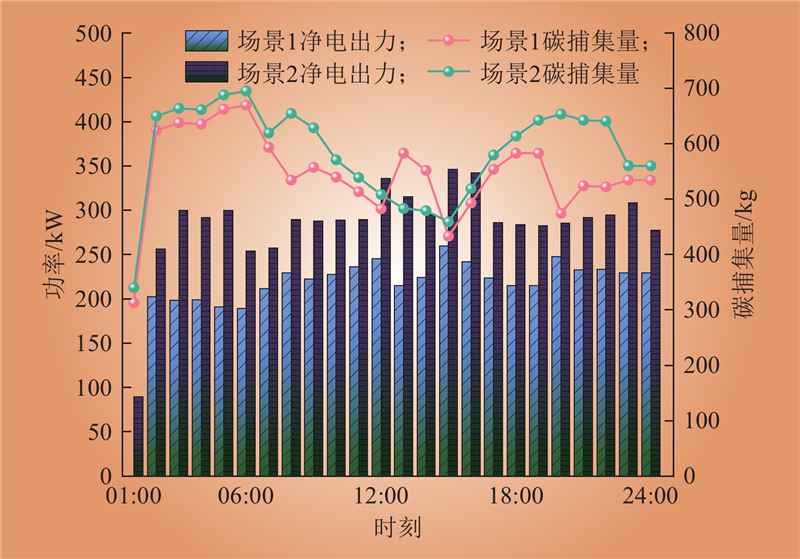

图 5 场景1、2的净电出力与碳捕集量对比

Fig.5 Comparison of net power output and CO2 capture in Scenarios 1 and 2

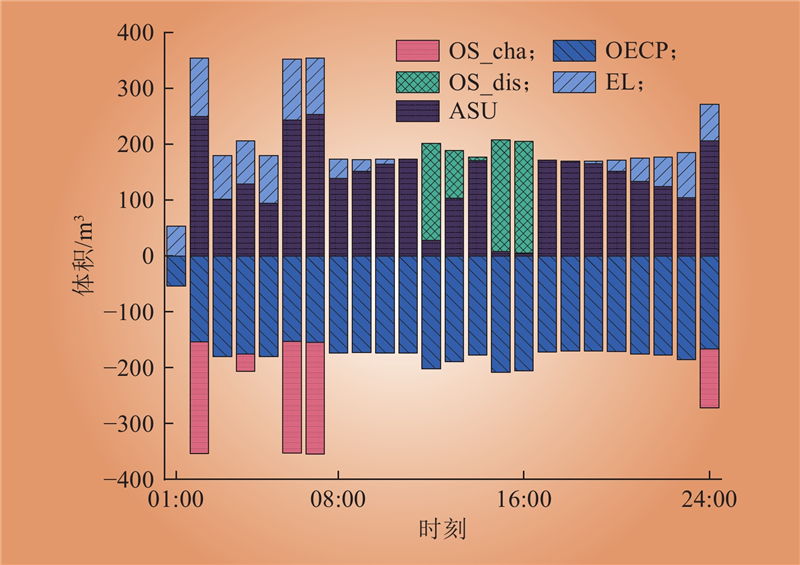

图 6 场景2氧平衡分析

Fig.6 Oxygen balance analysis in Scenario 2

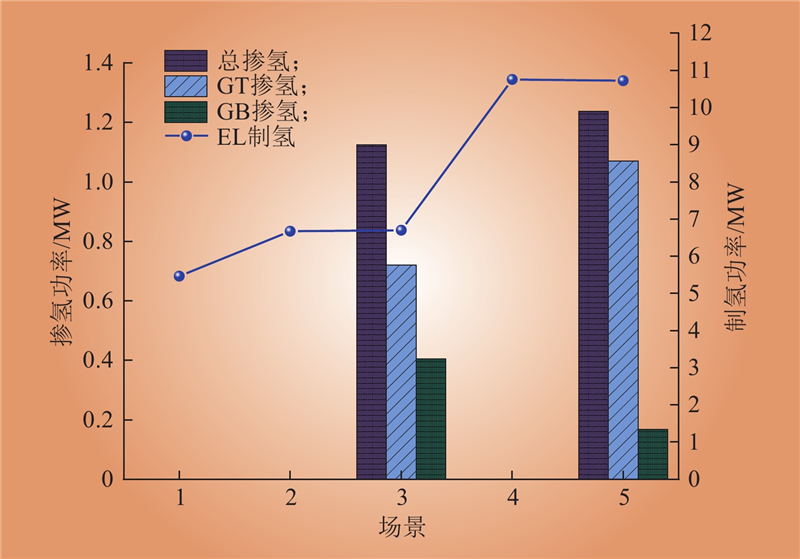

图 7 多场景掺氢与制氢功率对比

Fig.7 Comparison of hydrogen blending and production power under multiple scenarios

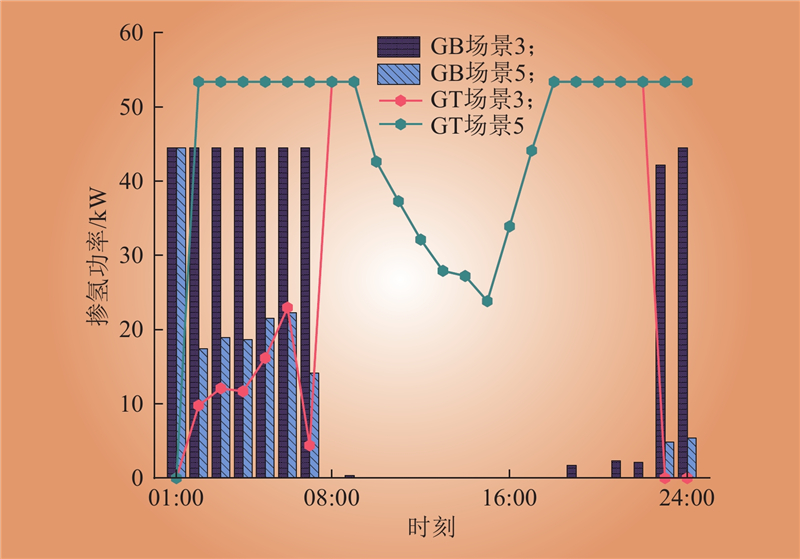

图 8 场景3、5的掺氢功率时序对比

Fig.8 Temporal comparison of hydrogen blending power for Scenarios 3 and 5

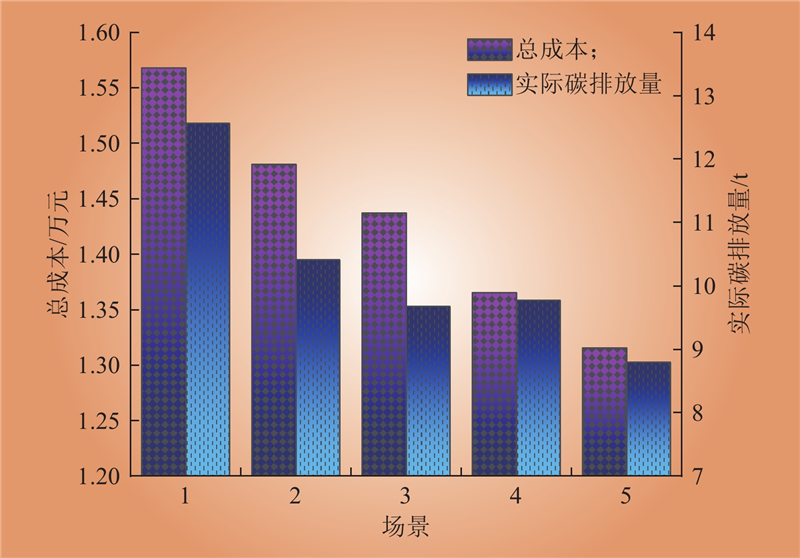

图 9 碳交易机制下的总成本与实际碳排放量对比

Fig.9 Comparison of total cost and actual carbon emissions under carbon trading mechanism

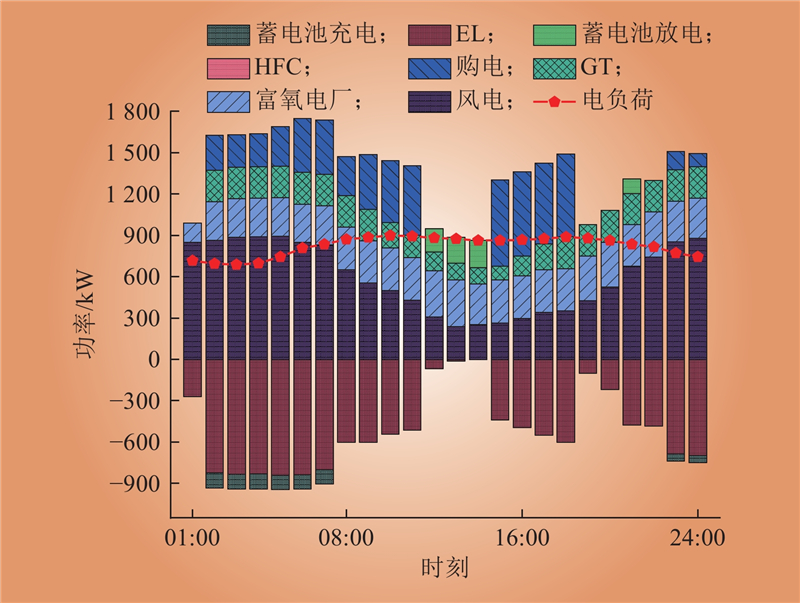

图 10 场景5电能调度结果

Fig.10 Electric energy scheduling results in Scenario 5

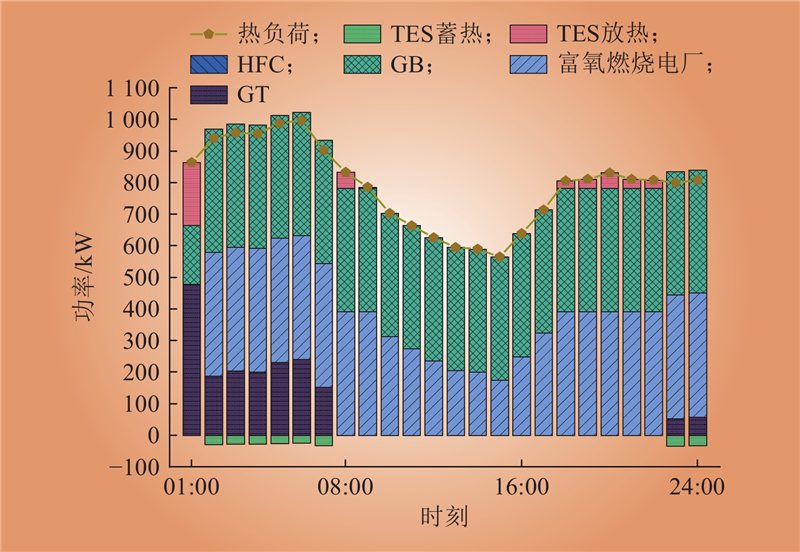

图 11 场景5热能调度结果

Fig.11 Thermal energy scheduling results in Scenario 5

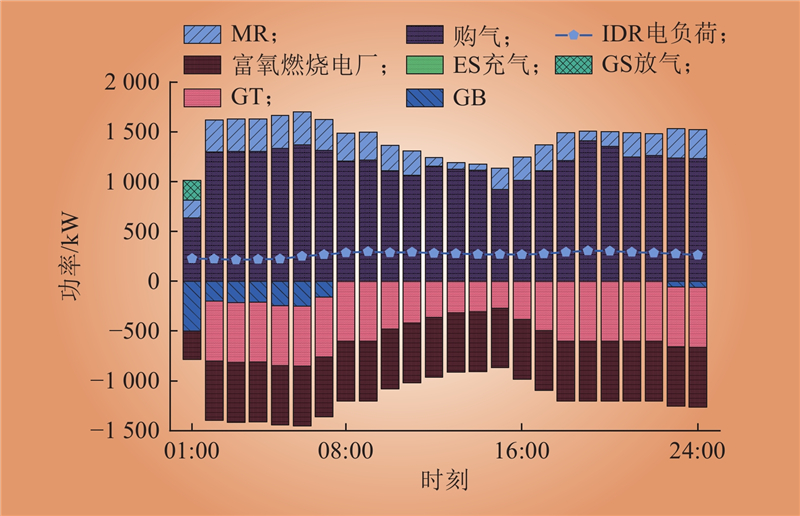

图 12 场景5气能调度结果

Fig.12 Gas energy scheduling results in Scenario 5

表 7 两阶段鲁棒场景设置

Table 7 Two-stage Robust scenario settings

场景	富氧	可变掺氢	奖惩阶梯式碳交易
6	√	×	×
7	√	√	×
8	√	×	√
9	√	√	√

表 8 场景5不同优化策略下的调度结果对比

Table 8 Comparison of scheduling results under different optimization strategies in Scenario 5

场景5优化策略		实际碳排放量/kg	总成本/ 元
确定性优化	风电、负荷波动0%	8794.69	13154.56
两阶段鲁棒优化（不确定度为12）	风电、负荷波动10%	11533.15	15251.29
	风电波动15%、负荷波动10%	12032.7	15536.85
	风电、负荷波动15%	13134.31	16763.63

图 13 鲁棒优化下的总成本与实际碳排放量对比

Fig.13 Comparison of total cost and carbon emissions under Robust optimization

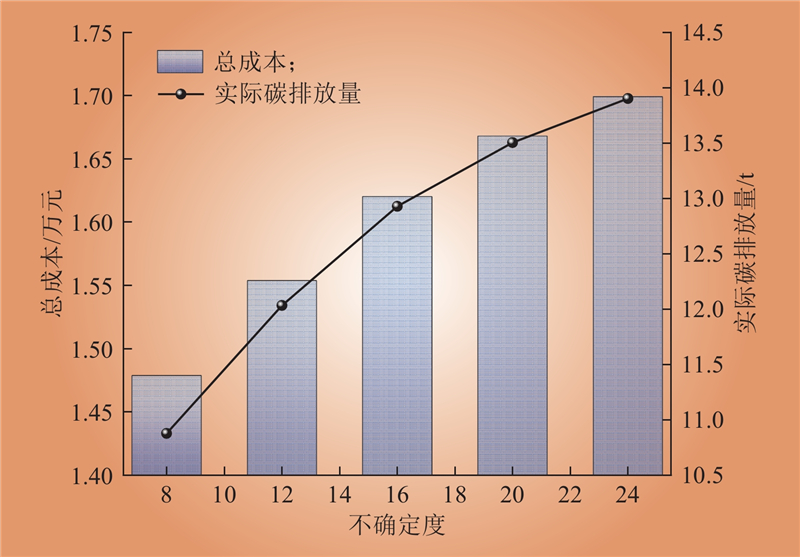

图 14 场景9中不确定度敏感性分析

Fig.14 Sensitivity analysis of uncertainty level in Scenario 9
