基于二阶广义积分器单相锁频环的改进和比较

doi:10.11930/j.issn.1004-9649.202406102

摘要/Abstract

摘要：

电网受到短路故障等大扰动时，要求并网换流器快速准确获得同步信息。基于二阶广义积分器的锁频环比锁相环能更快获取电网电压的相位、幅值和频率，但受直流偏移的不利影响。基于抑制法和滤波法的改进方案存在响应速度变慢等不足。为此，提出基于消减法的改进方案，并在锁频环中增加二阶广义积分器环节。应用传递函数和PSCAD商业软件，从理论和仿真2方面分析和比较了基于二阶广义积分器锁频环的基本方案、基于抑制法的改进方案和所提基于消减法的改进方案。比较结果显示，基于消减法的改进方案具有更快的相位、幅值和频率响应特性，更好的直流和低频分量抑制特性。综合比较暂态响应和稳态响应，基于消减法的方案性能最优。

关键词: 二阶广义积分器, 锁频环, 锁相环, 同步, 直流偏移, 抑制法, 消减法

Abstract:

It is required for grid-connected converters to obtain synchronous information quickly and accurately when a short-circuit fault occurs in the grid. Compared with the phase locked loop (PLL), the second order generalized integrator (SOGI)-frequency locked loop (FLL) promises faster detection of the phase, amplitude and frequency of the grid voltage, but becomes susceptible to the effect of a direct current (DC) offset. Modified schemes based on the suppression method and the filtering method have drawback of slower response. A modified scheme based on the subtraction method is proposed with an addition of a SOGI block in the FLL. The basic scheme based on SOGI-FLL, the modified scheme based on the suppression method and the proposed scheme based on the subtraction method are analyzed and compared by transfer functions theoretically and simulations of PSCAD commercial software. Comparison results illustrate that the subtraction-based scheme promises faster detection of the phase, amplitude and frequency of the grid voltage, and better suppression of the DC offset and low frequency components. Taking account of respective transient and steady-state response characteristics, the subtraction-based scheme has the best comprehensive properties.

Key words: second order generalized integrator, frequency-locked loop, phase-locked loop, synchronization, DC offset, suppression method, subtraction method

戴朝波, 赵国亮, 杨志昌, 崔镜心. 基于二阶广义积分器单相锁频环的改进和比较[J]. 中国电力, 2025, 58(1): 61-69.

Chaobo DAI, Guoliang ZHAO, Zhichang YANG, Jingxin CUI. Improvement and Comparison of Single-Phase Frequency Locked Loops Based on Second Order Generalized Integrator[J]. Electric Power, 2025, 58(1): 61-69.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202406102

https://www.electricpower.com.cn/CN/Y2025/V58/I1/61

图/表 13

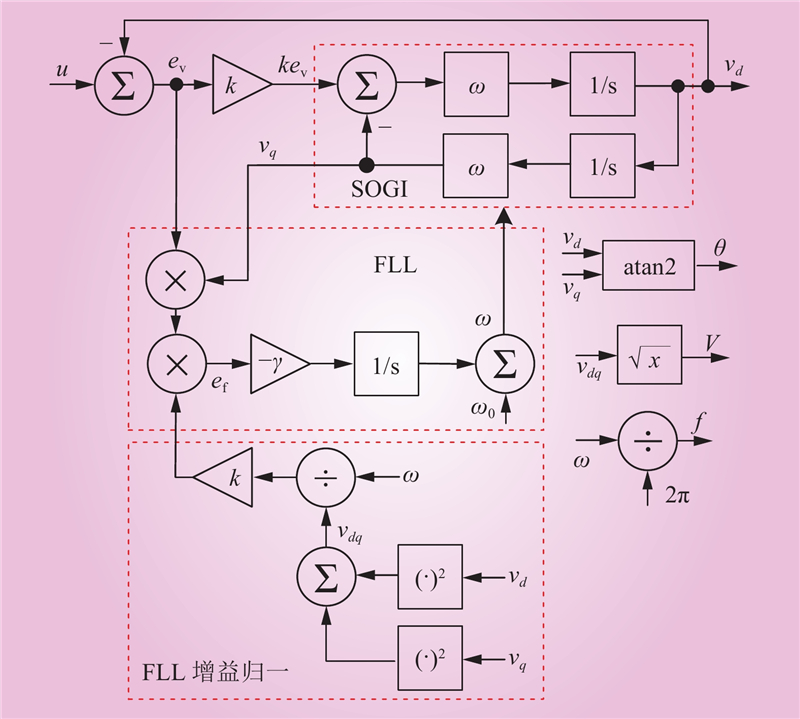

图 1 基于二阶广义积分器锁频环的方案

Fig.1 Scheme based on SOGI-FLL

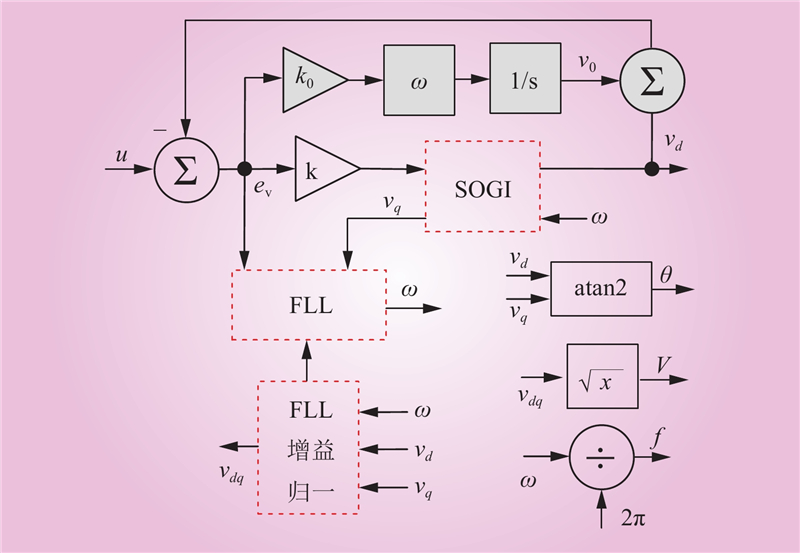

图 2 基于抑制法的改进方案

Fig.2 Modified scheme based on the suppression method

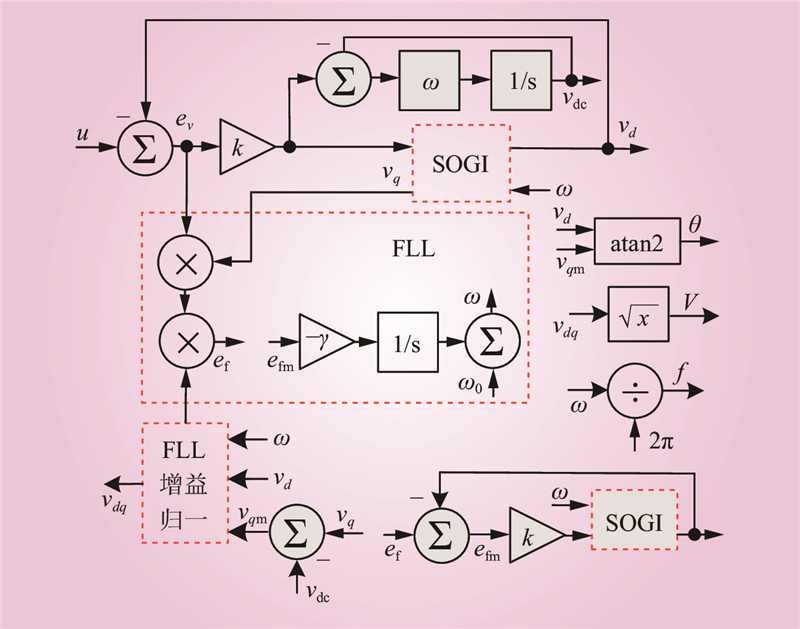

图 3 基于消减法的改进方案

Fig.3 Modified scheme based on the subtraction method

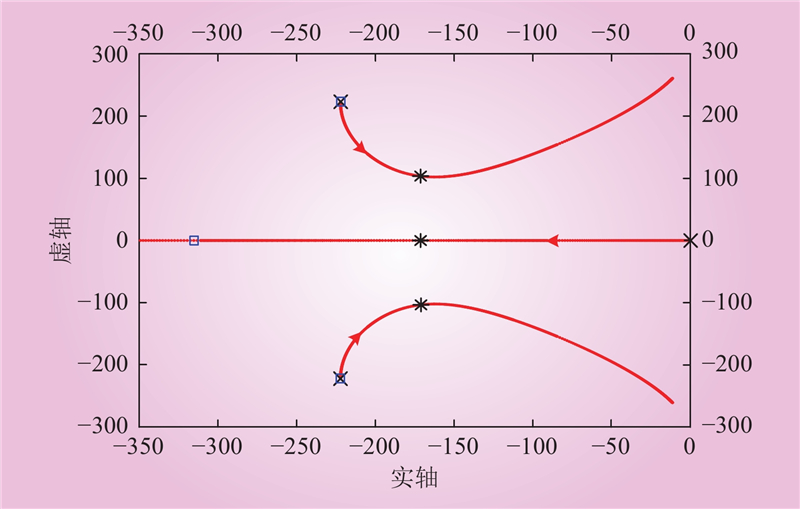

图 4 k0变化时的Δ(s)根轨迹

Fig.4 Root locus of Δ(s) versus k0

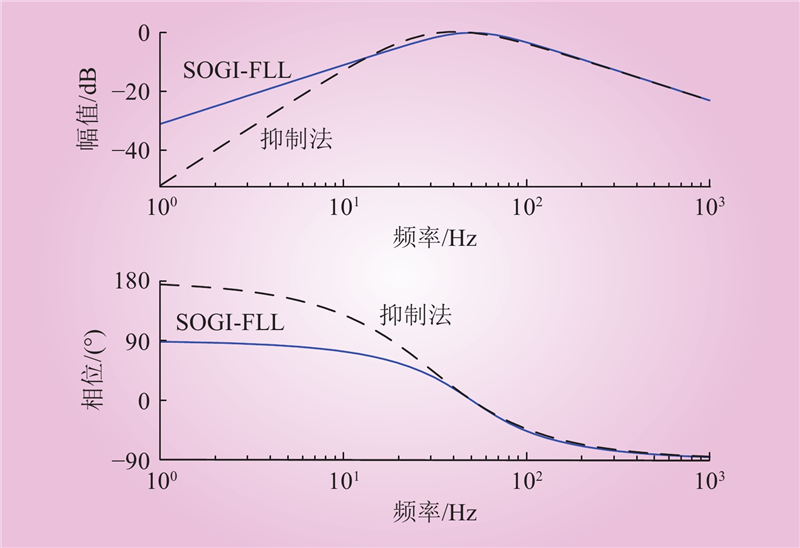

图 5 D(s)的Bode曲线

Fig.5 Bode curves of D(s)

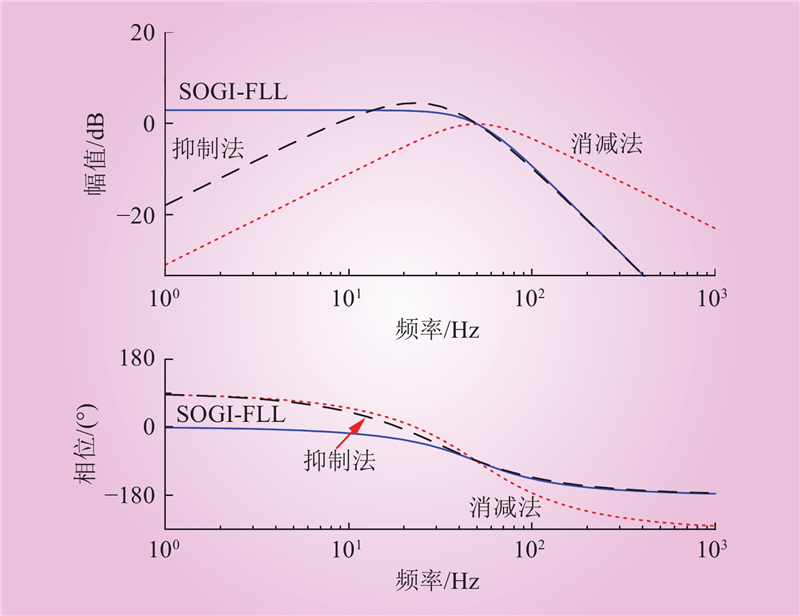

图 6 正交分量的Bode曲线

Fig.6 Bode curves plot of quadrature component

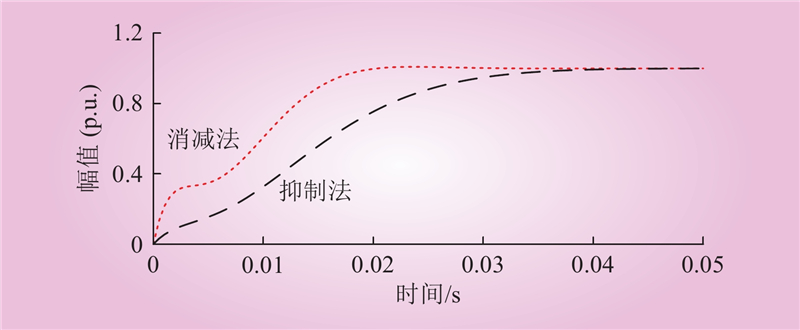

图 7 直流分量的单位阶跃响应

Fig.7 Step-change response of DC component

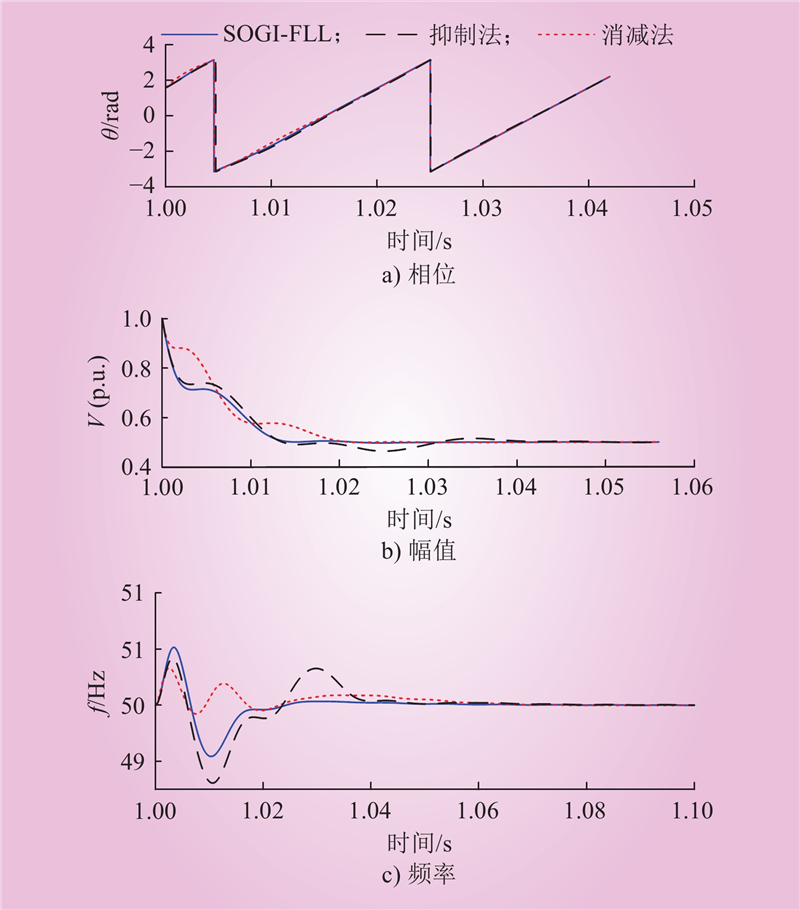

图 8 3个方案的幅值阶跃响应

Fig.8 amplitude step responses of three schemes

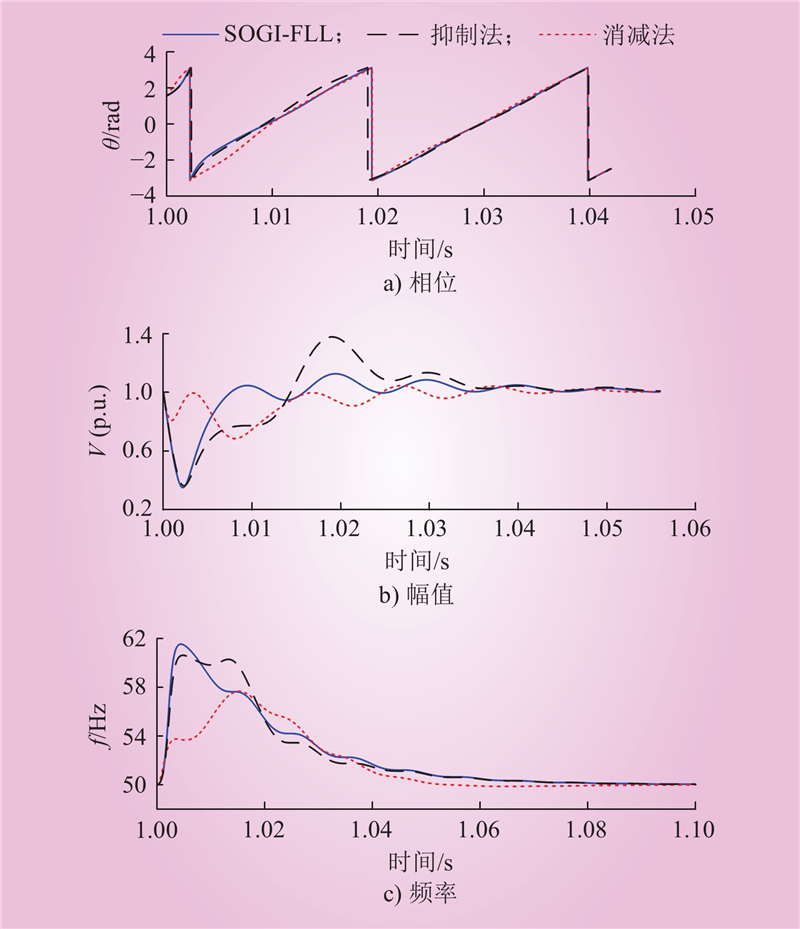

图 9 3个方案的初相位阶跃响应

Fig.9 initial angle step responses of three schemes

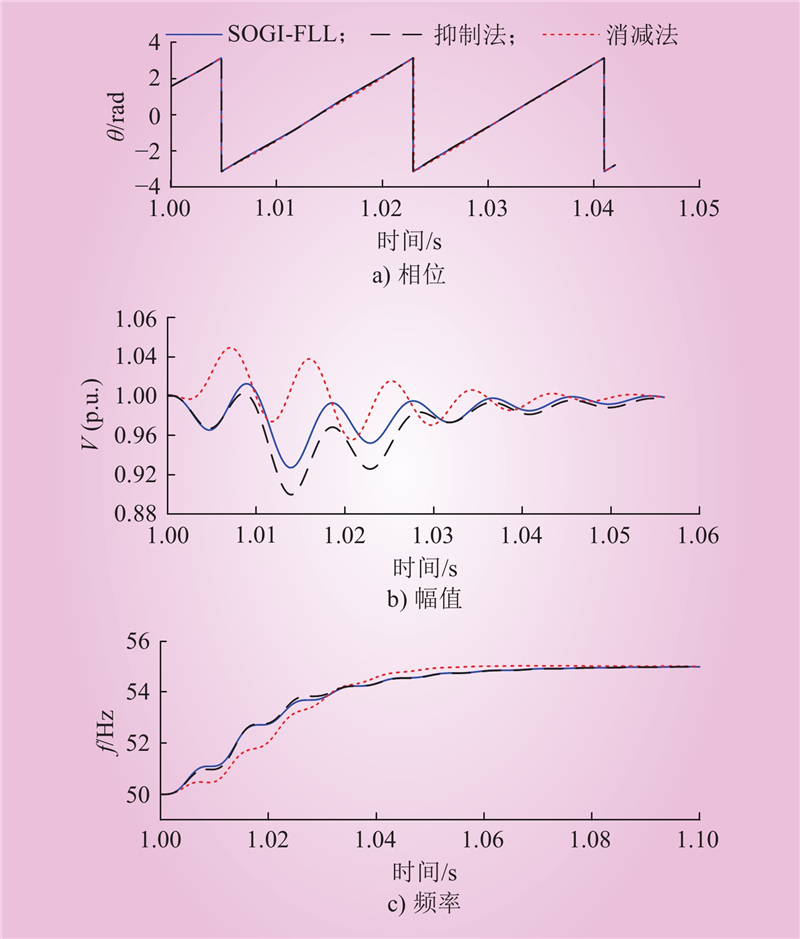

图 10 3个方案的频率阶跃响应

Fig.10 frequency step responses of three schemes

图 11 3个方案的直流分量阶跃响应

Fig.11 DC component step responses of three schemes

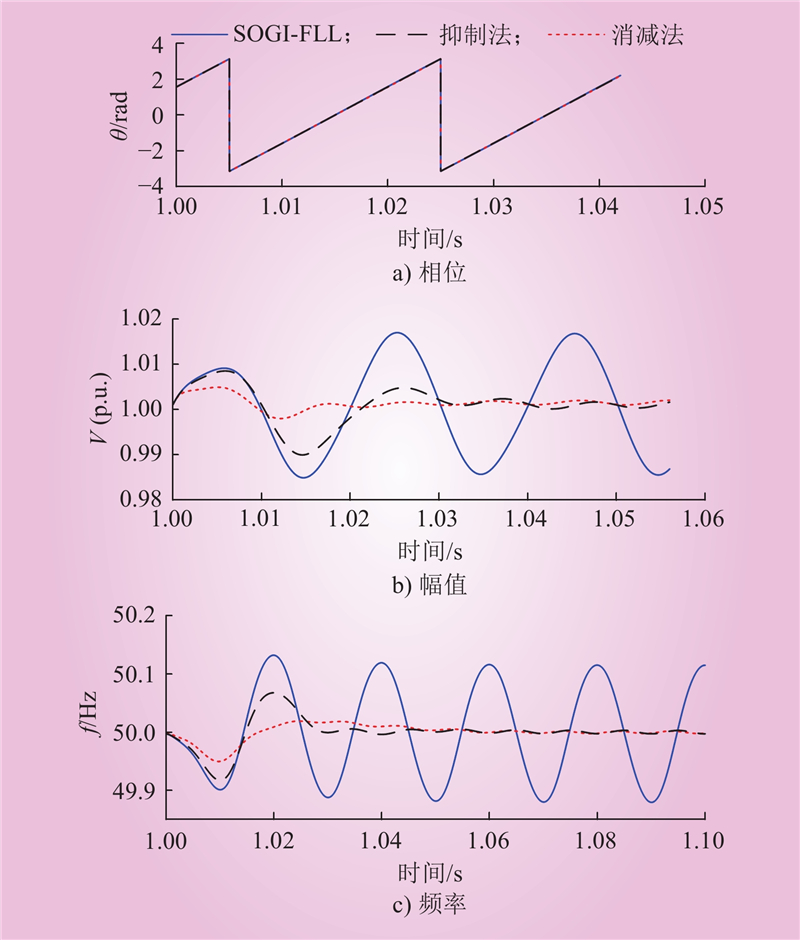

图 12 3个方案含低频分量时的稳态响应

Fig.12 Steady response of three schemes with low frequency component

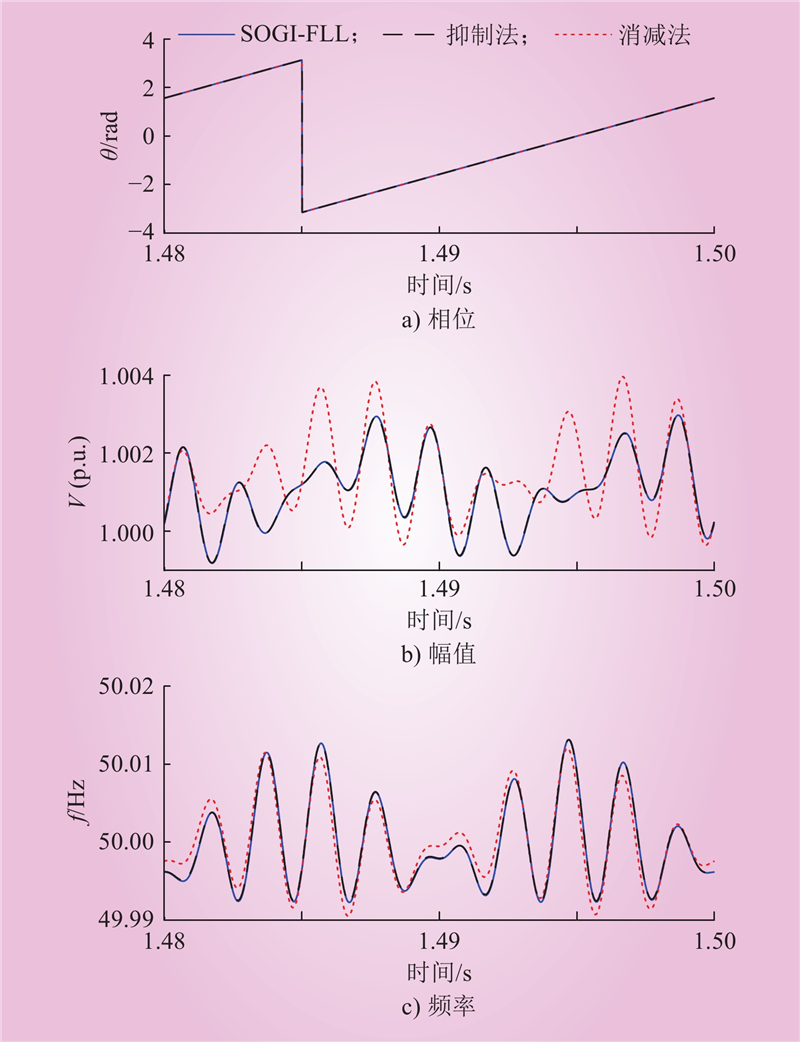

图 13 3个方案含谐波分量时的稳态响应

Fig.13 Steady response of three schemes with harmonics

参考文献 28

1	凌扬坚, 付熙坤, 黄萌, 等. 基于自适应锁相环的并网变流器暂态稳定提升策略研究[J]. 东北电力大学学报, 2022, 42 (5): 25- 32, 2.
	LING Yangjian, FU Xikun, HUANG Meng, et al. Analysis and improvement of transient stability of phase-locked loop converter based on energy function[J]. Journal of Northeast Electric Power University, 2022, 42 (5): 25- 32, 2.
2	黄海宏, 刘远朋, 王海欣. 一种适用于复杂电网下的高精度锁相环[J]. 电机与控制学报, 2024, 28 (3): 43- 55.
	HUANG Haihong, LIU Yuanpeng, WANG Haixin. High-precision phase-locked loop suitable for complex power grids[J]. Electric Machines and Control, 2024, 28 (3): 43- 55.
3	AHMED H. Low-order measurement offset rejection methods in single-phase SOGI-PLL[J]. IEEE Sensors Letters, 2023, 8 (1): 7000604.
4	张培玲, 赵可可. 基于单频通信的低压电力线通信系统设计与实现[J]. 中国电力, 2023, 56 (3): 118- 127, 136.
	ZHANG Peiling, ZHAO Keke. Design and implementation of low voltage power communication system based on single frequency communication[J]. Electric Power, 2023, 56 (3): 118- 127, 136.
5	刘林, 王大龙, 綦晓, 等. 基于双锁相环的海上风场综合惯量调频策略研究[J]. 发电技术, 2024, 45 (2): 282- 290.
	LIU Lin, WANG Dalong, QI Xiao, et al. Study on double phase-locked loop on the synthetic inertia control of offshore wind farm frequency regulation[J]. Power Generation Technology, 2024, 45 (2): 282- 290.
6	PRAKASH S, SINGH J K, BEHERA R K, et al. A type-3 modified SOGI-PLL with grid disturbance rejection capability for single-phase grid-tied converters[J]. IEEE Transactions on Industry Applications, 2021, 57 (4): 4242- 4252. DOI
7	CIOBOTARU M, TEODORESCU R, AGELIDIS V G. Offset rejection for PLL based synchronization in grid-connected converters[C]//2008 Twenty-Third Annual IEEE Applied Power Electronics Conference and Exposition. Austin, TX, USA. IEEE, 2008: 1611–1617.
8	陈征, 胡鹏飞, 戴立宇, 等. 基于锁相环的并网VSC暂态失稳机理与控制方法[J]. 中国电力, 2022, 55 (10): 77- 86.
	CHEN Zheng, HU Pengfei, DAI Liyu, et al. Transient instability mechanism and control method of PLL-based grid-connected VSC[J]. Electric Power, 2022, 55 (10): 77- 86.
9	汪冬辉, 方芳, 吕文韬, 等. 锁相环的动态性能及对线路保护的影响分析[J]. 中国电力, 2020, 53 (3): 110- 118.
	WANG Donghui, FANG Fang, LV Wentao, et al. Analysis of dynamic performance of phase lock loop and its effect on line relay[J]. Electric Power, 2020, 53 (3): 110- 118.
10	李培法, 唐欣, 王文, 等. 锁相环对柔性直流输电系统换流站输入导纳的影响分析[J]. 电力科学与技术学报, 2020, 35 (4): 20- 26.
	LI Peifa, TANG Xin, WANG Wen, et al. Analysis of the effect of phase-locked loop on input admittance of converter station in flexible DC transmission system[J]. Journal of Electric Power Science and Technology, 2020, 35 (4): 20- 26.
11	郭磊磊, 叶青洋, 金楠, 等. 一种基于双定频SOGI与交叉补偿的三相锁相环设计方法[J]. 电力系统保护与控制, 2024, 52 (12): 133- 142.
	GUO Leilei, YE Qingyang, JIN Nan, et al. A three-phase phase-locked loop design method based on improved frequency-fixed DSOGI and cross-compensation[J]. Power System Protection and Control, 2024, 52 (12): 133- 142.
12	马天诚, 黄云辉, 王栋, 等. 弱电网不对称故障下基于正负序解耦的锁相环设计与研究[J]. 智慧电力, 2022, 50 (1): 108- 114.
	MA Tiancheng, HUANG Yunhui, WANG Dong, et al. Design and research of PLL based on positive and negative sequence decoupling under asymmetric faults in weak power grid[J]. Smart Power, 2022, 50 (1): 108- 114.
13	CIOBOTARU M, TEODORESCU R, BLAABJERG F. A new single-phase PLL structure based on second order generalized integrator[C]//2006 37th IEEE Power Electronics Specialists Conference. Jeju, Korea (South). IEEE, 2006: 1–6.
14	李锐, 李鹏, 张琦, 等. 基于SOGI的光伏并网逆变器锁相环的优化研究[J]. 电气应用, 2023, 42 (12): 77- 82.
	LI Rui, LI Peng, ZHANG Qi, et al. Research on optimization of phase locked loop for PV grid-connected inverters based on SOGI[J]. Electrotechnical Application, 2023, 42 (12): 77- 82.
15	李圣清, 曹鹏, 李欣, 等. 电网电压不平衡下改进光储VSG控制策略[J]. 广东电力, 2024, 37 (8): 63- 69.
	LI Shengqing, CAO Peng, LI Xin, et al. Improved VSG control strategy for photovoltaic-storage systems under grid voltage imbalance[J]. Guangdong Electric Power, 2024, 37 (8): 63- 69.
16	NGO T, MIN K, VU T. Comparative study of fault detection methods based on time domain RMS calculation[C]//2019 IEEE Power & Energy Society General Meeting (PESGM). Atlanta, GA, USA. IEEE, 2019: 1–5.
17	罗韡, 王琛琛. 可抑制直流偏移的软启动式单相锁频环[J]. 太阳能学报, 2024, 45 (1): 552- 562.
	WANG Chenchen. Soft-start single-phase frequency-locked loop with DC component rejection capability[J]. Acta Energiae Solaris Sinica, 2024, 45 (1): 552- 562.
18	AHMED H. Single-phase SOGI-PLLs for fast and accurate frequency ramp tracking[J]. IEEE Sensors Letters, 2023, 7 (11): 6008404.
19	严庆增, 赵仁德, 何金奎, 等. 基于SOGI-FLL的可变功率因数低压单相交流电子负载研究[J]. 实验技术与管理, 2023, 40 (6): 49- 53.
	YAN Qingzeng, ZHAO Rende, HE Jinkui, et al. Research on low-voltage single-phase AC electronic loads with variable power factors based on SOGI-FLL[J]. Experimental Technology and Management, 2023, 40 (6): 49- 53.
20	张鑫, 林凡, 沈鑫杰. 基于改进SOGI-FLL的旋转弹舵机滞后测试方法[J]. 兵工学报, 2023, 44 (2): 428- 436.
	ZHANG Xin, LIN Fan, SHEN Xinjie. A lag angle test method for actuators of spinning missiles based on improved SOGI-FLL[J]. Acta Armamentarii, 2023, 44 (2): 428- 436.
21	ARDALAN P, RASEKH N, KHANEGHAH M Z, et al. A modified SOGI-FLL algorithm with DC-offset rejection improvement for single-phase inverter applications[J]. International Journal of Dynamics and Control, 2022, 10 (6): 2020- 2033. DOI
22	黄太昱, 韩伟, 马伟东, 等. 基于双输入式改进型二阶广义积分器的频率检测优化方法研究[J]. 湖南电力, 2023, 43 (3): 16- 20.
	HUANG Taiyu, HAN Wei, MA Weidong, et al. Research on frequency detection optimization method based on double input improved second order generalized integrator[J]. Hunan Electric Power, 2023, 43 (3): 16- 20.
23	杜维柱, 罗亚洲, 李蕴红, 等. 风电汇集系统无功盈余导致暂态过电压问题的研究综述[J]. 中国电机工程学报, 2022, 42 (9): 3224- 3239.
	DU Weizhu, LUO Yazhou, LI Yunhong, et al. Reviews of transient overvoltage problem cause by extra reactive power in large scale wind power systems[J]. Proceedings of the CSEE, 2022, 42 (9): 3224- 3239.
24	戴朝波, 于弘洋, 赵国亮, 等. STATCOM和同步调相机响应时间的仿真分析和比较[J]. 南方电网技术, 2023, 17 (10): 85- 93.
	DAI Chaobo, YU Hongyang, ZHAO Guoliang, et al. Simulation analysis and comparison of response times of STATCOM and synchronous condensers[J]. Southern Power System Technology, 2023, 17 (10): 85- 93.
25	ZHANG C J, ZHAO X J, WANG X H, et al. A grid synchronization PLL method based on mixed second- and third-order generalized integrator for DC offset elimination and frequency adaptability[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2018, 6 (3): 1517- 1526. DOI
26	TEODORESCU R, LISERRE M, RODRÍGUEZ P. Grid Converters for Photovoltaic and Wind Power Systems[M]. Chichester: Wiley, 2010.
27	KARIMI-GHARTEMANI M, ALI KHAJEHODDIN S, JAIN P K, et al. Addressing DC component in PLL and Notch filter algorithms[J]. IEEE Transactions on Power Electronics, 2011, 27 (1): 78- 86.
28	戴朝波, 赵国亮, 于弘洋, 等. STATCOM响应速度对电网电压的影响和对策[J/OL]. 电源学报. (2024-04-26) [2024-10-18]. http://kns.cnki.net/kcms/detail/12.1420.TM.20240426.1146.055.html.
	DAI Chaobo, ZHAO Guoliang, YU Hongyang, et al. Impact and countermeasure of STATCOM response speed on grid voltage[J/OL]. Journal of power Supply. (2024-04-26) [2024-10-18]. http://kns.cnki.net/kcms/detail/12.1420.TM.20240426.1146.055.html.
