面向强干扰电力物联网的低功耗数据回传方法

doi:10.11930/j.issn.1004-9649.202307015

摘要/Abstract

摘要：

电网场景中设备繁多，电磁环境复杂，对传感器节点无线数据回传造成了时变宽带强干扰。针对此问题，提出了面向强干扰电力物联网的低功耗回传方法。通过同步调度、分布式实时窄带干扰监测、最优信道数据上传等步骤，大大降低了强干扰环境下的数据碰撞概率，提高了通信容量，同时保证了系统整体的低功耗特性。仿真结果表明：该方法的吞吐量相对于传统方法提升2倍以上，功耗下降50%以上。整体而言，该方法极大提升了通信容量，降低了系统功耗。

关键词: 强干扰, 电力物联网, 低功耗, 同步系统, 窄带通信

Abstract:

In the power Internet of Tings (IoT) scenarios, numerous devices and complex electromagnetic environment cause time-varying broadband strong interference to wireless data transmission of the sensor nodes. To address this issue, a low-power data return method is proposed. Through synchronous scheduling, distributed real-time narrowband interference monitoring, optimal channel data uploading etc., the probability of data collision under strong interference environment is greatly reduced and the communication capacity is improved, and the overall low-power characteristics of the system are guaranteed at the same time. The simulation results indicate that the proposed method shows a performance improvement of over two times in throughput compared to traditional methods. Additionally, the power consumption has also decreased by over 50%. In the whole, the proposed method greatly improves the communication capacity and reduces the power consumption.

Key words: strong interference, power IoT, low power consumption, synchronous system, narrowband communication

吴赞红. 面向强干扰电力物联网的低功耗数据回传方法[J]. 中国电力, 2024, 57(11): 191-198.

Zanhong WU. Low-Power Data Return Method for Strong Interference Power IoT[J]. Electric Power, 2024, 57(11): 191-198.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202307015

https://www.electricpower.com.cn/CN/Y2024/V57/I11/191

图/表 9

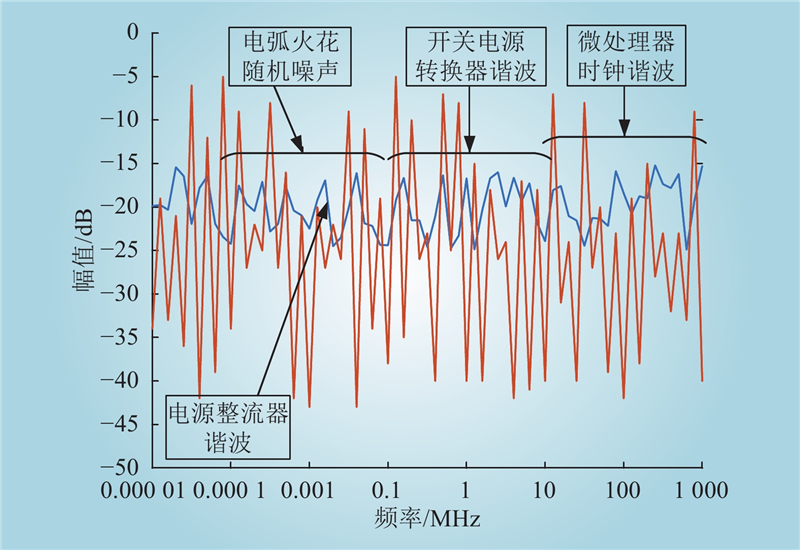

图 1 宽带时变强干扰示意

Fig.1 Schematic of broadband time-varying strong interference

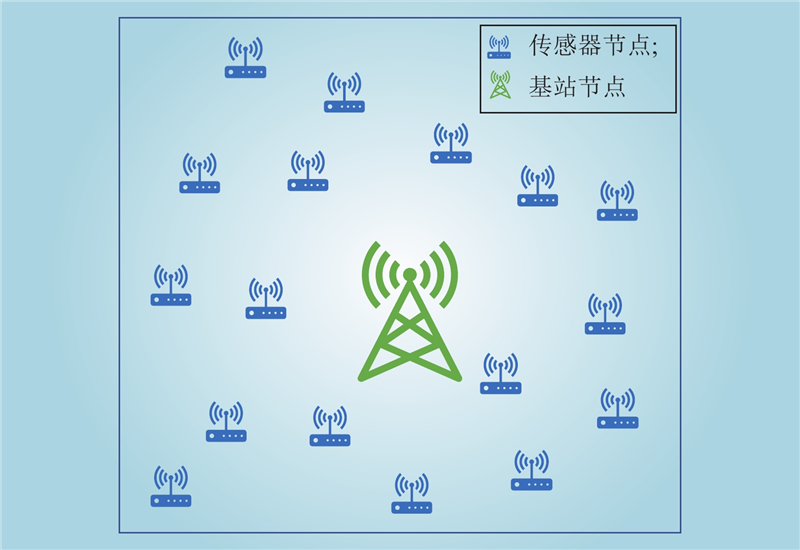

图 2 电力物联网网络结构

Fig.2 Network structure of power IOT

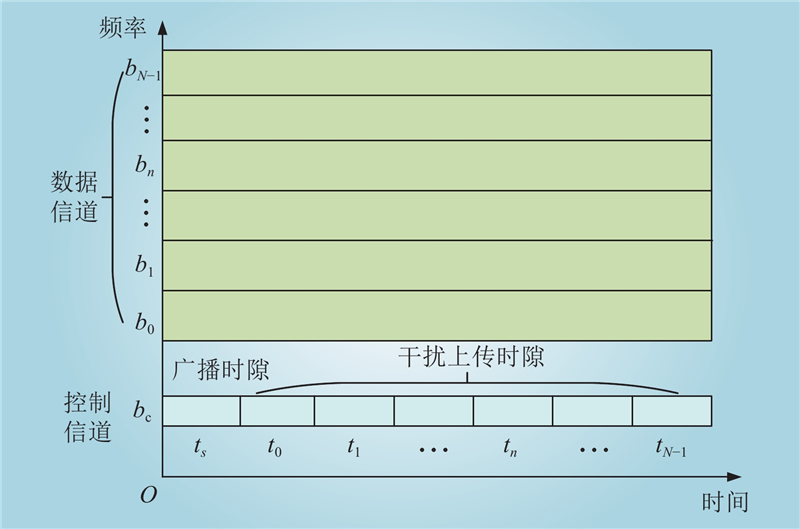

图 3 时隙、频段划分情况

Fig.3 Time slot and frequency band division

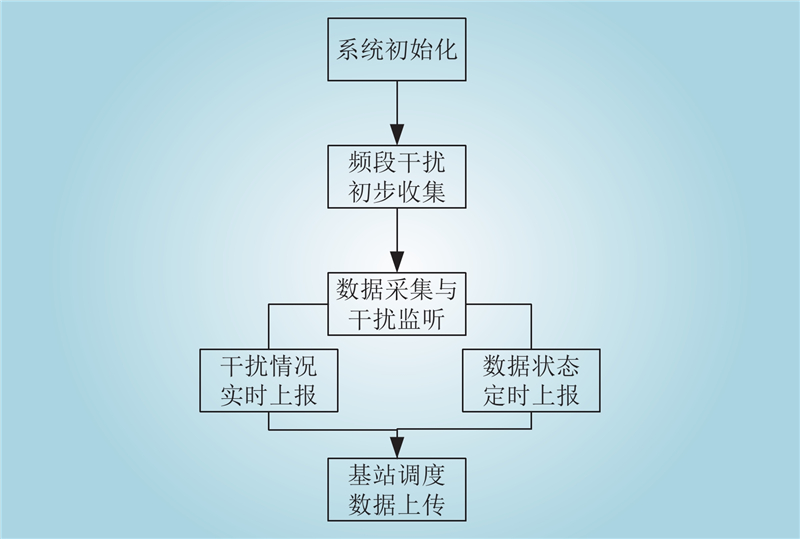

图 4 所提系统整体通信流程

Fig.4 Overall communication procedures of the proposed system

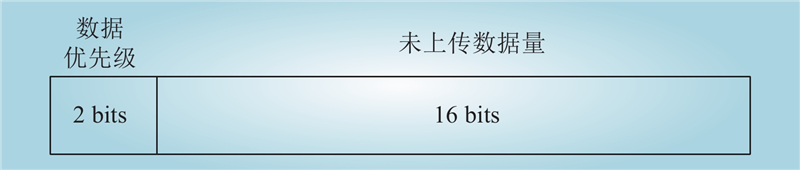

图 5 优先级控制信息结构

Fig.5 Priority control information structure

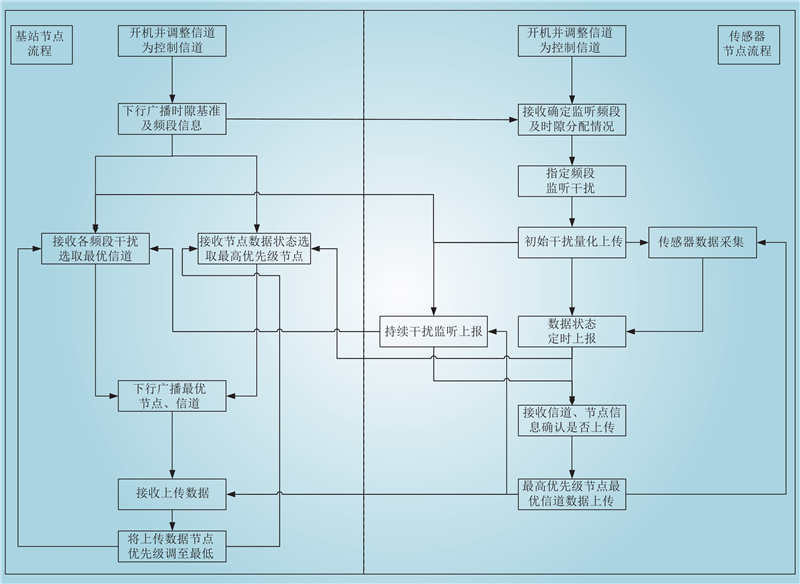

图 6 所提系统基站和传感器节点详细交互流程

Fig.6 Detailed interaction process between the base station and sensor node

表 1 仿真参数

Table 1 Simulation parameters

节点数量		数据信道总计带宽/ MHz		窄带数据带宽/ kHz		控制信道带宽/ kHz		节点最大发射功率/ dBm		强弱干扰功率门限/ dBm		控制信道时隙长度/ μs
1000		100000		128		100		20		10		10

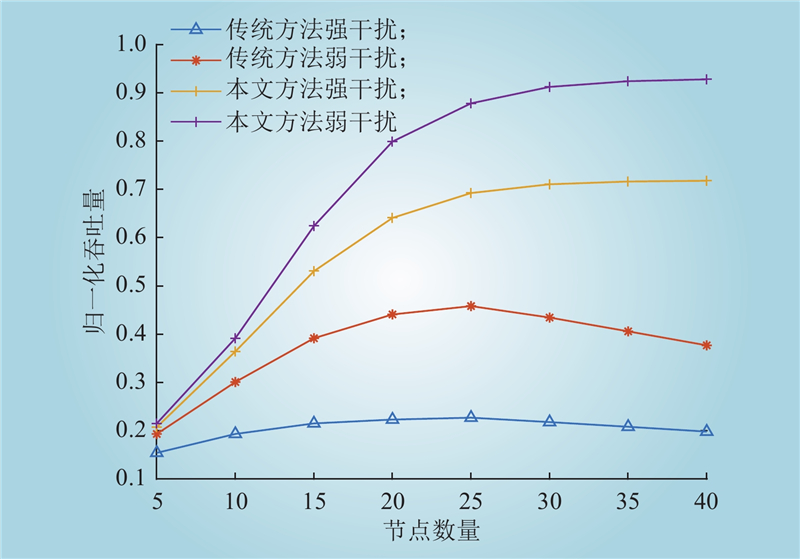

图 7 吞吐量对比仿真

Fig.7 Throughput comparison simulation

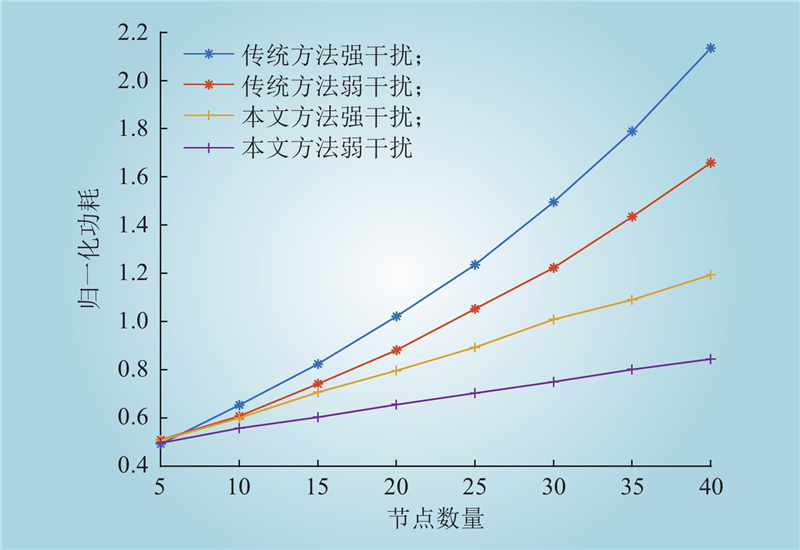

图 8 功耗对比仿真

Fig.8 Power consumption comparison simulation
