面向节能降碳的冶炼企业风光储多目标协同定容方法

doi:10.11930/j.issn.1004-9649.202305047

中国电力 ›› 2023, Vol. 56 ›› Issue (11): 86-94.DOI: 10.11930/j.issn.1004-9649.202305047

• 新型电力系统低碳规划与运行 • 上一篇下一篇

面向节能降碳的冶炼企业风光储多目标协同定容方法

朱文广¹(), 王伟¹(), 欧阳斌²(), 张华¹, 王欣¹, 马瑞²()

1. 国网江西省电力有限公司经济技术研究院，江西南昌　330043
2. 长沙理工大学电气与信息工程学院，湖南长沙　410114

收稿日期:2023-05-10 出版日期:2023-11-28 发布日期:2023-11-28
作者简介:朱文广（1972—），男，高级工程师，从事电网规划研究，E-mail： jxnczwg@163.com
王伟（1989—），男，高级工程师，从事电网规划研究，E-mail： 297128073@qq.com
欧阳斌（1999—），男，硕士研究生，从事新能源及储能运行规划研究，E-mail： ouyangbin0718@163.com
马瑞（1971—），男，通信作者，博士，教授，从事电力系统分析与控制、能源互联网和电力大数据挖掘等研究，E-mail： marui818@ 126.com
基金资助:
国家自然科学基金资助项目（51977012）；国网江西省电力公司科技项目（521825220001）。

Multi-objective Cooperative Capacity Determination Method for Integrated System of Wind, Photovoltaic and Storage of Smelting Enterprises Requiring Energy Saving and Carbon Reduction

Wenguang ZHU¹(), Wei WANG¹(), Bin OUYANG²(), Hua ZHANG¹, Xin WANG¹, Rui MA²()

1. Economic and Technological Research Institute, State Grid Jiangxi Electric Power Co., Ltd., Nanchang 330043, China
2. College of Electrical and Information Engineering, Changsha University of Science & Technology, Changsha 410114, China

Received:2023-05-10 Online:2023-11-28 Published:2023-11-28
Supported by:
This work is supported by National Natural Science Foundation of China (No.51977012) and Science & Technology Project of State Grid Jiangxi Electric Power Company (No.521825220001).

摘要/Abstract

摘要：

在考虑新能源不确定性和用户碳排放的基础上，提出一种考虑经济、清洁的冶炼企业储能多目标定容优化方法，建立储能双层优化模型，上层模型对已经或计划安装新能源的冶炼工业大用户进行储能配置优化，下层模型对储能时序出力进行优化。首先，基于风、光、储三者的充、放电特性，分别构建风、光出力的随机不确定模型和储能充放电模型；其次，建立冶炼行业碳排放核算模型，根据用户产量、电力负荷情况计算碳排总量及电力消耗产生的碳排量，给出对应的减碳策略；然后，基于潜在的碳排放成本，制定以经济效益最大、成本及碳排放总量最小为多目标，考虑系统安全运行约束下的企业储能最优容量；最后，以某炼铜企业为例，采用所提方法优化阶梯容量的风、光新能源接入下的储能容量，仿真结果验证了所提方法的有效性。

关键词: 新能源不确定性, 碳排放, 储能配置, 多目标定容优化, 时序优化

Abstract:

Considering the uncertainty of new energy and the carbon emissions of users, a multi-objective capacity determination optimization method for energy storage of smelting enterprises considering economy and cleanliness is proposed. A two-layer energy storage optimization model is established, in which the upper layer model optimizes the energy storage configuration for large users in smelting industry who have installed or plan to install new energy power generation, and the lower layer model optimizes the timing output of energy storage. Firstly, based on the charging and discharging characteristics of wind, photovoltaic and storage, a random uncertainty model of wind and photovoltaic output and a charging and discharging model of energy storage are constructed respectively. Then, a carbon emission accounting model of smelting industry is established to calculate the total carbon emissions and carbon emissions generated by power consumption according to the user output and power load, and the corresponding carbon reduction strategy is given. And then, based on the cost of potential carbon emissions, the maximum economic benefits and minimum cost and total carbon emissions are set as multi-objectives, and the optimal energy storage capacity of enterprises is obtained under the constraints of system safe operation. Finally, taking a copper smelting enterprise as an example, the proposed method is used to optimize the energy storage capacity under the access of wind and photovoltaic with ladder capacity. The simulation results have verified the effectiveness of the proposed method.

Key words: new energy uncertainty, carbon emissions, energy storage configuration, multi-target capacity determination, timing optimization

朱文广, 王伟, 欧阳斌, 张华, 王欣, 马瑞. 面向节能降碳的冶炼企业风光储多目标协同定容方法[J]. 中国电力, 2023, 56(11): 86-94.

Wenguang ZHU, Wei WANG, Bin OUYANG, Hua ZHANG, Xin WANG, Rui MA. Multi-objective Cooperative Capacity Determination Method for Integrated System of Wind, Photovoltaic and Storage of Smelting Enterprises Requiring Energy Saving and Carbon Reduction[J]. Electric Power, 2023, 56(11): 86-94.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202305047

https://www.electricpower.com.cn/CN/Y2023/V56/I11/86

图/表 9

参考文献 25

1	张沈习, 王丹阳, 程浩忠, 等. 双碳目标下低碳综合能源系统规划关键技术及挑战[J]. 电力系统自动化, 2022, 46 (8): 189- 207.
	ZHANG Shenxi, WANG Danyang, CHENG Haozhong, et al. Key technologies and challenges of low-carbon integrated energy system planning for carbon emission peak and carbon neutrality[J]. Automation of Electric Power Systems, 2022, 46 (8): 189- 207.
2	王威, 吴晶晶, 葛亚平, 等. 双碳背景下碳排放核算法及策略分析: 以铜铝行业为例[J]. 有色金属(冶炼部分), 2022, (4): 1- 11.
	WANG Wei, WU Jingjing, GE Yaping, et al. Carbon emission accounting method and strategy analysis under the background of double carbon: taking copper and aluminum industry as an example[J]. Nonferrous Metals (Extractive Metallurgy), 2022, (4): 1- 11.
3	赵璞, 周满, 高建宇, 等. 基于电能替代的园区综合能源规划评价方法[J]. 中国电力, 2021, 54 (4): 130- 140.
	ZHAO Pu, ZHOU Man, GAO Jianyu, et al. Evaluation method for park-level integrated energy system based on electric power substitution[J]. Electric Power, 2021, 54 (4): 130- 140.
4	张军六, 李佳朋, 唐震, 等. 基于本地测量的高比例新能源电力系统不平衡功率估算与附加功率控制策略[J]. 电力科学与技术学报, 2022, 37 (3): 50- 60.
	ZHANG Junliu, LI Jiapeng, TANG Zhen, et al. Local measurement based unbalanced active power estimation and supplementary power modulation for power systems with high proportions of renewable energy[J]. Journal of Electric Power Science and Technology, 2022, 37 (3): 50- 60.
5	舒印彪, 张智刚, 郭剑波, 等. 新能源消纳关键因素分析及解决措施研究[J]. 中国电机工程学报, 2017, 37 (1): 1- 8.
	SHU Yinbiao, ZHANG Zhigang, GUO Jianbo, et al. Study on key factors and solution of renewable energy accommodation[J]. Proceedings of the CSEE, 2017, 37 (1): 1- 8.
6	刘联涛, 刘飞, 吉平, 等. 储能参与新能源消纳的优化控制策略[J]. 中国电力, 2023, 56 (3): 137- 143.
	LIU Liantao, LIU Fei, JI Ping, et al. Research on optimal control strategy of energy storage for improving new energy consumption[J]. Electric Power, 2023, 56 (3): 137- 143.
7	郭久亿, 刘洋, 郭焱林, 等. 不同典型用户侧储能配置评估与运行优化模型[J]. 电网技术, 2020, 44 (11): 4245- 4253.
	GUO Jiuyi, LIU Yang, GUO Yanlin, et al. Configuration evaluation and operation optimization model of energy storage in different typical user-side[J]. Power System Technology, 2020, 44 (11): 4245- 4253.
8	颜志敏, 王承民, 连鸿波, 等. 计及缺电成本的用户侧蓄电池储能系统容量规划[J]. 电力系统自动化, 2012, 36 (11): 50- 54.
	YAN Zhimin, WANG Chengmin, LIAN Hongbo, et al. Capacity plan of battery energy storage system in user side considering power outage cost[J]. Automation of Electric Power Systems, 2012, 36 (11): 50- 54.
9	刘永前, 梁超, 阎洁, 等. 风-光电站中储能系统混合最优配置及其经济性研究[J]. 中国电力, 2020, 53 (12): 143- 150.
	LIU Yongqian, LIANG Chao, YAN Jie, et al. Optimal configuration and economic study of hybrid energy storage system in wind and solar power plants[J]. Electric Power, 2020, 53 (12): 143- 150.
10	陈厚合, 杜欢欢, 张儒峰, 等. 考虑风电不确定性的混合储能容量优化配置及运行策略研究[J]. 电力自动化设备, 2018, 38 (8): 174- 182, 188.
	CHEN Houhe, DU Huanhuan, ZHANG Rufeng, et al. Optimal capacity configuration and operation strategy of hybrid energy storage considering uncertainty of wind power[J]. Electric Power Automation Equipment, 2018, 38 (8): 174- 182, 188.
11	谢雨龙, 罗逸飏, 李智威, 等. 考虑微网新能源经济消纳的共享储能优化配置[J]. 高电压技术, 2022, 48 (11): 4403- 4412.
	XIE Yulong, LUO Yiyang, LI Zhiwei, et al. Optimal allocation of shared energy storage considering the economic consumption of microgrid new energy[J]. High Voltage Engineering, 2022, 48 (11): 4403- 4412.
12	LI R, WANG W, CHEN Z, et al. Optimal planning of energy storage system in active distribution system based on fuzzy multi-objective bi-level optimization[J]. Journal of Modern Power Systems and Clean Energy, 2018, 6 (2): 342- 355. DOI
13	SAEZ-DE-IBARRA A, MILO A, GAZTAÑAGA H, et al. Co-optimization of storage system sizing and control strategy for intelligent photovoltaic power plants market integration[J]. IEEE Transactions on Sustainable Energy, 2016, 7 (4): 1749- 1761. DOI
14	GAO J J, ZHENG Y, LI J M, et al. Optimal model for complementary operation of a photovoltaic-wind-pumped storage system[J]. Mathematical Problems in Engineering, 2018, 2018, 1- 9.
15	戴嘉彤, 董海鹰. 基于抽水蓄能电站的风光互补发电系统容量优化研究[J]. 电网与清洁能源, 2019, 35 (6): 76- 82.
	DAI Jiatong, DONG Haiying. Research on the capacity optimization of the wind-solar hybrid power supply system based on pumped storage power station[J]. Advances of Power System & Hydroelectric Engineering, 2019, 35 (6): 76- 82.
16	鲍海波, 韦化, 郭小璇, 等. 考虑风电不确定性的概率区间潮流模型与算法[J]. 中国电机工程学报, 2017, 37 (19): 5633- 5642.
	BAO Haibo, WEI Hua, GUO Xiaoxuan, et al. Model and algorithm of probabilistic interval power flow considering wind power uncertainty[J]. Proceedings of the CSEE, 2017, 37 (19): 5633- 5642.
17	刘宝碇, 赵瑞清, 王纲. 不确定规划及应用[M]. 北京: 清华大学出版社, 2003.
18	罗仕华, 胡维昊, 黄琦, 等. 市场机制下光伏/小水电/抽水蓄能电站系统容量优化配置[J]. 电工技术学报, 2020, 35 (13): 2792- 2804.
	LUO Shihua, HU Weihao, HUANG Qi, et al. Optimization of photovoltaic/small hydropower/pumped storage power station system sizing under the market mechanism[J]. Transactions of China Electrotechnical Society, 2020, 35 (13): 2792- 2804.
19	王荔妍, 陈启鑫, 何冠楠, 等. 考虑电池储能寿命模型的发电计划优化[J]. 电力系统自动化, 2019, 43 (8): 93- 101.
	WANG Liyan, CHEN Qixin, HE Guannan, et al. Optimization of generation scheduling considering battery energy storage life model[J]. Automation of Electric Power Systems, 2019, 43 (8): 93- 101.
20	崔连标, 段宏波, 许金华. 交易费用对我国碳市场成本有效性的影响: 基于国内碳交易试点间的模拟分析[J]. 管理评论, 2017, 29 (6): 23- 31.
	CUI Lianbiao, DUAN Hongbo, XU Jinhua. Impacts of transaction costs on cost saving effect of carbon trading market in China[J]. Management Review, 2017, 29 (6): 23- 31.
21	孟宇翔, 马刚, 李豪, 等. 基于绿证-阶梯式碳交易交互的源荷互补调度优化[J]. 中国电力, 2023, 56 (9): 149- 156.
	MENG Yuxiang, MA Gang, LI Hao, et al. Optimal scheduling of source-load complementation based on green certificate-step carbon trading interaction[J]. Electric Power, 2023, 56 (9): 149- 156.
22	薛贵元, 吴垠, 诸晓骏, 等. 计及用能权配额约束的发电商竞价策略双层优化方法[J]. 中国电力, 2023, 56 (5): 51- 61.
	XUE Guiyuan, WU Yin, ZHU Xiaojun, et al. Bi-level optimization method for bidding strategy of power suppliers considering energy-consuming right[J]. Electric Power, 2023, 56 (5): 51- 61.
23	田福银, 马骏, 王灿, 等. 基于双层主从博弈的综合能源系统多主体低碳经济运行策略[J]. 中国电力, 2022, 55 (11): 184- 193.
	TIAN Fuyin, MA Jun, WANG Can, et al. Multi-agent low-carbon and economy operation strategy of integrated energy system based on Bi-level master-slave game[J]. Electric Power, 2022, 55 (11): 184- 193.
24	杨青润, 丁涛, 文亚, 等. 计及碳排约束的跨国电力互联网新能源消纳分析[J]. 智慧电力, 2019, 47 (10): 1- 6, 30.
	YANG Qingrun, DING Tao, WEN Ya, et al. Analysis on renewable energy integration in transnational power interconnection considering carbon emission constraints[J]. Smart Power, 2019, 47 (10): 1- 6, 30.
25	朱灿元, 杨超, 李舒涛, 等. 考虑清洁能源与储能的分布式数据中心低碳调度策略[J]. 智慧电力, 2023, 51 (2): 16- 23.
	ZHU Canyuan, YANG Chao, LI Shutao, et al. Low-carbon scheduling strategy for distributed data centers considering clean energy and energy storage[J]. Smart Power, 2023, 51 (2): 16- 23.

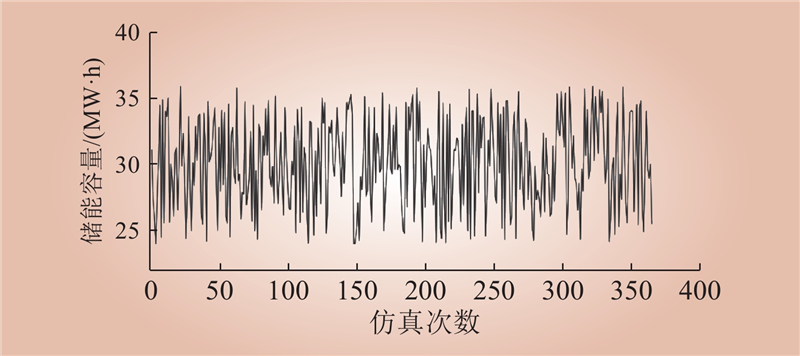

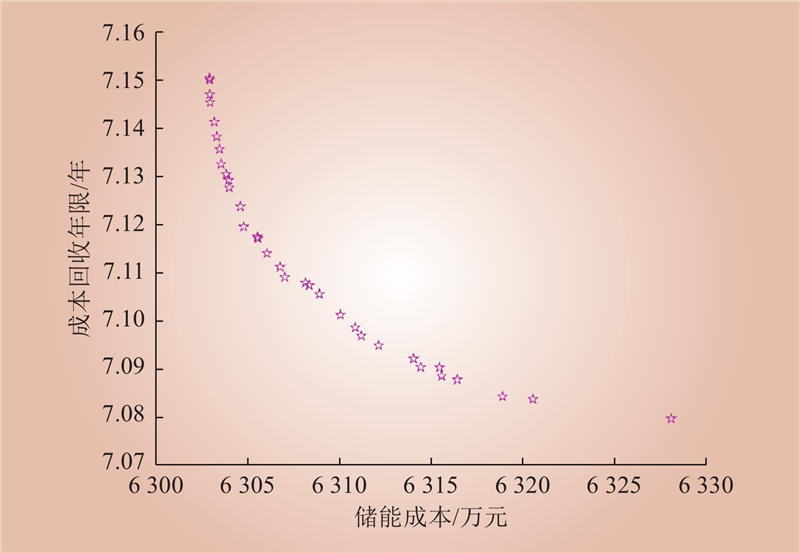

容量/ (MW·h)		功率/ MW		储能成本/万元		经济效益/ (万元·月^–1)		成本回收年限/年
31.90		15.95		6308.5		73.84		7.12

容量/ (MW·h)		功率/ MW		储能成本/万元		经济效益/ (万元·月^–1)		成本回收年限/年
31.90		15.95		6308.5		73.84		7.12

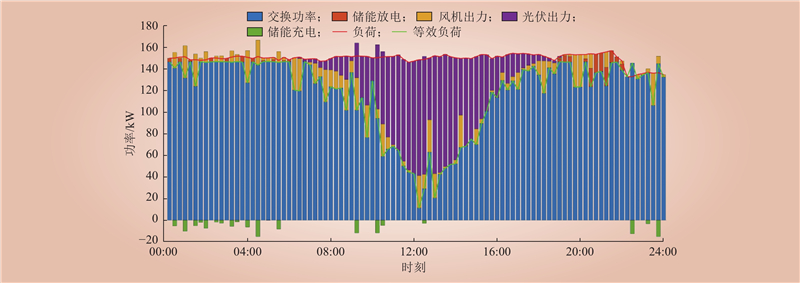

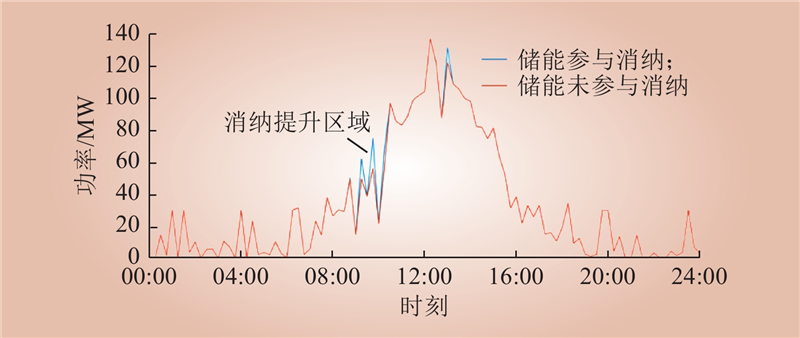

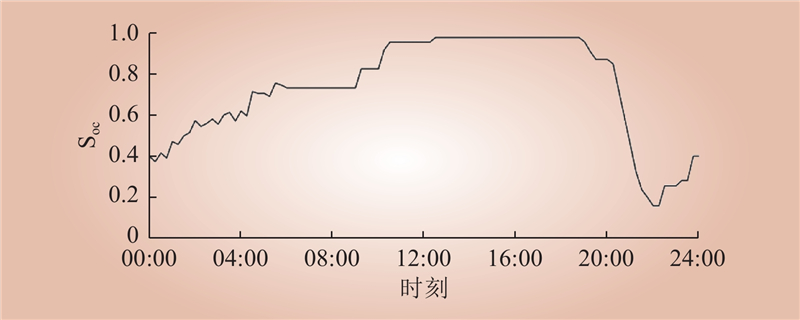

场景	风电渗透率	光伏渗透率	储能功率/MW	储能容量/ (MW·h)	预计回收年限/年	碳排放量/t	碳减排收益/元
1	0.070	0.151	15.39	30.78	7.11	2691.1	1 984
2	0.057	0.149	16.35	32.70	7.43	2739.8	1 857
3	0.056	0.139	12.20	24.40	6.06	2778.6	1755
4	0.060	0.136	13.10	26.20	6.55	2776.3	1761
5	0.068	0.132	18.80	37.60	8.33	2761.3	1800
6	0.058	0.15	16.22	32.44	6.88	2732.7	1 875
7	0.069	0.147	14.76	29.52	7.58	2707.9	1 940
8	0.063	0.150	20.32	40.64	7.50	2716.9	1 916
9	0.057	0.137	16.48	32.96	6.61	2781.8	1746
10	0.066	0.138	18.77	37.54	6.63	2747.2	1 837

场景	风电渗透率	光伏渗透率	储能功率/MW	储能容量/ (MW·h)	预计回收年限/年	碳排放量/t	碳减排收益/元
1	0.070	0.151	15.39	30.78	7.11	2691.1	1 984
2	0.057	0.149	16.35	32.70	7.43	2739.8	1 857
3	0.056	0.139	12.20	24.40	6.06	2778.6	1755
4	0.060	0.136	13.10	26.20	6.55	2776.3	1761
5	0.068	0.132	18.80	37.60	8.33	2761.3	1800
6	0.058	0.15	16.22	32.44	6.88	2732.7	1 875
7	0.069	0.147	14.76	29.52	7.58	2707.9	1 940
8	0.063	0.150	20.32	40.64	7.50	2716.9	1 916
9	0.057	0.137	16.48	32.96	6.61	2781.8	1746
10	0.066	0.138	18.77	37.54	6.63	2747.2	1 837

光伏额定功率/ MW	年发电量/ (亿kW·h)	储能容量/ (MW·h)	储能功率/ MW	聚合容量/ (MW·h)	回收年限/ 年	消纳率/%	碳减排/万t
120	2.798	24~40	12~20	34.07	6.82	100	27.97
130	3.093	30~40	15~20	34.71	6.84	100	29.69
140	3.344	36~54	18~27	48.05	7.44	100	32.11
150	3.468	26~60	23~30	51.64	7.71	100	33.30
160	3.645	54~74	27~37	61.98	8.43	100	34.99
170	3.822	82~92	41~46	83.35	11.21	100	36.70
180	4.024	86~100	43~50	88.21	11.30	97.3	37.83

面向节能降碳的冶炼企业风光储多目标协同定容方法

Multi-objective Cooperative Capacity Determination Method for Integrated System of Wind, Photovoltaic and Storage of Smelting Enterprises Requiring Energy Saving and Carbon Reduction

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 25

相关文章 15

编辑推荐

Metrics

场景	储能容量/ (MW·h)	储能功率/ MW	成本回收年限/年	新能源消纳率/%
1）	68.54	34.27	7.64	100
2）	61.62	30.81	8.18	100
