考虑网损的电力系统节点边际碳势理论研究与建模

doi:10.11930/j.issn.1004-9649.202305075

中国电力 ›› 2024, Vol. 57 ›› Issue (6): 215-224.DOI: 10.11930/j.issn.1004-9649.202305075

考虑网损的电力系统节点边际碳势理论研究与建模

吴静¹(), 刘轩宇²(), 李响¹(), 齐笑言¹, 李成俊¹, 张忠²

1. 国网辽宁省电力有限公司电力科学研究院，辽宁沈阳　110006
2. 大连理工大学电气工程学院，辽宁大连　116024

收稿日期:2023-05-16 接受日期:2023-09-19 出版日期:2024-06-28 发布日期:2024-06-25
作者简介:吴静（1972—），女，硕士，高级工程师，从事电力环境保护研究，E-mail：1822052970@qq.com
刘轩宇（1998—），男，硕士研究生，从事电力系统碳排放、电力系统低碳经济调度研究，E-mail：liuxuanyu9@mail.dlut.edu.cn
李响（1986—），男，通信作者，硕士，高级工程师，从事电力环境保护研究，E-mail：dbdkyhbs_lx@126.com
基金资助:
国网辽宁省电力有限公司电力科学研究院科技项目（省级电网碳流分析与碳排放监控技术研究，2022YF-71）。

Research and Modelling of Bus Marginal Carbon Intensity for Power Systems Considering Network Losses

Jing WU¹(), Xuanyu LIU²(), Xiang LI¹(), Xiaoyan QI¹, Chengjun LI¹, Zhong ZHANG²

1. Electric Power Research Institute of State Grid Liaoning Electric Power Co., Ltd., Shenyang 110006, China
2. School of Electrical Engineering, Dalian University of Technology, Dalian 116024, China

Received:2023-05-16 Accepted:2023-09-19 Online:2024-06-28 Published:2024-06-25
Supported by:
This work is supported by Science and Technology Project of Electric Power Research Institute of State Grid Liaoning Electric Power Co., Ltd. (Research on Carbon Flow Analysis and Carbon Emission Monitoring Technology of Provincial Power Grid, No.2022YF-71).

摘要/Abstract

摘要：

用于电力系统碳排放计算的宏观核算法和碳流分析法未考虑网损、阻塞因素对电网边际碳排放的影响。为实现电网碳排放指标的精细化分析，建立考虑网损的电力系统节点边际碳势分析模型。考虑火电机组煤耗特性建立了机组的边际碳势模型；基于交流潮流模型，建立电网网损灵敏度模型；进而提出电力系统节点边际碳势的计算方法，并考虑网络阻塞因素进一步改进了该方法。采用IEEE 14节点系统和某500 kV实际系统算例验证了所建模型的合理性和适用性，分别分析了低碳和非低碳调度模式下节点碳势的变化规律；发现考虑网损后节点的正、负向边际碳势存在一定差异；网损因素也使得电网各节点边际碳势各异，考虑网损的模型可提供更为准确的节点边际碳势信息，可用于开展较为精准的实时碳排放分析。

关键词: 边际碳势, 网损间接碳排放, 边际理论, 碳流理论, 灵敏度分析

Abstract:

Network losses and congestion have not been considered in the current macro carbon calculation method and carbon flow analysis method for power systems. To achieve precise analysis of carbon emission indicators for power systems, this paper proposes a model to calculate the bus marginal carbon intensity (MCI) of power system considering network losses. A MCI model is established based on coal consumption characteristics of thermal power units. Based on AC power flow model, a sensitivity model of network losses is established, and a calculation method is proposed to calculate the bus MCI of power systems. The method is further improved with consideration of network constraints. The IEEE 14-bus test system and a real 500 kV system are used to verify the correctness and applicability of the proposed model. The characteristics of MCI is analyzed under low carbon and non-low carbon dispatch modes. It is found that the positive and negative MCI of a bus is different when considering the network losses. The network factor also causes the differences of MCI of each bus. The model considering network losses can provide more accurate bus MCI information, which can be used to conduct more accurate real-time carbon emission analysis.

Key words: marginal carbon intensity, indirect carbon emissions of network loss, marginal theory, carbon flow theory, sensitivity analysis

吴静, 刘轩宇, 李响, 齐笑言, 李成俊, 张忠. 考虑网损的电力系统节点边际碳势理论研究与建模[J]. 中国电力, 2024, 57(6): 215-224.

Jing WU, Xuanyu LIU, Xiang LI, Xiaoyan QI, Chengjun LI, Zhong ZHANG. Research and Modelling of Bus Marginal Carbon Intensity for Power Systems Considering Network Losses[J]. Electric Power, 2024, 57(6): 215-224.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202305075

https://www.electricpower.com.cn/CN/Y2024/V57/I6/215

图/表 11

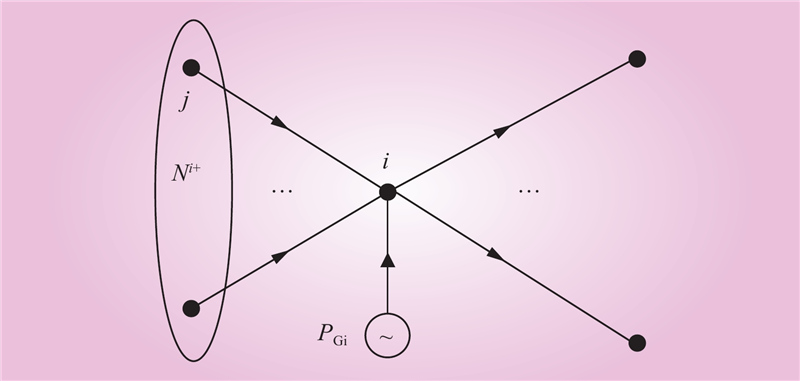

图 1 电网节点-支路关系简图

Fig.1 Schematic diagram of a power grid

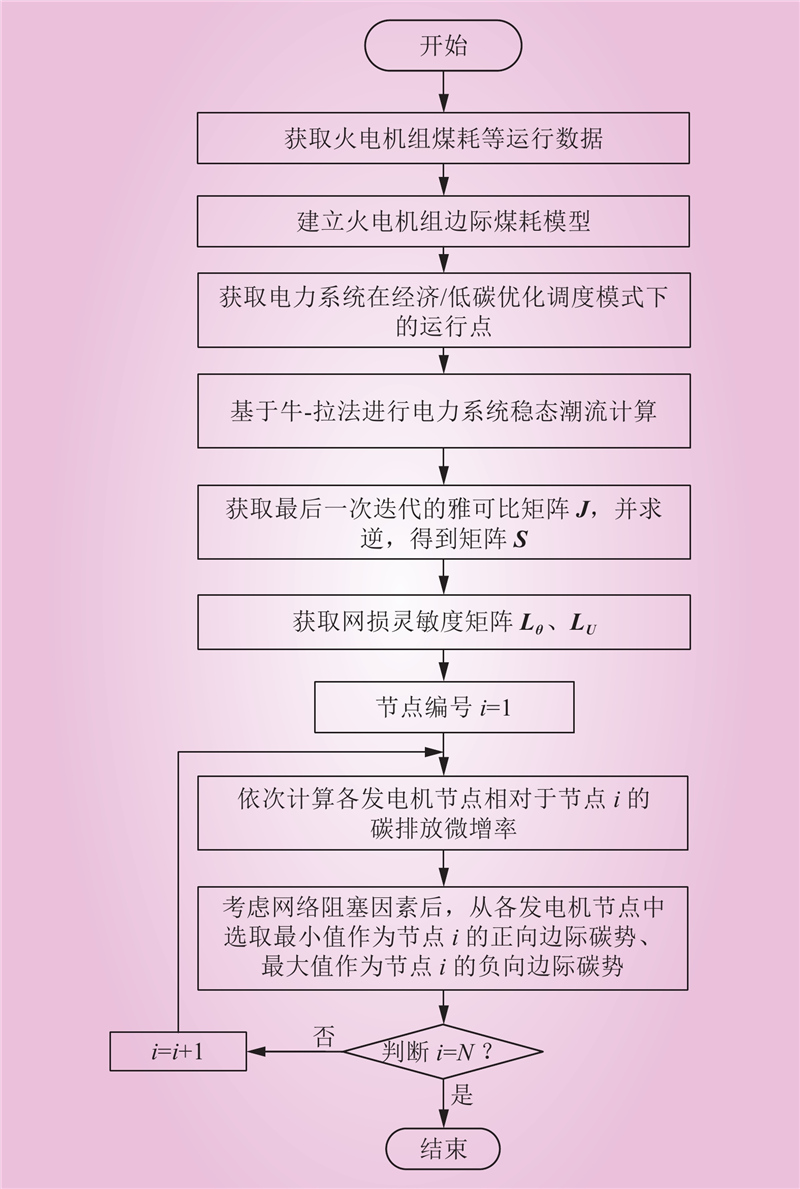

图 2 电力系统节点边际碳势计算流程

Fig.2 Flow chart for calculating bus marginal carbon intensity of power system

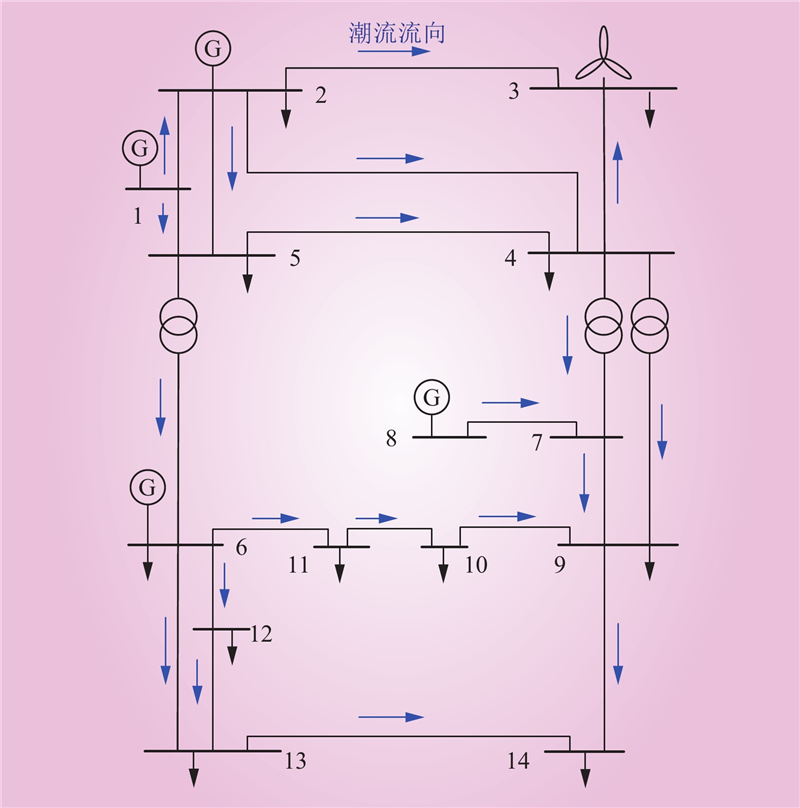

图 3 改进的IEEE 14节点系统

Fig.3 A modified IEEE 14-bus system

表 1 发电机参数

Table 1 Generator parameters

节点	出力/MW		煤耗系数			碳排放系数/%
节点	最小	最大	a/ (t·(MW²·h)^–1)	b/ (t·(MW·h)^–1)	c/(t·h^–1)	碳排放系数/%
1	100	200	0.000338	0.2298	4.975	2.37
2	60	120	0.000421	0.2127	4.300	2.63
6	20	50	0.000677	0.2097	1.881	2.57
8	10	20	0.000927	0.2128	1.280	2.40

表 2 发电机碳势与节点碳势

Table 2 Carbon intensity of generators and buses 单位：t/(MW·h)

节点编号	火电机组碳势	节点平均碳势	节点正向边际碳势	节点负向边际碳势
1	0.743	0.743	0.687	0.712
2	0.793	0.770	0.701	0.726
3		0.605	0.741	0.767
4		0.761	0.726	0.751
5		0.754	0.716	0.742
6	0.723	0.726	0.710	0.735
7		0.721	0.729	0.755
8	0.709	0.709	0.729	0.755
9		0.730	0.731	0.757
10		0.726	0.732	0.758
11		0.726	0.724	0.749
12		0.726	0.721	0.747
13		0.726	0.726	0.752
14		0.727	0.744	0.771

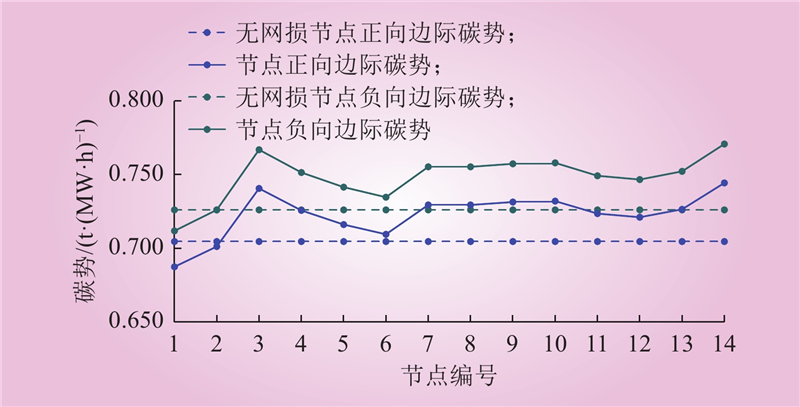

图 4 考虑网损前后的节点边际碳势

Fig.4 Bus marginal carbon intensity before and after considering network losses

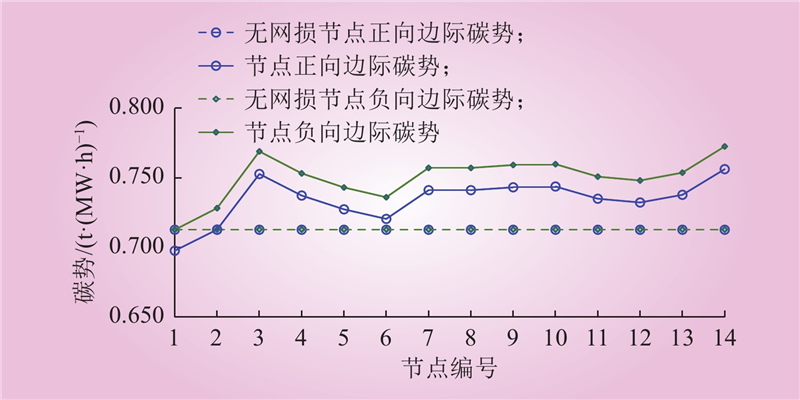

图 5 低碳调度模式下考虑网损前后的节点边际碳势

Fig.5 Bus marginal carbon intensity before and after considering network losses under low carbon dispatching mode

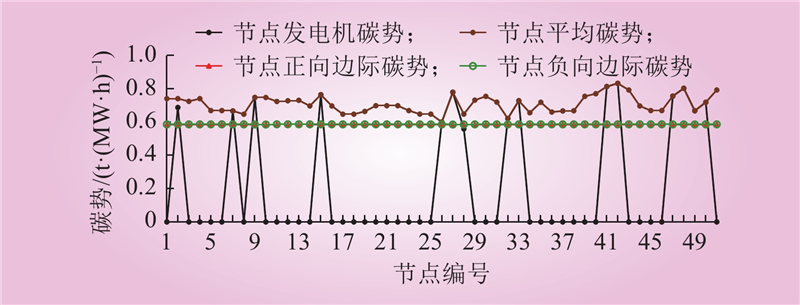

图 6 500 kV系统的发电机碳势与节点碳势

Fig.6 Generator and bus carbon intensity of a 500 kV system

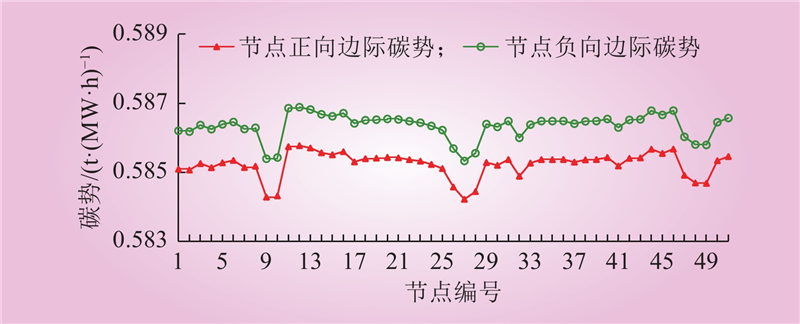

图 7 500 kV系统的节点边际碳势

Fig.7 Bus marginal carbon intensity of a 500 kV system

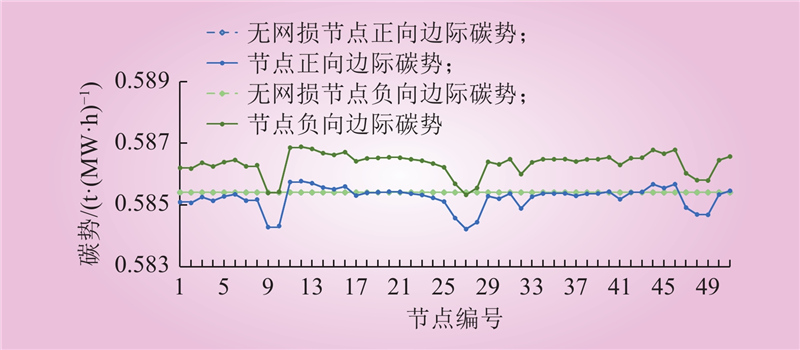

图 8 考虑网损前后的500 kV系统节点边际碳势

Fig.8 Bus marginal carbon intensity of a 500 kV system before and after considering network losses

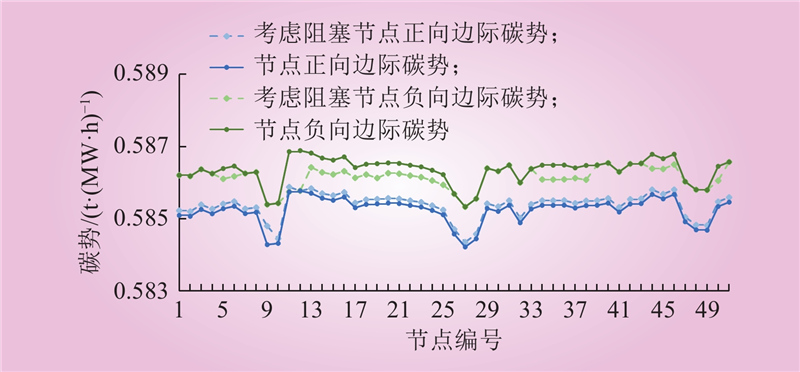

图 9 考虑网络阻塞前后的节点边际碳势

Fig.9 Bus marginal carbon intensity before and after considering network congestion
