考虑主从博弈定价模式的共享储能分布鲁棒优化配置方法研究

doi:10.11930/j.issn.1004-9649.202307016

摘要/Abstract

摘要：

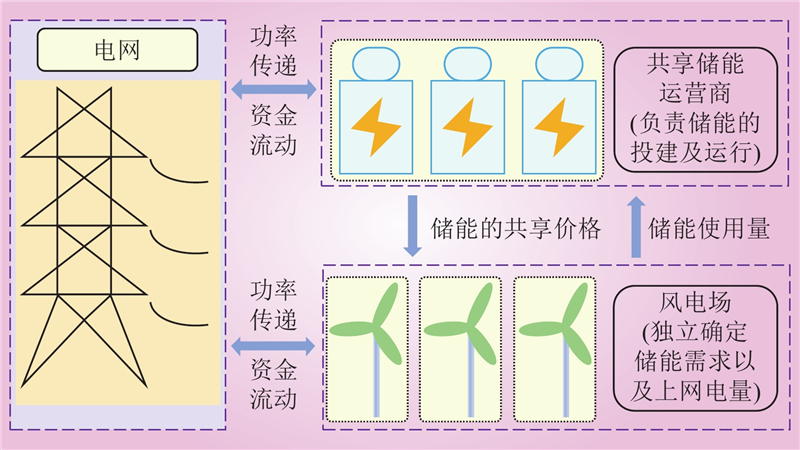

“碳达峰、碳中和”目标和新型电力系统构建促进新能源不断发展，对于储能设施提出更高需求。在此背景下，在对风电场进行储能配置时，考虑定价机制下利用共享经济模式对储能进行配置优化，并探讨计及风电出力不确定性对储能配置方案的影响。首先，基于主从博弈制定价格，提出一种以共享储能运营商为领导者，以各风电场为跟随者，并最大化各主体利润的共享储能优化配置模型；然后，针对风电出力波动，引入基于矩信息的分布鲁棒优化方法构建机会约束以描述不确定性，采用矩信息完善模糊集以降低模型保守性，通过切比雪夫不等式将各风电场模型重构为混合整数二阶锥规划模型以便求解；最后，通过中国西北地区某实际风电场数据进行算例分析，结果表明，所提优化配置模型能够减少冗余投资，促进储能参与配置并应对实际风电波动。

关键词: 共享储能, 储能配置, 主从博弈, 分布鲁棒优化, 储能服务定价

Abstract:

The goals of carbon peaking and carbon neutrality and the construction of new power system have promoted the continuous development of new energy resources, while bringing along higher demands for energy storage. When configuring energy storage for wind farms in the power system, the shared economic model is used to optimize the configuration of energy storage with consideration of the pricing mechanism, and the impact of wind generation uncertainty on the energy storage configuration scheme is discussed. Firstly, based on the Stackelberg game for determining the price, a shared energy storage optimal configuration model is proposed, in which the shared energy storage operator is the leader, wind farms are the followers, and the profit of each participant is maximized. Then, to address the fluctuations of wind power output, a moment information-based distributionally robust optimization method is introduced to construct chance constraints to describe uncertainties, where the moment information is used to complete the ambiguity set to reduce the conservatism. The wind farm model is reconstructed into a mixed integer second-order cone programming model through Chebyshev inequality for solution. Finally, case studies are conducted based on the actual wind farm data in Ningxia, and the results show that the proposed optimal configuration model can reduce redundant investment, promote energy storage to participate in configuration and address the actual wind power generation fluctuations.

Key words: shared energy storage, energy storage configuration, Stackelberg game, distributionally robust optimization, energy storage service pricing

齐彩娟, 陈宝生, 韦冬妮, 杨钊. 考虑主从博弈定价模式的共享储能分布鲁棒优化配置方法研究[J]. 中国电力, 2024, 57(7): 40-53.

Caijuan QI, Baosheng CHEN, Dongni WEI, Zhao YANG. Distributionally Robust Optimal Configuration for Shared Energy Storage Based on Stackelberg Game Pricing Model[J]. Electric Power, 2024, 57(7): 40-53.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202307016

https://www.electricpower.com.cn/CN/Y2024/V57/I7/40

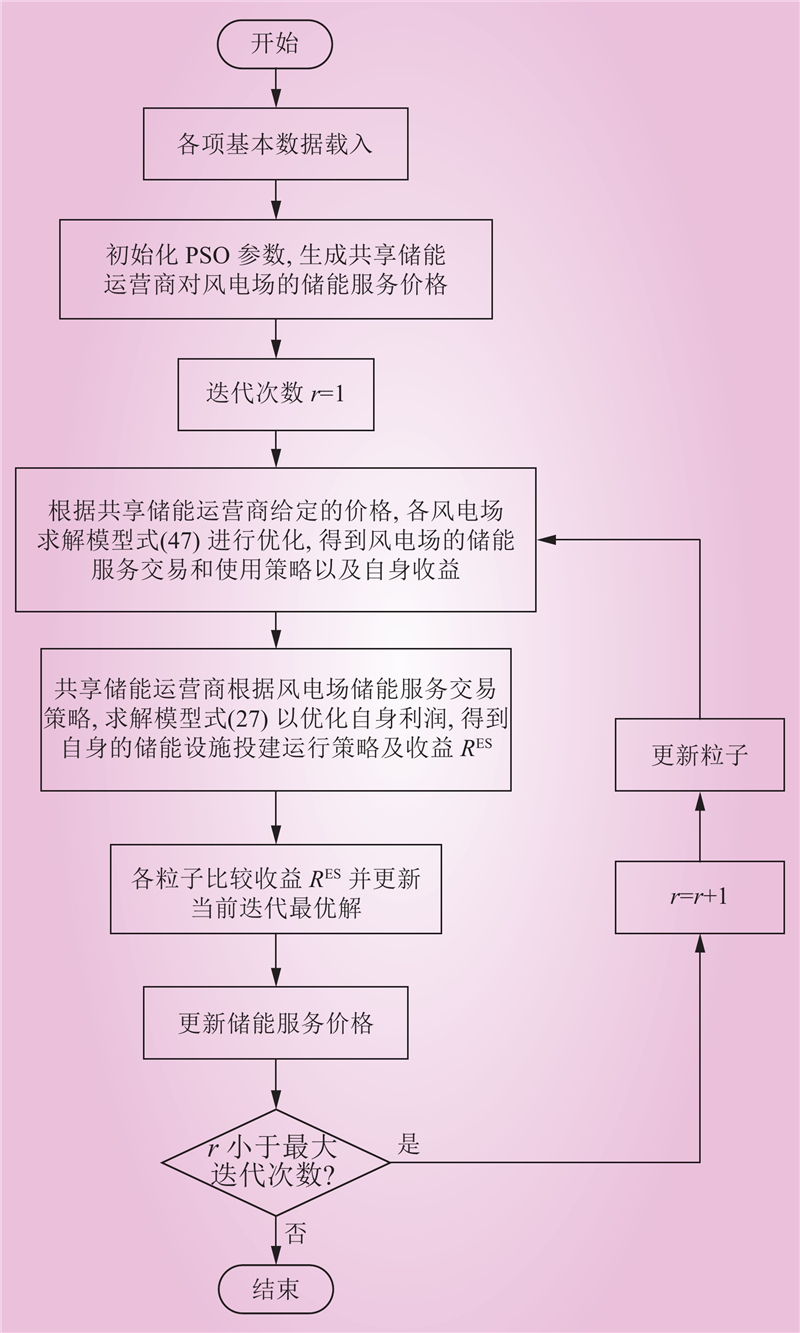

图/表 16

参考文献 38

1	张智刚, 康重庆. 碳中和目标下构建新型电力系统的挑战与展望[J]. 中国电机工程学报, 2022, 42 (8): 2806- 2819.
	ZHANG Zhigang, KANG Chongqing. Challenges and prospects for constructing the new-type power system towards a carbon neutrality future[J]. Proceedings of the CSEE, 2022, 42 (8): 2806- 2819.
2	国家电网有限公司. 服务新能源发展报告2022[R]. 2022.
3	李相俊, 马会萌, 姜倩. 新能源侧储能配置技术研究综述[J]. 中国电力, 2022, 55 (1): 13- 25.
	LI Xiangjun, MA Huimeng, JIANG Qian. Review of energy storage configuration technology on renewable energy side[J]. Electric Power, 2022, 55 (1): 13- 25.
4	DÍAZ-GONZÁLEZ F, SUMPER A, GOMIS-BELLMUNT O, et al. A review of energy storage technologies for wind power applications[J]. Renewable and Sustainable Energy Reviews, 2012, 16 (4): 2154- 2171. DOI
5	张坤, 毛承雄, 谢俊文, 等. 风电场复合储能系统容量配置的优化设计[J]. 中国电机工程学报, 2012, 32 (25): 79- 87, 13.
	ZHANG Kun, MAO Chengxiong, XIE Junwen, et al. Optimal design of hybrid energy storage system capacity for wind farms[J]. Proceedings of the CSEE, 2012, 32 (25): 79- 87, 13.
6	陈厚合, 杜欢欢, 张儒峰, 等. 考虑风电不确定性的混合储能容量优化配置及运行策略研究[J]. 电力自动化设备, 2018, 38 (8): 174- 182, 188.
	CHEN Houhe, DU Huanhuan, ZHANG Rufeng, et al. Optimal capacity configuration and operation strategy of hybrid energy storage considering uncertainty of wind power[J]. Electric Power Automation Equipment, 2018, 38 (8): 174- 182, 188.
7	DAI R, ESMAEILBEIGI R, CHARKHGARD H. The utilization of shared energy storage in energy systems: a comprehensive review[J]. IEEE Transactions on Smart Grid, 2021, 12 (4): 3163- 3174. DOI
8	LIU J K, ZHANG N, KANG C Q, et al. Cloud energy storage for residential and small commercial consumers: a business case study[J]. Applied Energy, 2017, 188, 226- 236. DOI
9	简川黔, 刘继春, 蒲天骄, 等. 共建共享模式下考虑需求响应的多售电主体风光储容量优化方法[J]. 电力自动化设备, 2021, 41 (9): 206- 214.
	JIAN Chuanqian, LIU Jichun, PU Tianjiao, et al. Wind-photovoltaic-storage capacity optimization method for multiple electricity sell entities considering demand response under co-construction and sharing mode[J]. Electric Power Automation Equipment, 2021, 41 (9): 206- 214.
10	ZHU J Q, XIA Y R, MO X M, et al. A bilevel bidding and clearing model incorporated with a pricing strategy for the trading of energy storage use rights[J]. Energy, 2021, 235, 121338. DOI
11	杨帆, 王维庆, 程静, 等. 基于误差分配原则的发电侧共享储能容量规划研究[J]. 电力系统保护与控制, 2022, 50 (7): 91- 102.
	YANG Fan, WANG Weiqing, CHENG Jing, et al. Capacity planning of shared energy storage on the generation side based on the error distribution principle[J]. Power System Protection and Control, 2022, 50 (7): 91- 102.
12	李媛, 冯昌森, 文福拴, 等. 含电动汽车和电转气的园区能源互联网能源定价与管理[J]. 电力系统自动化, 2018, 42 (16): 1- 10. DOI
	LI Yuan, FENG Changsen, WEN Fushuan, et al. Energy pricing and management for park-level energy internets with electric vehicles and Power-to-gas devices[J]. Automation of Electric Power Systems, 2018, 42 (16): 1- 10. DOI
13	LI G G, LI Q Q, LIU Y, et al. A cooperative Stackelberg game based energy management considering price discrimination and risk assessment[J]. International Journal of Electrical Power & Energy Systems, 2022, 135, 107461.
14	闫东翔, 陈玥. 共享储能商业模式和定价机制研究综述[J]. 电力系统自动化, 2022, 46 (23): 178- 191. DOI
	YAN Dongxiang, CHEN Yue. Review on business model and pricing mechanism for shared energy storage[J]. Automation of Electric Power Systems, 2022, 46 (23): 178- 191. DOI
15	刘寅韬, 江全元, 耿光超, 等. 基于合作联盟的电化学储能共享模式研究[J/OL]. 电网技术: 1–12[2024-04-16].https://doi.org/10.13335/j.1000-3673.pst.2023.0552
	LIU Yintao, JIANG Quanyuan, GENG Guangchao, et al. Research on the sharing model of electrochemical energy storage based on cooperative alliance[J/OL]. Power System Technology: 1–12[2024-04-16].https://doi.org/10.13335/j.1000-3673.pst.2023.0552.
16	JIANG A H, YUAN H H, LI D L. Energy management for a community-level integrated energy system with photovoltaic prosumers based on bargaining theory[J]. Energy, 2021, 225, 120272. DOI
17	张潇, 栗然, 马涛, 等. 基于主从博弈和贪心策略的含电动汽车主动配电网优化调度[J]. 电力自动化设备, 2020, 40 (4): 103- 110.
	ZHANG Xiao, LI Ran, MA Tao, et al. Stackelberg game and greedy strategy based optimal dispatch of active distribution network with electric vehicles[J]. Electric Power Automation Equipment, 2020, 40 (4): 103- 110.
18	WANG H Y, ZHANG C H, LI K, et al. Distributed coordinative transaction of a community integrated energy system based on a tri-level game model[J]. Applied Energy, 2021, 295, 116972. DOI
19	PARK S W, ZHANG Z, LI F R, et al. Peer-to-peer trading-based efficient flexibility securing mechanism to support distribution system stability[J]. Applied Energy, 2021, 285, 116403. DOI
20	XIE R, WEI W, SHAHIDEHPOUR M, et al. Sizing renewable generation and energy storage in stand-alone microgrids considering distributionally robust shortfall risk[J]. IEEE Transactions on Power Systems, 2022, 37 (5): 4054- 4066. DOI
21	吴玮坪, 胡泽春, 宋永华. 结合随机规划和序贯蒙特卡洛模拟的风电场储能优化配置方法[J]. 电网技术, 2018, 42 (4): 1055- 1062.
	WU Weiping, HU Zechun, SONG Yonghua. Optimal sizing of energy storage system for wind farms combining stochastic programming and sequential Monte Carlo simulation[J]. Power System Technology, 2018, 42 (4): 1055- 1062.
22	朱晓荣, 鹿国微, 谢婉莹. 考虑源网荷灵活性资源的配电网储能鲁棒规划[J]. 电力自动化设备, 2021, 41 (8): 8- 16, 40.
	ZHU Xiaorong, LU Guowei, XIE Wanying. Robust planning of energy storage in distribution network considering source-network-load flexible resources[J]. Electric Power Automation Equipment, 2021, 41 (8): 8- 16, 40.
23	XIE R, WEI W, LI M X, et al. Sizing capacities of renewable generation, transmission, and energy storage for low-carbon power systems: a distributionally robust optimization approach[J]. Energy, 2023, 263, 125653. DOI
24	CHEN Y W, GUO Q L, SUN H B, et al. A distributionally robust optimization model for unit commitment based on kullback–leibler divergence[J]. IEEE Transactions on Power Systems, 2018, 33 (5): 5147- 5160. DOI
25	JIANG R W, GUAN Y P. Data-driven chance constrained stochastic program[J]. Mathematical Programming, 2016, 158 (1): 291- 327.
26	MA Y X, HU Z C, SONG Y H. Hour-ahead optimization strategy for shared energy storage of renewable energy power stations to provide frequency regulation service[J]. IEEE Transactions on Sustainable Energy, 2022, 13 (4): 2331- 2342. DOI
27	HAJEBRAHIMI A, KAMWA I, DELAGE E, et al. Adaptive distributionally robust optimization for electricity and electrified transportation planning[J]. IEEE Transactions on Smart Grid, 2020, 11 (5): 4278- 4289. DOI
28	ZHUANG P, LIANG H. Stochastic energy management of electric bus charging stations with renewable energy integration and B2G capabilities[J]. IEEE Transactions on Sustainable Energy, 2021, 12 (2): 1206- 1216. DOI
29	FANG X, HODGE B M, DU E S, et al. Introducing uncertainty components in locational marginal prices for pricing wind power and load uncertainties[J]. IEEE Transactions on Power Systems, 2019, 34 (3): 2013- 2024. DOI
30	许高秀, 王旭, 邓晖, 等. 考虑调频需求及风光出力不确定性的储能系统参与能量-调频市场运行策略[J]. 电网技术, 2023, 47 (6): 2317- 2330.
	XU Gaoxiu, WANG Xu, DENG Hui, et al. Optimal operation strategy of energy storage system's participation in energy and regulation market considering uncertainties of regulation requirements and wind-photovoltaic output[J]. Power System Technology, 2023, 47 (6): 2317- 2330.
31	陈曦, 付文龙, 张海荣, 等. 考虑新能源发电不确定性的含微电网群共享储能优化调度[J]. 电网技术, 2024, 48 (1): 219- 236.
	CHEN Xi, FU Wenlong, ZHANG Hairong, et al. Optimal dispatching strategy of shared energy storage and multi-microgrid considering the uncertainty of new energy generation[J]. Power System Technology, 2024, 48 (1): 219- 236.
32	国家能源局. 电力系统网源协调技术规范: DL/T 1870—2018[S]. 北京: 中国电力出版社, 2018.
33	CHEN B R, LIU T Q, LIU X, et al. A Wasserstein distance-based distributionally robust chance-constrained clustered generation expansion planning considering flexible resource investments[J]. IEEE Transactions on Power Systems, 2023, 38 (6): 5635- 5647. DOI
34	FANG X, CUI H T, DU E S, et al. Characteristics of locational uncertainty marginal price for correlated uncertainties of variable renewable generation and demands[J]. Applied Energy, 2021, 282, 116064. DOI
35	XIE W J, AHMED S. Distributionally robust chance constrained optimal power flow with renewables: a conic reformulation[J]. IEEE Transactions on Power Systems, 2018, 33 (2): 1860- 1867. DOI
36	齐彩娟, 车彬, 杨燕, 等. 考虑新能源消纳与储能参与调频的共享储能主从博弈鲁棒定价方法[J]. 中国电力, 2023, 56 (8): 26- 39.
	QI Caijuan, CHE Bin, YANG Yan, et al. Master-slave game-based robust pricing method of shared energy storage considering renewable energy accommodation and energy storage participating in frequency modulation[J]. Electric Power, 2023, 56 (8): 26- 39.
37	中华人民共和国中央人民政府.国家发展改革委关于完善风力发电上网电价政策的通知[EB/OL]. (2019-05-21)[2023-07-10].https://www.gov.cn/zhengce/zhengceku/2019-09/29/content_5434626.htm.
38	ZHOU A P, YANG M, WANG M Q, et al. A linear programming approximation of distributionally robust chance-constrained dispatch with Wasserstein distance[J]. IEEE Transactions on Power Systems, 2020, 35 (5): 3366- 3377. DOI

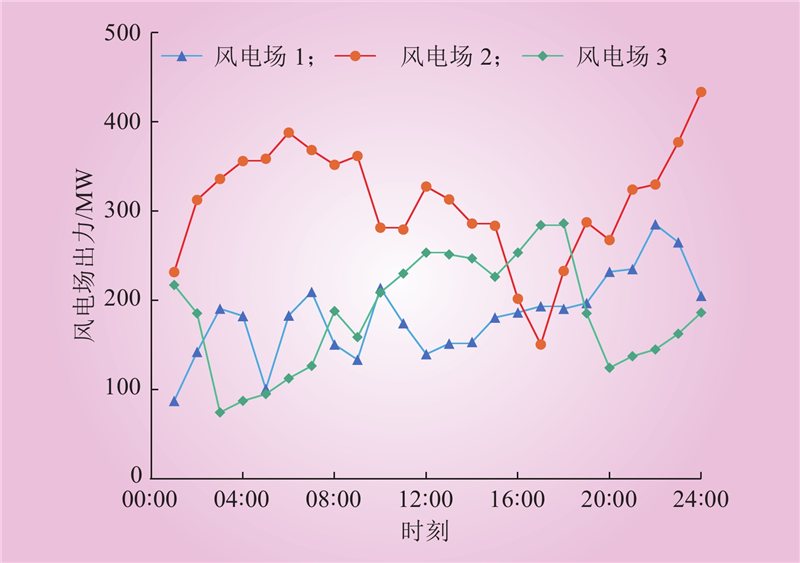

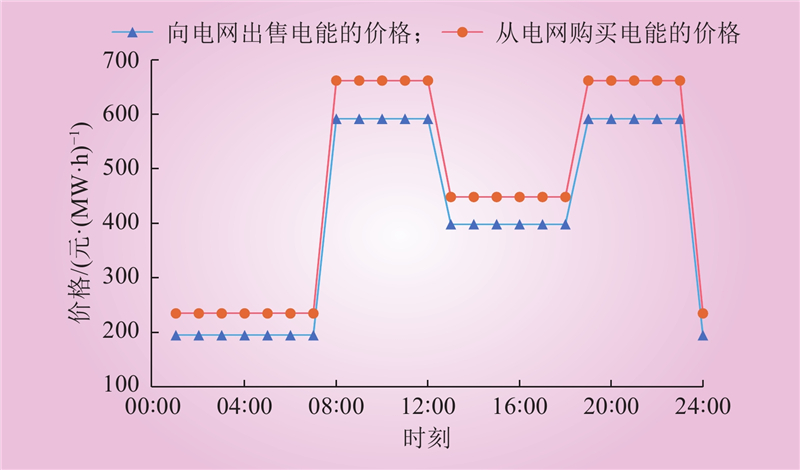

参数		数值
最小、最大容量/(MW·h)		0、20
最小、最大充放电功率/MW		0、15.56
充放电效率		0.85
单位容量投建成本/(元·(kW·h)^–1)		336.332
单位日运维成本/(元·MW^–1)		26

参数		数值
最小、最大容量/(MW·h)		0、20
最小、最大充放电功率/MW		0、15.56
充放电效率		0.85
单位容量投建成本/(元·(kW·h)^–1)		336.332
单位日运维成本/(元·MW^–1)		26

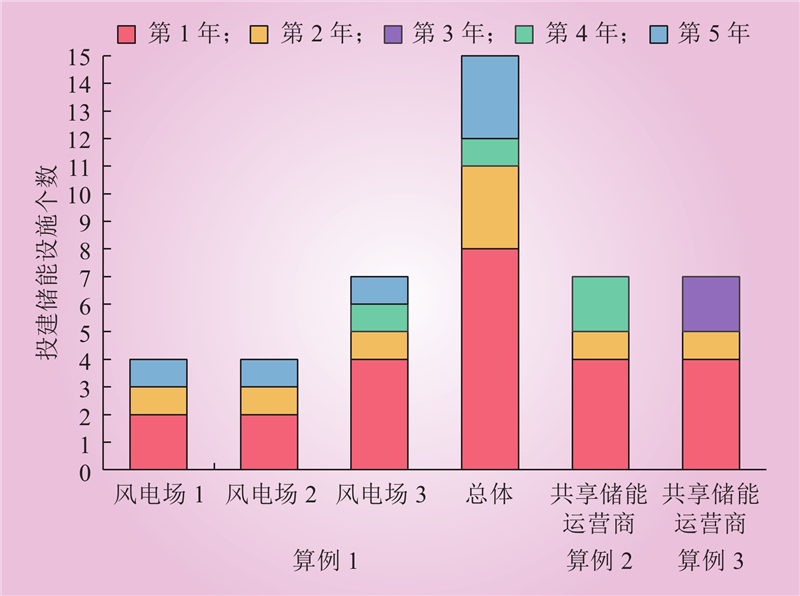

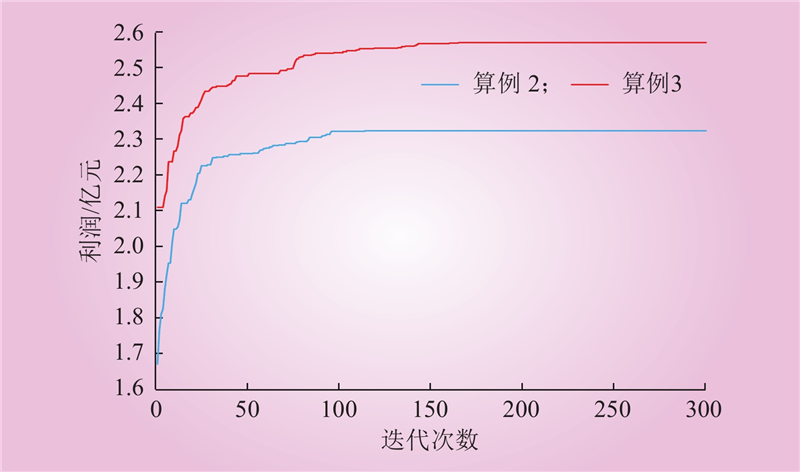

算例	利润
算例	风电场1	风电场2	风电场3	风电场总体	共享储能运营商
1	12.1552	21.3678	11.7902	45.3132
2	12.5197	21.7712	12.4249	46.7158	2.3236
3	12.4191	21.7425	12.1984	46.3600	2.5698

算例	利润
算例	风电场1	风电场2	风电场3	风电场总体	共享储能运营商
1	12.1552	21.3678	11.7902	45.3132
2	12.5197	21.7712	12.4249	46.7158	2.3236
3	12.4191	21.7425	12.1984	46.3600	2.5698

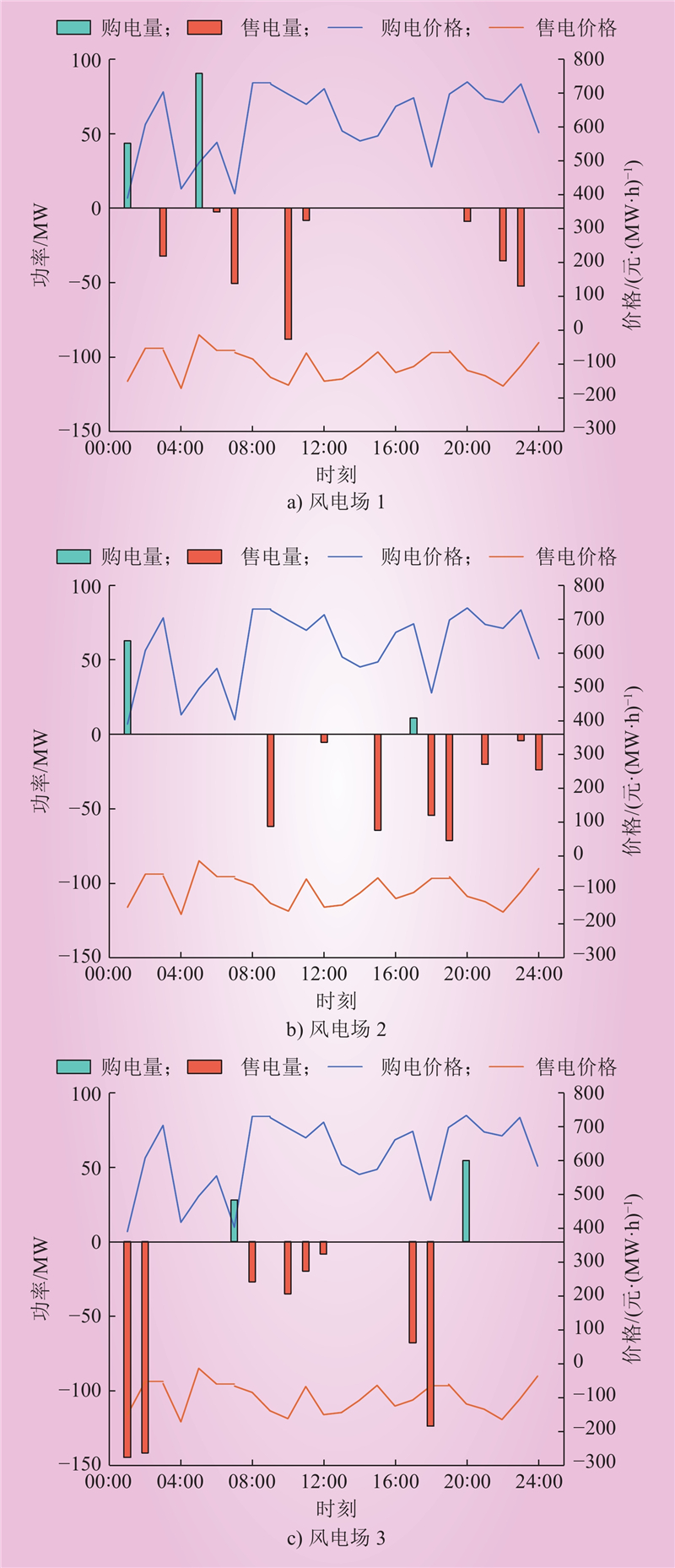

风电场	储能投建成本	储能运维成本	向电网		惩罚成本	总利润
风电场	储能投建成本	储能运维成本	购电成本	售电收入	惩罚成本	总利润
1	0.4717	0.0843	0.7117	13.4229	0	12.1552
2	0.4717	0.0633	0.5469	22.4497	0	21.3678
3	0.8554	0.1238	0.9507	13.7201	0	11.7902
总体	1.7988	0.2714	2.2093	49.5927	0	45.3132
