考虑电动汽车需求响应的交直流混合配电网智能软开关与储能装置鲁棒联合规划方法

doi:10.11930/j.issn.1004-9649.202507034

摘要/Abstract

摘要：

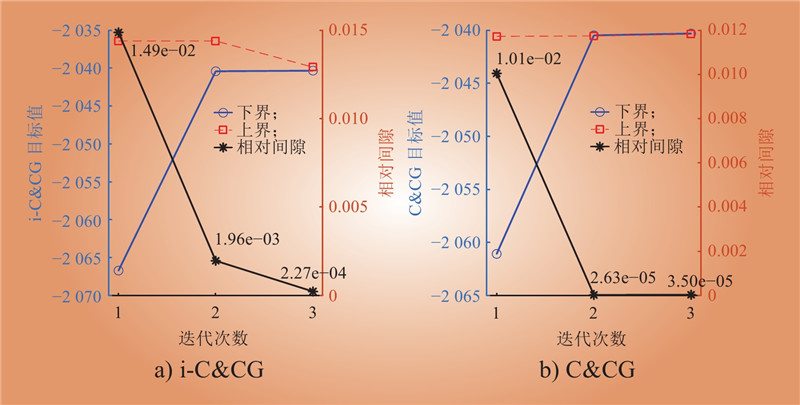

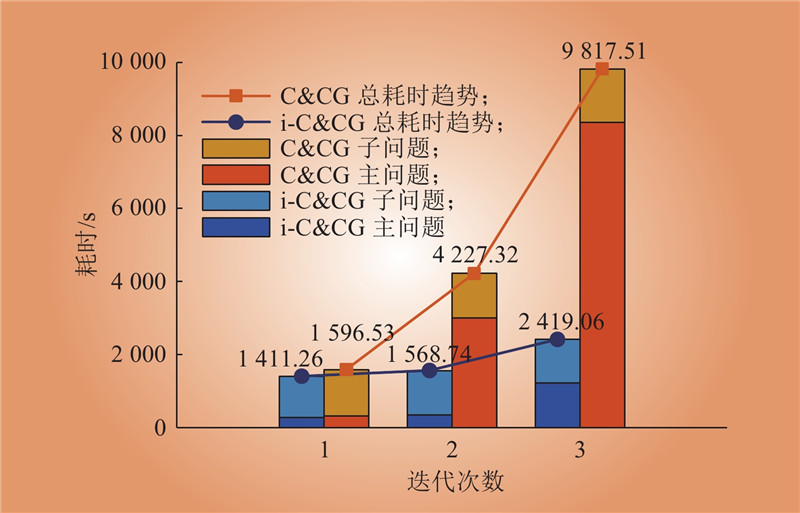

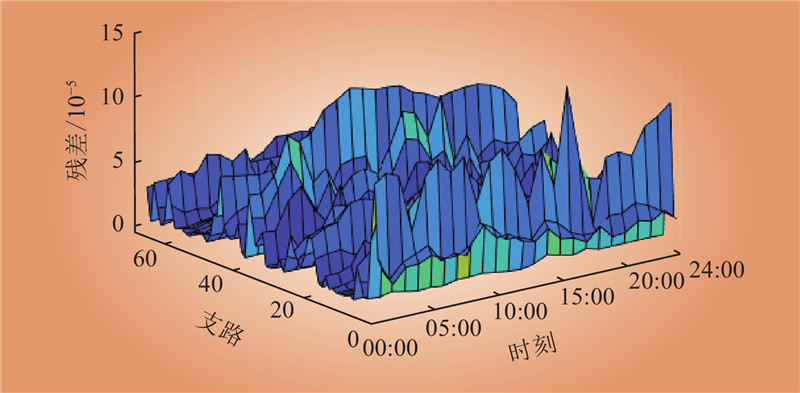

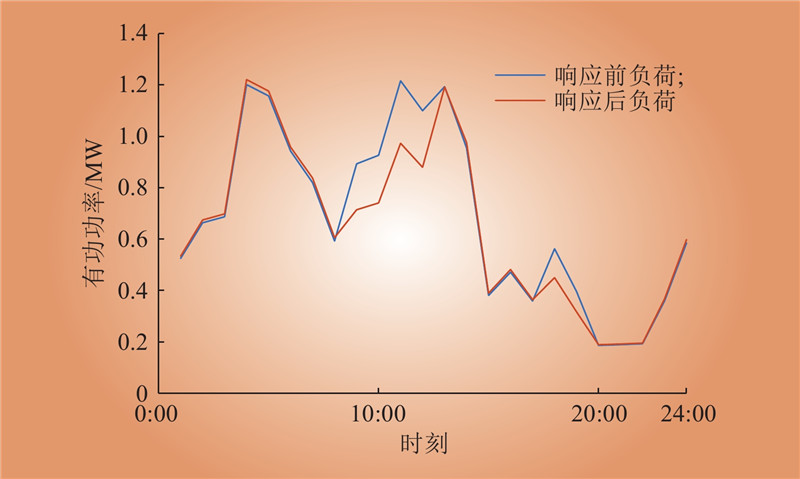

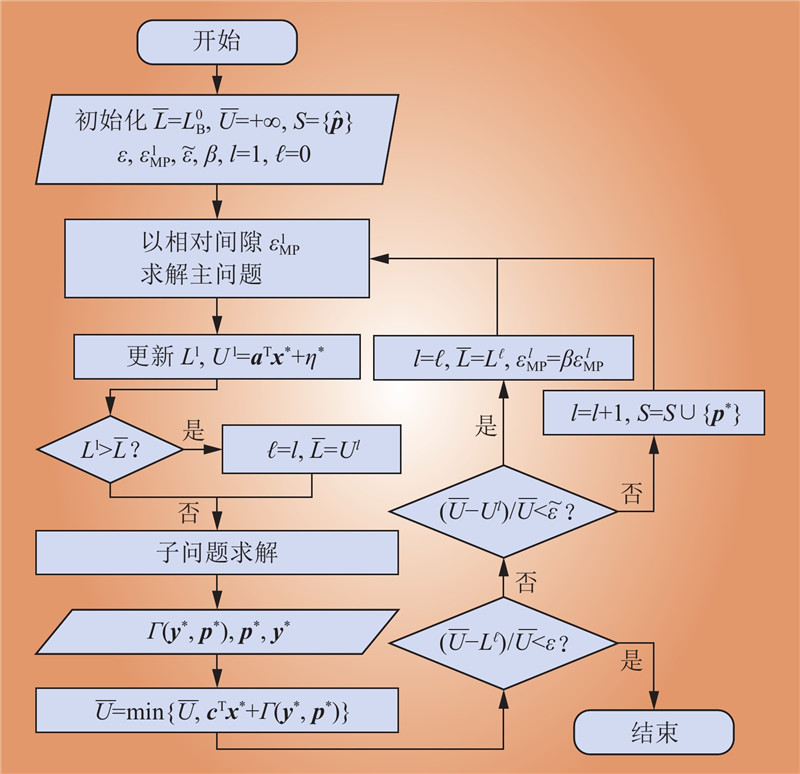

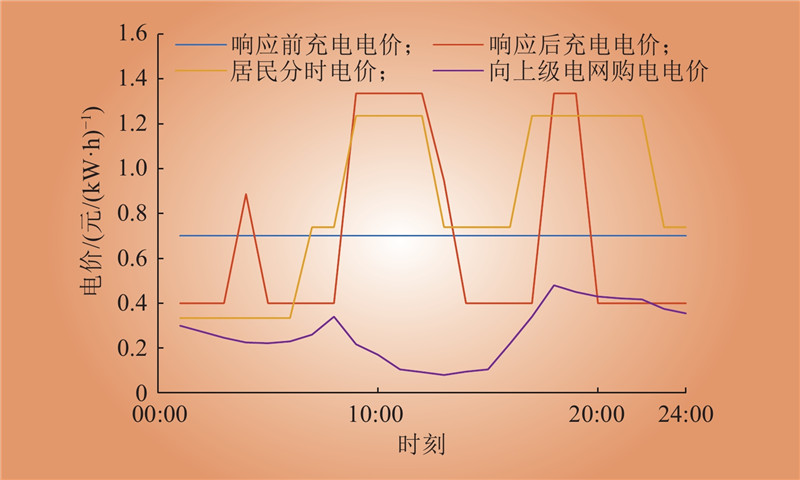

为适应配电网高质量发展的新需求，保障系统对大规模分布式电源与电动汽车（electric vehicle，EV）的承载能力，提出考虑电动汽车需求响应的交直流混合配电网中智能软开关（soft open point，SOP）与分布式储能装置（distributed energy storage system，DESS）鲁棒联合规划方法。首先，针对源荷不确定性，采用K-means提取典型与极端的日运行场景，并引入范数约束构造场景概率不确定集，以调控模型保守性。随后，通过需求价格弹性系数刻画EV用户对实时电价的响应行为，构建以年综合成本最低为目标的两阶段鲁棒规划模型，并通过二阶锥松弛与McCormick包络等方法进行凸转化。模型引入场景概率的二进制展开，实现在不确定集区间内的最恶劣场景搜索，并结合电网分区拓展SOP安装待选位置，采用对偶理论和非精确列与约束生成算法（inexact column constraint generation，i-C&CG）实现高效求解。最后在69节点系统中验证了模型对支撑电压、保障消纳、减少损耗的有效性。

关键词: 交直流混合配电网, 电动汽车, 智能软开关, 储能装置, 两阶段鲁棒

Abstract:

To meet the new demands of high-quality development of distribution networks and enhance their capacity to accommodate large-scale distributed generation and electric vehicle (EV) loads, this paper proposes a robust joint planning method for soft open points (SOP) and distributed energy storage systems (DESS) in AC/DC hybrid distribution networks, with consideration of EV demand response. Firstly, to address source-load uncertainty, typical and extreme daily operation scenarios are extracted using K-means clustering, and a scenario probability uncertainty set is constructed with l₁-norm and infinity-norm constraints to adjust the model’s conservativeness. And then, the response behaviors of EV users to real-time price are characterized by a demand price elasticity coefficient. A two-stage robust optimization model is formulated to minimize the annual total cost, and the second-order cone relaxation and McCormick envelopes are used to convexify the model. Scenario probability variables are expanded in binary form to enable worst-case scenario search within the uncertainty set. Candidate SOP locations are extended based on network partitioning. The model is solved efficiently by applying duality theory and the inexact column-and-constraint generation (i-C&CG) algorithm. Finally, the effectiveness of the proposed model in supporting voltage, ensuring renewable energy accommodation, and reducing losses is verified in a 69-bus system.

Key words: AC/DC hybrid distribution network, electric vehicle, soft open point, energy storage system, two-stage robust optimization

廖建, 张耀, 张贝西, 董浩淼, 李嘉兴, 孙乾皓. 考虑电动汽车需求响应的交直流混合配电网智能软开关与储能装置鲁棒联合规划方法[J]. 中国电力, 2025, 58(10): 82-96.

LIAO Jian, ZHANG Yao, ZHANG Beixi, DONG Haomiao, LI Jiaxing, SUN Qianhao. A Robust Joint Planning Method for Soft Open Points and Energy Storage Systems in AC/DC Hybrid Distribution Networks Considering Electric Vehicle Demand Response[J]. Electric Power, 2025, 58(10): 82-96.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202507034

https://www.electricpower.com.cn/CN/Y2025/V58/I10/82

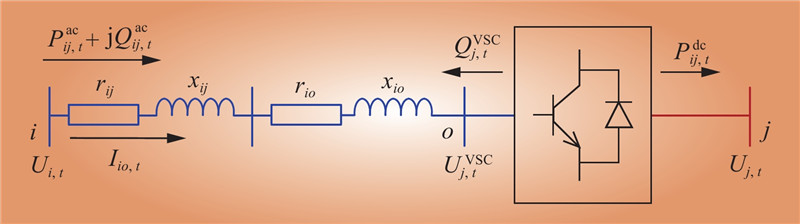

图/表 16

参考文献 31

1	童潇宁, 王月强, 仇张权, 等. 基于数据驱动多面体集合的交直流混合配电网鲁棒调度方法[J]. 电力系统保护与控制, 2024, 52 (3): 38- 50.
	TONG Xiaoning, WANG Yueqiang, QIU Zhangquan, et al. Robust scheduling method for AC/DC hybrid distribution networks based ona data-driven polyhedral set[J]. Power System Protection and Control, 2024, 52 (3): 38- 50.
2	袁哲, 孙明辉, 颜伟. 考虑信号畸变的多源信息融合配电网故障定位方法[J]. 电力信息与通信技术, 2024, 22 (10): 1- 8.
	YUAN Zhe, SUN Minghui, YAN Wei. Multi-source information fusion fault localization method for distribution network considering signal distortion[J]. Electric Power Information and Communication Technology, 2024, 22 (10): 1- 8.
3	侯凯, 汤雨, 过亮, 等. 现代智慧配电网柔性互联技术研究综述[J/OL]. 电力自动化设备, 1–22. (2025-06-30). https://link.cnki.net/doi/10.16081/j.epae.202505027.
	HOU Kai, TANG Yu, GUO Liang, et al. Review on flexible interconnection technology of modern smart distribution network[J/OL]. Electric Power Automation Equipment, 1–22. (2025-06-30). https://link.cnki.net/doi/10.16081/j.epae.202505027.
4	杨婧颖, 王武林, 张明敏, 等. 考虑分布式光伏和储能参与的配电网电压分层控制方法[J]. 电力科学与技术学报, 2023, 38 (5): 111- 120, 215.
	YANG Jingying, WANG Wulin, ZHANG Mingmin, et al. Voltage hierarchical control method of distribution network considering distributedphotovoltaic and energy storage[J]. Journal of Electric Power Science and Technology, 2023, 38 (5): 111- 120, 215.
5	杨帆, 胡源, 张梁, 等. 考虑孤岛时间不确定性的配电网分布式储能选址定容[J]. 电力科学与技术学报, 2023, 38 (1): 43- 54.
	YANG Fan, HU Yuan, ZHANG Liang, et al. Optimal siting and sizing of distributed energy storage in distributionnetworks considering isolated islanding duration uncertainty[J]. Journal of Electric Power Science and Technology, 2023, 38 (1): 43- 54.
6	SIOSHANSI R, DENHOLM P, ARTEAGA J, et al. Energy-storage modeling: state-of-the-art and future research directions[J]. IEEE Transactions on Power Systems, 2022, 37 (2): 860- 875. DOI
7	王成山, 季节, 冀浩然, 等. 配电系统智能软开关技术及应用[J]. 电力系统自动化, 2022, 46 (4): 1- 14.
	WANG Chengshan, JI Jie, JI Haoran, et al. Technologies and application of soft open points in distribution networks[J]. Automation of Electric Power Systems, 2022, 46 (4): 1- 14.
8	SRIABISHA R, KUMAR J A, JAYAPRABAKAR J, et al. A comprehensive exploration of electric vehicles: classification, charging methods, obstacles, and approaches to optimization[J]. Energy for Sustainable Development, 2025, 85, 101671. DOI
9	刘浠流, 陈冠霖, 吴宁, 等. 考虑电动汽车充放电模式灵活性的配电网日前优化调度方法[J]. 分布式能源, 2023, 8 (4): 46- 54.
	LIU Xiliu, CHEN Guanlin, WU Ning, et al. Day-ahead optimal scheduling considering the flexibility of EV charging and discharging modes[J]. Distributed Energy, 2023, 8 (4): 46- 54.
10	陈海鹏, 唐俊敏, 吴昊, 等. 考虑电动汽车无功补偿与不确定性的配电网-电动汽车有功无功协同优化[J/OL]. 电网技术, 1–12. (2025-02-13). https://link.cnki.net/doi/10.13335/j.1000-3673.pst.2024.2035.
	CHEN Haipeng, TANG Junmin, WU Hao, et al. Active and reactive power coordinated optimization of distribution network-electric vehicle considering reactive power compensation and uncertainty of electric vehicle[J/OL]. Power System Technology, 1–12. (2025-02-13). https://link.cnki.net/doi/10.13335/j.1000-3673.pst.2024.2035.
11	林文键, 朱振山, 温步瀛. 含电动汽车和智能软开关的配电网动态重构[J]. 电力自动化设备, 2022, 42 (10): 202- 209, 217.
	LIN Wenjian, ZHU Zhenshan, WEN Buying. Dynamic reconfiguration of distribution network with electric vehicles and soft open point[J]. Electric Power Automation Equipment, 2022, 42 (10): 202- 209, 217.
12	李鹏, 刘嘉彦, 李佳蔚, 等. 考虑光伏与电动汽车充电站协同的配电网电压控制方法[J]. 电力科学与技术学报, 2024, 39 (6): 121- 130.
	LI Peng, LIU Jiayan, LI Jiawei, et al. A voltage control method for distribution networks considering photovoltaicand electric vehicle charging station coordination[J]. Journal of Electric Power Science and Technology, 2024, 39 (6): 121- 130.
13	张旭, 么莉, 陈晨, 等. 交直流混合配电网网络重构与无功优化协同的两阶段鲁棒优化模型[J]. 电网技术, 2022, 46 (3): 1149- 1162.
	ZHANG Xu, YAO Li, CHEN Chen, et al. A novel two-stage robust model for co-optimization of reconfiguration and reactive power in AC/DC hybrid distribution network[J]. Power System Technology, 2022, 46 (3): 1149- 1162.
14	王春玲, 董萍, 可思为, 等. 应对大规模海风接入的电网侧储能两阶段选址定容随机规划方法[J]. 高电压技术, 2025, 51 (4): 1696- 1707.
	WANG Chunling, DONG Ping, KE Siwei, et al. Two-stage siting and capacity-setting stochastic planning methodology for grid-side energy storage for large-scale ocean wind access[J]. High Voltage Engineering, 2025, 51 (4): 1696- 1707.
15	司大军, 姚一鸣, 李玲芳, 等. 面向可再生能源消纳的电网侧混合储能优化配置方法[J]. 电工电能新技术, 2024, 43 (6): 90- 100.
	SI Dajun, YAO Yiming, LI Lingfang, et al. Optimal allocation method of grid-side hybrid energy storage for renewable energy consumption[J]. Advanced Technology of Electrical Engineering and Energy, 2024, 43 (6): 90- 100.
16	张晋铭, 欧阳森, 吴晗, 等. 计及配电网可靠性和运行经济性的电网侧储能优化配置[J]. 电力自动化设备, 2024, 44 (7): 62- 68, 85.
	ZHANG Jinming, OUYANG Sen, WU Han, et al. Optimal configuration of grid-side energy storage considering reliability and operation economy of distribution network[J]. Electric Power Automation Equipment, 2024, 44 (7): 62- 68, 85.
17	李成, 张婕, 石轲, 等. 面向风电场的主动支撑电网型分散式储能控制策略与优化配置[J]. 中国电力, 2023, 56 (12): 238- 247. DOI
	LI Cheng, ZHANG Jie, SHI Ke, et al. Control strategy and optimal configuration of active-support-grid type decentralized energy storage system for wind farms[J]. Electric Power, 2023, 56 (12): 238- 247. DOI
18	付文杰, 杨鹏, 谢海鹏, 等. 电力市场环境下分布式电源与储能协同规划[J]. 电网与清洁能源, 2021, 37 (6): 101- 112.
	FU Wenjie, YANG Peng, XIE Haipeng, et al. Collaborative planning of distributed generation and energy storage systems under power market environment[J]. Power System and Clean Energy, 2021, 37 (6): 101- 112.
19	王成山, 宋关羽, 李鹏, 等. 考虑分布式电源运行特性的有源配电网智能软开关SOP规划方法[J]. 中国电机工程学报, 2017, 37 (7): 1889- 1897.
	WANG Chengshan, SONG Guanyu, LI Peng, et al. Optimal configuration of soft open point for active distribution network considering the characteristics of distributed generation[J]. Proceedings of the CSEE, 2017, 37 (7): 1889- 1897.
20	李志勇, 黄缙华, 赵伟, 等. 面向配电网弹性提升的多端口E-SOP分布鲁棒优化配置[J]. 全球能源互联网, 2024, 7 (5): 541- 549. DOI
	LI Zhiyong, HUANG Jinhua, ZHAO Wei, et al. Distributionally robust allocation of multi-terminal E-SOP for enhancing distribution network resilience[J]. Journal of Global Energy Interconnection, 2024, 7 (5): 541- 549. DOI
21	黄志强, 陈业伟, 毛志鹏, 等. 柔性多状态开关与分布式储能系统联合接入规划[J]. 电力系统自动化, 2022, 46 (14): 29- 37.
	HUANG Zhiqiang, CHEN Yewei, MAO Zhipeng, et al. Joint access planning of soft open point and distributed energy storage system[J]. Automation of Electric Power Systems, 2022, 46 (14): 29- 37.
22	何叶, 杨晓东, 吴红斌, 等. 面向新型配电系统灵活性提升的智能软开关与储能系统协调规划[J]. 电力系统自动化, 2023, 47 (18): 142- 150.
	HE Ye, YANG Xiaodong, WU Hongbin, et al. Coordinated planning of soft open point and energy storage system for flexibility enhancement of new distribution system[J]. Automation of Electric Power Systems, 2023, 47 (18): 142- 150.
23	陈依杭, 李晓露, 柳劲松, 等. 考虑配电网灵活性供需匹配度及网络传输的储能和智能软开关协同规划[J]. 电力建设, 2024, 45 (9): 49- 62.
	CHEN Yihang, LI Xiaolu, LIU Jinsong, et al. Energy storage system and soft open point coordinated planning considering distribution network flexibility supply-demand matching and network transmission[J]. Electric Power Construction, 2024, 45 (9): 49- 62.
24	PAMSHETTI V B, SINGH S P. Coordinated allocation of BESS and SOP in high PV penetrated distribution network incorporating DR and CVR schemes[J]. IEEE Systems Journal, 2022, 16 (1): 420- 430. DOI
25	JIA Y X, LI Q, LIAO X, et al. Research on the access planning of SOP and ESS in distribution network based on SOCP-SSGA[J]. Processes, 2023, 11 (6): 1844. DOI
26	NING C, YOU F Q. Data-driven stochastic robust optimization: general computational framework and algorithm leveraging machine learning for optimization under uncertainty in the big data era[J]. Computers & Chemical Engineering, 2018, 111, 115- 133.
27	王鹏, 李华伟, 张沛. 具有源荷不平衡特性的配电网智能软开关和储能联合规划[J]. 电力系统自动化, 2025, 49 (5): 38- 47. DOI
	WANG Peng, LI Huawei, ZHANG Pei. Joint planning of soft open point and energy storage in distribution networks with source-load imbalance characteristics[J]. Automation of Electric Power Systems, 2025, 49 (5): 38- 47. DOI
28	唐文升, 王阳, 张煜, 等. 基于多维价格弹性系数的分时电价对负荷特性影响机理[J]. 中国电力, 2024, 57 (2): 202- 211.
	TANG Wensheng, WANG Yang, ZHANG Yu, et al. Influence mechanism of time-of-use electricity prices on industry load characteristics based on multi-dimensional price elasticity coefficient matrix[J]. Electric Power, 2024, 57 (2): 202- 211.
29	ZHAO C Y, GUAN Y P. Data-driven stochastic unit commitment for integrating wind generation[J]. IEEE Transactions on Power Systems, 2016, 31 (4): 2587- 2596. DOI
30	TSANG M Y, SHEHADEH K S, CURTIS F E. An inexact column-and-constraint generation method to solve two-stage robust optimization problems[J]. Operations Research Letters, 2023, 51 (1): 92- 98. DOI
31	GUTIÉRREZ-ALCARAZ G, TOVAR-HERNÁNDEZ J H, LU C N. Effects of demand response programs on distribution system operation[J]. International Journal of Electrical Power & Energy Systems, 2016, 74, 230- 237.

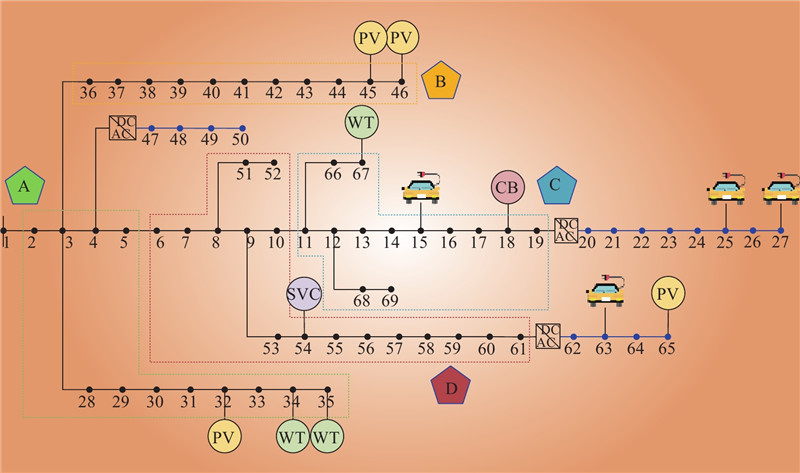

安装设备	安装位置	安装容量/kW
风电机组	34, 35, 67	1000, 1000, 800
光伏机组	32, 45, 46, 65	1200, 1000, 1200, 1000
电动汽车充电站	15, 25, 27, 63	150, 500, 900, 900

安装设备	安装位置	安装容量/kW
风电机组	34, 35, 67	1000, 1000, 800
光伏机组	32, 45, 46, 65	1200, 1000, 1200, 1000
电动汽车充电站	15, 25, 27, 63	150, 500, 900, 900

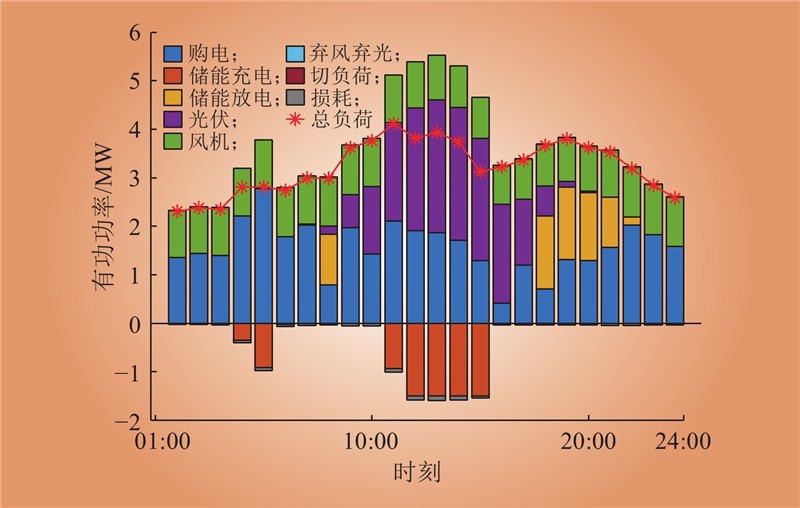

方案	年综合收益	售电收入	安装投资成本	运维成本	购电费用	切负荷费用	弃风弃光费用	损耗费用
1	1583.05	2387.25	0	0	409.29	329.50	2.07	63.33
2	2030.52	2507.94	11.41	12.26	426.59	0	3.18	23.98
3	1719.58	2432.58	65.60	13.30	347.02	220.15	0	66.93
4	2040.32	2507.94	63.86	21.32	355.63	0	0	26.82
5	2032.96	2516.48	61.81	20.96	372.29	0	0	28.45

方案	年综合收益	售电收入	安装投资成本	运维成本	购电费用	切负荷费用	弃风弃光费用	损耗费用
1	1583.05	2387.25	0	0	409.29	329.50	2.07	63.33
2	2030.52	2507.94	11.41	12.26	426.59	0	3.18	23.98
3	1719.58	2432.58	65.60	13.30	347.02	220.15	0	66.93
4	2040.32	2507.94	63.86	21.32	355.63	0	0	26.82
5	2032.96	2516.48	61.81	20.96	372.29	0	0	28.45

方案	DESS安装结果			SOP安装结果
方案	安装节点位置	安装容量/ (MW·h)	安装功率/ MW	安装线路位置	安装容量/ (MV·A)
2				(2, 19) (35, 61) (46, 60)	0.32, 0.64, 0.16
3	2, 3, 20, 46, 64, 65	2.7, 2.4, 0.3, 2.7, 0.9, 0.3	0.5, 0.5, 0.2, 0.5, 0.25, 0.1
4	2, 46, 64	2.7, 2.7, 2.4	0.5, 0.5, 0.5	(46, 19), (35, 61)	0.32, 0.64
5	2, 46, 65	2.7, 2.7, 2.1	0.5, 0.5, 0.45	(46, 19), (35, 61)	0.32, 0.64
