电动汽车充电机器人发展现状和标准需求

doi:10.11930/j.issn.1004-9649.202306108

中国电力 ›› 2024, Vol. 57 ›› Issue (4): 89-99.DOI: 10.11930/j.issn.1004-9649.202306108

电动汽车充电机器人发展现状和标准需求

杨磊¹(), 浑连明²^,⁵(), 祖国强¹(), 李树军³(), 李心达⁴(), 郭俊龙², 张玉涛²

1. 国网天津市电力公司电力科学研究院，天津　300384
2. 国网电力科学研究院有限公司，江苏南京　211106
3. 清华四川能源互联网研究院，四川成都　610042
4. 国网能源研究院有限公司，北京　102209
5. 吉林大学机械与航空航天工程学院吉林长春　130022

收稿日期:2023-06-29 出版日期:2024-04-28 发布日期:2024-04-26
作者简介:杨磊（1987—），男，硕士，高级工程师，从事配用电侧电力机器人及其标准化、配电技术研究，E-mail：hhhheee1@163.com
浑连明（1992—），男，通信作者，博士研究生，从事智能电力作业机器人、数控装备可靠性技术研究，E-mail：hunlm22@mails.jlu.edu.cn
祖国强（1989—），男，博士，高级工程师，从事配电网规划运行、电动汽车-电网互动研究，E-mail：zuguoqiang_tju@163.com
李树军（1981—），男，学士，从事电动汽车充电基础设施、车网互动研究，E-mail：lshu@vip.163.com
李心达（1993—），男，硕士，工程师，从事能源电力领域大数据、人工智能技术应用研究，E-mail：lixinda@sgeri.sgcc.com.cn
基金资助:
国家电网有限公司科技项目（居民社区电动汽车低压直流充放电系统关键技术研究与示范，5400-202312239A-1-1-ZN）。

Development Status and Standardization of Electric Vehicle Charging Robots

Lei YANG¹(), Lianming HUN²^,⁵(), Guoqiang ZU¹(), Shujun LI³(), Xinda LI⁴(), Junlong GUO², Yutao ZHANG²

1. State Grid Tianjin Electric Power Research Institute, Tianjin 300384, China
2. State Grid Electric Power Research Institute Co., Ltd., Nanjing 211106, China
3. Sichuan Energy Internet Research Institute, Tsinghua University, Chengdu 610042, China
4. State Grid Energy Research Institute Co., Ltd., Beijing 102209, China
5. School of Mechanical and Aerospace Engineering, Jilin University, Changchun 130022, China

Received:2023-06-29 Online:2024-04-28 Published:2024-04-26
Supported by:
This work is supported by Science and Technology Project of SGCC (Research and Demonstration of Key Technologies of Low-voltage DC Charging and Discharging System for Electric Vehicles in Residential Communities, No.5400-202312239A-1-1-ZN)

摘要/Abstract

摘要：

在全球碳减排的背景下，电动汽车数量迅速增加，电动汽车充电机器人作为一种智能充电装备受到国内外广泛关注，但目前充电机器人相关技术的梳理、归纳、总结和标准化等工作仍未开展系统性研究。首先，全面梳理了国内外电动汽车充电机器人的发展现状和技术路线，从结构设计、识别定位、柔顺控制和控制系统4个方面进行了综述。其次，提出了涵盖现有主流机器人的分类方法，提炼了机器人的特点和适用场景。进而，分析电动汽车充电机器人标准现状，提出了充电机器人术语、分类和通用技术等标准需求，构建了机器人标准体系。最后，探索了电动汽车充电机器人在自动化、智能化、规模化、多功能化和互联互通5个维度的应用与发展趋势，并对其在自动驾驶、自动泊车和车网友好互动等方面的应用潜力进行展望。

关键词: 电动汽车, 充电机器人, 发展现状, 标准需求

Abstract:

With the global push for carbon emission reduction, the rapid proliferation of electric vehicles (EVs) has brought significant attention to intelligent charging equipment such as EV charging robots in China and abroad. However, there remains a notable absence of systematic investigation encompassing the categorization, synthesis, summarization, and standardization of technologies associated with charging robots. An all-encompassing exploration of the development status and technological trajectories of EV charging robots worldwide is embarked upon, covering facets such as structural design, recognition and localization, compliant control, and control systems. Moreover, a taxonomy is proposed that encapsulates prevailing robots, distilling their features and applicable contexts. Subsequently, an analysis of existing standards in the realm of EV charging robots is presented. This analysis gives rise to requisites for standards including terminologies, classifications, and general technologies, thus culminating in the formulation of a robotic standard framework. Finally, insights into the application and prospects of EV charging robots are unveiled across five dimensions: automation, intelligence, scalability, multi-functionality, and interconnectivity. This exploration extends to the potential utility of EV charging robots in realms such as autonomous driving, automated parking, and harmonious vehicle-grid interactions.

Key words: electric vehicle, charging robot, development status, standard demand

杨磊, 浑连明, 祖国强, 李树军, 李心达, 郭俊龙, 张玉涛. 电动汽车充电机器人发展现状和标准需求[J]. 中国电力, 2024, 57(4): 89-99.

Lei YANG, Lianming HUN, Guoqiang ZU, Shujun LI, Xinda LI, Junlong GUO, Yutao ZHANG. Development Status and Standardization of Electric Vehicle Charging Robots[J]. Electric Power, 2024, 57(4): 89-99.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202306108

https://www.electricpower.com.cn/CN/Y2024/V57/I4/89

图/表 7

参考文献 59

1	工业和信息化部. 新能源汽车产业发展规划(2021-2035年)[EB/OL]. (2020-11-02)[2023-05-05]. http://www.gov.cn/zhengce/content/2020-11/02/content_5556716.htm.
2	IEA. Global EV outlook 2023 [EB/OL]. (2023-03-01)[2023-05-05]. https://www.iea.org/reports/ global-ev-outlook-2023.
3	陈勃言, 谢中祥, 顾峰, 等. 自动充电机器人技术路线及发展趋势分析[J]. 汽车电器, 2022, (10): 4- 6.
	CHEN Boyan, XIE Zhongxiang, GU Feng, et al. Technical route and development trend analysis of automatic charging robot[J]. Auto Electric Parts, 2022, (10): 4- 6.
4	QUAN P K, LOU Y N, LIN H Y, et al. Research on fast identification and location of contour features of electric vehicle charging port in complex scenes[J]. IEEE Access, 2021, 10, 26702- 26714.
5	PAN M Q, SUN C, LIU J Z, et al. Automatic recognition and location system for electric vehicle charging port in complex environment[J]. IET Image Processing, 2020, 14 (10): 2263- 2272. DOI
6	LOU Y N, DI S C. Design of a cable-driven auto-charging robot for electric vehicles[J]. IEEE Access, 2020, 8, 15640- 15655. DOI
7	远景绿色充电机器人[EB/OL]. (2023-02-28)[2023-5-10]. https://www.envisiongroup.com/cn/chargingrobot.html.
8	李少雄, 张黎明, 曹筱欧, 等. 面向电动公交车的充电机器人感知与控制[J]. 机械制造与自动化, 2021, 50 (6): 190- 194, 198.
	LI Shaoxiong, ZHANG Liming, CAO Xiaoou, et al. Perception and control of charging robot for electric bus[J]. Machine Building & Automation, 2021, 50 (6): 190- 194, 198.
9	赵翔, 刘华锋, 戴敏, 等. 面向充电机器人的充电插座定位[J]. 组合机床与自动化加工技术, 2021, (9): 133- 137.
	ZHAO Xiang, LIU Huafeng, DAI Min, et al. Charging socket positioning for charging robot[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2021, (9): 133- 137.
10	李聪利, 徐善军, 任书楠, 等. 基于双目视觉的电力机器人三维定位方法[J]. 制造业自动化, 2021, 43 (10): 138- 143.
	LI Congli, XU Shanjun, REN Shunan, et al. A 3D positioning method based on binocular vision for electric power maintenance robots[J]. Manufacturing Automation, 2021, 43 (10): 138- 143.
11	徐善军, 李聪利, 任书楠, 等. 基于中心点的电力机器人视觉定位方法[J]. 高电压技术, 2021, 47 (S1): 54- 59.
	XU Shanjun, LI Congli, REN Shunan, et al. Visual positioning method of electric robot based on central point[J]. High Voltage Technology, 2021, 47 (S1): 54- 59.
12	SATOR TECH. [EB/OL]. (2022-10-09)[2023-5-10]. http://www.sator.tech/home.
13	红旗研发出可移动智能充电机器人[J]. 传感器世界, 2022, 28(10): 39.
	Red Flag developed a mobile intelligent charging robot [J]. Sensor World, 2022, 28(10): 39.
14	Tesla unveils snakelike robot charger for electric cars[EB/OL]. (2017-03-03)[2023-05-05]. http://www:livescience:com/51791-tesla-electric-car-robot-charger:html.
15	ALKIM E, BINDEL N, BUCHMANN J, et al. Revisiting TESLA in the quantum random oracle model[C]//International Workshop on Post-Quantum Cryptography. Cham: Springer, 2017: 143–162.
16	格拉茨技术大学研发机器人快速充电系统可自动为电动汽车充电[J]. 智能机器人, 2018, 4: 26.
	Technical University of Graz has developed a robot-controlled fast charging system for electric vehicles [J]. Intelligent Robot, 2018, 4: 26.
17	FONDAHL K, HEROLD S, DARYAN B, et al. Automation beyond self-driving-the role of automotive service robots for automated mobility systems[C]//AmE2017-Automotive meets Electronics. 8th GMM-Symposium. VDE, 2017: 1–6.
18	江风. 大众推出电动车自动充电机器人全程无人类干涉[J]. 新能源科技, 2021, (2): 15.
	JIANG Feng. Volkswagen unveils a self-charging robot for electric cars without human interference[J]. New Energy Technology, 2021, (2): 15.
19	Ford trials robot charging station designed to give disabled drivers a much needed helping hand[EB/OL]. (2022-07-20)[2023-05-05]. https://media.ford.com/content/fordmedia/fna/us/en/news/2022/07/20/ford-trials-robot charging-station-designed-to-give-disabled-dri.html.
20	Ziggy is a flexible, cost-effective EV charging solution unlike any other [EB/OL]. (2021-03-09)[2023-05-05]. https://evsafecharge.com/ziggy/.
21	Robot charging infrastructure ecosystem[EB/OL]. (2021-03-09)[2023-05-05]. https://rocin-eco.eu/.
22	汽车巨头成立充电联盟[EB/OL]. (2022-08-31)[2023-05-05]. https://www.sensorexpert.com.cn/article/100225.html.
23	王浩淼. 线驱动柔性充电机器人系统的设计与控制研究[D]. 哈尔滨: 哈尔滨工业大学, 2017.
	WANG Haomiao. Robotic systecable-driven charging pile design and control of flexible[D]. Harbin: Harbin Institute of Technology, 2017.
24	LIU B, LIN Y H, MIN H S. Vehicle automatic charging system guided electric by 3D vision and F/T sensor[C]//2021 4th International Conference on Intelligent Autonomous Systems (ICoIAS). Wuhan, China. IEEE, 2021: 97–102.
25	BUCHER J, KNIPSCHILD J, KÜNNE B. Development and evaluation of an automatic connection device for electric cars with four DOFs and a control scheme based on infrared markers[J]. International Journal of Mechatronics and Automation, 2021, 8 (4): 175. DOI
26	CHABLAT D, MATTACCHIONE R, OTTAVIANO E. Design of a robot for the automatic charging of an electric car[C]//Symposium on Robot Design, Dynamics and Control. Cham: Springer, 2022: 311–321.
27	QUAN P K, LOU Y N, LIN H Y, et al. Research on identification and location of charging ports of multiple electric vehicles based on SFLDLC-CBAM-YOLOV7-tinp-CTMA[J]. Electronics, 2023, 12 (8): 1855. DOI
28	徐建明, 胡弘历. 电动汽车充电操作机器人的视觉系统设计[J]. 浙江工业大学学报, 2021, 49 (4): 384- 391, 458.
	XU Jianming, HU Hongli. Design of vision system of electric vehicle charging operation robot[J]. Journal of Zhejiang University of Technology, 2021, 49 (4): 384- 391, 458.
29	姚安庆, 徐建明. 基于双目视觉的电动汽车充电孔识别定位系统[J]. 传感器与微系统, 2021, 49 (7): 81- 84.
	YAO Anqing, XU Jianmin. Electric car charging hole identification and positioning system based on binocular vision[J]. Transducer and Microsystem Technologies, 2021, 49 (7): 81- 84.
30	姚安庆. 基于双目视觉的电动汽车充电孔的识别与定位系统设计[D]. 杭州: 浙江工业大学, 2020.
	YAO Anqing. Design of charging hole identification and positioning system for electric vehicle based on binocular vision[D]. Hangzhou: Zhejiang University of Technology, 2020.
31	刘文奇, 胡晓羽. 电动汽车自动充电机器人导航程序设计及应用[J]. 包钢科技, 2021, 47 (5): 91- 95.
	LIU Wenqi, HU Xiaoyu. The navigating designation and application of electric vehicle automatic charging robot[J]. Science & Technology of Baotou Steel, 2021, 47 (5): 91- 95.
32	吕鑫灿. 基于单目视觉和力感知的电动汽车机械臂充电方法研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	LV Xincan. Research on robotic charging technology for electric vehicles based on monocular vision and force sensing technology[D]. Harbin: Harbin Institute of Technology, 2019.
33	纪柱. 电动汽车充电口识别及曝光算法研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	JI Zhu. Research on recognition algorithm and exposure algorithm of electric vehicle charging socket[D]. Harbin: Harbin Institute of Technology, 2019.
34	王超. 电动汽车充电口位姿激光扫描定位技术的研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	WANG Chao. Research on positioning for electric vehicle charging socket by laser scanning[D]. Harbin: Harbin Institute of Technology, 2019.
35	赵凌宇. 基于深度学习的电动汽车充电口分类识别及去模糊算法研究[D]. 哈尔滨: 哈尔滨工业大学, 2021.
	ZHAO Lingyu. Charging port based on deep learnin galgorithm of electric vehicle recognition and deblurring research on classification[D]. Harbin: Harbin Institute of Technology, 2021.
36	MISEIKIS J, RUTHER M, WALZEL B, et al. 3D vision guided robotic charging station for electric and plug-in hybrid vehicles[EB/OL]. (2017-05-01)[2023-05-05]2017: arXiv: 1703.05381. http://arxiv.org/abs/1703.05381.pdf.
37	孙成. 复杂环境下电动汽车充电口识别与定位方法研究[D]. 苏州: 苏州大学, 2019.
	SUN Cheng. Research on identification and location method of electric vehicle charging port in complex environment[D]. Suzhou: Suzhou University, 2019.
38	FANG Y Z, CAO Y Y, HONG Y D, et al. The design of electric vehicle charging robot for the parking lots of the community[C]//2020 International Conference on Robots & Intelligent System (ICRIS). Sanya, China. IEEE, 2020: 48–50.
39	项博良, 余粟. 基于椭圆检测的充电口识别[J]. 计算机技术与发展, 2020, 30 (4): 134- 138.
	XIANG Boliang, YU Su. Charging port recognition based on ellipse detection[J]. Computer Technology and Development, 2020, 30 (4): 134- 138.
40	徐建明, 马益普, 胡松达. 基于力位混合控制的机器人充电枪装配寻孔算法[J]. 浙江工业大学学报, 2022, 50 (1): 18- 25.
	XU Jianming, MA Yipu, HU Songda. Hole searching control algorithm for robot charging gun assembly based on force position hybrid control[J]. Journal of Zhejiang University of Technology, 2022, 50 (1): 18- 25.
41	徐建明, 胡松达, 董建伟, 等. 基于接触状态识别的机器人操作充电枪寻孔策略[J]. 控制与决策, 2022, 37 (7): 1794- 1802.
	XU Jianming, HU Songda, DONG Jianwei, et al. Hole-finding strategy for charging Gun operated by robot based on contact state recognition[J]. Control and Decision, 2022, 37 (7): 1794- 1802.
42	HUN L M, SONG H, JIAO X Z, et al. Automatic docking method for charging connector of electric vehicle based on hybrid force-position compliance control[C]//2023 5th Global Power, Energy and Communication Conference (GPECOM). Nevsehir, Turkiye. IEEE, 2023: 339–345.
43	施莹. 基于机器人的电动汽车充电系统及其自动插接的研究[D]. 哈尔滨: 哈尔滨工业大学, 2016.
	SHI Ying. Research on charging system of electric vehicle and its automatic plug in based on robot[D]. Harbin: Harbin Institute of Technology, 2016.
44	李星辉. 自动充电机器人插拔过程轨迹规划和柔顺控制技术[D]. 哈尔滨: 哈尔滨工业大学, 2020.
	LI Xinghui. Auto-charging robot insertion and removal process trajectory planning and compliant control technology[D]. Harbin: Harbin Institute of Technology, 2020.
45	BDIWI M, SUCHÝ J, JOCKESCH M, et al. Improved peg-in-hole (5-pin plug) task: intended for charging electric vehicles by robot system automatically[C]//2015 IEEE 12th International Multi-Conference on Systems, Signals & Devices (SSD15). Mahdia, Tunisia. IEEE, 2015: 1–5.
46	ZHANG H, ZHU W Y, HUANG Y C. A research on the control strategy of automatic charging robot for electric vehicles based on impedance control[J]. Journal of Physics:Conference Series, 2022, 2303 (1): 012085. DOI
47	PETROV P, BOUSSARD C, AMMOUN S, et al. A hybrid control for automatic docking of electric vehicles for recharging[C]//2012 IEEE International Conference on Robotics and Automation. Saint Paul, MN, USA. IEEE, 2012: 2966–2971.
48	徐建明, 蔡奇正, 马益普. 基于ROS的电动汽车充电操作移动机器人系统[J]. 浙江工业大学学报, 2021, 49 (6): 591- 601.
	XU Jianming, CAI Qizheng, MA Yipu. Mobile robot system for electric vehicle battery charging based on ROS[J]. Journal of Zhejiang University of Technology, 2021, 49 (6): 591- 601.
49	王雨, 徐月, 邢超超. 机器人标准体系国内外对比研究[J]. 品牌与标准化, 2022, (1): 4- 8.
	WANG Yu, XU Yue, XING Chaochao. Comparative research on robot standard system at domestic and abroad[J]. Brand & Standardization, 2022, (1): 4- 8.
50	Standards by ISO/TC 299 Robotics[EB/OL]. (2021-07-08)[2023-05-05]. https://www.iso.org/committee/5915511/x/ catalogue/p/1/u/0/w/0/d/0.
51	IEC technical committees and subcommittees [EB/OL]. (2021-07-08)[2023-05-05]. https://www.iec.ch/technical- committees-and-subcommittees#tcfacts.
52	Guide for terminology and classification of electric vehicle charging robots[EB/OL]. (2021-07-08)[2023-05-05]. https://standards.ieee.org/ieee/3345/11192/.
53	Guide for general requirements of electric vehicle charging robots [EB/OL]. (2021-07-08)[2023-05-05]. https:// standards.ieee.org/ieee/3346/11193/.
54	中国电机工程学会关于印发“中国电机工程学会2022年标准计划(第三批)”的通知[EB/OL]. (2022-12-09)[2023-05-05]. http://www.csee.org.cn/portal/xpzxtg/20221209/30473.html.
55	安佳坤, 杨书强, 王涛, 等. 电动汽车聚合下的微能源互联网优化调度策略[J]. 中国电力, 2023, 56 (5): 80- 88.
	AN Jiakun, YANG Shuqiang, WANG Tao, et al. Optimal scheduling strategy for micro energy Internet under electric vehicles aggregation[J]. Electric Power, 2023, 56 (5): 80- 88.
56	邓慧琼, 张晓飞, 曾凡淦, 等. 动态分时电价机制下的电动汽车充放电调度策略研究[J]. 智慧电力, 2023, 51 (3): 59- 66, 78.
	DENG Huiqiong, ZHANG Xiaofei, ZENG Fangan, et al. Electric vehicle charging and discharging scheduling strategy under dynamic time-of-use electricity price machenism[J]. Smart Power, 2023, 51 (3): 59- 66, 78.
57	姚望, 张英, 王明伟, 等. 基于WPT和SSA-BP的直流充电桩充电模块故障诊断[J]. 南方电网技术, 2023, 17 (9): 85- 93.
	YAO Wang, ZHANG Ying, WANG Mingwei, et al. Fault diagnosis of charging module of DC charging pile based on WPT and SSA-BP[J]. Southern Power System Technology, 2023, 17 (9): 85- 93.
58	刘宗, 何俊, 黄文涛, 等. 基于态势感知的高渗透率电动汽车接入电网后电压调整策略[J]. 中国电力, 2023, 56 (2): 32- 44.
	LIU Zong, HE Jun, HUANG Wentao, et al. Voltage adjustment strategy for high-penetration electric vehicles connected to power grid based on situation awareness[J]. Electric Power, 2023, 56 (2): 32- 44.
59	张钰, 张玥, 韩新阳, 等. 碳排放最小化条件下电动汽车有序充电策略研究[J]. 中国电力, 2020, 53 (4): 147- 154.
	ZHANG Yu, ZHANG Yue, HAN Xinyang, et al. Research on electric vehicle smart charging strategy on carbon emission minimization[J]. Electric Power, 2020, 53 (4): 147- 154.

主要分类		细分类型

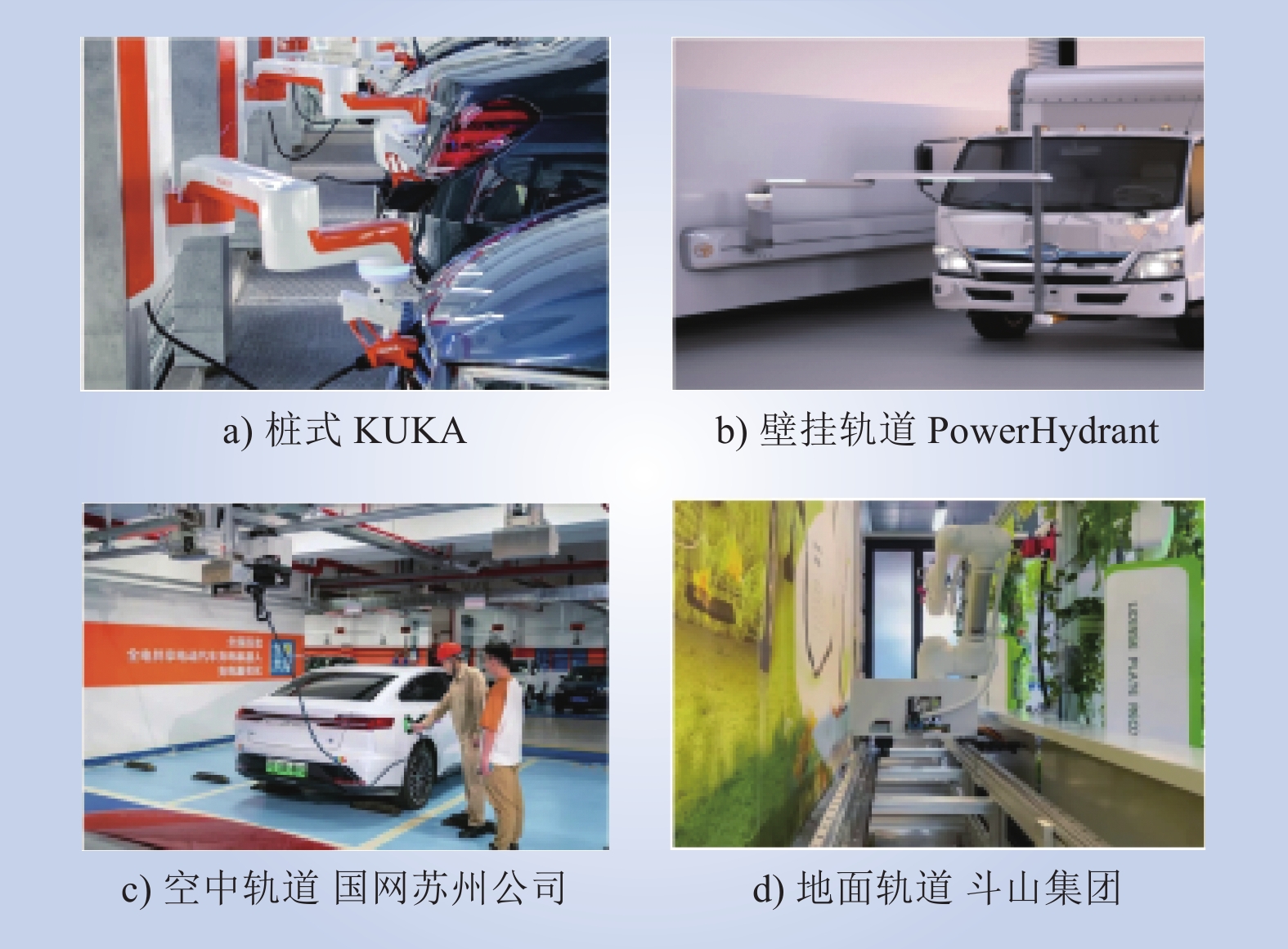

固定式	桩式	—
	轨道式	空中轨道式
		壁挂轨道式
		地面轨道式

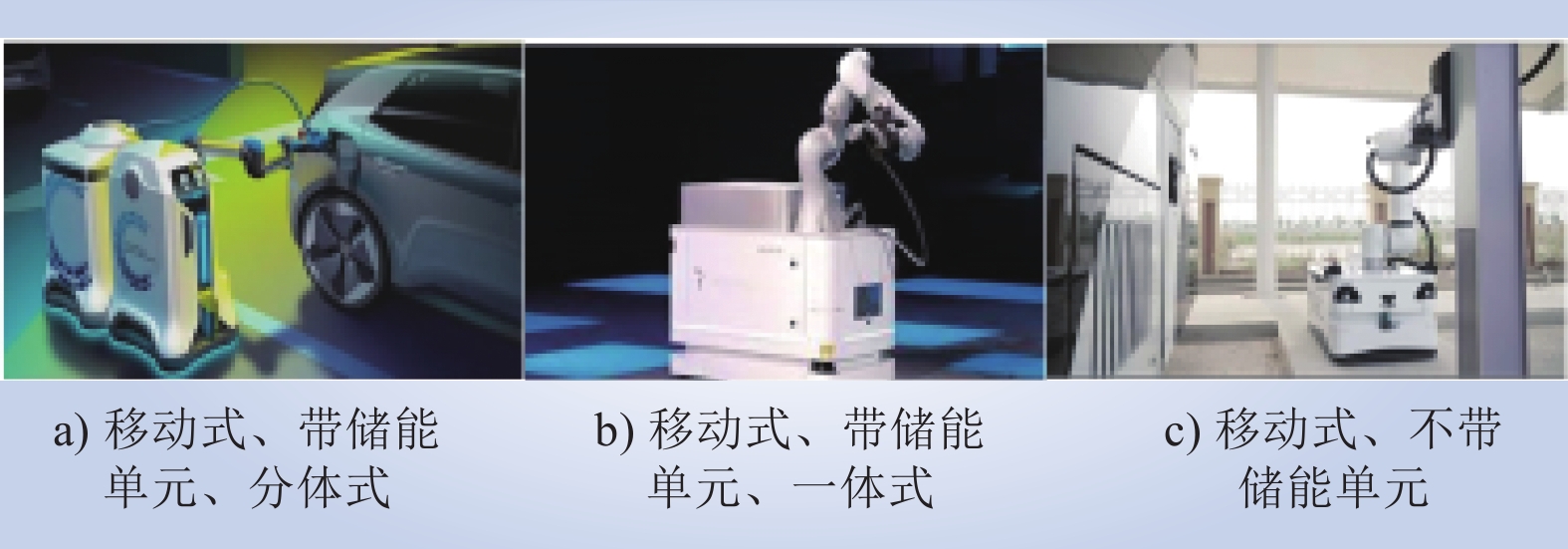

移动式	不带储能单元	—
	带储能单元	储能单元一体式设计
	带储能单元	储能单元分体式设计

主要分类		细分类型
固定式	桩式	—
	轨道式	空中轨道式
		壁挂轨道式
		地面轨道式
移动式	不带储能单元	—
	带储能单元	储能单元一体式设计
	带储能单元	储能单元分体式设计

类型	现状
国际标准	ISO	TC 299 (Robotics)制定了大部分机器人相关标准，但未见电动汽车充电机器人专门标准^[50]
	IEC	机器人标准主要由TC 59（Performance of household and similar electrical appliances）、TC 61（Safety of household and similar electrical appliances）、TC 62（Medical equipment, software, and systems）、TC 116（Safety of motor-operated electric tools）、TC 129（Robotics for electricity generation, transmission and distribution systems）制定，未见电动汽车充电机器人专门标准^[51]，但TC 69正在制定的《EV supply equipment with automated connection of a vehicle coupler according to IEC 62196-2 or IEC 62196-3》（IEC 61851-27，未发布）涉及车辆接口自动连接，具有相关性
	IEEE	主要由RAS/SC制定，有《Guide for Terminology and Classification of Electric Vehicle Charging Robots》（P3345）《Guide for General Requirements of Electric Vehicle Charging Robots》（P3346）2项，正在开发^[52-53]
国家标准	由国家机器人标准化总体组来组织各相关技术委员会制定，已发布机器人相关标准超80项，以工业机器人、服务机器人、特种机器人为主，未见电动汽车充电机器人专门标准
行业标准	未见电动汽车充电机器人专门标准
团体标准	《电动汽车充电机器人第一部分通用技术要求》（CSEE团体标准）1项，正在开发^[54]

类型	现状
国际标准	ISO	TC 299 (Robotics)制定了大部分机器人相关标准，但未见电动汽车充电机器人专门标准^[50]
	IEC	机器人标准主要由TC 59（Performance of household and similar electrical appliances）、TC 61（Safety of household and similar electrical appliances）、TC 62（Medical equipment, software, and systems）、TC 116（Safety of motor-operated electric tools）、TC 129（Robotics for electricity generation, transmission and distribution systems）制定，未见电动汽车充电机器人专门标准^[51]，但TC 69正在制定的《EV supply equipment with automated connection of a vehicle coupler according to IEC 62196-2 or IEC 62196-3》（IEC 61851-27，未发布）涉及车辆接口自动连接，具有相关性
	IEEE	主要由RAS/SC制定，有《Guide for Terminology and Classification of Electric Vehicle Charging Robots》（P3345）《Guide for General Requirements of Electric Vehicle Charging Robots》（P3346）2项，正在开发^[52-53]
国家标准	由国家机器人标准化总体组来组织各相关技术委员会制定，已发布机器人相关标准超80项，以工业机器人、服务机器人、特种机器人为主，未见电动汽车充电机器人专门标准
行业标准	未见电动汽车充电机器人专门标准
团体标准	《电动汽车充电机器人第一部分通用技术要求》（CSEE团体标准）1项，正在开发^[54]

项目	框架建议	标准研究内容建议
术语	基本概念	● 充电机器人及其关键组成部件，包括通用术语、机械结构、感知、控制等 ● 区分易混淆概念（如储能单元） ● 统一相同对象不同的习惯称谓
分类	分类方式及其具体类型	● 按移动性：固定式、移动式 ● 按机械结构：关节机器人等 ● 按服务模式：一对一、一对多
通用技术要求	基本信息和参数	● 外观和结构 ● 适用车型和车辆接口类型 ● 充电功率 ● 安装要求（场地、容量等） ● 环境适应性
	基本功能和主要性能	● 导航功能 ● 车辆插头自动抓放、插拔功能 ● 车辆插座识别定位功能 ● 人机交互功能 ● 自检功能 ● 充电过程管理功能 ● 热管理功能 ● 离线运行功能 ● 电磁兼容性能 ● 续航能力 ● 移动定位精度和速度 ● 车辆接口连接精度、时间和成功率 ● 插拔力和柔顺性 ● 振动和冲击 ● 噪声 ● 安全 ● 机器人、充电站、车辆、用户之间的通信，包括通信方式、通信接口、数据格式等 ● 越障、避障性能
	测试环境和试验方法	● 重要功能和性能指标的标准化测试环境 ● 重要功能和性能指标的标准化试验方法和评价
