考虑综合收益的多电压等级配电网柔性互联装置协同规划方法

doi:10.11930/j.issn.1004-9649.202401080

中国电力 ›› 2025, Vol. 58 ›› Issue (1): 78-84.DOI: 10.11930/j.issn.1004-9649.202401080

• 基于数据驱动的电力系统安全稳定分析与控制 • 上一篇下一篇

考虑综合收益的多电压等级配电网柔性互联装置协同规划方法

贺春光¹(), 王林峰¹(), 曹媛¹(), 安佳坤¹(), 雷子健², 宋关羽², 冀浩然²

1. 国网河北省电力有限公司经济技术研究院，河北石家庄　050000
2. 智能电网教育部重点实验室（天津大学），天津　300072

收稿日期:2024-01-18 录用日期:2024-04-17 发布日期:2025-01-23 出版日期:2025-01-28
作者简介:贺春光（1979—），男，通信作者，硕士，高级工程师（教授级），从事配电网规划技术研究，E-mail：jyy_hecg@he.sgcc.com.cn
王林峰（1979—），男，硕士，高级工程师，从事电力技术经济、工程造价分析、电网规划技术研究，E-mail：jyy_wanglf@he.sgcc.com.cn
基金资助:
国网河北省电力有限公司科学技术项目（SGHEJY00GHJS2200093）。

Collaborative Planning Method of Flexible Interconnection Devices for Multi-Voltage Level Distribution Network Considering Integrated Profits

Chunguang HE¹(), Linfeng WANG¹(), Yuan CAO¹(), Jiakun AN¹(), Zijian LEI², Guanyu SONG², Haoran JI²

1. State Grid Hebei Economic and Technological Research Institute, Shijiazhuang 050000, China
2. Key Laboratory of Smart Grid of Ministry of Education (Tianjin University), Tianjin 300072, China)

Received:2024-01-18 Accepted:2024-04-17 Online:2025-01-23 Published:2025-01-28
Supported by:
This work is supported by Science and Technology Project of State Grid Hebei Electric Power Co., Ltd. (No.SGHEJY00GHJS2200093).

摘要/Abstract

摘要：

提出了一种考虑综合收益的多电压等级配电网柔性互联装置协同规划方法，通过优化配置智能软开关等柔性互联装置在多电压等级配电网中的安装位置和容量，改善运行时潮流分布并支撑故障时供电恢复，提升系统的经济性、可靠性综合指标。基于河北某实际配电网数据开展算例研究，验证所提方法的有效性，并分析该方法对高比例分布式电源接入下配电网经济性、安全性、可靠性的提升。

关键词: 配电网, 规划设计, 柔性互联装置, 智能软开关

Abstract:

To avoid the above problems, a collaborative planning method of flexible interconnection devices for distribution networks is proposed considering integrated profits. With the installation location and capacity of soft open point (SOP) optimized in multi-voltage level distribution networks, the operation in normal and the supply restoration in fault are both improved, promoting the system’s integrated indicators of economy and reliability. Finally, the case study is conducted based on an actual distribution network data in Hebei province, verifying the effectiveness of the proposed method and analyzing the improvement of economy, safety, and reliability.

Key words: distribution network, plan and design, flexible interconnection device, soft open point

贺春光, 王林峰, 曹媛, 安佳坤, 雷子健, 宋关羽, 冀浩然. 考虑综合收益的多电压等级配电网柔性互联装置协同规划方法[J]. 中国电力, 2025, 58(1): 78-84.

Chunguang HE, Linfeng WANG, Yuan CAO, Jiakun AN, Zijian LEI, Guanyu SONG, Haoran JI. Collaborative Planning Method of Flexible Interconnection Devices for Multi-Voltage Level Distribution Network Considering Integrated Profits[J]. Electric Power, 2025, 58(1): 78-84.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202401080

https://www.electricpower.com.cn/CN/Y2025/V58/I1/78

图/表 8

参考文献 23

1	张俊成, 黎敏, 刘志文, 等. 基于改进交替方向乘子法的配电网柔性负荷分层集群调控方法[J]. 中国电力, 2024, 57 (1): 140- 147.
	ZHANG Juncheng, LI Min, LIU Zhiwen, et al. Hierarchical cluster control method for flexible load in distribution network based on improved alternating direction multiplier method[J]. Electric Power, 2024, 57 (1): 140- 147.
2	王金丽, 李丰胜, 解芳, 等. “双碳” 战略背景下新型配电系统技术标准体系[J]. 中国电力, 2023, 56 (5): 22- 31.
	WANG Jinli, LI Fengsheng, XIE Fang, et al. Research on technical standard system of new distribution system under double-carbon strategy[J]. Electric Power, 2023, 56 (5): 22- 31.
3	徐非非, 冯华, 覃洪培, 等. 计及不确定性的配电网分布式光伏承载能力区间分析方法[J]. 浙江电力, 2023, 42 (11): 86- 95.
	XU Feifei, FENG Hua, QIN Hongpei, et al. An analysis method of DPV hosting capacity interval in distribution networks under uncertainties[J]. Zhejiang Electric Power, 2023, 42 (11): 86- 95.
4	李泽成, 孙燕盈. 新型电力系统下考虑分布式光伏并网的配电网可靠性评估[J]. 山东电力技术, 2023, 50 (5): 1- 5, 47.
	LI Zecheng, SUN Yanying. Reliability evaluation of distribution network considering flexible grid connection of distributed photovoltaic power generations[J]. Shandong Electric Power, 2023, 50 (5): 1- 5, 47.
5	吴启亮, 谭彩霞, 章雷其, 等. 配电网与分布式电氢耦合系统的交互策略研究[J]. 浙江电力, 2024, 43 (2): 115- 125.
	WU Qiliang, TAN Caixia, ZHANG Leiqi, et al. A study on the interactive strategy for distribution networks and distributed electro-hydrogen coupled systems[J]. Zhejiang Electric Power, 2024, 43 (2): 115- 125.
6	黄强, 李宽, 丁敬明, 等. 含分布式光伏接入的有源配电网故障区段定位新方法[J]. 山东电力技术, 2023, 50 (11): 68- 74.
	HUANG Qiang, LI Kuan, DING Jingming, et al. A novel fault section location method of active distribution network with the integration of distributed photovoltaic[J]. Shandong Electric Power, 2023, 50 (11): 68- 74.
7	仲泽天, 李梦月, 王加澍, 等. 一种有源配电网分布式光伏消纳能力评估方法[J]. 电网与清洁能源, 2023, 39 (2): 60- 68.
	ZHONG Zetian, LI Mengyue, WANG Jiashu, et al. An assessment method for distributed photovoltaic absorption capacity of active distribution networks[J]. Power System and Clean Energy, 2023, 39 (2): 60- 68.
8	武永强, 张一帆, 王宇强, 等. 基于分布式和微服务技术的电能质量监测系统设计与应用[J]. 内蒙古电力技术, 2023, 41 (6): 84- 89.
	WU Yongqiang, ZHANG Yifan, WANG Yuqiang, et al. Design and application of power quality monitoring system based on distributed and microservice technology[J]. Inner Mongolia Electric Power, 2023, 41 (6): 84- 89.
9	李翠萍, 朱文超, 李军徽, 等. 分布式电源接入中压配电网的运行方案研究[J]. 东北电力大学学报, 2023, 43 (4): 57- 64.
	LI Cuiping, ZHU Wenchao, LI Junhui, et al. Research on the operation scheme of distributed generation access to medium voltage distribution network[J]. Journal of Northeast Electric Power University, 2023, 43 (4): 57- 64.
10	杨旭, 王瑞, 余畅文, 等. 基于改进灰狼优化算法的分布式能源系统优化调度[J]. 内蒙古电力技术, 2023, 41 (1): 26- 33.
	YANG Xu, WANG Rui, YU Changwen, et al. Optimal scheduling of distributed energy system based on improved grey wolf optimization algorithm[J]. Inner Mongolia Electric Power, 2023, 41 (1): 26- 33.
11	LI P, JI H R, WANG C S, et al. Coordinated control method of voltage and reactive power for active distribution networks based on soft open point[J]. IEEE Transactions on Sustainable Energy, 2017, 8 (4): 1430- 1442. DOI
12	WANG X X, YANG W Q, LIANG D. Multi-objective robust optimization of hybrid AC/DC distribution networks considering flexible interconnection devices[J]. IEEE Access, 2021, 9, 166048- 166057. DOI
13	宋毅, 孙充勃, 李鹏, 等. 基于智能软开关的有源配电网供电恢复方法[J]. 中国电机工程学报, 2018, 38 (15): 4390- 4398, 4639.
	SONG Yi, SUN Chongbo, LI Peng, et al. SOP based supply restoration method of active distribution networks using soft open point[J]. Proceedings of the CSEE, 2018, 38 (15): 4390- 4398, 4639.
14	LI P, JI J, JI H R, et al. Self-healing oriented supply restoration method based on the coordination of multiple SOPs in active distribution networks[J]. Energy, 2020, 195, 116968. DOI
15	王杰, 王维庆, 王海云, 等. 主动配电网中考虑条件风险价值的智能软开关的规划方法[J]. 电力系统保护与控制, 2022, 50 (2): 1- 11.
	WANG Jie, WANG Weiqing, WANG Haiyun, et al. Planning method of soft open point for an active distribution network considering conditional value-at-risk[J]. Power System Protection and Control, 2022, 50 (2): 1- 11.
16	张孝军, 林湘宁, 吴宇奇, 等. 兼顾微配网运行经济性与可靠性的智能软开关选址优化[J]. 电力系统自动化, 2021, 45 (8): 138- 145.
	ZHANG Xiaojun, LIN Xiangning, WU Yuqi, et al. Sitting optimization of soft open point considering operation economy and reliability of micro-distribution network[J]. Automation of Electric Power Systems, 2021, 45 (8): 138- 145.
17	赵金利, 陈昊, 宋关羽, 等. 考虑可靠性收益的配电网智能软开关规划方法[J]. 电力系统自动化, 2020, 44 (10): 22- 31.
	ZHAO Jinli, CHEN Hao, SONG Guanyu, et al. Planning method of soft open point in distribution network considering reliability benefits[J]. Automation of Electric Power Systems, 2020, 44 (10): 22- 31.
18	孙充勃, 原凯, 李鹏, 等. 基于SOP的多电压等级混联配电网运行二阶锥规划方法[J]. 电网技术, 2019, 43 (5): 1599- 1605.
	SUN Chongbo, YUAN Kai, LI Peng, et al. A second-order cone programming method for hybrid multiple voltage level distribution networks based on soft open points[J]. Power System Technology, 2019, 43 (5): 1599- 1605.
19	王成山, 宋关羽, 李鹏, 等. 基于智能软开关的智能配电网柔性互联技术及展望[J]. 电力系统自动化, 2016, 40 (22): 168- 175.
	WANG Chengshan, SONG Guanyu, LI Peng, et al. Research and prospect for soft open point based flexible interconnection technology for smart distribution network[J]. Automation of Electric Power Systems, 2016, 40 (22): 168- 175.
20	李科, 田春筝, 刘巍, 等. 配电网多电压级协调供电模型及过渡方案[J]. 电力系统及其自动化学报, 2017, 29 (3): 126- 130.
	LI Ke, TIAN Chunzheng, LIU Wei, et al. Multi-voltage coordinated power supply model of distribution grid and its transition scheme[J]. Proceedings of the CSU-EPSA, 2017, 29 (3): 126- 130.
21	BARAN M E, WU F F. Network reconfiguration in distribution systems for loss reduction and load balancing[J]. IEEE Transactions on Power Delivery, 2002, 4 (2): 1401- 1407.
22	FARIVAR M, LOW S H. Branch flow model: relaxations and convexification: Part I[J]. IEEE Transactions on Power Systems, 2013, 28 (3): 2554- 2564. DOI
23	JIAN J, LI P, YU H, et al. Multi-stage supply restoration of active distribution networks with SOP integration[J]. Sustainable Energy, Grids and Networks, 2022, 29, 100562. DOI

区域	节点数	有功负荷/ MW	无功负荷/ (MV·A)	DG接入/ MW
馈线A	45	3.19	1.36	2.18
馈线B	37	3.21	1.37	13.91
馈线C	63	4.77	2.03	1.18
馈线D	81	6.76	2.88	2.94
变电站S1	8	38.00	18.00	36.20
变电站S2	7	142.40	57.60	95.10
总计	241	198.33	83.24	151.51

区域	节点数	有功负荷/ MW	无功负荷/ (MV·A)	DG接入/ MW
馈线A	45	3.19	1.36	2.18
馈线B	37	3.21	1.37	13.91
馈线C	63	4.77	2.03	1.18
馈线D	81	6.76	2.88	2.94
变电站S1	8	38.00	18.00	36.20
变电站S2	7	142.40	57.60	95.10
总计	241	198.33	83.24	151.51

	方案1	方案2	方案3
综合成本/万元	—	457.3	357.7
SOP建设&运维成本/万元	—	0	129.1
运行损耗成本/万元	158.5	320.7	158.1
停电损失成本/万元	135.5	136.6	70.5

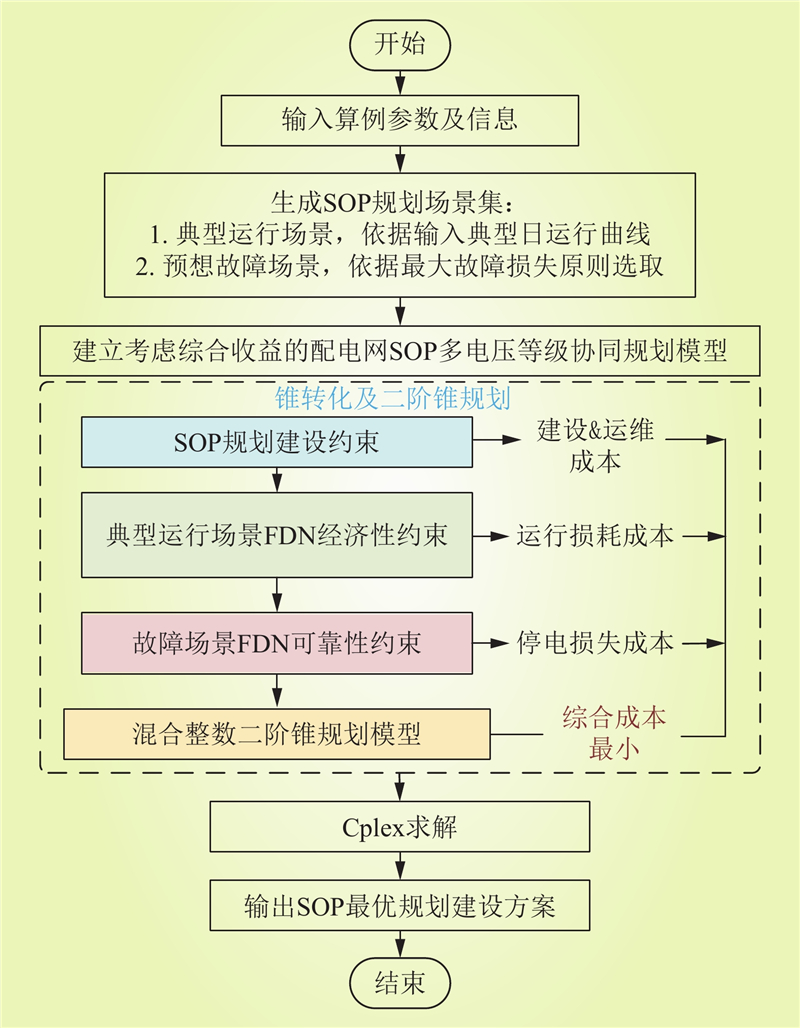

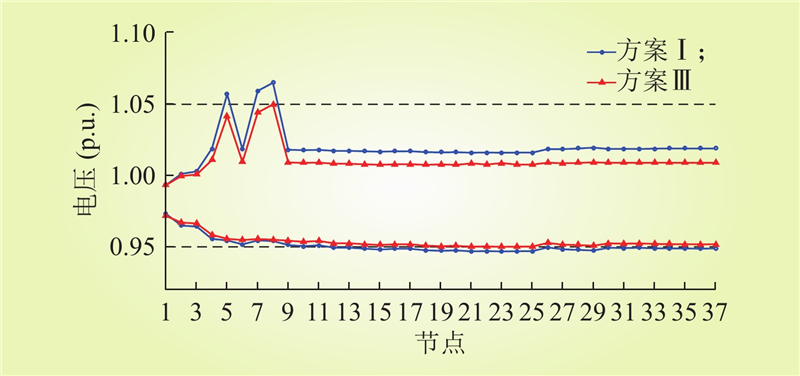

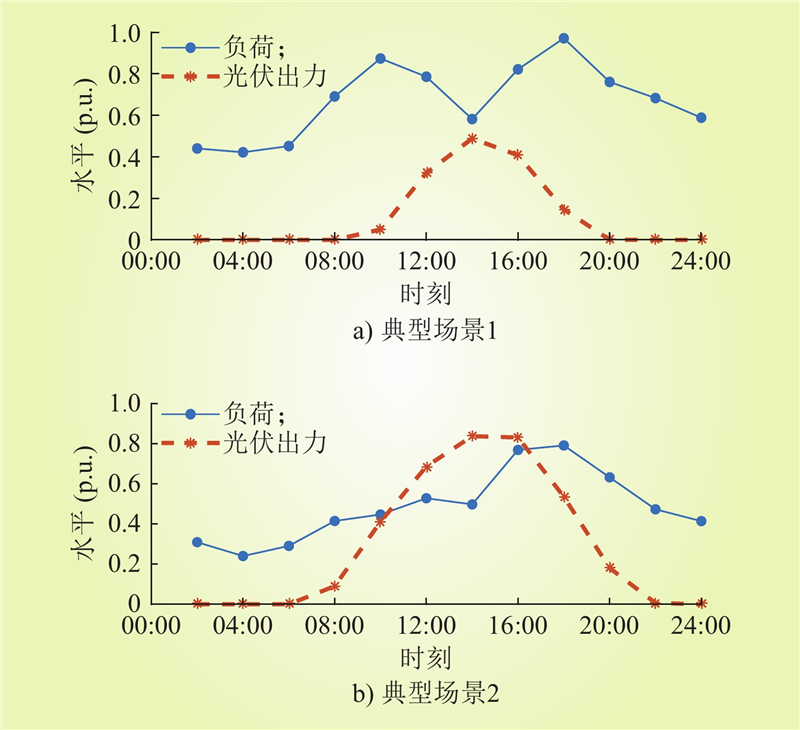

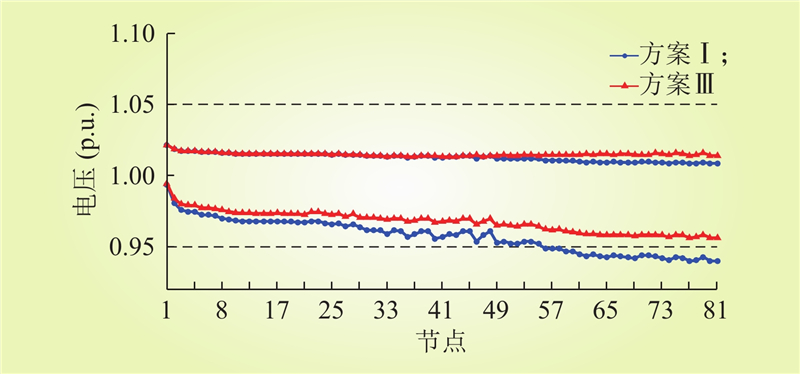

节点电压范围(p.u.)	0.94-1.07	0.95-1.05	0.95-1.05
S2最大反向负载率/%	2.6	0	0

	方案1	方案2	方案3
综合成本/万元	—	457.3	357.7
SOP建设&运维成本/万元	—	0	129.1
运行损耗成本/万元	158.5	320.7	158.1
停电损失成本/万元	135.5	136.6	70.5
节点电压范围(p.u.)	0.94-1.07	0.95-1.05	0.95-1.05
S2最大反向负载率/%	2.6	0	0

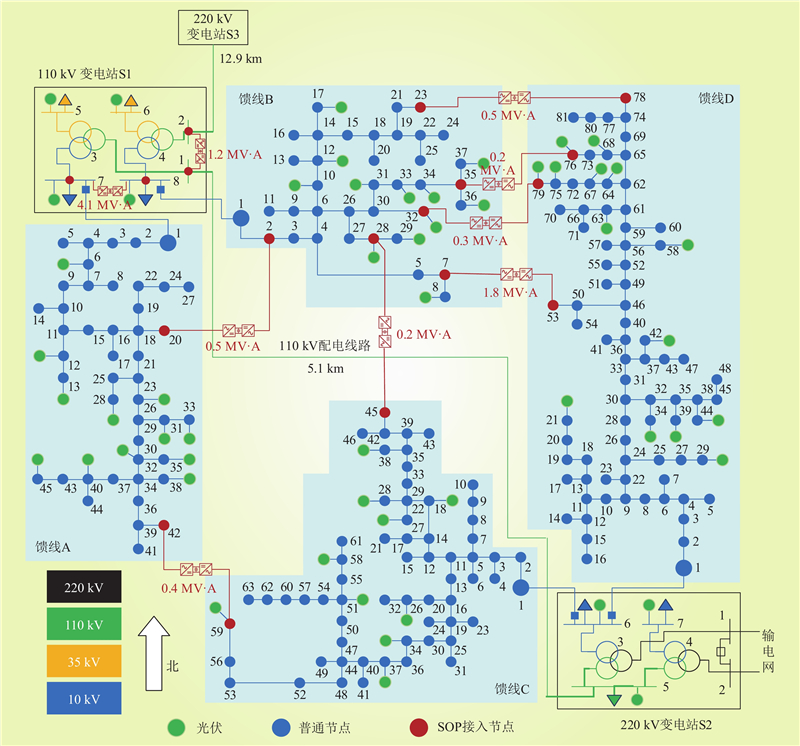

SOP装设位置	SOP装设容量/ (MV·A)	SOP装设位置	SOP装设容量/ (MV·A)
A20-B2	0.5	B32-D79	0.3
A42-C59	0.4	B35-D76	0.2
C45-B28	0.2	S1.1–S1.2	1.2
B7-D53	1.8	S1.7–S1.8	4.1
B23-D78	0.5	—	—
