基于数据驱动的高渗透率电动汽车充电规划与优化

doi:10.11930/j.issn.1004-9649.202504013

中国电力 ›› 2026, Vol. 59 ›› Issue (2): 104-113.DOI: 10.11930/j.issn.1004-9649.202504013

基于数据驱动的高渗透率电动汽车充电规划与优化

戚成飞¹(), 王亚超¹(), 李文文¹(), 张炜¹(), 赵鹏²

1. 国网冀北电力有限公司计量中心，北京　100052
2. 输配电装备及系统安全与新技术国家重点实验室（重庆大学），重庆　400042）

收稿日期:2025-04-07 修回日期:2025-12-11 发布日期:2026-03-04 出版日期:2026-02-28
作者简介:
戚成飞（1995），男，通信作者，硕士，工程师，从事用电信息采集技术研究，E-mail：qi_chengfei@163.com
王亚超（1984），男，博士，高级工程师，从事车网互动、虚拟电厂研究，E-mail：wangyachaoa@126.com
李文文（1989），女，硕士，高级工程师，从事电能表动态计量、可靠性评估研究，E-mail：821328633@qq.com
张炜（1998），男，硕士，助理工程师，从事软件可靠性评估研究，E-mail：zw_tju016@163.com
基金资助:
国家自然科学基金资助项目（52077012）。

Data driven planning and optimization of high penetration electric vehicle charging

QI Chengfei¹(), WANG Yachao¹(), LI Wenwen¹(), ZHANG Wei¹(), ZHAO Peng²

1. State Grid Jibei Electric Power Co., Ltd. Measurement Center, Beijing 100052, China
2. State Key Laboratory of Transmission and Distribution Equipment and System Safety and New Technology (Chongqing University), Chongqing 400042, China

Received:2025-04-07 Revised:2025-12-11 Online:2026-03-04 Published:2026-02-28
Supported by:
This work is supported by National Natural Science Foundation of China (No.52077012).

摘要/Abstract

摘要：

在可再生能源和电动汽车高渗透率“双高”背景下，电网供需不确定性显著上升，亟须新的规划与调度策略以保障运行稳定。为此提出一种基于数据驱动的多源融合方法，构建充电需求预测模型，实现充电设施布局与动态充放电策略的联合优化。以Open配电系统仿真器（Open distribution system simulator，OpenDSS）平台为载体，对一个典型配电网络进行建模与仿真。研究结果表明，所提方法能够有效降低电网峰谷差，提升电网运行稳定性及充电设施利用率，并降低用户充电等待时间。

关键词: 电动汽车, 高渗透率, 充电需求预测

Abstract:

In the context of "double high" penetration of renewable energy and electric vehicles, the uncertainty of power grid supply and demand has significantly increased, urgently demanding planning and scheduling strategies to ensure stable operation. To address this, a data-driven multi-source fusion method is proposed to construct a charging demand prediction model, achieving joint optimization of facility layout and dynamic charging and discharging strategies. The Open Distribution System Simulator (OpenDSS) platform is used as a carrier to model and simulate a typical distribution network. results show that the proposed method can effectively reduce the peak-valley difference of the power grid, enhance the stability of power grid operation and the utilization rate of charging facilities, reduce user charging waiting time.

Key words: electric vehicles, high penetration rate, charging demand forecast

戚成飞, 王亚超, 李文文, 张炜, 赵鹏. 基于数据驱动的高渗透率电动汽车充电规划与优化[J]. 中国电力, 2026, 59(2): 104-113.

QI Chengfei, WANG Yachao, LI Wenwen, ZHANG Wei, ZHAO Peng. Data driven planning and optimization of high penetration electric vehicle charging[J]. Electric Power, 2026, 59(2): 104-113.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202504013

https://www.electricpower.com.cn/CN/Y2026/V59/I2/104

图/表 12

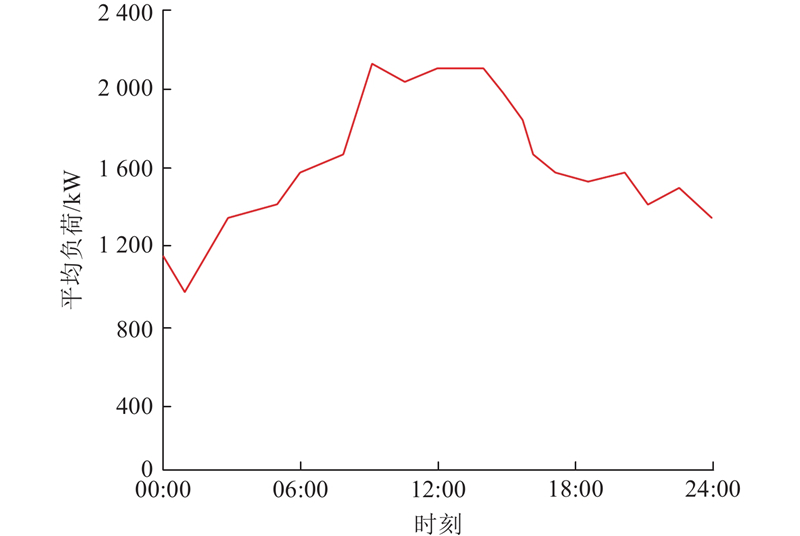

图 1 典型日负荷曲线

Fig.1 Hourly load variation in a day

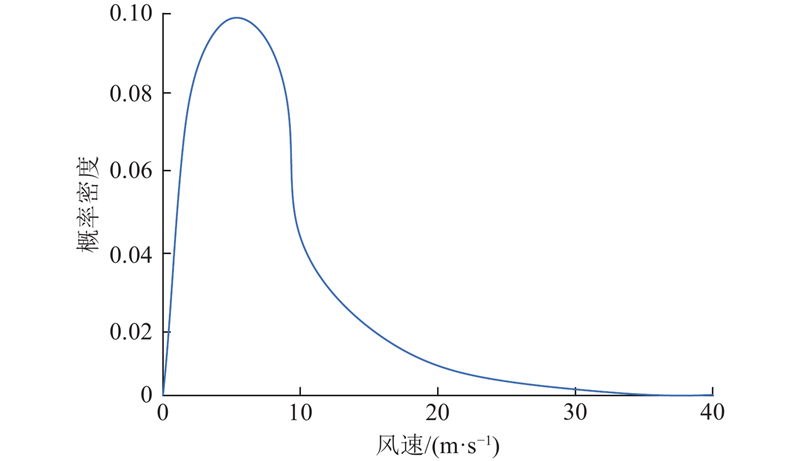

图 2 场址风速的概率密度分布

Fig.2 Probability densities function of wind speeds at the site

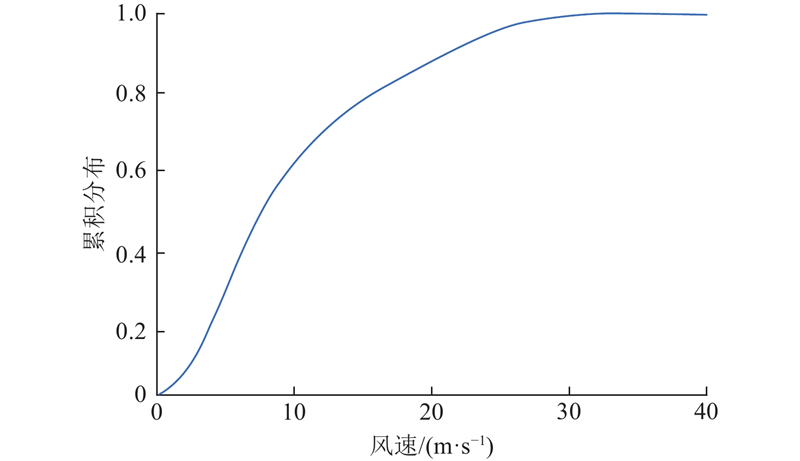

图 3 场址风速的累积分布

Fig.3 Cumulative distribution of wind speeds at the site

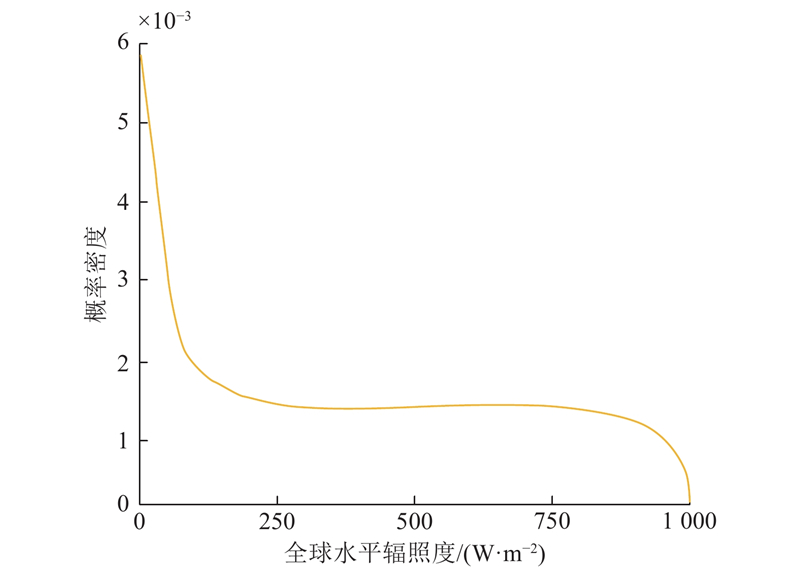

图 4 场址风速的累积分布

Fig.4 Probability densities function of solar energy resource

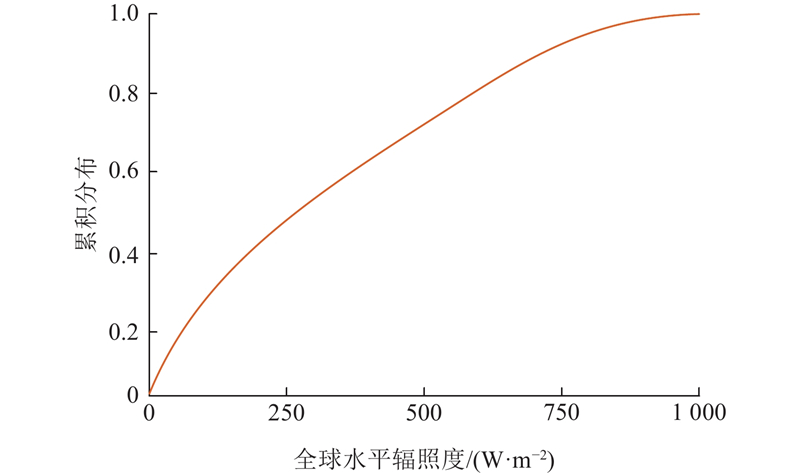

图 5 场址风速的累积分布

Fig.5 Cumulative distribution of solar energy resource

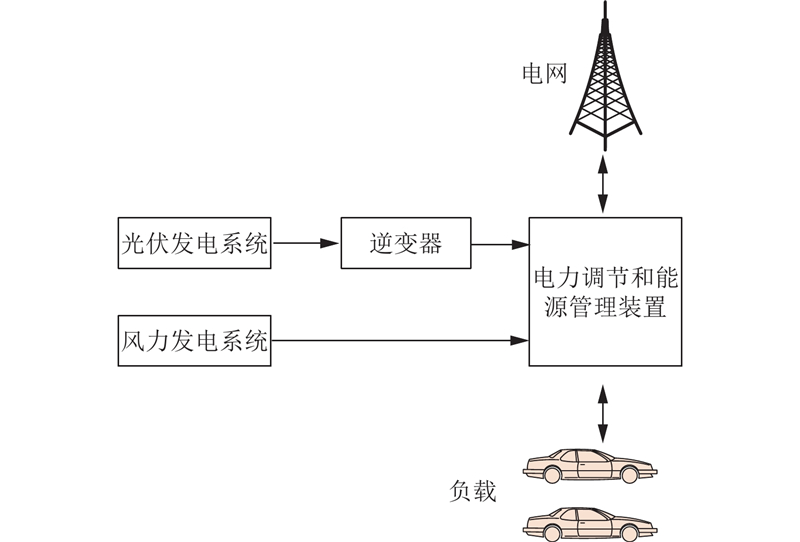

图 6 可再生能源综合配电网架构

Fig.6 Architecture of the renewable energy integrated distribution network

表 1 优化中可再生能源系统的关键参数

Table 1 Key parameters for optimizing renewable energy systems

设备参数	技术规格
风力发电机容量/MW	2.3
风机运行风速范围/(m·s^–1)	切入3.5，额定15，切出25
风机性能模型	制造商功率曲线
光伏系统	单晶硅组件
光伏系统效率/%	19.4
逆变器/整流器效率/%	95

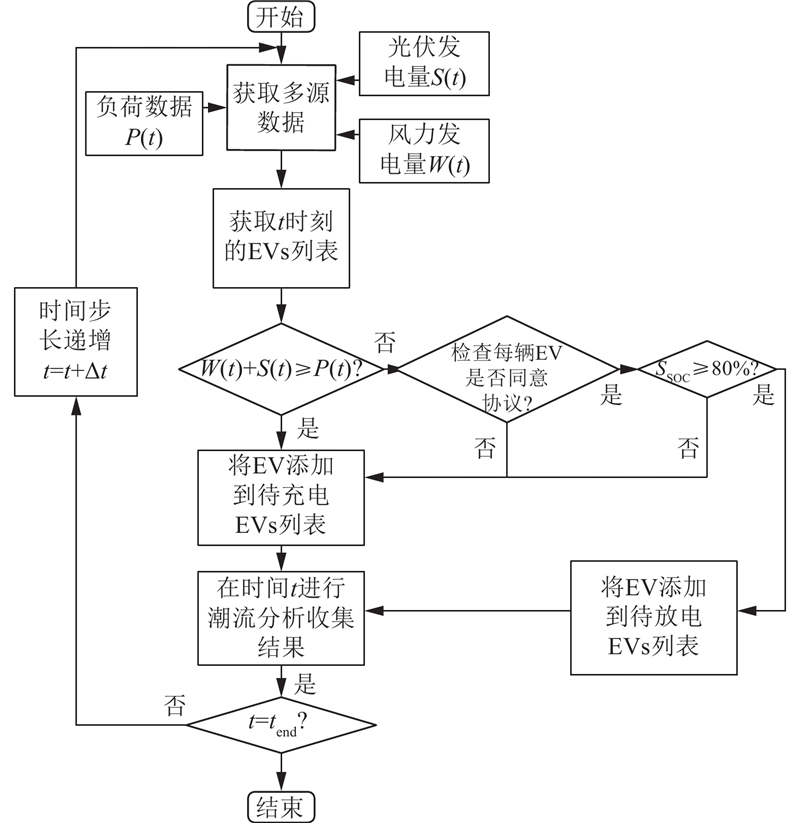

图 7 电动汽车充放电调度算法流程

Fig.7 EV charging and discharging scheduling algorithm flow

表 2 工作日电动汽车的连接/断开模式

Table 2 Connection/disconnection pattern of EVs during a workday

编号	时间	条件
1	00:00—06:00	任意时间步长保持78辆电动汽车连接，随机断开2辆模拟车辆紧急使用场景。
2	06:00—09:00	任意时间步长内保持60辆电动汽车连接，20辆处于断开状态。
3	09:00—18:00	任意时间步长内仅5辆电动汽车连接，其余75辆因使用中保持断开。
4	18:00—21:00	任意时间步长内保持40辆电动汽车连接，40辆随机断开。
5	21:00—00:00	任意时间步长保持78辆电动汽车连接，随机断开2辆模拟车辆紧急使用场景。

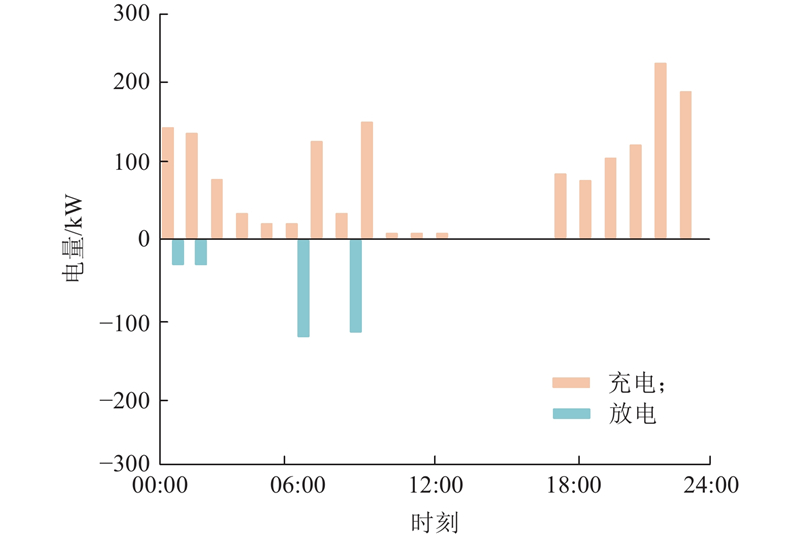

图 8 充电状态限制为90%的电动汽车每小时充放电率

Fig.8 Hourly charge-discharge rate of EVs with 90% SOC restriction

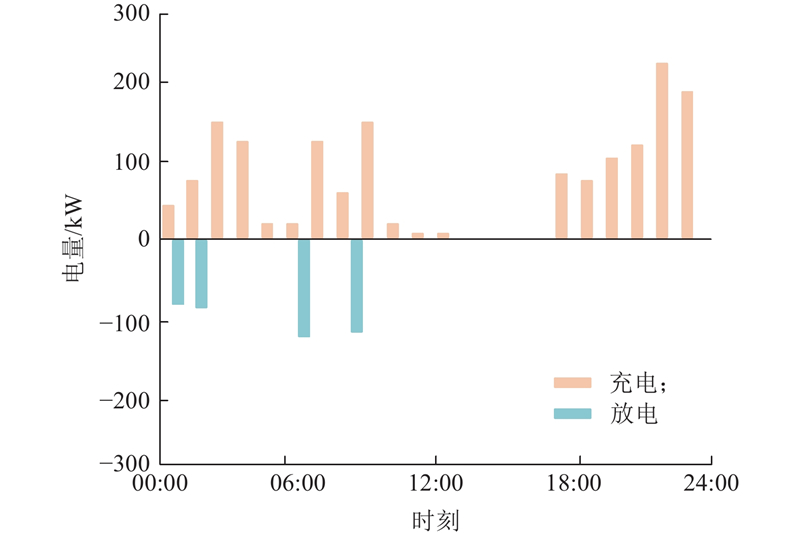

图 9 充电状态限制为75%的电动汽车每小时充放电率

Fig.9 Hourly charge-discharge rate of EVs with 75% SOC restriction

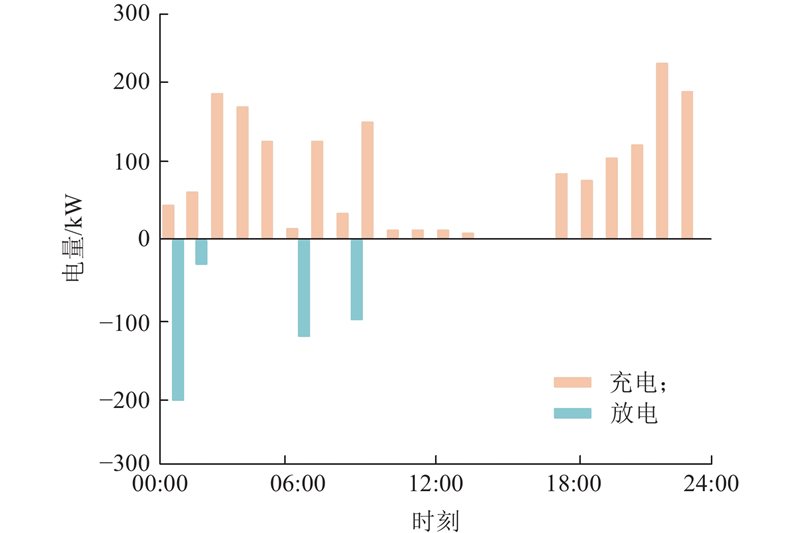

图 10 充电状态限制为60%的电动汽车每小时充放电率

Fig.10 Hourly charge-discharge rate of EVs with 60% SOC restriction

参考文献 35

1	张汉艺, 郭顺达, 李刚, 等. 电力市场下高比例可再生能源消纳配额分配方法[J]. 可再生能源, 2024, 42 (12): 1642- 1652.
	ZHANG Hanyi, GUO Shunda, LI Gang, et al. Method for allocating high-proportion renewable energy consumption quotas in the electricity market[J]. Renewable Energy Resources, 2024, 42 (12): 1642- 1652.
2	徐福聪, 赵飞. 基于机会约束的跨区域电网可再生能源消纳两阶段优化模型[J]. 可再生能源, 2024, 42 (12): 1689- 1696.
	XU Fucong, ZHAO Fei. Two-stage optimization model for cross-regional grid renewable energy integration based on opportunity constraints[J]. Renewable Energy Resources, 2024, 42 (12): 1689- 1696.
3	赵琳, 郭尚民, 商文颖, 等. 基于FDOA的可再生能源系统配置优化[J]. 中国电力, 2025, 58 (7): 168- 176.
	ZHAO Lin, GUO Shangmin, SHANG Wenying, et al. Configuration optimization of renewable energy systems based on FDOA[J]. Electric Power, 2025, 58 (7): 168- 176.
4	汤明润, 李若旸, 刘慕然, 等. 电力系统稳态下可再生能源大规模接入量预测[J]. 中国电力, 2025, 58 (2): 126- 132.
	TANG Mingrun, LI Ruoyang, LIU Muran, et al. Prediction of large-scale renewable energy access under steady state of electric power system[J]. Electric Power, 2025, 58 (2): 126- 132.
5	王方敏, 顼佳宇, 苏宁, 等. 新型电力系统风险抑制下分布式光伏承载力概率评估方法[J]. 中国电力, 2025, 58 (6): 33- 44.
	WANG Fangmin, XU Jiayu, SU Ning, et al. Probability evaluation method of distributed photovoltaic carrying capacity under risk suppression in new power system[J]. Electric Power, 2025, 58 (6): 33- 44.
6	王尚斌, 苑丽伟, 方莹, 等. 计及新能源波动的分布式储能分层控制策略[J]. 山东电力技术, 2024, 51 (9): 74- 84.
	WANG Shangbin, YUAN Liwei, FANG Ying, et al. Distributed energy storage layered control strategy considering renewable energy fluctuations[J]. Shandong Electric Power, 2024, 51 (9): 74- 84.
7	周洋, 黄德志, 李培栋, 等. 考虑平衡端点相位不对称及光伏接入的低压配电网三相潮流模型[J]. 中国电力, 2024, 57 (10): 190- 198.
	ZHOU Yang, HUANG Dezhi, LI Peidong, et al. A three-phase power flow model for low-voltage distribution networks considering balanced bus phase asymmetry and photovoltaic access[J]. Electric Power, 2024, 57 (10): 190- 198.
8	王炜歆, 张露元, 王小君, 等. 计及电动汽车引导和网络重构的配电网负荷恢复策略[J]. 山东电力技术, 2024, 51 (8): 18- 26.
	WANG Weixin, ZHANG Luyuan, WANG Xiaojun, et al. Load restoration strategy of distribution system considering electric vehicle guiding and network reconfiguration[J]. Shandong Electric Power, 2024, 51 (8): 18- 26.
9	宣羿, 樊立波, 孙智卿, 等. 考虑低碳交通的电动汽车充电站优化配置方法[J]. 浙江电力, 2024, 43 (6): 69- 79.
	XUAN Yi, FAN Libo, SUN Zhiqing, et al. An optimal allocation method for electric vehicle charging stations considering lowcarbon transportation[J]. Zhejiang Electric Power, 2024, 43 (6): 69- 79.
10	江建, 张树森, 徐峰亮. 考虑电动汽车集群响应的分布式资源协同调度策略研究[J]. 山东电力技术, 2024, 51 (6): 1- 11, 35.
	JIANG Jian, ZHANG Shusen, XU Fengliang. Research on the collaborative dispatch strategy of distributed resources considering the response of electric vehicle cluster[J]. Shandong Electric Power, 2024, 51 (6): 1- 11, 35.
11	黄健, 陈建红, 何剑杰, 等. 基于GCN-LSTM的电动汽车负荷预测方法[J]. 浙江电力, 2024, 43 (12): 59- 67.
	HUANG Jian, CHEN Jianhong, HE Jianjie, et al. An EV load forecasting method for using GCN-LSTM[J]. Zhejiang Electric Power, 2024, 43 (12): 59- 67.
12	林湘宁, 王伟名, 随权, 等. 主动配电网-充换电站群-智慧社区群分层优化调度策略[J]. 广东电力, 2024, 37 (10): 25- 37.
	LIN Xiangning, WANG Weiming, SUI Quan, et al. Hierarchical optimal scheduling strategy for active power distribution network, charging and switching station cluster and smart community cluster[J]. Guangdong Electric Power, 2024, 37 (10): 25- 37.
13	陈业夫, 王钦, 蔡新雷, 等. 计及规模化电动汽车调控潜力的含风电系统优化调度策略[J]. 浙江电力, 2024, 43 (4): 95- 104.
	CHEN Yefu, WANG Qin, CAI Xinlei, et al. An optimal scheduling strategy for wind-integrated systems considering the regula-Tory potential of large-scale electric vehicles[J]. Zhejiang Electric Power, 2024, 43 (4): 95- 104.
14	董新, 李广, 乔荣飞, 等. 考虑充电站无功支撑的城市电网动态无功电压优化[J]. 山东电力技术, 2024, 51 (12): 1- 9.
	DONG Xin, LI Guang, QIAO Rongfei, et al. Urban distribution network dynamic reactive power optimization considering electrical vehicle station[J]. Shandong Electric Power, 2024, 51 (12): 1- 9.
15	汤赟. 三相不平衡配电网中电动汽车充电问题的混合整数非线性规划模型[J]. 安徽科技, 2020 (2): 50- 52.
16	王晓琨, 翟桥柱, 白婕. 基于混合整数规划的电动汽车有序充电方法[J]. 电力自动化设备, 2017, 37 (9): 70- 82, 102.
	WANG Xiaokun, ZHAI Qiaozhu, BAI Jie. Ordered charging method of electric vehicles based on mixed integer programming[J]. Electric Power Automation Equipment, 2017, 37 (9): 70- 82, 102.
17	熊金凤, 王汝佳, 王延鹏. 基于改进粒子群算法的电动汽车电机转速控制优化研究[J]. 中国工程机械学报, 2024, 22 (6): 733- 738.
	XIONG Jinfeng, WANG Rujia, WANG Yanpeng. Research on optimization of electric vehicle motor speed control based on improved particle swarm optimization algorithm[J]. Chinese Journal of Construction Machinery, 2024, 22 (6): 733- 738.
18	王雪燕, 王新禹, 李登雕, 等. 基于自适应粒子群优化算法的电动汽车换电站选址模型设计[J]. 办公自动化, 2024, 29 (20): 58- 60, 96.
	WANG Xueyan, WANG Xinyu, LI Dengdiao, et al. Design of electric vehicle Swapping station site selection model based on adaptive particle swarm optimization algorithm[J]. Office Informatization, 2024, 29 (20): 58- 60, 96.
19	张长勇, 陈炟名, 张云蕾. 基于马尔可夫过程的电动汽车电驱动系统共模干扰抑制方法研究[J]. 汽车技术, 2025 (1): 41- 47.
	ZHANG Changyong, CHEN Daming, ZHANG Yunlei. Research on common mode interference suppression strategy for automotive electric drive systems based on Markov process[J]. Automobile Technology, 2025 (1): 41- 47.
20	廖莹. 基于马尔可夫链的电动汽车充电负荷预测分析[J]. 电子技术, 2023, 52 (12): 422- 424.
	LIAO Ying. Analysis of electric vehicle charging load prediction based on Markov chains[J]. Electronic Technology, 2023, 52 (12): 422- 424.
21	毕军, 王嘉宁, 王永兴. 基于LSTM-FC模型的充电站短期运行状态预测[J]. 华南理工大学学报(自然科学版), 2025, 53 (2): 58- 67.
	BI Jun, WANG Jianing, WANG Yongxing. Short-term operation state prediction of charging station based on LSTM-FC model[J]. Journal of South China University of Technology (Natural Science Edition), 2025, 53 (2): 58- 67.
22	路来伟, 赵红, 徐福良, 等. 基于LSTM车速预测和深度确定性策略梯度的增程式电动汽车能量管理[J]. 汽车技术, 2024 (8): 27- 37.
	LU Laiwei, ZHAO Hong, XU Fuliang, et al. DDPG energy management of extended-range electric vehicle based on LSTM speed prediction[J]. Automobile Technology, 2024 (8): 27- 37.
23	王少林, 杨希, 王荣强. 多维度背景下智能电网技术应用场景的思考和探索[J]. 电气时代, 2022 (10): 24- 27.
24	李兴旺, 郑竞宏, 刘鹏飞, 等. 微电网带负荷并网的平滑切换条件及控制策略[J]. 黑龙江电力, 2012, 34 (1): 62- 65.
	LI Xingwang, ZHENG Jinghong, LIU Pengfei, et al. Conditions and control strategies of microgrid connected with load smooth switchover[J]. Heilongjiang Electric Power, 2012, 34 (1): 62- 65.
25	高雅. 智能电网负荷预测的常用方法分析与选择[J]. 电工技术, 2024 (9): 4- 6.
	GAO Ya. Analysis and selection of common methods for smart grid load prediction[J]. Electric Engineering, 2024 (9): 4- 6.
26	BONADIA R S, TRINDADE F C L, FREITAS W, et al. On the potential of ChatGPT to generate distribution systems for load flow studies using OpenDSS[J]. IEEE Transactions on Power Systems, 2023, 38 (6): 5965- 5968.
27	ZENG B, ZHANG J H, YANG X, et al. Integrated planning for transition to low-carbon distribution system with renewable energy generation and demand response[J]. IEEE Transactions on Power Systems, 2014, 29 (3): 1153- 1165.
28	张小莲, 孙啊传, 郝思鹏, 等. 风电场参与电网调频的多机协同控制策略[J]. 发电技术, 2024, 45 (3): 448- 457.
	ZHANG Xiaolian, SUN Achuan, HAO Sipeng, et al. Multi-machine cooperative control strategy of wind farm participating in power grid frequency modulation[J]. Power Generation Technology, 2024, 45 (3): 448- 457.
29	刘洪波, 刘永发, 任阳, 等. 高风电渗透率下考虑系统风电备用容量的储能配置[J]. 发电技术, 2024, 45 (2): 260- 272.
	LIU Hongbo, LIU Yongfa, REN Yang, et al. Energy storage configuration considering the system wind power reserve capacity under high wind power permeability[J]. Power Generation Technology, 2024, 45 (2): 260- 272.
30	杨彪, 颜伟, 莫静山. 考虑源荷功率随机性和相关性的主导节点选择与无功分区方法[J]. 电力系统自动化, 2021, 45 (11): 61- 67.
	YANG Biao, YAN Wei, MO Jingshan. Pilot-bus selection and network partitioning method considering randomness and correlation of source-load power[J]. Automation of Electric Power Systems, 2021, 45 (11): 61- 67.
31	刘硕, 马兆兴, 刘金鑫, 等. 面向新能源消纳的新型电力系统优化运行策略[J]. 湖南电力, 2024, 44 (1): 59- 66.
	LIU Shuo, MA Zhaoxing, LIU Jinxin, et al. Optimal operation strategies of new power system aimed at renewable energy system consumption[J]. Hunan Electric Power, 2024, 44 (1): 59- 66.
32	郑伟, 张乐, 张建军, 等. 基于虚拟同步的V2G调度控制策略[J]. 南方能源建设, 2025, 12 (2): 116- 127.
	ZHENG Wei, ZHANG Le, ZHANG Jianjun, et al. V2G scheduling control strategy based on virtual synchronization[J]. Southern Energy Construction, 2025, 12 (2): 116- 127.
33	刘海涛, 朱康凯, 王宇昊, 等. 考虑“源-荷”双侧调频的电力系统双层优化调度模型[J]. 电测与仪表, 2025, 62 (11): 154- 166.
	LIU Haitao, ZHU Kangkai, WANG Yuhao, et al. Bi-level unit commitment optimized dispatching model of power system with 'source-load' bilateral frequency regulation[J]. Electrical Measurement & Instrumentation, 2025, 62 (11): 154- 166.
34	李明, 胡楠, 刘鑫蕊. 考虑电动汽车公平性的虚拟电厂优化运行策略[J]. 综合智慧能源, 2025, 47 (1): 70- 78.
	LI Ming, HU Nan, LIU Xinrui. Optimal operation strategy of virtual power plants considering fairness for electric vehicles[J]. Integrated Intelligent Energy, 2025, 47 (1): 70- 78.
35	杨明杰, 胡扬宇, 千海霞, 等. 计及风电、光伏、需求侧响应的藤Copula不确定性的综合能源配网分布鲁棒优化[J]. 电测与仪表, 2025, 62 (10): 147- 155.
	YANG Mingjie, HU Yangyu, QIAN Haixia, et al. Distributionally robust optimization for integrated energy distribution network considering vine Copula uncertainty of wind power, photovoltaic and demand side response[J]. Electrical Measurement & Instrumentation, 2025, 62 (10): 147- 155.
