基于数据驱动的高比例新能源配电网规划模型

doi:10.11930/j.issn.1004-9649.202405121

摘要/Abstract

摘要：

为应对电网形式的转变，促进分布式资源就近消纳，基于数据驱动提出了高比例新能源配电网3层规划模型。决策层采用改进的K-means算法确定负荷中心和分布式电源中心，基于源荷平衡关系划分配电网网格。规划层以综合投资成本最低为目标，对网格内分布式电源和网架结构的修建提出配置方案。运行层模型以综合运行成本最低为目标，促进网格内资源良好互动、网格间资源互济。3层规划模型结合配电网的规划和运行，充分挖掘电源、负荷等多源信息，实现配电网资源上多元联动、空间上网格互动，并通过改进的粒子群算法验证了所提策略的有效性。

关键词: 分布式资源, 数据驱动, 三层规划

Abstract:

In response to the transformation of the power grid form and to promote the local consumption of distributed resources, a three-layer planning model for highportion new energy distribution networks based on data-driven is proposed. The decision-making layer uses an improved K-means algorithm to determine the load center and the distributed power source, and divides the distribution network grid based on the source-load balance relationship. The planning layer aims to minimize the comprehensive investment cost and proposes a configuration scheme for the construction distributed power sources and the network structure within the grid. The operation layer model aims to minimize the comprehensive operation cost, promote the good interaction of resources within the grid, the mutual assistance of resources between grids. The three-layer planning model combines the planning and operation of the distribution network, fully mines multi-source information such as power sources and, and realizes multi-dimensional linkage of distribution network resources in the resource space and grid interaction in the spatial space. The effectiveness of the proposed strategy is verified through an improved swarm optimization algorithm.

Key words: distributed energy resource, data-driven, three-layer planning

王杰, 郑飞, 张鹏城, 陈露东, 高华, 蒙镜蓉. 基于数据驱动的高比例新能源配电网规划模型[J]. 中国电力, 2025, 58(3): 175-182.

Jie WANG, Fei ZHENG, Pengcheng ZHANG, Ludong CHEN, Hua GAO, Jingrong MENG. Model of High-Proportion New Energy Distribution Network Planning Based on Data-Driven Approach[J]. Electric Power, 2025, 58(3): 175-182.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202405121

https://www.electricpower.com.cn/CN/Y2025/V58/I3/175

图/表 11

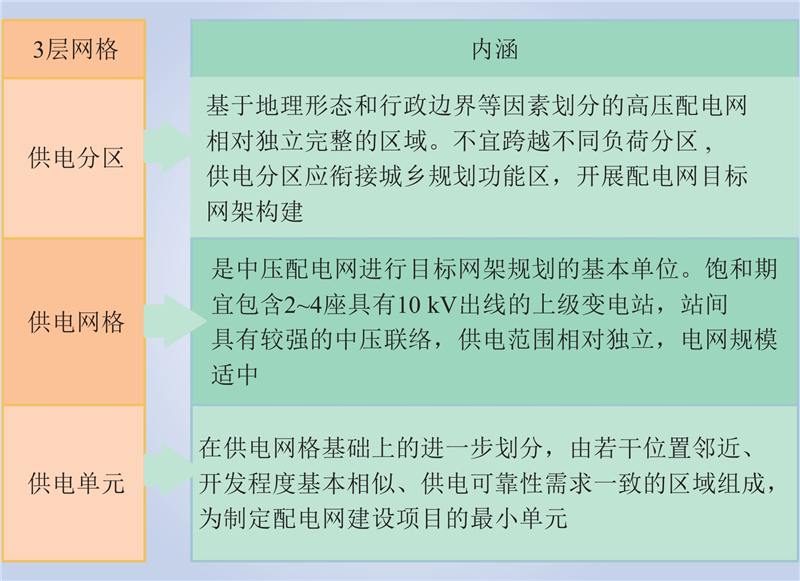

图 1 配电网格划分层次

Fig.1 Distribution grid division level

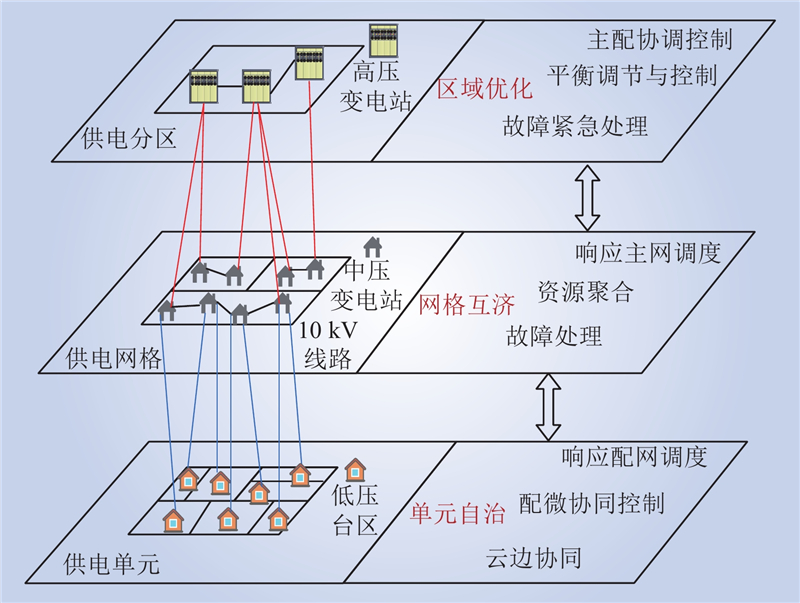

图 2 配电网格分层控制体系

Fig.2 Distribution grid hierarchical control system

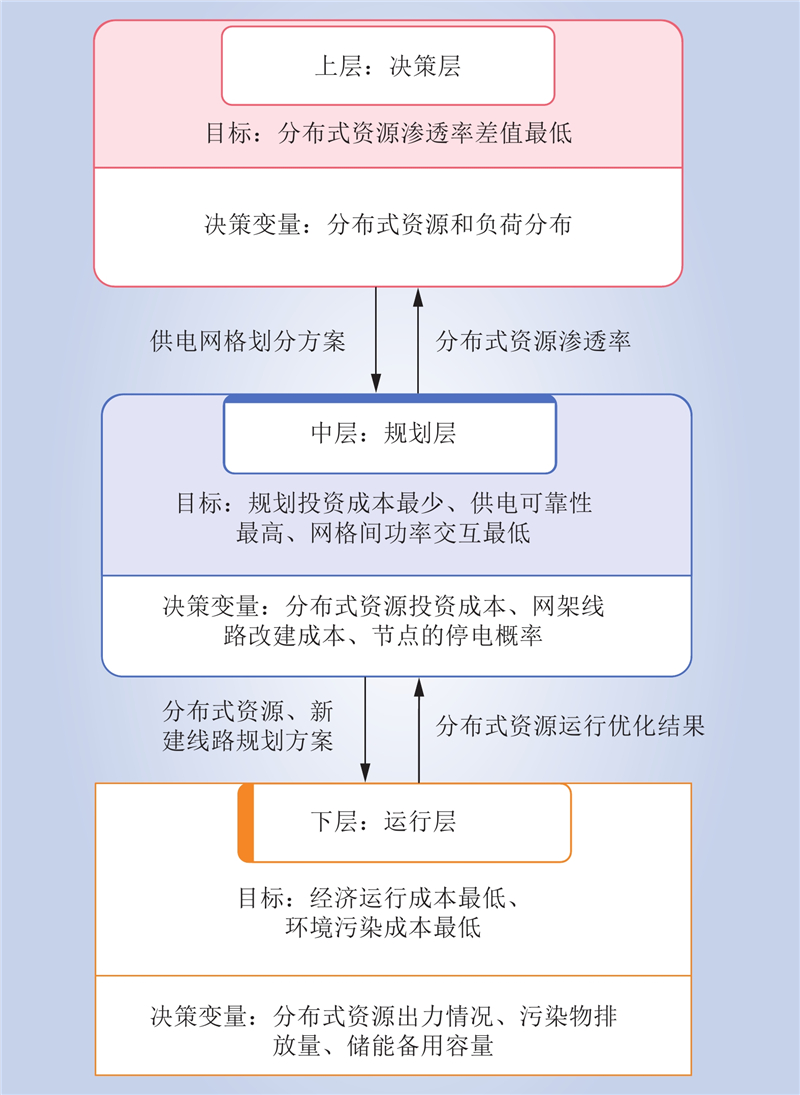

图 3 新型配电网三层规划模型

Fig.3 Three-layer planning model of new distribution network

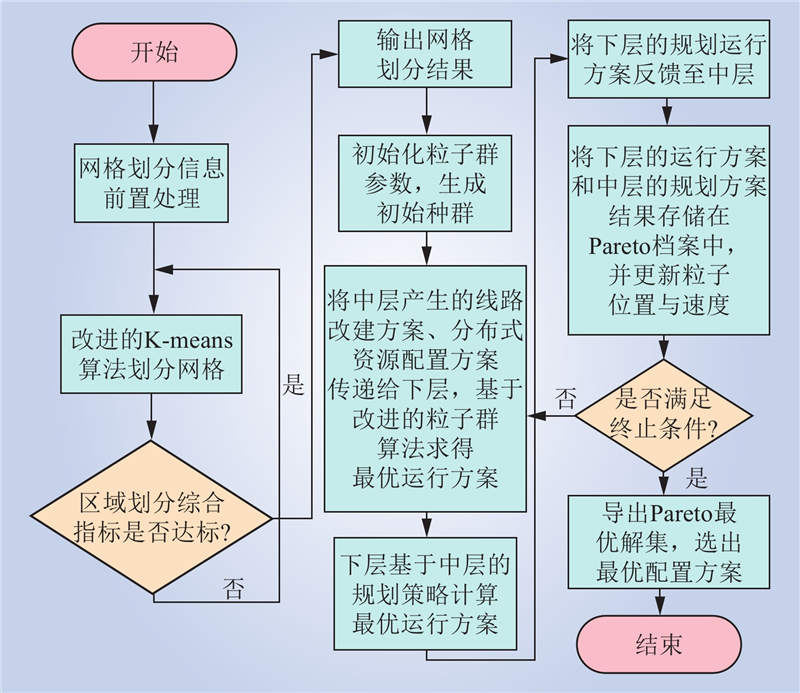

图 4 新型配电网3层规划模型求解流程

Fig.4 Solution flow of three-layer planning model for new distribution network

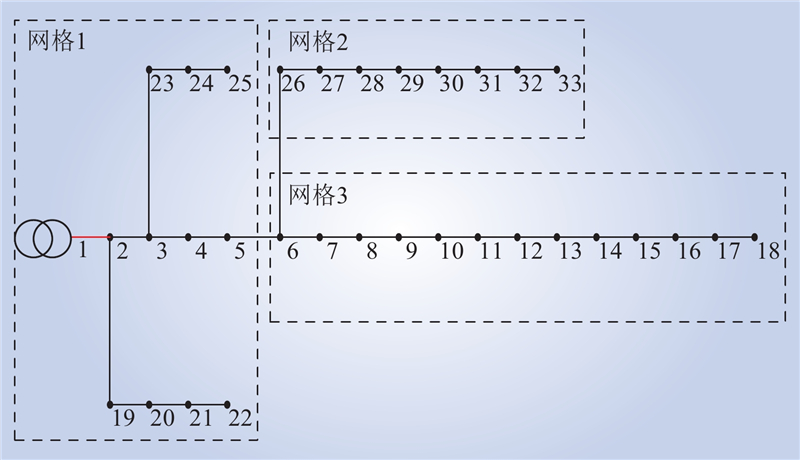

图 5 配电网网格划分结果

Fig.5 Distribution grid division results

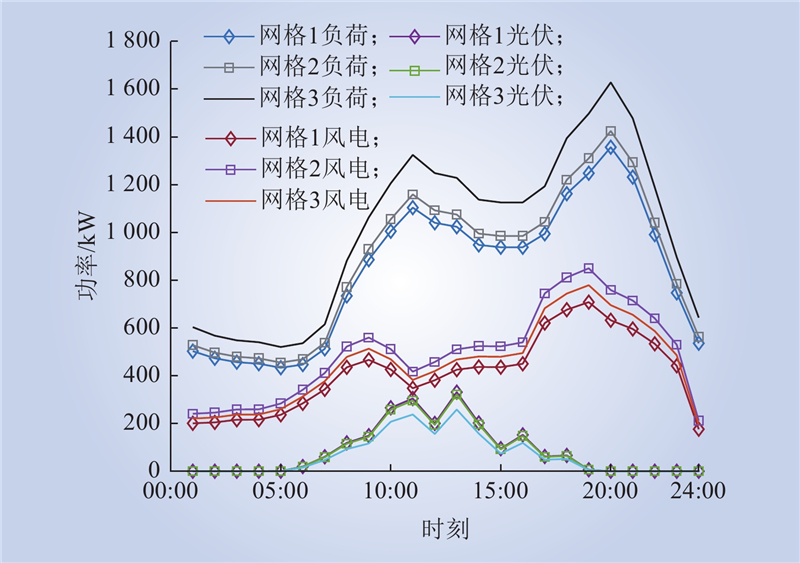

图 6 典型日负荷和风光出力场景

Fig.6 Typical daily load and wind/PV output scene

表 1 配电网规划方案

Table 1 Distribution network planning scheme

类型		节点
风机		2;11;28
光伏		4;13;31
储能		3;12;30
燃气机组		21,24;8,17;27,32
燃料电池		19;9;26
修建线路		25-26;12-30

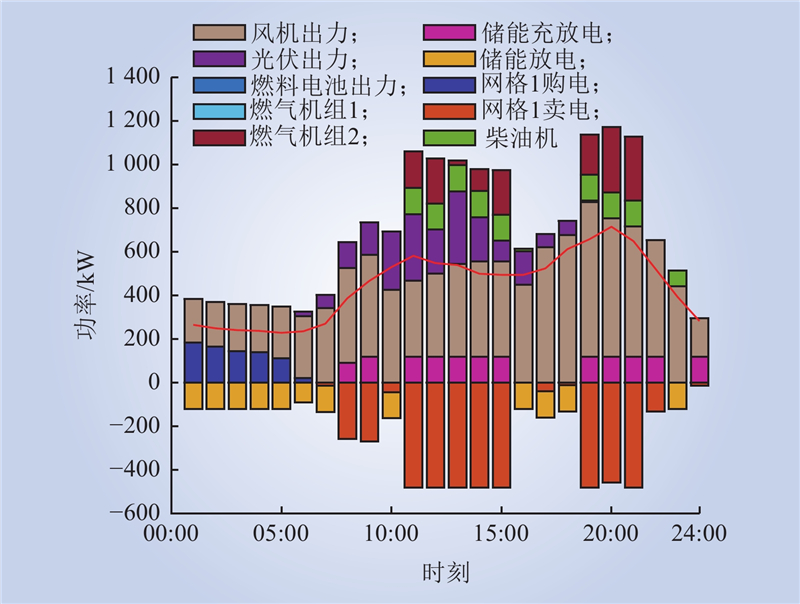

图 7 供电网格1典型日运行情况

Fig.7 Power grid 1 typical daily operation

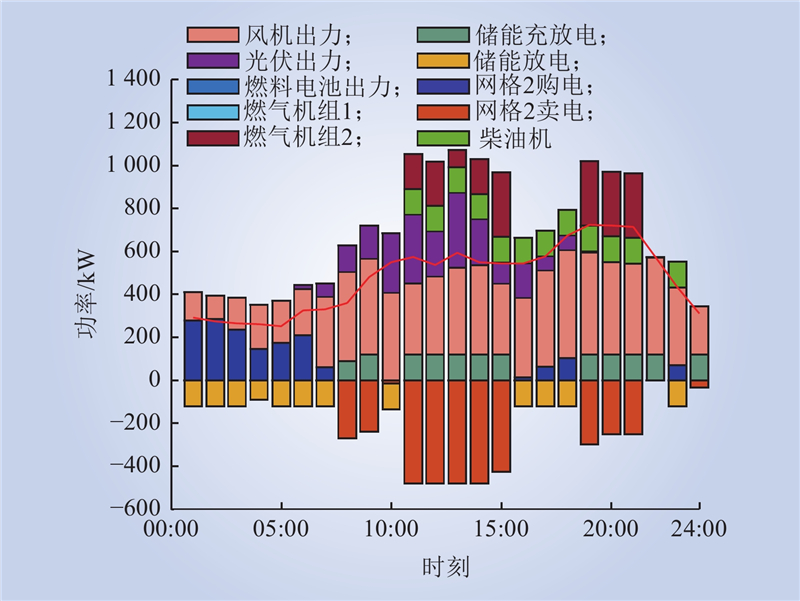

图 8 供电网格2典型日运行情况

Fig.8 Power grid 2 typical daily operation

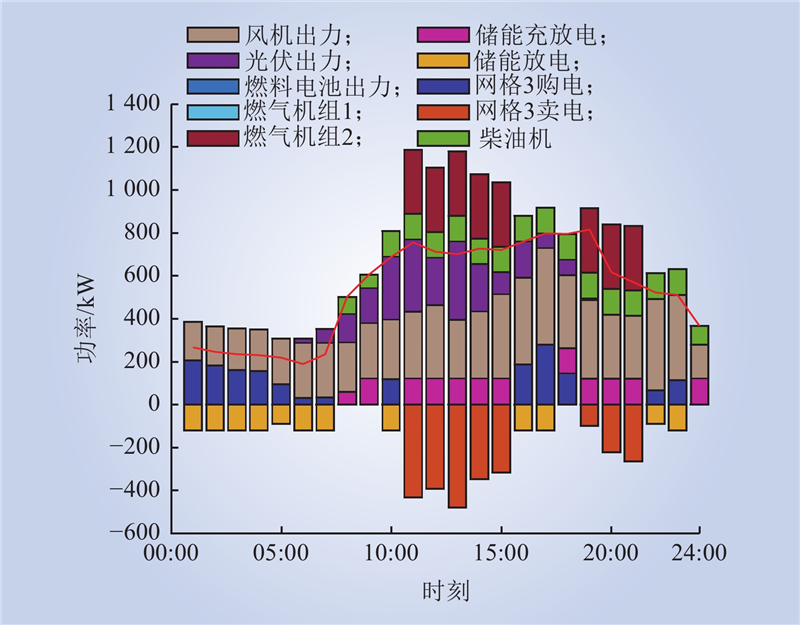

图 9 供电网格3典型日运行情况

Fig.9 Power grid 3 typical daily operation

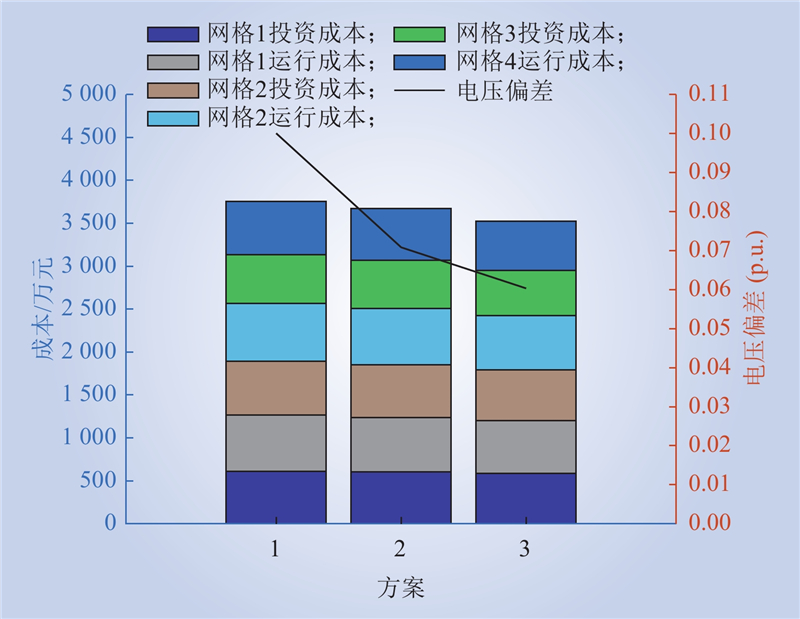

图 10 不同方案规划结果对比

Fig.10 Comparison of planning results of different schemes
