基于数据驱动的智能变电站信息高效校验技术

doi:10.11930/j.issn.1004-9649.202404028

摘要/Abstract

摘要：

为提高变电站的远动遥信对点效率，提出一种基于数据驱动的智能站信息高效校验技术。面向智能变电站，基于远动信息对点系统架构，采用多点随机不重复抽取方法实现信息全覆盖，并通过不一致效验分析方法进行信息对点检验，利用抽取校核方法实现远动遥信对点的闭环处理。通过仿真算例，验证了所提方法的高效性与准确性。

关键词: 数据驱动, 遥信对点, 不一致分析

Abstract:

To improve the efficiency of remote control and telemetry point verification in substations, a data-driven intelligent station information verification technology is proposed. Aiming intelligent substations, based on the remote information point system architecture, a multi-point random non-repetitive sampling method is used to achieve full coverage of information, an inconsistency verification analysis method is used for information point inspection. The closed-loop processing of remote control and telemetry point verification is realized by using the sampling verification method. efficiency and accuracy of the proposed method are verified by simulation examples.

Key words: data-driven, telematics-to-point, inconsistency analysis

计荣荣, 张淦锋, 王梦芝, 金颖杰, 李海, 黄若钒. 基于数据驱动的智能变电站信息高效校验技术[J]. 中国电力, 2025, 58(1): 100-106.

Rongrong JI, Ganfeng ZHANG, Mengzhi WANG, Yingjie JIN, Hai LI, Ruofan HUANG. Data-driven Efficient Verification Technique for Smart Substations Messages[J]. Electric Power, 2025, 58(1): 100-106.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202404028

https://www.electricpower.com.cn/CN/Y2025/V58/I1/100

图/表 7

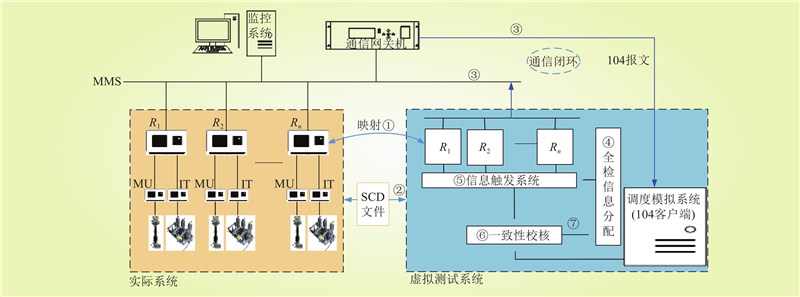

图 1 面向智能变电站的远动信息对点系统架构

Fig.1 Remote Information-to-Point System Architecture for Intelligent Substations

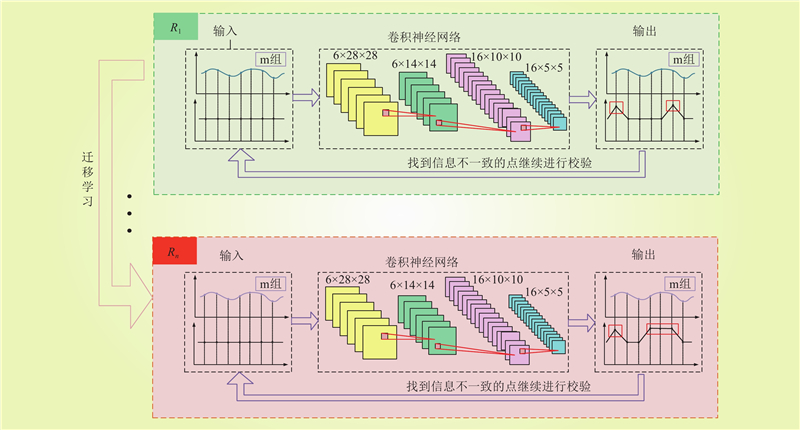

图 2 基于数据驱动模型的不一致效验分析

Fig.2 Inconsistent validation analysis based on data-driven model

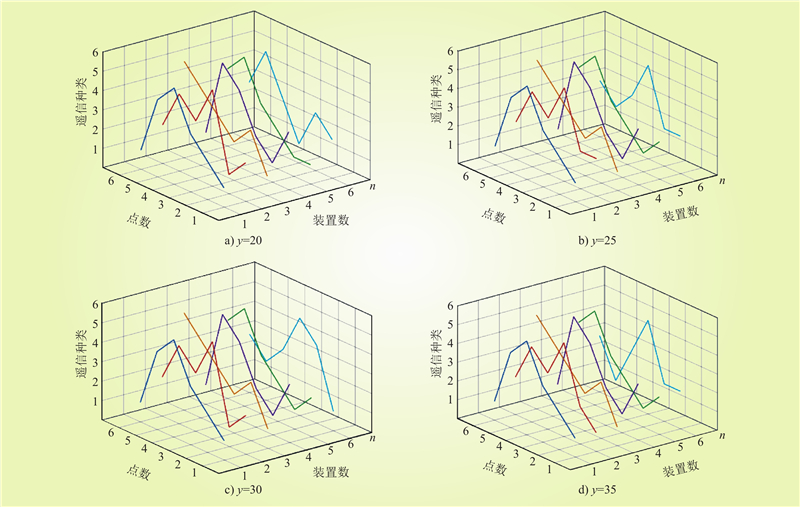

图 3 测点子集遥信种类覆盖度

Fig.3 Coverage of telemetry types for a subset of telemetry points

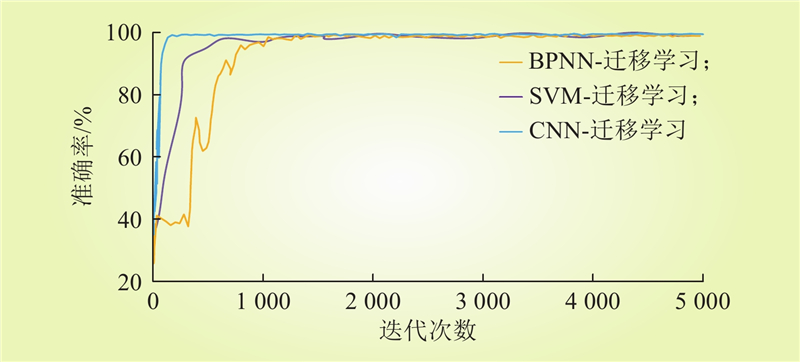

图 4 数据驱动方法准确率比对结果

Fig.4 Comparison results of accuracy of data-driven methods

表 1 抽选替换次数的阈值选取

Table 1 Threshold selection for the number of sampling substitutions

抽选替换次数的阈值	遥信种类覆盖度/%	平均命中数目/次	完成时间/ min
y=20	83.33	10	5.0
y=25	86.77	8	5.4
y=30	94.44	6	6.0
y=35	95.60	6	7.0

表 2 与现有方法对比

Table 2 Comparison with existing methods

项目	遥信点数	调试时间/h	调试效率个/h
本系统调试	51 533	68.0	757
普通人工调试	2 457	121.0	20
自动对点方法^[12]	2 712	4.5	602

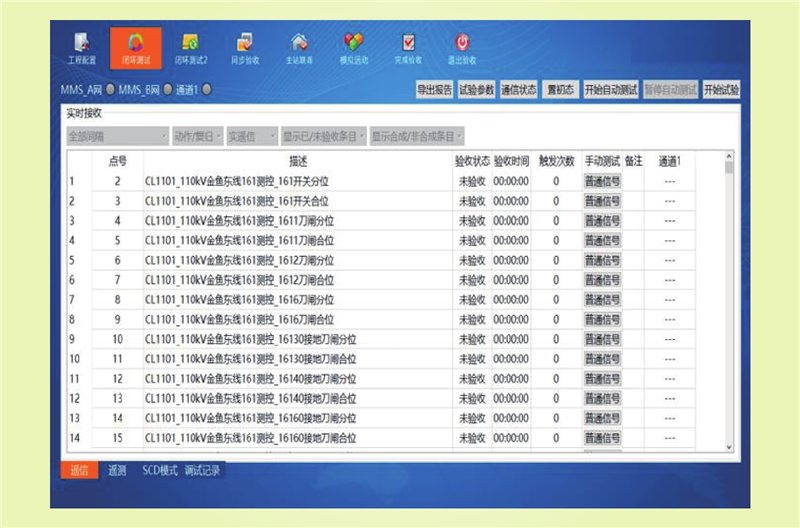

图 5 系统软件调度快速对点界面

Fig.5 System software scheduling fast point-to-point interface
