考虑氢储能的富氧燃烧碳捕集电厂热电联合优化调度

doi:10.11930/j.issn.1004-9649.202406029

中国电力 ›› 2025, Vol. 58 ›› Issue (4): 159-169.DOI: 10.11930/j.issn.1004-9649.202406029

• 面向新型电力系统的智慧用能优化与控制 • 上一篇下一篇

考虑氢储能的富氧燃烧碳捕集电厂热电联合优化调度

邓卜元¹(), 袁至¹(), 李骥²

1. 新疆大学可再生能源发电与并网控制教育部工程研究中心，新疆乌鲁木齐　830017
2. 国网新疆电力有限公司电力科学研究院，新疆乌鲁木齐　830011

收稿日期:2024-06-07 录用日期:2024-09-05 发布日期:2025-04-23 出版日期:2025-04-28
作者简介:
邓卜元（1999），男，硕士研究生，从事碳捕集电厂优化调度研究，E-mail：1813979778@qq.com
袁至（1984），男，通信作者，博士，副教授，从事可再生能源发电与并网控制研究，E-mail：yzisthecure@163.com
基金资助:
国家自然科学基金资助项目（52367024）；新疆维吾尔自治区重大科技专项项目（2022A01004-1）。

Optimized Coordinated Scheduling of Oxy-Fuel Combustion Carbon Capture Combined Heat and Power Plant Considering Hydrogen Energy Storage

DENG Buyuan¹(), YUAN Zhi¹(), LI Ji²

1. Engineering Research Center of Renewable Energy Power Generation and Grid-Connected Control, Ministry of Education, Xinjiang University, Urumqi 830017, China
2. Electric Power Research Institute of State Grid Xinjiang Electric Power Co., Ltd., Urumqi 830011, China

Received:2024-06-07 Accepted:2024-09-05 Online:2025-04-23 Published:2025-04-28
Supported by:
This work is supported by National Natural Science Foundation of China (No.52367024); Xinjiang Uygur Autonomous Region Major Science and Technology Special Project (No.2022A01004-1).

摘要/Abstract

摘要：

随着新能源装机规模不断扩大，传统碳捕集热电厂因承担供热任务而存在碳捕集效率低、调节能力不足的现象。为了促进新能源消纳和减少碳排放，同时提升热电厂的调峰能力，构建一种氢储能与富氧燃烧碳捕集机组联合运行模型，并进行低碳经济优化调度。首先，分析富氧燃烧碳捕集与氢储能协调运行机理，并构建系统架构；其次，计及空分制氧与氢储能氧气回收，分别建立富氧燃烧碳捕集机组与氢储能系统模型；最后，通过碳交易和调峰辅助服务市场提升电厂降碳、调峰主动性，以系统运行成本最优为目标，建立考虑氢储能的富氧燃烧碳捕集电厂优化调度模型。算例结果表明，所提模型不但可以有效提高系统低碳性与经济性，还可以提升热电厂的调节能力，促进新能源消纳。

关键词: 热电联产, 富氧燃烧碳捕集, 氢储能, 碳交易, 深度调峰

Abstract:

As renewable energy installation scales up, traditional carbon capture combined heat and power plants face challenges such as low carbon capture efficiency and inadequate regulatory capacity due to their heating supply obligations. In order to promote renewable energy integration and reduce carbon emissions while enhancing the peak regulation capabilities of these plants, this study constructs a joint operational model integrating hydrogen energy storage with oxy-fuel combustion carbon capture units, focusing on low-carbon economic dispatch. The paper first investigates the coordination mechanisms of oxy-fuel combustion carbon capture and hydrogen energy storage, establishing a system architecture. It then considers oxygen production from air separation and oxygen recovery from hydrogen storage, developing separate models for oxy-fuel combustion carbon capture units and hydrogen energy storage systems. Finally, leveraging carbon trading and peak regulation auxiliary service markets to enhance carbon reduction and peak regulation initiatives of power plants, the study aims to optimize system operating costs, establishing a low-carbon economic dispatch model for oxy-fuel combustion carbon capture plants integrated with hydrogen energy storage. Case study results demonstrate that the proposed model not only effectively improves system carbon efficiency and economic performance but also enhances the regulatory capabilities of combined heat and power plants, facilitating renewable energy integration.

Key words: combined heat and power, oxy-fuel combustion carbon capture, hydrogen energy storage, carbon trading, deep peak shaving

邓卜元, 袁至, 李骥. 考虑氢储能的富氧燃烧碳捕集电厂热电联合优化调度[J]. 中国电力, 2025, 58(4): 159-169.

DENG Buyuan, YUAN Zhi, LI Ji. Optimized Coordinated Scheduling of Oxy-Fuel Combustion Carbon Capture Combined Heat and Power Plant Considering Hydrogen Energy Storage[J]. Electric Power, 2025, 58(4): 159-169.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202406029

https://www.electricpower.com.cn/CN/Y2025/V58/I4/159

图/表 12

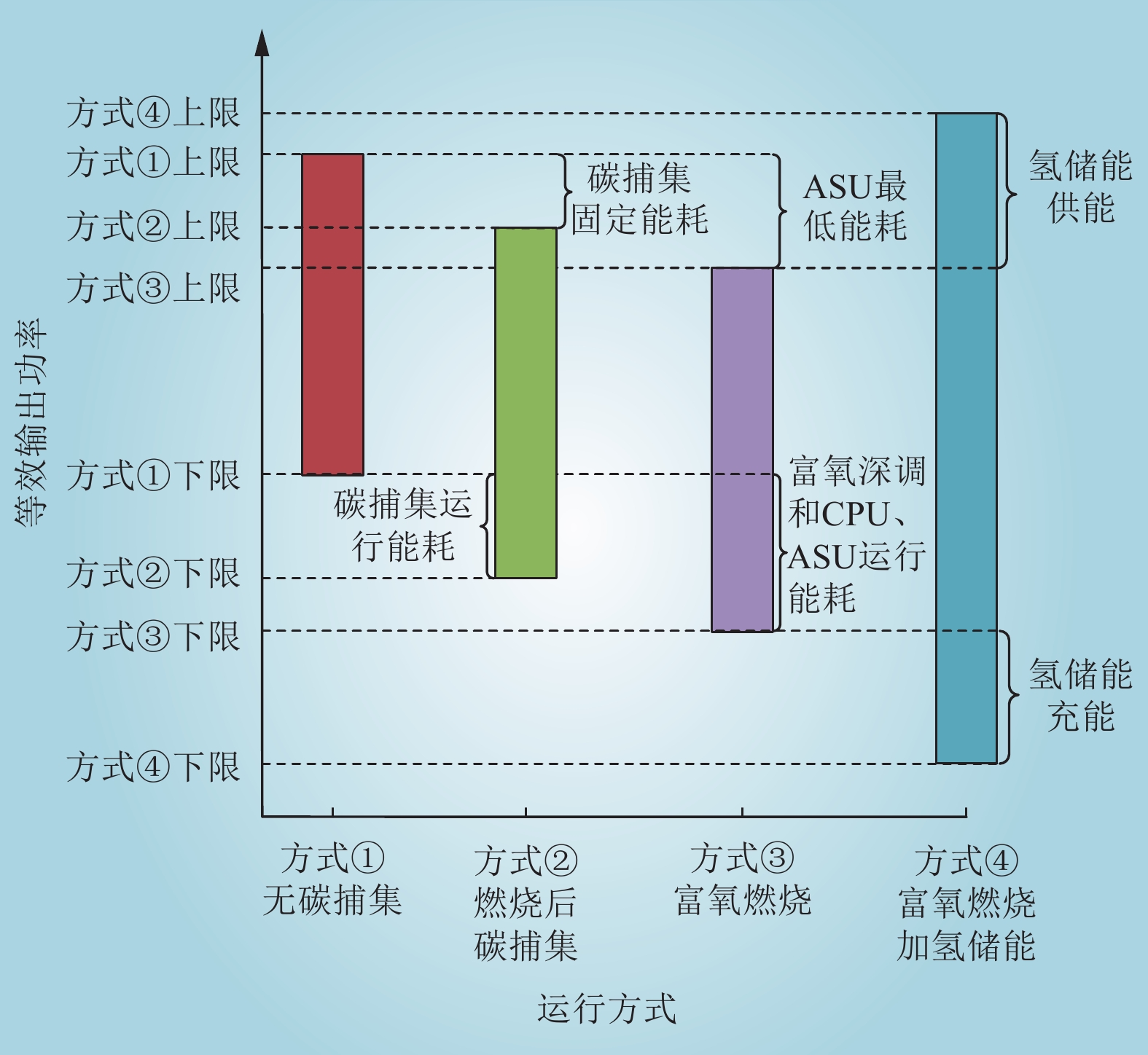

图 1 电厂等效输出功率对比

Fig.1 Comparison of equivalent output of power plants

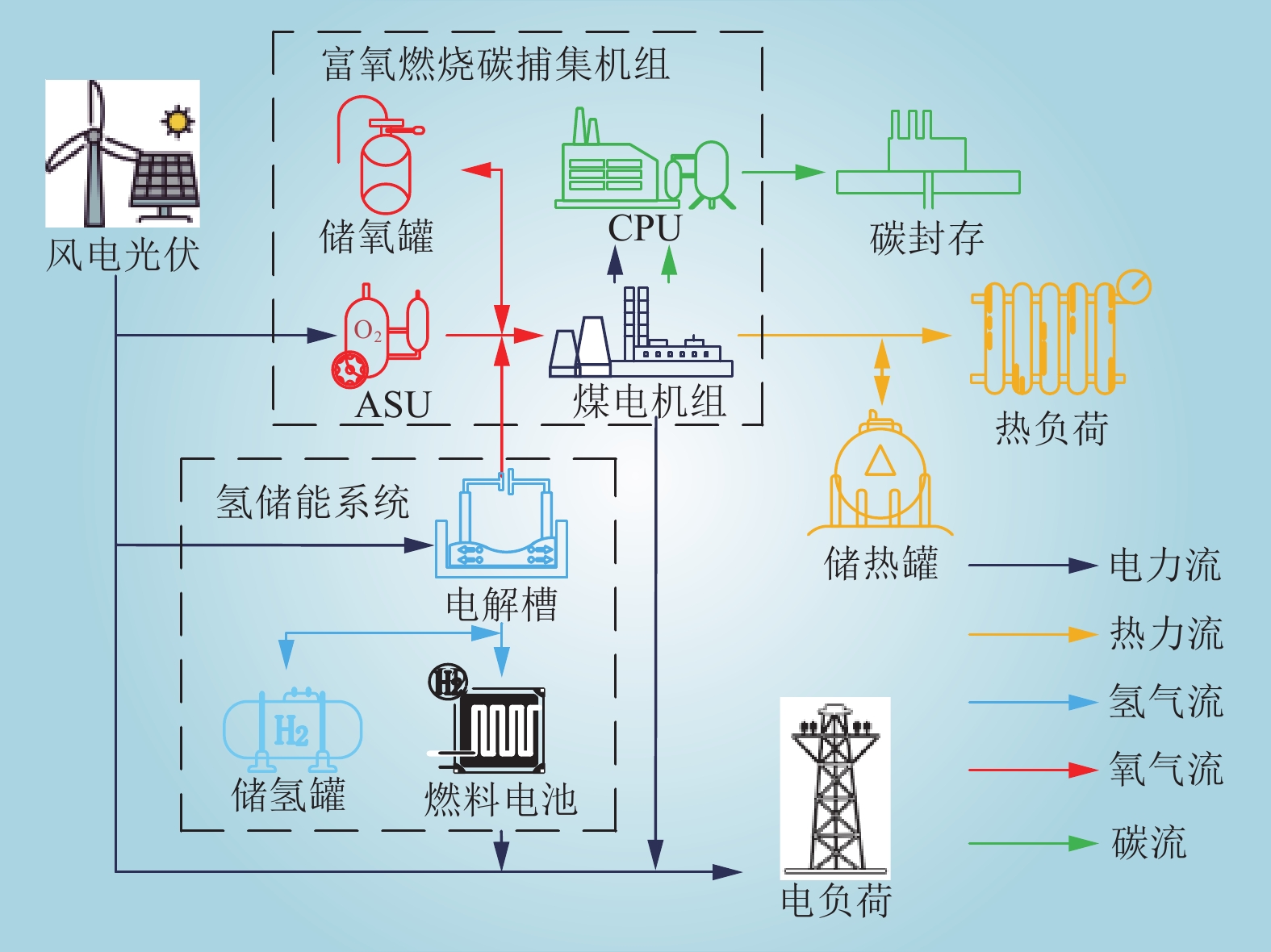

图 2 富氧燃烧碳捕集机组与氢储能协调运行框架

Fig.2 Framework for coordinated operation of oxy-fuel carbon capture unit and hydrogen energy storage

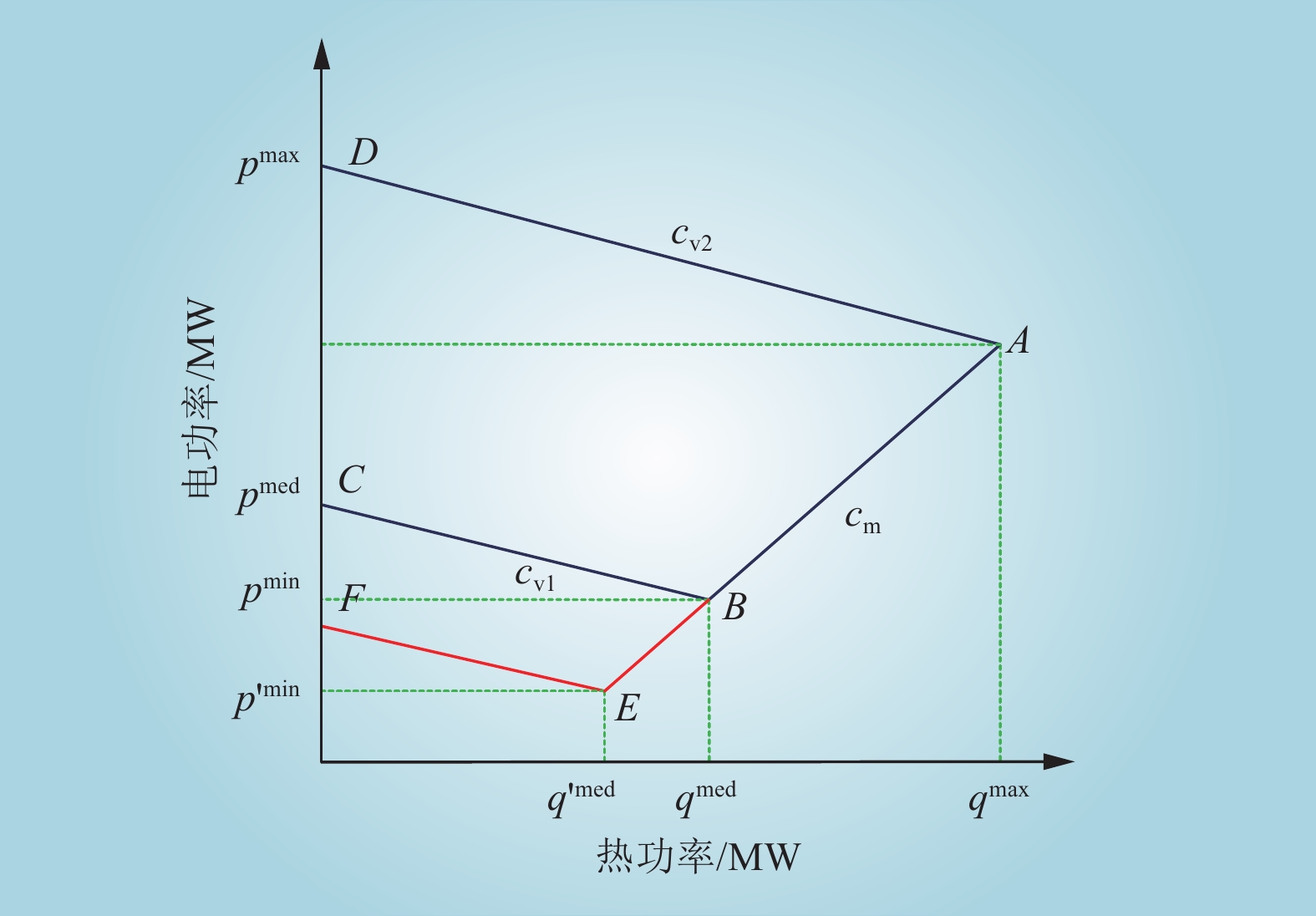

图 3 CHP热电运行区域

Fig.3 Heat-electricity operating characteristics of CHP

表 1 富氧燃烧碳捕集技术基本参数

Table 1 Basic parameters of oxy-fuel capture technology

参数	数值	参数	数值
$ \delta $/((MW·h)·t^–1)	0.0893	${\zeta _{{\text{ASU}}}}$/(元·(MW·h)^–1)	40
$\chi $/(m³·MW^–1)	600	$ {\zeta _{{\text{CPU}}}} $/(元·(MW·h)^–1)	40
${\alpha _{\max }}$/%	98	$\beta $/((kW·h)·m^–3)	0.303

表 2 氢储能参数

Table 2 Hydrogen energy storage parameters

参数	数值	参数	数值
电解槽容量/MW	50	燃料电池容量/MW	50
电解槽效率/%	70	燃料电池效率/%	70
电解槽运维成本/(元·m^–3)	22	燃料电池运维成本/(元·m^–3)	100

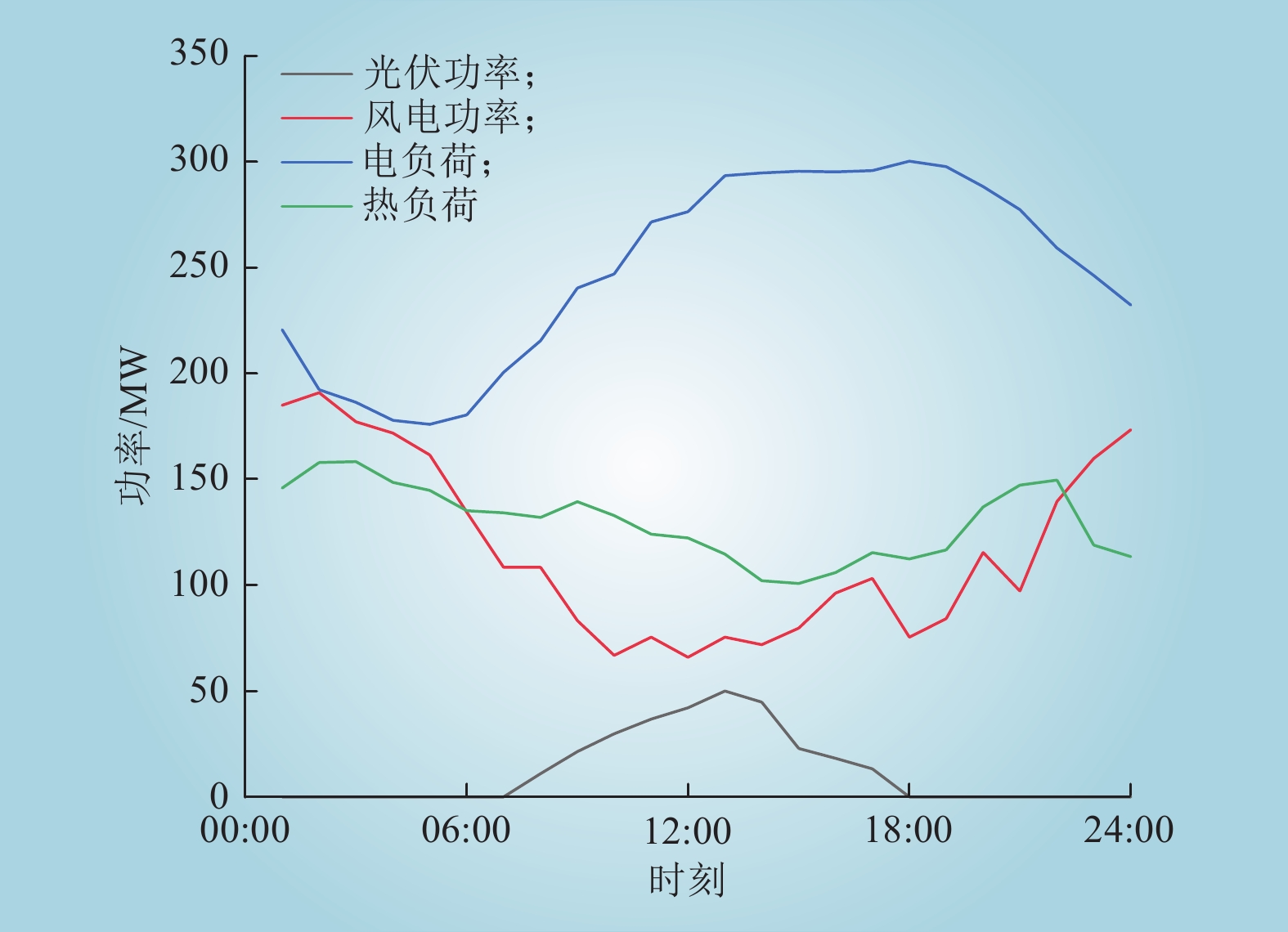

图 4 系统功率预测曲线

Fig.4 System power prediction curve

表 3 场景信息

Table 3 Scenario information

运行场景	燃烧后碳捕集	富氧燃烧碳捕集	氢储能
1	√	×	×
2	×	√	×
3	×	√	√

表 4 各场景系统运行成本

Table 4 System operating costs in each scenario

场景	成本/元						碳排放量/t	风光消纳率/%
场景	煤耗	运维	CO₂运封	碳交易	调峰	总计	碳排放量/t	风光消纳率/%
1	1536336	198385	104495	–456242	–151593	1231381	1016.25	90.71
2	1520833	234605	119066	–512925	–196595	1164984	496.81	95.57
3	1494158	221964	129578	–552167	–237718	1057062	88.15	100.00

图 5 电负荷基本调度

Fig.5 Basic dispatch of electrical loads

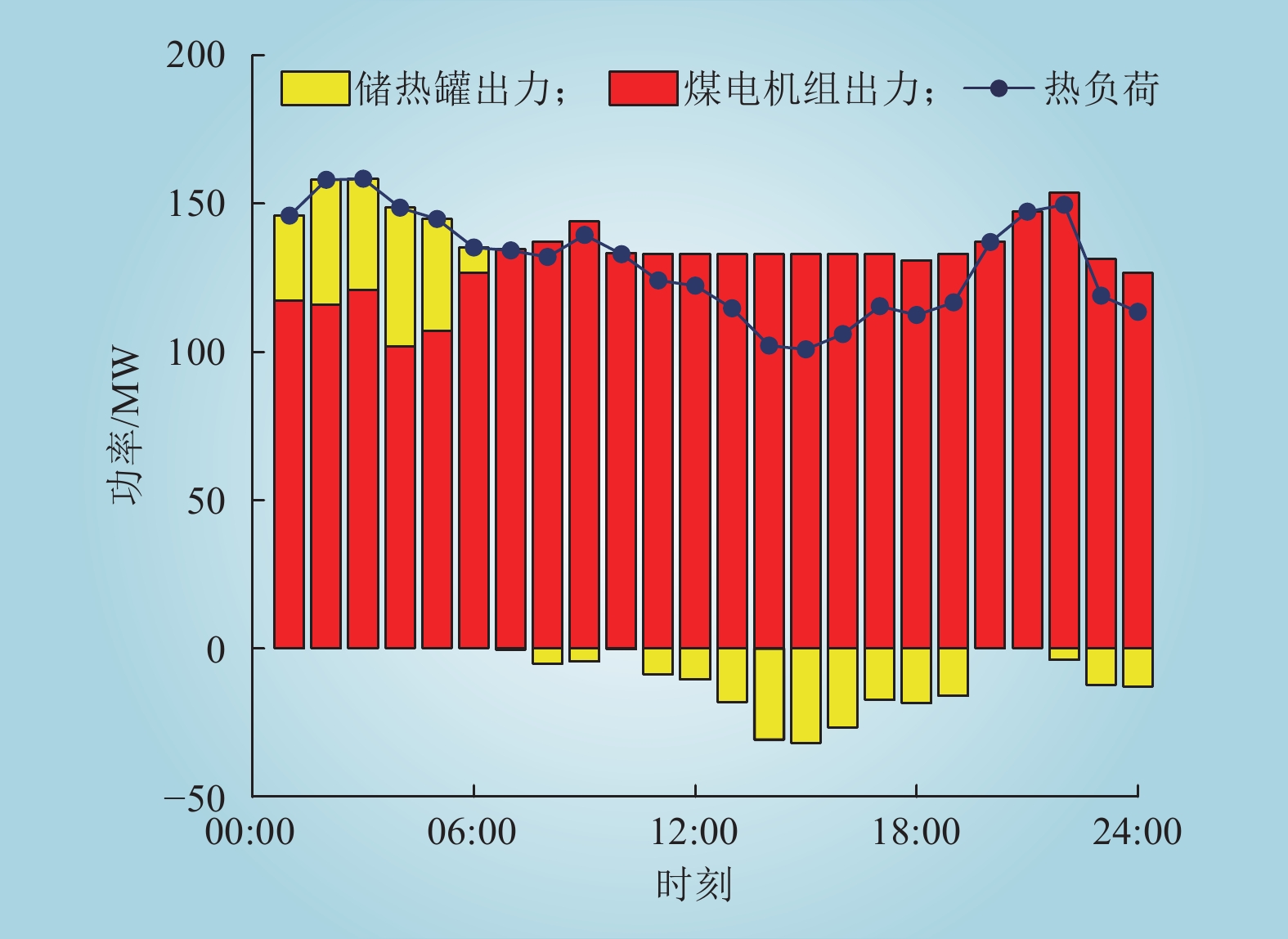

图 6 热负荷基本调度

Fig.6 Basic scheduling of heat loads

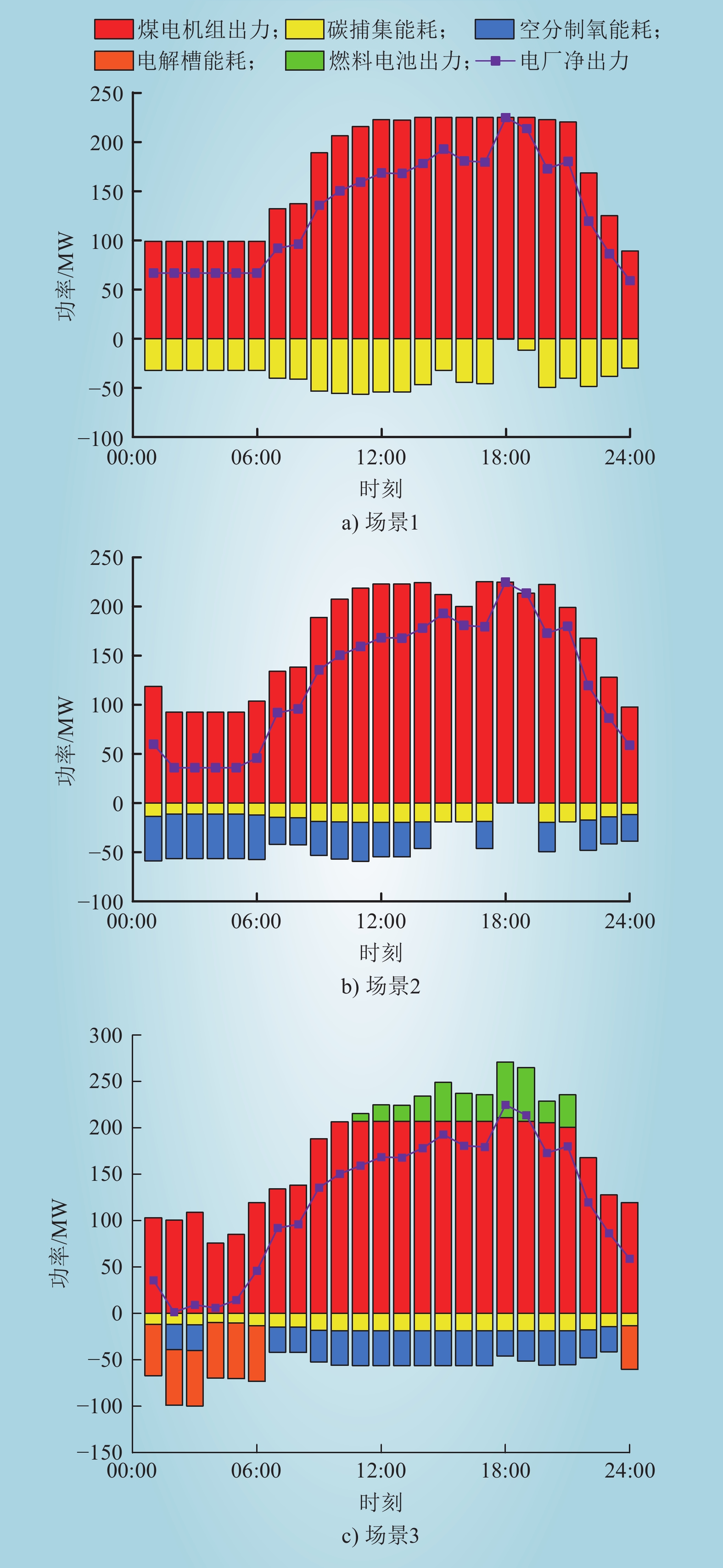

图 7 各场景电厂设备出力情况

Fig.7 The output of power plant equipment in each scenario

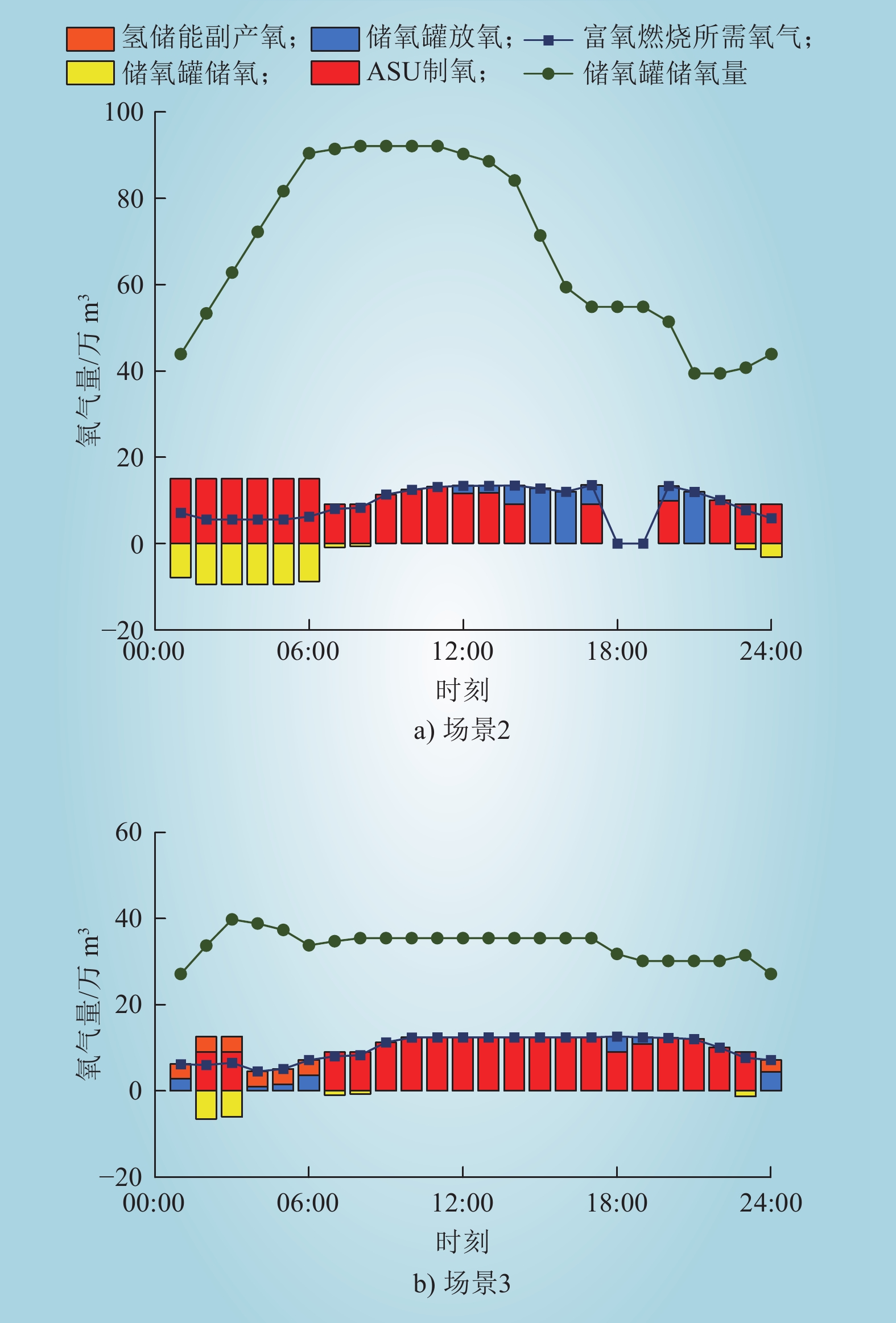

图 8 场景2和场景3氧气供求情况

Fig.8 Oxygen supply and demand in scenarios 2 and 3

参考文献 25

1	邱燕超. 三组数据看我国能源发展“稳”与“进”[N]. 中国电力报, 2023-08-01(001).
2	KUMAR A, TIWARI A K. Solar-assisted post-combustion carbon-capturing system retrofitted with coal-fired power plant towards net-zero future: a review[J]. Journal of CO₂ Utilization, 2022, 65, 102241. DOI
3	于建平, 余一平, 许剑冰, 等. 基于自适应准谐振控制的储能抑制广义强迫振荡传播方法[J]. 电力系统保护与控制, 2024, 52 (5): 128- 138.
	YU Jianping, YU Yiping, XU Jianbing, et al. Energy storage suppression method of generalized forced oscillation propagation based on adaptive quasi-resonant control[J]. Power System Protection and Control, 2024, 52 (5): 128- 138.
4	王小惠, 何兆禹, 徐超, 等. 斜温层单罐储热同时蓄放热过程动态特性模拟[J]. 中国电机工程学报, 2019, 39 (20): 5989- 5998, 6179.
	WANG Xiaohui, HE Zhaoyu, XU Chao, et al. Dynamic simulations on simultaneous charging/discharging process of water thermocline storage tank[J]. Proceedings of the CSEE, 2019, 39 (20): 5989- 5998, 6179.
5	袁桂丽, 钟飞, 张睿, 等. 考虑碳捕集及需求响应的虚拟电厂热电联合优化调度[J]. 电网技术, 2023, 47 (11): 4458- 4467.
	YUAN Guili, ZHONG Fei, ZHANG Rui, et al. Combined heat and power scheduling optimization for virtual power plants considering carbon capture and demand response[J]. Power System Technology, 2023, 47 (11): 4458- 4467.
6	张帆, 林志坚, 方飞. 国内外碳捕集技术发展现状分析[J]. 能源化工, 2022, 43 (5): 13- 19. DOI
	ZHANG Fan, LIN Zhijian, FANG Fei. Analysis on the development status of carbon capture technology[J]. Energy Chemical Industry, 2022, 43 (5): 13- 19. DOI
7	JI Z, KANG C Q, CHEN Q X, et al. Low-carbon power system dispatch incorporating carbon capture power plants[J]. IEEE Transactions on Power Systems, 2013, 28 (4): 4615- 4623. DOI
8	寇洋, 武家辉, 张华, 等. 考虑碳捕集与CVaR的电力系统低碳经济调度[J]. 电力系统保护与控制, 2023, 51 (11): 131- 140.
	KOU Yang, WU Jiahui, ZHANG Hua, et al. Low carbon economic dispatch for a power system considering carbon capture and CVaR[J]. Power System Protection and Control, 2023, 51 (11): 131- 140.
9	CHEN X H, WU X, LEE K Y. The mutual benefits of renewables and carbon capture: achieved by an artificial intelligent scheduling strategy[J]. Energy Conversion and Management, 2021, 233, 113856. DOI
10	YADAV S, MONDAL S S. A review on the progress and prospects of oxy-fuel carbon capture and sequestration (CCS) technology[J]. Fuel, 2022, 308, 122057. DOI
11	VU T T, LIM Y I, SONG D, et al. Techno-economic analysis of ultra-supercritical power plants using air-and oxy-combustion circulating fluidized bed with and without CO₂ capture[J]. Energy, 2020, 194, 116855. DOI
12	CHEN C X, YANG S X. The energy demand and environmental impacts of oxy-fuel combustion vs. post-combustion capture in China[J]. Energy Strategy Reviews, 2021, 38, 100701. DOI
13	张文伟, 王维庆, 樊小朝, 等. 利用风电制氧的富氧燃煤电厂低碳能源系统容量优化配置[J]. 电力系统保护与控制, 2023, 51 (5): 70- 83.
	ZHANG Wenwei, WANG Weiqing, FAN Xiaochao, et al. Optimal capacity configuration of a low carbon energy system of oxygen-enriched coal-fired power plant using wind power to produce oxygen[J]. Power System Protection and Control, 2023, 51 (5): 70- 83.
14	MARCHENKO O V, SOLOMIN S V. Modeling of hydrogen and electrical energy storages in wind/PV energy system on the Lake Baikal coast[J]. International Journal of Hydrogen Energy, 2017, 42 (15): 9361- 9370. DOI
15	刘妍, 胡志坚, 陈锦鹏, 等. 含碳捕集电厂与氢能多元利用的综合能源系统低碳经济调度[J]. 电力系统自动化, 2024, 48 (1): 31- 40. DOI
	LlU Yan, HU Zhijian, CHEN Jinpeng, et al. Low-carbon economic dispatch of integrated energy system considering carbon capture power plant and multi-utilization of hydrogen energy[J]. Automation of Electric Power Systems, 2024, 48 (1): 31- 40. DOI
16	崔杨, 管彦琦, 李佳宇, 等. 考虑碳捕集机组与氢储能系统协调运行的源荷储低碳经济调度[J]. 电网技术, 2024, 48 (6): 2307- 2316.
	CUI Yang, GUAN Yanqi, LI Jiayu, et al. Source-load-storage low-carbon economic dispatching considering coordinated operation of carbon capture unit and hydrogen energy storage system[J]. Power System Technology, 2024, 48 (6): 2307- 2316.
17	高大明, 陈鸿伟, 杨建蒙, 等. 循环流化床锅炉富氧燃烧与CO₂捕集发电机组运行能耗影响因素分析[J]. 中国电机工程学报, 2019, 39 (5): 1387- 1396.
	GAO Daming, CHEN Hongwei, YANG Jianmeng, et al. Influence factor analysis of circulating fluidized bed boiler oxy-fuel combustion and CO₂ capture power generation unit operation energy consumption[J]. Proceedings of the CSEE, 2019, 39 (5): 1387- 1396.
18	吕运强, 杨鹏, 董增波, 等. 考虑氢-氧双循环系统运行灵活性的协调优化调度[J]. 电力系统自动化, 2023, 47 (15): 91- 99. DOI
	LYU Yunqiang, YANG Peng, DONG Zengbo, et al. Coordinated optimal dispatch considering operation flexibility of hydrogen-oxygen dual-cycle system[J]. Automation of Electric Power Systems, 2023, 47 (15): 91- 99. DOI
19	崔杨, 曾鹏, 仲悟之, 等. 考虑富氧燃烧技术的电–气–热综合能源系统低碳经济调度[J]. 中国电机工程学报, 2021, 41 (2): 592- 608.
	CUI Yang, ZENG Peng, ZHONG Wuzhi, et al. Low-carbon economic dispatch of electro-gas-thermal integrated energy system based on oxy-combustion technology[J]. Proceedings of the CSEE, 2021, 41 (2): 592- 608.
20	冯帅, 袁至, 李骥, 等. 碳交易背景下基于综合协调储能系统的碳捕集电厂优化调度[J]. 中国电力, 2023, 56 (6): 139- 147.
	FENG Shuai, YUAN Zhi, LI Ji, et al. Optimal scheduling of carbon capture power plants based on integrated coordinated energy storage system under the background of carbon trading[J]. Electric Power, 2023, 56 (6): 139- 147.
21	侯俊禹, 袁至, 王维庆, 等. 利用建筑虚拟储能提升风电消纳能力的电热联合系统优化调度方法[J]. 太阳能学报, 2024, 45 (5): 206- 216.
	HOU Junyu, YUAN Zhi, WANG Weiqing, et al. Optimal scheduling method of combined electric and thermal system by using building virtual energy storage to improve wind power accommodation capability[J]. Acta Energiae Solaris Sinica, 2024, 45 (5): 206- 216.
22	生态环境部. 2021、2022年度全国碳排放权交易配额总量设定与分配实施方案(发电行业)(国环规气候〔2023〕1号)[Z].
23	国家能源局西北监管局. 西北区域电力辅助服务管理实施细则(西北监能市场〔2023〕95号)[Z].
24	袁桂丽, 刘骅骐, 禹建芳, 等. 含碳捕集热电机组的虚拟电厂热电联合优化调度[J]. 中国电机工程学报, 2022, 42 (12): 4440- 4449.
	YUAN Guili, LIU Huaqi, YU Jianfang, et al. Combined heat and power optimal dispatching in virtual power plant with carbon capture cogeneration unit[J]. Proceedings of the CSEE, 2022, 42 (12): 4440- 4449.
25	袁桂丽, 王琳博, 王宝源. 基于虚拟电厂“热电解耦”的负荷优化调度及经济效益分析[J]. 中国电机工程学报, 2017, 37 (17): 4974- 4985, 5217.
	YUAN Guili, WANG Linbo, WANG Baoyuan. Optimal dispatch of heat-power load and economy benefit analysis based on decoupling of heat and power of virtual power plant[J]. Proceedings of the CSEE, 2017, 37 (17): 4974- 4985, 5217.
