计及灵活需求响应和碳-绿证交易的综合能源系统优化调度

doi:10.11930/j.issn.1004-9649.202305134

中国电力 ›› 2024, Vol. 57 ›› Issue (5): 14-25.DOI: 10.11930/j.issn.1004-9649.202305134

• 新型电力系统源网荷储灵活资源运营及关键技术 • 上一篇下一篇

计及灵活需求响应和碳-绿证交易的综合能源系统优化调度

张彩玲¹(), 王爽¹, 葛淑娜¹, 潘登², 张岩¹(), 韩伟³(), 段文岩³

1. 郑州工业应用技术学院机电工程学院，河南郑州　451100
2. 河南森源电气股份有限公司，河南许昌　461500
3. 国网河南省电力公司电力科学研究院，河南郑州　450052

收稿日期:2023-05-29 接受日期:2023-09-25 出版日期:2024-05-28 发布日期:2024-05-16
作者简介:张彩玲（1988—），女，讲师，从事综合能源系统规划研究，E-mail：763399303@qq.com
张岩（1989—），男，通信作者，讲师，从事综合能源系统规划、微网能量管理研究，E-mail：zhangyanep@163.com
韩伟（1975—），男，高级工程师（教授级），从事电力系统继电保护研究，E-mail：hanwei@ha.sgcc.com.cn
基金资助:
国家电网有限公司总部管理科技项目（5100-202240012A-1-1-ZN）；郑州工业应用技术学院校级科研项目（2023YB003）。

Optimal Scheduling of Integrated Energy Systems Considering Flexible Demand Response and Carbon Emission-Green Certificate Joint Trading

Cailing ZHANG¹(), Shuang WANG¹, Shuna GE¹, Deng PAN², Yan ZHANG¹(), Wei HAN³(), Wenyan DUAN³

1. School of Mechanical and Electrical Engineering, Zhengzhou University of Industrial Technology, Zhengzhou 451100, China
2. Henan Senyuan Electric Co., Ltd., Xuchang 461500, China
3. State Grid Henan Electric Power Research Institute, Zhengzhou 450052, China

Received:2023-05-29 Accepted:2023-09-25 Online:2024-05-28 Published:2024-05-16
Supported by:
This work is supported by the Science and Technology Project of State Grid Corporation of China (No.5100-202240012A-1-1-ZN) and the Science and Technology Project of Zhengzhou University of Industrial Technology (No.2023YB003).

摘要/Abstract

摘要：

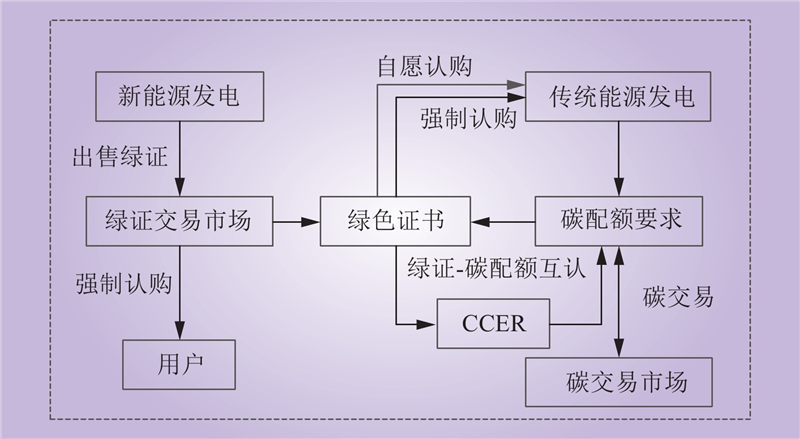

基于“碳达峰、碳中和”背景，有效结合碳交易和绿证交易机制，挖掘需求侧资源，有助于实现综合能源系统低碳经济发展。为此，提出了计及灵活需求响应和阶梯碳-绿证联合交易的综合能源系统低碳优化调度策略。首先，在源侧引入含有机朗肯循环的余热发电环节，解耦热电联产“以热定电”约束，并在荷侧引入综合需求响应模型，构建了源荷协调的灵活需求响应模型。其次，研究碳交易和绿证交易机制原理，分析两者之间的相关性，构建了阶梯碳-绿证联合交易机制。最后，综合考虑系统经济性和低碳性，以总成本最低为目标，构建了日前低碳经济优化模型。算例仿真表明，考虑阶梯碳-绿证联合交易机制后系统总成本和碳排放量分别下降了13.37%和11.44%，并且相比传统需求响应模型，考虑所提的灵活需求响应模型后系统总成本和碳排放量分别下降了3.87%和2.85%，有效实现了系统经济、灵活和低碳运行。

关键词: 碳交易机制, 绿证交易机制, 灵活需求响应, 有机朗肯循环, 低碳经济

Abstract:

Under the background of "carbon peaking and carbon neutrality", tapping the demand side resources with effective combination of carbon emission trading and green certificate trading mechanism will help to achieve the development of low-carbon economy in the integrated energy system. For this reason, this paper proposes a low-carbon optimal scheduling strategy for the integrated energy system (IES) considering flexible demand response and laddered carbon emission and green certificate joint trading. Firstly, a waste heat power generation link containing the organic Rankine cycle is introduced at the source side to decouple the constraint of "determining electricity by heat" for CHP, and an integrated demand response model is introduced at the load side, thus forming an flexible demand response model for source and load coordination. Secondly, the principles of carbon emission trading and green certificate trading mechanisms are studied and the correlation between the them is analyzed, and a ladder-type carbon emission and green certificate joint trading mechanism is constructed. Finally, taking into account both the economy and low-carbon performance of the system, a day-ahead low-carbon economic optimization model is constructed with the goal of minimizing the total cost. The simulation results show that the total cost and carbon emissions of the system have decreased by 13.37% and 11.44% respectively after considering the laddered carbon emission and green certificate joint trading mechanism. Compared with the traditional demand response models, the proposed flexible demand response model has reduced the total cost and carbon emissions by 3.87% and 2.85% respectively, effectively achieving economic, flexible, and low-carbon operation of the system.

Key words: carbon trading mechanism, green certificate trading mechanism, flexible demand response, organic Rankine cycle, low-carbon economy

中图分类号:

TM743

张彩玲, 王爽, 葛淑娜, 潘登, 张岩, 韩伟, 段文岩. 计及灵活需求响应和碳-绿证交易的综合能源系统优化调度[J]. 中国电力, 2024, 57(5): 14-25.

Cailing ZHANG, Shuang WANG, Shuna GE, Deng PAN, Yan ZHANG, Wei HAN, Wenyan DUAN. Optimal Scheduling of Integrated Energy Systems Considering Flexible Demand Response and Carbon Emission-Green Certificate Joint Trading[J]. Electric Power, 2024, 57(5): 14-25.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202305134

https://www.electricpower.com.cn/CN/Y2024/V57/I5/14

图/表 12

参考文献 24

1	陈瑜玮, 孙宏斌, 郭庆来. 综合能源系统分析的统一能路理论(五): 电–热–气耦合系统优化调度[J]. 中国电机工程学报, 2020, 40 (24): 7928- 7937.
	CHEN Yuwei, SUN Hongbin, GUO Qinglai. Energy circuit theory of integrated energy system analysis(V): integrated electricity-heat-gas dispatch[J]. Proceedings of the CSEE, 2020, 40 (24): 7928- 7937.
2	李政, 陈思源, 董文娟, 等. 碳约束条件下电力行业低碳转型路径研究[J]. 中国电机工程学报, 2021, 41 (12): 3987- 4001.
	LI Zheng, CHEN Siyuan, DONG Wenjuan, et al. Low carbon transition pathway of power sector under carbon emission constraints[J]. Proceedings of the CSEE, 2021, 41 (12): 3987- 4001.
3	EBRAHIMI-MOGHADAM A, JABARI MOGHADAM A, FARZANEH-GORD M, et al. Performance investigation of a novel hybrid system for simultaneous production of cooling, heating, and electricity[J]. Sustainable Energy Technologies and Assessments, 2021, 43: 100931.
4	黄景光, 熊华健, 李振兴, 等. 基于生命周期法和碳权交易的综合能源系统低碳经济调度[J]. 电测与仪表, 2022, 59 (3): 82- 91.
	HUANG Jingguang, XIONG Huajian, LI Zhenxing, et al. Low-carbon economic dispatch of integrated energy system based on life cycle method and carbon trading[J]. Electrical Measurement & Instrumentation, 2022, 59 (3): 82- 91.
5	卫志农, 张思德, 孙国强, 等. 基于碳交易机制的电—气互联综合能源系统低碳经济运行[J]. 电力系统自动化, 2016, 40 (15): 9- 16. DOI
	WEI Zhinong, ZHANG Side, SUN Guoqiang, et al. Carbon trading based low-carbon economic operation for integrated electricity and natural gas energy system[J]. Automation of Electric Power Systems, 2016, 40 (15): 9- 16. DOI
6	张晓辉, 刘小琰, 钟嘉庆. 考虑奖惩阶梯型碳交易和电-热转移负荷不确定性的综合能源系统规划[J]. 中国电机工程学报, 2020, 40 (19): 6132- 6142.
	ZHANG Xiaohui, LIU Xiaoyan, ZHONG Jiaqing. Integrated energy system planning considering a reward and punishment ladder-type carbon trading and electric-thermal transfer load uncertainty[J]. Proceedings of the CSEE, 2020, 40 (19): 6132- 6142.
7	崔杨, 曾鹏, 仲悟之, 等. 考虑阶梯式碳交易的电-气-热综合能源系统低碳经济调度[J]. 电力自动化设备, 2021, 41 (3): 10- 17.
	CUI Yang, ZENG Peng, ZHONG Wuzhi, et al. Low-carbon economic dispatch of electricity-gas-heat integrated energy system based on ladder-type carbon trading[J]. Electric Power Automation Equipment, 2021, 41 (3): 10- 17.
8	陈志, 胡志坚, 翁菖宏, 等. 基于阶梯碳交易机制的园区综合能源系统多阶段规划[J]. 电力自动化设备, 2021, 41 (9): 148- 155.
	CHEN Zhi, HU Zhijian, WENG Changhong, et al. Multi-stage planning of park-level integrated energy system based on ladder-type carbon trading mechanism[J]. Electric Power Automation Equipment, 2021, 41 (9): 148- 155.
9	王瑞, 程杉, 汪业乔, 等. 基于多主体主从博弈的区域综合能源系统低碳经济优化调度[J]. 电力系统保护与控制, 2022, 50 (5): 12- 21.
	WANG Rui, CHENG Shan, WANG Yeqiao, et al. Low-carbon and economic optimization of a regional integrated energy system based on a master-slave game with multiple stakeholders[J]. Power System Protection and Control, 2022, 50 (5): 12- 21.
10	董福贵, 时磊. 可再生能源配额制及绿色证书交易机制设计及仿真[J]. 电力系统自动化, 2019, 43 (12): 113- 121. DOI
	DONG Fugui, SHI Lei. Design and simulation of renewable portfolio standard and tradable green certificate mechanism[J]. Automation of Electric Power Systems, 2019, 43 (12): 113- 121. DOI
11	CHEN C, ZHU Y, ZENG X T, et al. Analyzing the carbon mitigation potential of tradable green certificates based on a TGC-FFSRO model: a case study in the Beijing-Tianjin-Hebei region, China[J]. Science of the Total Environment, 2018, 630, 469- 486. DOI
12	彭谦, 周晓洁, 杨睿. 国家绿色电力证书交易市场与省级日前电力市场协调均衡机制设计[J]. 电网技术, 2020, 44 (7): 2565- 2571.
	PENG Qian, ZHOU Xiaojie, YANG Rui. Design of coordination and balance mechanism between national green power certificate trading market and provincial day-ahead power market[J]. Power System Technology, 2020, 44 (7): 2565- 2571.
13	曹雨微, 郭晓鹏, 董厚琦, 等. 计及消纳责任权重的区域综合能源系统运行优化研究[J]. 华北电力大学学报(自然科学版), 2022, 49 (3): 84- 95.
	CAO Yuwei, GUO Xiaopeng, DONG Houqi, et al. Operation optimization of regional integrated energy system under responsibility of renewable energy consumption[J]. Journal of North China Electric Power University (Natural Science Edition), 2022, 49 (3): 84- 95.
14	刘晓军, 聂凡杰, 杨冬锋, 等. 碳捕集电厂-电转气联合运行模式下考虑绿证-碳交易机制的综合能源系统低碳经济调度[J]. 电网技术, 2023, 47 (6): 2207- 2217.
	LIU Xiaojun, LIE Fanjie, YANG Dongfeng, et al. Low carbon economic dispatch of integrated energy systems considering green certificates-carbon trading mechanism under CCPP-P2G joint operation model[J]. Power System Technology, 2023, 47 (6): 2207- 2217.
15	徐筝, 孙宏斌, 郭庆来. 综合需求响应研究综述及展望[J]. 中国电机工程学报, 2018, 38 (24): 7194- 7205, 7446.
	XU Zheng, SUN Hongbin, GUO Qinglai. Review and prospect of integrated demand response[J]. Proceedings of the CSEE, 2018, 38 (24): 7194- 7205, 7446.
16	张涛, 郭玥彤, 李逸鸿, 等. 计及电气热综合需求响应的区域综合能源系统优化调度[J]. 电力系统保护与控制, 2021, 49 (1): 52- 61.
	ZHANG Tao, GUO Yuetong, LI Yihong, et al. Optimization scheduling of regional integrated energy systems based on electric-thermal-gas integrated demand response[J]. Power System Protection and Control, 2021, 49 (1): 52- 61.
17	邱彬, 宋绍鑫, 王凯, 等. 计及需求响应和阶梯型碳交易机制的区域综合能源系统优化运行[J]. 电力系统及其自动化学报, 2022, 34 (5): 87- 95, 101.
	QIU Bin, SONG Shaoxin, WANG Kai, et al. Optimal operation of regional integrated energy system considering demand response and ladder-type carbon trading mechanism[J]. Proceedings of the CSU-EPSA, 2022, 34 (5): 87- 95, 101.
18	李鹏, 吴迪凡, 李雨薇, 等. 基于综合需求响应和主从博弈的多微网综合能源系统优化调度策略[J]. 中国电机工程学报, 2021, 41 (4): 1307- 1321, 1538.
	LI Peng, WU Difan, LI Yuwei, et al. Optimal dispatch of multi-microgrids integrated energy system based on integrated demand response and stackelberg game[J]. Proceedings of the CSEE, 2021, 41 (4): 1307- 1321, 1538.
19	尚楠, 陈政, 卢治霖, 等. 电力市场、碳市场及绿证市场互动机理及协调机制[J]. 电网技术, 2023, 47 (1): 142- 154.
	SHANG Nan, CHEN Zheng, LU Zhilin, et al. Interaction principle and cohesive mechanism between electricity market, carbon market and green power certificate market[J]. Power System Technology, 2023, 47 (1): 142- 154.
20	孟宇翔, 马刚, 李豪, 等. 基于绿证-阶梯式碳交易交互的源荷互补调度优化[J]. 中国电力, 2023, 56 (9): 149- 156.
	MENG Yuxiang, MA Gang, LI Hao, et al. Optimal scheduling of source-load complementation based on green certificate-step carbon trading interaction[J]. Electric Power, 2023, 56 (9): 149- 156.
21	王小飞, 任洪波, 吴琼, 等. 考虑中长期碳减排约束的区域综合能源系统多阶段动态规划[J]. 中国电力, 2023, 56 (11): 185- 196.
	WANG Xiaofei, REN Hongbo, WU Qiong, et al. Multi-stage dynamic plan of regional integrated energy system considering medium and long-term carbon emission reduction constraints[J]. Electric Power, 2023, 56 (11): 185- 196.
22	郭宴秀, 苏建军, 刘洋, 等. 考虑电热交互和共享储能的多综合能源系统运行优化[J]. 中国电力, 2023, 56 (4): 138- 145.
	GUO Yanxiu, SU Jianjun, LIU Yang, et al. Optimal operation of multiple integrated energy systems considering power and heat interaction and shared energy storage system[J]. Electric Power, 2023, 56 (4): 138- 145.
23	田亮, 谢云磊, 周桂平, 等. 基于两阶段随机规划的热电机组深调峰辅助服务竞价策略[J]. 电网技术, 2019, 43 (8): 2789- 2798.
	TIAN Liang, XIE Yunlei, ZHOU Guiping, et al. Deep peak regulation ancillary service bidding strategy for CHP units based on two-stage stochastic programming[J]. Power System Technology, 2019, 43 (8): 2789- 2798.
24	刘光宇, 韩东升, 刘超杰, 等. 考虑双重需求响应及阶梯型碳交易的综合能源系统双时间尺度优化调度[J]. 电力自动化设备, 2023, 43 (5): 218- 225.
	LIU Guangyu, HAN Dongsheng, LIU Chaojie, et al. Dual time scale optimal scheduling of integrated energy system considering dual demand response and stepped carbon trading[J]. Electric Power Automation Equipment, 2023, 43 (5): 218- 225.

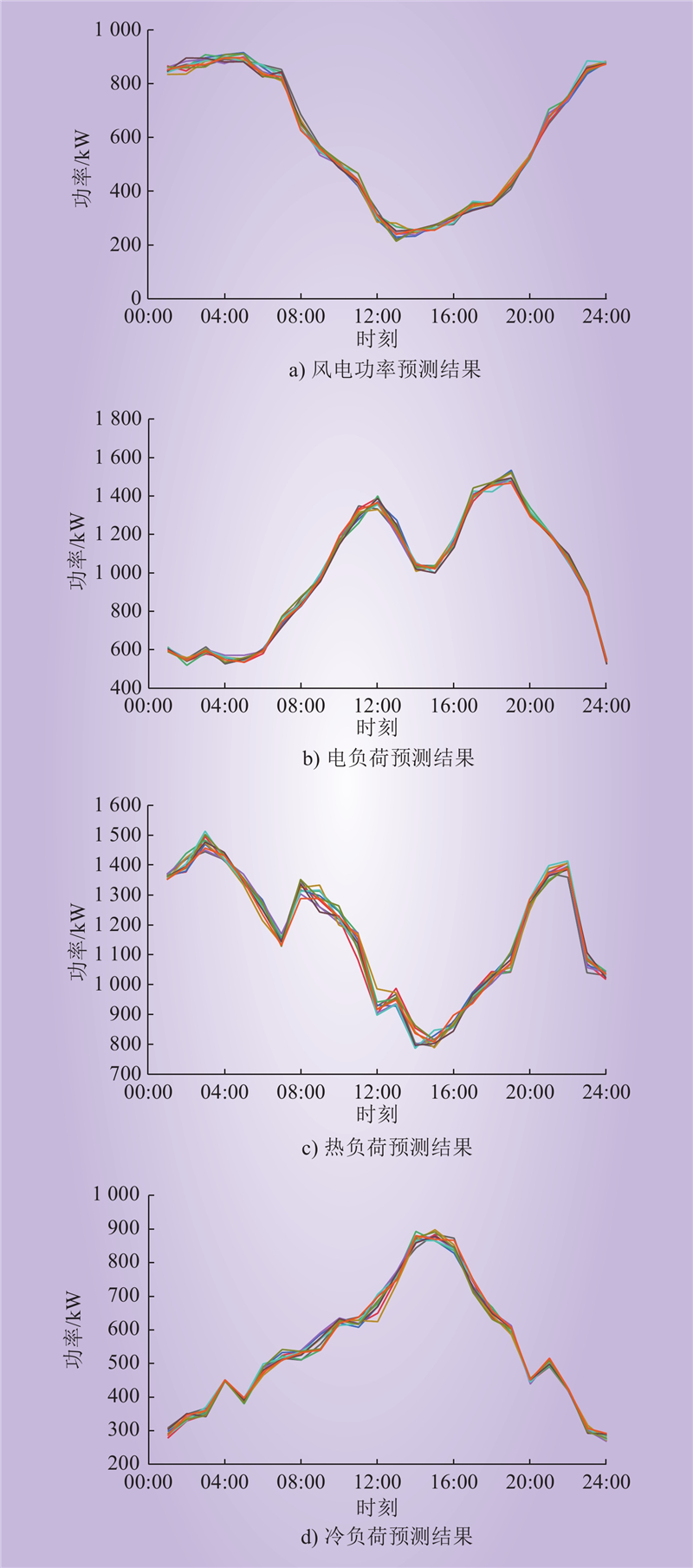

场景	P₁	P₂	P₃	P₄	P₅
概率	0.097	0.104	0.094	0.083	0.103

场景	P₆	P₇	P₈	P₉	P₁₀
概率	0.105	0.099	0.085	0.104	0.112

场景	P₁	P₂	P₃	P₄	P₅
概率	0.097	0.104	0.094	0.083	0.103

场景	P₆	P₇	P₈	P₉	P₁₀
概率	0.105	0.099	0.085	0.104	0.112

时段		电价/(元·(kW·h)^–1)
谷	01:00—06:00，23:00—24:00	0.50
平	07:00—08:00，13:00—17:00	0.73
峰	09:00—12:00，18:00—22:00	1.21

时段		电价/(元·(kW·h)^–1)
谷	01:00—06:00，23:00—24:00	0.50
平	07:00—08:00，13:00—17:00	0.73
峰	09:00—12:00，18:00—22:00	1.21

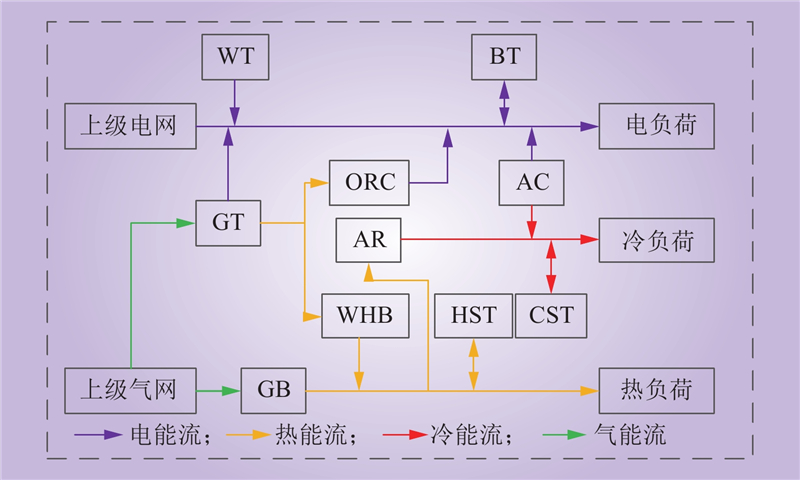

参数	取值	参数	取值
$ \eta _{{\text{GB}}}^{} $	0.9	$ \eta _{{\text{CHP}}}^{\text{e}}、\eta _{{\text{CHP}}}^{\text{h}} $	0.45、0.55
$ \eta _{{\text{ORC}}}^{} $	0.9	$ P_{{\text{CHP}}}^{\min }、P_{{\text{CHP}}}^{\max }/\rm kW $	0、600
$ P_{{\text{GB}}}^{\max }/\rm kW $	1000	$ P_{{\text{ORC}}}^{\min }、P_{{\text{ORC}}}^{\max }/\rm kW $	0、200
$ \eta _{{\text{AR}}}^{} $	1.2	$ \eta _{{\text{AC}}}^{} $	4
$ P_{{ \text{AC,e}}}^{\max }/\rm kW $	150	$ P_{{ \text{AR,h}}}^{\max }/\rm kW $	500
$ {V_{\text{g}}} $	9.87	$ {\gamma _{{\text{HST}}}} $	0.02
$ {\gamma _{{\text{BT}}}} $	0.02	$ {\lambda _{{\text{e-h}}}} $	5
$ P_{{\text{CST,chr}}}^{\max }、P_{{\text{CST,dis}}}^{\max }/\rm kW $	150、150	$ P_{{\text{BT,chr}}}^{\max }、P_{{\text{BT,dis}}}^{\max }/\rm kW$	200、200
$ P_{{\text{HST,chr}}}^{\max }、P_{{\text{HST,dis}}}^{\max }/\rm kW $	200、200	$ \eta _{{\text{BT,chr}}}^{}、\eta _{{\text{BT,dis}}}^{} $	0.97、0.97
$ \eta _{{\text{HST,chr}}}^{}、\eta _{{\text{HST,dis}}}^{} $	0.95、0.95	$ \eta _{{\text{CST,chr}}}^{}、\eta _{{\text{CST,dis}}}^{} $	0.95、0.95
$ {\gamma _{{\text{CST}}}} $	0.03	$ P_{{\text{Grid}}}^{\max } /\rm kW$	1200

计及灵活需求响应和碳-绿证交易的综合能源系统优化调度

Optimal Scheduling of Integrated Energy Systems Considering Flexible Demand Response and Carbon Emission-Green Certificate Joint Trading

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 24

相关文章 10

编辑推荐

Metrics

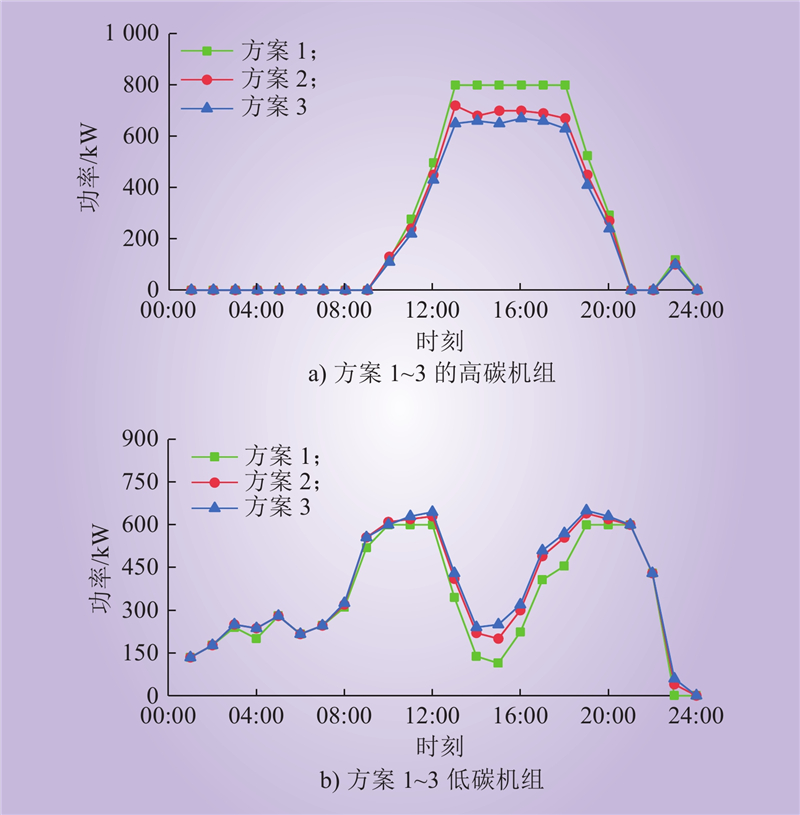

项目	方案1	方案2	方案3
购能成本/元	14145.6	14425.7	14515.9
运维成本/元	2455.7	2617.8	2661.4
弃风成本/元	1018.5	925.1	860.5
CET成本/元	4055.6	3081.7	3151.5
IES总成本/元	21675.4	21050.3	21189.3
碳排放总量/kg	20241.6	18725.6	18217.3

项目	方案3	方案4	方案5
购能成本/元	14515.9	14729.5	14876.3
运维成本/元	2661.4	2789.1	2831.5
弃风成本/元	860.5	410.8	207.7
CET成本/元	3151.5	3288.4	2106.5
GCT成本/元	0.0	–1655.6	–1245.8
IES总成本/元	21189.3	19562.2	18776.2
碳排放总量/kg	18217.3	18356.1	17925.4

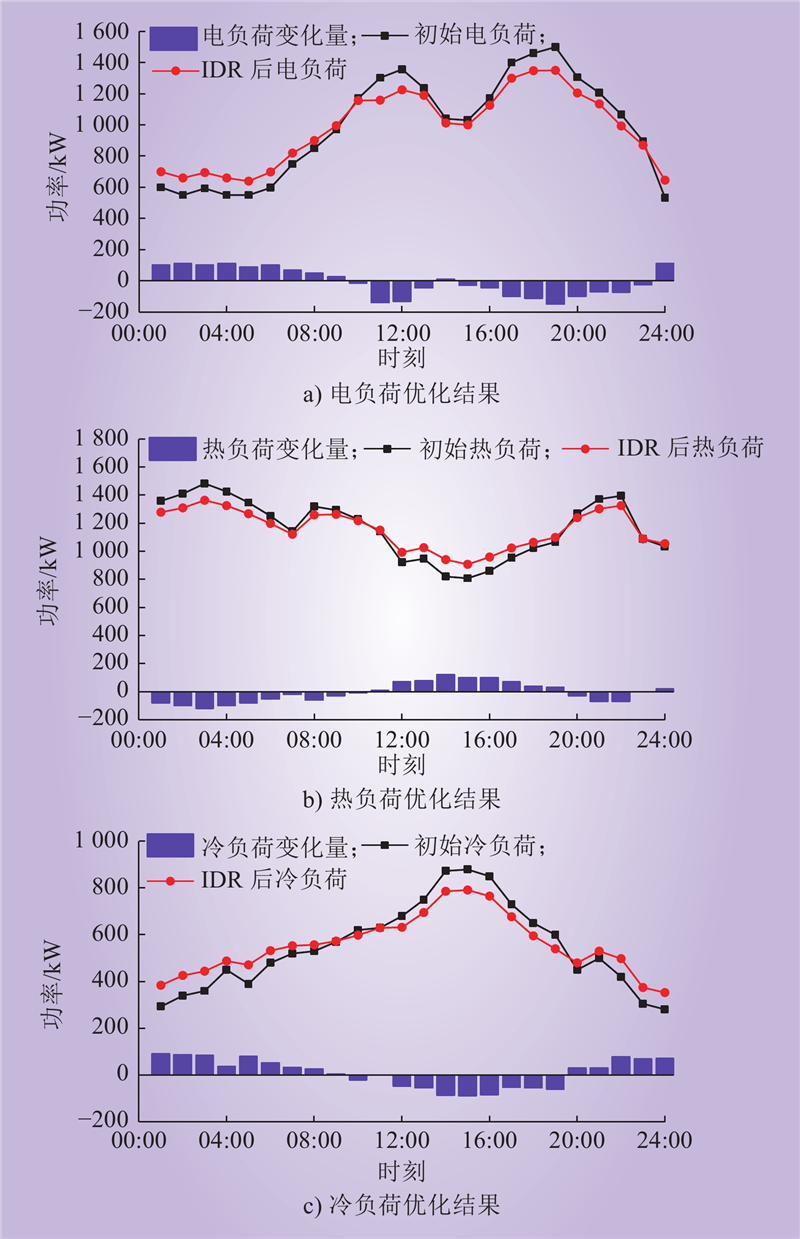

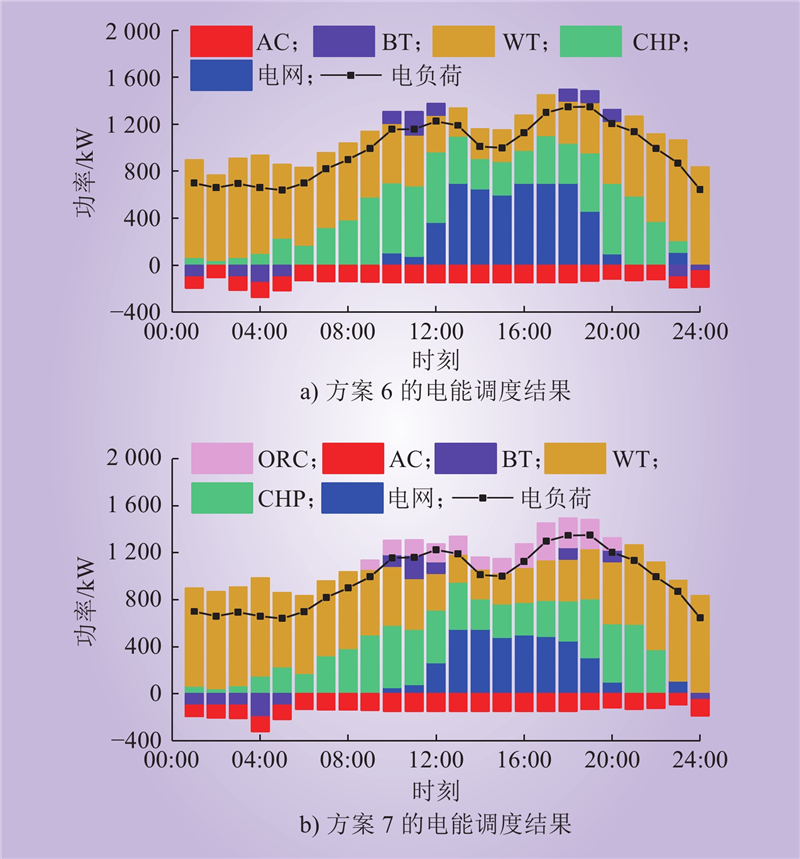

项目	方案5	方案 6	方案7
购能成本/元	14876.3	14055.8	13521.7
运维成本/元	2831.5	2675.3	2748.6
弃风成本/元	207.7	0.0	0.0
CET成本/元	2106.5	1716.3	1466.7
GCT成本/元	–1245.8	–1466.5	–1481.4
IDR补贴成本/元	—	714.8	654.2
IES总成本/元	18776.2	17695.7	17009.8
碳排放总量/kg	17925.4	17419.6	16922.3
