基于目标级联法的虚拟电厂日前调频容量计算方法

doi:10.11930/j.issn.1004-9649.202303003

中国电力 ›› 2024, Vol. 57 ›› Issue (1): 82-90.DOI: 10.11930/j.issn.1004-9649.202303003

基于目标级联法的虚拟电厂日前调频容量计算方法

张颖¹(), 文艳²(), 季宇¹(), 左娟¹, 王文博¹

1. 国网上海能源互联网研究院有限公司，上海　200120
2. 国网山东省电力公司，山东济南　250001

收稿日期:2023-02-28 接受日期:2023-07-10 出版日期:2024-01-28 发布日期:2024-01-23
作者简介:张颖（1994—），女，硕士，工程师，从事分布式电源优化调度及虚拟电厂技术研究，E-mail：zhangying@epri.sgcc.com.cn
文艳（1975—），女，硕士，高级工程师（教授级），从事电力系统自动化研究，E-mail：wenyan023@163.com
季宇（1982—），男，通信作者，博士，高级工程师（教授级），从事分布式电源、微电网及虚拟电厂技术研究，E-mail：jiyu@epri.sgcc.com.cn
基金资助:
国家电网有限公司总部科技项目（支撑高比例分布式资源的配电网形态与管控体系构建技术研究，5100-202155291A-0-0-00 ）。

Calculation of Day-Ahead Frequency Regulation Capacity for Virtual Power Plants Based on Analytical Target Cascading Method

Ying ZHANG¹(), Yan WEN²(), Yu JI¹(), Juan ZUO¹, Wenbo WANG¹

1. State Grid Shanghai Energy Interconnection Research Institute Co., Ltd., Shanghai 200120, China
2. State Grid Shandong Electric Power Company, Jinan 250001, China

Received:2023-02-28 Accepted:2023-07-10 Online:2024-01-28 Published:2024-01-23
Supported by:
This work is supported by Science and Technology Project of SGCC (Research on Distribution Network Configuration and Control System Construction Technology Supporting High Proportion of Distributed Resources, No.5100-202155291A-0-0-00).

摘要/Abstract

摘要：

光伏、风电等清洁能源的大规模并网加重了系统调频负担，同时，微型燃气轮机、储能等调频性能稳定良好的分布式资源的接入为减小系统调频负担提供了新的思路。为此提出一种基于目标级联分析的优化调度模型，旨在通过虚拟电厂聚合分布式资源以参与调频辅助服务市场。首先，建立了配电网层和虚拟电厂层的双层优化调度模型，通过配电网协调虚拟电厂的协调互补来提高资源的利用效率；然后，虚拟电厂对内部成员进行优化调度，采用机会约束规划对调频信号不确定性进行约束；最后，通过目标级联分析法对所建立的模型进行求解，并通过仿真算例验证优化调度模型的有效性和可行性。结果表明，虚拟电厂参与调频辅助服务能够有效降低其运行成本。

关键词: 虚拟电厂, 调频辅助服务, 目标级联分析法, 优化调度, 机会约束

Abstract:

In recent years, with the large-scale integration of clean energy such as photovoltaic and wind power, the power grid is under growing stress from the demand of the system's frequency regulation. Meanwhile, the access of distributed resources such as micro gas turbines and energy storage with stable frequency regulation performance has provided new ideas to improve the system's frequency regulation capability. Therefore, an optimized scheduling model based on target cascade analysis is proposed in this paper, which aims to aggregate distributed resources through virtual power plants to participate in the frequency regulation ancillary service market. Specifically, a bi-level optimization scheduling model is established for both the distribution network layer and the virtual power plant layer. The distribution network coordinates the complementary resources of the virtual power plant to improve resource utilization efficiency. Then, the virtual power plant conducts optimization scheduling among internal participants, and the chance-constrained programming is applied to constrain the uncertainty of the frequency regulation signal. Finally, the target cascade analysis method is used to solve the established model, and the effectiveness and feasibility of the optimization scheduling model are verified through simulation examples. The results has demonstrated the effectiveness of the proposed day-ahead dispatching model. Moreover, the virtual power plant can effectively reduce its operating cost by participating in the regulation auxiliary service.

Key words: virtual power plant, regulation auxiliary service, analysis target cascading, optimal scheduling, chance constrained

张颖, 文艳, 季宇, 左娟, 王文博. 基于目标级联法的虚拟电厂日前调频容量计算方法[J]. 中国电力, 2024, 57(1): 82-90.

Ying ZHANG, Yan WEN, Yu JI, Juan ZUO, Wenbo WANG. Calculation of Day-Ahead Frequency Regulation Capacity for Virtual Power Plants Based on Analytical Target Cascading Method[J]. Electric Power, 2024, 57(1): 82-90.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202303003

https://www.electricpower.com.cn/CN/Y2024/V57/I1/82

图/表 11

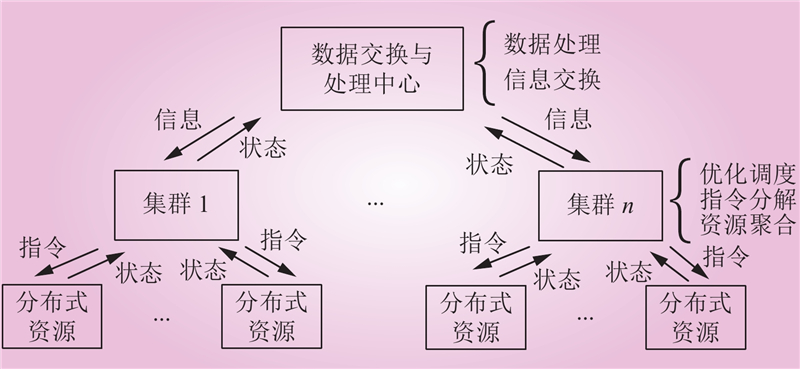

图 1 虚拟电厂控制架构

Fig.1 VPP control architecture

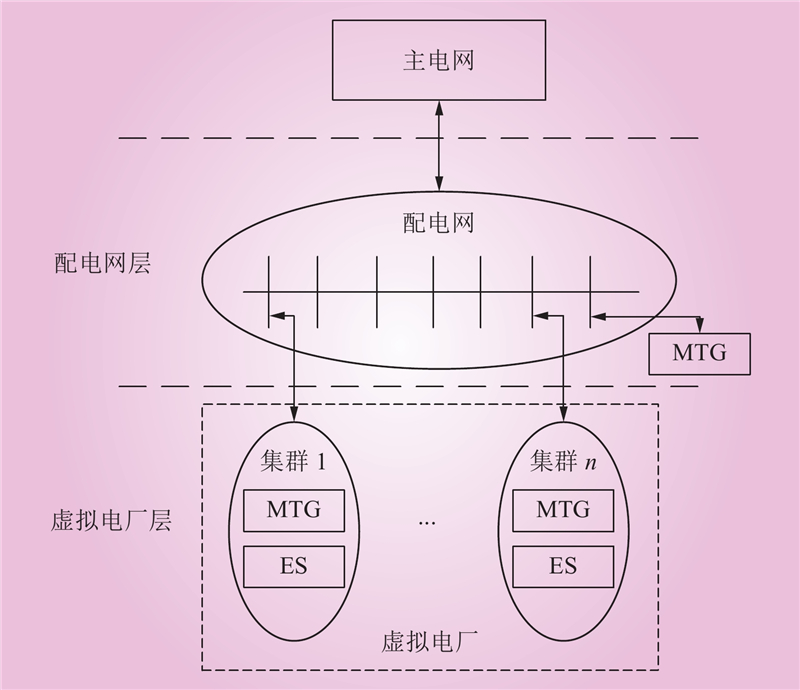

图 2 虚拟电厂接入架构

Fig.2 VPP connectional architecture

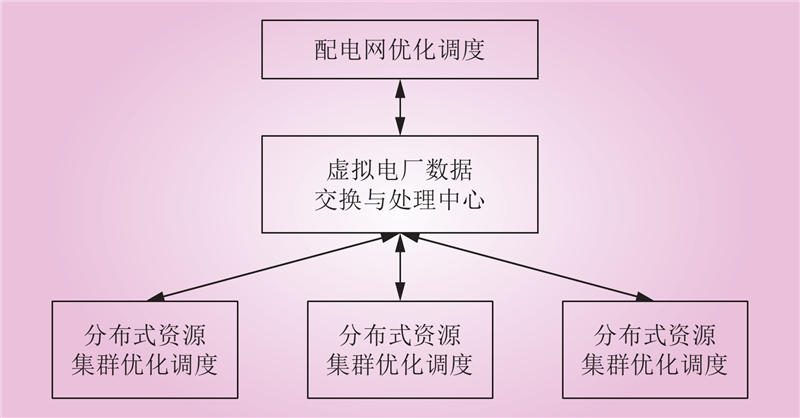

图 3 ATC计算框架

Fig.3 ATC computational framework

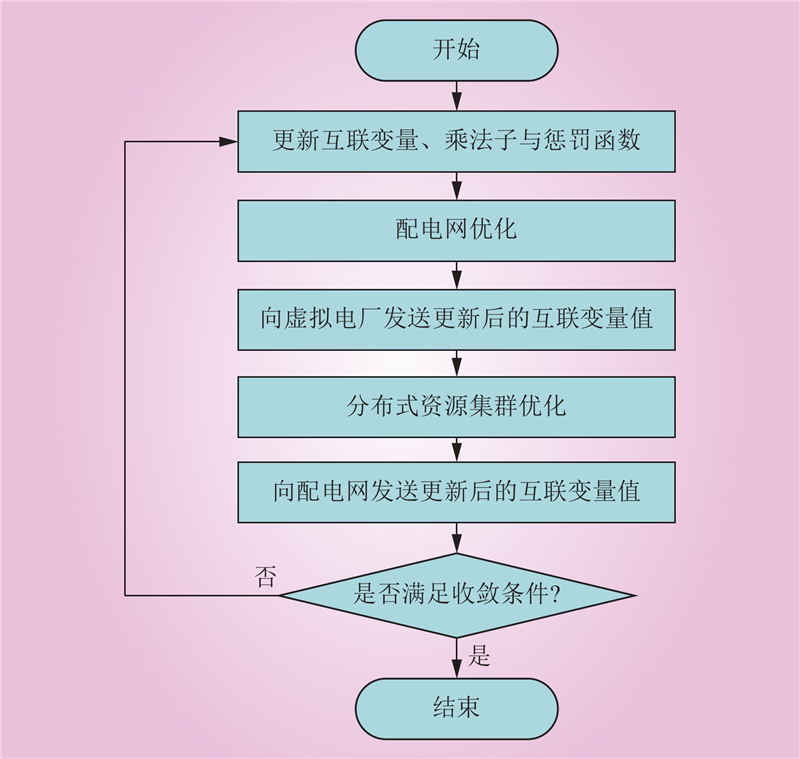

图 4 ATC优化流程

Fig.4 ATC optimization process

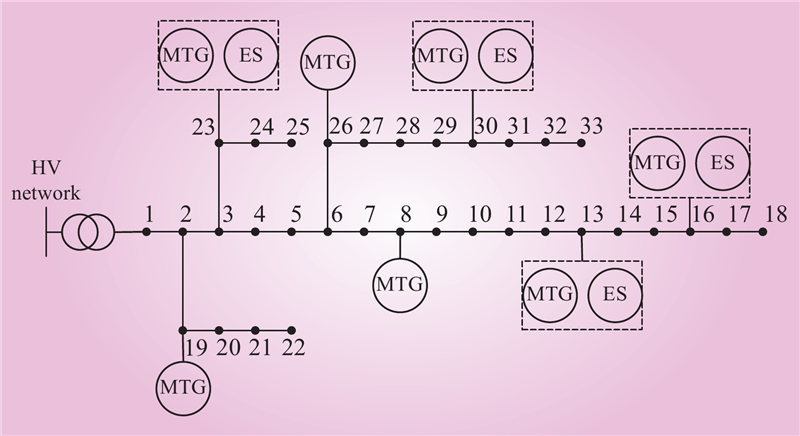

图 5 改进的IEEE 33 节点配电网络

Fig.5 Improved IEEE 33 bus distribution network

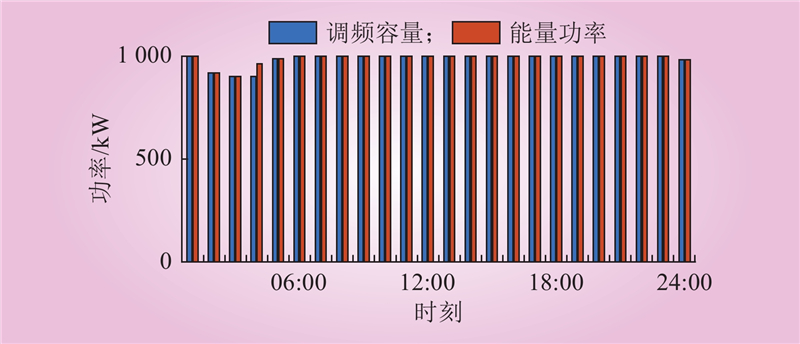

图 6 配电网调度结果

Fig.6 Distribution network dispatch results

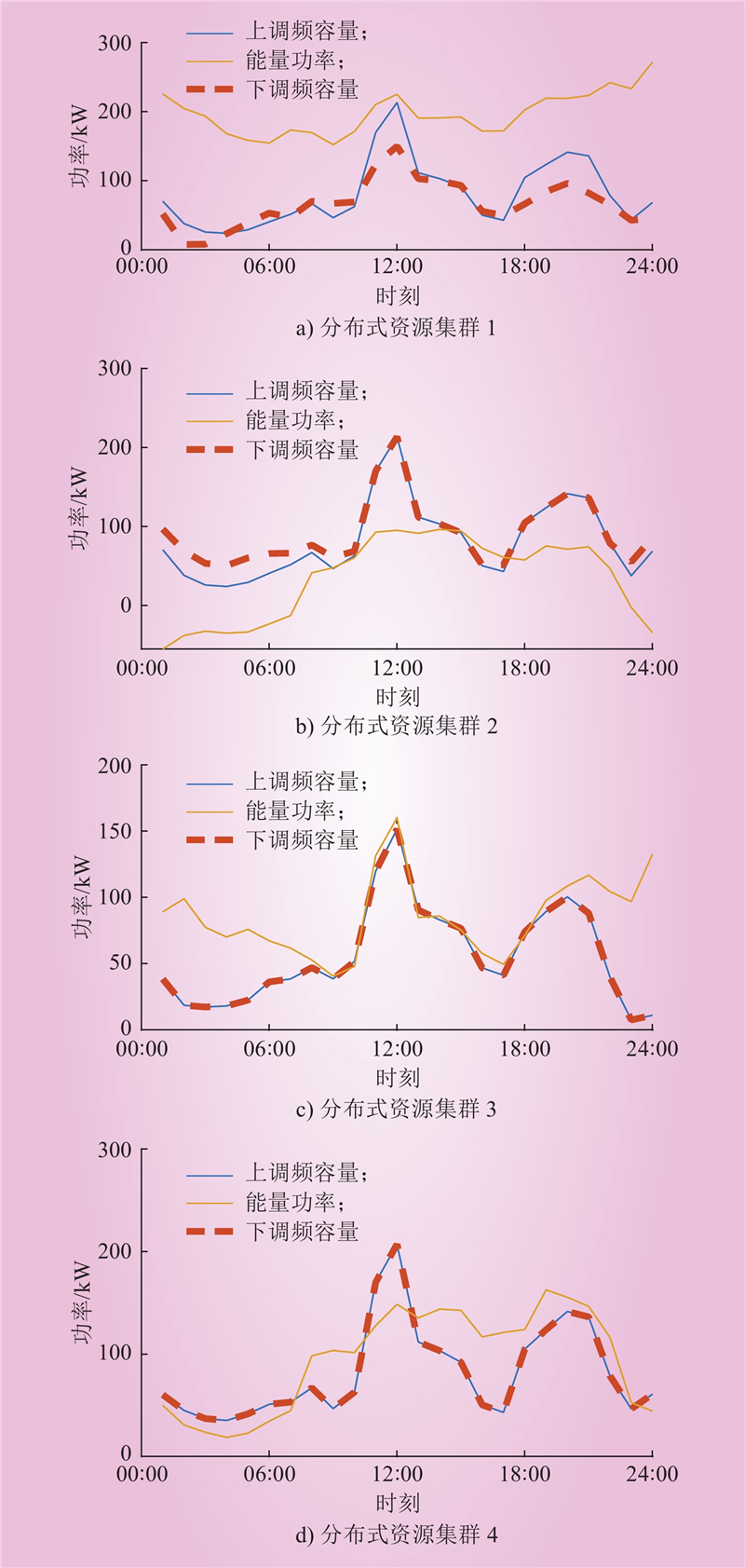

图 7 虚拟电厂层调度结果

Fig.7 VPP dispatch results

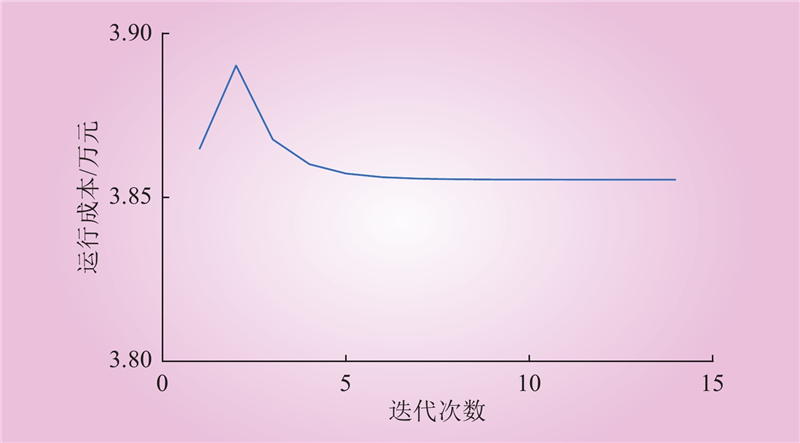

图 8 配电网总成本

Fig.8 Total cost of distribution network

表 1 不同收敛容差下的配电网成本

Table 1 Distribution network cost under different convergence tolerances

收敛容差	配电网成本/元	收敛容差	配电网成本/元
0.005	38553	0.5	38557
0.050	38554	5.0	38572

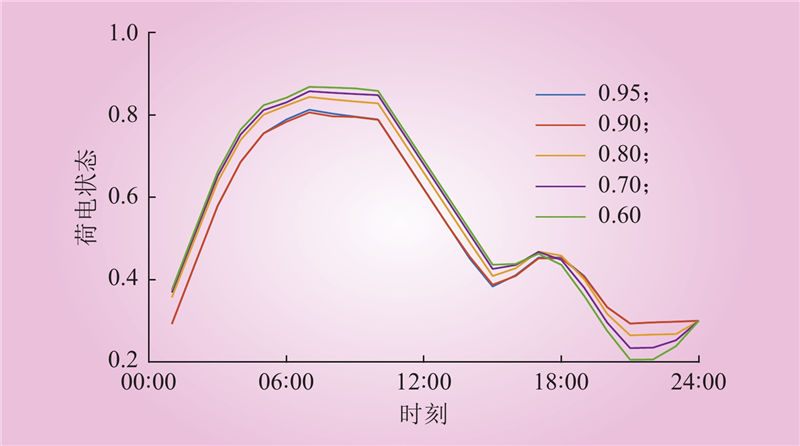

图 9 不同置信水平下的ES荷电状态

Fig.9 Energy storage charge state at different confidence levels

表 2 不同置信水平下的ES收益

Table 2 Energy storage benefits at different confidence levels

置信水平	收益/元	置信水平	收益/元
0.95	680.0	0.70	791.1
0.90	761.1	0.60	798.1
0.80	780.9

参考文献 21

1	田军强. 新能源发电与分布式发电及其对电力系统的影响[J]. 通信电源技术, 2019, 36 (12): 131- 132.
	TIAN Junqiang. New energy generation and distributed generation and their influence on power system[J]. Telecom Power Technology, 2019, 36 (12): 131- 132.
2	贾宏杰, 王梓博, 余晓丹, 等. 城市园区微网系统端对端能量交易技术研究现状与展望[J]. 高电压技术, 2022, 48 (7): 2453- 2468.
	JIA Hongjie, WANG Zibo, YU Xiaodan, et al. State-of-the-art analysis and perspectives for peer-to-peer energy trading technology in urban community microgrid system[J]. High Voltage Engineering, 2022, 48 (7): 2453- 2468.
3	吴文传, 张伯明, 孙宏斌, 等. 主动配电网能量管理与分布式资源集群控制[J]. 电力系统自动化, 2020, 44 (9): 111- 118.
	WU Wenchuan, ZHANG Boming, SUN Hongbin, et al. Energy management and distributed energy resources cluster control for active distribution networks[J]. Automation of Electric Power Systems, 2020, 44 (9): 111- 118.
4	WANG Z Y, CHEN B K, WANG J H, et al. Decentralized energy management system for networked microgrids in grid-connected and islanded modes[J]. IEEE Transactions on Smart Grid, 2016, 7 (2): 1097- 1105. DOI
5	KIM H M, MICHELENA N F, PAPALAMBROS P Y, et al. Target cascading in optimal system design[J]. Journal of Mechanical Design, 2003, 125 (3): 474- 480. DOI
6	周晓倩, 艾芊. 配电网与多微网联合分布式鲁棒经济调度[J]. 电力系统自动化, 2020, 44 (7): 23- 30.
	ZHOU Xiaoqian, AI Qian. Combined distributed robust economic dispatch of distribution network and multiple microgrids[J]. Automation of Electric Power Systems, 2020, 44 (7): 23- 30.
7	姚璐, 赵维兴, 李舒佳, 等. 基于目标级联分析法的分布式主体可交易能源模型[J]. 电力自动化设备, 2021, 41 (9): 256- 264.
	YAO Lu, ZHAO Weixing, LI Shujia, et al. Transactive energy model of distributed agents based on analytical target cascading[J]. Electric Power Automation Equipment, 2021, 41 (9): 256- 264.
8	DU P L, CHEN Z, CHEN Y X, et al. A Bi-level linearized dispatching model of active distribution network with multi-stakeholder participation based on analytical target cascading[J]. IEEE Access, 2019, 7, 154844- 154858. DOI
9	华昊辰, 李宇童, 王同贺, 等. 一种基于混合随机H₂/H_∞方法的能源互联网边缘计算系统控制策略[J]. 中国电机工程学报, 2020, 40 (21): 6875- 6885.
	HUA Haochen, LI Yutong, WANG Tonghe, et al. A novel stochastic mixed H₂/H_∞ control strategy for energy Internet edge computing system[J]. Proceedings of the CSEE, 2020, 40 (21): 6875- 6885.
10	赵冬梅, 徐辰宇, 陶然, 等. 多元分布式储能在新型电力系统配电侧的灵活调控研究综述[J]. 中国电机工程学报, 2023, 43 (5): 1776- 1799.
	ZHAO Dongmei, XU Chenyu, TAO Ran, et al. Review on flexible regulation of multiple distributed energy storage in distribution side of new power system[J]. Proceedings of the CSEE, 2023, 43 (5): 1776- 1799.
11	ZHANG B, YAN X W, LI D X, et al. Stable operation and small-signal analysis of multiple parallel DG inverters based on a virtual synchronous generator scheme[J]. Energies, 2018, 11 (1): 203. DOI
12	董璐, 边晓燕, 周波, 等. 计及调频备用效益的主动配电网分层分布式协调优化调度[J]. 电力自动化设备, 2023, 43 (1): 55- 63.
	DONG Lu, BIAN Xiaoyan, ZHOU Bo, et al. Hierarchical distributed coordinated optimal dispatch of active distribution network considering frequency regulation reserve benefits[J]. Electric Power Automation Equipment, 2023, 43 (1): 55- 63.
13	马恒瑞, 王波, 高文忠, 等. 考虑调频补偿效果的区域综合能源系统调频服务优化策略[J]. 电力系统自动化, 2018, 42 (13): 127- 135.
	MA Hengrui, WANG Bo, GAO Wenzhong, et al. Optimization strategy for frequency regulation service of regional integrated energy systems considering compensation effect of frequency regulation[J]. Automation of Electric Power Systems, 2018, 42 (13): 127- 135.
14	张圣祺, 袁蓓, 季振东, 等. 基于分布式控制原理的电池储能系统二次调频控制[J]. 电工技术学报, 2019, 34 (S2): 637- 645.
	ZHANG Shengqi, YUAN Bei, JI Zhendong, et al. A secondary frequency control based on the distributed control theory considering battery energy storage systems[J]. Transactions of China Electrotechnical Society, 2019, 34 (S2): 637- 645.
15	谭俊丰, 杨苹, 张凡, 等. 考虑能量-辅助服务下的园区综合能源系统多时间尺度优化模型[J]. 中国电力, 2022, 55 (10): 100- 111.
	TAN Junfeng, YANG Ping, ZHANG Fan, et al. Multi-time scale optimization dispatch model of integrated energy system considering energy-auxiliary services[J]. Electric Power, 2022, 55 (10): 100- 111.
16	WANG Z Y, CHEN B K, WANG J H, et al. Coordinated energy management of networked microgrids in distribution systems[J]. IEEE Transactions on Smart Grid, 2015(6): 45–53.
17	吴洲洋, 艾欣, 胡俊杰. 需求侧灵活性资源参与调频辅助服务的备用优化与实时调度[J]. 电力系统自动化, 2021, 45 (6): 148- 157.
	WU Zhouyang, AI Xin, HU Junjie. Reserve optimization and real-time scheduling of frequency regulation ancillary service with participation of flexible resource on demand side[J]. Automation of Electric Power Systems, 2021, 45 (6): 148- 157.
18	湛归, 殷爽睿, 艾芊, 等. 智能楼宇型虚拟电厂参与电力系统调频辅助服务策略[J]. 电力工程技术, 2022, 41 (6): 13- 20, 57.
	ZHAN Gui, YIN Shuangrui, AI Qian, et al. A strategy for smart building-based virtual power plants participating in frequency regulation auxiliary service[J]. Electric Power Engineering Technology, 2022, 41 (6): 13- 20, 57.
19	吴洲洋, 艾欣, 胡俊杰, 等. 基于充电行为预测的电动汽车参与系统调频备用: 容量挖掘与风险评估[J]. 电力自动化设备, 2022, 42 (4): 18- 26.
	WU Zhouyang, AI Xin, HU Junjie, et al. EVs' participation in system frequency regulation reserve based on charging behavior prediction: capacity mining and risk evaluation[J]. Electric Power Automation Equipment, 2022, 42 (4): 18- 26.
20	AI X, WU Z Y, HU J J, et al. Robust operation strategy enabling a combined wind/battery power plant for providing energy and frequency ancillary services[J]. International Journal of Electrical Power & Energy Systems, 2020, 118, 105736.
21	WU H Y, SHAHIDEHPOUR M, LI Z Y, et al. Chance-constrained day-ahead scheduling in stochastic power system operation[J]. IEEE Transactions on Power Systems, 2014, 29 (4): 1583- 1591. DOI
