基于蜣螂算法优化卡尔曼滤波的锂离子电池模型参数辨识

doi:10.11930/j.issn.1004-9649.202401111

中国电力 ›› 2025, Vol. 58 ›› Issue (1): 196-204.DOI: 10.11930/j.issn.1004-9649.202401111

• 新能源与储能 • 上一篇

基于蜣螂算法优化卡尔曼滤波的锂离子电池模型参数辨识

夏天¹(), 刘代飞²(), 岳家辉¹, 陈来恩¹, 李亦梁³

1. 长沙理工大学电气与信息工程学院，湖南长沙　410114
2. 长沙理工大学能源与动力工程学院，湖南长沙　410114
3. 长高电新科技股份公司，湖南长沙　410219

收稿日期:2024-01-25 出版日期:2025-01-28 发布日期:2025-01-23
作者简介:夏天（1993—），男，通信作者，硕士研究生，从事储能安全与控制技术研究，E-mail：862551450@qq.com
刘代飞（1975—），男，副教授，从事电储能安全与控制技术研究，E-mail：dfcanfly@126.com
基金资助:
国家自然科学基金资助项目（柔性直流输电交流侧故障下换流器多桥臂主动应对的能量调控机理及穿越控制研究，51977014）。

Estimation of Model Parameters of Lithium Batteries Based on Kalman Filtering Optimized by Dung Beetle Algorithm

Tian XIA¹(), Daifei LIU²(), Jiahui YUE¹, Laien CHEN¹, Yiliang Li³

1. School of Electrical and Information Engineering, ChangSha University of Science and Technology, Changsha 410114, China
2. School of Energy and Power Engineering, Changsha University of Science and Technology, Changsha 410114, China
3. ChangGao Dianxin Science and Technology Co., Ltd., Changsha 410219, China

Received:2024-01-25 Online:2025-01-28 Published:2025-01-23
Supported by:
This work is supported by National Natural Science Foundation of China (Research on Energy Regulation Mechanism and Crossing Control of Multi-bridge Arm Active Response of Converter under AC side Fault in flexible DC Transmission, No.51977014).

摘要/Abstract

摘要：

锂离子电池参数辨识结果是电池状态预测的重要基础，提出了一种基于蜣螂算法（dung beetle optimizer，DBO）优化卡尔曼滤波（Kalman filtering，KF）的方法，用以在线辨识电池模型参数。该方法利用DBO快速全局寻找最优解特点，在KF算法中优化过程噪声和观测噪声的协方差矩阵，提高了识别电池模型参数的准确性。仿真实验数据表明，相较于未优化的KF参数辨识的结果，所提方法辨识误差有明显减少，预测的参数值更加接近真实值。

关键词: 锂离子电池, 参数辨识, 卡尔曼滤波器, 蜣螂算法, 协方差矩阵

Abstract:

The identification of parameters for lithium batteries is an important basis for battery state prediction. An improved kalman filtering (KF) based on dung beetle optimizer (DBO) is proposed for online identification of battery model parameters. This method utilizes the rapid global search for optimal solutions characteristic of DBO to optimize the covariance matrices of process noise and observation noise in KF, thereby improving the accuracy of identifying battery model parameters. Simulation experiment data shows that compared to the parameter identification results based on unoptimized KF, the variance that the identification results of this method compared to the true values are significantly reduced, resulting in the predicted parameter values are closer to the true values.

Key words: lithium battery, parameter identification, kalman filter, dung beetle optimizer, covariance matrix

夏天, 刘代飞, 岳家辉, 陈来恩, 李亦梁. 基于蜣螂算法优化卡尔曼滤波的锂离子电池模型参数辨识[J]. 中国电力, 2025, 58(1): 196-204.

Tian XIA, Daifei LIU, Jiahui YUE, Laien CHEN, Yiliang Li. Estimation of Model Parameters of Lithium Batteries Based on Kalman Filtering Optimized by Dung Beetle Algorithm[J]. Electric Power, 2025, 58(1): 196-204.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202401111

https://www.electricpower.com.cn/CN/Y2025/V58/I1/196

图/表 13

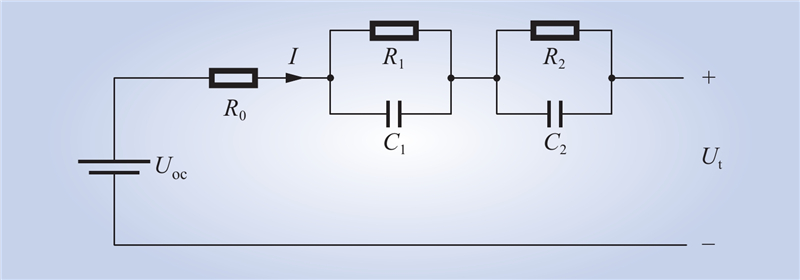

图 1 2阶RC等效电路模型

Fig.1 Second order RC equivalent circuit model

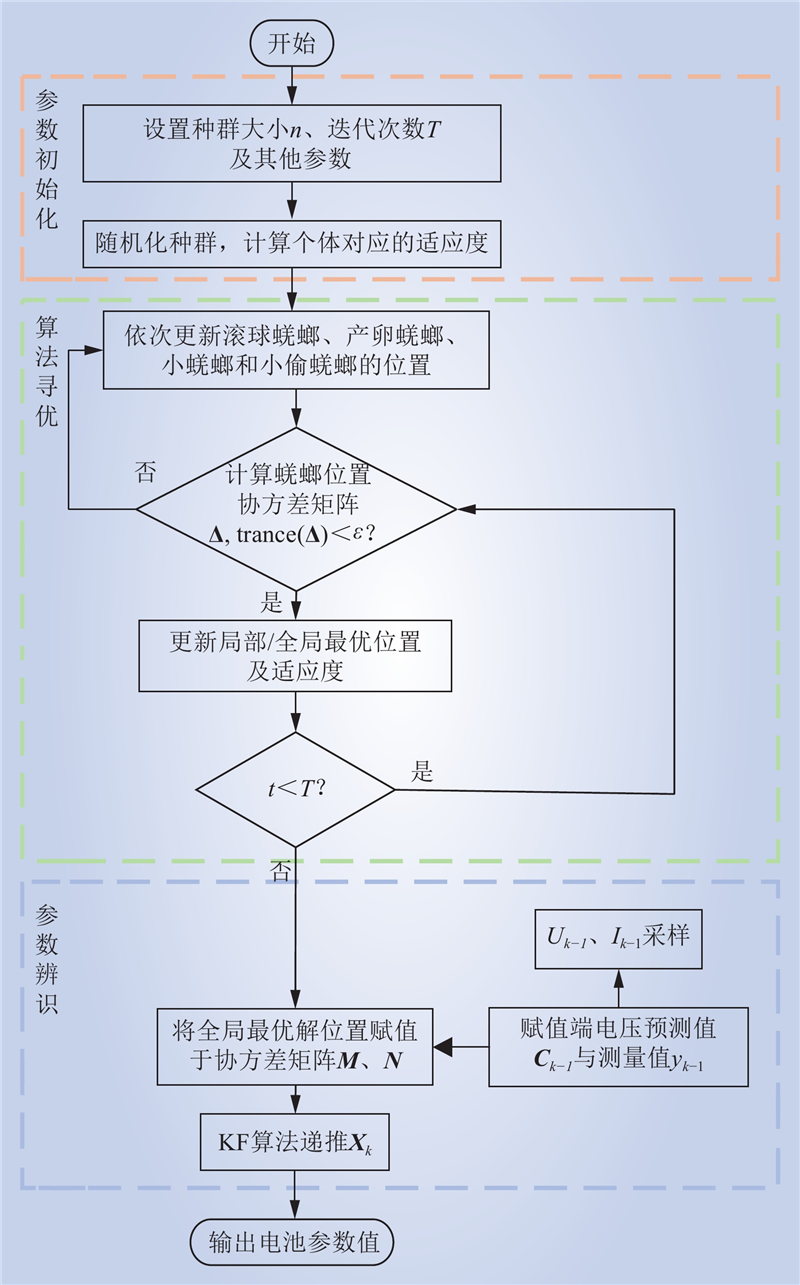

图 2 DBO-FK算法流程

Fig.2 Flow of DBO-KF algorithm

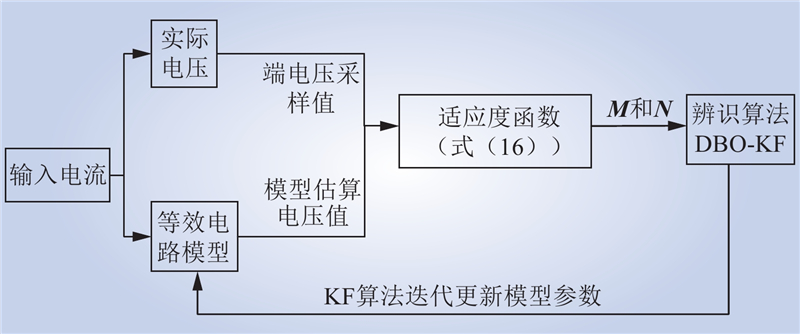

图 3 基于蜣螂算法优化卡尔曼滤波的示意

Fig.3 Schematic of improved kalman filter based on dung beetle optimizer

表 1 18650号电池基础参数

Table 1 Basic parameters of No. 18650 battery

参数	数值	参数	数值
额定容量/(mA·h)	2980	重量/g	50.0
额定电压/V	3.6	充电温度/℃	+10~+45
放大放电电流/A	10	放电温度/℃	–20~+60
最大充电电流/A	4	循环使用寿命/次	1000
能量密度/(W·h·g^–1)	218	尺寸/mm	65.1×18.25

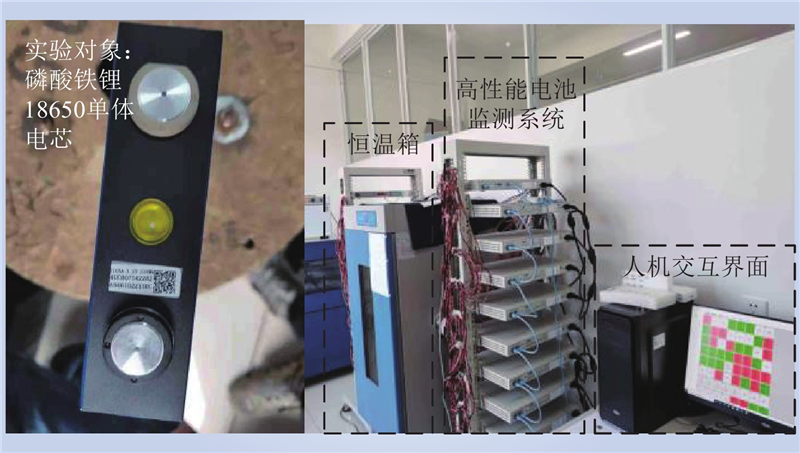

图 4 实验对象与实验平台

Fig.4 Experimental subjects and platform

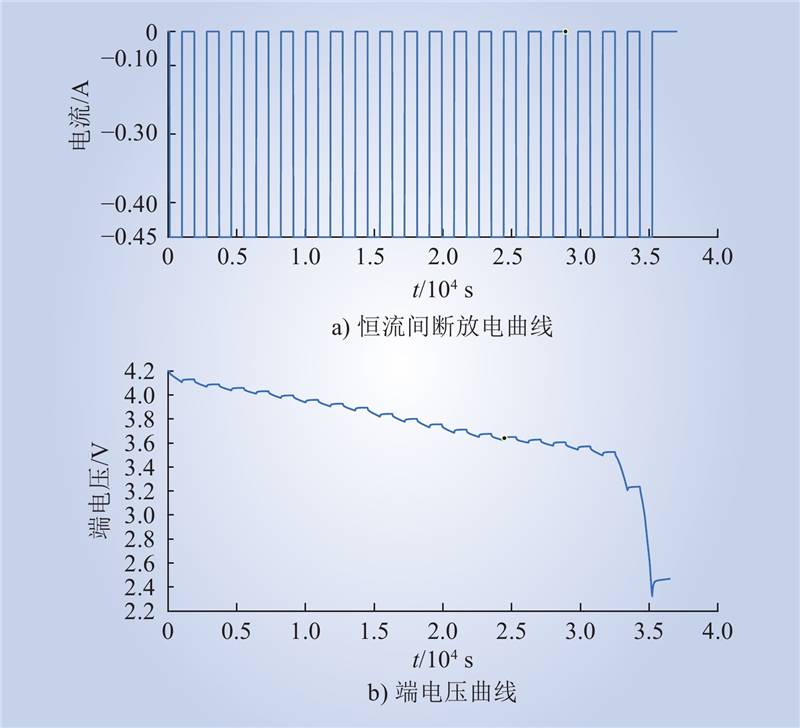

图 5 放电电流与端电压变化曲线

Fig.5 Discharge current and terminal voltage variation curve

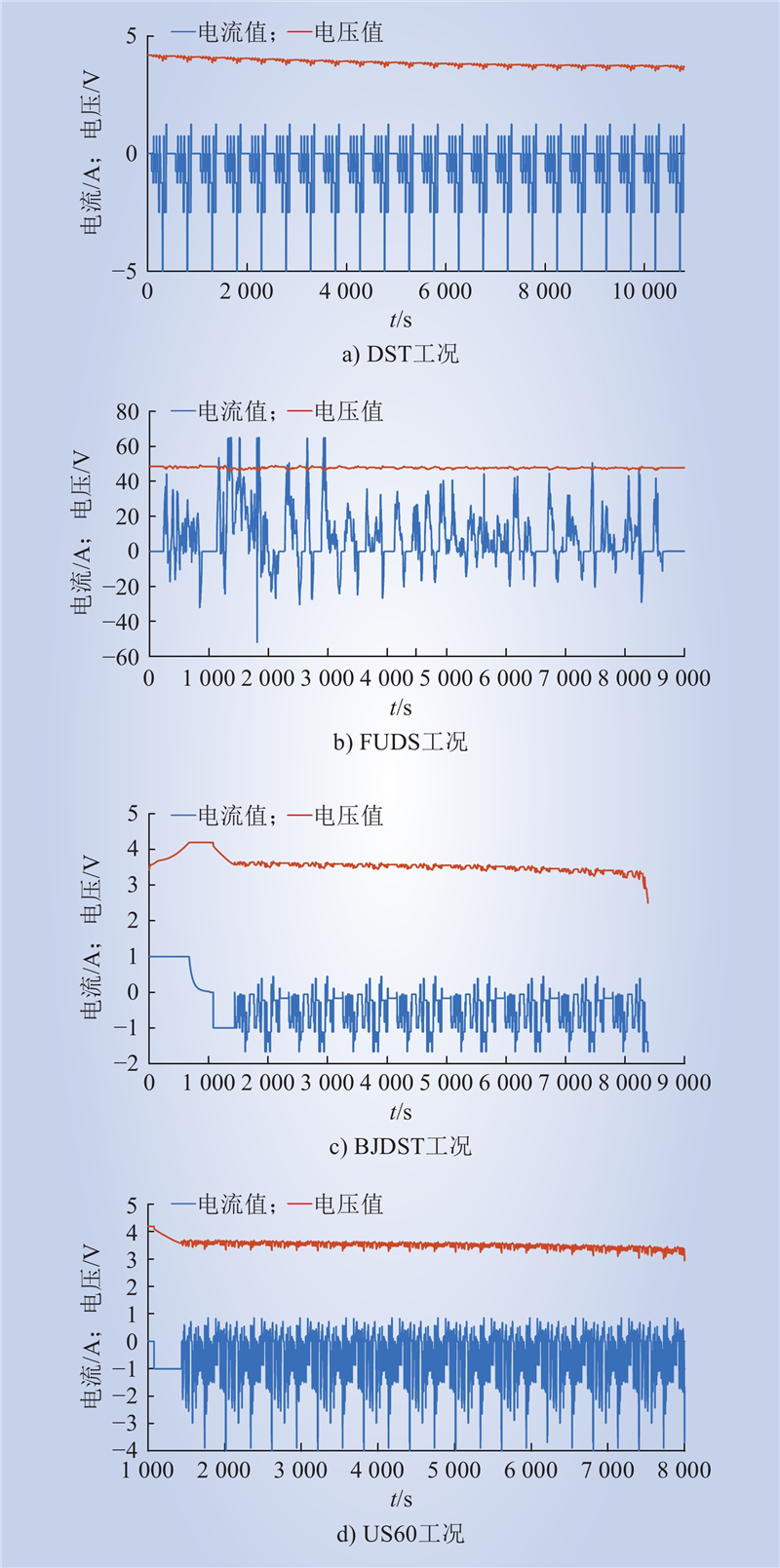

图 6 4种动态工况下的放电曲线

Fig.6 Discharge curves under four types dynamic operating conditions

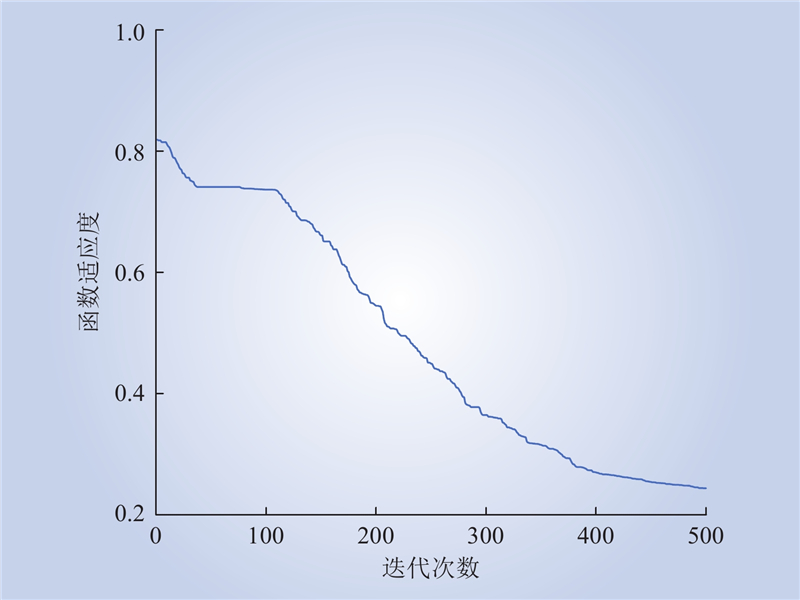

图 7 蜣螂算法适应度曲线

Fig.7 Fitness curve of DBO-KF

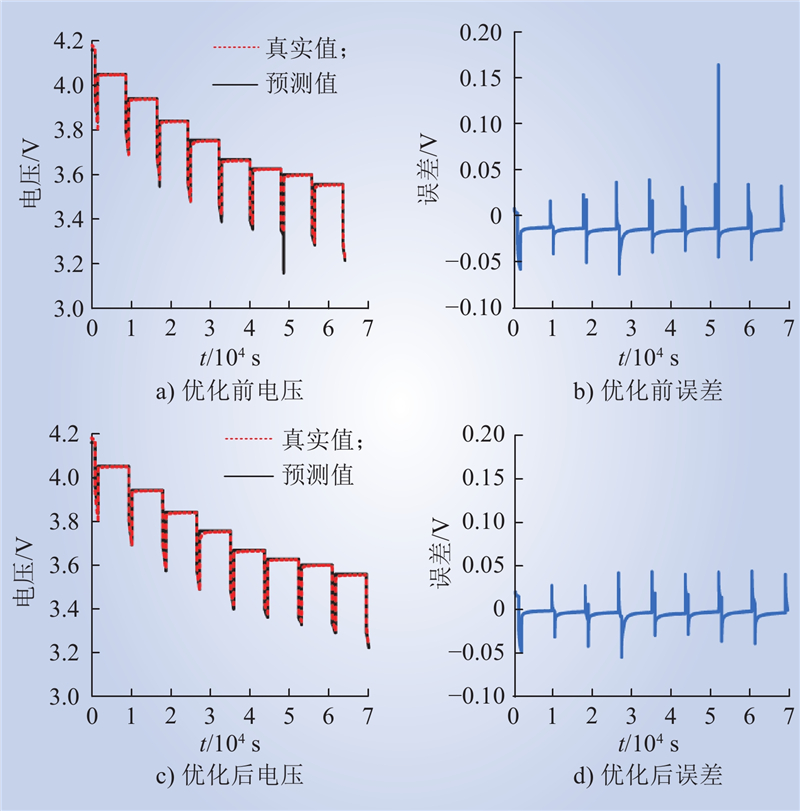

图 8 蜣螂算法优化前后端电压对比

Fig.8 Comparison terminal voltage before and after DBO-KF optimization

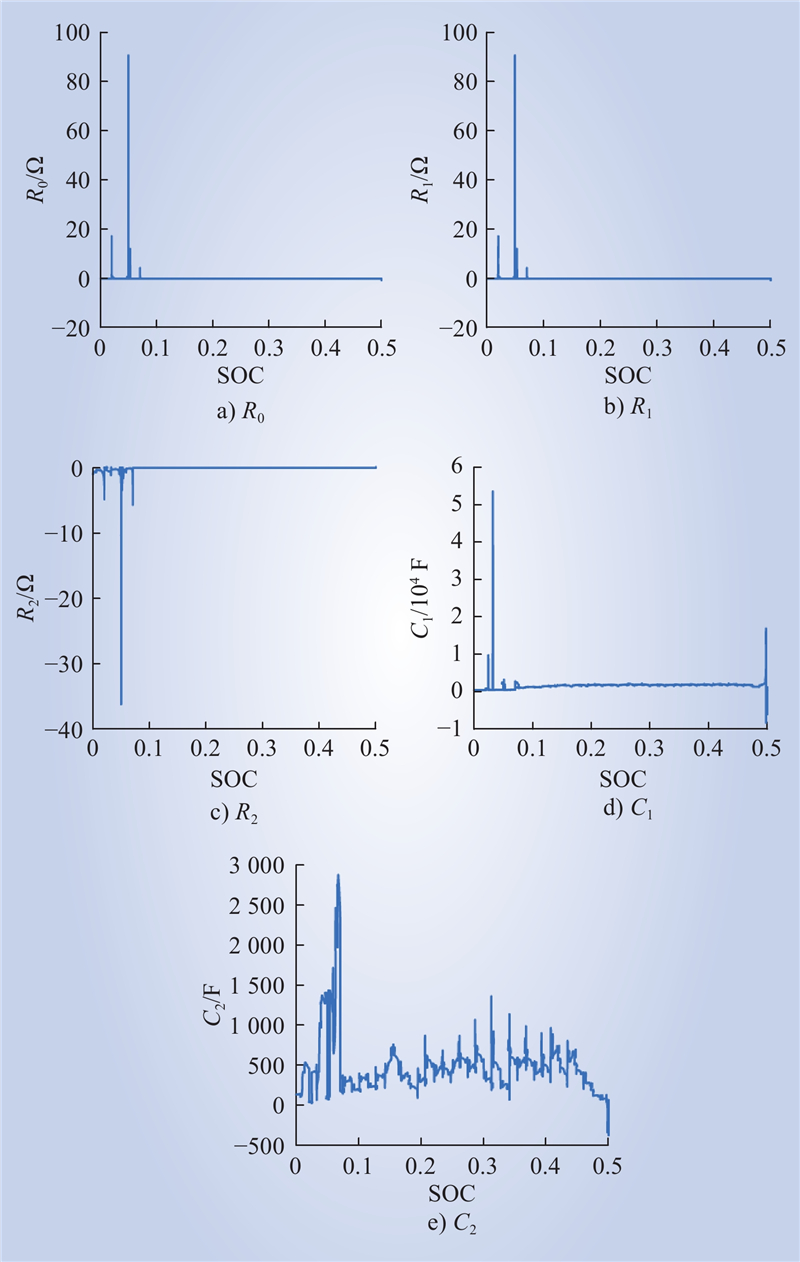

图 9 电池模型中各参数的辨识结果

Fig.9 Identification results of various parameters in battery model

表 2 不同SOC值下参数辨识结果

Table 2 Parameter identification results under different SOC

SOC/%	R₀/Ω	R₁/Ω	R₂/Ω	C₁/F	C₂/F
50	0.0090	0.1920	0.0943	9.8453	4.8505
40	0.0559	0.0394	0.0360	151.2994	493.9040
30	0.0561	0.0677	0.0240	130.8150	342.5920
20	0.0568	0.0568	0.0034	135.6240	310.9530
10	0.0592	0.0286	0.0042	908.3162	191.9880
0	0.0692	0.0624	-0.9259	405.8970	138.5590

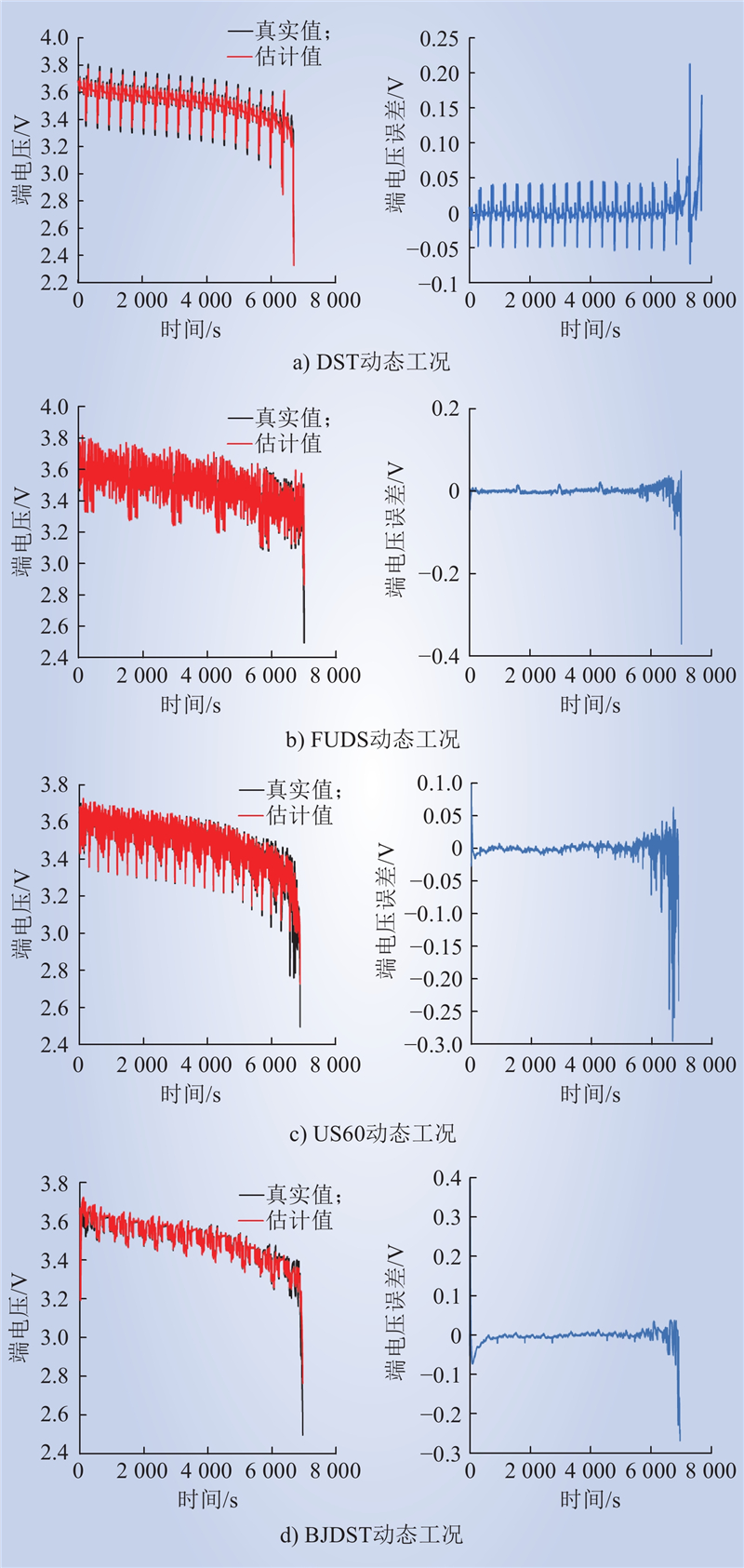

图 10 4种动态工况下DBO-KF算法辨识曲线

Fig.10 Identification curves using DBO-KF under four types dynamic operating conditions

表 3 端电压误差值可信度指标对比

Table 3 Comparison of the credibility indexs of terminal voltage error

工况	E_MS	E_RMS	E_MA
DST	0.02990	0.000894	0.0134
FUDS	0.00077	0.027800	0.0149
US60	0.00120	0.035300	0.0163
BJDST	0.01700	0.020800	0.0169

参考文献 21

1	岳永胜, 孙冬, 许爽, 等. 锂离子电池等效电路模型的研究进展[J]. 电池, 2023, 53 (6): 682- 686.
	YUE Yongsheng, SUN Dong, XU Shuang, et al. Research progress in equivalent circuit model for Li-ion battery[J]. Battery Bimonthly, 2023, 53 (6): 682- 686.
2	朱沐雨, 马宏忠, 郭鹏宇, 等. 典型调峰/调频工况下储能电池组荷电状态估计[J]. 中国电力, 2024, 57 (6): 18- 26.
	ZHU Muyu, MA Hongzhong, GUO Pengyu, et al. State of charge estimation of energy storage battery pack under typical peak/frequency modulation conditions[J]. Electric Power, 2024, 57 (6): 18- 26.
3	陈来恩, 曾小勇, 曾子豪, 等. 基于物理信息与深度神经网络的锂离子电池温度预测[J]. 中国电力, 2024, 57 (11): 18- 25.
	CHEN Laien, ZENG Xiaoyong, ZENG Zihao, et al. Temperature prediction of lithium-ion batteries based on physical information and deep neural network[J]. Electric Power, 2024, 57 (11): 18- 25.
4	邹国发, 高祥, 王春. 考虑锂电池多时间尺度效应的参数辨识与SOC估计方法[J]. 电力系统保护与控制, 2024, 52 (21): 71- 80.
	ZOU Guofa, GAO Xiang, WANG Chun. Parameter identification and SOC estimation methods considering multi-timescale effect lithium batteries[J]. Power System Protection and Control, 2024, 52 (21): 71- 80.
5	邹红波, 柴延辉, 杨钦贺, 等. 基于混合ISSA-LSTM的锂离子电池剩余使用寿命预测[J]. 电力系统保护与控制, 2023, 51 (19): 21- 31.
	ZOU Hongbo, CHAI Yanhui, YANG Qinhe, et al. Remaining useful life prediction of lithium-ion batteries based on hybrid ISSA-LSTM[J]. Power System Protection and Control, 2023, 51 (19): 21- 31.
6	岳家辉, 夏向阳, 蒋戴宇, 等. 基于电压数据片段混合模型的锂离子电池剩余寿命预测与健康状态估计[J]. 中国电力, 2023, 56 (7): 163- 174.
	YUE Jiahui, XIA Xiangyang, JIANG Daiyu, et al. Remaining useful life prediction and state of health estimation of lithium-ion batteries based on voltage data segment hybrid model[J]. Electric Power, 2023, 56 (7): 163- 174.
7	郭向伟, 邢程, 司阳, 等. RLS锂电池全工况自适应等效电路模型[J]. 电工技术学报, 2022, 37 (16): 4029- 4037.
	GUO Xiangwei, XING Cheng, SI Yang, et al. RLS adaptive equivalent circuit model of lithium battery under full working condition[J]. Transactions of China Electrotechnical Society, 2022, 37 (16): 4029- 4037.
8	CHEN Z W, YANG L W, ZHAO X B, et al. Online state of charge estimation of Li-ion battery based on an improved unscented Kalman filter approach[J]. Applied Mathematical Modelling, 2019, 70, 532- 544. DOI
9	HE L, WANG Y Y, WEI Y J, et al. An adaptive central difference Kalman filter approach for state of charge estimation by fractional order model of lithium-ion battery[J]. Energy, 2022, 244, 122627. DOI
10	XIA B Z, HUANG R, LAO Z Z, et al. Online parameter identification of lithium-ion batteries using a novel multiple forgetting factor recursive least square algorithm[J]. Energies, 2018, 11 (11): 3180.
11	范兴明, 封浩, 张鑫. 最小二乘算法优化及其在锂离子电池参数辨识中的应用[J]. 电工技术学报, 2024, 39 (5): 1577- 1588.
	FAN Xingming, FENG Hao, ZHANG Xin. Optimization of least squares method and its application in parameter identification of lithium-ion battery model[J]. Transactions of China Electrotechnical Society, 2024, 39 (5): 1577- 1588.
12	谢文超, 赵延明, 方紫微, 等. 带可变遗忘因子递推最小二乘法的超级电容模组等效模型参数辨识方法[J]. 电工技术学报, 2021, 36 (5): 996- 1005.
	XIE Wenchao, ZHAO Yanming, FANG Ziwei, et al. Variable forgetting factor recursive least squales based parameter identification method for the equivalent circuit model of the supercapacitor cell module[J]. Transactions of China Electrotechnical Society, 2021, 36 (5): 996- 1005.
13	严干贵, 李洪波, 段双明, 等. 基于模型参数辨识的储能电池状态估算[J]. 中国电机工程学报, 2020, 40 (24): 8145- 8154, 8251.
	YAN Gangui, LI Hongbo, DUAN Shuangming, et al. Energy storage battery state estimation based on model parameter identification[J]. Proceedings of the CSEE, 2020, 40 (24): 8145- 8154, 8251.
14	GUO P, MA W T, YI D L, et al. Enhanced square root CKF with mixture correntropy loss for robust state of charge estimation of lithium-ion battery[J]. Journal of Energy Storage, 2023, 73, 108920. DOI
15	ZHU Q, XU M E, ZHENG M Q. Iterative learning based model identification and state of charge estimation of lithium-ion battery[C]//2018 IEEE 7th Data Driven Control and Learning Systems Conference (DDCLS). Enshi, China. IEEE, 2018: 222–228.
16	王世繁, 董亮, 罗杨, 等. 基于极大似然准则UKF的锂电池SOC估算研究[J]. 自动化与仪器仪表, 2018, (3): 76- 80.
	WANG Shifan, DONG Liang, LUO Yang, et al. Based on maximum likelihood principle UKF for SOC estimation of lithium battery[J]. Automation & Instrumentation, 2018, (3): 76- 80.
17	刘世林, 李德俊, 姚伟, 等. 基于核极限学习机与容积卡尔曼滤波融合的锂电池荷电状态估计[J]. 湖南大学学报(自然科学版), 2023, 50 (10): 51- 59.
	LIU Shilin, LI Dejun, YAO Wei, et al. Estimation on state of charge of lithium battery based on fusion of kernel extreme learning machine and cubature Kalman filter[J]. Journal of Hunan University (Natural Sciences), 2023, 50 (10): 51- 59.
18	宫明辉, 乌江, 焦朝勇. 基于模糊自适应扩展卡尔曼滤波器的锂电池SOC估算方法[J]. 电工技术学报, 2020, 35 (18): 3972- 3978.
	GONG Minghui, WU Jiang, JIAO Chaoyong. SOC estimation method of lithium battery based on fuzzy adaptive extended Kalman filter[J]. Transactions of China Electrotechnical Society, 2020, 35 (18): 3972- 3978.
19	远翔宇, 杨风暴, 杨童瑶. 基于自适应蜣螂算法的无人机三维路径规划方法[J]. 无线电工程, 2024, 54(4): 928-936.
	YUAN Xiangyu, YANG Fengbao, YANG Tongyao. UAV 3D path planning method based on adaptive dung beetle algorithm[J]. Radio Engineering, 2023, 53(05), 1121-1128.
20	易望远. 数控铣削能耗预测及切削参数多目标优化研究[J]. 重庆理工大学学报(自然科学), 2023, 37 (7): 256- 264.
	YI Wangyuan. Research on energy consumption prediction and multi-objective optimization of cutting parameters in CNC milling[J]. Journal of Chongqing University of Technology (Natural Science), 2023, 37 (7): 256- 264.
21	XUE J K, SHEN B. Dung beetle optimizer: a new meta-heuristic algorithm for global optimization[J]. The Journal of Supercomputing, 2023, 79 (7): 7305- 7336. DOI
