基于混沌粒子群的双馈风电机组LVRT实测建模及暂态参数辨识

doi:10.11930/j.issn.1004-9649.202310040

摘要/Abstract

摘要：

高准确度仿真模型是进行大规模风电并网暂态稳定分析的基础，然而双馈风电机组（DFIG）控制策略与参数属于技术秘密难以获取，模型仿真准确性难以保证。针对DFIG故障暂态精确建模难题，提出了基于实测数据的DFIG建模及参数辨识方法。首先，基于电力系统综合稳定程序（PSASP）中DFIG模型及控制结构，建立低电压穿越（LVRT）控制数学模型并分析故障暂态过程，明确LVRT暂态控制核心参数。其次，基于DFIG的LVRT部分现场实测工况数据，利用混沌粒子群算法实现了DFIG故障暂态控制参数辨识。最后，基于剩余实测工况数据进行辨识参数准确性分析与校验，仿真验证了所提参数辨识方法的有效性及准确性。所提方法辨识结果泛化能力强、准确度高，具有较高的工程应用价值。

关键词: 双馈风电机组, 低压穿越, 参数辨识, 实测数据, 混沌粒子群

Abstract:

The high-accuracy simulation model is the basis for transient stability analysis of large-scale wind power integration. However, the control strategies and parameters of doubly-fed wind turbines are technical secrets that are difficult to obtain, and the accuracy of model simulation is difficult to guarantee. In order to address the fault transient modeling problems of doubly-fed wind turbines, a measured data-based modeling and parameter identification method of doubly-fed wind turbines is proposed. Firstly, based on the DFIG model and control structure of the Power System Integrated Stability Program (PSASP), a low voltage ride through (LVRT) control mathematical model is established to analyze the fault transient process, and the LVRT transient control core parameters are clarified. Secondly, based on part of the field measured LVRT data of doubly-fed wind turbines, the fault transient parameters are identified with the chaotic particle swarm optimization algorithm. Finally, the accuracy of the identification parameters are analyzed and verified based on the remaining measured data. The simulation results have verified the effectiveness and accuracy of the proposed parameter identification method. The proposed method has strong generalization ability and high accuracy of identification results, and is of great engineering application value.

Key words: double-fed induction generator, low voltage ride through, parameter identification, measured data, chaotic particle swarm

李丹, 秦世耀, 李少林, 贺敬. 基于混沌粒子群的双馈风电机组LVRT实测建模及暂态参数辨识[J]. 中国电力, 2024, 57(8): 75-84.

Dan LI, Shiyao QIN, Shaolin LI, Jing HE. LVRT Measurement Model and Transient Parameter Identification of Wind Turbine Based on Chaotic Particle Swarm[J]. Electric Power, 2024, 57(8): 75-84.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202310040

https://www.electricpower.com.cn/CN/Y2024/V57/I8/75

图/表 15

参考文献 22

1	舒印彪, 张智刚, 郭剑波, 等. 新能源消纳关键因素分析及解决措施研究[J]. 中国电机工程学报, 2017, 37 (1): 1- 9.
	SHU Yinbiao, ZHANG Zhigang, GUO Jianbo, et al. Study on key factors and solution of renewable energy accommodation[J]. Proceedings of the CSEE, 2017, 37 (1): 1- 9.
2	BLAABJERG F, MA K. Future on power electronics for wind turbine systems[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2013, 1 (3): 139- 152.
3	崔森, 颜湘武, 李锐博. 提高双馈风电机组动态无功协调控制能力的实验研究[J]. 电力系统保护与控制, 2022, 50 (8): 117- 129.
	CUI Sen, YAN Xiangwu, LI Ruibo. Experimental research on improving the dynamic reactive power coordinated control capability of doubly-fed induction wind turbine[J]. Power System Protection and Control, 2022, 50 (8): 117- 129.
4	Wind energy generation systems-Part 27-1: Electrical simulation models-Generic models[S]. IEC 61400-27-1. 2020.
5	DJASI H, YAZID K, MENAA M. Parameters identification of a brushless doubly fed induction machine using[J]. IET Electric Power Applications, 2017, 11 (9): 1585- 1595. DOI
6	SU J Y, CHEN Y, ZHANG D B, et al. Full-parameter identification model based on back propagation algorithm for brushless doubly fed induction generator[J]. IEEE Transactions on Power Electronics, 2020, 35 (10): 9953- 9958. DOI
7	吴峰, 汪海洋, 金宇清, 等. 基于正交优选粒子群算法的双馈风电系统控制器参数优化整定[J]. 电力系统自动化, 2014, 38 (15): 19- 24. DOI
	WU Feng, WANG Haiyang, JIN Yuqing, et al. Parameter tuning of doubly fed induction generator systems for wind turbines based on orthogonal design and particle swarm optimization[J]. Automation of Electric Power Systems, 2014, 38 (15): 19- 24. DOI
8	王彤, 邢其鹏, 李鸿恩, 等. 计及虚拟惯量控制的DFIG等效惯量在线评估与响应特性分析[J]. 电力系统保护与控制, 2022, 50 (11): 52- 60.
	WANG Tong, XING Qipeng, LI Hongen, et al. Online evaluation and response characteristics analysis of equivalent inertia of a doubly-fed induction generator incorporating virtual inertia control[J]. Power System Protection and Control, 2022, 50 (11): 52- 60.
9	乔腾, 张益铭, 曹一家, 等. 基于概率可靠性评估的永磁直驱风机低电压穿越控制模型参数辨识[J]. 中国电力, 2021, 54 (12): 102- 111.
	QIAO Teng, ZHANG Yiming, CAO Yijia, et al. Parameter identification of low voltage ride-through control model for permanent magnet direct-drive wind turbine based on probabilistic reliability assessment[J]. Electric Power, 2021, 54 (12): 102- 111.
10	JIN Y Q, LU C J, JU P, et al. Probabilistic preassessment method of parameter identification accuracy with an application to identify the drive train parameters of DFIG[J]. IEEE Transactions on Power Systems, 2020, 35 (3): 1769- 1782. DOI
11	李辉, 吴优, 谢翔杰, 等. 基于改进PSO的双馈风电机组传动链参数辨识[J]. 太阳能学报, 2021, 42 (12): 134- 142.
	LI Hui, WU You, XIE Xiangjie, et al. Parameter identification of transmission chain for doubly-fed wind turbine based on improved particle swarm optimization[J]. Acta Energiae Solaris Sinica, 2021, 42 (12): 134- 142.
12	薛飞, 李宏强, 李旭涛, 等. 基于LSTM神经网络的双馈风机控制参数辨识方法[J]. 中国电力, 2023, 56 (6): 31- 39.
	XUE Fei, LI Hongqiang, LI Xutao, et al. Identification method for control parameters of doubly-fed induction generator based on LSTM neural network[J]. Electric Power, 2023, 56 (6): 31- 39.
13	金宇清, 鞠平, 刘伟航, 等. 基于量测信号扰动的DFIG变流器控制参数辨识方法[J]. 电力系统自动化, 2016, 40 (8): 36- 42. DOI
	JIN Yuqing, JU Ping, LIU Weihang, et al. Parameter identification method for converter controller of DFIG based on measurement signal disturbance[J]. Automation of Electric Power Systems, 2016, 40 (8): 36- 42. DOI
14	许饶琪, 彭晓涛, 秦世耀, 等. 基于M序列的双馈风机变流器参数辨识方法研究[J]. 电网技术, 2022, 46 (2): 578- 586.
	XU Raoqi, PENG Xiaotao, QIN Shiyao, et al. Parameter identification of doubly-fed induction generator converter based on M-sequence[J]. Power System Technology, 2022, 46 (2): 578- 586.
15	秦继朔, 贾科, 孔繁哲, 等. 基于寻优算法的永磁风机并网逆变器故障穿越控制参数分步辨识[J]. 中国电机工程学报, 2021, 41 (S1): 59- 69.
	QIN Jishuo, JIA Ke, KONG Fanzhe, et al. Stepwise parameter identification of fault ride-through control parameters of PMSG grid-connected inverter based on optimization algorithm[J]. Proceedings of the CSEE, 2021, 41 (S1): 59- 69.
16	韩平平, 范桂军, 孙维真, 等. 基于数据测试和粒子群优化算法的光伏逆变器LVRT特性辨识[J]. 电力自动化设备, 2020, 40 (2): 49- 54.
	HAN Pingping, FAN Guijun, SUN Weizhen, et al. Identification of LVRT characteristics of photovoltaic inverters based on data testing and PSO algorithm[J]. Electric Power Automation Equipment, 2020, 40 (2): 49- 54.
17	曹斌, 刘文焯, 原帅, 等. 基于低电压穿越试验的光伏发电系统建模研究[J]. 电力系统保护与控制, 2020, 48 (18): 146- 155.
	CAO Bin, LIU Wenzhuo, YUAN Shuai, et al. Modeling of photovoltaic power system based on low voltage ride-through test[J]. Power System Protection and Control, 2020, 48 (18): 146- 155.
18	LIU Z H, WEI H L, LI X H, et al. Global identification of electrical and mechanical parameters in PMSM drive based on dynamic self-learning PSO[J]. IEEE Transactions on Power Electronics, 2018, 33 (12): 10858- 10871. DOI
19	刘道华, 原思聪, 兰洋, 等. 混沌映射的粒子群优化方法[J]. 西安电子科技大学学报, 2010, 37 (4): 764- 769.
	LIU Daohua, YUAN Sicong, LAN Yang, et al. Method of particle swarm optimization based on the chaos map[J]. Journal of Xidian University, 2010, 37 (4): 764- 769.
20	国家市场监督管理总局, 国家标准化管理委员会. 风力发电机组故障电压穿越能力测试规程: GB/T 36995—2018[S]. 北京: 中国标准出版社, 2019.
21	国家市场监督管理总局, 国家标准化管理委员会. 风电场接入电力系统技术规定第1部分: 陆上风电: GB/T 19963.1—2021[S]. 北京: 中国标准出版社, 2021.
22	国家能源局. 风电机组电气仿真模型验证规程: NB/T 31053—2021[S]. 北京: 中国电力出版社, 2021.

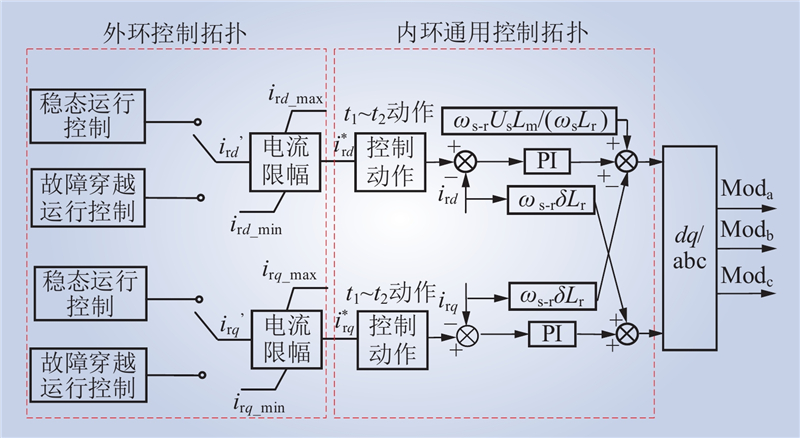

控制模式		参数
稳态控制		k_p-lp、k_i-lq、k_p1、k_i1
故障穿越暂态控制		K_{1_Ip_LV}、K_{1_Iq_LV}、I_{pest_LV}、I_{qest_LV}、k_{lvrt_p}

控制模式		参数
稳态控制		k_p-lp、k_i-lq、k_p1、k_i1
故障穿越暂态控制		K_{1_Ip_LV}、K_{1_Iq_LV}、I_{pest_LV}、I_{qest_LV}、k_{lvrt_p}

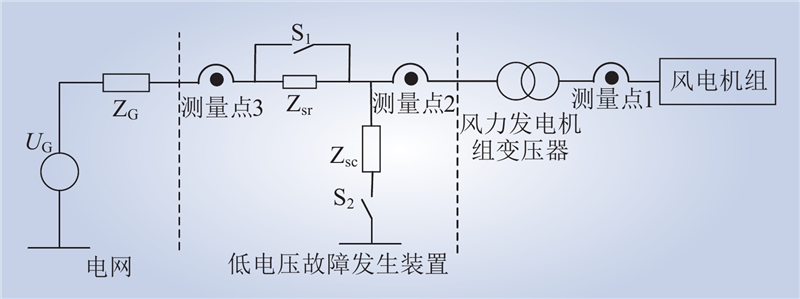

电压跌落幅值(p.u.)		电压跌落持续时间/ms
0.85~0.90		1880~2200
0.70~0.80		1685~1725
0.45~0.55		1194~1234
0.30~0.40		900~940
0.15~0.25		605~645

电压跌落幅值(p.u.)		电压跌落持续时间/ms
0.85~0.90		1880~2200
0.70~0.80		1685~1725
0.45~0.55		1194~1234
0.30~0.40		900~940
0.15~0.25		605~645

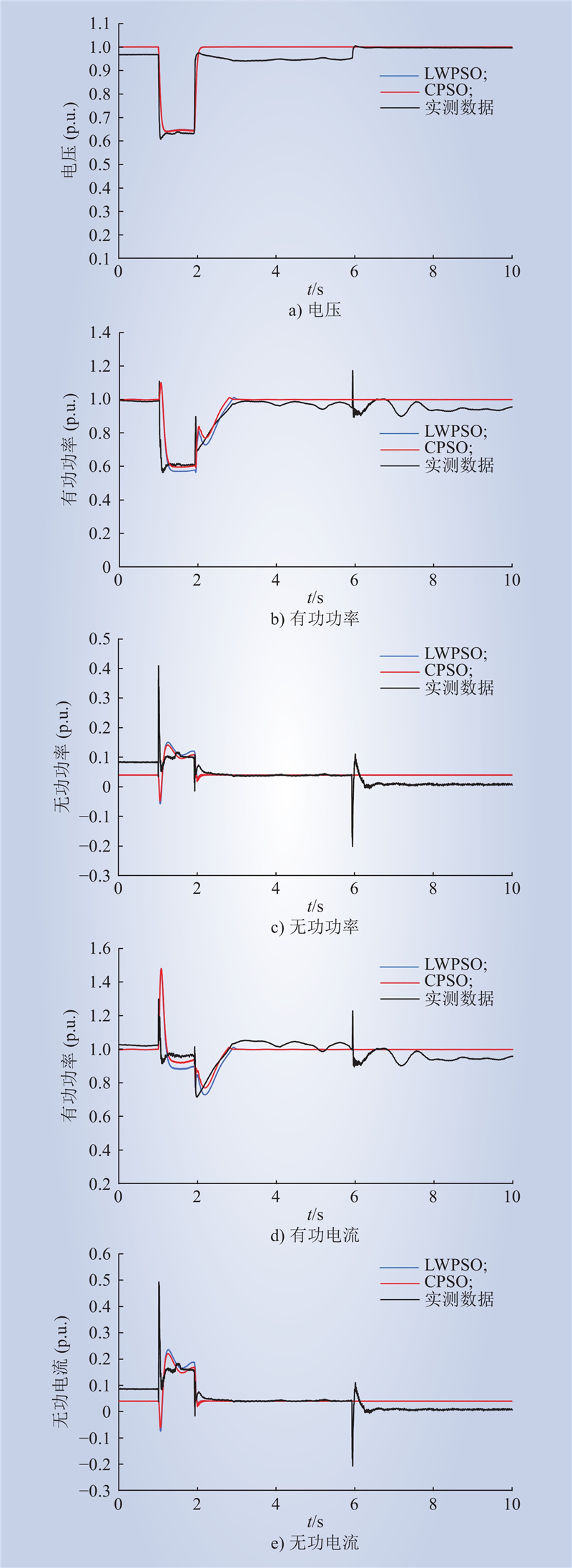

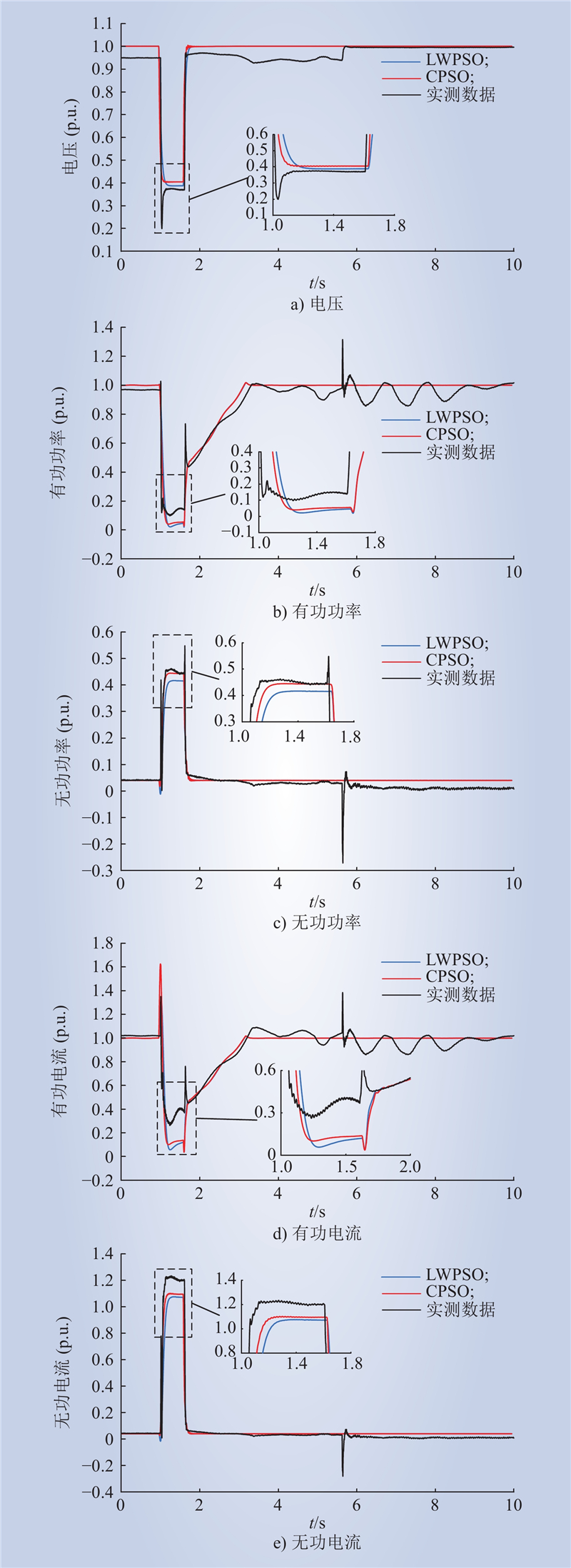

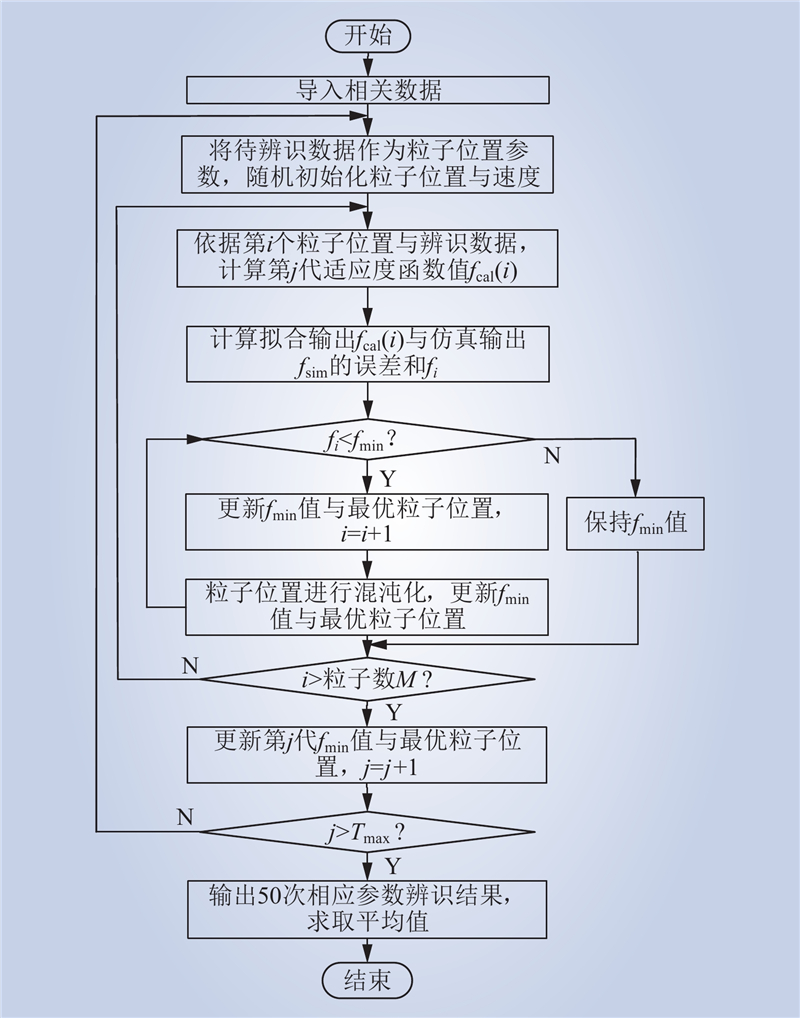

参数	LWPSO	CPSO	寻优范围
K_{1_Ip_LV}	2.043	2.005	[0, 5]
K_{1_Iq_LV}	1.813	1.872	[0, 10]
I_{pest_LV}	–0.662	–0.686	[–2, 4]
I_{qest_LV}	0.275	0.291	[-2, 4]
k_{lvrt_p}	0.317	0.317	[0, 1]
