储能电站锂离子电池本体安全关键技术及新技术应用情况

doi:10.11930/j.issn.1004-9649.202405062

摘要/Abstract

摘要：

“双碳”目标的提出和能源电力低碳转型的持续推进，以新能源为主体的新型电力系统面临着规模化安全高效储能等能源问题的重要挑战。在这一背景下，储能电站作为能源系统中关键的组成部分，其安全管理尤为重要，直接关系到整个电力系统的稳定运行和可持续发展。针对锂离子电池本体安全管理的研究现状展开深入分析，首先，系统回顾了当前广泛应用的各类电池健康评估方法，并详细总结了数据驱动方法中健康因子的选择；其次，从基于数据碎片评估电池状态、电池边缘平台构建与储能电站智慧巡检3个方面出发，探讨了现有电池状态评估技术的最新研究热点，指出储能安全评估未来的发展方向和关键挑战；最后，总结储能电站的安全控制技术，针对计及电池参数变化的系统稳定性与储能系统多目标控制问题提出了相关见解。

关键词: 锂离子电池, 健康因子, 状态评估, 边缘计算, 智慧巡检, 多目标控制

Abstract:

The introduction of the "dual carbon" targets and the ongoing advancement of low-carbon transitions in energy and electricity have posed significant challenges to the new-type power system, which primarily relies on renewable energy sources, particularly in terms of large-scale, safe, and efficient energy storage. In this context, energy storage stations, as a crucial component of the energy system, are of utmost importance in terms of safety management, directly influencing the stable operation and sustainable development of the entire power system. This essay delves into the current research status of lithium-ion battery safety management. Firstly, it systematically reviews the various battery health assessment methods widely used today and comprehensively summarizes the selection of health indicators in data-driven approaches. Secondly, it discusses the latest research hotspots in existing battery state assessment technologies from three perspectives: battery state evaluation based on data fragmentation, the construction of battery edge platforms, and intelligent inspection of energy storage stations. The essay also points out the future direction and key challenges of energy storage safety assessment. Lastly, it presents insights into the safety control technologies for energy storage stations, addressing the system stability considering battery parameter variations and the multi-objective control of energy storage systems.

Key words: lithium-ion battery, state of health, state estimation, edge computing, intelligent inspection, multi-objective control

夏向阳, 谭欣欣, 单周平, 李辉, 徐志强, 吴晋波, 岳家辉, 陈贵全. 储能电站锂离子电池本体安全关键技术及新技术应用情况[J]. 中国电力, 2024, 57(11): 1-17.

Xiangyang XIA, Xinxin TAN, Zhouping SHAN, Hui LI, Zhiqiang XU, Jinbo WU, Jiahui YUE, Guiquan CHEN. Key Technology and Development Prospect of Ontology Safety for Lithium-Ion Battery Storage Power Stations[J]. Electric Power, 2024, 57(11): 1-17.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202405062

https://www.electricpower.com.cn/CN/Y2024/V57/I11/1

图/表 26

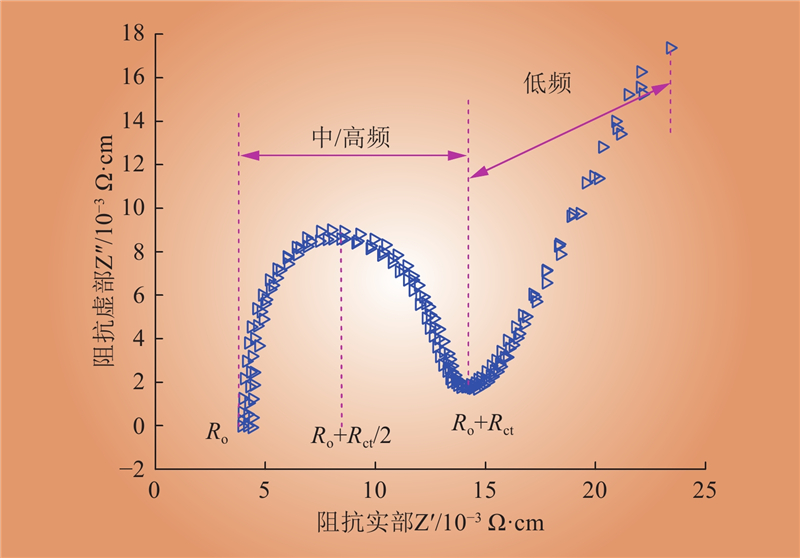

图 1 电化学阻抗法检测结果

Fig.1 The results of electrochemical impedance method

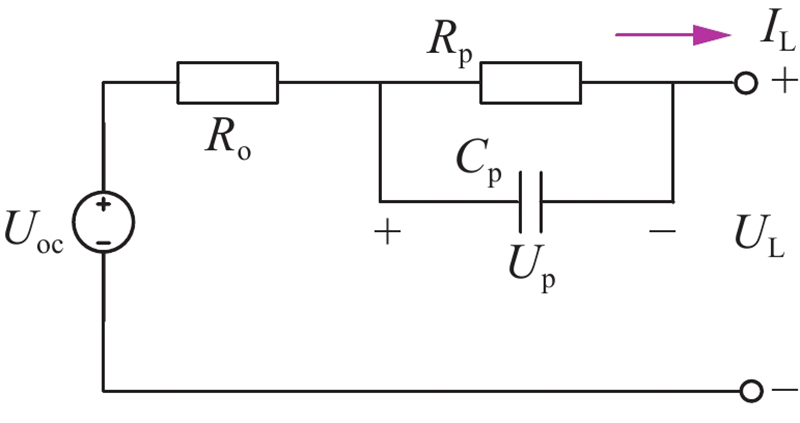

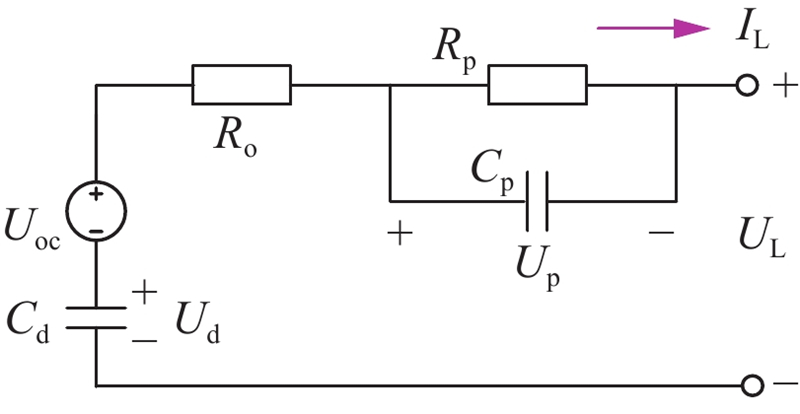

表 1 电池模型描述

Table 1 Battery Model Description

模型	等效模型	描述方程
Rint		$ \begin{gathered} {U_{{\text{oc}}}} = {U_{\text{L}}} + {I_{\text{L}}}{R_{\text{o}}} + {U_{\text{p}}} \\ \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_L}}}{{{C_{\text{p}}}}} + \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\ \end{gathered} $
PNGV		$ \begin{gathered} {U_{\text{L}}} = {U_{{\text{oc}}}} - {I_{\text{L}}}{R_{\text{o}}} - {U_{\text{p}}} - {U_{\text{d}}} \\ \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{p}}}}} + \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\ \frac{{{\text{d}}{U_{\text{d}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{d}}}}} \\ \end{gathered} $

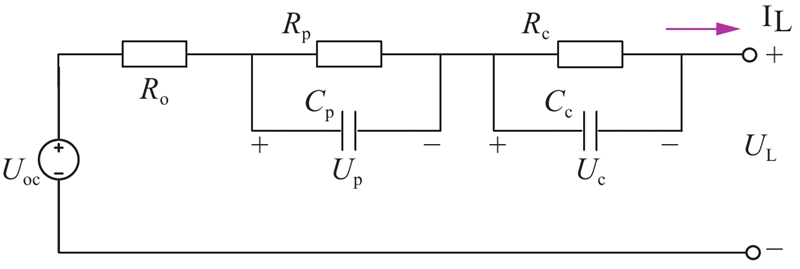

二阶RC		$ \begin{aligned}& {U_{\text{L}}} = {U_{{\text{oc}}}} - {U_{\text{p}}} - {U_{\text{c}}} - {I_L}R \\& \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{p}}}}} + \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\& \frac{{{\text{d}}{U_{\text{c}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{c}}}}} + \frac{{{U_{\text{c}}}}}{{{R_{\text{c}}}{C_{\text{c}}}}} \\ \end{aligned} $

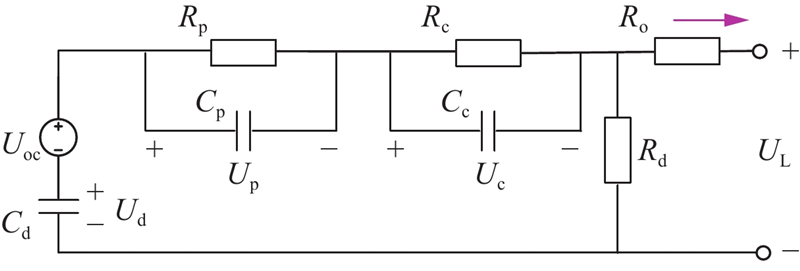

GNL		$ \begin{aligned}& {U_{\text{L}}} = {U_{{\text{oc}}}} - {I_{\text{L}}}{R_{\text{o}}} - {U_{\text{p}}} - {U_{\text{c}}} - {U_{\text{d}}} \\& \frac{{{\text{d}}{U_{\text{d}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{d}}}}} + \frac{{{U_{{\text{oc}}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} - \frac{{{U_{\text{d}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} -\\&\quad\quad\quad \frac{{{U_{\text{p}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} \\ & \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{p}}}}} + \frac{{{U_{{\text{oc}}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} - \frac{{{U_{\text{d}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} -\\ &\quad\quad\quad \frac{{{U_{\text{p}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} - \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\& \frac{{{\text{d}}{U_{\text{c}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{c}}}}} + \frac{{{U_{{\text{oc}}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} - \frac{{{U_{\text{d}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} -\\& \quad\quad\quad \frac{{{U_{\text{p}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{c}}}{C_{\text{c}}}}} \end{aligned} $

表 1 电池模型描述

Table 1 Battery Model Description

模型	等效模型	描述方程
Rint		$ \begin{gathered} {U_{{\text{oc}}}} = {U_{\text{L}}} + {I_{\text{L}}}{R_{\text{o}}} + {U_{\text{p}}} \\ \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_L}}}{{{C_{\text{p}}}}} + \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\ \end{gathered} $
PNGV		$ \begin{gathered} {U_{\text{L}}} = {U_{{\text{oc}}}} - {I_{\text{L}}}{R_{\text{o}}} - {U_{\text{p}}} - {U_{\text{d}}} \\ \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{p}}}}} + \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\ \frac{{{\text{d}}{U_{\text{d}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{d}}}}} \\ \end{gathered} $
二阶RC		$ \begin{aligned}& {U_{\text{L}}} = {U_{{\text{oc}}}} - {U_{\text{p}}} - {U_{\text{c}}} - {I_L}R \\& \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{p}}}}} + \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\& \frac{{{\text{d}}{U_{\text{c}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{c}}}}} + \frac{{{U_{\text{c}}}}}{{{R_{\text{c}}}{C_{\text{c}}}}} \\ \end{aligned} $
GNL		$ \begin{aligned}& {U_{\text{L}}} = {U_{{\text{oc}}}} - {I_{\text{L}}}{R_{\text{o}}} - {U_{\text{p}}} - {U_{\text{c}}} - {U_{\text{d}}} \\& \frac{{{\text{d}}{U_{\text{d}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{d}}}}} + \frac{{{U_{{\text{oc}}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} - \frac{{{U_{\text{d}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} -\\&\quad\quad\quad \frac{{{U_{\text{p}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{d}}}{C_{\text{d}}}}} \\ & \frac{{{\text{d}}{U_{\text{p}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{p}}}}} + \frac{{{U_{{\text{oc}}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} - \frac{{{U_{\text{d}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} -\\ &\quad\quad\quad \frac{{{U_{\text{p}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{d}}}{C_{\text{p}}}}} - \frac{{{U_{\text{p}}}}}{{{R_{\text{p}}}{C_{\text{p}}}}} \\& \frac{{{\text{d}}{U_{\text{c}}}}}{{{\text{d}}t}} = \frac{{{I_{\text{L}}}}}{{{C_{\text{c}}}}} + \frac{{{U_{{\text{oc}}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} - \frac{{{U_{\text{d}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} -\\& \quad\quad\quad \frac{{{U_{\text{p}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{d}}}{C_{\text{c}}}}} - \frac{{{U_{\text{c}}}}}{{{R_{\text{c}}}{C_{\text{c}}}}} \end{aligned} $

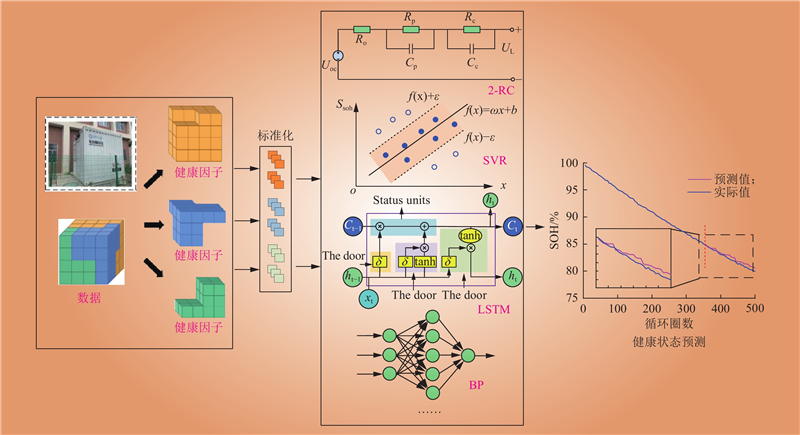

图 2 数据驱动法架构

Fig.2 The structure of he data-driven methods

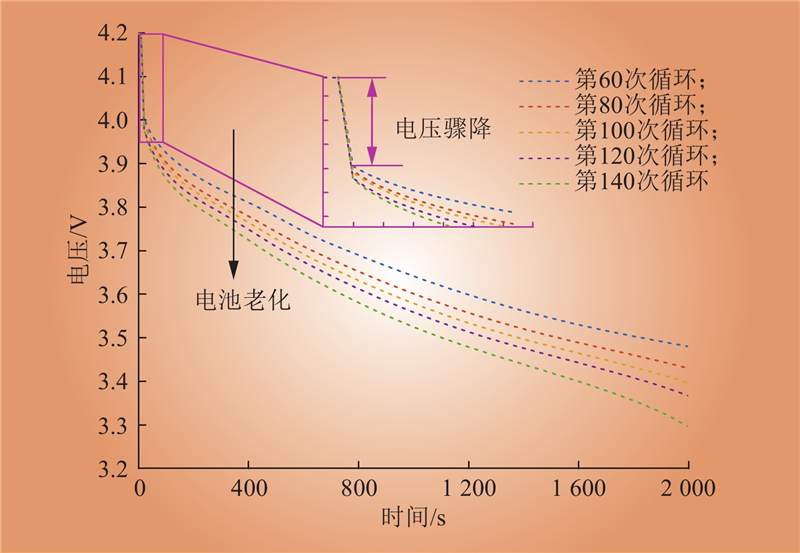

图 3 电压急剧下降变化趋势

Fig.3 The change trend of sharp voltage drop

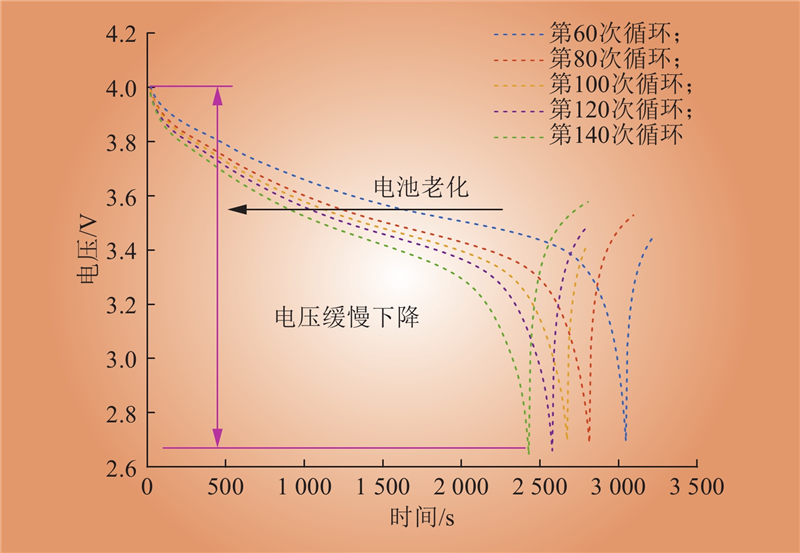

图 4 电压缓慢下降的变化趋势

Fig.4 The change trend of slow voltage drop

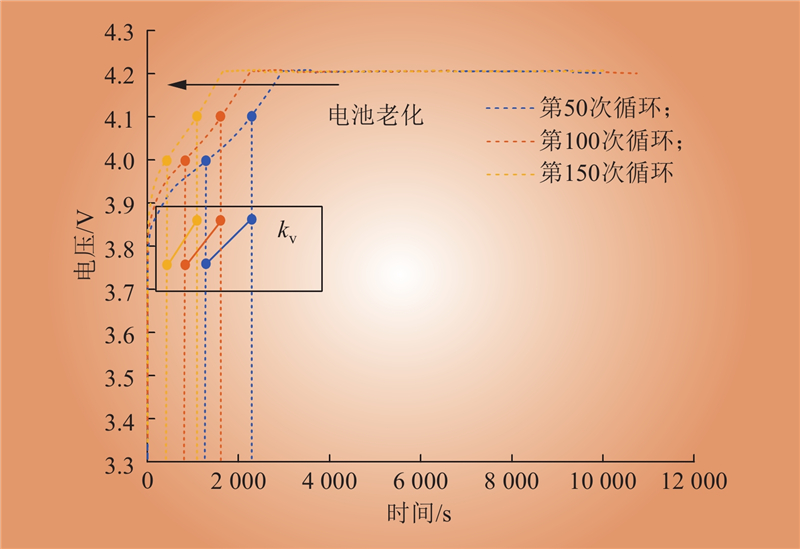

图 5 电压变化率示意

Fig.5 Schematic diagram of voltage change rate

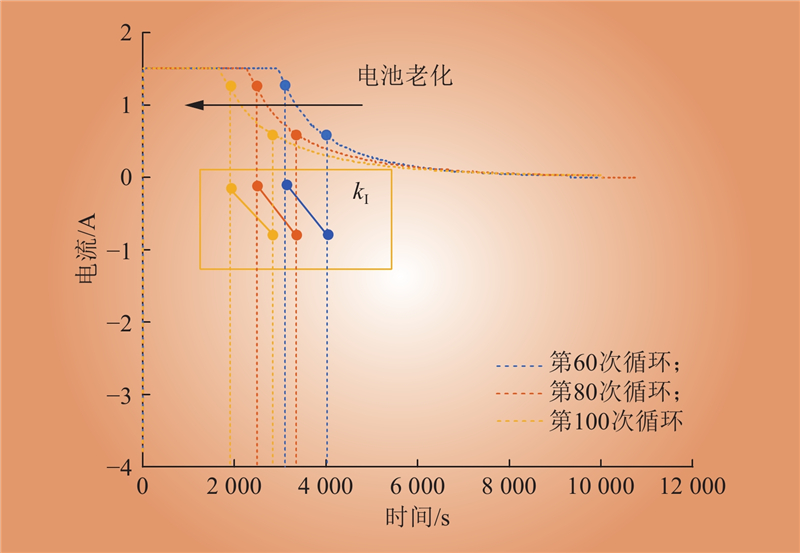

图 6 电流变化率示意

Fig.6 Schematic diagram of current change rate

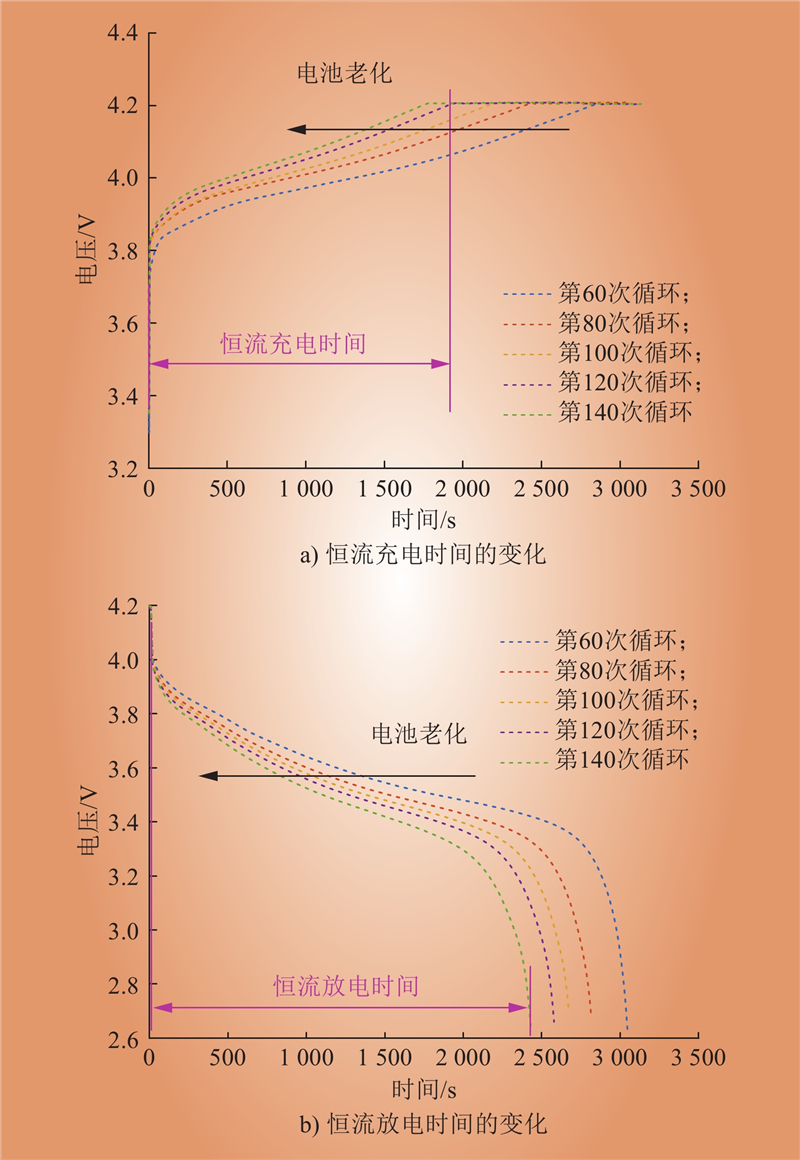

图 7 恒流充放电时间的变化趋势

Fig.7 The change trend of constant-current charge/discharge time

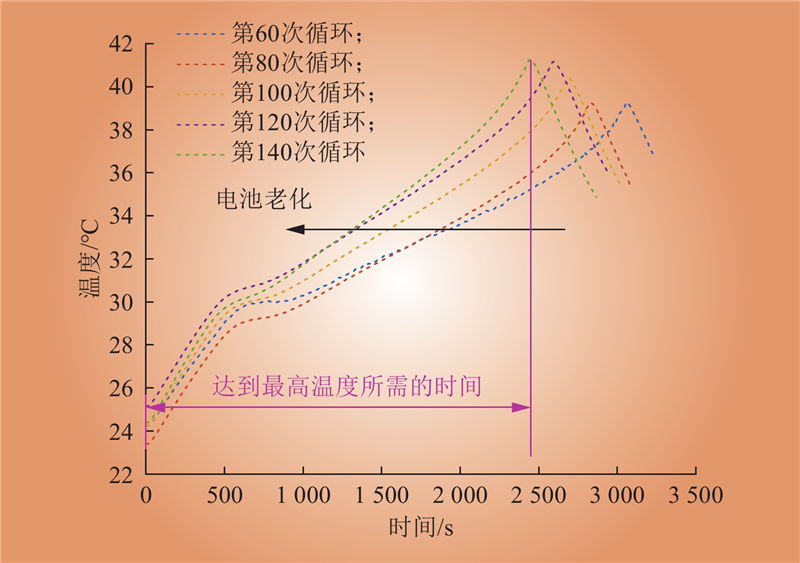

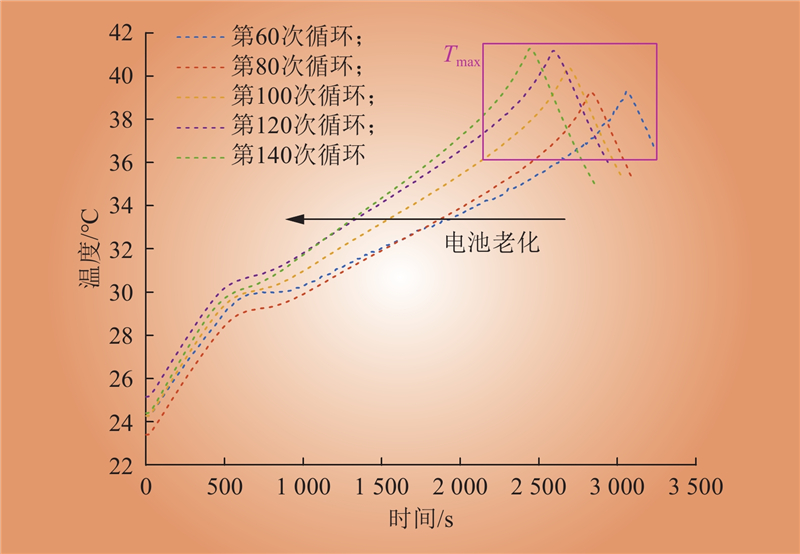

图 8 达到最高温度所需时间的变化趋势

Fig.8 The change trend of time required to reach the maximum temperature

图 9 最高气温的变化趋势

Fig.9 The change trend of maximum temperature

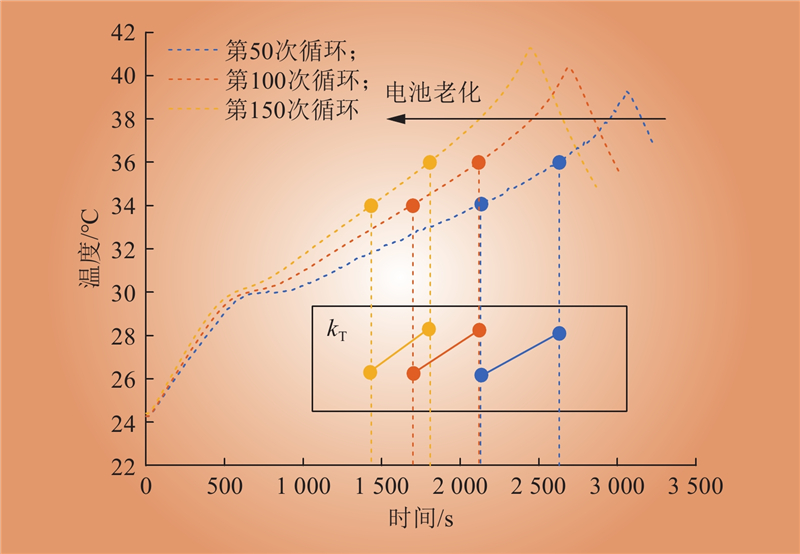

图 10 温度变化率示意

Fig.10 Schematic diagram of temperature change rate

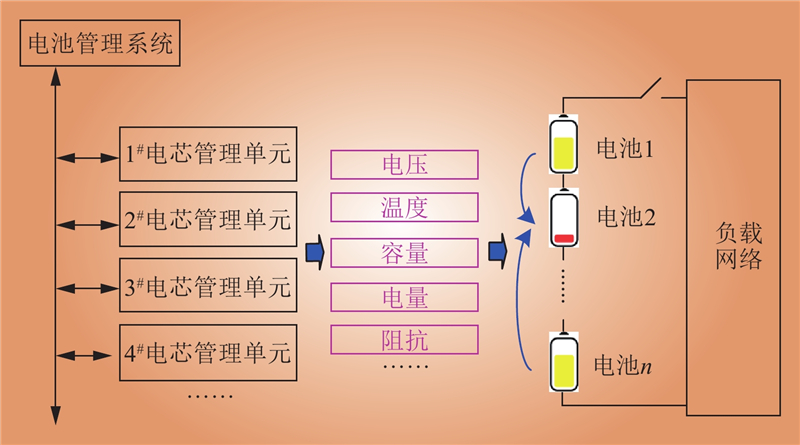

图 11 电池一致性的综合评估方法

Fig.11 Comprehensive evaluation method for consistency

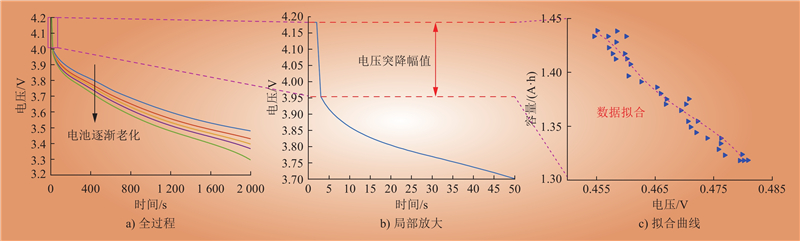

图 12 基于电压幅值的经验拟合模型

Fig.12 Empirical fitting model based on voltage

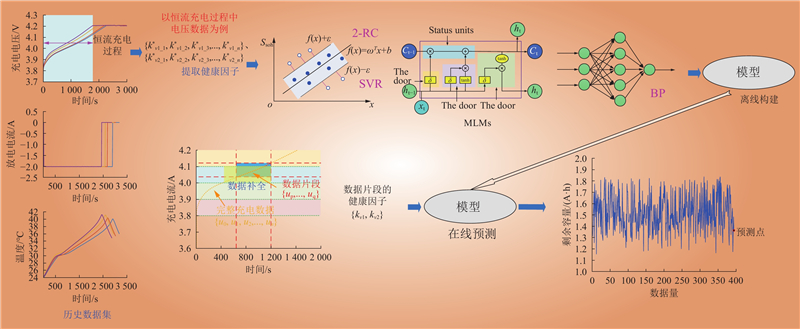

图 13 基于机器学习模型的电池剩余容量示意

Fig.13 Diagram of the proposed prediction remaining life based on machine learning model

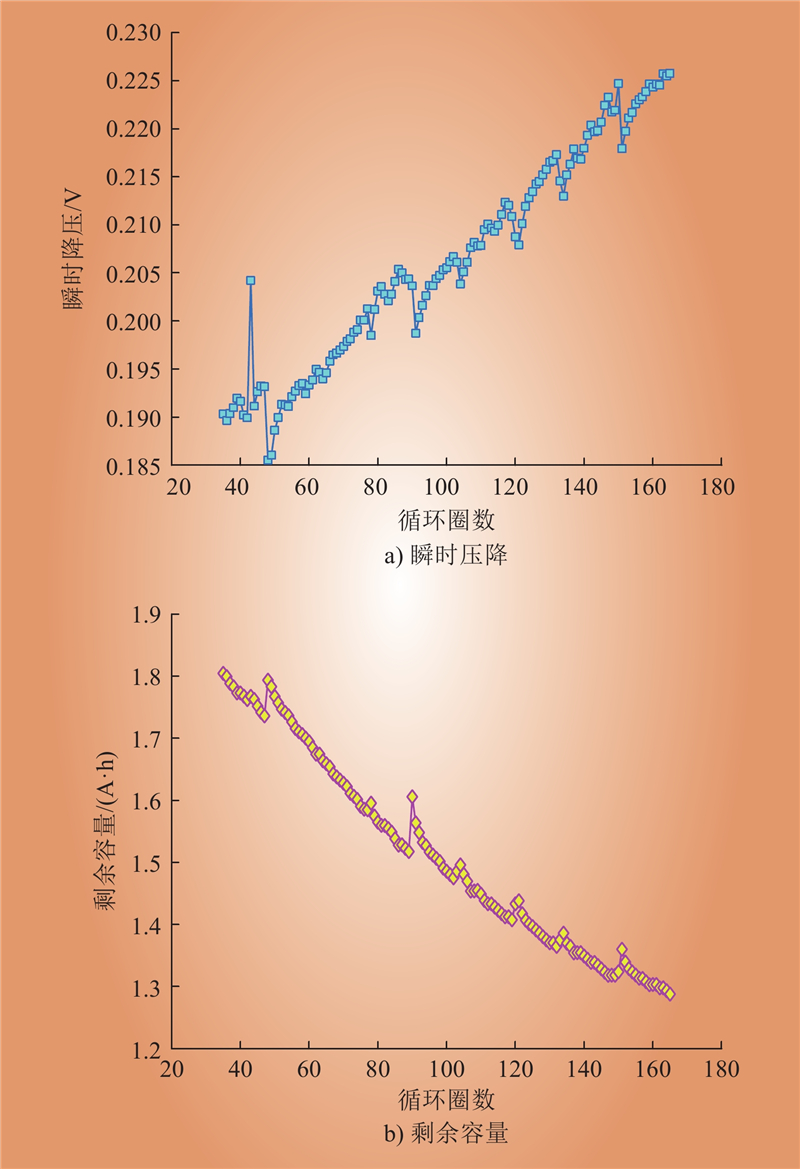

图 14 B0005电池35-165循环圈数下的瞬时压降与剩余容量采集结果

Fig.14 The sharp voltage drop and remaining capacity collection results of battery numbered B0005 under 35 to 165 cycles

表 2 EFM方法容量估计结果与误差

Table 2 Capacity estimation results and errors of EFM

循环圈数	估计值/ (A·h)	实际值/ (A·h)	MAE/ (A·h)	RMSE/ (A·h)	MAPE/%
160	1.30668	1.30336	0.0045	0.0054	0.35
161	1.30467	1.30341
162	1.30532	1.29789
163	1.29713	1.29807
164	1.29884	1.29346
165	1.29682	1.28800

表 3 MLM法容量预测结果与误差

Table 3 Capacity prediction results and errors of MLM

循环圈数		预测值/(A·h)		实际值/(A·h)		MAE/(A·h)		MAPE/%
165		1.29213		1.28800		0.0041		0.32

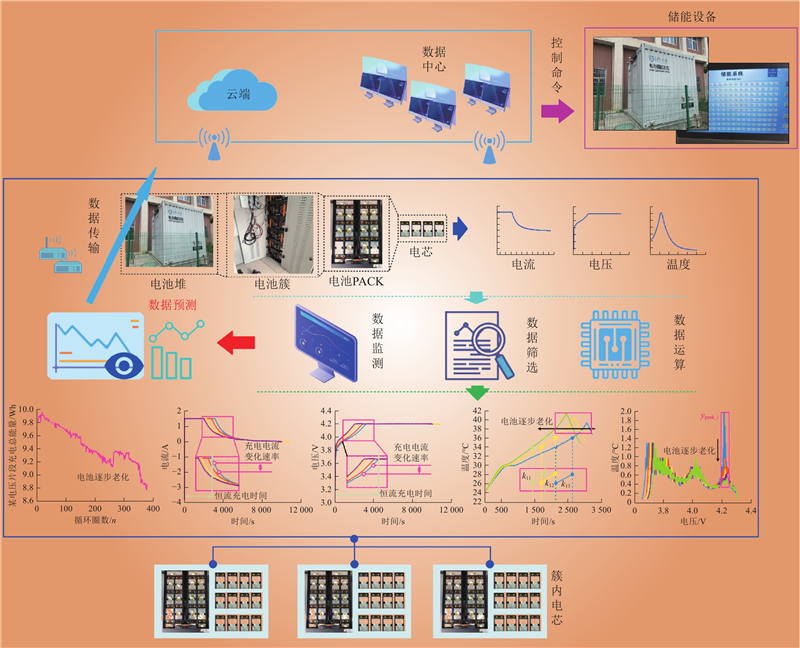

图 15 边缘计算平台结构

Fig.15 The structure of edging computing platform

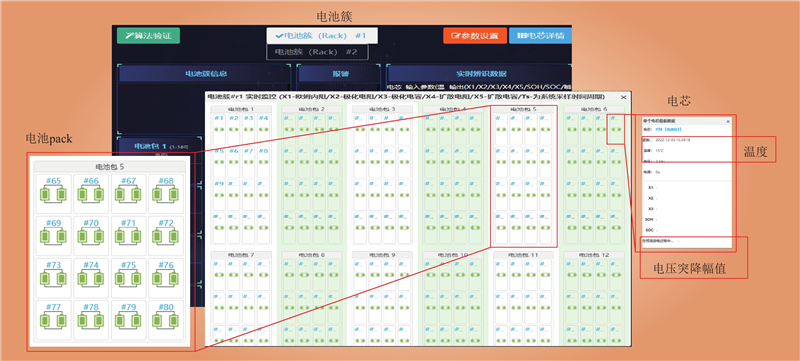

图 16 电池边缘计算系统界面

Fig.16 Edge Computing System Interface

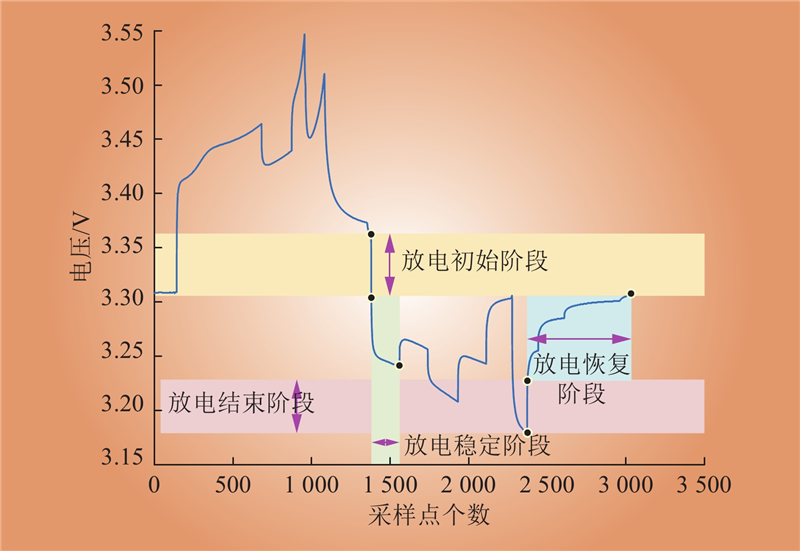

图 17 电池电压放电阶段

Fig.17 Intelligent inspection robot schematic

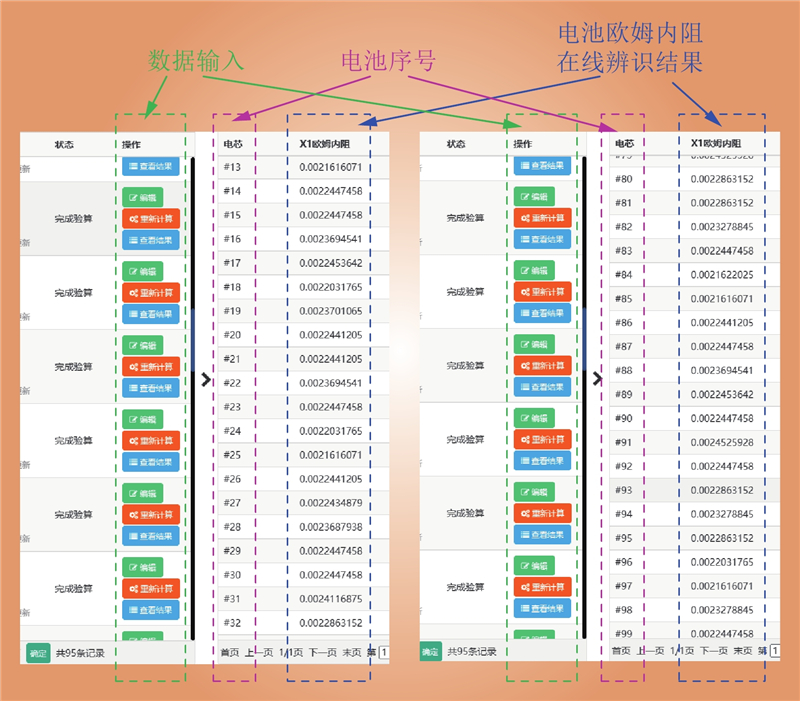

图 18 欧姆内阻的在线鉴定结果

Fig.18 Online characterization results for ohmic internal resistance

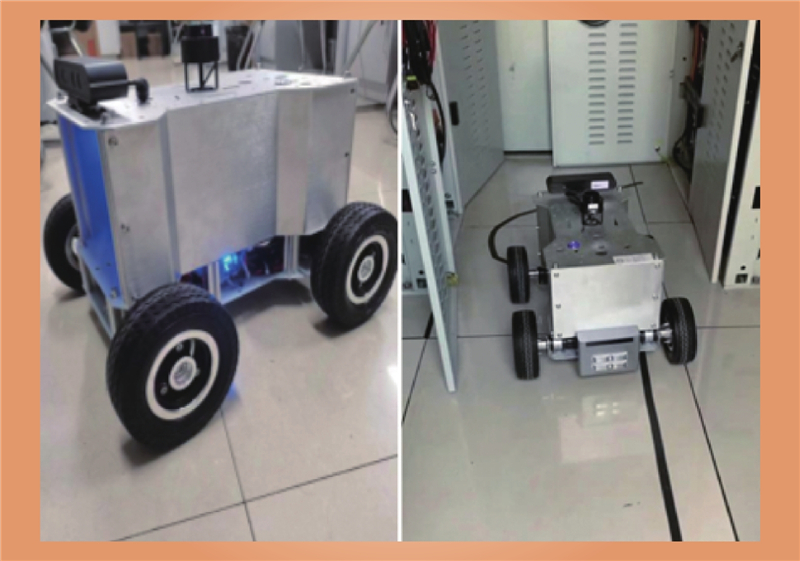

图 19 智能巡检机器人

Fig.19 Intelligent inspection robot schematic

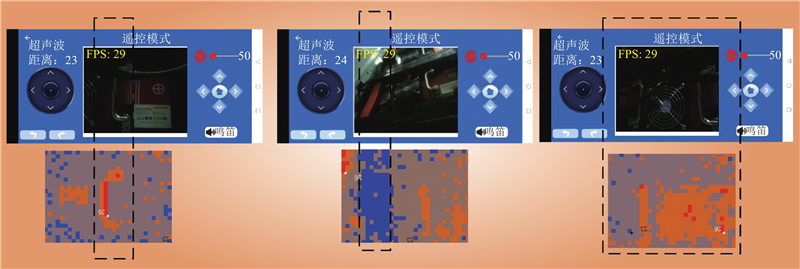

图 20 智能巡检机器人的热成像结果

Fig.20 Thermal imaging results for intelligent inspection robots

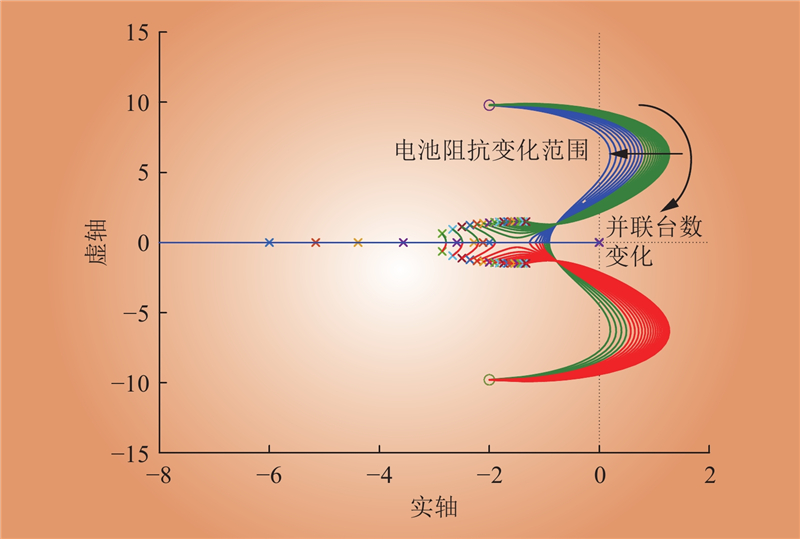

图 21 基于电池阻抗变化的根轨迹

Fig.21 Root locus diagram based on changes in battery impedance

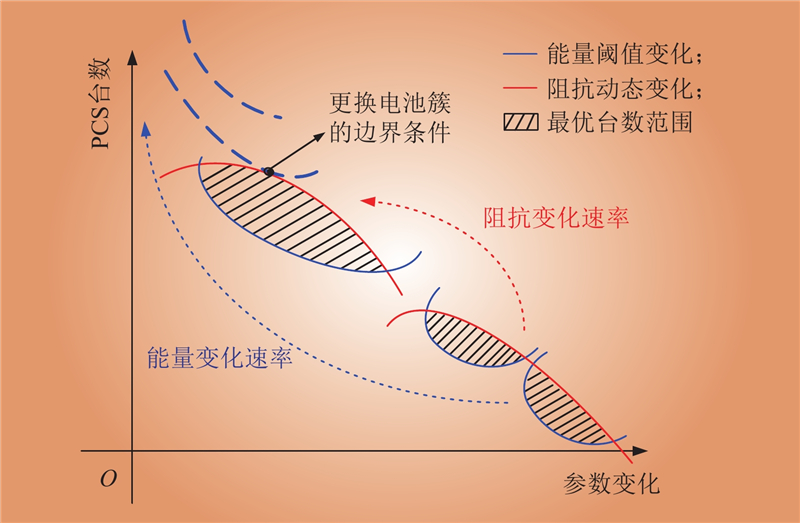

图 22 基于阻抗和能量变化速率的最优台数范围区间

Fig.22 Range of optimal number of stations based on impedance and energy change rate

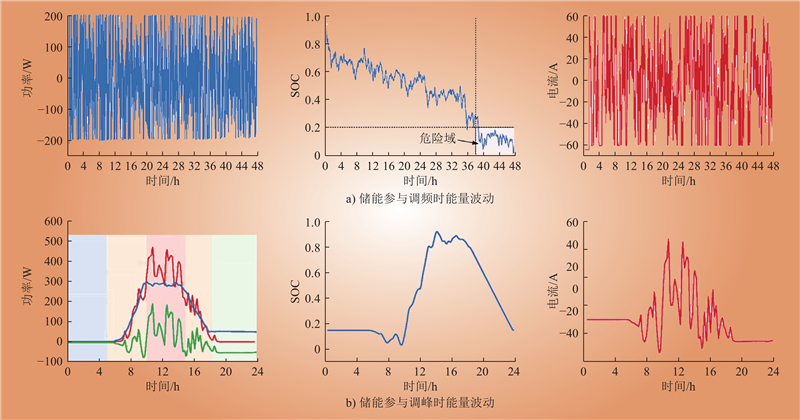

图 23 储能参与调频和调峰能量波动

Fig.23 The map of energy storage participation in FM and peaking energy fluctuations

参考文献 65

1	黎冲, 王成辉, 王高, 等. 基于数据驱动的锂离子电池健康状态估计技术[J]. 中国电力, 2022, 55 (8): 73- 86, 95.
	LI Chong, WANG Chenghui, WANG Gao, et al. Technology of lithium-ion battery state-of-health assessment based on data-driven[J]. Electric Power, 2022, 55 (8): 73- 86, 95.
2	曹文炅, 雷博, 史尤杰, 等. 韩国锂离子电池储能电站安全事故的分析及思考[J]. 储能科学与技术, 2020, 9 (5): 1539- 1547.
	CAO Wenjiong, LEI Bo, SHI Youjie, et al. Ponderation over the recent safety accidents of lithium-ion battery energy storage stations in South Korea[J]. Energy Storage Science and Technology, 2020, 9 (5): 1539- 1547.
3	唐文杰, 姜欣, 刘昊琰, 等. 基于气液逸出物图像识别的锂离子电池火灾早期预警[J]. 高电压技术, 2022, 48 (8): 3295- 3304.
	TANG Wenjie, JIANG Xin, LIU Haoyan, et al. Early warning of lithium-ion battery fire based on image recognition of gas-liquid escape[J]. High Voltage Engineering, 2022, 48 (8): 3295- 3304.
4	胡振恺, 雷博, 李勇琦, 等. 储能用锂离子电池安全性测试与评估方法比较[J]. 储能科学与技术, 2022, 11 (5): 1650- 1656.
	HU Zhenkai, LEI Bo, LI Yongqi, et al. Comparative study on safety test and evaluation methods of lithium-ion batteries for energy storage[J]. Energy Storage Science and Technology, 2022, 11 (5): 1650- 1656.
5	王宁, 陈志强, 刘明义, 等. 基于模糊综合评价的锂离子电池健康状态评估[J]. 发电技术, 2022, 43 (5): 784- 791.
	WANG Ning, CHEN Zhiqiang, LIU Mingyi, et al. Health status assessment of lithium-ion battery based on fuzzy comprehensive evaluation[J]. Power Generation Technology, 2022, 43 (5): 784- 791.
6	朱伟杰, 董缇, 张树宏. 储能系统锂离子电池国内外安全标准对比分析[J]. 储能科学与技术, 2020, 9 (1): 279- 286.
	ZHU Weijie, DONG Ti, ZHANG Shuhong. Comparative analysis of domestic and foreign safety standards for lithium-ion batteries for energy storage system[J]. Energy Storage Science and Technology, 2020, 9 (1): 279- 286.
7	ELMAHALLAWY M, ELFOULY T, ALOUANI A, et al. A comprehensive review of lithium-ion batteries modeling, and state of health and remaining useful lifetime prediction[J]. IEEE Access, 2022, 10, 119040- 119070. DOI
8	焦自权, 范兴明, 张鑫, 等. 基于改进粒子滤波算法的锂离子电池状态跟踪与剩余使用寿命预测方法[J]. 电工技术学报, 2020, 35 (18): 3979- 3993.
	JIAO Ziquan, FAN Xingming, ZHANG Xin, et al. State tracking and remaining useful life predictive method of li-ion battery based on improved particle filter algorithm[J]. Transactions of China Electrotechnical Society, 2020, 35 (18): 3979- 3993.
9	朱晓庆, 王震坡, WANG Hsin, 等. 锂离子动力电池热失控与安全管理研究综述[J]. 机械工程学报, 2020, 56 (14): 91- 118. DOI
	ZHU Xiaoqing, WANG Zhenpo, HSIN W, et al. Review of thermal runaway and safety management for lithium-ion traction batteries in electric vehicles[J]. Journal of Mechanical Engineering, 2020, 56 (14): 91- 118. DOI
10	胡晓松, 唐小林. 电动车辆锂离子动力电池建模方法综述[J]. 机械工程学报, 2017, 53 (16): 20- 31. DOI
	HU Xiaosong, TANG Xiaolin. Review of modeling techniques for lithium-ion traction batteries in electric vehicles[J]. Journal of Mechanical Engineering, 2017, 53 (16): 20- 31. DOI
11	岳家辉, 夏向阳, 吕崇耿, 等. 计及健康特征信息量的锂离子电池健康状态与剩余寿命预测研究[J]. 电力系统保护与控制, 2023, 51 (22): 74- 87.
	YUE Jiahui, XIA Xiangyang, LÜ Chonggeng, et al. Research on the prediction of state of health and remaining useful life of lithium-ion batteries considering the amount of health factors information[J]. Power System Protection and Control, 2023, 51 (22): 74- 87.
12	吴磊, 吕桃林, 陈启忠, 等. 电化学阻抗谱测量与应用研究综述[J]. 电源技术, 2021, 45 (9): 1227- 1230. DOI
	WU Lei, LV Taolin, CHEN Qizhong, et al. Review of measurement and application of electrochemical impedance spectroscopy[J]. Chinese Journal of Power Sources, 2021, 45 (9): 1227- 1230. DOI
13	骆凡, 黄海宏, 王海欣. 基于电化学阻抗谱的退役动力电池荷电状态和健康状态快速预测[J]. 仪器仪表学报, 2021, 42 (9): 172- 180.
	LUO Fan, HUANG Haihong, WANG Haixin. Rapid prediction of the state of charge and state of health of decommissioned power batteries based on electrochemical impedance spectroscopy[J]. Chinese Journal of Scientific Instrument, 2021, 42 (9): 172- 180.
14	赵月荷, 庞宗强. 基于无迹卡尔曼滤波的动力电池健康状态估计[J]. 国外电子测量技术, 2022, 41 (10): 136- 141.
	ZHAO Yuehe, PANG Zongqiang. State of health estimation of power batteries based on unscented Kalman filter[J]. Foreign Electronic Measurement Technology, 2022, 41 (10): 136- 141.
15	吴忠强, 陈海佳. 基于自适应H2/H∞滤波的锂电池SOC和SOH联合估计[J]. 计量学报, 2023, 44 (11): 1719- 1727. DOI
	WU Zhongqiang, CHEN Haijia. Joint SOC and SOH estimation for lithium batteries based on adaptive H2/H∞ filtering[J]. Acta Metrologica Sinica, 2023, 44 (11): 1719- 1727. DOI
16	徐超, 李立伟, 杨玉新, 等. 基于改进粒子滤波的锂电池SOH预测[J]. 储能科学与技术, 2020, 9 (6): 1954- 1960.
	XU Chao, LI Liwei, YANG Yuxin, et al. Lithium-ion battery SOH estimation based on improved particle filter[J]. Energy Storage Science and Technology, 2020, 9 (6): 1954- 1960.
17	AMIR S, GULZAR M, TARAR M O, et al. Dynamic equivalent circuit model to estimate state-of-health of lithium-ion batteries[J]. IEEE Access, 2022, 10, 18279- 18288. DOI
18	魏克新, 陈峭岩. 基于自适应无迹卡尔曼滤波算法的锂离子动力电池状态估计[J]. 中国电机工程学报, 2014, 34 (3): 445- 452.
	WEI Kexin, CHEN Qiaoyan. States estimation of li-ion power batteries based on adaptive unscented Kalman filters[J]. Proceedings of the CSEE, 2014, 34 (3): 445- 452.
19	HE X T, SUN B X, ZHANG W G, et al. Multi-time scale variable-order equivalent circuit model for virtual battery considering initial polarization condition of lithium-ion battery[J]. Energy, 2022, 244, 123084. DOI
20	LI Y M, HUANG P Y, GAO L T, et al. Data-driven state of health estimation for lithium-ion batteries based on universal feature selection[J]. Journal of the Electrochemical Society, 2023, 170 (4): 040507. DOI
21	CHEN Z, XUE Q, XIAO R X, et al. State of health estimation for lithium-ion batteries based on fusion of autoregressive moving average model and Elman neural network[J]. IEEE Access, 2019, 7, 102662- 102678. DOI
22	FENG X S, ZHANG X K, XIANG Y. An inconsistency assessment method for backup battery packs based on time-series clustering[J]. Journal of Energy Storage, 2020, 31, 101666. DOI
23	SUN J L, LIU W, TANG C Y, et al. A novel active equalization method for series-connected battery packs based on clustering analysis with genetic algorithm[J]. IEEE Transactions on Power Electronics, 2021, 36 (7): 7853- 7865. DOI
24	PESARAN A A. Battery thermal models for hybrid vehicle simulations[J]. Journal of Power Sources, 2002, 110 (2): 377- 382. DOI
25	PENG X B, MA C, GARG A, et al. Thermal performance investigation of an air-cooled lithium-ion battery pack considering the inconsistency of battery cells[J]. Applied Thermal Engineering, 2019, 153, 596- 603. DOI
26	FANG K Z, CHEN S, MU D B, et al. Investigation of nickel–metal hydride battery sorting based on charging thermal behavior[J]. Journal of Power Sources, 2013, 224, 120- 124. DOI
27	WANG H Y, DONG K, LI G C, et al. Research on the consistency of the power battery based on multi-points impedance spectrum[C]//International Forum on Strategic Technology. Ulsan, Korea (South). IEEE, 2010: 1-4.
28	张媛, 夏向阳, 岳家辉, 等. 基于电池簇放电电量的电池堆不一致性在线监测方法[J]. 中国电力, 2023, 56 (7): 207- 215, 227.
	ZHANG Yuan, XIA Xiangyang, YUE Jiahui, et al. Online monitoring method of battery stack inconsistency based on discharge quantity of battery clusters[J]. Electric Power, 2023, 56 (7): 207- 215, 227.
29	AN F L, ZHANG W G, SUN B X, et al. A novel battery pack inconsistency model and influence degree analysis of inconsistency on output energy[J]. Energy, 2023, 271, 127032. DOI
30	LU Y F, LI K, HAN X B, et al. A method of cell-to-cell variation evaluation for battery packs in electric vehicles with charging cloud data[J]. eTransportation, 2020, 6, 100077. DOI
31	ZHANG C P, JIANG Y, JIANG J C, et al. Study on battery pack consistency evolutions and equilibrium diagnosis for serial- connected lithium-ion batteries[J]. Applied Energy, 2017, 207, 510- 519. DOI
32	CHANG C, ZHOU X P, JIANG J C, et al. Micro-fault diagnosis of electric vehicle batteries based on the evolution of battery consistency relative position[J]. Journal of Energy Storage, 2022, 52, 104746. DOI
33	黄彧, 王占国, 张言茹, 等. 基于离群点检测的动力电池一致性快速辨识方法[J]. 电测与仪表, 2023, 60 (10): 66- 72.
	HUANG Yu, WANG Zhanguo, ZHANG Yanru, et al. A fast identification method of power battery consistency based on outlier detection[J]. Electrical Measurement & Instrumentation, 2023, 60 (10): 66- 72.
34	向兆军, 胡凤玲, 罗明华, 等. 基于电池组模型和聚类算法的锂离子电池组SOC不一致估计[J]. 机械工程学报, 2020, 56 (18): 154- 163. DOI
	XIANG Zhaojun, HU Fengling, LUO Minghua, et al. Estimation of SOC inconsistencies in lithium-ion battery packs based on battery pack modeling and clustering algorithm[J]. Journal of Mechanical Engineering, 2020, 56 (18): 154- 163. DOI
35	李革, 孔祥栋, 孙跃东, 等. 基于产线大数据的锂离子电池一致性动态特性分选方法[J]. 储能科学与技术, 2024, 13 (4): 1188- 1196.
	LI Ge, KONG Xiangdong, SUN Yuedong, et al. Method for sorting the dynamic characteristics of lithium-ion battery consistency based on production line big data[J]. Energy Storage Science and Technology, 2024, 13 (4): 1188- 1196.
36	TIAN J Q, WANG Y J, LIU C, et al. Consistency evaluation and cluster analysis for lithium-ion battery pack in electric vehicles[J]. Energy, 2020, 194, 116944. DOI
37	CAI Y, DONG S F, WANG J X. A method for consistency determination of battery energy storage system based on fuzzy comprehensive evaluation[M]//Lecture Notes in Electrical Engineering. Singapore: Springer Singapore, 2019: 193–204.
38	LI J L, LI Y X, HENG X, et al. Consistency evaluation of retired power battery based on the analytic hierarchy process method[C]//2021 IEEE 5th Conference on Energy Internet and Energy System Integration (EI2). Taiyuan, China. IEEE, 2021: 3735–3739.
39	DENG Z W, HU X S, LI P H, et al. Data-driven battery state of health estimation based on random partial charging data[J]. IEEE Transactions on Power Electronics, 2022, 37 (5): 5021- 5031. DOI
40	LAI R C, LI X Y, WANG J. Flexible deep learning-based state of health estimation of lithium-ion batteries with features extracted from partial charging curves[J]. Batteries, 2024, 10 (5): 164. DOI
41	QIAN C, XU B H, CHANG L, et al. Convolutional neural network based capacity estimation using random segments of the charging curves for lithium-ion batteries[J]. Energy, 2021, 227, 120333. DOI
42	YAO J C, HAN T. Data-driven lithium-ion batteries capacity estimation based on deep transfer learning using partial segment of charging/discharging data[J]. Energy, 2023, 271, 127033. DOI
43	MENG H X, GENG M Y, HAN T. Long short-term memory network with Bayesian optimization for health prognostics of lithium-ion batteries based on partial incremental capacity analysis[J]. Reliability Engineering & System Safety, 2023, 236, 109288.
44	XIONG X, WANG Y J, LI K Q, et al. State of health estimation for lithium-ion batteries using Gaussian process regression-based data reconstruction method during random charging process[J]. Journal of Energy Storage, 2023, 72, 108390. DOI
45	SHI W S, CAO J, ZHANG Q, et al. Edge computing: vision and challenges[J]. IEEE Internet of Things Journal, 2016, 3 (5): 637- 646. DOI
46	FENG J, ZHANG W J, PEI Q Q, et al. Heterogeneous computation and resource allocation for wireless powered federated edge learning systems[J]. IEEE Transactions on Communications, 2022, 70 (5): 3220- 3233. DOI
47	XU X W, DING Y K, HU S X, et al. Scaling for edge inference of deep neural networks[J]. Nature Electronics, 2018, 1, 216- 222. DOI
48	吕华章, 陈丹, 范斌, 等. 边缘计算标准化进展与案例分析[J]. 计算机研究与发展, 2018, 55 (3): 487- 511. DOI
	LÜ Huazhang, CHEN Dan, FAN Bin, et al. Standardization progress and case analysis of edge computing[J]. Journal of Computer Research and Development, 2018, 55 (3): 487- 511. DOI
49	朱斌, 刘东, 刘天元, 等. 边缘计算在电力系统供需互动应用的研究进展与展望[J/OL]. 电网技术, 1–15[2024-07-11]. https://doi.org/10.13335/j.1000-3673.pst.2024.0159.
	ZHU Bin, LIU Dong, LIU Tianyuan, et al. Research progresses and prospects on application of edge computing in power system supply-demand interaction[J]. 1–15[2024-07-11]. https://doi.org/10.13335/j.1000-3673.pst.2024.0159.
50	解润生, 张国荣, 解宝. 考虑长距离输电缆特性的逆变器并网系统谐波不稳定分析及抑制[J]. 电力系统自动化, 2024, 48 (2): 128- 139. DOI
	XIE Runsheng, ZHANG Guorong, XIE Bao. Analysis and suppression of harmonic instability for grid-connected inverter system considering characteristics of long transmission cable[J]. Automation of Electric Power Systems, 2024, 48 (2): 128- 139. DOI
51	BAZARGAN D, FILIZADEH S, GOLE A M. Stability analysis of converter-connected battery energy storage systems in the grid[J]. IEEE Transactions on Sustainable Energy, 2014, 5 (4): 1204- 1212. DOI
52	NARENDRA BABU Y, PADHY N P. An approach to improve harmonic attenuation and stability performance in multi-parallel inverter system[J]. IEEE Transactions on Power Delivery, 2023, 38 (5): 3634- 3646. DOI
53	高明杰, 惠东, 高宗和, 等. 国家风光储输示范工程介绍及其典型运行模式分析[J]. 电力系统自动化, 2013, 37 (1): 59- 64. DOI
	GAO Mingjie, HUI Dong, GAO Zonghe, et al. Presentation of national wind/photovoltaic/energy storage and transmission demonstration project and analysis of typical operation modes[J]. Automation of Electric Power Systems, 2013, 37 (1): 59- 64. DOI
54	FU Q, DU W J, WANG H F. Planning of the DC system considering restrictions on the small-signal stability of EV charging stations and comparison between series and parallel connections[J]. IEEE Transactions on Vehicular Technology, 2020, 69 (10): 10724- 10735. DOI
55	张宇, 张琛, 蔡旭, 等. 并网变换器的暂态同步稳定性分析: 稳定域估计与镇定控制[J]. 中国电机工程学报, 2022, 42 (21): 7871- 7884.
	ZHANG Yu, ZHANG Chen, CAI Xu, et al. Transient grid-synchronization stability analysis of grid-tied voltage source converters: stability region estimation and stabilization control[J]. Proceedings of the CSEE, 2022, 42 (21): 7871- 7884.
56	吴青峰, 孙孝峰, 郝彦丛, 等. 微电网储能系统SOC平衡和电压频率恢复研究[J]. 太阳能学报, 2018, 39 (6): 1743- 1751.
	WU Qingfeng, SUN Xiaofeng, HAO Yancong, et al. Research of soc balance and voltage frequence recovery of microgrid energy storage system[J]. Acta Energiae Solaris Sinica, 2018, 39 (6): 1743- 1751.
57	ZHANG H T, ZHANG X Y, WANG Z L, et al. Capacity configuration of hybrid energy storage power stations participating in power grid frequency modulation[J]. Processes, 2023, 11 (10): 2843. DOI
58	陈凌彬, 夏向阳, 廖一丁, 等. 考虑多变量协同保护的储能变流器故障穿越策略[J]. 太阳能学报, 2023, 44 (1): 442- 450.
	CHEN Lingbin, XIA Xiangyang, LIAO Yiding, et al. Fault ride through strategy of power conversion system considering multi-variable cooperative protection[J]. Acta Energiae Solaris Sinica, 2023, 44 (1): 442- 450.
59	CHANG F R, LI Y, PENG Y J, et al. A dual-layer cooperative control strategy of battery energy storage units for smoothing wind power fluctuations[J]. Journal of Energy Storage, 2023, 70, 107789. DOI
60	LIN L, JIA Y Q, MA M H, et al. Long-term stable operation control method of dual-battery energy storage system for smoothing wind power fluctuations[J]. International Journal of Electrical Power & Energy Systems, 2021, 129, 106878.
61	LI X N, LYU L X, GENG G C, et al. Power allocation strategy for battery energy storage system based on cluster switching[J]. IEEE Transactions on Industrial Electronics, 2022, 69 (4): 3700- 3710. DOI
62	GAO X J, WU X G, XIA Y L, et al. Life extension of a multi-unit energy storage system by optimizing the power distribution based on the degradation ratio[J]. Energy, 2024, 286, 129598. DOI
63	叶晖, 李爱魁, 田刚领, 等. 考虑能量效率和SOC均衡的电池储能电站双层功率分配策略[J]. 中国电机工程学报, 2024, 44 (13): 5185- 5196.
	YE Hui, LI Aikui, TIAN Gangling, et al. Double-layer power distribution strategy for battery storage power station considering energy efficiency and state-of-charge balance[J]. Proceedings of the CSEE, 2024, 44 (13): 5185- 5196.
64	夏向阳, 陈贵全, 刘俊翔, 等. 储能系统直流侧纹波电流对锂离子电池寿命影响分析及优化控制策略[J]. 电工技术学报, 2023, 38 (22): 6218- 6229.
	XIA Xiangyang, CHEN Guiquan, LIU Junxiang, et al. Analysis of the impact of DC-side ripple current on lithium-ion battery life in energy storage systems and optimal control strategies[J]. Transactions of China Electrotechnical Society, 2023, 38 (22): 6218- 6229.
65	LI X N, GENG G C, JIANG Q Y, et al. Consensus-based multi-converter power allocation strategy in battery energy storage system[J]. Journal of Energy Storage, 2023, 60, 106623. DOI
