基于稀疏光谱成像的线路复合绝缘子积污状态可视化评估

doi:10.11930/j.issn.1004-9649.202311070

摘要/Abstract

摘要：

对线路复合绝缘子的污秽状态进行及时、准确的在线评估，可以有效防止污闪事故的发生。提出一种线路复合绝缘子污秽状态可视化评估方法。首先，结合图像配准算法和目标区域框选构建多源反射光谱图像半自动化配准方法，解决多目相机固有的图像配准难题；其次，利用低成本、轻量化、高成像质量的多目式稀疏光谱成像设备拍摄人工染污样品并进行模型预训练，进一步通过真实自然积污样品进行迁移训练，构建复合绝缘材料表面污秽等级诊断模型；最后，借助无人机平台，在不同拍摄条件下对线路复合绝缘子污秽状态进行实测分析。结果表明，该方法对于人工染污和自然积污样品污秽等级的划分准确率分别为95.3%和87.8%，实际线路复合绝缘子污秽等级划分准确率可达90%，污秽分布区域显示清晰。通过无人机实测分析验证了基于稀疏光谱成像技术的线路绝缘子污秽等级评估和污秽分布可视化诊断的可行性，为线路绝缘子状态巡视和检修决策提供了新的技术手段。

关键词: 复合绝缘子, 稀疏光谱成像技术, 污秽状态评估, 图像配准, 迁移学习

Abstract:

The timely and accurate online estimation for composite insulators of transmission lines can effectively prevent pollution flashover accidents. A visualized estimation method of composite insulator pollution status of transmission line was proposed in this paper. Firstly, a semi-automatic registration method for multisource reflective spectral images was constructed by combining image registration algorithm and target area selection, which solved the inherent image registration problem of multi-lens camera. Secondly, model pre-training was conducted through shooting artificial contaminated samples using the low cost, lightweight, and high imaging quality multi-lens multispectral imaging equipment, and further transfer training was conducted through real natural contaminated samples to construct a pollution grade diagnosis model of composite insulation material surfaces. Finally, the actual pollution status of transmission line composite insulators was measured and analyzed under different shooting conditions using the unmanned aerial vehicle platform. The results indicate that the pollution grade classification accuracy for artificial and natural contaminated samples is 95.3% and 87.8%, respectively, and the pollution grade classification accuracy for actual transmission line composite insulators can reach up to 90% with pollution distribution area clearly displayed. The feasibility of transmission line insulator pollution grade estimation and pollution distribution visualization diagnosis based on reflective multispectral imaging technology is verified, which can provide a new technique for status inspection and maintenance decision of transmission line insulators.

Key words: composite insulator, multispectral imaging technology, estimation of pollution status, image registration, transfer learning

任明, 李乾宇, 夏昌杰, 董明. 基于稀疏光谱成像的线路复合绝缘子积污状态可视化评估[J]. 中国电力, 2025, 58(2): 203-215.

Ming REN, Qianyu LI, Changjie XIA, Ming DONG. Visualized Estimation of Composite Insulator Pollution Status of Transmission Line Based on Reflective Multispectral Imaging[J]. Electric Power, 2025, 58(2): 203-215.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202311070

https://www.electricpower.com.cn/CN/Y2025/V58/I2/203

图/表 25

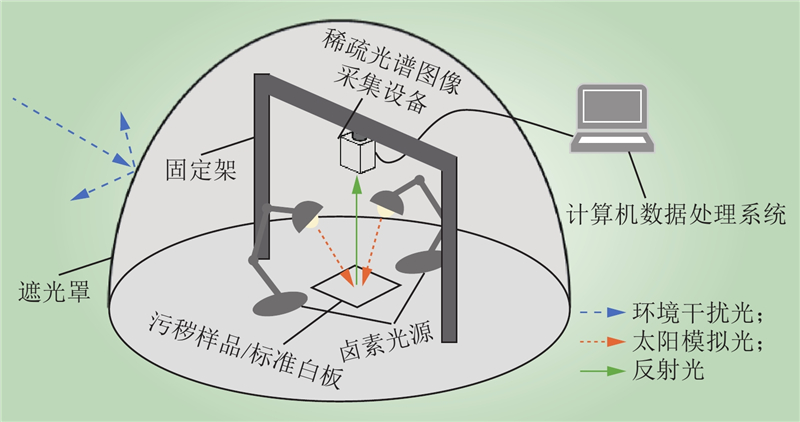

图 1 稀疏光谱图像信息采集平台示意

Fig.1 Diagram of multispectral image information acquisition platform

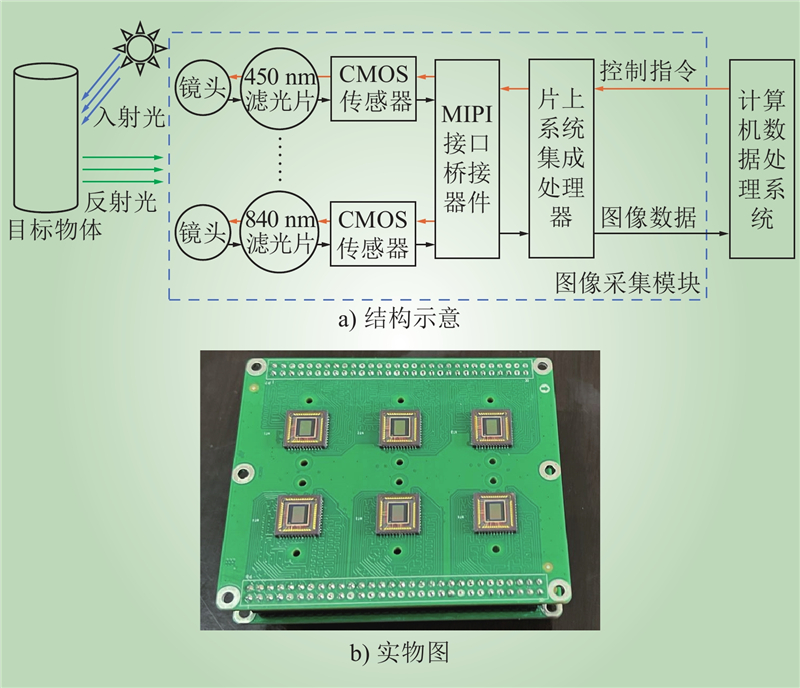

图 2 多目式稀疏光谱图像采集设备结构示意及实物

Fig.2 Physical image and structure diagram of multi-lens multispectral image acquisition device

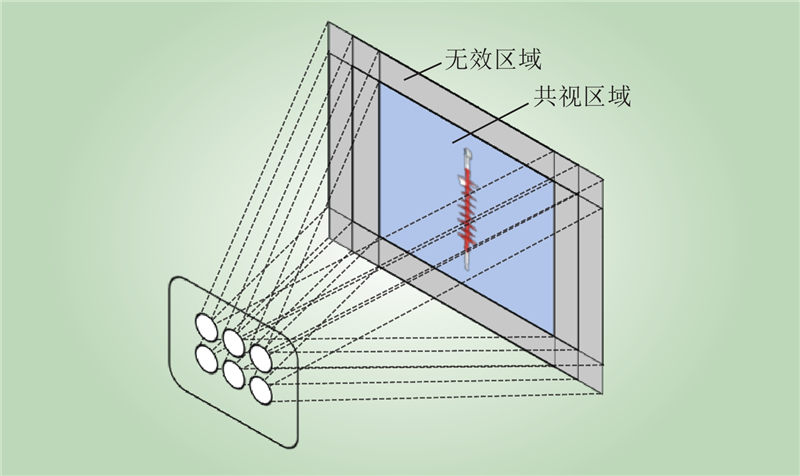

图 3 多目式稀疏光谱相机图像采集示意

Fig.3 Image acquisition diagram using multi-lens multispectral camera

表 1 多目式稀疏光谱图像采集设备主要参数

Table 1 Main parameters of multi-lens multispectral image acquisition device

参数名称		数值
质量/g		640
中心波长（带宽）/nm		450 (35)、555 (25)、660 (22.5)、 720 (10)、750 (10)、840 (30)
量化位数/bit		12
图像分辨率		1280×960
CMOS尺寸		1/3′′
像元尺寸/μm		3.75×3.75

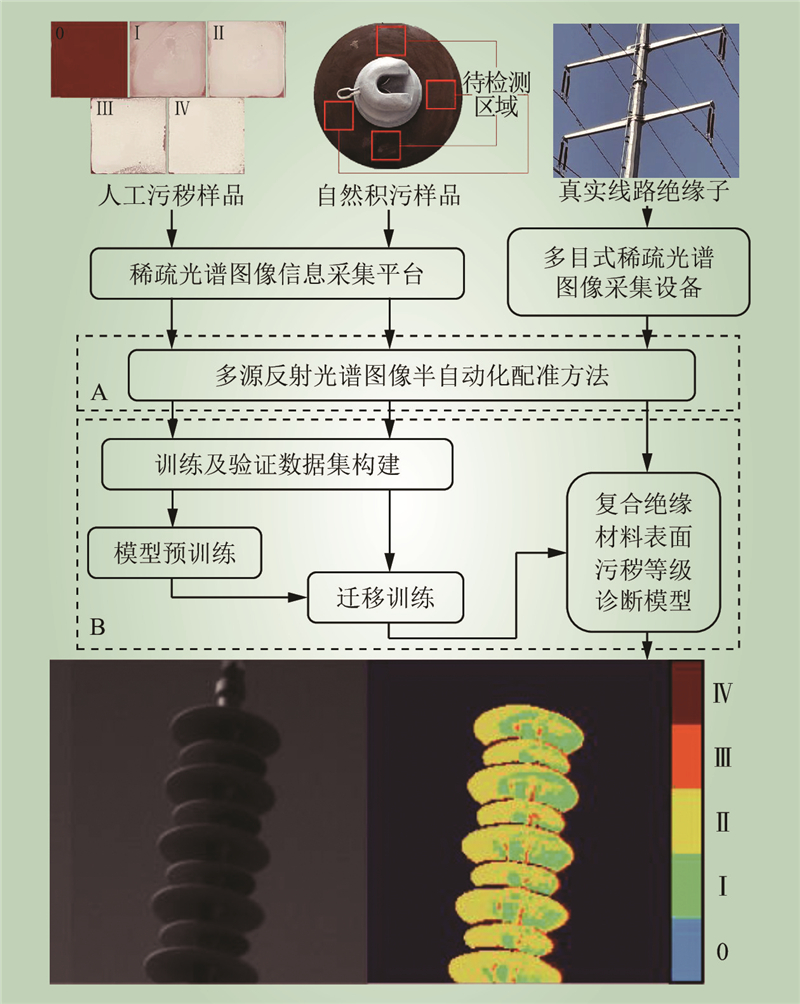

图 4 污秽状态可视化评估方法的整体构建流程及应用方式

Fig.4 Overall construction process and application of visualization estimation method for pollution status

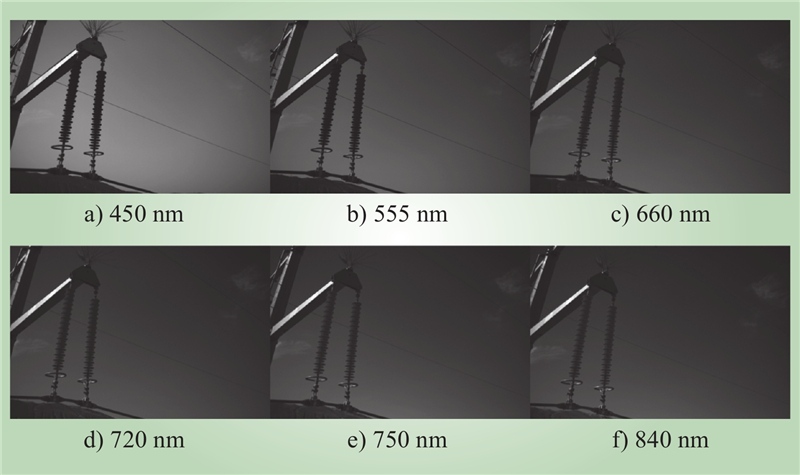

图 5 待配准线路复合绝缘子稀疏光谱图像

Fig.5 Unregistered multispectral image of transmission line composite insulators

表 2 不同配准算法的互信息和配准时间

Table 2 Mutual information and registration time of different registration algorithms

配准算法	综合互信息	配准时间/s
基于SIFT的配准算法	0.780 2	2.587 5
基于SURF的配准算法	0.775 0	0.881 3
基于ORB的配准算法	0.751 4	0.868 8

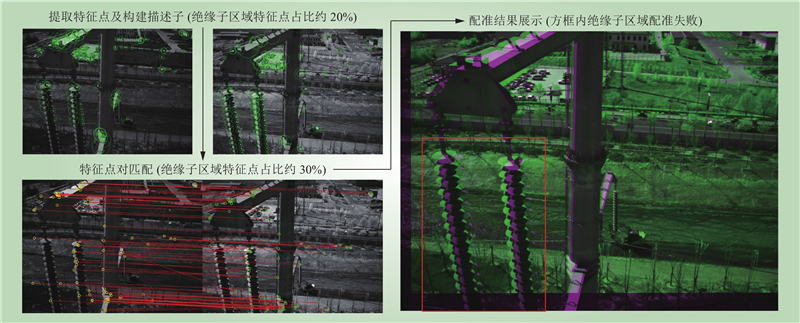

图 6 基于SURF算法的复杂背景稀疏光谱图像配准

Fig.6 Complex background multispectral image registration based on SURF algorithm

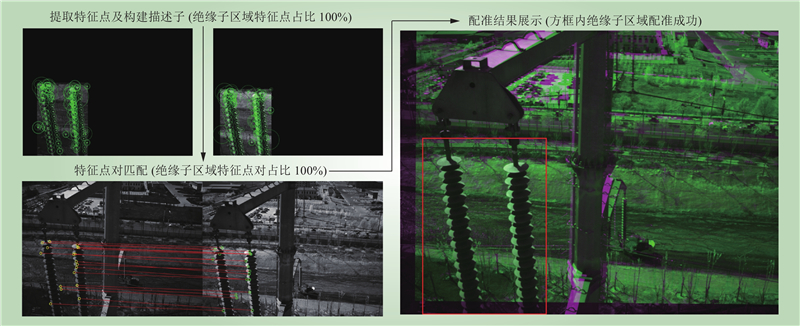

图 7 基于目标区域框选的复杂背景稀疏光谱图像配准

Fig.7 Complex background multispectral image registration based on target area selection

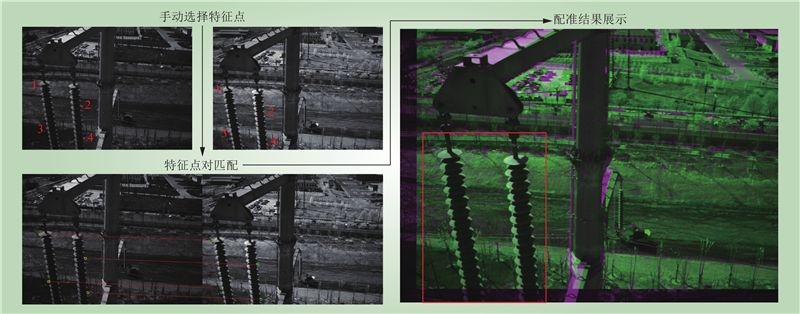

图 8 基于特征点对标记的复杂背景稀疏光谱图像配准

Fig.8 Complex background multispectral image registration based on feature point pair marking

表 3 不同等级污秽的NaCl和高岭土含量

Table 3 NaCl and Kaolin content of different pollution grades 单位：mg/cm2

污秽等级	NaCl	CaSO₄	高岭土
0	0	0	0
Ⅰ	0.016	0.040	0.336
Ⅱ	0.028	0.070	0.588
Ⅲ	0.070	0.175	1.470
Ⅳ	0.100	0.250	2.100

图 9 不同污秽等级复合绝缘子片样品

Fig.9 Composite insulation material samples with different pollution levels

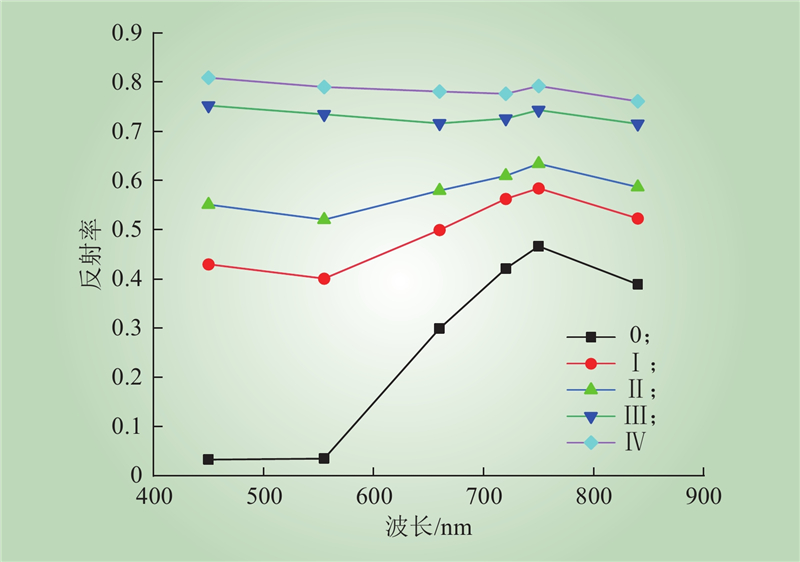

图 10 复合绝缘材料不同等级污秽光谱曲线

Fig.10 Spectral curve of composite insulation material with different pollution grades

表 4 不同分类模型的评估结果

Table 4 Estimation result of different classification models

分类模型	超参数搜索算法	验证准确率/%	测试准确率/%
SVM	网格搜索	94.6	94.5
	随机搜索	95.2	95.0
	贝叶斯优化	95.2	95.0
KNN	网格搜索	95.0	94.8
	随机搜索	95.2	95.0
	贝叶斯优化	95.3	95.2
随机森林	网格搜索	94.9	94.6
	随机搜索	95.2	95.0
	贝叶斯优化	95.4	95.3

表 5 污秽等级诊断模型的超参数

Table 5 Hyper-parameters of pollution grade diagnosis model

参数名称		参数值
决策树数量		486
最大分离特征数		7
决策树最大深度		93
特征选取方法		基尼系数

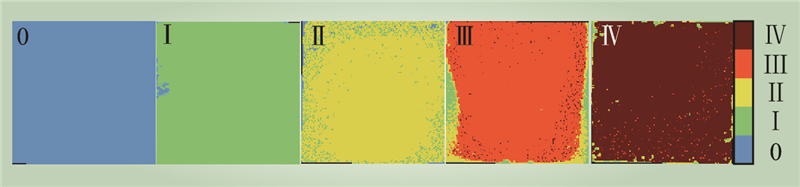

图 11 复合绝缘子片表面污秽状态可视化结果

Fig.11 Visualized result of surface pollution status of composite insulation material

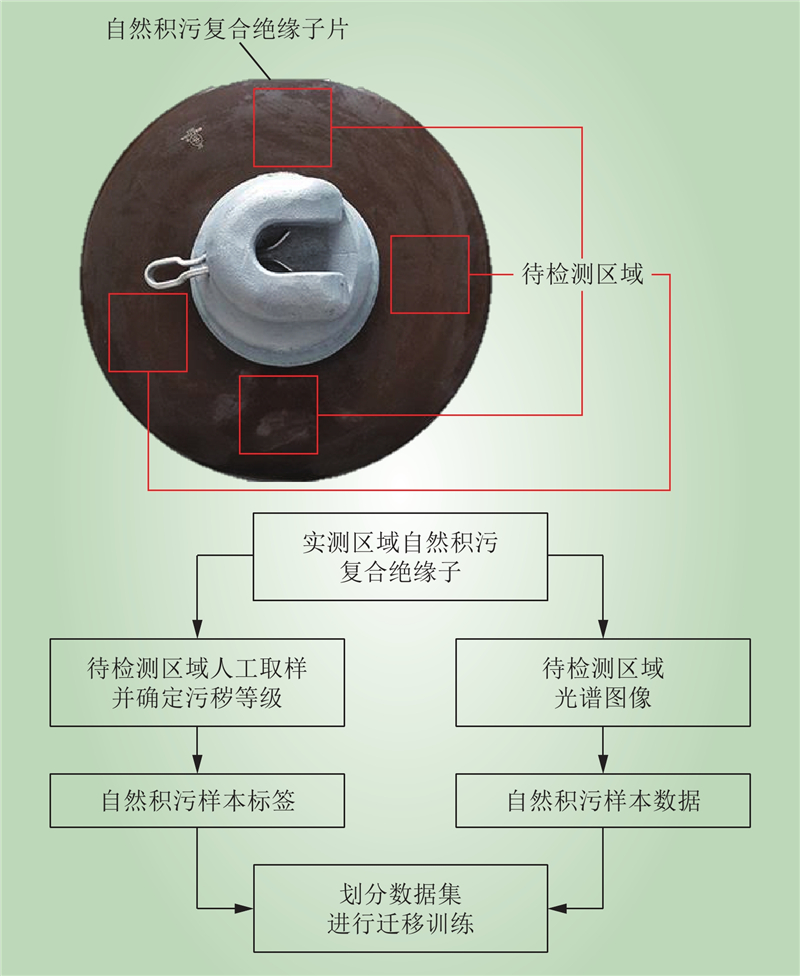

图 12 迁移训练数据构建流程示意

Fig.12 Migration training data construction process

表 6 自然积污样本数据集划分

Table 6 Data set division of natural contaminated samples

样本污秽等级	训练集数据/个	测试集数据/个
0	1 550	523
Ⅰ	1 650	546
Ⅱ	1 700	577
Ⅲ	1 750	584
Ⅳ	1 800	612

表 7 迁移训练前后自然积污数据集的评估结果

Table 7 Estimation result of natural contamination dataset before and after migration training

	训练集准确率/%	测试集准确率/%
迁移训练前	70.4	71.5
迁移训练后	90.2	87.8

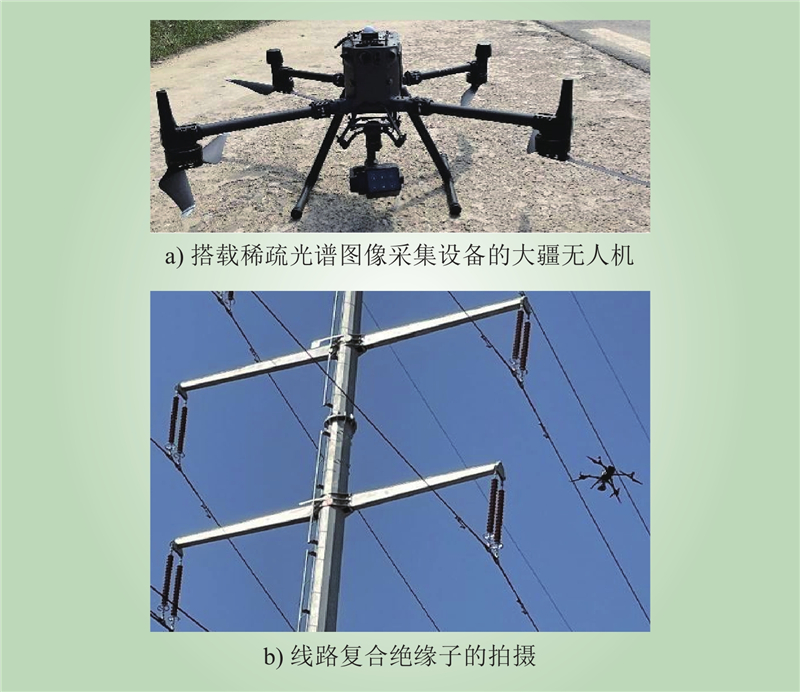

图 13 实测现场实拍图

Fig.13 Actual pictures of measurement site

表 8 线路复合绝缘子拍摄计划

Table 8 Shooting plan of transmission line composite insulators

组别	环境光照	拍摄角度	绝缘子器型
a	晴天（60 000~80 000 lux）	30°俯拍	复合悬式绝缘子
b	晴天（60 000~80 000 lux）	30°仰拍	复合悬式绝缘子
c	阴天（10 000~15 000 lux）	30°仰拍	复合悬式绝缘子
d	阴天（10 000~15 000 lux）	30°俯拍	瓷复合绝缘子
e	阴天（10 000~15 000 lux）	30°仰拍	瓷复合绝缘子

图 14 本文检测方法及传统检测方法流程示意

Fig.14 Flow chart of the proposed detection method and traditional method

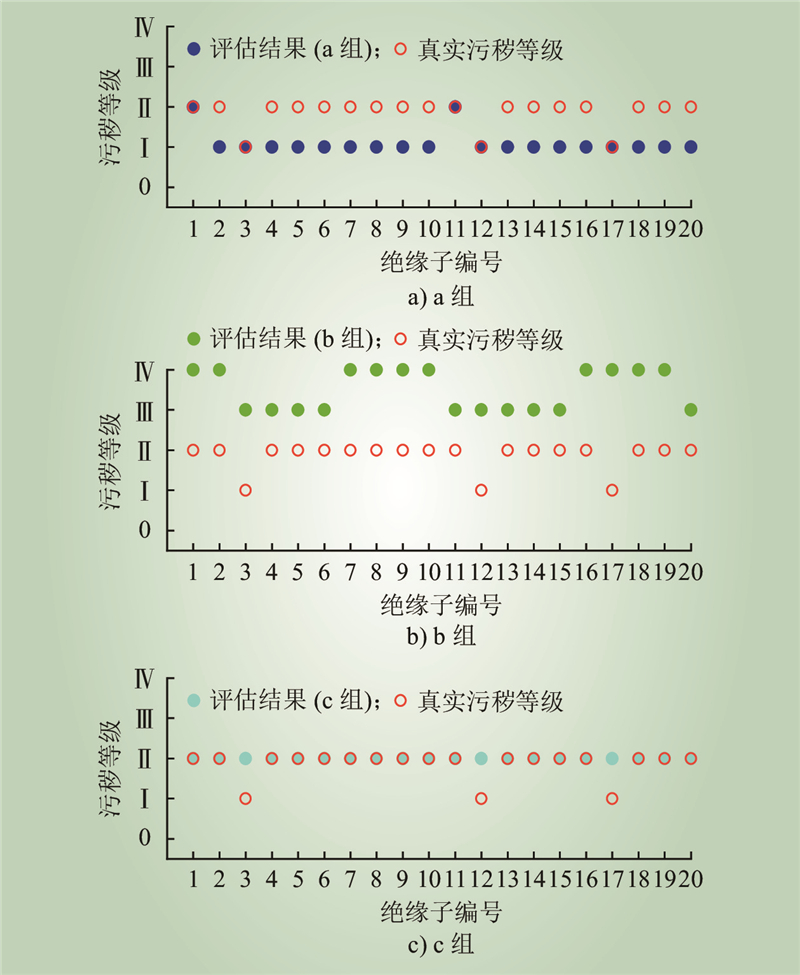

图 15 复合悬式绝缘子真实污秽等级与评估结果对比

Fig.15 Comparison of actual pollution grade and estimation result of composite pin insulator

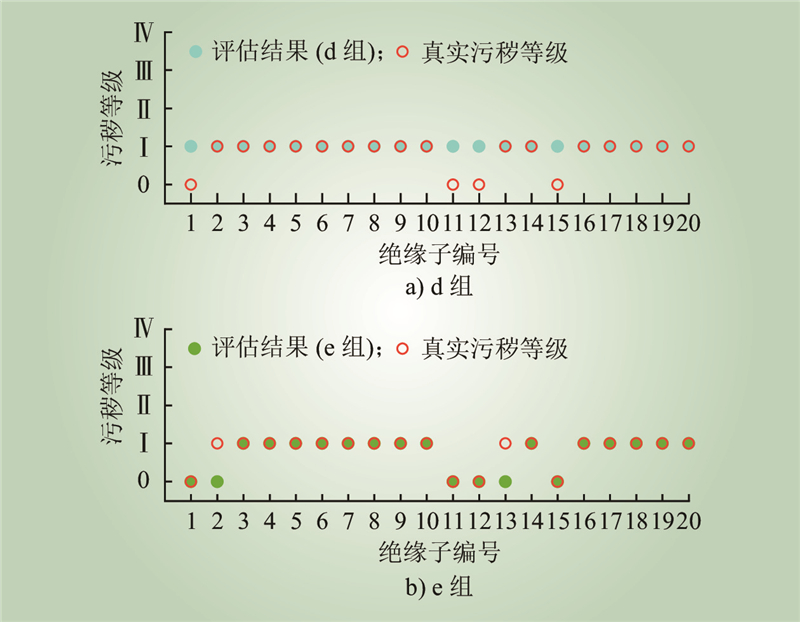

图 16 瓷复合绝缘子真实污秽等级与评估结果对比

Fig.16 Comparison of actual pollution grade and estimation result of porcelain composite insulator

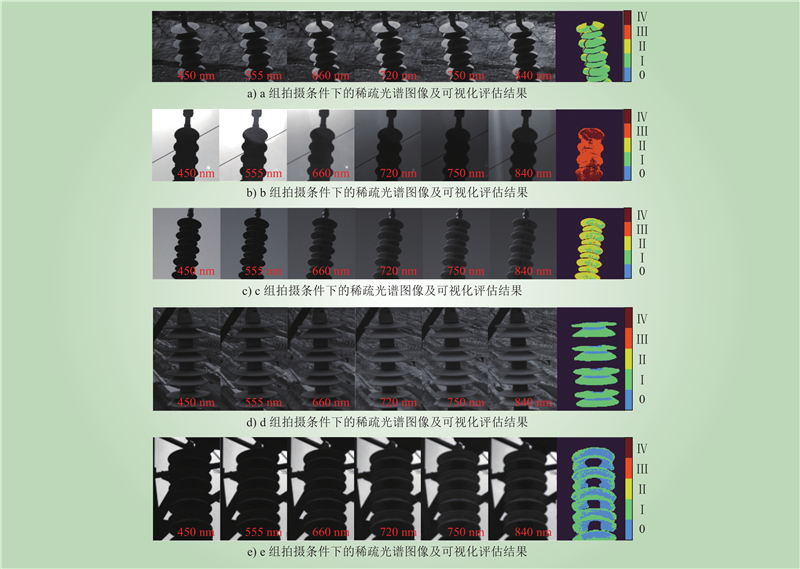

图 17 绝缘子稀疏光谱图像及污秽分布可视化评估结果

Fig.17 Multispectral image of insulator and visualized estimation result of pollution distribution
