基于主动迁移学习的电力系统暂态稳定自适应评估

doi:10.11930/j.issn.1004-9649.202404033

摘要/Abstract

摘要：

构建了一个基于主动迁移学习的框架，基于原始场景数据搭建并训练源域暂态稳定评估（transient stability assessment，TSA）模型。当运行场景变化导致模型性能下降时启动更新机制，通过短时时域仿真生成大量无稳定性标签的样本以及完整仿真生成小批量带标签样本，采用基于变分对抗的主动学习方法学习数据潜在的特征表示空间，根据置信度选择信息量最大的无标签样本并进行标注。迁移基础模型参数并结合有标签样本进行微调，在保证迁移精度的情况下节省更新时间，通过IEEE 39节点验证了所提方法的有效性。

关键词: 电力系统, 暂态稳定评估, 迁移学习, 主动学习

Abstract:

This paper constructs a framework based on active transfer learning. The basic model is built and trained based on the original scene data. The update mechanism is started when the performance of the model decreases due to the change of the running scene. A large number of samples without stable state are generated by short-term time-domain simulation, and a small batch of labeled samples are generated by complete simulation. The active learning method based on variational adversarial is used to learn the potential feature representation space of the data, and the unlabeled samples with the largest amount of information are selected and labeled according to the confidence. The basic model parameters are migrated and fine-tuned with labeled samples to save the update time while ensuring the migration accuracy. The IEEE 39 node verifies the effectiveness of the proposed method.

Key words: power system, transient stability assessment, transfer learning, active learning

中图分类号:

TM732

赵晨浩, 焦在滨, 李程昊, 张迪, 张鹏辉. 基于主动迁移学习的电力系统暂态稳定自适应评估[J]. 中国电力, 2025, 58(1): 70-77.

Chenhao ZHAO, Zaibin JIAO, Chenghao LI, Di ZHANG, Penghui ZHANG. Adaptive Assessment of Power System Transient Stability Based on Active Transfer Learning[J]. Electric Power, 2025, 58(1): 70-77.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202404033

https://www.electricpower.com.cn/CN/Y2025/V58/I1/70

图/表 12

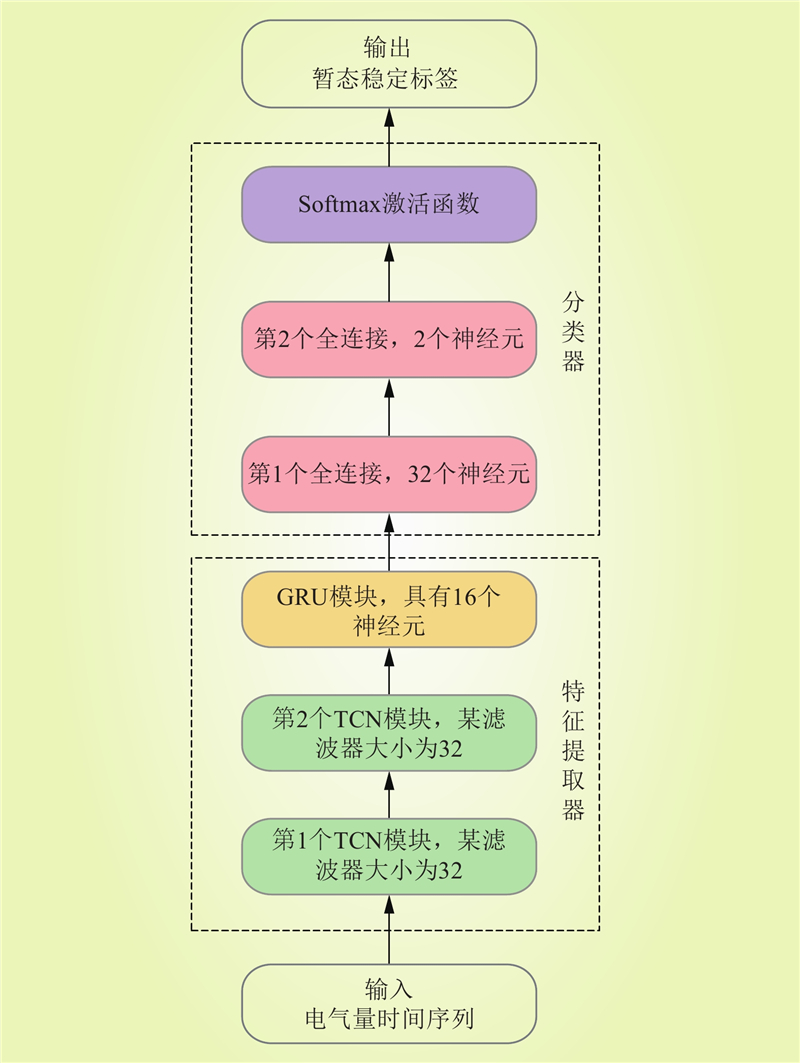

图 1 TCN-GRU模型结构

Fig.1 The structure of TCN-GRU model

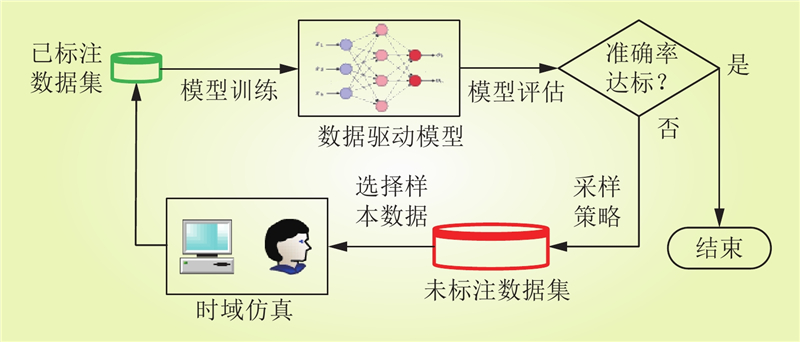

图 2 主动学习流程

Fig.2 The process of active learning

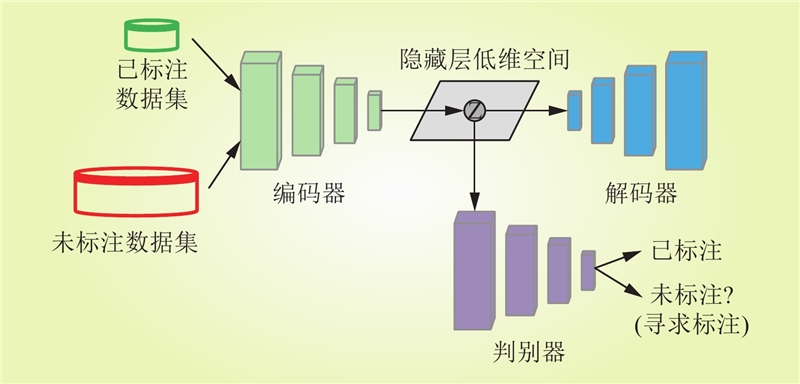

图 3 变分对抗主动学习

Fig.3 The architecture of variational adversarial active learning

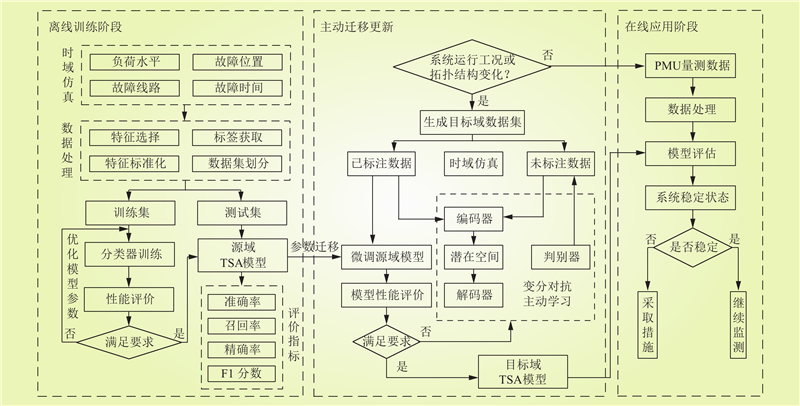

图 4 基于主动迁移学习的TSA框架

Fig.4 The TSA framework based on active transfer learning

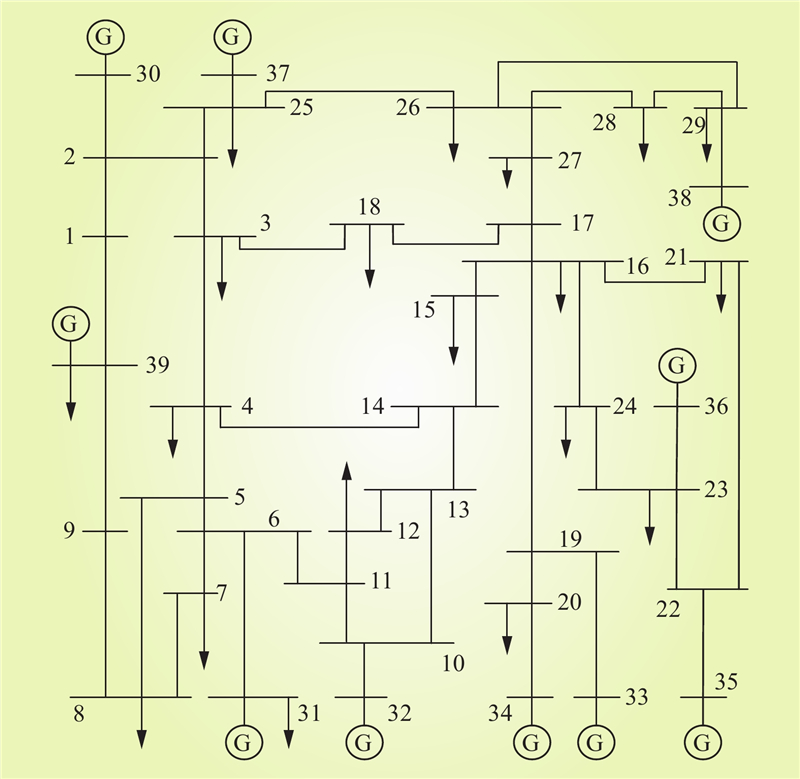

图 5 IEEE-39节点电力系统

Fig.5 The IEEE 39-bus power system

表 1 混淆矩阵

Table 1 Confusion matrix

真实标签	预测标签
真实标签	稳定	失稳
稳定	${T_{\text{P}}}$	${F_{\text{N}}}$
失稳	${F_{\text{P}}}$	${T_{\text{N}}}$

表 2 不同模型的评估结果对比

Table 2 Comparison of evaluation results of different models 单位：%

模型	准确率	召回率	精确率	F1分数
LR	93.23	94.52	94.67	94.59
SVM	95.82	97.02	96.31	96.67
XGBoost	96.99	98.01	97.20	97.61
DNN	96.96	96.81	98.38	97.59
CNN	96.41	97.57	96.65	97.11
TCN	97.12	97.85	97.55	97.70
GRU	96.67	97.09	97.59	97.34
TCN-GRU	98.32	99.28	98.67	98.98

表 3 源域模型在新场景下的测试结果

Table 3 The test results of the source domain model in the new scenario 单位：%

目标系统	准确率	召回率	精确率	F1分数
1	82.51	85.95	93.21	89.43
2	76.11	81.65	89.22	85.27
3	80.30	85.07	91.27	88.06

表 4 VAE结构

Table 4 The architecture of VAE

模型	层	输入通道	输出通道	卷积核大小/步长
编码器	Conv1	190	128	3/1
	Conv1	128	256	3/1
	Conv1	256	512	3/1
解码器	Deconv1	512	256	3/1
	Deconv1	256	128	3/1
	Deconv1	128	190	3/1

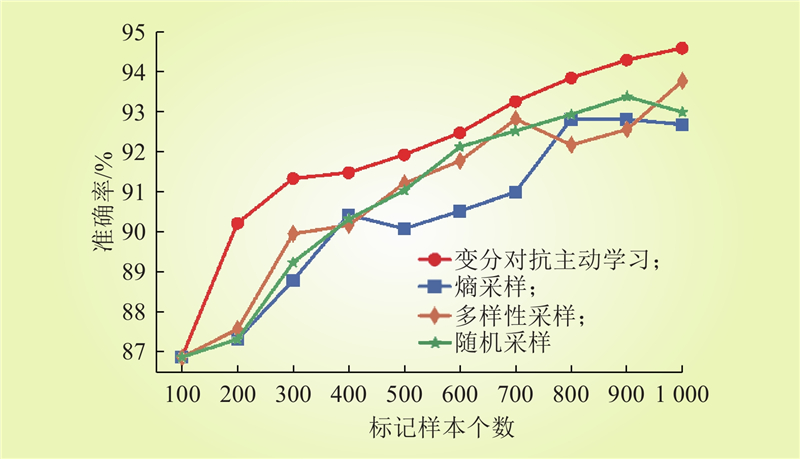

图 6 主动迁移学习迭代更新曲线

Fig.6 Active transfer learning iterative update curve

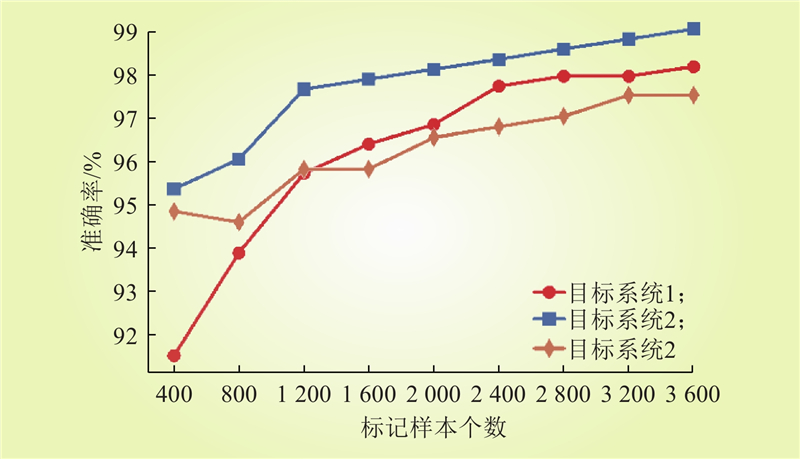

图 7 目标域主动迁移学习准确率变化

Fig.7 The accuracy change of active transfer learning in target domain

表 5 各方案下的测试结果

Table 5 The test results under each scheme

方案	仿真时间/s	训练时间/s	总时间/s	准确率/%
1	2400	124	2524	97.95
2	2400	16	2416	95.96
3	4000	27	4027	97.98
4	4000	346	4346	97.51
