新型电力系统中主控型安全稳定服务质量的在线评估

doi:10.11930/j.issn.1004-9649.202401131

中国电力 ›› 2024, Vol. 57 ›› Issue (8): 168-181.DOI: 10.11930/j.issn.1004-9649.202401131

新型电力系统中主控型安全稳定服务质量的在线评估

李碧君(), 李威(), 董希建()

南瑞集团有限公司（国网电力科学研究院有限公司），江苏南京　211106

收稿日期:2024-01-30 接受日期:2024-04-12 出版日期:2024-08-28 发布日期:2024-08-24
作者简介:李碧君（1966—），男，博士，高级工程师（研究员级），从事电力系统稳定分析与控制研究，E-mail：libijun@sgepri.sgcc.com.cn
李威（1976—），男，博士，高级工程师（教授级），从事电力系统安全分析与控制研究， E-mail：liwei10@sgepri.sgcc.com.cn
董希建（1982—），男，正高级工程师，从事电力系统安全稳定控制研究，E-mail：dongxijian@sgepri.sgcc.com.cn
基金资助:
国家自然科学基金企业创新发展联合基金资助项目（高比例新能源大电网同步稳定机理及控制理论，U22B6008）。

Online Assessment of Control-Based System Security and Stability Service Quality for New Power System

Bijun LI(), Wei LI(), Xijian DONG()

NARI Group Corporation (State Grid Electric Power Research Institute), Nanjing 211106, China

Received:2024-01-30 Accepted:2024-04-12 Online:2024-08-28 Published:2024-08-24
Supported by:
This work is supported by National Natural Science Foundation of China (Synchronization Stability Mechanism and Control Theory of Large-scale Power Systems with High Proportion of Renewable Energy, No.U22B6008).

摘要/Abstract

摘要：

在新型电力系统背景下，安全稳定运行对主控型系统安全稳定服务有更大程度的依赖。服务响应的事前-事后全过程评估是实现主控型系统安全稳定服务质量有效管控不可或缺的技术基础。针对主控型系统安全服务质量评估的共性问题，分析了主控型系统安全稳定服务的特征、质量评估的内涵及要素，包括服务响应前的服务装备质量评估和服务资源质量评估，以及服务响应后的服务响应质量评估；阐述了系统安全稳定服务质量评估中的评估依据（服务质量特性预期）、评估指标体系、评估方法和基础数据要求；初步提出了包括收集厂站基础数据、确定质量要素特性评估准则、质量要素特性指标评估、稳定服务质量指标评估和稳定服务质量评级等环节的在线评估框架。对众多类型的系统安全稳定服务实现关键环节完整和功能信息齐全的质量评估，具有普适性的参考价值。

关键词: 系统安全稳定, 服务质量, 在线评估, 新型电力系统

Abstract:

In the context of new power system, the safe and stable operation of power system is more dependent on the control-based system security and stability service. The ex-post and ex-ante entire-process evaluation of service response is an essential technical support to realize the effective management and control of the control-based system security and stability service quality. To address the common problems in assessing the control-based system security and stability service quality, this paper analyzes the characteristics of the control-based system security and stability service, and determines the connotation and factors for assessing the control-based system security and stability service quality, including service equipment quality and service resource quality before service response, as well as the service response quality after service response. The criteria, index system, methodology and basic data for assessing the control-based system security and stability service quality are described. Finally, an online assessment framework for control-based system security and stability service quality is proposed, including collecting basic data from power plants and substations, determining the assessment criteria and indexes for quality elements, evaluating the indexes and levels for stability services quality, which has universal applicability to the quality assessment of various control-based system security and stability services, including entire key links and complete functional information.

Key words: system security and stability, service quality, online assessment, new power system

李碧君, 李威, 董希建. 新型电力系统中主控型安全稳定服务质量的在线评估[J]. 中国电力, 2024, 57(8): 168-181.

Bijun LI, Wei LI, Xijian DONG. Online Assessment of Control-Based System Security and Stability Service Quality for New Power System[J]. Electric Power, 2024, 57(8): 168-181.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202401131

https://www.electricpower.com.cn/CN/Y2024/V57/I8/168

图/表 5

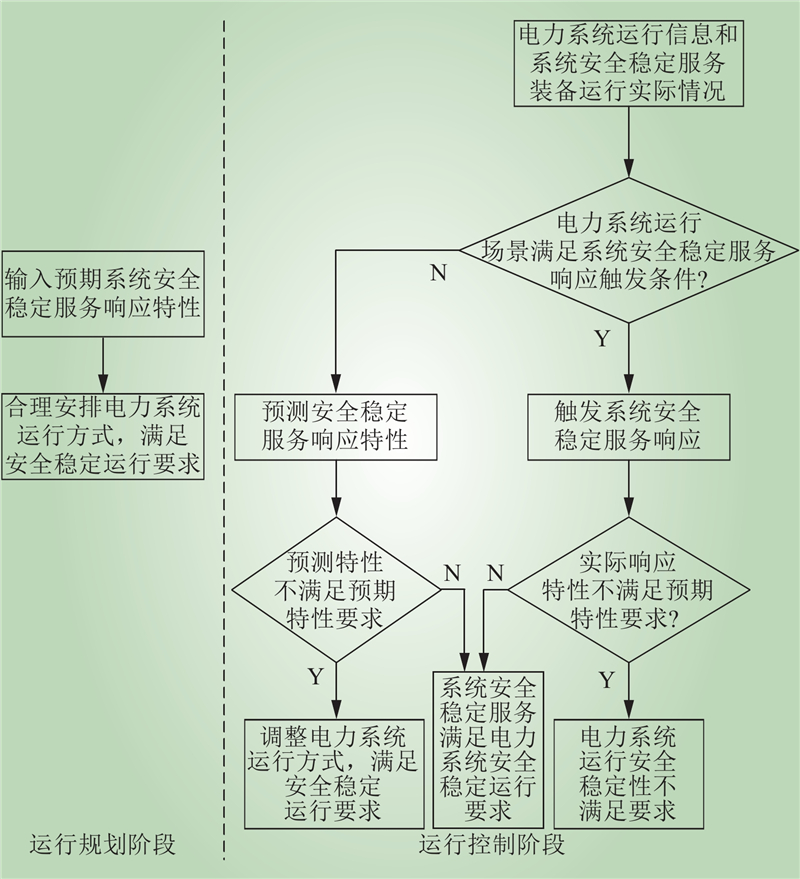

图 1 系统安全稳定服务响应对电力系统安全稳定运行的影响

Fig.1 The impacts of system security and stability service response on system safe and stable operation

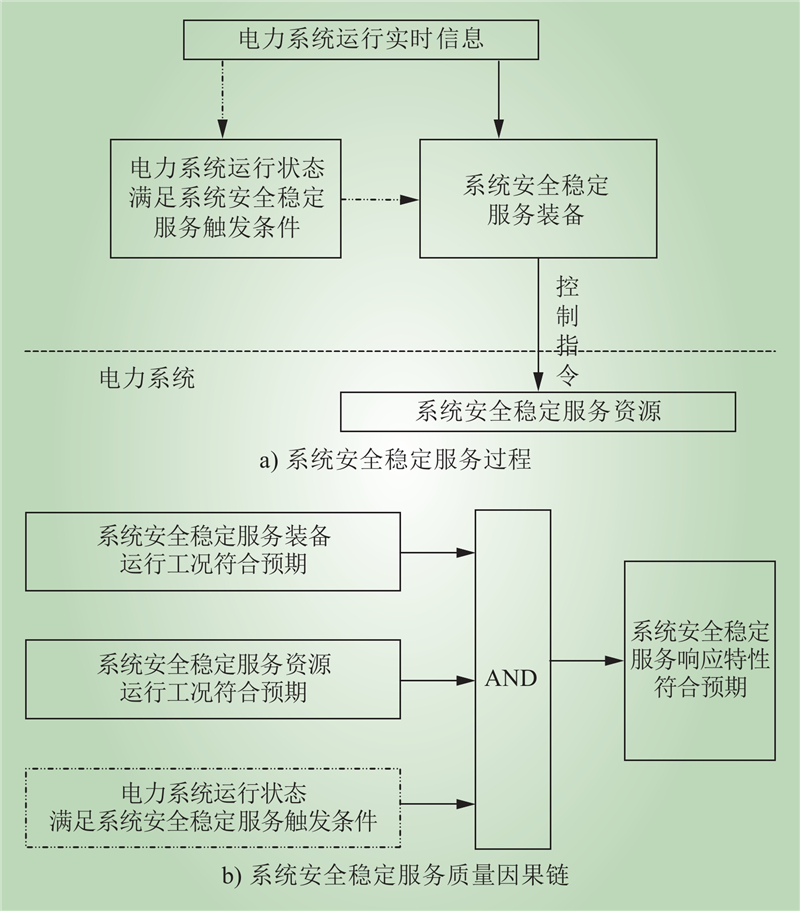

图 2 系统安全稳定服务过程与系统安全稳定服务质量因果链

Fig.2 The system security and stability service process and service quality causal chain

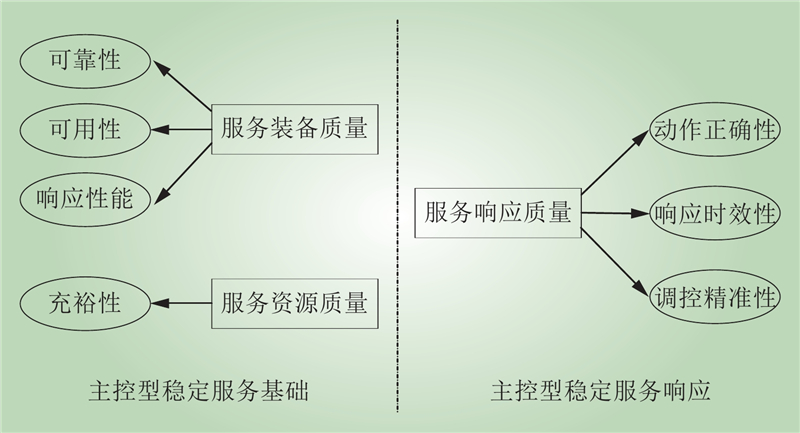

图 3 主控型系统安全稳定服务质量要素模型

Fig.3 The quality factor model of control-based system security and stability service

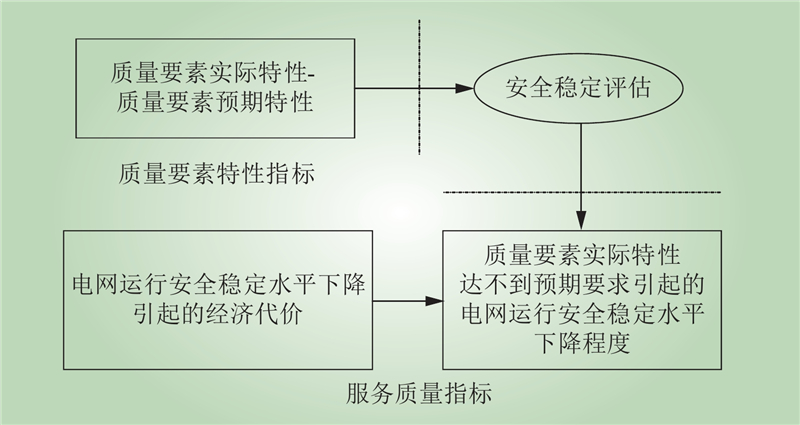

图 4 主控型系统安全稳定服务质量指标体系

Fig.4 The quality index system of control-based system security and stability service

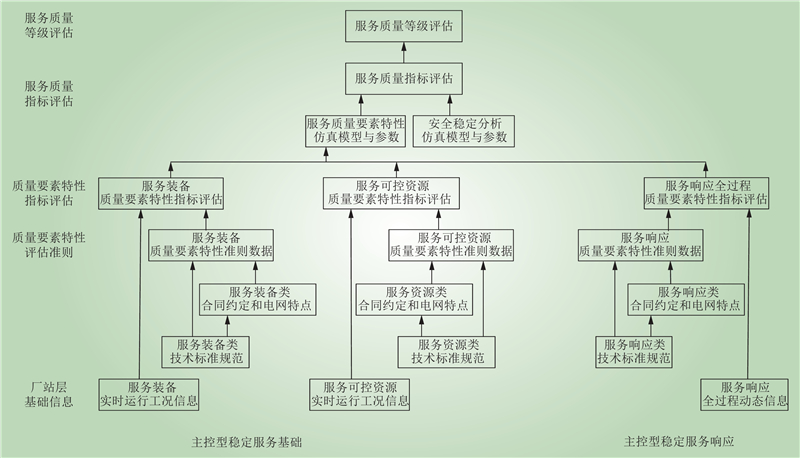

图 5 主控型稳定服务质量在线评估框架

Fig.5 The online assessment framework of control-based stability service quality

参考文献 35
