风光沼储交直流混合农村微电网经济技术优化

doi:10.11930/j.issn.1004-9649.202401017

摘要/Abstract

摘要：

搭建了风光沼储交直流混合微电网系统模型，在满足系统供电可靠性的条件下，以新能源利用率最高、经济成本最优、碳排放最小进行多目标优化，研究了在某气候条件下，该微电网能源系统的经济技术最优配置。

Abstract:

This article establishes a microgrid AC/DC hybrid system model based on wind, solar, and biogas storage. Under the conditions of meeting the reliability of system power supply, multi-objective optimization is carried out with the highest utilization rate of new energy, the best economic cost, and the smallest carbon emissions. The optimal economic and technological configuration of the microgrid energy system under certain climatic conditions is studied.

Key words: electricity market, multi energy complementary system, rural microgrid

谭虎, 王小亮, 徐亭亭, 赵珂, 宿连超, 张文玉, 辛征. 风光沼储交直流混合农村微电网经济技术优化[J]. 中国电力, 2024, 57(3): 27-33.

Hu TAN, Xiaoliang WANG, Tingting XU, Ke ZHAO, Lianchao SU, Wenyu ZHANG, Zheng XIN. Economic and Technological Optimization of Hybrid Rural Microgrid with Wind, PV, Biogas, Storage, AC, and DC[J]. Electric Power, 2024, 57(3): 27-33.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202401017

https://www.electricpower.com.cn/CN/Y2024/V57/I3/27

图/表 7

表 1 系统组件的相关参数

Table 1 Relevant parameters of system components

设备	额定容量/ kW	投资成本/ 元	替换成本/ 元	O&M成本/ (元·(kW·a)^–1)	寿命/a
沼气	2.60	5706	5706	84.4	5.7
风机	1.24	31700	31700	511.3	20.0
光伏	5.00	22190	22190	63.4	25.0
蓄电池	1.30	1902	1902	63.4	10.0
转换器	—	4755	4755	—	15.0

表 2 不同组合系统容量优化配置方案

Table 2 Optimal configuration scheme of partial system capacity

方案	双燃料发电机/kW	风机/ kW	光伏/ kW	蓄电池/ 块	变流器/ kW	系统总净现费用/万	容量短缺概率/%
1	2.6	5	10.00	2	10.00	13.01	0
2	2.6	10	20.00	4	10.00	13.80	0
3	2.6	15	30.00	6	10.00	14.85	0
4	2.6	20	20.00	8	10.00	14.86	0
5	2.6	25	30.00	10	10.00	19.21	2

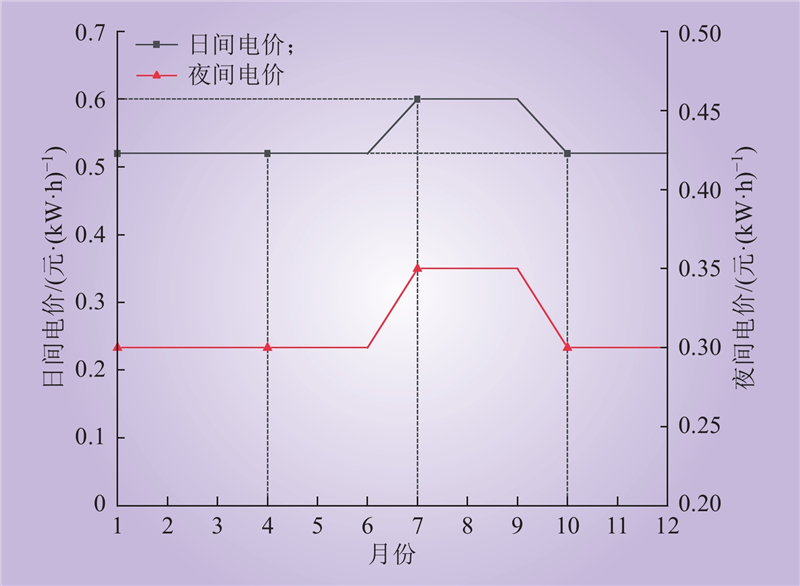

图 1 某地区典型电能季节性购买成本

Fig.1 Typical seasonal purchase cost of electric energy for a region

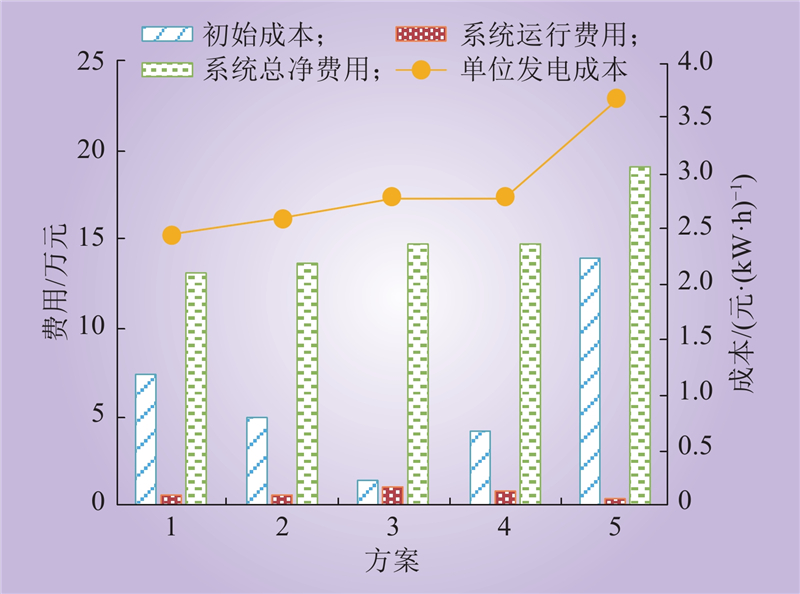

图 2 配置方案的经济指标数据

Fig.2 Economic index data of configuration scheme

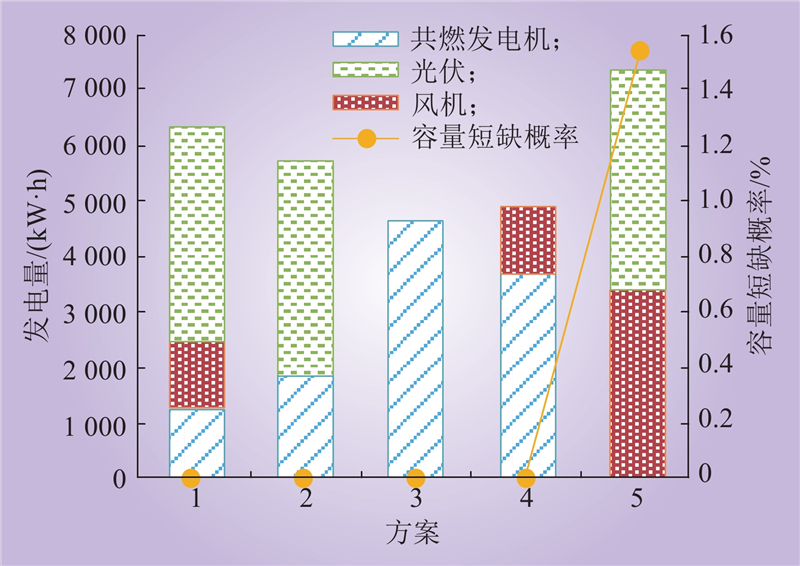

图 3 配置方案的发电量及容量短缺概率数据

Fig.3 Power generation and capacity shortage probability data of configuration scheme

表 3 最优配置方案与基础方案经济性比较

Table 3 Economic comparison between optimal allocation scheme and basic scheme

方案	总净费用（NPC）/ 万元	初始成本/ 万元	单位发电成本/ (元·(kW·h)^–1)
基础	16.80	0.61	3.16
最优配置	13.01	7.30	2.45

图 4 系统生命周期内的温室气体排放

Fig.4 Greenhouse gas emissions over system life cycle
