Optimal Operation Strategy of Data Center Aggregators for Demand Response Considering Temporal and Spatial Load Shift

Rundong GAN¹(), Yujiang LONG¹(), Jie TANG¹(), Xi HE¹(), Hongxuan LUO²^,³(), Xin JIN²^,³()

1. Information Center of Guizhou Power Grid Co., Ltd., Guiyang 550002, China
2. CSG Electric Power Research Institute, Guangzhou 510663, China
3. Guangdong Provincial Key Laboratory of Intelligent Measurement and Advanced Metering of Power Grid, Guangzhou 510663, China

Received:2024-01-17 Online:2024-03-28 Published:2024-03-26
Supported by:
This work is supported by the Science and Technology Project of China Southern Power Grid (No.066700KK52222019).

摘要/Abstract

摘要：

利用聚合技术构建数据中心聚合商以参与系统需求响应，提出一种计及负荷时空转移需求响应的数据中心聚合商最优运行策略。首先，根据数据中心的物理特性，建立负荷时空转移需求响应模型；然后，以数据中心运行成本最小化和数据中心聚合商利益最大化为目标，建立计及负荷时空转移需求响应的数据中心聚合商最优运行模型；最后，通过Karush-Kuhn-Tucker（KKT）条件以及大M法将双层模型转换成单层混合整数线性规划模型进行求解。仿真结果表明：所提最优运行策略可有效提高数据中心内工作负荷的灵活性，并促进数据中心运行经济性的提高。

关键词: 数据中心, 负荷时空转移需求响应, 聚合商

Abstract:

This paper uses aggregation technology to construct data center aggregators to participate in system demand response, and then proposes an optimal operation strategy of data center aggregators considering the demand response of load temporal and spatial shifts. First, according to the physical characteristics of the data center, the load time-space transfer demand response model is established. Then, the optimal operation model of data center aggregators was established with the goal of minimizing the operation cost of data center and maximizing the profit of data center aggregators. Finally, by using Karush-Kuhn-Tucker condition and large M method, the two-layer model is transformed into a single-layer mixed integer linear programming model. The simulation results show that the proposed optimal operation strategy can effectively improve the flexibility of the workload in the data center and promote the improvement of the operation economy of the data center.

Key words: data center, load spatio-temporal shift demand response, aggregator

甘润东, 龙玉江, 汤杰, 何熙, 罗鸿轩, 金鑫. 计及负荷时空转移需求响应的数据中心聚合商最优运行策略[J]. 中国电力, 2024, 57(3): 20-26.

Rundong GAN, Yujiang LONG, Jie TANG, Xi HE, Hongxuan LUO, Xin JIN. Optimal Operation Strategy of Data Center Aggregators for Demand Response Considering Temporal and Spatial Load Shift[J]. Electric Power, 2024, 57(3): 20-26.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202401079

https://www.electricpower.com.cn/CN/Y2024/V57/I3/20

图/表 11

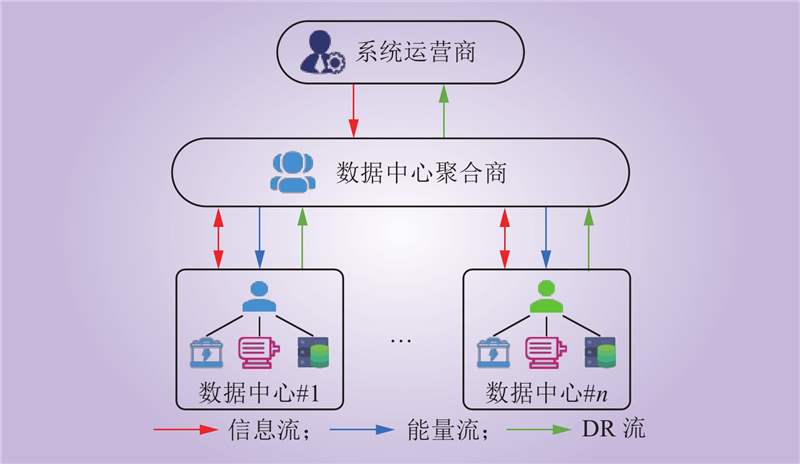

图 1 所提模型框架

Fig.1 The proposed model framework

表 1 DC的基本参数

Table 1 Basic parameters of DC

DC	$ {{{R}}_{{n}}} $	$ e_n^{\text{S}} $/(kW·h)	$ {\varepsilon _n} $	${{{T}}_{\text{d}}}$/h
1	4500	1.2	0.03	12
2	2500	1.2	0.03	8
3	2500	1.2	0.03	8

表 2 DC内发电、储能设备的基本参数

Table 2 Basic parameters of power generation and energy storage equipment in DC

DC	$ S_{ n}^{\text{T}} $, $ S_{ n}^{\text{D}} $/元	$ {c_{\rm g}} $/(元·(kW·h)^–1)	$ P_n^{{\text{G, min}}} $, $ P_n^{{\text{G, max}}} $/kW	$ {c_{{\text{bat}}}} $/(元·(kW·h)^–1)	$ E_n^{\min } $, $ E_n^{\max } $/(kW·h)	$ {\eta _{\text{c}}} $, $ {\eta _{\text{d}}} $	$ P_n^{{\text{bat, cmax}}} $, $ P_n^{{\text{bat, dmax}}} $/kW
1	10.5, 10.5	0.48	10, 200	0.3	10, 90	0.9, 0.95	35, 30
2	10, 10	0.45	10, 150	0.3	10, 90	0.9, 0.95	35, 30
3	10, 10	0.45	10, 150	0.3	10, 90	0.9, 0.95	35, 30

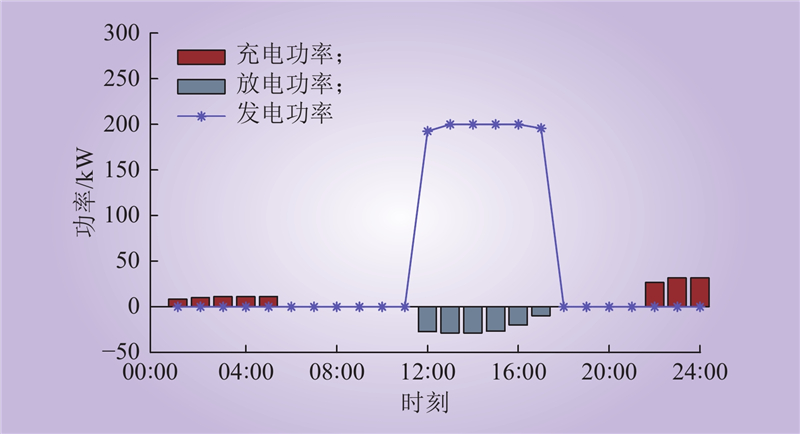

图 2 DC 1内发电、储能设备调度结果

Fig.2 Scheduling results of power generation and energy storage equipment within DC 1

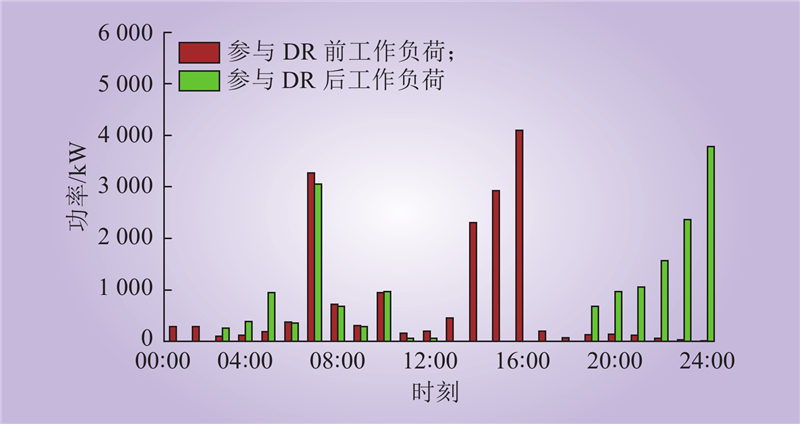

图 3 DC 1内工作负荷调度结果

Fig.3 Results of workload scheduling within DC 1

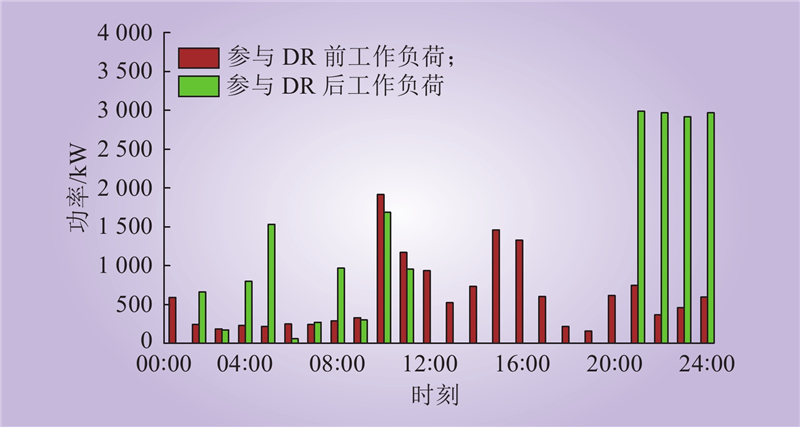

图 4 DC 2内工作负荷调度结果

Fig.4 Results of workload scheduling within DC 2

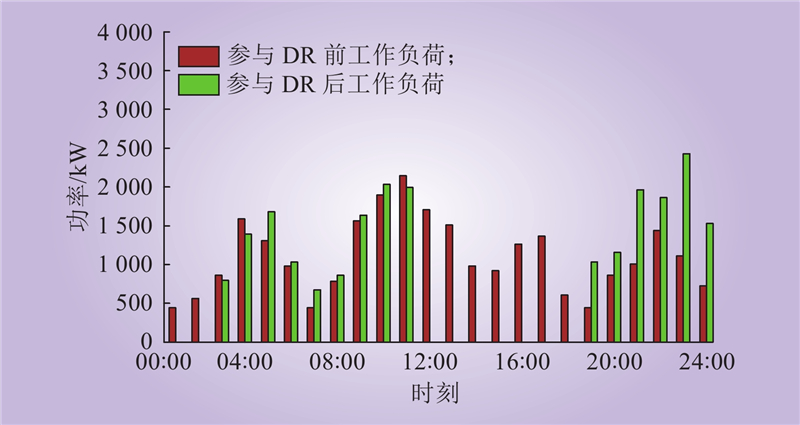

图 5 DC 3内工作负荷调度结果

Fig.5 Results of workload scheduling within DC 3

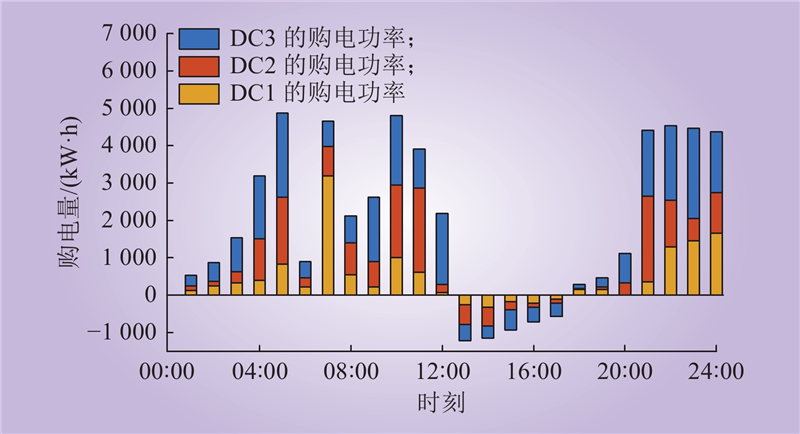

图 6 DR计划实施后DCA的购电量

Fig.6 Electricity purchased by the DCA after the implementation of the DR scheme

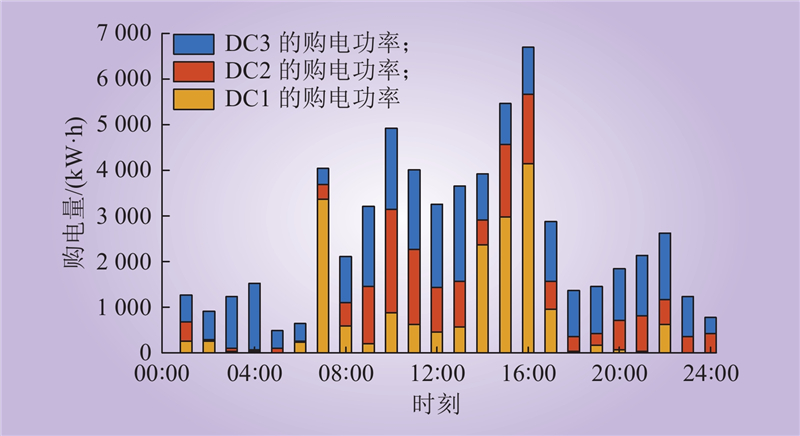

图 7 DR计划实施前DCA的购电结果
