耦合储能电池的冷热电联供系统全工况性能分析

doi:10.11930/j.issn.1004-9649.202301046

摘要/Abstract

摘要：

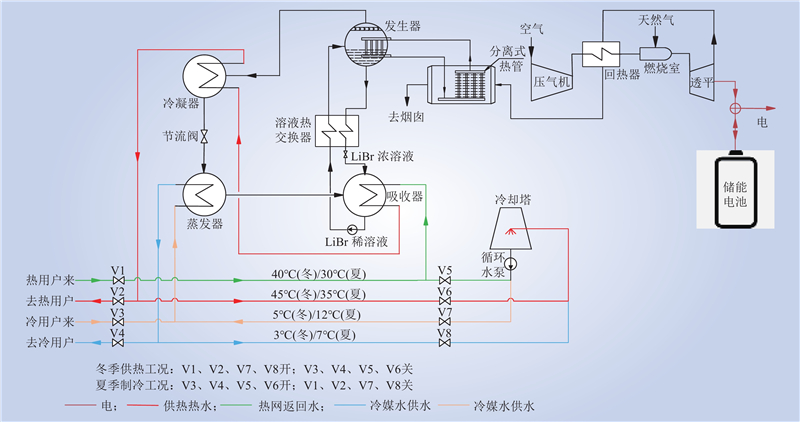

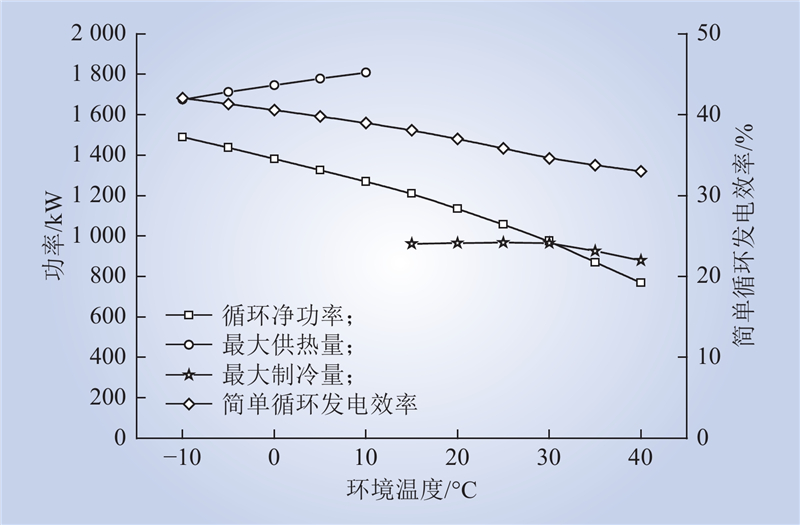

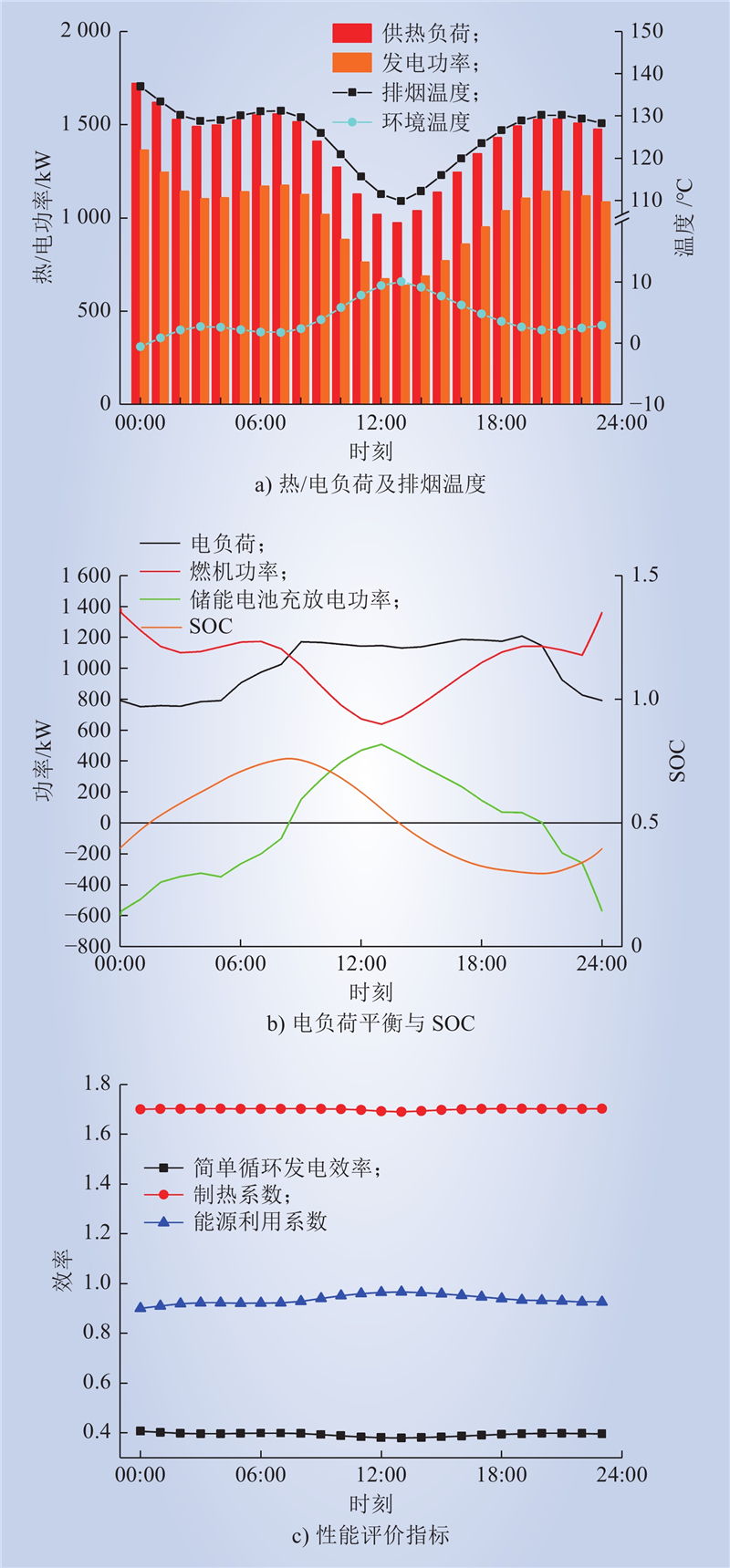

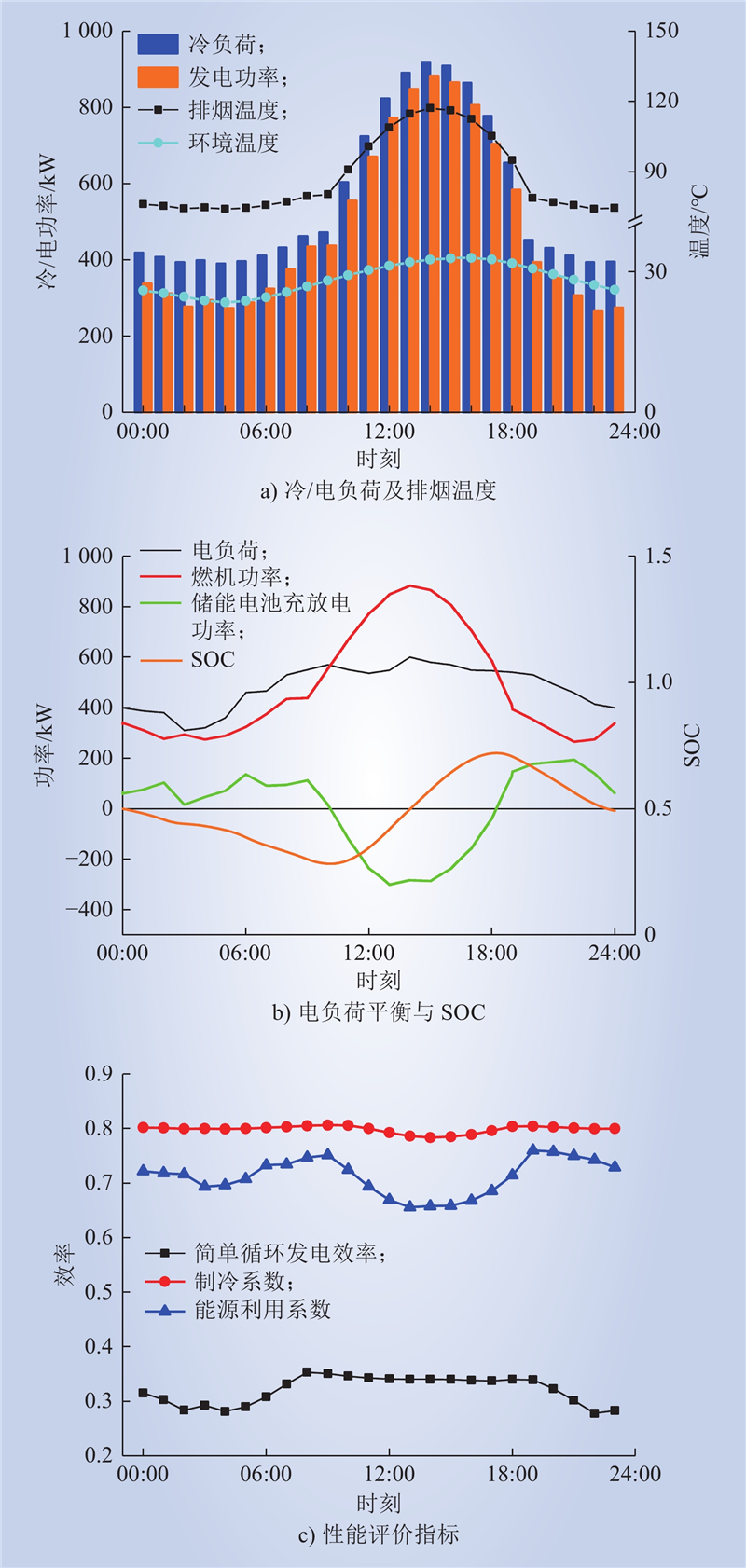

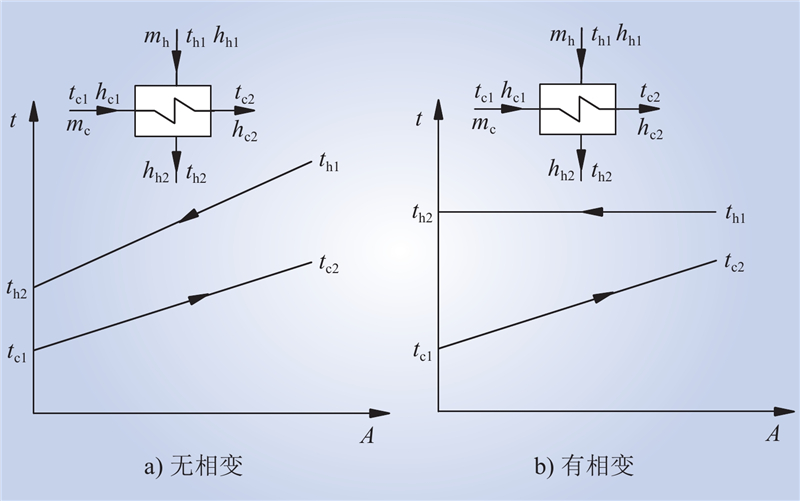

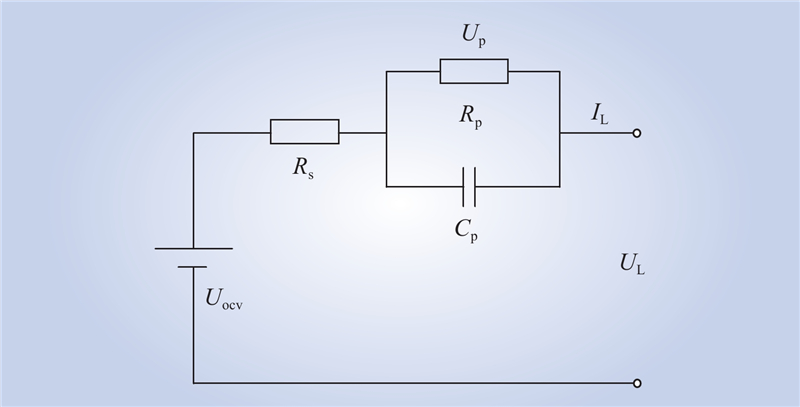

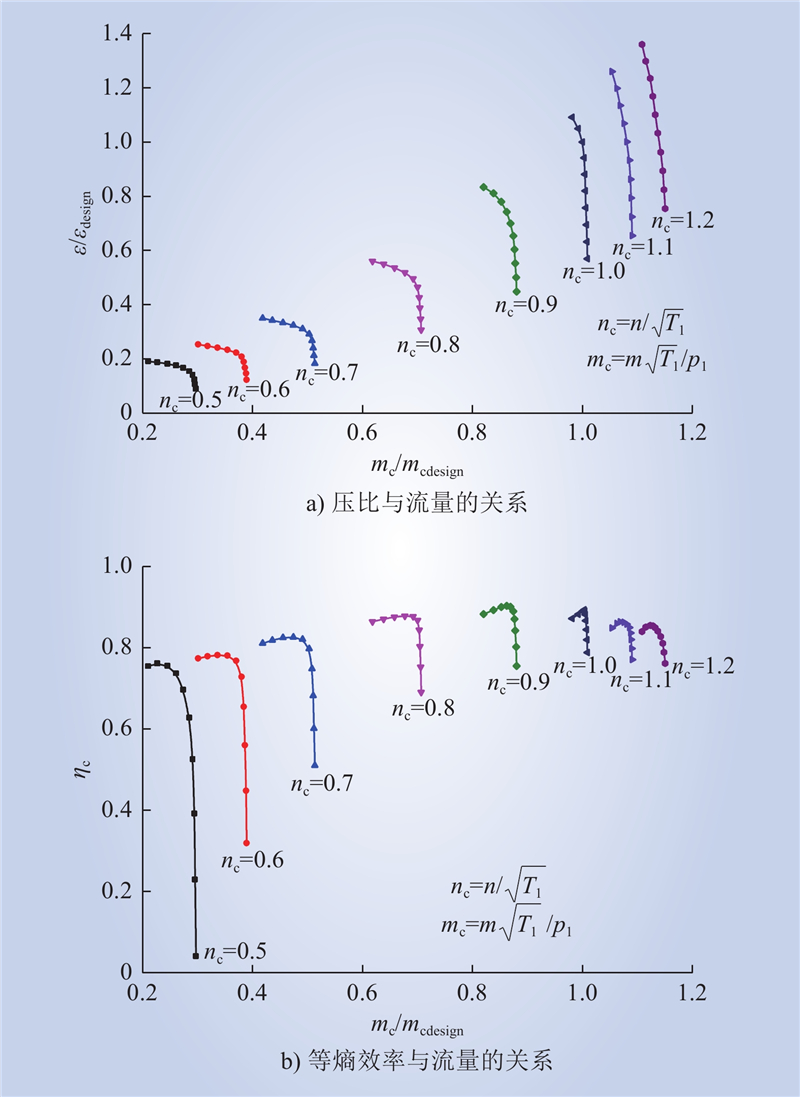

冷热电联供系统具有能源利用效率高、运行调节灵活的优点。设计了耦合储能电池的冷热电联供一体化系统，建立了关键部件的精细化数学模型，研究了压气机和透平的效率、环境温度对联供系统性能的影响。针对典型制冷和供热工况，研究了耦合电池储能的冷热电联供系统全工况热力性能、储能电池的充放电特性。结果表明：环境温度对冷热电联供系统性能具有较大的影响，其最大供热量随着环境温度的降低而下降，最大供冷量随着环境温度的升高而下降。制冷模式下，冷负荷、电负荷全天波动较大，全天平均冷、电负荷仅为额定功率的39.9%左右，全天平均能源利用系数为0.712。供热模式下，典型日全天燃机循环的发电效率、供热系数以及能源利用系数波动很小，且均高于制冷模式下相应的指标。

关键词: 燃气轮机, 冷热电联供, 性能, 全工况, 储能电池

Abstract:

The combined cooling, heating, and power system (CCHP) boasts efficient energy use and flexible operation. The CCHP integrated system for energy storage battery was designed, with the refined mathematical models of the key components established, and the influence of the compressor and turbine efficiency and ambient temperature on CCHP performance studied. The thermodynamic performance of the CCHP at comprehensive conditions and the charging-discharging characteristics of the battery energy storage system were investigated according to the typical modes of chilling and heating. The results show that the ambient temperature has a significant influence on the performance of CCHP. The maximum heat supply decreases with the decrease in the ambient temperature, and the maximum chilling supply decreases with the increase in the ambient temperature. The cooling load and electric load fluctuate greatly throughout the day in the chilling mode, with the average value for cooling load and electric load representing only about 39.9% of the rated load, and an average energy utilization coefficient of 0.712. In the heating mode, there is insignificant fluctuation of power generation efficiency, heating coefficient and energy utilization coefficient on the typical day, which are all higher than the corresponding indexes in the chilling mode.

Key words: gas turbine, combined cooling, heating and power system, performance, comprehensive conditions, energy storage battery

张福国, 李泽鹏, 吴鹏, 王雪, 李晓恩. 耦合储能电池的冷热电联供系统全工况性能分析[J]. 中国电力, 2024, 57(2): 161-170.

Fuguo ZHANG, Zepeng LI, Peng WU, Xue WANG, Xiaoen LI. Performance Analysis of Combined Cooling, Heating and Power System Integrated with Energy Storage Battery at Comprehensive Conditions[J]. Electric Power, 2024, 57(2): 161-170.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202301046

https://www.electricpower.com.cn/CN/Y2024/V57/I2/161

图/表 9

参考文献 22

1	郭宴秀, 苏建军, 刘洋, 等. 考虑电热交互和共享储能的多综合能源系统运行优化[J]. 中国电力, 2023, 56 (4): 138- 145.
	GUO Yanxiu, SU Jianjun, LIU Yang, et al. Optimal operation of multiple integrated energy systems considering power and heat interaction and shared energy storage system[J]. Electric Power, 2023, 56 (4): 138- 145.
2	杨晓辉, 张柳芳, 吴龙杰, 等. 含考虑IDR的冷热电联供微网的主动配电网经济优化调度[J]. 电力系统保护与控制, 2022, 50 (3): 19- 28.
	YANG Xiaohui, ZHANG Liufang, WU Longjie, et al. Economic optimal dispatch of an active distribution network with combined cooling, heating and power microgrids considering integrated demand response[J]. Power System Protection and Control, 2022, 50 (3): 19- 28.
3	梁涛, 尹晓东, 刘亚祥. 面向投资收益的综合能源系统鲁棒优化配置规划[J]. 中国电力, 2023, 56 (4): 156- 166.
	LIANG Tao, YIN Xiaodong, LIU Yaoxiang. Robust optimal configuration planning of integrated energy system for return on investment[J]. Electric Power, 2023, 56 (4): 156- 166.
4	周家秀, 王露宁, 刘雪洁, 等. 不同运行模式下燃气轮机冷热电三联供系统仿真研究[J]. 青岛理工大学学报, 2021, 42 (1): 58- 65.
	ZHOU Jiaxiu, WANG Luning, LIU Xuejie, et al. Simulation research on the CCHP system using gas turbine under different operation modes[J]. Journal of Qingdao University of Technology, 2021, 42 (1): 58- 65.
5	杨晚生, 郭开华. 微型燃气轮机冷热电联供系统的热经济性分析[J]. 暖通空调, 2012, 42 (1): 80- 83.
	YANG Wansheng, GUO Kaihua. Thermal economic analysis on CCHP system based on micro-turbines[J]. Heating Ventilating & Air Conditioning, 2012, 42 (1): 80- 83.
6	ASGARI N, KHOSHBAKHTI SARAY R, MIRMASOUMI S. Energy and exergy analyses of a novel seasonal CCHP system driven by a gas turbine integrated with a biomass gasification unit and a LiBr-water absorption chiller[J]. Energy Conversion and Management, 2020, 220, 113096. DOI
7	任育杰, 胡健, 张晨阳, 等. 耦合太阳能的绝热压缩空气燃气三联产系统性能分析[J]. 中国测试, 2023, 49 (6): 137- 142.
	REN Yujie, HU Jian, ZHANG Chenyang, et al. Performances analysis of adiabatic compressed air gas CCHP system coupled with solar energy[J]. China Measurement & Test, 2023, 49 (6): 137- 142.
8	GEIDL M, KOEPPEL G, FAVRE-PERROD P, et al. Energy hubs for the future[J]. IEEE Power and Energy Magazine, 2007, 5 (1): 24- 30. DOI
9	余晓丹, 徐宪东, 陈硕翼, 等. 综合能源系统与能源互联网简述[J]. 电工技术学报, 2016, 31 (1): 1- 13.
	YU Xiaodan, XU Xiandong, CHEN Shuoyi, et al. A brief review to integrated energy system and energy Internet[J]. Transactions of China Electrotechnical Society, 2016, 31 (1): 1- 13.
10	黄武靖, 张宁, 董瑞彪, 等. 多能源网络与能量枢纽联合规划方法[J]. 中国电机工程学报, 2018, 38 (18): 5425- 5437.
	HUANG Wujing, ZHANG Ning, DONG Ruibiao, et al. Coordinated planning of multiple energy networks and energy hubs[J]. Proceedings of the CSEE, 2018, 38 (18): 5425- 5437.
11	吴盛军, 李群, 刘建坤, 等. 基于储能电站服务的冷热电多微网系统双层优化配置[J]. 电网技术, 2021, 45 (10): 3822- 3832.
	WU Shengjun, LI Qun, LIU Jiankun, et al. Bi-level optimal configuration for combined cooling heating and power multi-microgrids based on energy storage station service[J]. Power System Technology, 2021, 45 (10): 3822- 3832.
12	贠保记, 白森珂, 张国. 基于混沌自适应粒子群算法的冷热电联供系统优化[J]. 电力系统保护与控制, 2020, 48 (10): 123- 130.
	YUN Baoji, BAI Senke, ZHANG Guo. Optimization of CCHP system based on a chaos adaptive particle swarm optimization algorithm[J]. Power System Protection and Control, 2020, 48 (10): 123- 130.
13	王欣欣, 董潇健, 沈佳妮, 等. 冷热电联供系统设计和运行集成优化[J]. 化工学报, 2021, 72 (10): 5284- 5293.
	WANG Xinxin, DONG Xiaojian, SHEN Jiani, et al. Integrated design and operation of combined cooling, heating and power system[J]. CIESC Journal, 2021, 72 (10): 5284- 5293.
14	AGHAEI A T, SARAY R K. Optimization of a combined cooling, heating, and power (CCHP) system with a gas turbine prime mover: a case study in the dairy industry[J]. Energy, 2021, 229, 120788. DOI
15	HOSSEIN ABBASI M, SAYYAADI H, TAHMASBZADEBAIE M. A methodology to obtain the foremost type and optimal size of the prime mover of a CCHP system for a large-scale residential application[J]. Applied Thermal Engineering, 2018, 135, 389- 405. DOI
16	宋祉慧, 林其钊, 刘涛, 等. 基于动态负荷的冷热电联供系统优化研究[J]. 工程热物理学报, 2020, 41 (10): 2372- 2379.
	SONG Zhihui, LIN Qizhao, LIU Tao, et al. Study on optimization of CCHP system based on dynamic load[J]. Journal of Engineering Thermophysics, 2020, 41 (10): 2372- 2379.
17	王智, 陶鸿俊, 张玲. 冷热电联供系统多时间尺度滚动优化运行方法研究[J]. 动力工程学报, 2022, 42 (3): 276- 285.
	WANG Zhi, TAO Hongjun, ZHANG Ling. Research on multi-time scale rolling optimal operation method of combined cooling, heating and power system[J]. Journal of Chinese Society of Power Engineering, 2022, 42 (3): 276- 285.
18	贺庆, 常大伟, 张俊礼, 等. 天然气冷热电联产系统区间负荷调度策略优化[J]. 动力工程学报, 2022, 42 (4): 365- 371.
	HE Qing, CHANG Dawei, ZHANG Junli, et al. Optimization of interval load scheduling strategy for a CCHP system using natural gas[J]. Journal of Chinese Society of Power Engineering, 2022, 42 (4): 365- 371.
19	孙强, 谢典, 聂青云, 等. 含电-热-冷-气负荷的园区综合能源系统经济优化调度研究[J]. 中国电力, 2020, 53 (4): 79- 88.
	SUN Qiang, XIE Dian, NIE Qingyun, et al. Research on economic optimization scheduling of park integrated energy system with electricity-heat-cool-gas load[J]. Electric Power, 2020, 53 (4): 79- 88.
20	王泽森, 石岩, 唐艳梅, 等. 考虑LCA能源链与碳交易机制的综合能源系统低碳经济运行及能效分析[J]. 中国电机工程学报, 2019, 39 (6): 1614- 1626,1858.
	WANG Zesen, SHI Yan, TANG Yanmei, et al. Low carbon economy operation and energy efficiency analysis of integrated energy systems considering LCA energy chain and carbon trading mechanism[J]. Proceedings of the CSEE, 2019, 39 (6): 1614- 1626,1858.
21	方仍存, 杨洁, 周奎, 等. 计及全生命周期碳成本的园区综合能源系统优化规划方法[J]. 中国电力, 2022, 55 (12): 135- 146.
	FANG Rengcun, YANG Jie, ZHOU Kui, et al. An optimal planning method for park IES considering life cycle carbon cost[J]. Electric Power, 2022, 55 (12): 135- 146.
22	耿健, 杨冬梅, 高正平, 等. 含储能的冷热电联供分布式综合能源微网优化运行[J]. 电力工程技术, 2021, 40 (1): 25- 32.
	GENG Jian, YANG Dongmei, GAO Zhengpng, et al. Optimal operation of distributed integration energy mirogrid with CCHP considering energy storage[J]. Electric Power Engineering Technology, 2021, 40 (1): 25- 32.

数据分类	循环净功率/MW	简单循环发电效率/ %	热耗率/ (kJ·(kW·h)^–1)	燃料量/ (kg·s^–1)	燃料低位发热量/ (MJ·m^–3)	压气机进口空气量/ ( kg·s^–1)	压气机排气温度/℃	压气机压比	燃气初温/℃	燃气透平等熵效率	燃气轮机排气流量/ (kg·s^–1)	燃气轮机排气温度/℃
厂家提供数据	1.210	24.33	14795.0	0.1087	35	6.43	—	6.70	904.00	—	6.539	505.00
建模结果	1.215	24.43	14736.0	0.1085	35	6.44	271.0	6.72	912.30	0.85	6.546	508.30
相对误差/%	0.410	0.41	–0.4	–0.1800	0	0.16	—	0.30	0.92	—	0.110	0.65

数据分类	循环净功率/MW	简单循环发电效率/ %	热耗率/ (kJ·(kW·h)^–1)	燃料量/ (kg·s^–1)	燃料低位发热量/ (MJ·m^–3)	压气机进口空气量/ ( kg·s^–1)	压气机排气温度/℃	压气机压比	燃气初温/℃	燃气透平等熵效率	燃气轮机排气流量/ (kg·s^–1)	燃气轮机排气温度/℃
厂家提供数据	1.210	24.33	14795.0	0.1087	35	6.43	—	6.70	904.00	—	6.539	505.00
建模结果	1.215	24.43	14736.0	0.1085	35	6.44	271.0	6.72	912.30	0.85	6.546	508.30
相对误差/%	0.410	0.41	–0.4	–0.1800	0	0.16	—	0.30	0.92	—	0.110	0.65

项目	制冷工况	供热工况
环境温度/℃	30	5
压气机进口空气量/( kg·s^–1)	5.944	6.628
压气机出口压力/MPa	0.629	0.702
燃料量/( kg·s^–1)	0.0615	0.0727
燃气轮机排气流量/( kg·s^–1)	6.006	6.700
燃气轮机排气温度/ ℃	541.3	514.8
回热器出口烟气温度/ ℃	316.8	287.5
循环净功率/kW	975	1325.9
简单循环发电效率/%	34.61	39.80
蒸发器负荷/kW	965.4	732.1
冷凝器负荷/kW	1033.6	801.9
吸收器负荷/kW	1171.0	976.0
发生器负荷/kW	1239.1	1045.7
制冷/供热系数	0.779	1.700
能源利用系数	0.689	0.932

项目	制冷工况	供热工况
环境温度/℃	30	5
压气机进口空气量/( kg·s^–1)	5.944	6.628
压气机出口压力/MPa	0.629	0.702
燃料量/( kg·s^–1)	0.0615	0.0727
燃气轮机排气流量/( kg·s^–1)	6.006	6.700
燃气轮机排气温度/ ℃	541.3	514.8
回热器出口烟气温度/ ℃	316.8	287.5
循环净功率/kW	975	1325.9
简单循环发电效率/%	34.61	39.80
蒸发器负荷/kW	965.4	732.1
冷凝器负荷/kW	1033.6	801.9
吸收器负荷/kW	1171.0	976.0
发生器负荷/kW	1239.1	1045.7
制冷/供热系数	0.779	1.700
能源利用系数	0.689	0.932
