考虑可调节负荷减碳降碳价值的需求响应运行决策模型

doi:10.11930/j.issn.1004-9649.202406091

摘要/Abstract

摘要：

需求响应是重要的可调节负荷资源之一，对于新型电力系统的减碳和新能源消纳具有重要促进作用。将碳流理论、智能优化算法和多属性评判方法融入需求响应可调节负荷运行策略决策过程中，构建以用户用电成本最小化为目标函数、涵盖电力供需平衡和机组出力限制等约束条件的需求响应策略优化模型，利用遗传算法确定利于实现优化目标的优势种群的各个染色体，结合各个染色体的经济效益、新能源消纳量和用户碳排放强度的计算结果，组合运用改进的熵权法和权重加和法对所有染色体进行综合评估和排序，得到确保系统经济效益、新能源消纳和减碳效果全局最佳的需求响应策略，最大限度地提高可调节负荷资源的价值。最后，通过算例验证了方法的可行性和有效性。

关键词: 可调节负荷, 碳流计算, 需求响应, 智能优化, 多重价值

Abstract:

Demand response is one of the important adjustable load resources, which plays an important role in promoting carbon reduction and new energy consumption in new power systems. This article integrated carbon flow theory, intelligent optimization algorithm, and multi-attribute evaluation methods into adjustable load operation strategy decision-making for demand response. It constructed a demand response strategy optimization model with the objective function of minimizing user electricity costs and constraints covering power supply and demand balance and unit output limitations. A genetic algorithm was used to determine the various chromosomes of the advantageous population that are conducive to achieving optimization goals. By combining the economic benefits of each chromosome, the consumption of new energy, and the calculation results of user carbon emission intensity, the improved entropy weight method and weight sum method were combined to comprehensively evaluate and rank all chromosomes. As a result, the demand response strategy that ensures the global best economic benefits, consumption of new energy, and carbon reduction effects of the system was obtained, which maximized the value of adjustable load resources. The feasibility and effectiveness of the method were finally verified through examples.

Key words: adjustable load, carbon flow calculation, demand response, intelligent optimization, multiple values

张晓萱, 薛松, 许野, 许轶, 丁泽宇, 孙庆凯. 考虑可调节负荷减碳降碳价值的需求响应运行决策模型[J]. 中国电力, 2024, 57(11): 151-160.

Xiaoxuan ZHANG, Song XUE, Ye XU, Yi XU, Zeyu DING, Qingkai SUN. Operational Decision Model for Demand Response Considering Carbon Reduction Value of Adjustable Loads[J]. Electric Power, 2024, 57(11): 151-160.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202406091

https://www.electricpower.com.cn/CN/Y2024/V57/I11/151

图/表 10

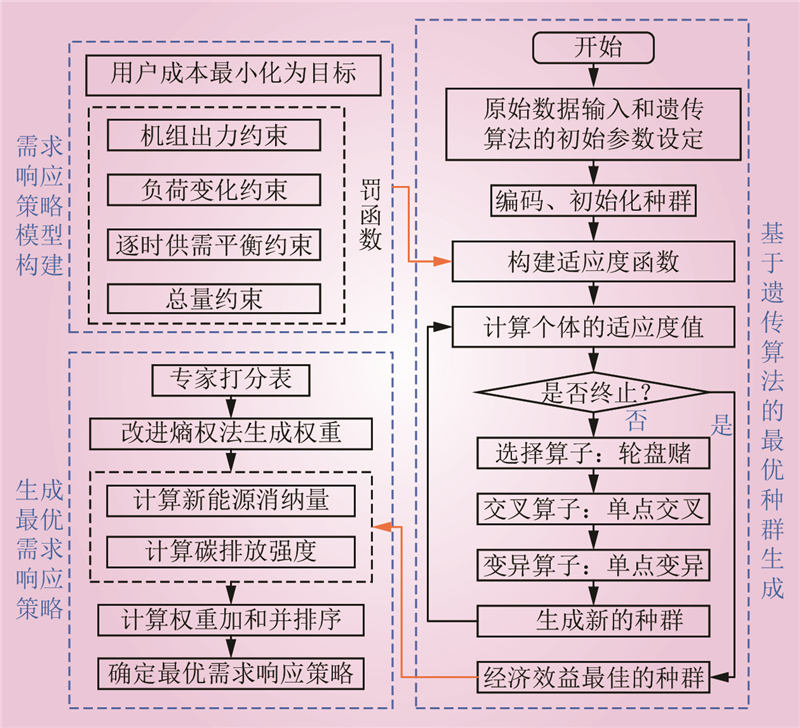

图 1 考虑可调节负荷减碳价值的需求响应运行决策方法

Fig.1 Operation decision-making method for demand response considering carbon reduction value of adjustable loads

图 2 园区电力系统的网络拓扑结构

Fig.2 Network topology structure of park's power system

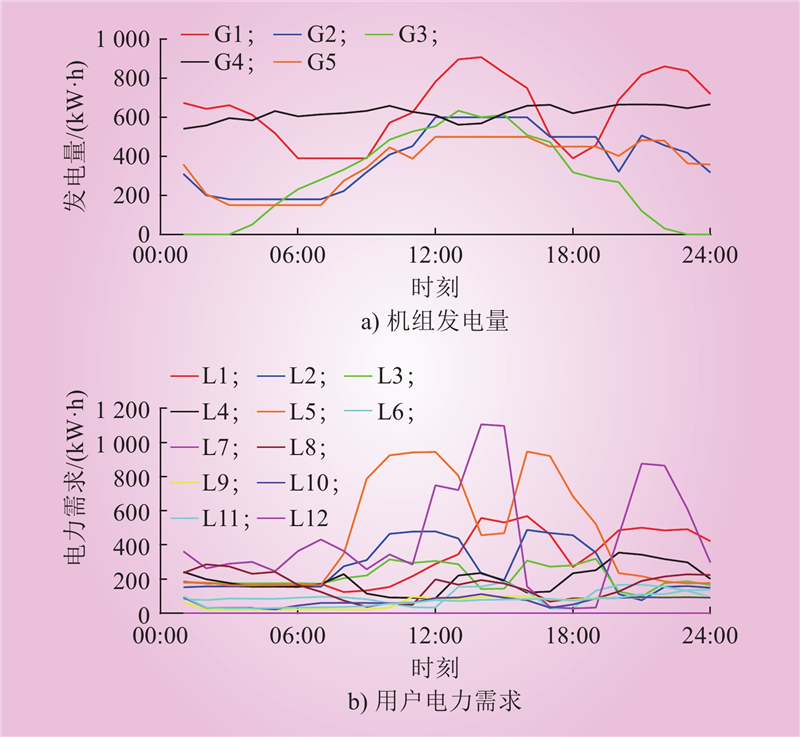

图 3 需求响应策略实施前（基准场景）机组发电量和用户电力需求

Fig.3 Electricity output of units and electricity demand of users before implementation of demand response strategies (base scenario)

表 1 遗传算法的参数设置

Table 1 Parameter setting of genetic algorithm

参数名		参数值
种群大小		100
迭代次数		500
交叉率		0.8
变异率		0.2
选择方式		轮盘赌
目标函数容差		1×10^–8
约束条件容差		1×10^–8

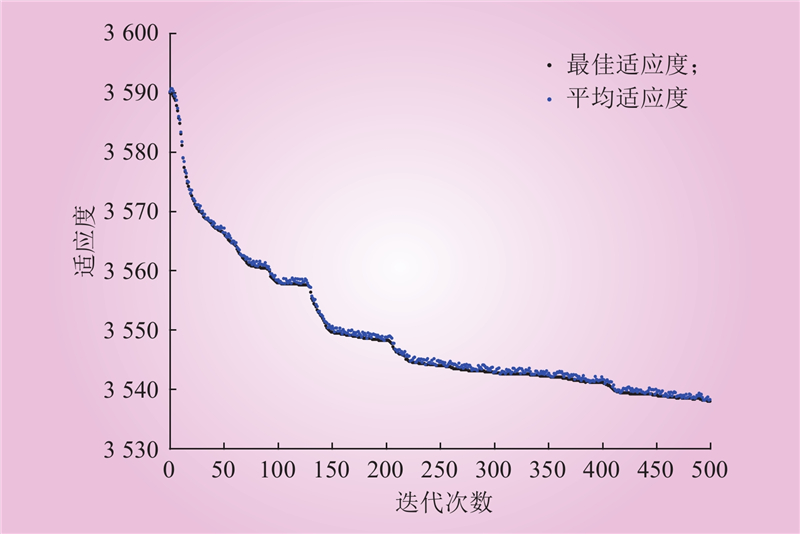

图 4 遗传算法的迭代寻优过程

Fig.4 Iterative optimization process of genetic algorithm

表 2 排序前10的染色体评价指标

Table 2 Evaluation indicators of top 10 chromosomes

染色体编号	经济效益/ 元	新能源消纳量/ (kW·h)	碳排放强度/ (tCO₂·MW^–1)
3	3538.020223	22985.663504	0.600079
62	3538.021444	22985.663205	0.600081
95	3538.023447	22985.757260	0.596880
36	3538.024562	22985.663801	0.600080
60	3538.030573	22985.663811	0.600080
34	3538.040900	22985.740674	0.594854
43	3538.051068	22985.668392	0.626476
8	3538.041506	22985.659628	0.626443
30	3538.041510	22985.661761	0.626476
20	3538.051947	22985.799057	0.621452

表 3 需求响应策略实施前后的典型日碳排放强度对比

Table 3 Comparison of typical daily carbon emission intensities before and after implementation of demand response strategies 单位：tCO2·MW–1

负荷编号	需求响应策略实施前	需求响应策略实施后
L1	0.6367	0.6051
L2	0.6782	0.6030
L3	0.6554	0.6013
L4	0.6352	0.5957
L5	0.6243	0.5828
L6	0.6694	0.6149
L9	0.6579	0.6067
L10	0.6706	0.5968
L11	0.6714	0.5941
L12	0.6525	0.6003
平均	0.6552	0.6001

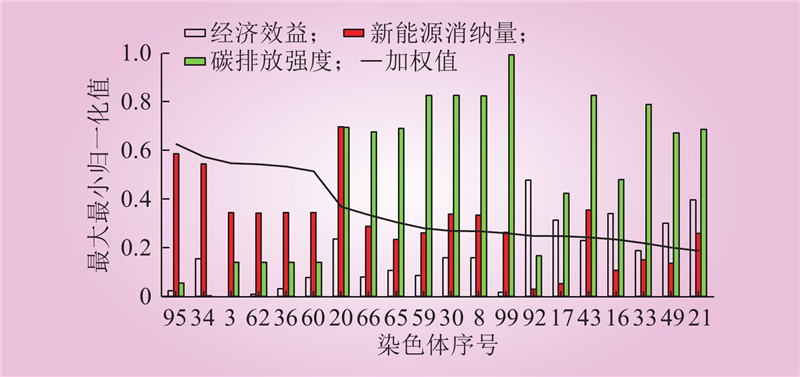

图 5 目标染色体的归一化加权指标排序结果

Fig.5 Ranking result of normalized weighted indicator of target chromosomes

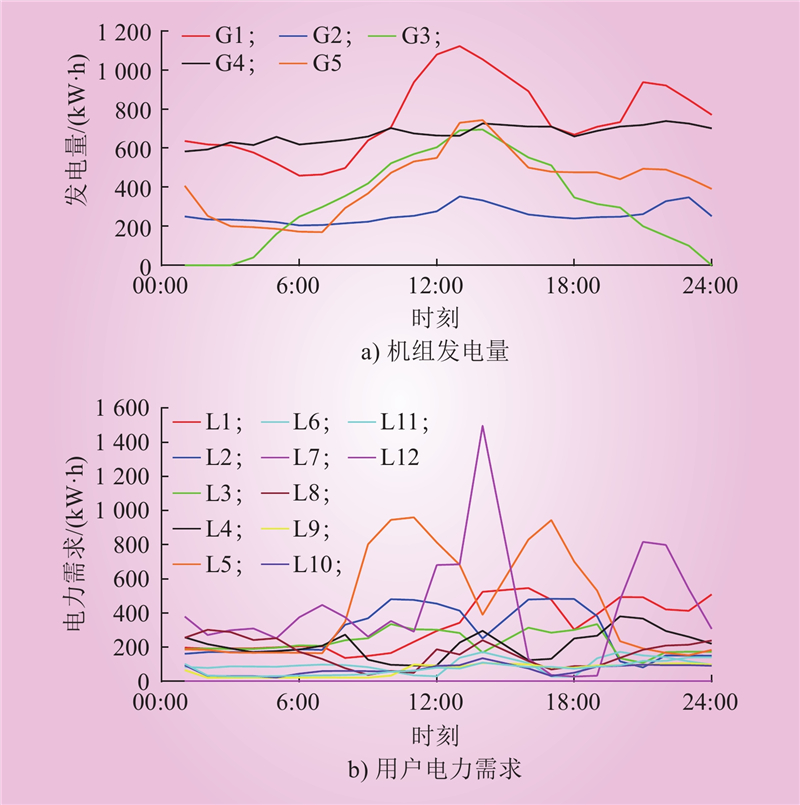

图 6 需求响应策略实施后的机组发电量和用户电力需求

Fig.6 Electricity output of units and electricity demand of users after implementation of demand response strategies

表 4 2类优化方法的结果对比

Table 4 Result comparison of two types of optimization methods

方法	经济成本/ 元	新能源消纳量/ (kW·h)	碳排放强度/ (tCO₂·MW^–1)	最终得分
Gurobi	3435.159422	21521.16273	0.65139	0.435
本文方法	3538.023447	22985.75726	0.59688	0.565
